Hydraulic Integrity and the Pharmaceutical Building Envelope

In the realm of pharmaceutical production, the building envelope is not merely a shelter but a critical component of the facility's sterile containment and operational continuity. When auditing a large-scale pharmaceutical plant, the primary concern for a master roofer is the management of hydrostatic pressure and the prevention of ponding. Pharmaceutical roofs are often cluttered with extensive HVAC arrays, scrubbers, and exhaust fans, which create complex drainage patterns and potential "dead spots" where water can accumulate. If the primary drainage system fails, the resulting weight of standing water—approximately 62.4 pounds per cubic foot—can quickly exceed the structural design load of the roof deck, leading to catastrophic deflection or membrane failure.

A comprehensive engineering audit reveals that traditional internal drains are often insufficient for these facilities due to the risk of internal leaks contaminating clean-room environments. Consequently, we prioritize external conductor heads and high-capacity perimeter drainage. The goal is to ensure that water is moved off the roof surface with maximum velocity and minimum resistance, utilizing a redundant system of primary and secondary discharge paths to eliminate any possibility of water ingress into the production zones below.

• Evaluation of roof slope and taper insulation to ensure positive flow toward discharge points.
• Assessment of membrane-to-metal flashing transitions to prevent capillary action at the conductor head interface.
• Analysis of catchment areas to determine the peak flow rate during 100-year storm events.

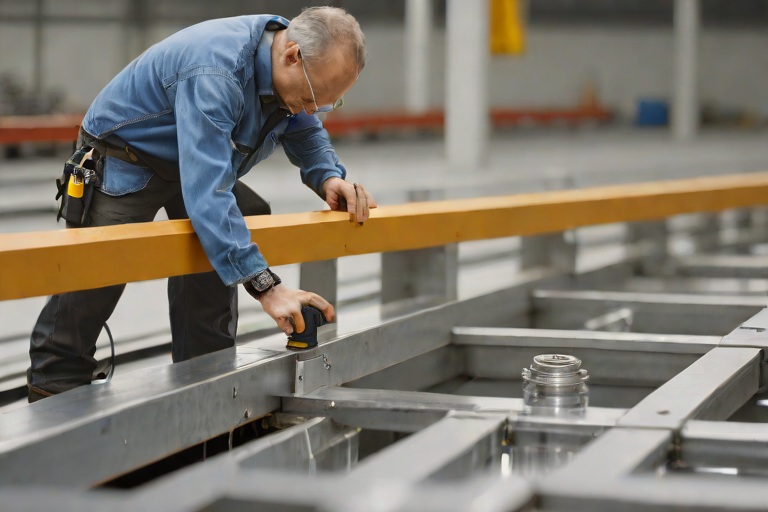

• Verification of the structural capacity of the roof joists to handle temporary water loading during drain blockage.

Engineering Multi-Tier Overflow Relief Weirs

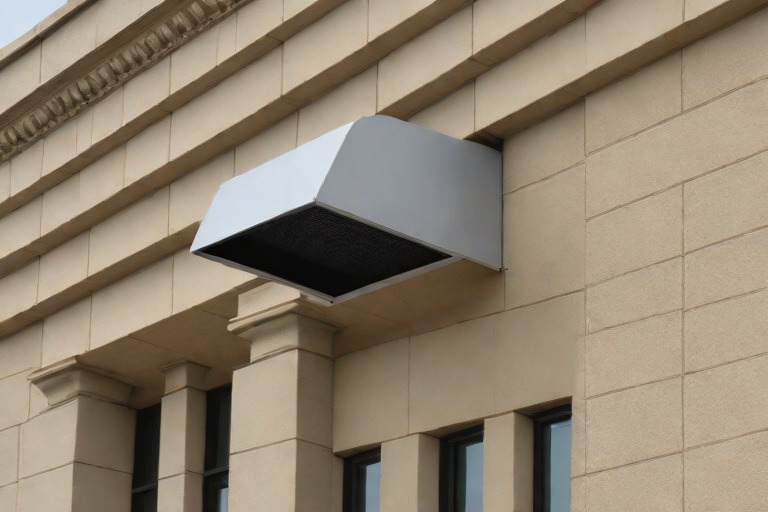

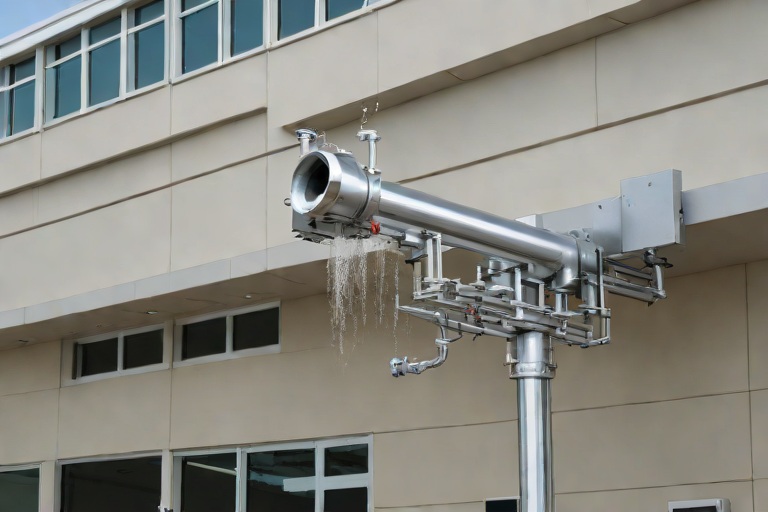

The conductor head serves as the critical transition point between the horizontal roof drainage and the vertical downspout. In a high-stakes pharmaceutical environment, a single-point failure in a downspout can lead to an immediate roof flood. To mitigate this, we implement multi-tier overflow relief weirs. A weir is essentially a calibrated notch or opening in the conductor head that allows water to escape the roof surface before it reaches a depth that threatens the structural integrity of the building. By calculating the weir's crest length and height, we can precisely control the "overflow trigger point."

The engineering logic behind a multi-tier system involves a primary drain for standard precipitation and a secondary, higher-set spillway for extreme weather events. This ensures that the roof never holds more than two inches of standing water. We utilize the Francis Formula for weir flow calculations to ensure that the spillway can discharge water at a rate that matches or exceeds the roof's peak intake. This prevents the "bathtub effect," where water rises faster than it can exit the overflow, potentially forcing water under the flashing and into the building's interior envelope.

• Calculation of the discharge coefficient based on the geometry of the conductor head opening.
• Strategic placement of spillways to avoid discharging water directly onto sensitive equipment or pedestrian walkways.
• Implementation of "scupper-style" overflow paths that bypass the primary downspout entirely.
• Use of precision-cut stainless steel weirs to prevent corrosion and maintain sharp, accurate flow edges.

Structural Bracketing and Mechanical Load Distribution

One of the most overlooked aspects of commercial drainage is the mechanical fastening of the conductor head and downspout assembly. In large pharmaceutical facilities, downspouts can reach heights of 50 to 100 feet, creating a massive vertical column of water. During a heavy rain event, the kinetic energy and weight of this water column, combined with wind-induced oscillation, place immense shear stress on the brackets. Standard light-duty hangers are insufficient; they often fail at the connection point, causing the downspout to pull away from the wall and compromising the building's waterproof seal.

Our specification requires heavy-duty, oversized galvanized steel brackets anchored directly into the structural masonry or steel frame using chemical anchors. We focus on the "lever arm" effect—the distance from the wall to the center of the conductor head. By utilizing reinforced gusset plates and wide-flange brackets, we distribute the load across a larger surface area of the building envelope. This prevents localized crushing of the exterior cladding and ensures that the downspout remains perfectly plumb, which is essential for maintaining the laminar flow of water and preventing turbulence-induced vibration.

• Installation of brackets at intervals not exceeding 10 feet to minimize vibration and sway.
• Application of neoprene isolation gaskets between the bracket and the wall to prevent galvanic corrosion.
• Use of ASTM A123 hot-dip galvanized coatings to ensure a 30+ year lifespan in industrial environments.
• Verification of bolt torque specifications to ensure fasteners do not loosen under thermal cycling.

Freeze-Thaw Dynamics and Material Fatigue Prevention

In colder climates, the freeze-thaw cycle is the primary enemy of the building envelope. When water traps in a downspout and freezes, it expands by approximately 9%, exerting thousands of pounds of internal pressure against the walls of the pipe. In a closed-system downspout, this often results in "bursting," where the metal seams split or the pipe buckles. This is particularly dangerous for pharmaceutical plants, as a burst downspout can spray water back into the building's facade or cause ice dams that back up onto the roof, leading to membrane punctures.

To defend against this, we employ a strategy of material science and strategic venting. We specify heavy-gauge 22-gauge galvanized steel or reinforced aluminum, which provides the necessary hoop strength to resist deformation. Furthermore, we integrate "breathable" conductor heads that allow air to escape as water descends, preventing the vacuum effect that can pull water backward into the roof flashing. In extreme zones, we implement heat-trace cabling wrapped around the downspout and insulated with closed-cell foam jackets to maintain the water in a liquid state until it reaches the storm sewer.

• Utilization of expanded-radius elbows to reduce turbulence and prevent ice accumulation at the bends.
• Installation of thermal expansion joints to allow the metal to contract and expand without stressing the anchors.
• Implementation of

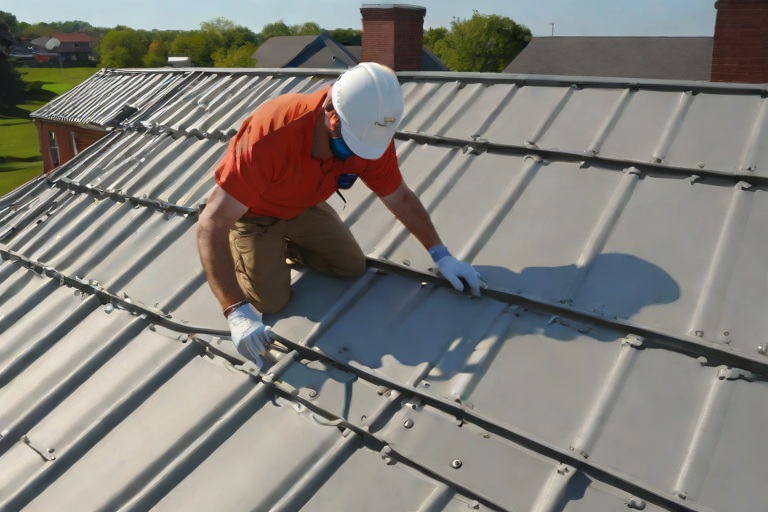

Forensic Audit of Atmospheric Oxidation and Substrate Degradation

The initial engineering audit of the Historic Sanctuary and Education Annex revealed a critical failure in the building envelope's secondary support system. Over several decades, chronic moisture infiltration—stemming from degraded parapet flashing and failed joint sealants—had introduced persistent humidity and liquid water to the underside of the structural steel decking. This environment catalyzed a severe oxidation process, transforming the structural carbon steel into hydrated iron oxide. The resulting rust was not merely superficial; it had progressed into deep-pitting corrosion, compromising the integrity of the steel flutes and threatening the overall diaphragm strength of the roof assembly.

Our diagnostic process utilized ultrasonic thickness gauging to determine the extent of section loss across the deck's profile. We observed that the oxidation was most aggressive at the lap joints and the bearing points where the deck meets the masonry walls, as these areas act as natural collection points for condensation. The presence of "pack rust" between overlapping sheets had created significant internal pressure, forcing the steel to warp and compromising the watertight seal of the overlying membrane. To stabilize the structure, a comprehensive remediation strategy was developed, focusing on the removal of oxidized material and the chemical passivation of the remaining substrate.

• Identification of localized pitting and general surface corrosion across 14,000 square feet of steel decking.
• Measurement of gauge loss in the lower flutes, indicating a 15% to 20% reduction in structural thickness in high-moisture zones.
• Analysis of moisture vapor transmission rates (MVTR) showing inadequate ventilation in the Education Annex attic space.
• Evaluation of existing fastener shear strength to ensure the deck remained securely anchored to the primary structural beams.

Mechanical Surface Preparation and Oxidation Removal Standards

Effective rust remediation begins with the aggressive removal of all non-stable oxidation. Applying a primer over loose rust is a fundamental failure in craftsmanship; the primer simply bonds to the oxide layer, which then delaminates from the base metal. For this project, we implemented a rigorous mechanical cleaning protocol adhering to the Society for Protective Coatings (SSPC) standards. Using industrial-grade wire-brushing and pneumatic needle scalers, our team stripped the steel back to a "commercial" finish. This process removed all loose scale, flaky rust, and previous failed coatings, exposing the raw, conductive surface of the steel.

The mechanical agitation served a dual purpose: it eliminated the corrosive agents trapped within the rust layers and created a micro-profile on the steel surface. This profile is essential for the mechanical keying of the zinc-rich primer. In areas of severe pitting, we utilized precision grinding to smooth out jagged edges, ensuring that the subsequent chemical application would provide a uniform thickness across the entire surface. This stage of the process is the most labor-intensive but is the most critical for ensuring the longevity of the building envelope's structural integrity.

• Execution of SSPC-SP2 and SP3 hand-tool cleaning to remove all loose and flaky mill scale.
• Utilization of high-torque wire wheels to reach the depths of the flutes where oxidation is typically most concentrated.
• Vacuuming of all residual metallic dust and debris to prevent contamination of the primer bond.
• Visual inspection using high-intensity lighting to ensure no "shadow" oxidation remained in the lap joints.

Chemical Passivation and Zinc-Rich Primer Engineering

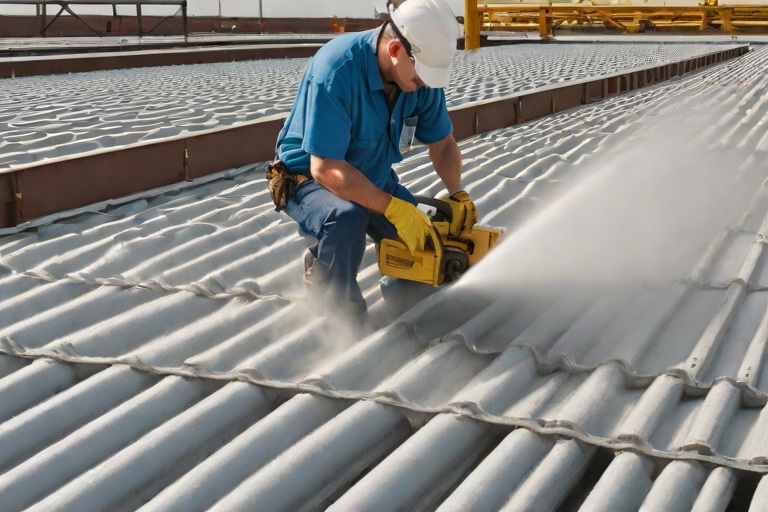

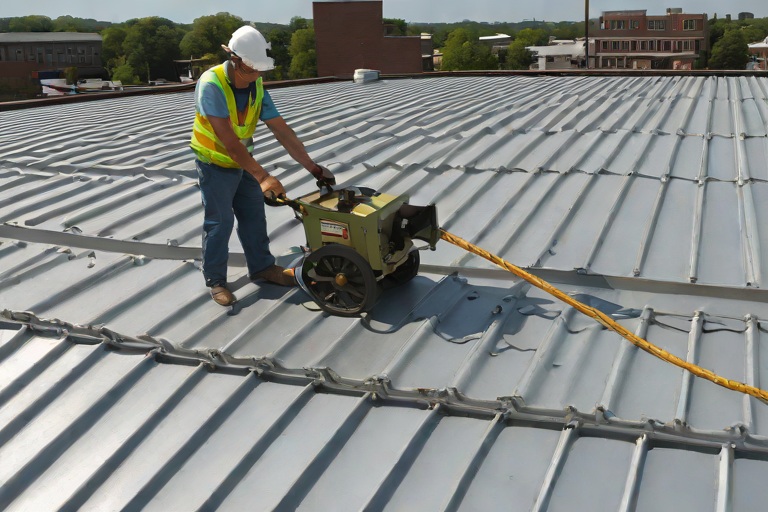

Once the substrate was mechanically cleaned, we transitioned to the passivation phase. The goal was to shift the steel from an active state of oxidation to a passive state. We specified a high-solids, zinc-rich rust-inhibiting primer, which functions through a process known as cathodic protection. In the galvanic series of metals, zinc is more anodic than steel. By saturating the steel surface with a high concentration of zinc dust suspended in a polymer binder, we effectively created a sacrificial anode. If the primer is scratched or breached, the zinc will corrode preferentially, sacrificing itself to protect the underlying structural steel from oxidation.

The application was performed using a combination of airless spraying for broad surfaces and precision brushing for the tight radii of the flutes. This ensured total encapsulation of the steel, leaving no voids for moisture to penetrate. The primer not only seals the steel from atmospheric oxygen but also chemically bonds to the metal, creating a hydrophobic barrier. This passivation process is essential for historic structures where the original steel may have lacked modern galvanization, providing a permanent engineering solution rather than a temporary cosmetic fix.

• Application of a cold-galvanizing compound with a minimum zinc content of 85% in the dried film.
• Strict adherence to Dry Film Thickness (DFT) specifications to prevent cracking or peeling of the primer.
• Implementation of a multi-pass technique to ensure full coverage within the deep-ribbed geometry of the deck.
• Verification of cure times and adhesion testing to ensure the primer had fully integrated with the steel substrate.

Structural Reinforcement and Fastener Integrity Stabilization

The final phase of the remediation focused on the structural restoration of thinned steel flutes and the securing of the fastening system. In areas where the ultrasonic gauging indicated significant section loss, the structural capacity of the deck was compromised. To remedy this, we installed reinforcement plates—custom-cut galvanized steel shims—that were mechanically fastened and welded to the existing deck. This restored the load-bearing capacity of the flutes, ensuring that the roof could handle the dead load of the insulation and the live load of maintenance personnel and snow accumulation.

Simultaneously, we conducted a comprehensive audit of all fasteners. Oxidation often migrates along the fastener shafts, leading to "crevice corrosion" that can cause bolts to snap or screws to pull out. We replaced all compromised fasteners with heavy-duty, hot-dipped galvanized alternatives, ensuring a tight, vibration-resistant fit. By tightening these connections to the specified torque, we restored the rigidity of the structural diaphragm, preventing the subtle shifts in the deck that often lead to cracks in the overlying roofing membrane. This holistic approach ensures that the Sanctuary and Education Annex are protected from the inside out.

• Installation of reinforcement plates in zones where steel thickness had fallen below the minimum engineering threshold.
• Replacement of oxidized fasteners with ASTM A153 galvanized hardware to prevent galvanic corrosion.
• Application of a final sealant bead at the intersection of the steel deck and the masonry perimeter.
• Final structural sign-off confirming the restoration of the deck's original design load capacity.

The Zero-Failure Mandate for Financial Data Vault Envelopes

In the realm of commercial building envelope engineering, few assets demand a higher standard of precision than the data vaults of major financial institutions. These structures are not merely buildings; they are critical infrastructure housing the digital ledger of global commerce. When managing these assets, the margin for error is non-existent. A single breach in the roof membrane or a failed flashing detail does not simply result in a ceiling stain; it threatens the integrity of multi-million dollar server arrays and catastrophic data loss. As a master roofer, I approach these audits with a forensic mindset, recognizing that the building envelope is a singular, integrated system where the failure of a minor component can lead to systemic collapse.

A standard visual inspection is fundamentally insufficient for high-security data vaults. Visuals can deceive, masking subsurface voids or hairline fractures in sealant joints that only manifest under specific thermal loads. A true forensic maintenance audit requires a "boots-on-the-roof" philosophy, where the engineer engages physically with the materials to verify their performance against ASTM and ANSI standards. We are not looking for leaks that have already happened; we are hunting for the conditions that make a future leak inevitable.

• Evaluation of thermal bridging points where heat loss creates condensation and internal moisture.
• Assessment of the continuity of the vapor barrier to prevent interstitial condensation.
• Verification of the structural integrity of the roof deck under the weight of heavy HVAC cooling units.
• Analysis of the interface between the primary roof membrane and the high-security wall penetrations.

Forensic Probing of Automated Seams and Lap Integrity

Modern commercial roofing often relies on automated seaming machinery to ensure consistency across vast surface areas. However, automation is only as reliable as its last calibration. In my experience, "automated" does not mean "perfect." We frequently encounter "cold welds" or incomplete rolls where the machinery failed to achieve the required pressure or heat, leaving a microscopic gap that is invisible to the naked eye but an open invitation to capillary action. To combat this, we employ a rigorous probing protocol using precision hand tools.

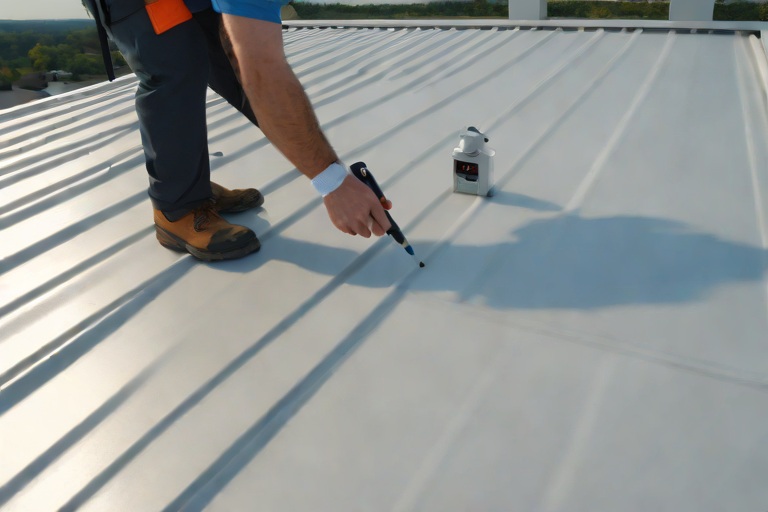

Using a calibrated seam probe, we physically test the resistance and closure of every critical lap. By inserting a thin, high-tensile steel probe into the seam, we can detect voids that indicate a failure in the mechanical lock. If the probe penetrates the seam, the integrity of the envelope is compromised. This is especially critical in financial vaults where the roof may be subject to extreme thermal expansion and contraction cycles due to the massive heat output of the server farms below. When the metal expands, these gaps can widen, creating a direct path for wind-driven rain to enter the building.

• Systematic probing of all longitudinal and transverse seams to ensure a watertight seal.
• Identification of "fish-mouths" or distorted metal sections caused by improper installation.
• Testing the elasticity of sealants used in lap joints to ensure they haven't become brittle.
• Verification of the overlap distance to ensure it meets or exceeds the manufacturer's engineering specifications.

Mechanical Fastening, Clamping Torque, and Perimeter Cleats

The most vulnerable points of any commercial roof are the penetrations and the perimeters. In a data vault environment, the drainage system is the primary line of defense. We focus heavily on the drain bowl clamping torque. A drain bowl that is merely "tight" is not necessarily secure. Over time, vibration from roof-mounted equipment and thermal cycling can loosen fasteners. We utilize calibrated torque wrenches to ensure that every clamping ring is tightened to the exact foot-pound specification required by the engineering blueprints. Under-torqued fasteners lead to gasket failure, while over-torqued fasteners can crush the gasket, creating a leak path.

Furthermore, the perimeter cleats—the components that secure the roof edges against wind uplift—must be scrutinized. In high-wind events, the perimeter of the roof experiences the highest pressure differentials. If the cleats are improperly spaced or if the fasteners have suffered from galvanic corrosion, the entire roof section can peel back, exposing the interior of the vault. We inspect for "backing out" of screws and the presence of oxidation that could compromise the structural bond between the cleat and the substrate.

• Precision torque testing of all drain bowl fasteners to prevent hydrostatic leakage.
• Inspection of perimeter cleats for signs of metal fatigue or fastener failure.
• Verification of the sealant bead continuity around all curb and penetration flashings.
• Assessment of the wind-uplift resistance based on current ANSI standards for the local geography.

Engineering Reporting and Lifecycle Prognosis

The culmination of a forensic audit is not a simple checklist, but a comprehensive engineering report. A master-level report translates physical findings into a risk-mitigation strategy. We document every failure point with photographic evidence and precise coordinates on the roof plan. This allows the facility managers of the financial institution to understand the exact location of the vulnerability and the urgency of the repair. We categorize findings into "Immediate Critical," "Scheduled Maintenance," and "Lifecycle Monitoring," ensuring that the budget is allocated to the highest-risk areas first.

Beyond the immediate repairs, the report provides a lifecycle prognosis. By analyzing the current state of the polymers, the oxidation levels of the metal, and the integrity of the fasteners, we can predict the remaining useful life (RUL) of the roof system. This shift from reactive maintenance to proactive engineering allows the institution to plan for a roof replacement years before a failure occurs, avoiding the chaos of emergency repairs over a live data center. This is the essence of professional building envelope management: replacing guesswork with empirical data.

• Detailed mapping of all identified anomalies and their corresponding risk levels.
• Quantification of material degradation using standardized wear scales.
• Provision of a prioritized remediation schedule based on the severity of the breach.
• Long-term asset management projections to optimize the capital expenditure for roof replacement.

The Criticality of the CSO Building Envelope

Telecommunications Central Switching Offices (CSOs) represent some of the most high-stakes environments in commercial infrastructure. These facilities house massive arrays of switching gear, fiber-optic terminations, and critical power distribution systems that cannot tolerate a single drop of moisture. In the realm of building envelope engineering, the roof is not merely a cover; it is the primary defense system for mission-critical hardware. For these assets, we specify a 60-mil Thermoplastic Polyolefin (TPO) membrane, providing a superior thickness that resists puncture and offers enhanced thermal stability compared to standard 45-mil alternatives.

The engineering challenge in a CSO environment is the mitigation of risk. A failure in a seam is not just a maintenance issue; it is a potential systemic outage. Therefore, the transition from manual heat-welding to robotic hot-air fusion is a mandatory evolution in quality control. By removing the variability of human error, we ensure that the molecular bond between membrane sheets is consistent across thousands of linear feet of seam. This approach transforms the roof from a collection of overlapped sheets into a monolithic, waterproof shield.

• Mitigation of catastrophic water ingress over sensitive switching equipment.
• Utilization of 60-mil TPO for increased puncture resistance and UV longevity.
• Elimination of human variability through the deployment of automated robotic welding systems.
• Adherence to stringent building envelope standards to ensure 24/7 operational continuity.

Robotic Fusion Parameters and Thermal Calibration

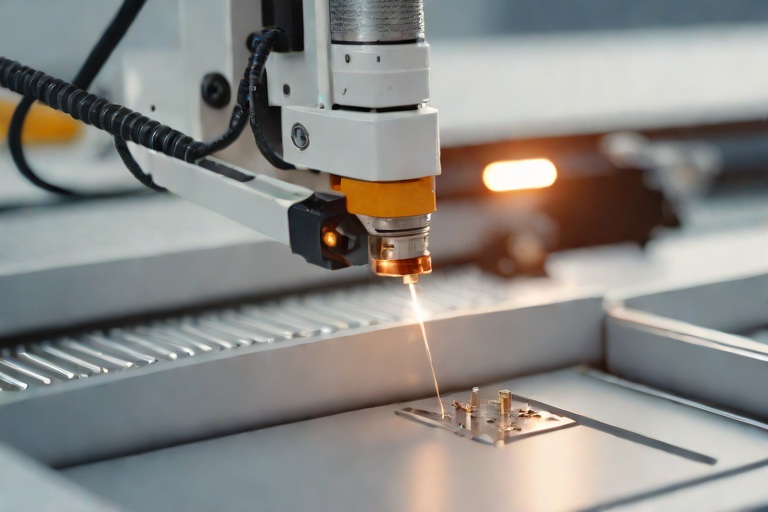

The science of TPO welding relies on the "Heat-Pressure-Time" triangle. To achieve a true fusion weld, the robotic system must be calibrated to a precise temperature of 1,000°F. At this temperature, the TPO polymer reaches its melting point, allowing the molecular chains of the overlapping membranes to intermingle and fuse into a single entity. If the temperature drops below this threshold, the result is a "cold weld," which may appear sealed but lacks the structural integrity to withstand thermal expansion and contraction. Conversely, exceeding the calibrated temperature risks scorching the membrane, which degrades the polymer and creates a brittle seam prone to premature cracking.

Nozzle pressure and travel velocity are equally critical. The robotic welder utilizes a high-pressure air nozzle to force the 1,000°F air directly into the overlap, ensuring that the heat penetrates the full thickness of the 60-mil membrane. The travel velocity must be synchronized with the heat output; if the robot moves too quickly, the material does not reach the required fusion temperature. If it moves too slowly, the heat dwell time becomes excessive, leading to material deformation. We calibrate these machines to a constant velocity that ensures a uniform weld bead across the entire width of the seam.

• Calibration of hot-air blowers to a constant 1,000°F to ensure complete polymer fusion.
• Optimization of nozzle pressure to penetrate the 60-mil membrane thickness.
• Synchronization of travel velocity to prevent both cold welds and thermal scorching.
• Real-time monitoring of heat output to adjust for ambient temperature fluctuations during installation.

Destructive Test-Cut Peel Audits and Validation

Visual inspection is insufficient for a high-security building envelope. To truly validate the integrity of the robotic fusion, we implement a rigorous destructive test-cut peel audit. This process involves taking a physical sample from the completed seam at predetermined intervals. Using a precision utility blade, a technician cuts a sample from the seam and performs a manual "peel" test. The goal is to determine whether the bond strength of the weld exceeds the internal strength of the membrane itself.

In a successful peel audit, the membrane must fail before the weld does. This is known as a "membrane tear." If the TPO rips apart, it proves that the fusion weld is stronger than the material it is joining, effectively creating a monolithic sheet. If the weld separates cleanly from the overlapping sheet—a condition known as "separation"—the weld is deemed a failure. This failure indicates a lack of proper fusion, likely caused by a dip in temperature or a lapse in nozzle pressure. These audits are conducted in accordance with ASTM standards for thermoplastic roofing, ensuring that the engineering data is empirical and reproducible.

• Execution of destructive test-cuts to verify the molecular bond of the TPO seams.
• Differentiation between a "membrane tear" (pass) and a "seam separation" (fail).
• Implementation of a statistically significant sampling rate across the entire roof surface.
• Documentation of peel results to provide a verifiable audit trail for the facility owner.

Engineering Synthesis and Long-Term Envelope Integrity

The integration of robotic fusion and destructive peel audits represents the gold standard in commercial roofing engineering. By treating the roof as a precision-engineered component rather than a simple construction project, we ensure the long-term viability of the CSO infrastructure. The 60-mil TPO system, when installed with robotic precision, provides a seamless barrier that is virtually impervious to the hydrostatic pressures associated with heavy rain or standing water. This level of rigor is necessary because the cost of a roof failure in a telecommunications hub far outweighs the initial investment in high-end auditing processes.

Ultimately, the goal of the Aquashield Corporate audit is to provide a certified guarantee of envelope integrity. By controlling the variables of temperature, pressure, and velocity, and then validating those variables through destructive testing, we eliminate the guesswork. The result is a building envelope that meets and exceeds ANSI and ASTM requirements, providing the facility managers with the peace of mind that their critical switching equipment is protected by a scientifically validated roofing system.

• Transformation of the roof into a monolithic shield through precise thermal engineering.
• Reduction of long-term maintenance costs by eliminating common seam failure points.
• Provision of empirical data to justify the lifecycle expectancy of the roofing asset.
• Ensuring total compliance with commercial building envelope engineering standards for mission-critical facilities.

Comprehensive Building Envelope Audit and Substrate Diagnostics

In the realm of heavy manufacturing fabrication plants, the building envelope is subjected to extreme stressors that far exceed standard commercial warehouse conditions. Our engineering audit begins with a forensic analysis of the existing roof assembly, typically a degraded modified bitumen or aged single-ply membrane that has reached the end of its design life. In these industrial environments, we frequently encounter "thermal shock" cycles where internal fabrication heat—generated by smelting, welding, or heavy machining—clashes with external ambient temperatures, leading to significant substrate movement and fatigue cracking.

A master-level audit does not merely look for leaks; it evaluates the structural integrity of the decking and the chemical composition of the surface contaminants. In heavy manufacturing, the presence of airborne hydrocarbons, metallic dust, and industrial lubricants often creates a compromised surface tension that would cause standard coatings to delaminate. We utilize ASTM D4258 standards to evaluate surface cleanliness and ensure that the substrate is mechanically sound before any chemical application begins.

• Assessment of existing flashing failures at parapet walls and HVAC curb penetrations.
• Evaluation of moisture vapor transmission rates (MVTR) within the insulation layers.
• Identification of "hot spots" using infrared thermography to locate trapped moisture.
• Analysis of substrate pH levels to prevent saponification of the coating system.
• Verification of structural slope to ensure positive drainage and minimize ponding water.

Substrate Stabilization and Bleed-Blocking Epoxy Primers

The primary failure point in industrial roof restorations is the migration of oils and resins from the old substrate into the new coating, a phenomenon known as "bleed-through." In a heavy fabrication plant, old bitumen or industrial lubricants often leach upward through the membrane. To counteract this, we specify a high-performance, bleed-blocking epoxy primer. This primer acts as a chemical barrier, creating a cross-linked molecular bond that seals the substrate and prevents contaminants from compromising the adhesion of the silicone topcoat.

The epoxy primer is engineered for high-solids content, ensuring that it does not shrink upon curing. By establishing a rigid, non-porous foundation, we transform a compromised surface into a high-energy substrate. This process is critical because high-solids silicone requires a stable surface to achieve its full tensile strength. Without this stabilization phase, the risk of osmotic blistering increases, particularly in environments where the building experiences high internal humidity and temperature fluctuations.

• Application of solvent-free epoxy primers to neutralize oil-saturated surfaces.
• Mechanical abrasion of the substrate to increase the surface profile for maximum mechanical keying.
• Sealing of all perimeter joints and fasteners to eliminate potential points of ingress.
• Curing time management to ensure the primer has reached full chemical stability before the silicone overlay.
• Use of specialized primers for transition zones between metal decking and masonry walls.

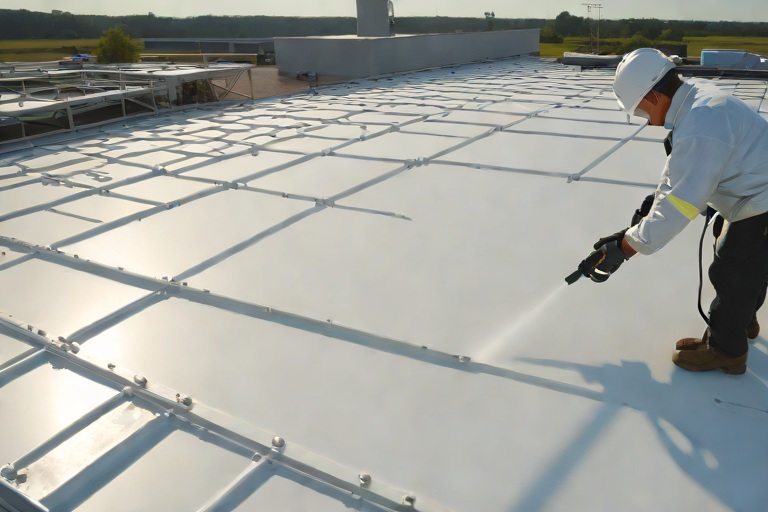

Engineering the 30-Mil Monolithic Silicone Membrane

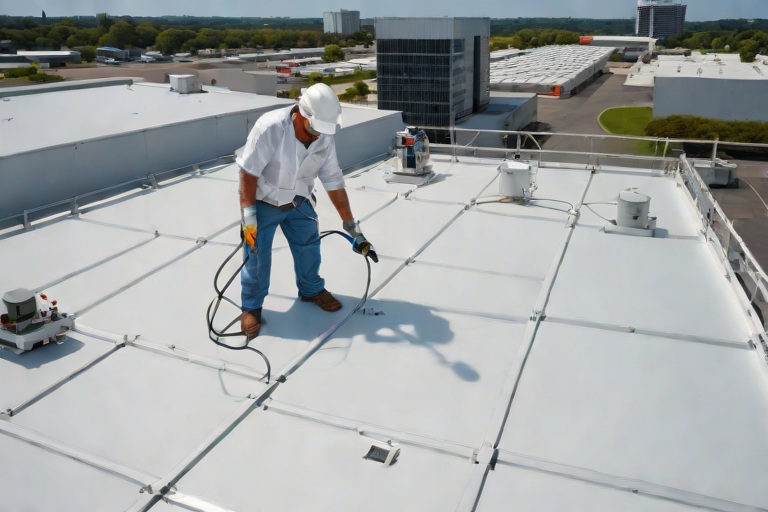

The core of the restoration is the application of a high-solids silicone monolithic coating, engineered to a precise 30-mil Dry Film Thickness (DFT). Unlike traditional multi-layer systems that rely on seams or laps—which are inherent points of failure—a monolithic coating creates a single, seamless rubberized shield across the entire roof surface. This 30-mil specification is a critical engineering threshold; it provides sufficient bulk to bridge small cracks in the substrate while remaining flexible enough to accommodate the thermal expansion and contraction of the building's steel frame.

From a material science perspective, high-solids silicone is superior to acrylics or urethanes in industrial settings because it is inherently UV-stable and hydrophobic. It does not break down under intense solar radiation and maintains its elasticity over decades. The application process involves a controlled spray or roller technique to ensure uniform thickness, eliminating "thin spots" that could lead to premature wear. This thickness ensures that the membrane can withstand the occasional impact of industrial debris and the hydrostatic pressure of ponding water without losing its structural integrity.

• Utilization of high-solids formulations to minimize shrinkage and maximize DFT accuracy.
• Implementation of a seamless "monolithic" application to eliminate all mechanical seams.
• Strict adherence to mil-gauge thickness checks during the curing process.
• Integration of reinforced silicone flashing at all critical transition points.
• Ensuring a cohesive bond that allows the membrane to move as a single unit with the building.

Albedo Reflectance and Zero-Downtime Operational Metrics

The final phase of the engineering strategy focuses on the Albedo effect—the measure of the roof's ability to reflect solar radiation. By specifying a coating that reflects 88% of solar radiation, we significantly reduce the "Urban Heat Island" effect and lower the internal cooling load of the fabrication plant. In a heavy manufacturing environment, reducing the ambient temperature of the roof deck translates directly into lower HVAC energy consumption and a safer, more comfortable working environment for the personnel on the plant floor.

Perhaps the most critical requirement for our corporate clients is the "zero-downtime" application. Manufacturing plants cannot afford to cease operations for roof maintenance. Because the high-solids silicone system is applied as a liquid-applied membrane, it requires no hot tar kettles, no open flames, and no disruptive tearing-off of the old roof. The system is installed while the plant remains fully operational, with the coating curing rapidly to provide immediate protection. This approach eliminates the risk of interior water damage during the restoration process and ensures that production schedules remain uninterrupted.

• Reduction of solar heat gain coefficient (SHGC) to lower peak energy demands.
• Achievement of an 88% solar reflectance index (SRI) to mitigate thermal absorption.
• Elimination of production shutdowns through the use of cold-applied liquid membranes.
• Reduction in carbon footprint by extending the life of the existing roof assembly.
• Long-term maintenance reduction due to the self-cleaning properties of high-grade silicone.

Structural Dynamics and Differential Settlement in Logistics Hubs

In the realm of large-scale logistics distribution hubs, the building envelope is subjected to extreme mechanical stresses that far exceed those of standard commercial warehouses. These facilities often span several hundred thousand square feet, frequently utilizing a multi-wing configuration to accommodate various loading docks and sorting zones. The primary engineering challenge lies in the coefficient of thermal expansion and the inevitable differential structural settlement. When a building reaches this scale, it can no longer be treated as a rigid body; instead, it must be engineered as a series of independent structural blocks that can shift, rotate, and expand without compromising the integrity of the roof membrane.

Differential settlement occurs when the massive weight of the facility, combined with the dynamic loads of heavy machinery and high-bay racking, causes uneven compression of the subgrade soil. This movement creates shear forces at the intersections of the building wings. Without properly engineered expansion joints, these forces manifest as "alligatoring" of the roof membrane, sheared fasteners, or catastrophic failure of the parapet flashing. A master-level audit reveals that the most critical failure points are typically located at the transition zones where the primary structural frame meets the secondary cladding systems.

• Thermal cycling resulting in longitudinal expansion and contraction of steel girders.
• Subgrade subsidence leading to angular distortion across the building footprint.
• Vibrational fatigue caused by heavy-duty HVAC units and automated sorting conveyors.
• Wind-induced racking forces that place lateral tension on the building envelope.
• Material incompatibility between the concrete slab-on-grade and the steel superstructure.

Engineering the Heavy-Gauge Neoprene Movement Transition

To mitigate the risks of structural shear, we implement heavy-gauge neoprene movement transitions, specifically designed as elastomeric bellows. Neoprene is selected over standard EPDM or PVC for these specific transitions due to its superior shore hardness and resistance to compression set. The "bellows" geometry is critical; by creating a series of convolutions in the neoprene, we allow the joint to expand and contract axially while maintaining a constant, watertight seal. This design ensures that the stress is distributed evenly across the elastomer rather than concentrating it at a single fold point, which would otherwise lead to premature fatigue and cracking.

From a material science perspective, the gauge of the neoprene must be precisely calibrated to the anticipated movement range of the building. A transition that is too rigid will transfer loads into the roof membrane, causing it to tear, while a transition that is too flexible may "balloon" under wind loads, creating pockets for standing water. We specify high-grade, chloroprene-based neoprene that adheres to ASTM standards for tensile strength and elongation. This ensures that the bellows can withstand thousands of cycles of expansion and contraction over a twenty-year lifecycle without losing its elastic memory.

• Utilization of Shore A hardness ratings to balance flexibility with puncture resistance.
• Convolution geometry designed to maximize axial movement while limiting lateral drift.
• Integration of reinforced neoprene inserts to prevent over-extension during extreme seismic events.
• Application of UV-stabilant coatings to prevent ozone degradation of the elastomer.
• Precision-cut dimensions to ensure a snug fit within the structural gap, reducing reliance on sealants.

Critical Interface and Watertight Tie-in Protocols

The most technically demanding aspect of a movement transition is the tie-in where the neoprene bellows meet the primary roofing membrane, such as a TPO or Modified Bitumen system. This interface is the primary point of failure in most commercial audits. Because neoprene and TPO have different chemical compositions and thermal expansion rates, they cannot be simply glued together. A master roofer employs a multi-stage flashing protocol that creates a redundant moisture barrier, ensuring that water is shed away from the joint rather than being drawn in via capillary action.

Our protocol begins with the installation of a reinforced flashing base that extends at least 12 inches beyond the movement joint. We utilize a combination of mechanical termination bars and high-performance, modified-silane sealants that remain flexible at low temperatures. The transition is then capped with a custom-fabricated metal cover plate, which is floating—meaning it is fastened on one side and allowed to slide on the other. This prevents the metal from buckling as the building moves. The final seal is achieved through a liquid-applied flashing membrane that bridges the gap between the rigid metal and the flexible neoprene, creating a seamless, monolithic waterproof skin.

• Installation of stainless steel termination bars to secure the membrane edges.
• Application of high-solids flashing primers to ensure maximum adhesion to the neoprene substrate.
• Implementation of a "floating" metal cover system to accommodate longitudinal shift.
• Use of heat-welded TPO strips for primary seams, followed by a secondary liquid-applied sealant.
• Strict adherence to lap-seam requirements to prevent hydrostatic pressure buildup.

Long-term Lifecycle Audit and Failure Analysis

A building envelope is only as successful as its maintenance regimen. For logistics hubs, a quarterly engineering audit is mandatory to detect early signs of fatigue in the expansion joints. We look for "stress whitening" in the neoprene, which indicates that the material has been stretched beyond its elastic limit. Additionally, we examine the perimeter of the tie-ins for any signs of separation or "tenting," where the membrane lifts away from the substrate. Because these buildings are subject to constant vibration, fasteners can back out over time, leading to a loss of tension in the flashing system.

Failure analysis often reveals that leaks occur not because the neoprene failed, but because the drainage patterns around the joint were ignored. If water ponds at the edge of a movement transition, the hydrostatic pressure can force moisture through the smallest microscopic void in the sealant. Our audit process includes a thermal imaging scan to identify subsurface moisture accumulation and a rigorous check of the slope-to-drain ratios. By treating the expansion joint as a living part of the building's anatomy, we ensure that the logistics hub remains operational and dry, regardless of the structural shifts occurring beneath the surface.

• Quarterly visual inspections for ozone cracking and UV-induced brittleness.
• Infrared thermography to detect trapped moisture within the bellows assembly.
• Verification of fastener torque and termination bar stability.
• Assessment of sealant elasticity using a durometer to ensure no hardening has occurred.
• Analysis of drainage flow to ensure zero standing water at the transition interfaces.

Lipid-Induced Degradation of Single-Ply Membranes

In the high-stakes environment of a commercial automotive assembly plant, the building envelope is subjected to extreme thermal cycling and chemical exposure. One of the most insidious threats to roof longevity is the discharge of animal fat lipids from industrial cafeteria exhaust systems. When these lipids are vented directly onto a single-ply membrane—such as Thermoplastic Polyolefin (TPO), Polyvinyl Chloride (PVC), or Ethylene Propylene Diene Monomer (EPDM)—they do not simply sit on the surface. Instead, they initiate a process of chemical degradation that compromises the structural integrity of the polymer chain.

The primary mechanism of failure is plasticizer migration. In PVC membranes, lipids act as aggressive solvents that leach out the plasticizers required to keep the membrane flexible. As these chemicals migrate, the membrane becomes brittle, leading to micro-cracking and premature fatigue. In TPO systems, the lipids can penetrate the weld seams, compromising the heat-welded bond and creating preferential pathways for water infiltration. This is not a simple surface stain; it is a fundamental alteration of the material science of the roofing system.

• Softening of the substrate leading to "pitting" or localized depression.
• Accelerated UV degradation due to the chemical breakdown of the top-layer stabilizers.
• Loss of tensile strength and increased susceptibility to puncture.
• Failure of seam integrity resulting in systemic leaks during heavy precipitation events.

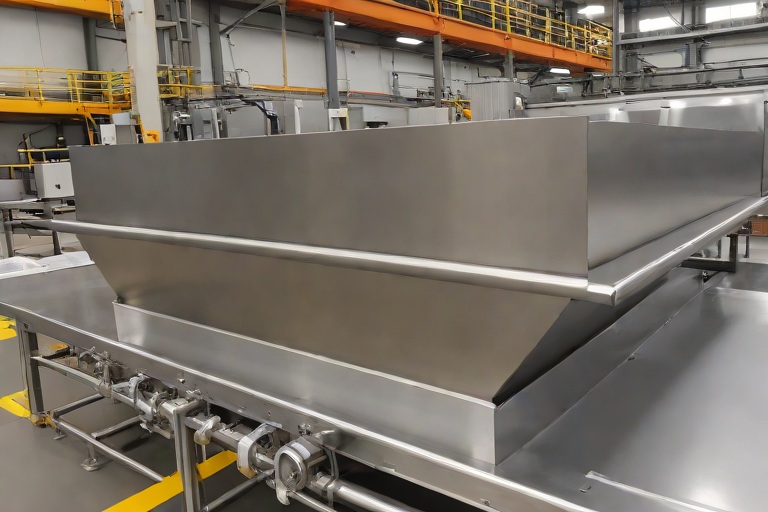

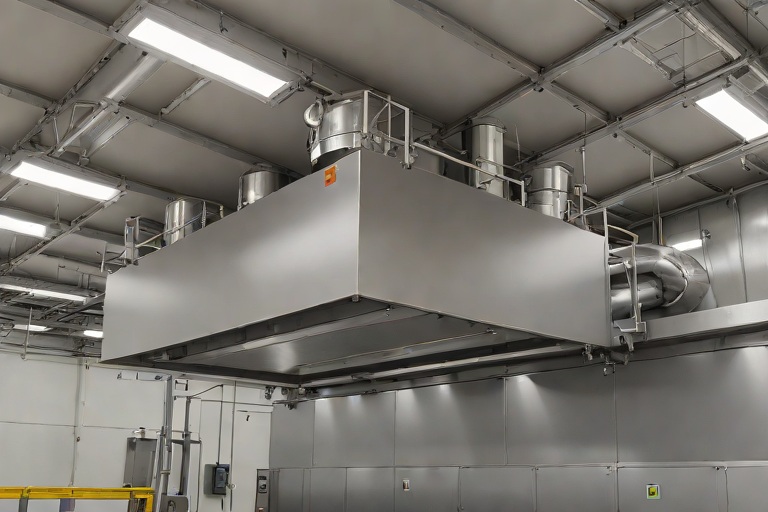

Engineering 304 Stainless Steel Catchment Shielding

To mitigate the risk of lipid degradation, a master-level engineering approach requires the installation of a dedicated catchment system. We specify 304 Stainless Steel for these shields because of its superior corrosion resistance and its ability to withstand the caustic nature of commercial degreasers used during plant maintenance. The shielding is designed as a non-penetrating, mechanically fastened assembly that creates a physical barrier between the exhaust vent and the roofing membrane.

The geometry of the catchment box is critical. A shallow-slope pitch is engineered into the base of the shield to ensure that accumulated grease is directed toward a designated collection point rather than pooling. The edges of the 304 stainless steel are hemmed to prevent sharp edges from cutting into the membrane during thermal expansion and contraction cycles. Furthermore, the interface between the shield and the roof is sealed using a high-performance, chemically resistant sealant that maintains a watertight seal without bonding permanently to the membrane, allowing for future replacement without damaging the roof deck.

• Fabrication of custom-gauge 304 SS pans with integrated drip edges.
• Utilization of thermal expansion joints to prevent stress fractures in the metal.
• Implementation of a "floating" mount system to decouple the shield from the membrane.
• Integration of grease-trap sumps for simplified facility maintenance and cleaning.

Sacrificial Chemical-Resistant Coatings and Barrier Layers

While stainless steel shielding provides a primary defense, the surrounding area often remains vulnerable to aerosolized grease and splatter. In these zones, we implement a sacrificial coating strategy. This involves the application of a high-solids, liquid-applied polyurethane or a modified asphaltic coating that is specifically engineered for chemical resistance. The purpose of this layer is to act as a "sacrificial anode" for the roof; the coating absorbs the chemical attack of the lipids, protecting the primary single-ply membrane beneath it.

The application process must follow strict ASTM standards for surface preparation. The membrane is first scrubbed with a non-residue degreaser and neutralized to ensure maximum adhesion. The sacrificial coating is then applied in multiple passes to achieve a minimum dry film thickness (DFT) that can withstand the abrasive nature of industrial cleaning. Because these coatings are designed to be sacrificial, they are scheduled for re-application every 24 to 36 months, ensuring that the primary building envelope remains untouched by corrosive fats.

• Application of cross-linked polyurethanes for maximum lipid resistance.
• Use of reinforced scrim layers to prevent coating delamination under high foot traffic.
• Verification of chemical compatibility via ASTM D5402 standards.
• Implementation of a color-coded coating system to easily identify areas of wear.

Envelope Audit Methodology and Lifecycle Management

A comprehensive engineering audit of an automotive assembly plant requires a systematic approach to building envelope forensics. We begin with infrared thermography to identify areas of subsurface grease accumulation, which often manifest as anomalous thermal signatures due to the change in the membrane's emissivity. This is followed by physical core sampling in high-risk zones to evaluate the depth of lipid penetration and the current state of the plasticizer levels within the polymer matrix.

The goal of the audit is to move from a reactive maintenance posture to a proactive lifecycle management strategy. By documenting the rate of degradation and the performance of the 304 stainless steel shields, we can predict the failure points of the roof system with high accuracy. This data-driven approach allows the plant operators to schedule maintenance during planned shutdowns, avoiding costly emergency repairs and preventing production downtime caused by interior leaks in sensitive assembly areas.

• Quarterly visual inspections of all grease catchment boxes for sediment buildup.
• Annual thickness testing of sacrificial coatings using magnetic gauges.
• Semi-annual seam integrity tests using vacuum box testing in high-lipid zones.
• Detailed mapping of all roof penetrations and exhaust vents to track degradation patterns.

Forensic Analysis of Structural Joist Deflection and Ponding Cycles

In the realm of mission-critical data centers, the roof is not merely a cover but a primary defensive shield for millions of dollars in server infrastructure. During our recent engineering audit for a clear-span facility, we identified a systemic failure in the roof's drainage efficiency caused by center-span joist deflection. When structural steel joists are pushed to their maximum clear-span limits, the inevitable "sag" or deflection—often measured against L/240 or L/360 standards—creates subtle depressions in the roof deck. In a perfectly balanced system, these depressions are negligible; however, in a commercial envelope, they initiate a catastrophic feedback loop known as ponding instability.

Ponding instability occurs when the weight of accumulated rainwater further deflects the structural members, which in turn increases the volume of water the roof can hold. This creates a localized "bowl" effect that traps water for extended periods, far exceeding the 48-hour window defined by industry standards for acceptable drainage. Our forensic team utilized high-precision laser leveling and infrared thermography to map these depressions, discovering that the center-span deflection had reached a critical threshold where the existing slope was completely negated.

• Utilization of laser-level forensics to establish a precise baseline of the roof's current elevation.
• Calculation of dead-load versus live-load deflection to determine the structural capacity of the joists.
• Identification of "critical low points" where hydrostatic pressure is highest on the membrane.
• Analysis of the structural steel's elasticity and the impact of long-term creep on the roof's geometry.

The Mechanics of Ponding Instability in Mission-Critical Environments

Data centers present a unique challenge because their roofloads often include heavy HVAC equipment, cooling towers, and extensive conduit runs, all of which add significant dead weight to the structural joists. When we analyze the material science of the roof assembly, we see that standing water does not just threaten the structural integrity of the steel; it accelerates the degradation of the roofing membrane. Prolonged submersion leads to the saturation of the insulation layers, which increases the overall weight of the roof assembly and reduces the R-value, leading to thermal inefficiency and potential condensation issues within the plenum.

From an engineering perspective, the risk is twofold: the immediate threat of a membrane breach due to puncture or chemical degradation from stagnant water, and the long-term threat of structural fatigue. We refer to ASTM standards to evaluate the permeability and durability of the membrane under these conditions. Once the ponding cycle begins, the water acts as a catalyst for "membrane stretching," where the material is pulled tight over the deflection point, thinning the protective layer and making it susceptible to micro-cracks.

• Evaluation of membrane tensile strength under the weight of standing water.
• Assessment of insulation saturation levels using moisture probes to determine the "wet weight" of the assembly.
• Monitoring of thermal bridging caused by water-logged polyisocyanurate.
• Calculation of the "critical ponding depth" beyond which structural failure becomes a statistical probability.

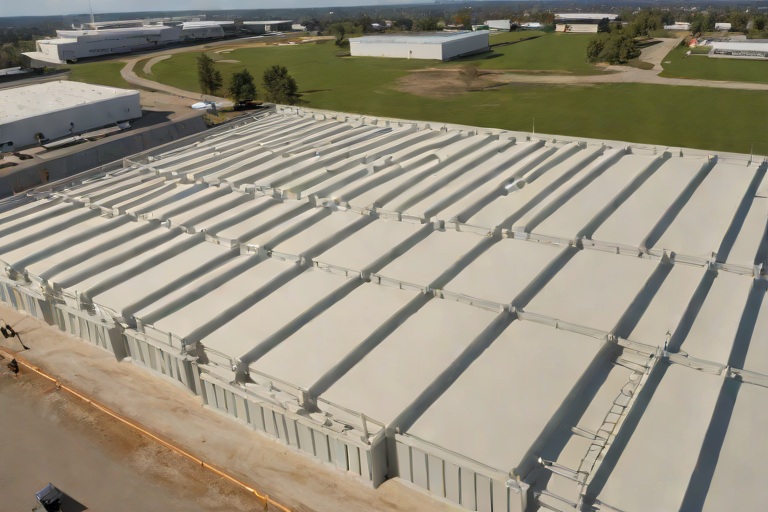

Engineering the Remediation: Custom Tapered Polyiso Crickets

To break the ponding cycle, we implemented a strategic remediation plan centered on the installation of custom-engineered tapered polyisocyanurate (polyiso) crickets. Rather than attempting to level the entire roof—which would be cost-prohibitive and structurally disruptive—we focused on "re-routing" the water. By installing high-density tapered insulation in the identified low-span areas, we effectively created artificial slopes that force water away from the center-span deflections and toward the primary drainage points.

The precision of this installation is paramount. Each cricket was custom-cut to match the exact contours of the joist deflection, ensuring a seamless transition between the existing roof deck and the new slope. We utilized a high-strength, low-VOC adhesive system to secure the polyiso, ensuring that the tapered sections would not shift under thermal expansion or contraction. This process transforms a concave "bowl" into a convex drainage plane, restoring the required 1/4" per foot minimum slope required for efficient water shedding.

• Mapping of custom taper templates based on the initial laser-level forensic data.
• Installation of high-density polyiso boards to provide both thermal resistance and structural slope.
• Application of staggered joint patterns to prevent linear leak paths and enhance structural stability.
• Verification of the new slope using a digital inclinometer to ensure positive drainage.

Final Integration and Water Routing Strategy

The final phase of the remediation involved the comprehensive routing of water outward to the perimeter scuppers and internal drains. A slope is useless if the water has nowhere to go; therefore, we performed a full audit of the primary drainage system. We ensured that the transition from the new tapered crickets to the existing roof membrane was flawlessly executed, utilizing reinforced flashing and heat-welded seams to eliminate any potential points of ingress. This creates a monolithic envelope that is impervious to the hydrostatic pressures associated with heavy rain events.

To validate the success of the intervention, we conducted a series of controlled flood tests. By simulating a maximum-capacity rain event, we were able to observe the water moving rapidly across the new tapered sections and exiting the building through the designated routing channels. The result was a total elimination of standing water and a significant reduction in the stress placed on the structural joists. This engineering approach not only protects the critical data infrastructure below but also extends the lifecycle of the roof assembly by decades.

• Integration of heat-welded membrane transitions to ensure a watertight seal over new crickets.
• Testing of primary and secondary drainage systems to confirm maximum flow capacity.
• Final inspection of all flashing and counter-flashing at the perimeter and equipment curbs.
• Delivery of a comprehensive "as-built" drainage map for the facility's maintenance records.

Engineering Audit and Failure Analysis of Cold Storage Envelopes

In the specialized field of commercial cold storage, the roof is not merely a weather barrier; it is a critical component of a complex thermal envelope. When auditing a failing system on a freezer warehouse, a master roofer must look beyond the surface membrane. The primary challenge in these facilities is the extreme temperature differential between the interior freezer environment and the exterior ambient atmosphere. This creates a powerful vapor drive, where moisture-laden air attempts to migrate from the warm exterior toward the cold interior. If the original roofing assembly has been compromised, this moisture penetrates the layers and condenses upon hitting the cold substrate, leading to interstitial condensation.

Our engineering audits typically reveal a "sandwich effect" where multiple generations of roofing materials—such as aged built-up roofing (BUR), outdated flashing, and degraded insulation—have trapped moisture against the structural wood decking. This trapped moisture leads to the slow degradation of the wood fibers and the failure of mechanical fasteners. To truly remediate the system, a simple "recover" or overlay is unacceptable. The only professional path forward is a total deconstruction to the clean wood decking to assess the true state of the building's structural integrity.

• Identification of thermal bridging points where heat penetrates the envelope.
• Analysis of vapor barrier continuity to prevent interior frost heave.
• Evaluation of existing drainage patterns to ensure water is not pooling over critical structural joints.
• Testing for moisture content within the substrate using calibrated hygrometers.
• Assessment of the existing flashing details at parapet walls and HVAC curbs.

Systematic Deconstruction and Total Tear-Off Protocols

The process of a complete tear-off on a commercial freezer warehouse requires a disciplined, phased approach to avoid compromising the interior climate control. We employ a systematic deconstruction method that ensures no section of the structural deck is left exposed to the elements longer than absolutely necessary. The removal of multi-layer assemblies is performed using heavy-duty mechanical equipment, but the final inch of material is removed via hand-tool precision to ensure that the wood decking is not gouged or structurally weakened during the process.

A critical aspect of this phase is the meticulous removal of old adhesives and bitumen. In older cold storage facilities, the bond between the old roofing felt and the wood decking can be incredibly strong. If not removed properly, these residues can interfere with the adhesion of new vapor barriers or create uneven surfaces that lead to premature membrane failure. We prioritize a "clean deck" standard, meaning every square inch of the wood substrate is scraped and cleared of debris, fasteners, and old mastic before any remediation begins.

• Sequential removal of membrane layers to prevent sudden thermal shocks to the freezer interior.
• Strategic placement of debris containers to maintain site safety and logistics.
• Manual extraction of rusted fasteners that may have caused localized wood rot.
• Continuous monitoring of the interior temperature to ensure the building envelope failure doesn't cause product loss.
• Detailed mapping of the roof to document the exact locations of substrate failure.

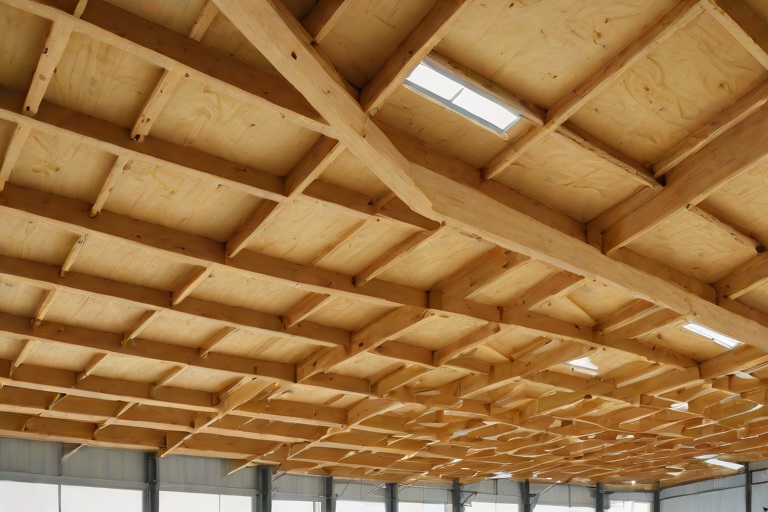

Substrate Remediation and Structural Wood Decking Inspection

Once the roof is stripped to the wood decking, the engineering focus shifts to structural remediation. Wood is a hygroscopic material, meaning it absorbs and releases moisture based on the environment. In a freezer warehouse, if the roof has leaked, the wood decking often suffers from fungal decay or "wet rot." We conduct a comprehensive inspection based on ASTM standards for wood structural integrity. Any panel exhibiting signs of delamination, soft spots, or a moisture content exceeding 19% is flagged for immediate replacement.

Remediation is not about patching; it is about restoring the load-bearing capacity of the substrate. When we encounter damaged wood panels, we cut back to the nearest sound structural joist or support beam. This ensures that the new plywood or OSB panels are fully supported and can handle the dead load of the new insulation and membrane, as well as the live loads of maintenance personnel and equipment. We utilize marine-grade or exterior-rated structural panels that are treated to resist moisture and fungal growth, ensuring the new substrate is more resilient than the original.

• Utilization of moisture meters to quantify the extent of water penetration.
• Structural probing to identify "soft" areas that indicate internal rot.
• Precision cutting of damaged panels to ensure a tight, gap-free fit for replacements.
• Application of structural adhesives to prevent movement between old and new decking.
• Verification of fastener spacing and pull-out strength on the remaining original decking.

Building Envelope Integration and Final Substrate Preparation

The final stage of the process is the transition from a remediated substrate to a high-performance building envelope. Before the new roofing system is installed, the clean wood decking must be prepared to act as a seamless part of the thermal boundary. This involves the installation of a high-performance vapor retarder. In cold storage, the vapor barrier must be absolute; even a pinhole leak can allow moisture to enter, freeze, and eventually cause the insulation to lose its R-value through a process known as "thermal short-circuiting."

We ensure that the transition from the wood deck to the insulation layers—typically high-density polyisocyanurate—is perfectly level. Any irregularities in the substrate are sanded or shimmed to prevent "pillowing" of the membrane. By focusing on the science of the building envelope, we create a monolithic seal that protects the structural wood from the outside in and the freezer from the inside out. This comprehensive approach eliminates the risk of future leaks and ensures the facility operates at peak energy efficiency for decades to come.

• Installation of a continuous, reinforced vapor barrier over the remediated wood deck.
• Application of specialized sealants at all penetrations and perimeter edges.
• Layering of tapered insulation to ensure positive drainage and eliminate ponding.
• Final inspection of all mechanical fasteners to ensure they are torqued to ANSI specifications.
• Verification of the entire assembly's airtightness to prevent uncontrolled air infiltration.

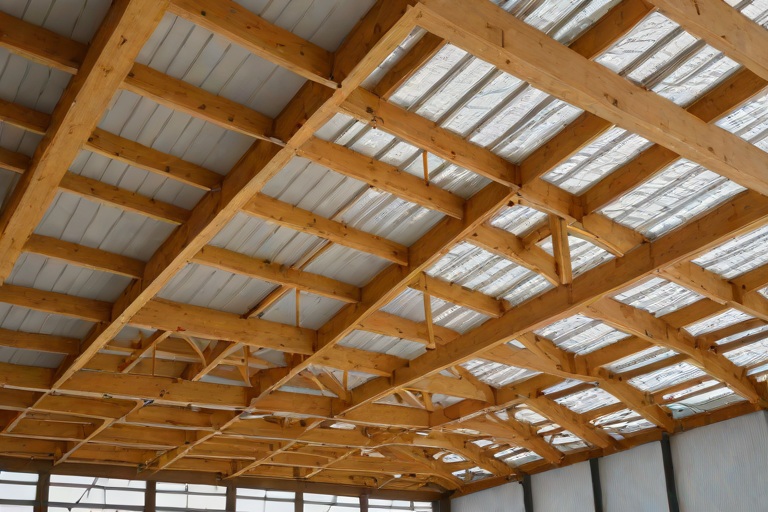

Phase I: Engineering Audit and Systematic Multi-Layer Removal

In the context of commercial fleet maintenance hangars, the building envelope is subjected to extreme thermal cycling and significant structural stress due to the wide-span nature of the roof systems. A comprehensive engineering audit begins with the identification of "roofing over" legacies. Many older hangars have suffered from the negligent practice of installing new shingle layers over existing ones, creating a cumulative dead load that often exceeds the original design specifications of the rafters. This excess weight not only stresses the primary structural members but also traps moisture between layers, leading to accelerated decay of the underlying wood sheathing.

The removal process must be executed with surgical precision to avoid compromising the integrity of the remaining substrate. We employ a systematic stripping approach that prioritizes the removal of the uppermost layers first, utilizing specialized pneumatic tear-off equipment that minimizes impact vibration on the decking. The goal is to expose the original wood sheathing to conduct a forensic analysis of the wood's condition, checking for fungal decay, delamination, and moisture saturation.

• Assessment of dead load accumulation to determine if the structure has suffered from long-term deflection.
• Implementation of a phased removal sequence to maintain the building's equilibrium and prevent sudden load shifts.
• Utilization of high-torque stripping tools to ensure clean removal of asphaltic bonds without tearing the plywood or OSB fibers.
• Continuous monitoring of the eave transitions, where water pooling is most likely to have caused localized rot.

Phase II: Fastener Withdrawal Resistance and Substrate Analysis

Once the sheathing is exposed, the focus shifts to the science of fastener withdrawal resistance. In commercial roofing, the connection between the decking and the rafters is the most critical failure point. Over decades, the oxidation of galvanized nails and the natural shrinkage of wood fibers lead to a loss of "grip," known in engineering as a reduction in withdrawal capacity. We conduct a series of pull-tests across the eave sections to ensure that the existing fasteners are not merely "floating" in the wood, which would compromise the wind-uplift rating of the new roofing system.

Material science dictates that the interaction between the fastener shank and the wood grain must be tight to prevent lateral movement. If the withdrawal resistance falls below ANSI standards for commercial load-bearing structures, the substrate is deemed compromised. This is particularly critical in fleet hangars where the internal volume creates a "chimney effect," potentially increasing internal pressures during high-wind events, which puts immense tension on the roof's fastening system.

• Execution of random sampling pull-tests to quantify the pounds-per-square-inch (PSI) required for fastener failure.
• Inspection for "nail popping" or "backing out," which indicates a failure in the structural bond between the sheathing and the rafter.
• Evaluation of the wood's moisture content using calibrated hygrometers to ensure the substrate is dry enough for new fastener penetration.
• Verification of the sheathing thickness to ensure it meets the minimum requirements for the specified commercial membrane.

Phase III: Structural Remediation and Rafter Sistering

During the audit, it is common to find rafters that have succumbed to localized rot at the eave plates or have developed permanent sags due to the aforementioned multi-layer shingle weight. To restore the structural integrity of the hangar, we employ a process known as sistering. This involves the installation of new, high-grade structural members alongside the compromised rafters. We typically utilize Laminated Veneer Lumber (LVL) or kiln-dried Southern Pine, depending on the load requirements and the existing material's properties.

The sistering process is not merely about adding wood; it is about restoring the load path. The new rafter must extend beyond the damaged area and be securely fastened to sound wood, effectively transferring the roof load away from the decayed section. We utilize a staggered bolting pattern and structural screws to ensure a rigid connection, eliminating any independent movement between the old and new members. This ensures that the building envelope can once again support the intended design loads without further deflection.

• Identification of compromised rafters through visual inspection and plumb-bob leveling.
• Selection of LVL members for their superior strength-to-weight ratio and resistance to shrinkage.
• Application of structural adhesives in conjunction with mechanical fasteners to create a composite beam effect.
• Verification of the new load-bearing capacity through a secondary structural audit before proceeding to the decking phase.

Phase IV: Establishing Flat Decking Planes for Membrane Integration

The final and most critical step in the preparation process is the establishment of a flat decking plane. Commercial roofing membranes, such as TPO, EPDM, or modified bitumen, require a consistent, smooth surface to prevent "ponding" and to ensure a watertight seal. After the rafters are sistered and the sheathing is cleaned, we often find that the roof plane is uneven, with high spots from previous repairs and low spots from structural settling. These irregularities can lead to premature membrane failure due to stress cracking or water accumulation.

To remedy this, we perform a precision leveling operation. Low areas are filled with high-density flashing or specialized decking patches, while high spots are carefully ground down to create a seamless transition. This process transforms the roof into a monolithic plane, ensuring that water flows efficiently toward the scuppers and gutters. By establishing a mathematically flat plane, we eliminate the risk of hydrostatic pressure buildup against the seams of the new roofing system, thereby extending the lifecycle of the building envelope.

• Mapping of the roof's topography to identify deviations from the horizontal plane.
• Installation of new CDX plywood overlays where the existing sheathing is too degraded to provide a stable base.
• Precision sanding and leveling of joint transitions to prevent "telegraphing" of seams through the final membrane.
• Final verification of the slope to ensure it meets the minimum 1/4-inch per foot requirement for commercial drainage.

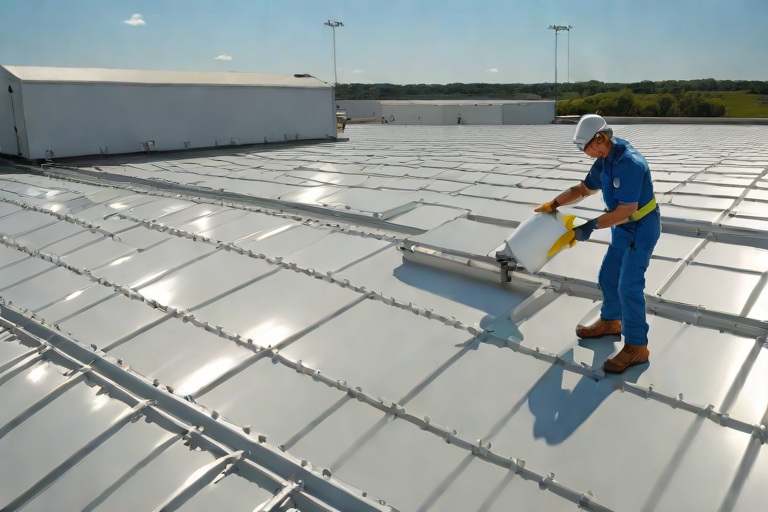

The Engineering Challenge: Air Intake Contamination and Envelope Integrity

In the high-stakes environment of a commercial chemical processing facility, the building envelope is not merely a weather barrier; it is a critical component of the facility's safety and operational continuity. The primary engineering challenge encountered during this audit was the proximity of critical HVAC air intake systems to primary roof drainage and flashing junctions. In these environments, the introduction of traditional solvent-based adhesives during roof maintenance or repair poses a systemic risk. Standard adhesives often release high concentrations of Volatile Organic Compounds (VOCs) during the curing process, which can be instantaneously drawn into the HVAC system, leading to facility-wide odor contamination, triggering sensitive air-quality alarms, and potentially forcing an expensive, unplanned evacuation of personnel.

To mitigate these risks, the engineering focus shifted toward a comprehensive containment strategy. The goal was to ensure that the building envelope remained airtight and watertight without introducing chemical pollutants into the internal atmosphere. This required a rigorous analysis of the substrate condition and the specific airflow dynamics surrounding the intake vents. By mapping the pressure differentials across the roof surface, we identified the "danger zones" where adhesive off-gassing would be most likely to penetrate the interior workspace.

• Analysis of HVAC intake velocity and suction patterns to establish safe application buffers.
• Evaluation of existing flashing failures using infrared thermography to identify latent moisture.
• Assessment of substrate compatibility between aged modified bitumen and new high-performance bonding agents.
• Establishment of a zero-tolerance threshold for solvent odors within the facility's clean-room zones.

Material Science: Low-VOC Polyurethane Bonding Agents

The selection of bonding materials was governed by the need for high tensile strength combined with a near-zero VOC profile. Traditional hot-melt adhesives or solvent-based primers were discarded due to the risk of thermal shock to the substrate and the aforementioned odor migration. Instead, the project utilized advanced cold-applied, odorless polyurethane bonding agents. These materials are engineered to provide a chemical bond that exceeds the structural integrity of the substrate itself, utilizing a moisture-cure mechanism that eliminates the need for hazardous solvents.

From a material science perspective, polyurethane adhesives offer superior elasticity, allowing the bond to accommodate the significant thermal expansion and contraction cycles typical of large-scale industrial roofs. The molecular structure of these low-VOC agents ensures that the adhesive remains flexible over time, preventing the brittle fractures often seen in acrylic or epoxy-based systems. Furthermore, the rapid-setting nature of these polyurethane agents allows for a faster transition from application to full cure, reducing the window of vulnerability for the building envelope.

• Utilization of solvent-free polyurethane resins to eliminate hazardous off-gassing.
• Implementation of moisture-activated curing agents for deep-substrate penetration.
• Application of high-modulus bonding agents to withstand extreme wind-uplift pressures.
• Selection of materials compliant with ASTM C1167 standards for modified bituminous sheeting.

Execution Protocol: Rapid-Setting Application and Containment

Executing a roof envelope repair on a functioning chemical plant requires a "zero-downtime" philosophy. The operational cost of shutting down a processing line can exceed the cost of the entire roofing project. Therefore, the application protocol was designed around a phased, rapid-setting execution. We employed a specialized containment barrier system around the HVAC intakes, creating a temporary negative-pressure zone using portable HEPA-filtered scrubbers. This ensured that any residual odors, however minimal, were captured and filtered before they could enter the building's primary air supply.

The application process began with a rigorous surface preparation phase. We utilized mechanical grinding and a low-residue cleaning agent to ensure the substrate was free of contaminants, which is essential for polyurethane adhesion. The adhesives were applied using a precision-bead method, ensuring total coverage without excessive buildup. This precision reduced the volume of material used and accelerated the curing time, allowing the facility to return to normal operations without any perceived impact on air quality.

• Deployment of temporary air-scrubbing stations to create a localized vacuum around intake vents.
• Mechanical surface preparation to achieve a specific surface profile (CSP) for maximum bond strength.
• Sequential application of adhesives to maintain a continuous, seamless envelope seal.
• Real-time monitoring of VOC levels using handheld photoionization detectors (PID) during the curing phase.

Validation and Long-Term Performance Metrics

To certify the integrity of the building envelope, a post-installation audit was conducted using a series of rigorous engineering tests. The primary metric for success was the absence of air infiltration at the bonding junctions. We performed ASTM E793 standard pull-tests to verify that the bond strength of the polyurethane adhesive exceeded the design specifications for the facility's wind-load zone. This ensured that the repairs would not only hold under normal conditions but would remain secure during extreme weather events.

Furthermore, the effectiveness of the odor mitigation protocol was validated through a controlled smoke test. By introducing a non-toxic, odorless smoke tracer near the repaired junctions and monitoring the HVAC return air, we confirmed a 100% containment rate. The long-term performance of the low-VOC system is monitored through semi-annual infrared scans, which allow us to detect any subsurface delamination or moisture intrusion before it becomes a systemic failure. This proactive approach transforms the roof from a maintenance liability into a managed asset.

• Conducting ASTM E793 adhesion tests to verify bond strength and shear resistance.
• Performing smoke-tracer tests to validate the airtightness of the HVAC containment barriers.
• Establishing a baseline for thermal performance via infrared thermography.
• Implementing a lifecycle maintenance schedule based on the degradation curves of polyurethane polymers.

The Mechanics of Ballasted Compression and Membrane Fatigue

In the context of a Municipal City Hall and Administrative Complex, the roof is not merely a cover but a critical structural asset. When integrating solar photovoltaic (PV) systems, the industry often defaults to ballasted racking to avoid penetrating the membrane. However, from a building envelope engineering perspective, ballasted systems introduce significant point-load challenges. The primary concern is the compression set of the insulation layer, typically high-density polyisocyanurate (PIR). When heavy concrete blocks are concentrated under racking feet, they create localized depressions that can exceed the compressive strength of the insulation, leading to structural deformation of the roof deck over time.

This compression is not merely a matter of aesthetics; it creates "low spots" that disrupt the engineered slope of the roof. In a municipal complex where drainage is calculated to the millimeter, these depressions can lead to ponding water, which accelerates the degradation of the membrane and increases the risk of hydrostatic pressure forcing water through seams. We analyze these loads using ASTM standards to ensure that the combined weight of the racking, the ballast, and the projected snow load does not exceed the pounds-per-square-foot (PSF) rating of the substrate.

• Analysis of point-load distribution to prevent "crushing" of the PIR insulation core.
• Evaluation of the coefficient of friction between the ballast block and the membrane surface.
• Assessment of the structural deck's capacity to handle concentrated dead loads without deflection.
• Monitoring of thermal expansion and contraction cycles that can shift ballasted blocks.

Sacrificial Slip-Sheet Engineering and Abrasion Mitigation

One of the most overlooked failures in commercial PV installations is the "sawing" effect caused by wind-induced vibration. Even a well-ballasted system is subject to micro-movements. As the wind hits the solar arrays, the racking transmits kinetic energy downward. Without a proper interface, the concrete ballast blocks act as coarse abrasives, slowly grinding through the TPO or PVC membrane. This is where the implementation of heavy-duty sacrificial slip-sheets becomes non-negotiable for a high-stakes municipal project.

A master-grade slip-sheet is not a simple piece of rubber; it is a reinforced, UV-stabilized polymer barrier engineered to decouple the ballast from the roof membrane. By introducing a sacrificial layer, we shift the wear-and-tear from the primary waterproofing layer to a replaceable component. This layer must be sized correctly to extend beyond the footprint of the block, ensuring that no edge of the concrete ever makes direct contact with the roof. This approach adheres to the principle of "defense in depth," ensuring that the building envelope remains intact even if the racking system shifts during a high-wind event.

• Utilization of reinforced EPDM or high-density polyethylene (HDPE) slip-sheets to eliminate friction.
• Implementation of oversized footprints to account for lateral shifting during seismic or wind events.
• Verification of material compatibility to prevent plasticizer migration between the slip-sheet and the membrane.
• Installation of wear-indicators to determine when sacrificial layers require replacement during audits.

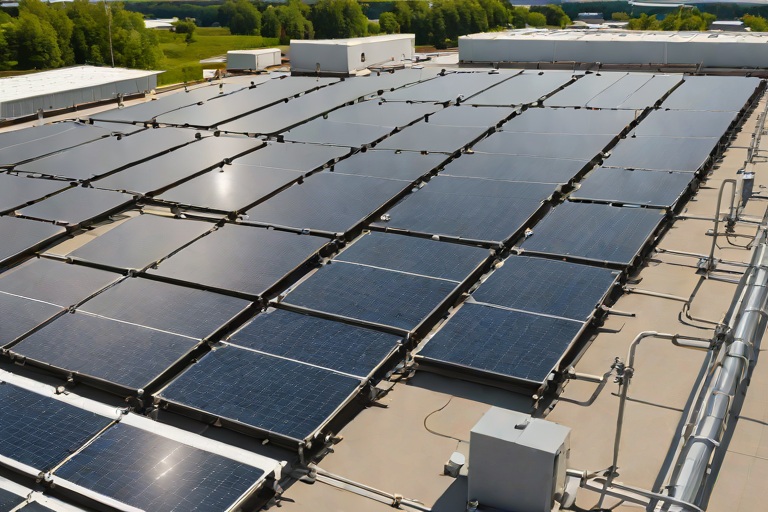

Pre-fabricated Target Patches and Targeted Reinforcement

For a Municipal City Hall, where the lifecycle of the roof is expected to span 20 to 30 years, we employ a strategy of pre-fabricated target patches. Rather than relying on the standard membrane thickness to withstand the pressure of the racking, we install reinforced "target" zones. These are essentially double-layered, heat-welded patches of the same membrane material, applied specifically where the racking feet will be positioned. This creates a reinforced "sacrificial zone" that provides extra thickness and puncture resistance.

The engineering logic here is to create a predictable failure point that is easily repairable. By reinforcing these specific coordinates, we ensure that the most stressed areas of the roof are the strongest. This process requires precision mapping of the PV layout before the membrane is fully commissioned. Each target patch is heat-welded using robotic hot-air welders to ensure a monolithic bond, eliminating the need for adhesives that could degrade under the extreme heat often trapped beneath solar panels.

• Application of heat-welded membrane overlays to increase the total mil thickness at load points.
• Precision alignment of target patches with the racking manufacturer's blueprint.
• Use of high-temperature welding techniques to ensure a seamless, waterproof bond.
• Integration of load-spreading plates to distribute the vertical force across a wider surface area.

Cable Tray Routing and Envelope Integrity Management

The final critical component of the building envelope audit is the management of electrical conduit and cable tray routing. A common failure in municipal complexes is the "spaghetti" routing of cables, where wires are allowed to drape across the membrane. This not only creates traps for organic debris and pollutants but also creates "damming" effects that impede the flow of rainwater toward the internal drains. From a master roofer's perspective, an unmanaged cable is a potential leak source.

Our standard for professional installation involves the use of elevated cable trays that are secured to the racking system rather than the roof deck. Where cables must cross the membrane, we utilize UV-resistant, non-penetrating cable bridges. These bridges are adhered using membrane-compatible adhesives that can be removed without damaging the roof surface. This ensures that the integrity of the envelope is never compromised by mechanical fasteners or haphazard routing, maintaining the municipal building's warranty and long-term structural health.

• Installation of elevated cable trays to maintain clear drainage paths and prevent ponding.
• Use of non-penetrating, adhesive-backed cable bridges to protect the membrane from abrasion.
• Strict adherence to NEC (National Electrical Code) while prioritizing the waterproofing layer.
• Implementation of a quarterly routing audit to ensure cables have not shifted or sagged onto the roof surface.

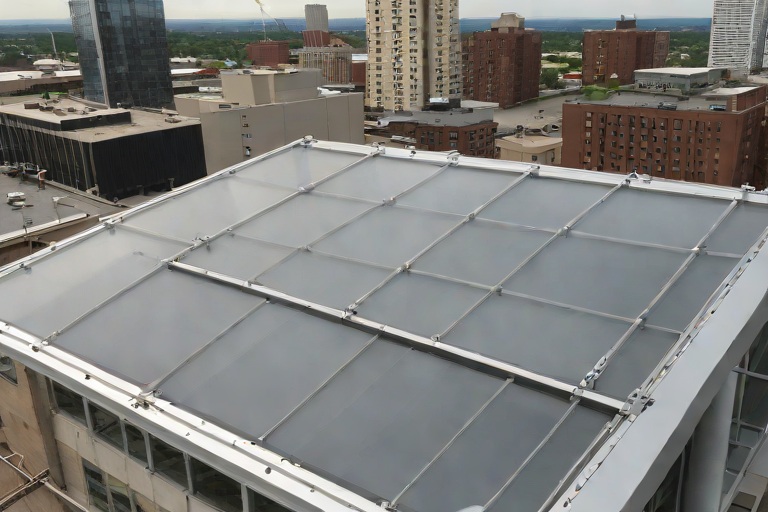

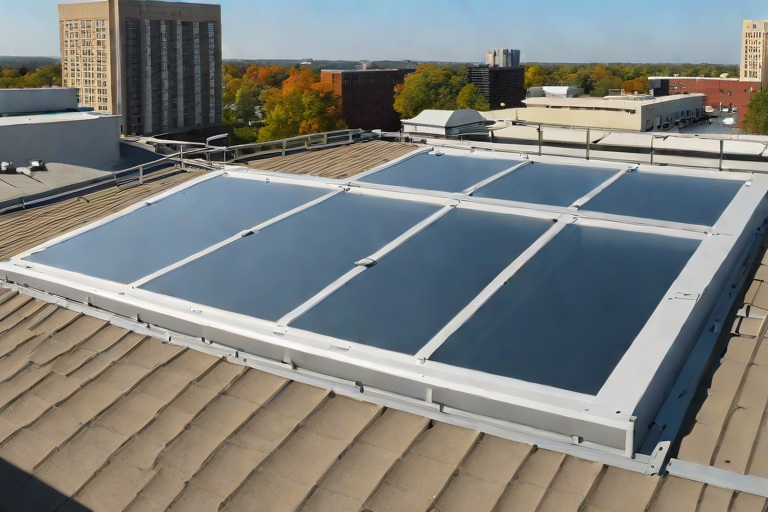

Structural Analysis of 200-lb Fall-Arrest Anchoring and Security Screens

In the high-rise penthouse environment, the intersection of safety compliance and structural integrity is non-negotiable. When auditing a commercial tower, the primary concern is the ability of the skylight curb to withstand a sudden, dynamic impact load. OSHA and ANSI Z359 standards dictate that fall-protection systems must be capable of supporting a concentrated load, typically calculated at a minimum of 5,000 lbs for a single person, but the security screens themselves must be anchored to resist a 200-lb concentrated force without catastrophic failure of the curb assembly.

The engineering challenge lies in the distribution of this load across the curb's perimeter. A standard aluminum curb may lack the rigidity required to prevent deformation under a 200-lb lateral thrust. Therefore, we specify heavy-duty security screens constructed from powder-coated galvanized steel or reinforced aluminum alloys. These screens act as a secondary barrier, ensuring that a technician cannot accidentally step through the glazing or slip through a gap during maintenance. The anchoring system must utilize stainless steel fasteners that penetrate the structural decking or are chemically bonded to the curb's reinforced frame to prevent pull-out failure.

• Calculation of shear strength for all fasteners used in the security screen mounting.
• Verification of the curb's gauge thickness to ensure it can support the mechanical stress of the anchors.
• Implementation of load-spreading plates to distribute the 200-lb force across a wider surface area of the curb.
• Regular torque testing of bolts to ensure vibration from high-rise wind loads does not loosen the assembly.

Curb Flashing Elevation and Water Shedding Dynamics

From a building envelope perspective, the skylight curb is a critical vulnerability. On a high-rise penthouse, wind-driven rain is pushed horizontally and upward, creating a high-pressure zone that can force water under traditional flashing. The elevation of the curb flashing must be calculated not just by the height of the curb, but by the anticipated hydrostatic pressure of a storm event. We mandate a minimum flashing height that exceeds the roof surface by at least 8 inches, ensuring that the "lap" is sufficient to prevent capillary action from drawing water into the building interior.

The flashing must be integrated into the primary roofing membrane using a seamless, heat-welded process if using TPO or PVC, or a high-solids reinforced adhesive if using EPDM. The goal is to create a monolithic seal that treats the curb as a natural extension of the roof deck. We focus heavily on the "base-to-curb" transition, where the membrane must be wrapped and tucked to eliminate any pockets where standing water could accumulate. Proper shedding is achieved by ensuring the curb is perfectly level, preventing the "pooling effect" that often leads to premature membrane degradation at the corners.

• Utilization of reinforced flashing corners to prevent stress cracking during thermal expansion.
• Application of a secondary sealant bead at the flashing-to-metal interface to provide a redundant water barrier.
• Analysis of wind-scour patterns to determine if additional flashing height is required on the windward side.
• Installation of drip edges on the security screen frames to divert water away from the curb face.

Compression Termination Bars and Mechanical Fastening

Relying solely on adhesives for membrane termination at the penthouse level is a recipe for failure. High-rise towers experience significant wind uplift and negative pressure zones that can peel a membrane away from the curb. To counteract this, we employ compression termination bars. These are heavy-duty aluminum or stainless steel strips that mechanically lock the membrane against the curb's vertical face. The termination bar ensures that the membrane remains in a state of constant compression, eliminating the risk of wind-driven delamination.

The fastening schedule for these bars is critical. We specify fasteners every 12 inches on center, utilizing stainless steel screws with integrated neoprene washers. This creates a watertight seal while providing the necessary clamping force. The engineering logic here is to move the primary load-bearing responsibility from the chemical bond of the adhesive to the mechanical strength of the fastener. This is especially vital in penthouse towers where temperature swings cause the building's skin to expand and contract, which would otherwise fatigue a simple glued seam.

• Selection of termination bars with a minimum width of 1.5 inches to ensure sufficient membrane overlap.
• Use of a high-grade polyurethane sealant behind the bar to prevent air infiltration.
• Verification of fastener embedment depth to ensure a secure grip in the curb substrate.
• Application of a final "cap" sealant over the top of the termination bar to prevent water from entering the screw holes.

Thermal Gasket Integration and Material Science

The final layer of a professional building envelope audit focuses on the thermal bridge. A metal curb passing through a roof deck creates a path for heat loss and potential condensation. To mitigate this, we integrate high-performance thermal gaskets. These gaskets, typically made from closed-cell EPDM or silicone, are installed between the security screen frame and the curb, and between the curb and the roof deck. This prevents the "cold bridge" effect, where the exterior temperature rapidly cools the interior structural steel, leading to interstitial condensation and mold growth.

Material science plays a huge role in the selection of these gaskets. The gasket must possess a high degree of compression set resistance, meaning it returns to its original shape after being squeezed. If the gasket collapses over time, the seal is lost, and the thermal efficiency of the penthouse tower drops. We specify gaskets that meet ASTM standards for weatherability and ozone resistance, ensuring they do not crack or shrink under the intense UV exposure found at high altitudes. This holistic approach ensures that the skylight is not just a hole in the roof, but a fully engineered component of the building's thermal envelope.

• Installation of continuous thermal breaks to decouple the exterior metal from the interior framing.
• Verification of gasket compression percentages to ensure an airtight seal without over-stressing the material.
• Use of UV-stabilized polymers to prevent degradation from direct sunlight exposure.
• Integration of a vapor barrier that overlaps the thermal gasket to prevent moisture migration into the insulation.

The Engineering Challenge of Harmonic Vibration in Healthcare Facilities

In the context of a Regional Healthcare Medical Center, the building envelope is not merely a weather barrier; it is a critical component of the facility's life-safety infrastructure. The installation of heavy-duty rooftop units (RTUs), including centrifugal chillers and high-capacity air handling units, introduces a significant engineering challenge: harmonic vibration. When these machines operate, they generate low-frequency oscillations that can travel through the structural steel and concrete slabs. If not properly mitigated, these vibrations can lead to structural fatigue, noise pollution in sterile surgical environments, and, most critically, the premature failure of the roofing membrane at the curb interface.

From a master roofer's perspective, the primary concern is the "shear point" where the rigid mechanical curb meets the flexible roofing membrane. Constant micro-movements caused by mechanical vibration act like a slow-motion saw, gradually cutting through the flashing and compromising the watertight seal. In a healthcare setting, a single leak above a pharmacy or a diagnostic imaging suite can result in millions of dollars in equipment loss and immediate operational shutdown. Therefore, the engineering focus must shift from static installation to dynamic isolation.

• Structural Resonance: The tendency of a building's frame to vibrate at specific frequencies, which can amplify the movement of rooftop equipment.
• Membrane Fatigue: The degradation of thermoplastic or elastomeric membranes due to repetitive stress cycles at the curb perimeter.
• Acoustic Bridging: The transmission of mechanical noise through the building envelope, impacting patient recovery environments.
• Differential Settlement: The risk of uneven loading where heavy vibration-isolated rails meet the primary roof deck.

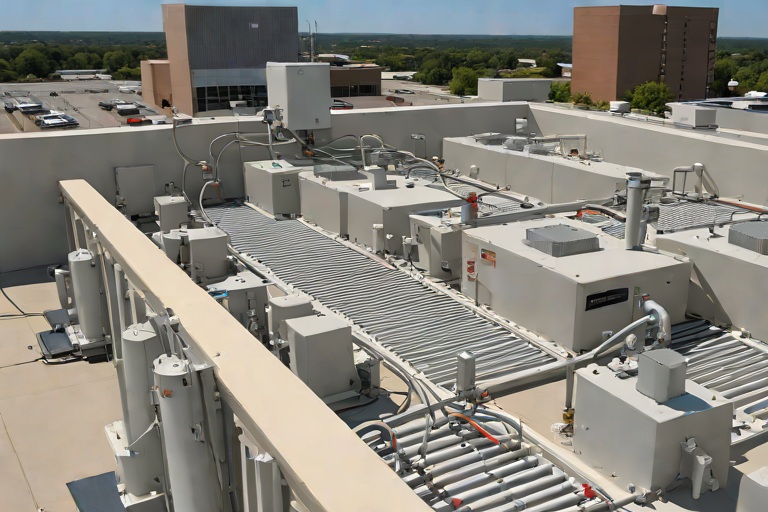

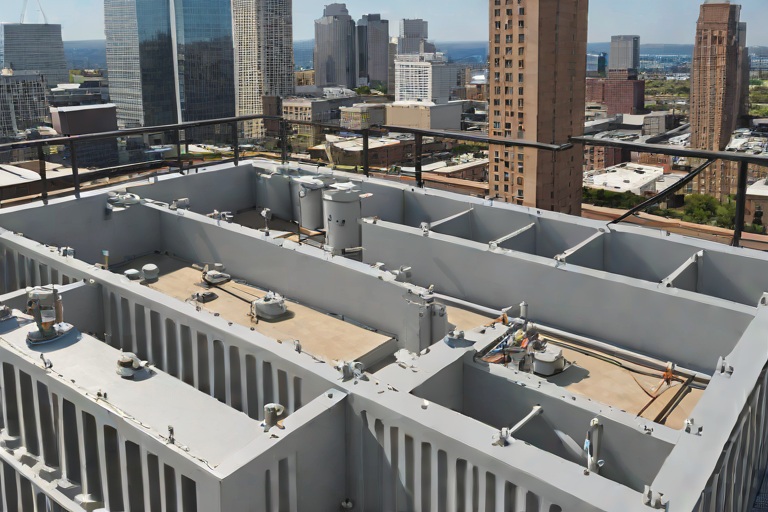

Spring-Isolated Equipment Curbs and Mechanical Rails

To decouple the mechanical load from the building envelope, we implement spring-mounted vibration isolation rails. Unlike standard rigid curbs, these systems utilize high-deflection steel springs designed to absorb the kinetic energy of the equipment before it reaches the roof deck. The engineering goal is to shift the natural frequency of the system away from the operating frequency of the machinery. By utilizing a rail system that floats on calibrated springs, we ensure that the mechanical unit remains stable while the building envelope remains undisturbed.

The installation of these rails requires precision alignment to avoid uneven load distribution. If one rail is improperly calibrated, the unit may tilt slightly, creating an uneven gap in the curb seal. This gap becomes a preferential path for water infiltration. We specify heavy-gauge galvanized steel for the rails to prevent corrosion, ensuring that the structural integrity of the isolation system lasts as long as the roof's design life. The integration of these rails must be coordinated with the structural engineer to ensure the roof slab can handle the concentrated point loads created by the spring mounts.

• Static Deflection: The distance a spring compresses under the dead load of the RTU to ensure proper isolation.
• Isolation Efficiency: The percentage of vibration energy absorbed by the spring system versus the amount transmitted to the building.
• Load Distribution Plates: Steel plates used to spread the weight of the isolation rails across a larger surface area of the roof deck.
• Tuning and Calibration: The process of adjusting spring tension to match the specific RPM and torque of the healthcare facility's HVAC equipment.

Fiber-Reinforced Structural Mastic and Dynamic Seals

The most vulnerable point of the building envelope in this scenario is the transition between the vibrating isolation rail and the static roofing membrane. Standard flashing is insufficient for this application because it cannot withstand the constant lateral movement. To solve this, we employ fiber-reinforced structural mastics. These are high-performance, elastomeric sealants infused with synthetic fibers that provide internal reinforcement, preventing the sealant from tearing or "stringing" under the stress of harmonic vibration.

The application process involves a multi-stage bonding sequence. First, the substrate is primed to ensure a chemical bond. Then, the fiber-reinforced mastic is applied in a wide, tapered bead that creates a flexible bridge. This "bridge" allows the mechanical curb to move independently of the roof membrane without breaking the seal. The material science behind these mastics allows for high elongation and recovery, meaning the seal returns to its original shape after every vibration cycle. This ensures that the watertight integrity is maintained even during peak mechanical loads or seismic events.

• Elastomeric Memory: The ability of the structural mastic to return to its original form after being stretched by mechanical movement.
• Fiber Reinforcement: The use of internal strands to increase tensile strength and resist cracking under shear stress.
• Tapered Transition: A specific geometry of the sealant bead that reduces stress concentrations at the edges of the curb.
• Adhesion Promoters: Chemical agents used to ensure the mastic bonds permanently to both the metal rail and the roofing membrane.

Watertight Integrity and Engineering Audit Protocols

A successful installation is only as good as its verification. For Regional Healthcare Medical Centers, we implement a rigorous engineering audit protocol to ensure the envelope is impenetrable. This begins with ASTM E2112 standard testing, which involves controlled water penetration tests around the spring-isolated curbs. We simulate extreme weather conditions by applying hydrostatic pressure to the seals, ensuring that no moisture migrates into the building's interior. The audit focuses specifically on the "critical corners" of the curb, where vibration is most likely to cause sealant failure.

Long-term maintenance is integrated into the audit. Because healthcare facilities cannot afford downtime, we establish a preventative maintenance schedule that includes infrared thermography. By scanning the curbs with thermal cameras, we can detect moisture trapped beneath the membrane or within the mastic seals long before a visible leak appears. This proactive approach transforms the roof from a passive cover into an engineered system that protects the critical medical infrastructure below.

• Infrared Thermography: Using heat signatures to identify moisture pockets and failing seals without damaging the roof surface.
• ASTM E2112 Compliance: Following standardized procedures for water penetration testing to validate the envelope's integrity.
• Quarterly Torque Checks: Ensuring that the mechanical fasteners on the vibration rails have not loosened due to harmonic oscillation.
• Lifecycle Analysis: Evaluating the degradation rate of the elastomeric seals to schedule replacements before failure occurs.

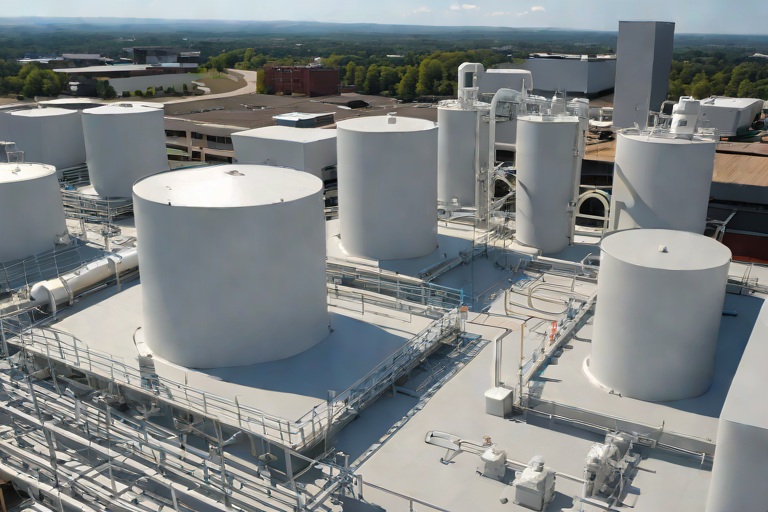

Atmospheric Corrosive Load and Envelope Vulnerability

In the high-stakes environment of a University Research Laboratory, the building envelope is subjected to stressors that far exceed those of standard commercial real estate. During our engineering audit, we identified a critical failure point: the intersection of industrial fume exhaust plumes and the primary roofing membrane. These laboratories utilize high-velocity exhaust systems to remove volatile organic compounds (VOCs), sulfuric acid, and nitric acid fumes. When these effluents are discharged, they create a localized micro-climate of caustic deposition on the roof surface.

A master tradesman understands that the roof is not merely a cover but a complex chemical barrier. In this specific case, the acid fumes react with the moisture in the air to create a dilute acidic solution that settles on the membrane. This process leads to accelerated oxidation and the breakdown of polymer chains. If the membrane is not specifically engineered for chemical resistance, the result is a rapid loss of elasticity and the onset of premature degradation, which compromises the entire building envelope.

• Acidic deposition causing surface pitting and etching of the membrane.
• Accelerated degradation of flashing and sealant joints due to chemical leaching.
• Increased risk of moisture infiltration through chemically induced micro-cracks.
• Thermal shock cycles exacerbating the stress on chemical-weakened seams.

Polymer Stability and Hydrocarbon Interaction

The selection of a roofing membrane for a research facility requires a deep dive into material science, specifically regarding the interaction between the polymer and industrial contaminants. Our audit examined the presence of motor oils and hydraulic fluids from rooftop HVAC equipment and exhaust fans. Many standard Thermoplastic Olefin (TPO) membranes, while cost-effective, exhibit poor resistance to hydrocarbons. When motor oils leak or mist onto a TPO surface, they act as solvents, softening the polymer and leading to "swelling" or structural softening of the membrane.

To counter this, we evaluate materials based on their cross-linking density and chemical inertness. For laboratories handling aggressive solvents, a high-grade Polyvinyl Chloride (PVC) or a modified bitumen system with a specialized cap sheet is often required. However, PVC brings its own set of challenges, particularly regarding plasticizer stability. The goal is to achieve a balance where the membrane remains flexible enough to handle thermal expansion and contraction while remaining impervious to the specific chemical profile of the facility's exhaust.

• Evaluation of TPO susceptibility to hydrocarbon-induced softening.
• Analysis of PVC's chemical resistance against sulfuric and hydrochloric acid.
• Assessment of EPDM's performance in high-VOC environments.
• Comparison of solvent-welded seams versus heat-welded seams in corrosive zones.

Plasticizer Retention and Mechanical Fatigue

One of the most overlooked aspects of commercial roof engineering in industrial settings is plasticizer migration. Plasticizers are additives used in membranes like PVC to maintain flexibility. In a research laboratory environment, certain chemical fumes can act as catalysts that accelerate the migration of these plasticizers from the membrane into the atmosphere or into the substrate. Once the plasticizers are lost, the membrane undergoes a process of embrittlement.

This embrittlement is catastrophic because it changes the mechanical properties of the roof. A membrane that has lost its plasticizers can no longer accommodate the natural movement of the building. Under the stress of wind uplift or thermal cycling, the brittle membrane develops stress fractures, particularly around penetration points and curb flashings. We utilize ASTM standards to measure the retention of these additives, ensuring that the specified membrane can withstand the chemical load without sacrificing its long-term structural integrity.

• Monitoring of "shrinkage" percentages as an indicator of plasticizer loss.
• Testing for tensile strength degradation using ASTM D412 standards.
• Analysis of crack propagation in embrittled polymer sections.
• Impact of UV radiation acting in synergy with chemical fumes to degrade additives.

The Integrated Envelope Defense Protocol

To ensure a lifetime of service for a University Research Laboratory, a fragmented approach to roofing is insufficient. We implement an Integrated Envelope Defense Protocol that treats the roof, the walls, and the exhaust penetrations as a single, continuous system. The first line of defense is the strategic relocation or shielding of exhaust vents. By installing chemical-resistant shrouds and extending exhaust stacks, we can move the most corrosive plumes away from the primary membrane surface, reducing the direct chemical load.

The final engineering specification involves a multi-layered approach. We recommend a reinforced, high-performance membrane with a chemical-resistant coating specifically formulated for acid defense. Furthermore, all flashing must be executed with high-grade, non-plasticized materials that are mechanically fastened and chemically welded. This ensures that the "weak links"—the seams and penetrations—are as resilient as the field of the roof. Regular auditing and infrared thermography are then scheduled to detect subsurface moisture or chemical degradation before a breach occurs.

• Installation of acid-resistant sacrificial coatings in high-impact exhaust zones.
• Utilization of reinforced flashing membranes to prevent stress-induced tearing.
• Implementation of a rigorous quarterly chemical residue wash-down protocol.
• Strict adherence to ANSI standards for the installation of industrial-grade roof drains and scuppers.

The Anatomy of Envelope Failure in Suburban Corporate Parks

In the context of suburban corporate office parks, the building envelope is frequently compromised by a combination of thermal cycling, inadequate flashing at complex penetrations, and the degradation of aged thermoplastic or elastomeric membranes. These facilities often feature expansive flat roof footprints with a high density of rooftop units (RTUs), which create numerous points of potential failure. When a breach occurs, the resulting water intrusion is rarely a simple drip; it is often a systemic failure where water travels along structural steel or through conduit chases, manifesting far from the actual point of entry.

The primary challenge in these environments is the "hidden path" phenomenon. Capillary action and hydrostatic pressure drive moisture through microscopic fissures in the substrate, often bypassing primary drainage systems. In a corporate setting, this is exacerbated by the presence of high-value interior assets, such as server rooms and production bays, where even a minor leak can lead to catastrophic equipment failure and significant business interruption. A master-level engineering audit must therefore look beyond the visible stain on the ceiling tile to identify the root cause of the envelope breach.

• Thermal bridging at parapet walls leading to condensation and localized membrane fatigue.
• Degradation of sealant joints around HVAC curb flashings and oversized vent pipes.
• Clogged internal drains causing ponding water, which increases the likelihood of seepage through seam failures.
• Wind-driven rain infiltration at the building perimeter due to compromised coping caps.

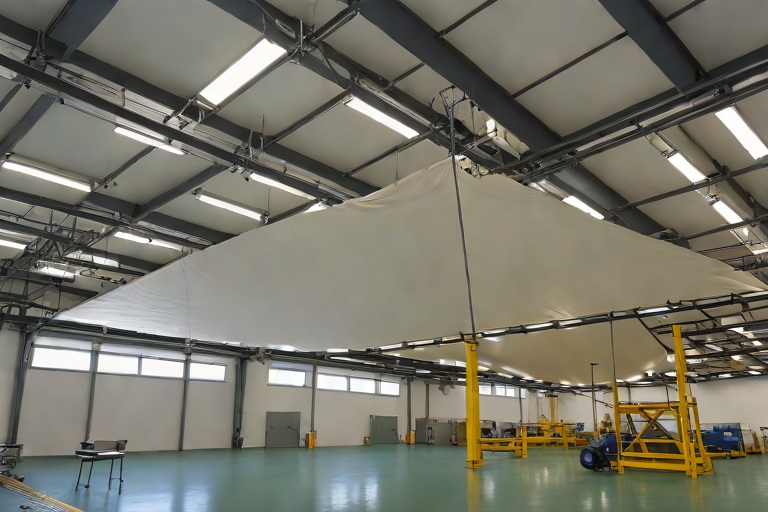

Engineering the Emergency Diversion System

When a critical leak is identified in a production bay or a high-value office area, the immediate priority is the stabilization of the interior environment. This is achieved through the deployment of industrial heavy-duty vinyl diverter tarps. Unlike standard polyethylene sheeting, which is prone to tearing and lacks the structural integrity for long-term emergency use, we utilize 18oz to 22oz PVC-coated polyester vinyl. This material is selected for its high tensile strength, puncture resistance, and complete impermeability to water, adhering to the rigorous demands of industrial moisture control.

The engineering of the catchment system relies on the principle of gravity-fed diversion. The tarp is not merely draped; it is strategically tensioned to create a controlled slope, preventing the formation of "bellies" or pockets where water could pool and eventually collapse the support structure. By utilizing mechanical fasteners and reinforced grommets, the tarp is secured to the structural members of the ceiling or the underside of the roof deck, ensuring that every drop of moisture is captured and channeled toward a designated discharge point.

• Application of high-gauge vinyl to create a seamless catchment basin beneath the leak source.
• Utilization of tensioning straps to maintain a consistent pitch, directing water toward the collection conduit.
• Integration of reinforced PVC piping or heavy-duty flexible hosing to transport water away from sensitive electronics.
• Implementation of secondary containment trays to capture residual drips and prevent splashing.

Strategic Routing and Protection of High-Value Assets

In a corporate production bay, the spatial arrangement of machinery and personnel dictates the routing of the diversion system. The goal is to create a "dry corridor" for operations while simultaneously managing the water flow. This requires a sophisticated understanding of the interior building geometry. We map the critical path of the water, ensuring that the diversion routing does not interfere with overhead cranes, lighting fixtures, or ventilation ducts. The routing must be absolute; any deviation in the slope of the diversion tarp can lead to a "blowout" where water escapes the catchment system.

Furthermore, the diversion system must be designed to handle peak flow rates during storm events. This means calculating the potential volume of water entering the building based on the square footage of the compromised roof area and the intensity of the precipitation. By installing oversized collection vessels or routing the diversion lines directly into the building's internal drainage or plumbing stacks, we eliminate the risk of interior flooding and protect the integrity of the production floor.

• Mapping of "No-Fly Zones" where water routing is strictly prohibited due to electrical hazards.
• Installation of temporary diversion conduits that bypass critical production machinery.
• Use of weighted collection bins with automatic overflow sensors to alert facility management.
• Strategic placement of absorbent booms around the perimeter of the catchment area as a tertiary fail-safe.

Transition from Temporary Mitigation to Permanent Remediation

The deployment of a vinyl diversion system is a tactical necessity, but it is not a permanent solution. The final phase of the engineering process is the transition from emergency catchment to a permanent, code-compliant repair. This begins with a comprehensive moisture survey, often utilizing infrared thermography to identify saturated insulation and hidden moisture pockets within the roof assembly. Once the precise point of entry is located, the repair must be executed according to ASTM and ANSI standards for commercial roofing to ensure long-term envelope integrity.

Permanent remediation involves the removal of all compromised materials, including wet insulation, and the installation of a new, reinforced membrane section. This process includes the meticulous detailing of all flashings and the application of high-performance sealants that can withstand the thermal expansion and contraction cycles typical of suburban office parks. The success of the repair is validated through flood testing or electronic leak detection, ensuring that the building envelope is once again a monolithic barrier against the elements.

• Execution of an infrared moisture scan to determine the full extent of substrate saturation.
• Removal of degraded membrane and installation of new TPO or EPDM sections with heat-welded seams.
• Reinforcement of all penetration points using reinforced flashing and ASTM-approved sealants.
• Final validation through a 24-hour flood test to certify the watertight integrity of the repair.

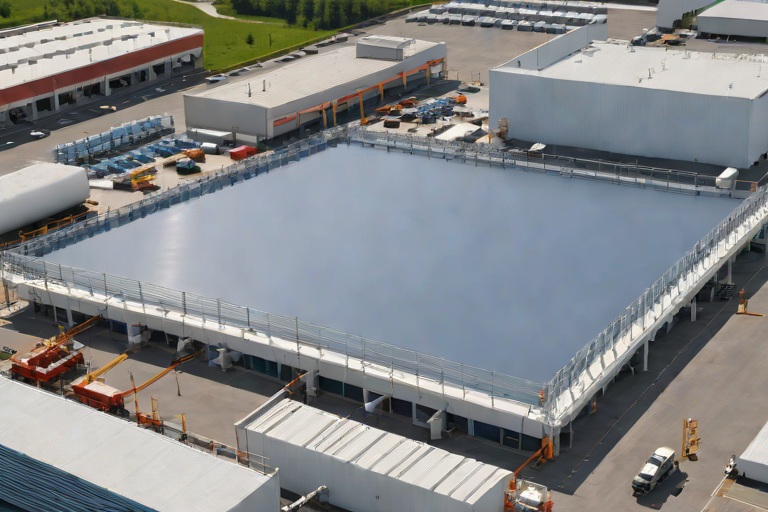

Thermal Dynamics of Induction Welding in Sub-Zero Environments

In the context of big-box retail power centers, the sheer scale of the roof deck creates a massive thermal sink. When executing membrane attachments in cold-weather conditions, traditional hot-air welding often fails due to rapid heat dissipation and inconsistent air-gap temperatures. Electromagnetic induction welding solves this by utilizing a high-frequency alternating current to generate a magnetic field, which induces eddy currents directly within the metal attachment plate. This process transforms the plate into the heat source, ensuring that the thermal energy is applied precisely at the interface between the thermoplastic membrane and the substrate.

The primary engineering challenge in sub-zero temperatures is the "cold-start" phenomenon, where the membrane's polymer chains are less mobile, increasing the viscosity of the material. To achieve a molecular bond that meets or exceeds ASTM standards, the induction process must overcome the ambient thermal deficit. The goal is to reach the melting point of the TPO or PVC membrane rapidly enough to prevent the surrounding material from acting as a heat sink, which would otherwise lead to a "cold weld" or a superficial bond that lacks structural integrity.

• Direct Energy Transfer: Induction eliminates the reliance on ambient air, focusing heat exclusively on the conductive plate.
• Reduction of Thermal Shock: Controlled heating prevents the membrane from scorching, which can occur with uncontrolled torch applications.
• Substrate Stabilization: By heating the plate rather than the deck, we minimize the risk of condensation forming beneath the membrane during the welding process.
• Consistent Heat Flux: The electromagnetic field ensures a uniform temperature distribution across the entire surface area of the attachment plate.

Precision Calibration of Tooling and Temperature Set-Points

Successful induction welding in extreme cold requires a rigorous calibration protocol. We cannot rely on factory default settings when the delta between the ambient temperature and the required welding temperature exceeds 100 degrees Fahrenheit. The calibration process involves adjusting the power output (kilowatts) and the dwell time to ensure the polymer reaches its optimal flow state without crossing the threshold into thermal degradation. If the temperature is too low, the polymer chains do not intertwine; if it is too high, the membrane undergoes carbonization, resulting in a brittle joint that will fail under wind-uplift pressure.

Our engineering audit focuses on the use of PID (Proportional-Integral-Derivative) controllers within the induction tooling. These controllers allow for real-time adjustments based on the feedback from infrared sensors. In big-box retail applications, where roof sections may be shaded or exposed to varying wind gusts, the tool must be capable of modulating heat output instantaneously to maintain a constant interface temperature. This precision ensures that every attachment point across a 200,000 square foot roof is identical in strength.

• Dwell Time Optimization: Increasing the duration of the heat cycle to compensate for lower ambient temperatures.
• Polymer Flow Analysis: Monitoring the "bead" of the weld to ensure a full-fusion bond.
• Thermal Mapping: Utilizing infrared thermography to verify that the plate has reached the target temperature before the membrane is compressed.
• Voltage Regulation: Ensuring a stable power supply to the induction coil to prevent fluctuations in magnetic field strength.

Weighted Magnetic Cooling Clamping and Bond Stabilization

The most critical phase of the induction process is not the heating, but the cooling. In thermoplastic welding, the bond is not fully established until the material has returned to a stable temperature. In cold-weather environments, the temperature gradient between the hot weld and the freezing substrate is extreme. This creates a high risk of "shrink-back" or internal stress concentrations, where the membrane attempts to contract while the plate remains stationary. This differential movement can lead to micro-fractures in the weld, compromising the building envelope's water-tightness.

To mitigate this, we employ weighted magnetic cooling clamps. These devices serve a dual purpose: they maintain a constant, calibrated pressure on the weld to ensure maximum surface contact and provide a controlled heat sink to draw energy away from the bond site at a steady rate. By slowing the cooling process slightly and preventing any lateral movement of the membrane, we ensure that the polymer chains lock into a stable, crystalline structure. This process prevents the "peel" failures common in rushed cold-weather installations.

• Pressure Distribution: Ensuring the clamp applies uniform force across the entire diameter of the induction plate.
• Thermal Stabilization: Preventing the rapid "quenching" of the weld, which can lead to brittleness.
• Mechanical Locking: Holding the membrane in a neutral state to eliminate tension during the cooling phase.
• Verification Cycles: Using the clamping period to perform a visual inspection of the weld perimeter.

Wind Resistance and Structural Integrity Analysis

Big-box retail centers are essentially giant sails, subject to immense wind uplift forces, particularly at the perimeter and around roof penetrations. The engineering objective is to ensure that the induction-welded attachments can withstand peak gust loads without failure. We evaluate this through the lens of ANSI/SPRI standards, focusing on the shear strength of the bond. Because induction welding creates a fused, monolithic connection between the membrane and the plate, it typically outperforms mechanical fasteners, which can "zip" or pull through the membrane during a high-wind event.

Our audit includes a series of destructive "peel tests" conducted on-site. By applying a calibrated load to a sample weld, we can determine if the failure occurs within the polymer (a cohesive failure) or at the interface of the plate (an adhesive failure). A cohesive failure is the gold standard, indicating that the weld is stronger than the membrane itself. In the high-exposure environments of power centers, the ability of the induction bond to distribute loads across the entire surface of the plate—rather than concentrating stress on a single screw head—is what ensures long-term envelope stability.

• Uplift Load Calculation: Analyzing the specific wind-zone requirements for the retail center's geographic location.
• Perimeter Reinforcement: Increasing the frequency of induction plates at the roof edges to counter vortex shedding.
• Shear Stress Evaluation: Measuring the resistance of the bond against lateral movement caused by thermal expansion and contraction.
• Long-term Fatigue Testing: Assessing the bond's ability to withstand repeated freeze-thaw cycles without losing elasticity.

The Engineering Imperative of Cold Logistics Envelope Integrity

In the specialized sector of food packaging and cold logistics, the building envelope is not merely a weather barrier; it is a critical component of the facility's thermal management and food safety compliance. These structures operate under extreme temperature differentials, where interior cold storage zones often clash with ambient exterior conditions. This thermal gradient creates a high-pressure environment that can drive moisture through the smallest microscopic void in the roofing system. For a facility handling perishable goods, a single breach in the membrane can lead to catastrophic condensation, mold growth, and the compromise of HACCP (Hazard Planning and Critical Control Point) certifications.

From a master roofer's perspective, the primary challenge lies in the movement of the building. Cold logistics plants utilize massive refrigeration units and heavy-duty racking systems that cause subtle but constant structural shifts. These movements place immense stress on the roof's perimeter flashing and drain assemblies. If the membrane is not engineered to accommodate this movement while maintaining a watertight seal, the result is a systemic failure of the building envelope. We approach these audits not as simple inspections, but as forensic engineering exercises to ensure the continuity of the waterproof layer.

• Mitigation of thermal bridging at roof-to-wall transitions.
• Prevention of interstitial condensation within the insulation layers.
• Ensuring the structural integrity of the vapor barrier to prevent moisture migration.
• Validating the load-bearing capacity of the roof deck under hydrostatic flood conditions.

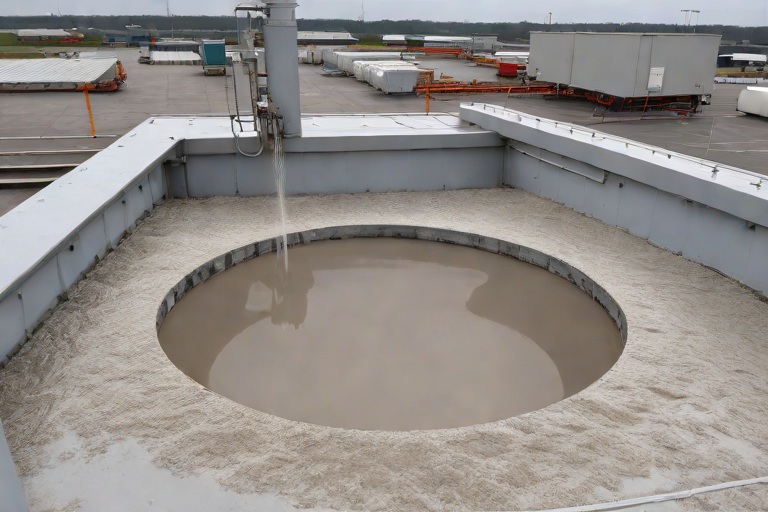

Methodology of the 48-Hour Hydrostatic Drain Bowl Test

The gold standard for verifying the watertightness of a commercial roof is the hydrostatic flood test. Unlike a simple hose test, which only checks specific flashing points, a full-scale flood test simulates a worst-case scenario of extreme precipitation and blocked drainage. For our audits at food packaging plants, we implement a 48-hour soak period. The process begins by temporarily plugging all primary drains using engineered inflatable plugs or custom-fitted mechanical seals. This transforms the roof deck into a massive "drain bowl," allowing us to establish a controlled body of water across the entire surface area.

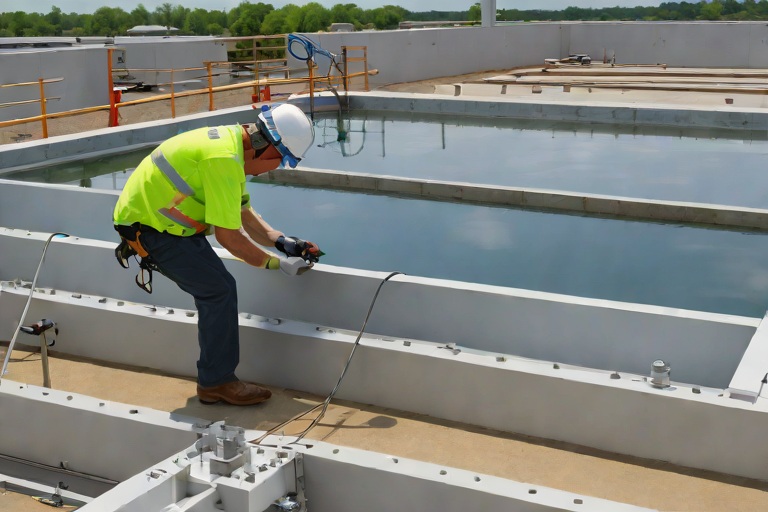

Once the drains are sealed, we introduce water to a depth of two to four inches, depending on the roof's slope and the structural load limits. This creates a constant hydrostatic head pressure against the membrane and all penetration points. Over the 48-hour window, we monitor the water level using precision laser levels and electronic depth gauges. Any drop in water level that cannot be attributed to evaporation is flagged as a potential leak. This method is essential because it forces water into voids that would otherwise remain dry during a standard rain event, exposing "pinholes" and cold-welds in the thermoplastic membrane.

• Installation of heavy-duty pneumatic plugs in primary and overflow drains.
• Controlled flooding to establish a uniform hydrostatic head.
• Continuous monitoring of water levels to detect subsurface seepage.
• Verification of the "ponding" effect to ensure the roof slopes correctly toward the drains.

Technical Analysis of Membrane Flange Welds and Interface Points

The most frequent point of failure in a commercial roof is not the field membrane, but the interface points—specifically the flange welds around drains, HVAC curbs, and pipe penetrations. In a high-performance food logistics plant, we utilize TPO (Thermoplastic Polyolefin) or PVC membranes that are hot-air welded. The science of the weld is critical; the material must reach a specific temperature to achieve a molecular bond, effectively turning two separate sheets into a single, monolithic piece of plastic. If the welder's temperature is too low, a "cold weld" occurs, which may look sealed but will fail under the pressure of a hydrostatic test.

Our audit process involves a rigorous physical and visual inspection of every weld bead. We use a calibrated probe to check for voids or "fish-mouths" along the edges of the flange. Special attention is paid to the "lap" where the membrane wraps around the drain bowl. In cold logistics, the contraction of the building can pull the membrane away from these flanges. We verify that the welds are not only secure but that there is sufficient slack in the membrane to allow for thermal expansion and contraction without stressing the bond. This ensures that the envelope remains intact regardless of the internal temperature of the freezer units below.

• Verification of weld temperatures using infrared thermography.
• Manual probe testing of all perimeter and penetration welds.
• Analysis of membrane thickness and uniformity at the flange interface.
• Assessment of the mechanical fastening patterns to prevent membrane bridging.

The Path to Manufacturer 20-Year NDL Warranty Sign-Off

A No Dollar Limit (NDL) warranty is the highest tier of protection in the commercial roofing industry. It signifies that the manufacturer will cover the full cost of repairs regardless of the expense, provided the installation meets their exact engineering specifications. For a food packaging plant, securing an NDL warranty requires a comprehensive audit trail that proves the system was installed to ASTM and ANSI standards. The manufacturer's representative does not simply look at the finished roof; they examine the documentation of the entire process, including the results of the 48-hour hydrostatic test.

The final sign-off is a multi-stage process. First, the "as-built" drawings must be reconciled with the actual installation. Second, the hydrostatic test logs must prove zero leakage over the 48-hour period. Finally, a comprehensive "walk-through" is conducted to ensure that no punctures occurred during the final cleanup. By combining the rigors of a hydrostatic flood test with a detailed engineering audit of the flange welds, we eliminate the risk of premature system failure. This meticulous approach transforms the roof from a liability into a long-term asset, ensuring the facility remains operational and compliant for the next two decades.

• Submission of detailed hydrostatic pressure retention logs.
• Manufacturer verification of thermoplastic weld integrity.
• Final audit of all flashing and termination bars for airtight seals.
• Formal issuance of the 20-year NDL warranty certificate upon successful audit completion.

The Criticality of the Building Envelope in Semiconductor Fabrication

In the realm of semiconductor manufacturing, the building envelope is not merely a shell; it is a primary component of the facility's operational integrity. Cleanroom environments operate under stringent ISO classifications where the slightest intrusion of moisture, particulate matter, or uncontrolled air infiltration can lead to catastrophic yield loss and millions of dollars in scrapped wafers. The parapet wall, while seemingly a simple architectural termination, represents the most vulnerable point of the envelope due to its constant exposure to wind-driven rain, hydrostatic pressure, and extreme thermal cycling.

When auditing a semiconductor fab, we often find that standard flashing installations fail because they do not account for the unique pressure differentials created by massive HVAC systems designed to maintain positive internal pressure. This "stack effect" can actually pull moisture through microscopic gaps in the masonry-to-metal interface. A failure in the counterflashing reglet allows water to migrate behind the primary roofing membrane, leading to saturated insulation and potential leaks into the cleanroom plenum. To mitigate this, a master-level approach to reglet overhaul is required, moving beyond superficial patching to a comprehensive engineering redesign of the termination point.

• Analysis of hydrostatic pressure loads on vertical masonry surfaces.
• Evaluation of existing flashing for signs of galvanic corrosion or fatigue.
• Assessment of the thermal bridge between the parapet cap and the main roof deck.
• Identification of capillary action pathways within the mortar joints.

Precision Reglet Engineering and Mortar Joint Modification

The foundation of a leak-proof parapet is the reglet—the recessed channel into which the counterflashing is inserted. In many aging fabs, the original reglets were either undersized or improperly formed, leading to "pull-out" during thermal expansion. Our engineering approach involves a systematic overhaul of these joints using precision diamond-blade grinding. By grinding into the horizontal mortar joints, we create a uniform, clean-cut channel that allows for the insertion of heavy-gauge metal without compromising the structural integrity of the masonry unit.

The grinding process must be executed with surgical precision to avoid "over-cutting," which can undermine the surrounding bricks and create new pathways for water ingress. We specify a reglet depth and width that accommodates the gauge of the Kynar metal while leaving sufficient room for the sealant bead. This process transforms the mortar joint from a potential leak source into a structural anchor for the flashing. Once the channel is established, the substrate must be mechanically cleaned of all dust and debris to ensure a high-energy surface for the polyurethane bond.

• Utilization of variable-speed diamond grinders for consistent channel depth.
• Strict adherence to a 1/2-inch by 2-inch reglet dimension for optimal metal seating.
• Mechanical cleaning of the joint using compressed air and wire brushing.
• Verification of joint squareness to prevent "gapping" at the metal edges.

Material Specification: Heavy-Gauge Kynar and Thermal Dynamics

Material selection for semiconductor facilities must prioritize longevity and chemical resistance. We specify heavy-gauge Kynar 500 (PVDF) coated steel or aluminum for all counterflashing. Kynar is the industry gold standard due to its exceptional resistance to UV degradation and atmospheric pollutants, which is critical for facilities with complex rooftop exhaust systems that may release corrosive gases. The gauge of the metal is paramount; we move away from thin-gauge flashing, which is prone to oil-canning and warping, in favor of 22-gauge or 24-gauge stock that maintains its shape under thermal stress.

The physics of the building envelope requires an understanding of the Coefficient of Thermal Expansion (CTE). Masonry and metal expand and contract at different rates. If the counterflashing is too rigid or improperly fastened, the movement will eventually tear the sealant bond. By utilizing a heavy-gauge L-shaped profile, we provide the necessary structural rigidity to resist wind uplift while allowing the metal to slide slightly within the reglet. This prevents the "prying" action that typically causes sealant failure at the top of the parapet wall.

• Specification of Kynar 500 PVDF coatings for maximum UV and chemical stability.
• Implementation of 22-gauge steel to prevent deformation and structural fatigue.
• Design of custom L-profiles to ensure a tight fit against the masonry face.
• Calculation of thermal expansion gaps to prevent buckling during peak summer temperatures.

Polyurethane Sealant Compression and Final Integration

The final and most critical line of defense is the sealant interface. We utilize high-modulus polyurethane sealants, adhering to ASTM C920 standards for elastomeric joint sealants. Unlike silicone, which may struggle with adhesion to certain masonry substrates, polyurethane provides a tenacious bond to both the Kynar metal and the mortar. However, the secret to a permanent seal is not the material itself, but the "compression" of the sealant. We employ a specific "hour-glass" joint geometry, achieved by inserting a closed-cell backing rod into the reglet before applying the sealant.

The backing rod serves two purposes: it prevents "three-sided adhesion," which would cause the sealant to tear during thermal movement, and it ensures the sealant is compressed to a specific depth-to-width ratio. By compressing the polyurethane sealant into the reglet, we create a high-density plug that resists water penetration even under extreme wind-driven rain conditions. This compression ensures that the sealant remains in a state of tension, allowing it to stretch and recover as the building breathes. The result is a hermetically sealed transition from the masonry wall to the roofing system, effectively eliminating the possibility of leaks into the cleanroom environment.

• Application of closed-cell polyethylene backing rods to control sealant depth.
• Maintenance of a 1:1 or 2:1 width-to-depth ratio for optimal sealant performance.
• Tooling the

The Engineering Challenge of Intermodal Cargo Freight Terminals

Intermodal cargo freight terminals present some of the most demanding environments for building envelope integrity. These facilities are characterized by massive clear-span footprints, constant vibration from heavy machinery, and extreme temperature fluctuations that stress the structural steel. The primary challenge in retrofitting these structures is the existing standing rib metal roof. While these roofs are structurally sound, they create a corrugated profile that complicates the addition of modern thermal barriers. When a standard insulation board is laid across the ribs, large voids are created in the flutes, leading to significant air infiltration and inefficient thermal performance.

From a master roofer's perspective, the goal is to transform a corrugated substrate into a monolithic, flat assembly without compromising the structural load capacity of the existing deck. In cargo terminals, where internal climate control is often necessary for worker safety and equipment longevity, the "valley" of the metal rib becomes a liability. If left unfilled, these valleys act as conduits for convective heat loss and moisture accumulation, which can lead to premature corrosion of the metal deck and systemic failure of the roofing assembly.

• Structural vibration from intermodal cranes and heavy freight vehicles.
• High thermal expansion and contraction cycles of long-span metal decking.
• The risk of interstitial condensation within the rib profiles.
• The need for high-compressive strength materials to support maintenance traffic.

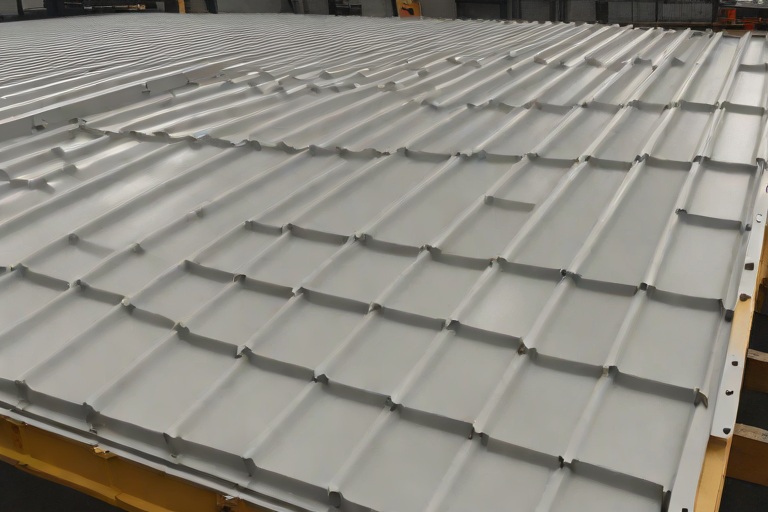

Precision-Cut Flute-Fill Geometry and Material Selection

To eliminate the voids inherent in standing rib profiles, we employ a precision-cut flute-fill strategy. This involves the use of CNC-machined Expanded Polystyrene (EPS) or Polyisocyanurate (Polyiso) insulation, cut specifically to the exact dimensions of the roof's rib profile. By filling the flutes entirely, we create a continuous thermal mass that extends from the bottom of the metal pan to the top of the rib. This process effectively "levels" the roof, providing a stable, flat foundation for the subsequent layers of insulation and the final membrane.

The selection of materials is governed by the balance between R-value and compressive strength. While Polyiso offers a superior R-value per inch, EPS is often utilized in the lower flute-fill sections due to its dimensional stability and resistance to moisture absorption. By layering these materials, we can engineer a custom thermal stack that meets stringent energy codes while ensuring the roof does not sag or compress under the weight of the final assembly. The precision of the cut is critical; any gap larger than 1/8 of an inch can become a site for thermal leakage.

• CNC-machined profiles tailored to specific rib depths and widths.
• Hybrid insulation layering combining EPS for stability and Polyiso for thermal resistance.
• Strict adherence to ASTM C179 standards for compressive load-bearing capacity.
• Elimination of "point-loading" on the metal ribs to prevent deformation.

Mitigating Thermal Bridging and Vapor Drive

Thermal bridging occurs when a highly conductive material, such as the steel of the standing rib roof, creates a path for heat to bypass the insulation. In a standard retrofit, the metal ribs act as thermal bridges, drawing heat out of the building in winter and pushing it in during summer. By implementing a full flute-fill system, we break this bridge. The insulation fills the entire volume of the rib, ensuring that the thermal resistance is uniform across the entire roof plane, regardless of the underlying corrugated geometry.

Beyond heat transfer, we must address vapor drive. In cargo terminals, the temperature differential between the interior warehouse and the exterior environment often pushes moisture through the roof assembly. If the flutes are not filled, this moisture can condense on the cool metal surfaces of the ribs, leading to "roof rain" or hidden rust. A precision-fit flute-fill system, coupled with a high-performance vapor retarder, ensures that the dew point remains outside the structural components of the roof. This protects the building envelope from the inside out, preventing the degradation of the steel substrate.

• Reduction of the "Cold Bridge" effect by enveloping the metal ribs in insulating foam.
• Control of interstitial condensation through the elimination of air pockets.
• Application of vapor barriers to prevent moisture migration from the terminal interior.
• Optimization of the building's overall U-factor for improved energy efficiency.

Single-Ply Membrane Integration and Final Assembly

Once the flute-fill insulation has established a flat, stable deck, the final phase is the installation of a single-ply membrane, typically TPO (Thermoplastic Olefin) or PVC. The transition from a corrugated surface to a flat plane is the most critical part of the process. Because the flute-fill has eliminated the ribs, the membrane can be laid flat without the risk of "bridging" or stretching over the ribs, which is a common cause of puncture and failure in traditional metal roof overlays.

The membrane is secured using a combination of mechanical fastening and heat-welding. In the high-stress environment of an intermodal terminal, we utilize a reinforced fastening pattern that distributes the wind-uplift loads across the entire roof surface. The seams are hot-air welded to create a chemically bonded, watertight seal that is far superior to traditional adhesives. This final assembly results in a roof that is not only thermally efficient but also capable of withstanding the harsh environmental conditions and operational demands of a freight terminal.

• Installation of a reinforced TPO or PVC membrane over the leveled insulation stack.
• Heat-welded seams to ensure a monolithic, leak-proof barrier.
• Mechanical attachment patterns designed to exceed ANSI/SPWindMap requirements.
• Final inspection and water-testing to verify the integrity of the building envelope.

The Engineering Audit of Coastal Envelope Integrity

In the high-stakes environment of port marine shipping warehouses, the building envelope is the primary line of defense against extreme atmospheric pressures and corrosive saline air. A comprehensive engineering audit of these structures often reveals a critical vulnerability: the degradation of the structural plywood deck fasteners. Over decades of service, the combined effects of thermal expansion and cyclic wind loading can lead to "nail pops" or a loss of fastener tension, compromising the diaphragm's ability to transfer lateral loads to the primary steel or timber frame. When auditing these facilities, we look beyond the surface membrane to examine the actual connection between the sheathing and the rafters.

The coastal environment introduces unique variables that necessitate a more rigorous approach than standard inland commercial construction. The presence of airborne chlorides accelerates the corrosion of non-galvanized fasteners, which in turn reduces the effective cross-sectional area of the nail, drastically lowering the shear strength of the connection. Our audit process focuses on identifying areas of fastener fatigue and ensuring that the decking remains rigidly coupled to the structural members to prevent catastrophic failure during a storm event.

• Evaluation of fastener corrosion levels using ASTM-standardized penetration probes.
• Mapping of existing nail patterns to identify deviations from original architectural specifications.
• Analysis of moisture content within the plywood layers to determine the risk of fungal decay around the nail holes.
• Assessment of the roof's overall deflection under simulated load conditions.

High-Wind Uplift and the Physics of Plywood Diaphragms

From a structural engineering perspective, the roof of a marine warehouse acts as a massive diaphragm. During high-wind events, the Bernoulli principle creates a significant pressure differential between the interior of the warehouse and the exterior roof surface, resulting in powerful upward suction known as wind uplift. If the plywood deck is not properly secured, this uplift can cause the sheathing to peel away from the supports, leading to a progressive collapse of the roofing system. To mitigate this, we implement a strict re-nailing schedule that increases the fastener density at the perimeter and along the support lines.

The physics of uplift resistance rely heavily on the "edge distance" and the frequency of the fasteners. In coastal zones, standard nailing schedules are often insufficient. We advocate for a reinforced schedule that prioritizes the perimeter zones, where wind turbulence is most severe. By reducing the spacing of fasteners at the edges, we distribute the uplift forces across a larger number of connection points, thereby reducing the load on any single nail and preventing the plywood from shearing through the fastener heads.

• Calculation of peak gust pressures based on ASCE 7 standards for coastal regions.
• Implementation of 4-inch on-center spacing at the perimeter and 6-inch spacing in the field.
• Verification of fastener penetration depth to ensure a minimum of 2 inches into the structural member.
• Analysis of the load path from the roof membrane through the decking to the primary structural frame.

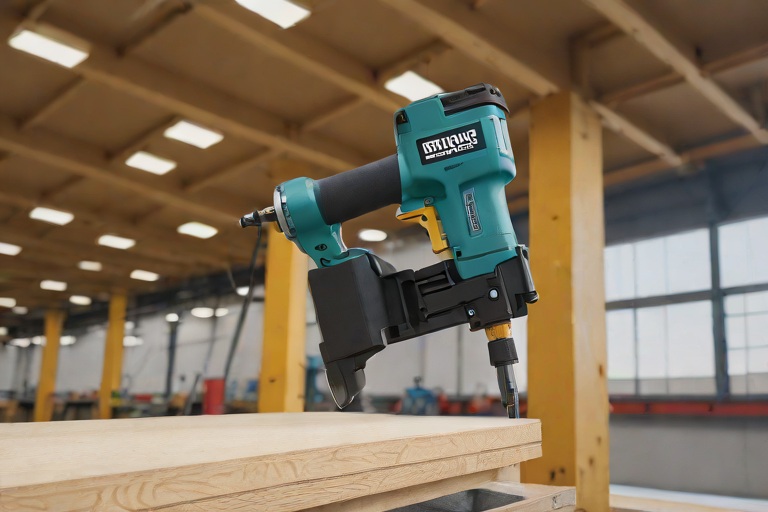

Fastener Mechanics: Pneumatic Ring-Shank Application

The choice of fastener is where material science meets craftsmanship. For structural re-nailing, smooth-shank nails are inadequate due to their tendency to "back out" under the vibration and thermal cycling common in port environments. We specify the use of heavy-duty, hot-dipped galvanized ring-shank fasteners. The ring-shank design creates a mechanical interlock between the nail and the wood fibers, significantly increasing the withdrawal resistance compared to a standard smooth nail. This ensures that once the fastener is driven, it remains seated even under intense cyclic loading.

To achieve the precision required for an engineering-grade installation, we utilize high-pressure pneumatic nailers. These tools provide the consistent driving force necessary to ensure that every nail is fully seated without splitting the plywood or over-driving the head, which would crush the wood fibers and reduce the holding power. The pneumatic delivery system allows for a rapid, repeatable application that eliminates the human error associated with manual hammering, ensuring that the re-nailing schedule is executed with mathematical accuracy across thousands of square feet of decking.

• Utilization of 10-gauge galvanized ring-shank nails to prevent galvanic corrosion.
• Calibration of pneumatic drive pressure to prevent "over-driving" and fiber crushing.
• Strict adherence to fastener spacing to avoid "splitting" the grain of the structural rafters.
• Application of a specialized sealant over nail heads to prevent moisture ingress into the fastener hole.

Verifying Shear Withdrawal and Long-Term Structural Stability

The final phase of the building envelope audit is the verification of shear withdrawal resistance. It is not enough to simply drive nails into the deck; we must prove that the new nailing schedule meets the required engineering thresholds. This is achieved through a series of random destructive and non-destructive tests. We employ pull-tests on sample sections of the deck to measure the force required to dislodge the ring-shank fasteners. This data is then compared against the calculated wind-uplift requirements to ensure a sufficient factor of safety is maintained.

Long-term stability in a marine environment requires a holistic view of the building envelope. The re-nailing process is a critical component of a broader strategy that includes the installation of high-performance membranes and flashing. By ensuring the structural deck is rigidly fastened, we provide a stable substrate for the roofing membrane, which prevents the formation of wrinkles and pockets where water could collect. This integrated approach ensures that the warehouse remains operational and safe, regardless of the severity of the coastal weather patterns.

• Execution of random pull-tests to verify that withdrawal resistance exceeds 300 lbs per fastener.
• Visual inspection of all fastener heads to ensure they are flush with the decking surface.
• Cross-referencing the completed nailing map with the original engineering blueprints.
• Final certification of the building envelope's compliance with local building codes and ANSI standards.

The Engineering Audit and Material Science of Large-Span Envelopes

In the realm of municipal sports and convention arenas, the building envelope is not merely a cover but a complex engineered system subject to extreme thermal fluctuations and structural stress. A comprehensive engineering audit begins with a forensic analysis of the existing substrate and membrane. For large-span structures, we must account for the significant coefficient of thermal expansion that occurs across vast surface areas. When a roof exceeds 200,000 square feet, the movement at the perimeter and the stress on the flashing details are magnified. We utilize infrared thermography and moisture scanning to identify subsurface saturation that often escapes visual inspection.

From a material science perspective, we evaluate the existing polymer degradation. Whether the arena is clad in a modified bitumen system or a thermoplastic polyolefin (TPO) membrane, the primary enemy is UV-induced photo-oxidation. This process breaks down the polymer chains, leading to embrittlement and a loss of tensile strength. By adhering to ASTM E2128 standards for heat flow and moisture penetration, we can determine if the current assembly is failing due to systemic fatigue or isolated puncture points. Our audit focuses on the integrity of the vapor barrier and the efficiency of the insulation R-value to prevent thermal bridging, which can lead to condensation and internal decking corrosion.

• Evaluation of membrane elasticity and puncture resistance under ASTM standards.
• Identification of hydrostatic pressure points at primary drainage scuppers and internal drains.
• Analysis of flashing integrity at parapet walls and HVAC curb penetrations.
• Assessment of substrate bonding strength to ensure compatibility with restoration coatings.

Net Present Value (NPV) and the Financial Logic of Restoration

When presenting a Life-Cycle Cost Analysis (LCCA) to municipal stakeholders, the conversation must shift from initial capital expenditure to Net Present Value (NPV). A traditional "tear-off and replace" strategy appears straightforward but is often financially inefficient when viewed over a 20-year horizon. The NPV calculation allows us to compare the cost of a full replacement today against the cost of a high-performance restoration system, accounting for the time value of money and the inflation of material costs.

A restoration approach—utilizing high-solids silicone or acrylic polymers—requires a lower initial investment while extending the service life of the existing asset. By calculating the discounted cash flows, we demonstrate that the avoided cost of a full replacement, when reinvested or held, outweighs the periodic maintenance costs of a restored system. Furthermore, the reduction in labor hours and the elimination of heavy machinery for debris removal significantly lower the immediate financial burden on the municipal budget. We analyze the "break-even" point where the restoration system's maintenance cycle intersects with the projected failure date of a new membrane.

• Comparison of initial CapEx for full replacement versus the OpEx of a restoration cycle.
• Calculation of the Internal Rate of Return (IRR) for envelope longevity investments.
• Analysis of energy savings derived from high-albedo (cool roof) coatings to reduce HVAC loads.
• Projection of future liability costs associated with emergency leak repairs in a failed system.

Tax Deductions for Maintenance Restoration and Warranty Extensions

One of the most overlooked aspects of commercial envelope engineering is the intersection of material science and tax law. In many jurisdictions, a full roof replacement is classified as a capital improvement, which must be depreciated over several decades. Conversely, a professional restoration—defined as the process of renewing the existing roof to a "like-new" condition—can often be categorized as a maintenance expense. This distinction allows municipal entities or their private partners to claim immediate tax deductions for the restoration costs, significantly improving the project's immediate cash flow.

To provide long-term security, we implement 15-year warranty extensions. These are not mere service contracts but engineering guarantees backed by rigorous quality control. A 15-year warranty on a restored system is achieved by ensuring the substrate is properly primed and that the coating thickness meets the manufacturer's minimum dry film thickness (DFT) requirements. By shifting the focus from a short-term fix to a long-term engineered solution, we provide the facility manager with a predictable budget and a guaranteed performance window, eliminating the volatility of annual "patch-and-seal" repairs.

• Strategic classification of restoration as a deductible maintenance expense.
• Implementation of No Dollar Limit (NDL) warranties on labor and materials.
• Verification of DFT (Dry Film Thickness) to ensure warranty compliance.
• Alignment of warranty cycles with municipal budget planning cycles.

Environmental Stewardship and the Mitigation of Landfill Waste

The environmental impact of a commercial roof tear-off on a convention center is staggering. A typical arena roof can generate hundreds of tons of non-biodegradable waste, consisting of old membranes, saturated insulation, and adhesive residues. This waste is typically destined for landfills, where it contributes to long-term environmental degradation. As master roofers, our objective is to transition the industry toward a circular economy by treating the existing roof as a valuable substrate rather than waste.

By utilizing a restoration system, we effectively "lock in" the existing materials, preventing them from entering the waste stream. The application of a high-performance fluid-applied membrane creates a seamless, monolithic layer that is far more sustainable than a mechanically fastened system. This approach not only reduces the carbon footprint associated with the manufacturing and transport of new materials but also eliminates the emissions generated by the heavy equipment required for demolition. We focus on the science of "recovery," where the existing roof is cleaned, prepped, and reinforced, turning a potential liability into a permanent asset.

• Reduction of landfill tonnage by eliminating the need for total membrane removal.
• Lowering the embodied carbon footprint by reducing the demand for new petroleum-based polymers.
• Elimination of VOC emissions through the use of low-solvent, high-solids coatings.
• Promotion of LEED certification through the implementation of high-reflectivity "Cool Roof" technology.

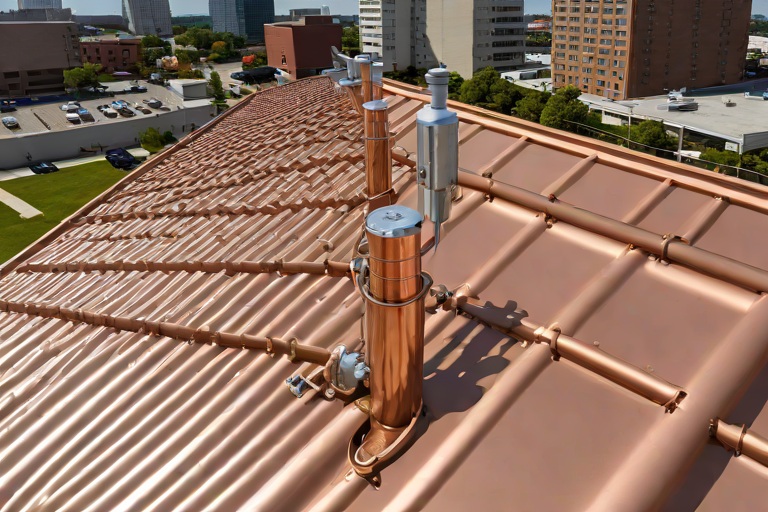

The Engineering Conflict: Lightning Protection Systems and Membrane Integrity

In the high-stakes environment of urban multi-family residential towers, the building envelope is subjected to extreme atmospheric pressures and electrical volatility. The primary engineering challenge arises from the inherent conflict between a Lightning Protection System (LPS) and the waterproofing membrane. While the LPS is designed to provide a low-impedance path to ground to protect the structure from catastrophic electrical discharge, the installation of air terminals and grounding conductors often creates thousands of potential failure points in the roof's moisture barrier.

From a building envelope perspective, every stanchion and conductor cable represents a penetration or a mechanical stress point. When a lightning strike occurs, the resulting thermal expansion and massive current flow can cause localized melting of thermoplastic membranes or the degradation of modified bitumen. If the flashing is not engineered to handle both the mechanical load of the hardware and the thermal shock of a strike, the result is a breach in the envelope, leading to insidious water infiltration and structural decay.

• Compliance with NFPA 780 standards for the installation of lightning protection systems.
• Mitigation of galvanic corrosion between dissimilar metals and synthetic membranes.
• Management of thermal bridging where metal stanchions penetrate the insulation layer.
• Prevention of "point-loading" stress on the membrane during high-wind events in urban corridors.

Heavy-Duty Stanchion Pitch-Pocket Detailing and Bonding

The air terminal stanchion is the most critical point of the LPS interface. A standard "caulk and bolt" approach is a failure in the making. To ensure a lifetime seal, we employ a heavy-duty pitch-pocket detailing strategy. This involves creating a reinforced containment area around the base of the stanchion, utilizing a combination of high-performance flashing membranes and liquid-applied flashing grade polymers. The goal is to create a redundant, multi-layered seal that can accommodate the coefficient of thermal expansion differences between the steel stanchion and the roof substrate.

The bonding process must be meticulous. We utilize a reinforced flashing flange that is heat-welded to the main field membrane, ensuring a molecular bond that eliminates hydrostatic seepage. The stanchion is then seated within a custom-fabricated metal sleeve, which is filled with a non-shrink, non-conductive sealing compound. This prevents the stanchion from vibrating against the membrane, which would otherwise lead to mechanical abrasion and eventual puncture.

• Utilization of reinforced TPO or PVC flashing boots for superior weld strength.
• Application of high-solids polymer sealants to create a watertight gasket at the stanchion base.
• Implementation of a "double-curb" flashing detail to elevate the bonding point above the standing water line.
• Use of non-conductive spacers to prevent direct metal-to-membrane friction.

Grounding Cable Conductor Flashings and Penetration Management

Beyond the air terminals, the grounding cable conductors that traverse the roof deck present a significant risk to the building envelope. These cables are often subject to wind-induced vibration and thermal cycling, which can "saw" through a membrane over time. A master-level installation requires the use of conductor saddles and protective sleeves at every point where the cable transitions from the roof surface into the building's internal grounding system.

The engineering focus here is on the "transition zone." Where the conductor cable penetrates the roof deck, we implement a comprehensive flashing system that includes a rigid metal flashing ring bonded to the membrane with a compatible adhesive. This ensures that the cable does not act as a conduit for water to enter the plenum. Furthermore, we specify the use of UV-stabilized cable supports that are mechanically fastened to the structure rather than the membrane, ensuring that the waterproofing layer remains undisturbed.

• Installation of stainless steel conductor saddles to prevent membrane abrasion.
• Application of liquid-applied flashing at cable penetration points for a seamless, monolithic seal.
• Strict adherence to ASTM E2128 for the evaluation of moisture-tight seals around electrical penetrations.
• Strategic routing of cables to avoid high-traffic maintenance zones and drainage paths.

Lifecycle Engineering Audit and Preventative Maintenance Protocols

A commercial roof is not a static asset; it is a living system that degrades. For urban residential towers, a rigorous engineering audit must be performed annually to assess the integrity of the LPS bonding. The primary focus of these audits is the detection of "ballooning" or voiding around the stanchion bases, which indicates a failure in the bonding agent or the onset of subsurface moisture accumulation. We utilize infrared thermography to identify thermal anomalies that suggest water has bypassed the flashing and is trapped within the insulation.

The long-term viability of the envelope depends on the ability to maintain the seal without compromising the electrical conductivity of the LPS. This requires a specialized maintenance protocol where flashing is inspected for UV degradation and ozone cracking. If a membrane puncture is detected near a lightning terminal, the repair must be executed using a compatible heat-welding process that does not interfere with the grounding path of the air terminal. This ensures the building remains safe from lightning while remaining dry from the elements.

• Annual infrared scanning to detect subsurface moisture trapped beneath LPS flashings.
• Mechanical torque testing of stanchion mounts to ensure stability against wind-uplift.
• Visual inspection of all conductor cable supports for signs of friction wear or oxidation.
• Verification of grounding continuity to ensure the LPS is not compromised by membrane repair materials.

OSHA-Compliant Access Engineering and Ladder Safety Post Integration

During the building envelope audit of the Public Transit Maintenance Bus Barn, the primary focus regarding personnel access was the structural integrity and compliance of the roof hatch assemblies. In a high-ceiling industrial environment, the transition from the interior ladder to the roof surface represents a critical safety vulnerability. We observed several legacy installations where the grab bars lacked the necessary tensile strength to support a technician in full fall-arrest gear, necessitating a complete retrofit to meet current OSHA 1910.28 standards and ANSI requirements for fixed ladder access.

The engineering solution implemented involves the installation of heavy-duty, powder-coated steel safety grab bars that extend beyond the roof curb. These bars are not merely bolted to the hatch frame but are structurally tied into the building's primary steel members to ensure zero deflection during use. By providing a secure handhold that extends 42 inches above the roof surface, we eliminate the "gap of uncertainty" that often leads to falls during egress and ingress.

• Installation of 1.5-inch diameter schedule 40 steel piping for maximum rigidity.
• Application of high-visibility safety coatings to ensure visibility during low-light emergency evacuations.
• Implementation of reinforced gusset plates at the base of each safety post to distribute lateral loads.
• Verification of clearance zones to ensure that grab bars do not obstruct the full opening of the hatch cover.

Counterbalanced Smoke Damper Mechanics and Life Safety Integration

Public transit barns require sophisticated smoke management systems to protect personnel and high-value assets during a fire event. The audit revealed that the existing smoke dampers were prone to "slamming" due to failed spring tensioners, which not only posed a physical risk to operators but also compromised the roof's watertight seal upon closure. A counterbalanced system is essential here; it ensures that the heavy-gauge steel dampers can be operated with minimal effort while maintaining a controlled descent speed.

From a material science perspective, the interaction between the damper blade and the roof curb must be seamless to prevent the "chimney effect," where smoke or external pollutants are drawn into the facility. We specified a counterbalanced mechanism utilizing high-tensile gas springs calibrated to the exact weight of the damper assembly. This ensures that the damper seats firmly against the compression gasket without requiring excessive manual force, thereby maintaining the integrity of the building envelope during non-emergency operations.

• Integration of heavy-duty gas struts to provide a constant-force counterbalance.
• Use of stainless steel pivot pins and bushings to prevent corrosion in high-humidity maintenance environments.
• Calibration of closing speeds to prevent impact-related deformation of the roof membrane.
• Installation of limit switches to provide real-time status updates to the facility's central alarm system.

Curb Gasket Engineering and Hydrostatic Water Mitigation

The interface between the roof hatch curb and the roof membrane is the most common point of failure in commercial bus barns. Due to the vibration caused by heavy vehicle movement and the thermal expansion and contraction of the large-span roof, standard caulking is insufficient. The audit identified significant "alligatoring" of old sealants, leading to hydrostatic infiltration. To resolve this, we transitioned the facility to a heavy-duty compression curb gasket system utilizing closed-cell EPDM (Ethylene Propylene Diene Monomer).

Unlike traditional sealants, a compression gasket creates a mechanical seal that adapts to the irregularities of the substrate. By utilizing a high-density foam core with a synthetic rubber skin, the gasket maintains a constant outward pressure against the hatch frame. This creates a redundant barrier that prevents wind-driven rain from penetrating the building envelope, even during extreme weather events. The engineering focus here is on the "compression set," ensuring the material returns to its original shape after the hatch is opened and closed thousands of times over its lifecycle.

• Application of ASTM-rated EPDM gaskets with a minimum Shore A hardness of 40 for optimal compression.
• Utilization of a double-bulb gasket design to provide two distinct points of contact for water shedding.
• Implementation of a continuous bead of high-grade silicone sealant as a secondary backup.
• Verification of curb leveling to ensure uniform gasket compression across the entire perimeter.

Compression Termination Bars and Membrane Perimeter Integrity

The final component of the building envelope audit focused on the termination of the roofing membrane at the curb and parapet walls. In many industrial settings, membranes are simply adhered to the wall, which allows for peeling and water ingress over time. We have mandated the use of mechanical compression termination bars across all hatch perimeters. These bars are constructed from heavy-gauge galvanized steel or aluminum and are designed to "pinch" the membrane against the substrate, creating a permanent, watertight bond.

The technical execution involves a precise fastening schedule, typically every 12 inches on center, using stainless steel fasteners and neoprene washers. This prevents the membrane from bridging or pulling away during thermal cycling. By applying a continuous bead of termination sealant over the top of the bar, we create a seamless transition from the horizontal roof plane to the vertical curb face. This system effectively eliminates the risk of capillary action, where water is drawn upward under the membrane, ensuring the long-term durability of the bus barn's structural decking.

• Installation of 2-inch wide aluminum termination bars for superior corrosion resistance.
• Use of oversized neoprene washers to ensure a watertight seal at every fastener penetration.
• Application of a high-solids polyurethane sealant to the top edge of the termination bar.
• Strict adherence to a 45-degree bevel on all membrane transitions to reduce stress concentrations.

The Critical Imperative of Secure Archive Envelope Integrity

When auditing a Government Secure Records Archive, the margin for error is zero. Unlike standard commercial warehouses, an archive facility houses irreplaceable historical and legal data; a single catastrophic roof failure or a slow-leak infiltration can result in the permanent loss of national assets. From a building envelope perspective, the roof is not merely a cover but a complex hydraulic system designed to manage massive volumes of precipitation while maintaining a hermetic seal against the elements. The primary challenge in these high-security structures is the integration of redundant drainage systems that can handle "100-year storm" events without allowing water to pond or back up into the building interior.

A master-level engineering approach requires looking beyond the membrane. We analyze the entire assembly, from the substrate and insulation layers to the flashing and the final discharge points. In secure archives, the risk of internal humidity spikes caused by roof leaks can trigger mold growth within record stacks, necessitating a rigorous adherence to ASTM standards for water penetration and air leakage. The goal is to create a "fail-safe" environment where the primary drainage system is supported by secondary and tertiary relief mechanisms, ensuring that hydrostatic pressure never reaches a critical threshold that could compromise the building's structural integrity.

• Adherence to ASTM E2128 for evaluating the water-penetration resistance of the building envelope.
• Implementation of high-performance TPO or EPDM membranes with reinforced flashing at all penetrations.
• Strategic placement of moisture-sensing telemetry to detect subsurface saturation before leaks manifest.
• Coordination between the roofing system and the HVAC envelope to prevent condensation-driven interior leaks.

Engineering Multi-Tier Conductor Head Overflow Spillways

The conductor head serves as the critical transition point between the roof's internal drainage and the external downspout system. In a high-capacity government facility, a standard conductor head is insufficient. We implement a multi-tier overflow spillway system, which functions as a series of relief weirs. A weir is essentially a calibrated notch in the side of the conductor head that allows water to escape the system if the primary downspout becomes obstructed or overwhelmed. By calculating the precise height and width of these spillways, we can ensure that water is diverted away from the roof deck and directed toward a safe discharge area before the water level reaches the roof's flashing height.

The engineering logic behind multi-tier spillways is based on the principle of redundancy. The primary drain handles the standard rainfall; the first tier weir activates during heavy storms to prevent ponding; and the final tier acts as an emergency scupper to prevent a total roof collapse due to the weight of standing water. This requires precise hydraulic calculations to determine the "gallons per minute" (GPM) capacity of the downspouts versus the potential rainfall accumulation. If the downspout capacity is exceeded, the spillway must be sized to discharge the excess volume without creating a "waterfall" effect that could erode the building's facade or infiltrate the wall cavity.

• Calculation of weir flow rates using the Francis formula to determine discharge capacity.
• Installation of oversized, heavy-gauge galvanized steel conductor heads to resist deformation.
• Strategic alignment of spillways to ensure water is directed away from secure entry points and ventilation intakes.
• Integration of debris screens to prevent organic matter from clogging the primary relief apertures.

Structural Reinforcement of Downspout Bracketry and Support

In large-scale commercial archives, downspouts are often subjected to immense vertical loads and lateral wind pressures. A common failure point in inferior installations is the reliance on lightweight, thin-gauge brackets that fatigue over time. From a master tradesman's perspective, the downspout is a structural column of water. During a peak rain event, the weight of the water column within a 6-inch leader can be substantial, creating significant stress on the mounting hardware. We utilize heavy-duty, 16-gauge galvanized steel brackets, anchored directly into the building's structural masonry or steel frame using ANSI-rated fasteners.

Furthermore, we address the issue of thermal movement. Commercial buildings expand and contract based on temperature fluctuations, and if a downspout is rigidly fixed from top to bottom, the stress will eventually cause the joints to crack or the brackets to pull away from the wall. Our engineering specification includes the use of "slip-joints" or expansion sleeves at calculated intervals. This allows the metal to breathe without compromising the watertight seal. By combining rigid structural support with intentional points of flexibility, we eliminate the risk of mechanical failure during extreme weather cycles.

• Utilization of heavy-duty wrap-around brackets to distribute the load across a wider surface area.
• Application of high-torque, stainless steel anchors to prevent galvanic corrosion between different metals.
• Installation of expansion joints every 20 feet to accommodate the coefficient of thermal expansion of the metal.
• Verification of bracket spacing to ensure zero vibration or "chatter" during high-velocity water flow.

Mitigating Freeze-Thaw Bursting and Thermal Shock

One of the most destructive forces acting upon a commercial building envelope is the freeze-thaw cycle. In colder climates, water trapped in the bottom of a downspout or within a conductor head can freeze, creating an "ice plug." When subsequent rainfall or snowmelt occurs, the water accumulates above the ice plug, creating immense hydrostatic pressure. Because water expands by approximately 9% when it freezes, this pressure can literally burst the seams of a downspout or blow out the conductor head, leading to uncontrolled flooding of the roof deck.

To defend against this, we implement a comprehensive "Burst Defense" strategy. This begins with ensuring a positive slope on all horizontal drainage runs, preventing the stagnation of water. We also specify the use of insulated conductor heads and, in extreme cases, heat-trace cabling integrated into the downspout assembly. By maintaining the water in a liquid state or ensuring it drains completely, we eliminate the possibility of ice plugs. Additionally, we utilize high-performance sealants with high elasticity ratings that can withstand the contraction and expansion of the metal without cracking, ensuring that

Initial Envelope Audit and Oxidation Assessment

In the high-stakes environment of a pharmaceutical production facility, the building envelope serves as the primary line of defense against atmospheric contaminants and moisture ingress. During our comprehensive engineering audit, we identified significant oxidation patterns occurring on the structural steel decking. The failure was primarily attributed to localized condensation cycles and intermittent roof membrane breaches, which allowed moisture to dwell on the steel flutes. This created an electrolytic cell, accelerating the oxidation process and leading to the formation of ferric oxide, commonly known as red rust.

The audit revealed that the oxidation was not merely superficial; in several critical zones, the corrosion had progressed to a stage of pitting, which compromised the thickness of the steel flutes. In a pharmaceutical setting, structural integrity is paramount, as the deck must support heavy HVAC equipment, clean-room partitions, and stringent vibration controls. We utilized ultrasonic thickness gauging to determine the remaining structural capacity of the steel, identifying areas where the material had thinned beyond the acceptable tolerances defined by the American Institute of Steel Construction (AISC).

• Identification of atmospheric corrosion patterns and moisture entrapment zones.
• Ultrasonic thickness testing to quantify steel loss in the load-bearing flutes.
• Assessment of existing coating failure and delamination of original mill scale.
• Evaluation of the interface between the steel deck and the perimeter parapet flashing.
• Mapping of high-risk oxidation zones relative to roof drainage slopes.

Mechanical Remediation and Surface Preparation

Remediation began with a rigorous mechanical cleaning process designed to remove all loose scale and oxidation without further compromising the thinned steel. We adhered to the Society for Protective Coatings (SSPC) standards, specifically targeting an SP-2 or SP-3 surface preparation level. The use of heavy-duty wire-brushing and power-tool cleaning was essential to strip away the oxidized layers and expose the "white metal" or a near-white surface. This process is critical because any primer applied over existing rust will fail to bond, effectively trapping moisture and accelerating the corrosion process beneath the new coating.

Precision is required during the wire-brushing phase to ensure that the mechanical action creates a sufficient surface profile. A proper anchor pattern allows the zinc-rich primer to mechanically lock into the steel substrate. Our team focused heavily on the "valleys" of the flutes, where rust typically accumulates due to gravity and moisture pooling. By meticulously cleaning these troughs, we ensured that the subsequent passivation layer would be continuous and void of any microscopic contaminants that could trigger future galvanic reactions.

• Execution of SSPC-SP2/SP3 mechanical cleaning to remove ferric oxide.
• Utilization of pneumatic wire-brushing for deep-flute penetration.
• Removal of all previous failed coatings and degraded mill scale.
• Vacuuming of all debris to ensure a contaminant-free substrate.
• Verification of surface profile consistency across all treated structural members.

Chemical Passivation and Zinc-Rich Primer Application

Once the substrate was mechanically cleaned and dried, we initiated the passivation process using a high-solids, zinc-rich rust-inhibiting primer. From a material science perspective, zinc-rich primers function through cathodic protection. Because zinc is more electronegative than steel, it acts as a sacrificial anode; the zinc corrodes in preference to the underlying steel, effectively halting the oxidation process even if the primer film is scratched or breached in the future. This is a critical requirement for pharmaceutical facilities where future maintenance or equipment installation may cause minor surface abrasions.

The application was performed using a high-pressure airless spray system to ensure total encapsulation of the steel flutes and a uniform Dry Film Thickness (DFT). We monitored the ambient temperature and dew point to prevent moisture entrapment during the curing phase, adhering to ASTM D523 standards for gloss and surface uniformity. The resulting passivation layer creates a chemical barrier that isolates the steel from oxygen and moisture, transforming a vulnerable structural element into a durable, corrosion-resistant assembly.

• Application of industrial-grade zinc-rich primers for galvanic protection.
• Strict monitoring of Dry Film Thickness (DFT) to ensure specification compliance.
• Implementation of sacrificial anode chemistry to prevent future pitting.
• Control of environmental variables to ensure optimal chemical bonding.
• Verification of total encapsulation of all weld points and lap joints.

Structural Reinforcement and Fastener Integrity

The final phase of the remediation focused on the structural restoration of the thinned steel flutes and the securing of all fasteners. In areas where the audit identified significant material loss, we implemented structural reinforcement. This involved the installation of reinforced steel shims or the application of specialized structural epoxy fillers designed to restore the cross-sectional area of the flute. For more severe thinning, we utilized intermittent tack welding of reinforcement plates to ensure the deck maintained its design load-bearing capacity and resisted deflection under the weight of the pharmaceutical production equipment.

Simultaneously, we conducted a comprehensive audit of all deck fasteners and attachment points. Corrosion often migrates to the fasteners, leading to "necking" or complete shear failure. We replaced all compromised fasteners with heavy-duty, galvanized steel bolts and screws, ensuring they were torqued to the specific foot-pound requirements of the building's engineering specifications. By securing the fasteners and reinforcing the thinned steel, we restored the building envelope's diaphragm strength, ensuring the facility remains compliant with both safety codes and operational requirements.

• Installation of reinforcement plates on flutes with critical material loss.
• Application of structural fillers to restore the geometry of the steel deck.
• Replacement of corroded fasteners with galvanized, high-shear alternatives.
• Torque verification of all deck-to-beam connections to prevent vibration.
• Final inspection of the building envelope to ensure a seamless, weather-tight seal.

The Forensic Philosophy of Historic Envelope Audits

When auditing a commercial historic sanctuary and its accompanying education annex, a master roofer must move beyond the superficial visual inspection. Historic structures present a unique set of engineering challenges, often featuring complex geometries, aged substrates, and a layering of multiple roofing generations. A true forensic maintenance audit requires a "boots-on-the-roof" approach, where the inspector treats the building envelope as a single, integrated system rather than a series of isolated components. The goal is to identify the precise point of failure before it manifests as an interior leak, which in a sanctuary setting could mean the loss of irreplaceable architectural assets.

The building envelope of a historic sanctuary is subject to extreme thermal cycling and structural settling. Unlike modern warehouses, these buildings often have varied roof pitches and intricate flashing details where the sanctuary spire meets the education annex. To ensure the longevity of the asset, the audit must adhere to the highest standards of material science and ASTM guidelines, focusing on the interface between different building materials and the efficacy of the moisture barrier.

• Evaluation of substrate rigidity and deflection under load.
• Assessment of thermal bridging at the junction of the sanctuary and annex.
• Analysis of historical water migration patterns through the masonry parapets.
• Verification of existing flashing compatibility with modern sealant technologies.

Mechanical Integrity and the Science of Seam Analysis

In the realm of commercial roofing, the seam is the most critical point of failure. Automated seams, while efficient during installation, are not immune to degradation. A forensic audit employs a rigorous probing technique using hand tools, such as a 1/8-inch steel probe and a calibrated seam gauge, to verify the integrity of every weld and fold. We examine the "cold weld" areas and the consistency of the heat-welded seams in TPO or PVC membranes, as well as the lap integrity in modified bitumen systems. The objective is to identify "fish-mouths" or incomplete bonds that a drone or a simple walk-through would overlook.

From an engineering perspective, the focus is on the coefficient of thermal expansion. Historic sanctuaries often lack the consistent HVAC zoning of modern buildings, leading to significant expansion and contraction of the roof membrane. This movement puts immense stress on the seams, particularly at the transition points of the education annex. By probing the seams, we can quantify the percentage of failure and determine if the system is reaching the end of its design life or if a specific installation error occurred.

• Manual probing of 100% of perimeter seams and critical field seams.
• Testing for "voids" in automated welds using vacuum-box testing where applicable.
• Inspection for polymer degradation and UV-induced brittleness in the membrane.
• Verification of lap width according to ANSI and manufacturer specifications.

Critical Penetration Engineering and Drainage Torque

The most frequent points of ingress in an education annex are the roof penetrations and drainage systems. A forensic audit focuses heavily on the drain bowl clamping torque. Many technicians over-tighten clamping rings, which crushes the membrane and creates a micro-fracture, or they under-tighten, allowing hydrostatic pressure to force water under the flashing. We utilize calibrated torque wrenches to ensure that the clamping force is optimized for the specific membrane thickness and drain bowl material, ensuring a watertight seal without compromising the structural integrity of the roof surface.

Furthermore, the inspection of perimeter cleats and edge metal is paramount. In high-wind events, the perimeter is the first line of defense against wind uplift. We examine the fastening pattern of the perimeter cleats to ensure they are anchored into the structural decking and not merely the roof insulation. This is especially critical in historic sanctuaries where the roof edge may have been modified multiple times over several decades. Ensuring that the drip edge and gravel stops are properly secured prevents the wind from getting "under" the membrane, which could lead to a catastrophic peel-back failure.

• Measurement of clamping ring torque to prevent membrane crushing.
• Inspection of drain bowl gaskets for compression set and dry rot.
• Verification of fastener spacing and pull-out resistance for perimeter cleats.
• Analysis of flashing heights at parapet walls to ensure compliance with local building codes.

Synthesis of Findings and Forensic Reporting

The final phase of a professional building envelope audit is the translation of physical findings into a comprehensive engineering report. A master roofer does not simply provide a "to-do" list; they provide a risk-stratified analysis. The written report categorizes findings into immediate threats, medium-term maintenance requirements, and long-term capital expenditures. By quantifying the number of failed seams per square foot and the percentage of compromised fasteners, we provide the client with a data-driven roadmap for the sanctuary's preservation.

This reporting process bridges the gap between the tradesman's experience and the owner's financial planning. We document every deficiency with high-resolution photography and precise mapping on the roof plan. This forensic trail ensures that when repairs are made, they are targeted and efficient, avoiding the "patch-and-pray" mentality that often plagues historic building maintenance. The result is a sustainable building envelope that protects the sanctuary's legacy while optimizing the operational budget of the education annex.

• Creation of a detailed deficiency map highlighting all probe failures.
• Categorization of risks based on the probability of water intrusion.
• Development of a multi-year lifecycle maintenance schedule.
• Provision of technical specifications for all recommended remediation materials.

Thermal Dynamics of High-Temperature TPO Fusion

In the realm of critical infrastructure, specifically financial institution data vaults, the building envelope is the primary line of defense against catastrophic moisture ingress. When deploying a 60-mil Thermoplastic Polyolefin (TPO) membrane, the integrity of the system relies entirely on the quality of the seam fusion. Unlike traditional adhesives, TPO requires a molecular bond achieved through precise thermal energy. For these high-security vaults, we calibrate our robotic welding systems to a sustained 1,000°F. This specific temperature threshold is engineered to reach the melting point of the polymer without crossing into the zone of thermal degradation, which would otherwise char the membrane and compromise its structural longevity.

The physics of this fusion process involves the transition of the TPO from a solid state to a viscous melt, allowing the two overlapping sheets to intermingle at a molecular level. If the temperature fluctuates by even a small margin, the resulting bond may suffer from "cold welds," where the sheets are merely stuck together rather than fused. In a data vault environment, where the interior houses millions of dollars in hardware and sensitive records, a cold weld is a latent failure point that can lead to systemic leaks during a heavy rain event or thermal cycling.

• Molecular Cross-Linking: The process of creating a permanent chemical bond between overlapping TPO sheets.
• Thermal Degradation Limits: Avoiding the "burn" point where the polymer breaks down and loses its tensile strength.
• Heat Soak Calibration: Ensuring the heat penetrates the full 60-mil thickness of the membrane for a homogenous weld.
• Atmospheric Compensation: Adjusting the 1,000°F set point based on ambient humidity and substrate temperature.

Robotic Calibration and Kinetic Variables

Human error is the greatest risk factor in commercial roofing. To mitigate this, Aquashield utilizes robotic hot-air welding systems that provide a level of consistency unattainable by manual hand-welding. The effectiveness of the robotic system is governed by the relationship between nozzle pressure, travel velocity, and heat output. We treat the welding process as a kinetic equation: the amount of heat transferred to the membrane is a direct product of the time the nozzle spends over a specific area. This is why automated travel velocity is calibrated to the millimeter per second.

Nozzle pressure is equally critical. The hot air must be forced into the interface of the two membranes to displace any trapped air or contaminants. If the pressure is too low, the heat does not penetrate the 60-mil thickness uniformly; if it is too high, it can cause the membrane to "balloon" or distort, creating a weak point in the seam. By locking in a constant velocity and a calibrated pressure setting, we ensure that every linear inch of the seam receives the exact same thermal load, resulting in a uniform weld bead across the entire vault roof.

• Travel Velocity Optimization: Maintaining a constant speed to prevent overheating or under-welding.
• Pneumatic Nozzle Pressure: Ensuring a consistent flow of 1,000°F air to drive the fusion process.
• Automated Pathing: Utilizing GPS and laser-guided robotics to maintain a perfect overlap width.
• Real-Time Telemetry: Monitoring the heat output at the nozzle tip to ensure zero variance during the weld.

Destructive Test-Cut Peel Audits

A visually clean seam is not necessarily a secure seam. To validate the engineering of the envelope, we employ a rigorous destructive testing protocol known as the Peel Audit. This process involves taking a physical sample from the completed roof—typically at the end of a roll or at a critical junction—and performing a test-cut. A 1-inch wide strip is cut through the fused seam, and a controlled pull is applied to separate the two membranes. This is the only way to verify that the molecular bond was successfully achieved across the entire 60-mil profile.

The gold standard for a successful peel audit is "parent material failure." This occurs when the TPO membrane itself rips apart before the seam separates. If the seam peels apart cleanly, it indicates a failure in the fusion process, likely due to a drop in temperature or an increase in travel velocity. For financial data vaults, we require a 100% success rate on these audits. Any failure triggers an immediate stop-work order and a full recalibration of the robotic equipment, followed by a comprehensive re-audit of all seams installed since the last successful test.

• Parent Material Failure: The ultimate indicator of a weld that is stronger than the membrane itself.
• Seam Separation Analysis: Identifying "cold welds" or "burn-throughs" via physical peel tests.
• Sample Frequency: Conducting test-cuts every 500 linear feet to ensure ongoing calibration.
• Tensile Strength Validation: Measuring the force required to break the bond against ASTM standards.

Envelope Integrity and Risk Mitigation for Critical Infrastructure

The building envelope of a data vault is more than just a roof; it is a protective shell for the institution's most valuable digital assets. When we combine 60-mil TPO with robotic fusion and destructive auditing, we are creating a redundant system of protection. The thickness of the 60-mil membrane provides superior puncture resistance and UV stability, while the robotic welds ensure that the seams—the most vulnerable part of any roof—are as strong as the field membrane. This approach aligns with the strictest ANSI and ASTM standards for commercial roofing, ensuring that the facility remains watertight for the duration of its design life.

Furthermore, the documentation provided by these audits serves as a legal and engineering record of the vault's integrity. By recording the exact temperature, pressure, and peel results for every section of the roof, Aquashield provides the financial institution with a "birth certificate" for their building envelope. This level of transparency and technical rigor eliminates the guesswork associated with traditional roofing and provides the facility managers with the certainty that their data vaults are shielded from the elements by a scientifically validated membrane system.

• ASTM Compliance: Adhering to international standards for thermoplastic polyolefin installation.
• Long-Term Lifecycle Analysis: Reducing maintenance costs by eliminating premature seam failure.
• Risk Transfer: Providing documented proof of weld integrity to lower insurance premiums for the institution.
• Systemic Redundancy: Layering material

Critical Infrastructure and the Telecommunications Building Envelope

In the realm of commercial building envelope engineering, Telecommunications Central Switching Offices (CSOs) represent a unique set of challenges. These facilities are not merely warehouses for hardware; they are mission-critical hubs housing sensitive switching gear, massive power arrays, and high-density server racks that generate immense internal heat. The roof system serves as the primary thermal barrier and the first line of defense against hydrostatic infiltration. A failure in the building envelope of a CSO does not simply result in a leak; it risks catastrophic equipment failure and systemic network downtime.

From a master roofer's perspective, the audit of these facilities often reveals aged built-up roofing (BUR) or degraded single-ply membranes that have reached the end of their lifecycle. The objective is to transition these aging assets into a high-performance, monolithic system without interrupting the 24/7 operations of the facility. This requires a sophisticated understanding of material science, specifically the interaction between the existing substrate and the new coating chemistry.

• ASTM E2128 compliance for moisture detection and substrate verification.
• Evaluation of flashing integrity at parapet walls and HVAC curb penetrations.
• Assessment of existing thermal bridging and its impact on internal condensation.
• Analysis of structural load capacities to ensure the new system does not exceed dead-load limits.

Substrate Remediation and Bleed-Blocking Epoxy Primers

The success of any high-solids silicone application is predicated entirely on the preparation of the substrate. In many CSO audits, we encounter "dirty" roofs characterized by oxidized bitumen, old asphaltic oils, and ingrained atmospheric pollutants. These contaminants act as release agents, which can cause delamination or "bleed-through" where old oils migrate through the new coating, creating unsightly stains and structural weak points in the membrane.

To mitigate this, we employ a high-performance, bleed-blocking epoxy primer. Unlike standard primers, these epoxy systems are engineered to penetrate the pores of the substrate, creating a chemical bond that locks in contaminants and provides a high-energy surface for the silicone to grip. This process is essential for ensuring that the final monolithic layer remains bonded regardless of the thermal expansion and contraction cycles common in commercial roofing.

• Mechanical abrasion of the substrate to remove surface oxidation and debris.
• Application of solvent-based epoxy primers to seal porous concrete or degraded bitumen.
• Chemical neutralization of alkaline residues to prevent saponification of the topcoat.
• Verification of substrate moisture content to ensure it falls below the 15% threshold for optimal adhesion.

Engineering the 30-Mil Monolithic Silicone Membrane

Once the substrate is stabilized, the application of a high-solids silicone coating begins. The goal is the creation of a monolithic membrane—a single, seamless layer of protection that eliminates the seams and laps where traditional roofing systems typically fail. For CSO facilities, we specify a 30-mil Dry Film Thickness (DFT). This thickness is not arbitrary; it is calculated to provide sufficient puncture resistance and to bridge small fissures in the underlying substrate while maintaining flexibility across a wide temperature gradient.

High-solids silicone is preferred over acrylics or urethanes because it remains stable under extreme UV exposure and does not crack or peel over time. The material science here involves a cross-linking polymer structure that allows the membrane to stretch and contract in unison with the building's structural movement. Because the application is liquid-applied, it allows for zero-downtime execution, meaning the facility remains fully operational while the roof is being restored.

• Precision application using airless sprayers to ensure uniform DFT across the entire field.
• Hand-detailing of critical transition zones, including drains, scuppers, and pipe penetrations.
• Cure-time monitoring to ensure the membrane reaches full chemical stability before exposure to heavy foot traffic.
• Verification of the monolithic seal through flood testing or electronic leak detection.

Albedo Reflectance and Thermodynamic Efficiency

The final phase of the engineering audit focuses on the Albedo effect—the measure of the diffuse reflection of solar radiation. For a facility like a Central Switching Office, which already struggles with massive internal heat loads from electronic equipment, the roof's ability to reject solar energy is paramount. By utilizing a high-reflectance white silicone, we achieve an initial solar reflectance of approximately 88%.

This high albedo rating significantly reduces the "Urban Heat Island" effect and, more importantly, lowers the Solar Heat Gain Coefficient (SHGC) of the building. When 88% of solar radiation is reflected away from the building, the thermal load on the HVAC systems is drastically reduced. This results in lower energy costs and reduces the mechanical strain on the cooling units required to keep the switching equipment within operational temperature limits.

• Reduction of surface temperatures by up to 50 degrees Fahrenheit compared to dark-membrane roofs.
• Lowering of internal ceiling temperatures, reducing the demand on CRAC (Computer Room Air Conditioning) units.
• Compliance with LEED and Energy Star standards for sustainable commercial building envelopes.
• Long-term maintenance of reflectance through the use of high-grade pigments that resist UV degradation.

The Engineering Challenge of Heavy Manufacturing Envelopes

In the realm of heavy manufacturing fabrication plants, the building envelope is subjected to extreme stressors that standard commercial warehouses rarely encounter. These facilities often feature massive footprints, high-bay ceilings, and significant structural vibrations caused by heavy machinery. From an engineering perspective, the primary enemy is stagnant water. When dealing with roof decks spanning hundreds of thousands of square feet, even a minor structural deflection—common in long-span steel joist systems—can create low spots that lead to ponding. Ponding is not merely an aesthetic issue; it accelerates the degradation of the membrane through hydrostatic pressure and increases the thermal load on the insulation, potentially leading to premature failure of the roofing system.

To combat these forces, we utilize high-density tapered polyisocyanurate (Polyiso) insulation. Polyiso is selected not only for its superior R-value per inch but for its compressive strength, which is critical in manufacturing environments where maintenance traffic and HVAC equipment loads are concentrated. The goal of a professional engineering audit in this context is to ensure that the roof behaves as a single, cohesive water-shedding machine. This requires a transition from basic slope thinking to a comprehensive multi-directional drainage strategy that accounts for the building's movement and the physics of fluid dynamics.

• Analysis of structural deflection points to prevent "bowl" effects in the center of long spans.
• Evaluation of Polyiso compressive strength ratings to ensure stability under heavy equipment loads.
• Assessment of thermal bridging at parapet walls and curb interfaces.
• Verification of ASTM E108 standards for fire resistance and wind uplift resistance.

Precision Tapered Polyiso Layouts and Slope Calculation

The industry benchmark for positive drainage on a commercial flat roof is a minimum slope of 1/4-inch per foot. While this may seem negligible, across a 200-foot run, it represents a 42-inch elevation change. In heavy manufacturing plants, achieving this slope requires a sophisticated tapered insulation layout. We move away from generic slope patterns and instead employ custom-engineered tapered panels. These panels are precision-cut to create a "fan" or "radial" drainage pattern, ensuring that water is routed toward the primary drains and scuppers via the shortest possible path, minimizing the time water spends on the membrane.

The complexity arises when managing multi-directional slopes. In a fabrication plant, the roof is rarely a simple plane. We must engineer "valley" and "ridge" lines within the insulation itself. By utilizing a multi-directional layout, we can split a massive roof area into smaller, manageable drainage zones. This prevents the "river effect," where a massive volume of water accumulates and gains velocity as it moves toward the perimeter, which can lead to erosion of the flashing or overloading of the internal drainage system.

• Implementation of 1/4-inch per foot minimums to satisfy ANSI and ASTM drainage guidelines.
• Utilization of CNC-cut tapered Polyiso to eliminate field-cutting errors and gaps.
• Strategic placement of primary and secondary drains to reduce the "travel distance" of runoff.
• Integration of slope-to-drain calculations that account for the building's dead load deflection.

Geometric Cricket Sizing and Diamond Valley Integration

Crickets are the unsung heroes of the building envelope. In a heavy manufacturing plant, obstructions such as massive HVAC curbs, exhaust vents, and skylights create "dead spots" where water naturally collects. A standard cricket is a simple slope, but for high-performance envelopes, we implement geometric diamond valleys. A diamond valley is an engineered diversion that uses 45-degree angles to redirect water around an obstruction and back into the primary drainage flow. This prevents the formation of "ponds" behind curbs, which are common failure points for membrane leaks.

The sizing of these crickets must be precise. If a cricket is too shallow, surface tension can cause water to "creep" back toward the obstruction. If it is too steep, it can create a trip hazard for maintenance crews or interfere with the flashing height. We calculate the cricket geometry based on the volume of the catchment area. For large fabrication plants, we often extend the cricket's influence beyond the immediate curb, creating a wide-angle diversion that ensures water is aggressively pushed away from the building's most vulnerable penetration points.

• Engineering diamond valleys to eliminate water stagnation behind oversized mechanical curbs.
• Calculation of cricket height-to-width ratios to ensure positive flow without compromising safety.
• Use of high-density tapered inserts to create seamless transitions between the flat roof and the cricket.
• Verification of flashing integrity at the "crotch" of the cricket where water velocity is highest.

Critical Interface Management: Expansion Joints and Final Drainage

One of the most critical aspects of a heavy manufacturing plant's envelope is the management of expansion joints. These buildings are designed to move, and the roofing system must accommodate this movement without compromising the water-tight seal. The danger occurs when the drainage layout allows water to flow toward or pool at an expansion joint. Because these joints are inherently the weakest point of the envelope, any amount of ponding here exponentially increases the risk of a catastrophic leak into the production floor below.

Our engineering approach is to route all runoff explicitly away from expansion joints. This is achieved by creating a "dry zone" or a subtle ridge line in the tapered Polyiso layout that parallels the joint. By ensuring the slope directs water toward the perimeter or internal drains and away from the joint, we eliminate the hydrostatic pressure on the joint sealant. Furthermore, we ensure that the transition from the tapered insulation to the expansion joint cover is seamless, preventing "lip" edges that could catch debris and create localized damming.

• Creation of "divergent slopes" to ensure zero water accumulation at structural expansion joints.
• Installation of heavy-duty reinforced flashing at joint interfaces to handle thermal cycling.
• Coordination of scupper sizing to ensure the perimeter can handle the peak flow from the tapered system.
• Final audit of the envelope using infrared thermography to confirm the absence of trapped moisture.

The Chemical Kinetics of Lipid Degradation on Single-Ply Membranes

In the high-throughput environment of a commercial logistics distribution hub, the intersection of industrial food service and building envelope engineering presents a critical failure point. The primary concern is the discharge of aerosolized animal fats and lipids from commercial kitchen exhaust systems. When these lipids settle on a single-ply membrane—typically Thermoplastic Polyolefin (TPO) or Polyvinyl Chloride (PVC)—they do not merely sit on the surface; they initiate a complex chemical degradation process. Animal fats act as potent organic solvents that can migrate into the polymer matrix of the roofing membrane, leading to a phenomenon known as plasticizer migration.

As the lipids penetrate the membrane, they disrupt the molecular bonds that provide the roof its tensile strength and elasticity. This results in localized softening, a loss of puncture resistance, and eventually, the formation of microscopic pits. Over time, these pits become conduits for moisture ingress, bypassing the waterproof layer and attacking the insulation substrate. From an engineering perspective, this is not a simple leak but a systemic failure of the building envelope's chemical resistance. We refer to this as "lipid-induced embrittlement," where the membrane loses its ability to withstand thermal expansion and contraction cycles, leading to premature cracking around flashing and penetration points.

• Accelerated degradation of TPO membranes due to the high acidity of oxidized animal fats.
• Loss of membrane elasticity resulting in "cupping" or "tenting" around exhaust curbings.
• Chemical breakdown of seam tapes and heat-welded joints when exposed to concentrated grease runoff.
• Increased susceptibility to UV degradation as the protective surface layer is chemically stripped.

Engineering 304 Stainless Steel Catchment Shielding

To mitigate the risk of direct lipid contact, we implement a rigorous shielding protocol utilizing 304-grade stainless steel. The selection of 304 stainless is non-negotiable due to its superior chromium-nickel composition, which provides the necessary corrosion resistance against the caustic nature of commercial grease and the high-temperature effluent from kitchen vents. The engineering goal is to create a physical barrier—a catchment shield—that intercepts grease-laden condensate before it ever touches the roofing membrane. This shield is designed as a custom-fabricated "catchment box" that extends beyond the perimeter of the exhaust fan, ensuring a wide radius of protection.

The fabrication process involves precision bending and seamless welding to prevent leakage at the corners. These shields are not merely placed on the roof; they are integrated into the building envelope via a specialized curb assembly. By utilizing a floating mount system, we allow for the different coefficients of thermal expansion between the stainless steel and the roof deck, preventing the metal from tearing the membrane during extreme temperature swings. The catchment system is further engineered with a graded slope, directing all captured lipids toward a designated collection point or a chemical-resistant drainage line, thereby removing the contaminant from the roof surface entirely.

• Utilization of 16-gauge 304 stainless steel for maximum structural rigidity and heat tolerance.
• Implementation of drip-edge detailing to prevent "wicking" of grease back onto the membrane.
• Custom-fabricated curb adapters that ensure a watertight seal between the shield and the roof.
• Integration of removable debris screens to allow for rapid maintenance and cleaning of the catchment box.

Sacrificial Chemical-Resistant Coatings and Interface Management

Even with the most advanced stainless steel shielding, the reality of commercial operations means that some lipid splatter is inevitable. To address this, we employ a "sacrificial" coating strategy. Rather than relying solely on the primary single-ply membrane, we apply a high-build, chemical-resistant polyurea or specialized epoxy coating to the areas surrounding the exhaust systems. This layer acts as a sacrificial anode in a sense; it is designed to take the brunt of the chemical attack, protecting the underlying TPO or PVC from direct exposure. These coatings are engineered to be hydrophobic and oleophobic, meaning they repel both water and oils, significantly reducing the rate of lipid penetration.

The critical aspect of this application is the interface management. The transition from the 304 stainless steel shield to the sacrificial coating must be seamless. We utilize a reinforced flashing detail that wraps the coating around the curb and onto the shield's edge. This ensures that any runoff is channeled across a surface that can be easily cleaned or stripped and reapplied without compromising the integrity of the main roof. By treating this zone as a separate, high-stress chemical environment, we isolate the risk and extend the overall lifecycle of the distribution hub's roofing system.

• Application of solvent-free, 100% solids polyurea for rapid cure times and extreme chemical resistance.
• Use of embedded non-woven polyester reinforcement fabrics to prevent coating shrinkage and cracking.
• Strategic placement of "sacrificial zones" based on wind-pattern analysis of exhaust plumes.
• Implementation of a scheduled "strip and recoat" cycle to maintain the protective barrier.

Audit Protocols and Long-Term Envelope Integrity

A master-level engineering audit of a logistics hub requires more than a visual inspection; it requires a forensic approach to material science. Our audit protocol begins with a comprehensive mapping of all grease-producing penetrations. We utilize infrared thermography to detect subsurface moisture accumulation, which often indicates that lipids have already compromised the membrane and allowed water to seep into the insulation. We also perform "core sampling" in high-risk areas to examine the cross-section of the membrane for signs of plasticizer migration or chemical pitting that is not visible to the naked eye.

Following the physical audit, we cross-reference the findings with ASTM and ANSI standards for commercial ventilation and roofing. The goal is to ensure that the building envelope is not just meeting the minimum code but is engineered for the specific chemical loads of the facility. Long-term integrity is maintained through a rigorous maintenance schedule, where the 304 stainless steel shields are degreased and the sacrificial coatings are inspected for delamination. This proactive approach transforms the roof from a passive cover into an engineered system capable of withstanding the harshest industrial lipids.

• Quarterly infrared scans to identify "hot spots" of moisture trapped under grease deposits.
• Annual thickness testing of sacrificial coatings using ultrasonic gauges.
• Verification of flashing integrity at the stainless steel interface using vacuum leak detection.
• Detailed logging of lipid accumulation rates to optimize the maintenance frequency of the catchment systems.

Forensic Analysis of Structural Joist Deflection in Clear-Span Environments

In the high-stakes environment of an automotive assembly plant, the building envelope is subjected to extreme stresses, both internally and externally. During our recent engineering audit, we focused on the clear-span structural joists, which are designed to provide unobstructed floor space for assembly lines but are inherently susceptible to center-span deflection. When a roof is designed with a minimal slope, any deviation in the structural integrity or unexpected dead loads can lead to a phenomenon known as "sagging," where the mid-point of the joist dips below the intended plane of the roof deck.

Our forensic team utilized laser-leveling technology and structural calipers to measure the precise deviation from the original architectural blueprints. We observed that the long-span joists had exceeded the L/360 deflection limit, a common benchmark in commercial engineering. This deflection is often exacerbated by the accumulation of heavy HVAC equipment and the natural fatigue of the steel over decades of thermal expansion and contraction. When the structural steel loses its rigidity, the roof ceases to be a shedding surface and instead becomes a series of shallow basins.

• Assessment of joist camber and actual versus theoretical slope.
• Measurement of standing water depths at the center-span intervals.
• Evaluation of the existing membrane's age and its ability to withstand hydrostatic pressure.
• Analysis of vibration-induced fatigue caused by heavy industrial machinery within the plant.

The Mechanics of Ponding Instability and Structural Feedback Loops

Ponding instability is a critical failure state in commercial roofing where the accumulation of water creates a destructive feedback loop. As water collects in the center-span deflection zones, the added weight—approximately 62.4 pounds per cubic foot—further stresses the structural joists. This additional load increases the deflection, which in turn allows the roof to hold an even greater volume of water. If left unchecked, this cycle can lead to a catastrophic structural collapse or, more commonly, a systemic failure of the roofing membrane.

From a material science perspective, standing water accelerates the degradation of the roof's waterproofing layer. Whether the system is a Modified Bitumen or a TPO single-ply membrane, constant saturation leads to "plasticization" and the breakdown of chemical bonds. Furthermore, the hydrostatic pressure forces water into the seams and flashing details, leading to subsurface saturation of the insulation. This not only reduces the thermal R-value but can also lead to the corrosion of the steel decking, compromising the very structure that supports the roof.

• Identification of "bowl" formations where water depth exceeds 1/4 inch over a 72-hour period.
• Calculation of the added dead load imposed by standing water during peak rain events.
• Monitoring of membrane blistering and seam separation caused by prolonged saturation.
• Evaluation of the risk of "ponding" leading to interior ceiling leaks and production downtime.

Engineering the Remediation: Custom Tapered Polyiso Crickets

To remediate ponding instability without the prohibitive cost of replacing structural steel, we implement a precision-engineered tapered insulation system. The primary tool in this remediation is the custom-fabricated polyisocyanurate (polyiso) cricket. Polyiso is selected for its high compressive strength and superior thermal resistance. By installing tapered panels that create a positive slope, we effectively "fill" the structural dips and redirect the water away from the center-span deflection zones.

The engineering of these crickets requires a detailed slope map. We do not simply add thickness; we calculate the exact pitch required—typically a minimum of 1/4" per foot—to ensure that gravity overcomes the surface tension of the water. These tapered sections are CNC-cut to fit the specific geometry of the joist bays, ensuring a seamless transition from the low point of the deflection to the high point of the structural support. This approach corrects the drainage plane while adding minimal weight to the existing structural frame.

• Utilization of high-density polyiso with a minimum compressive strength of 25 psi.
• Design of custom tapered templates based on laser-scan topography of the roof deck.
• Implementation of a "layered" insulation approach to create gradual transitions.
• Verification of the new slope using a digital inclinometer to ensure ASTM compliance.

Execution of Water Routing and Final Envelope Integration

The final phase of the remediation focuses on the routing of water outward toward the primary drainage systems. Installing crickets is useless if the water is simply moved from one low spot to another. Our strategy involves creating a "critical path" for water flow, ensuring that every square inch of the roof surface has a clear, unobstructed route to a scupper, internal drain, or perimeter gutter system. This requires a holistic view of the building envelope, ensuring that the new slopes do not inadvertently overload existing drains.

Once the tapered polyiso is installed, the system is capped with a high-performance, reinforced membrane. We utilize heat-welded seams to ensure a monolithic waterproof barrier, eliminating the risk of leaks at the transition points. The final audit includes a flood test, where specific sections are dammed and filled with water to verify that the new slopes are functioning as engineered. This rigorous verification process ensures that the automotive plant can maintain 24/7 operations without the threat of water intrusion or structural instability.

• Installation of fully adhered membrane systems to prevent wind uplift and water migration.
• Strategic placement of additional drainage points to handle increased flow velocity.
• Integration of heavy-duty flashing at all perimeter edges and penetration points.
• Final certification of the building envelope's integrity through infrared thermography.

The Anatomy of Failure in Multi-Layer Assemblies

In the realm of mission-critical data centers, the building envelope is the primary line of defense against catastrophic operational failure. Over decades, many of these facilities have suffered from the "encapsulation cycle," where new roofing membranes are installed directly over aging, failing systems. This practice, while cost-effective in the short term, creates a complex, multi-layered assembly that traps interstitial moisture and hides systemic substrate decay. When a data center experiences a leak, the moisture often migrates laterally through these layers, making the point of entry nearly impossible to pinpoint without a total forensic tear-off.

The failure of these assemblies is typically driven by hygrothermal imbalances. Trapped moisture between an old built-up roof (BUR) and a newer TPO or EPDM membrane creates a greenhouse effect, accelerating the decomposition of the underlying wood decking. This process, known as anaerobic decay, weakens the structural integrity of the substrate, leading to deflection and potential collapse under the weight of heavy HVAC equipment or rooftop generators. For a facility where uptime is measured in "five nines," relying on a layered system is an unacceptable engineering risk.

• Interstitial condensation caused by thermal bridging between the conditioned interior and the unconditioned roof cavity.
• Capillary action drawing moisture through degraded flashing and seams into the substrate.
• Chemical degradation of old asphaltic materials which can off-gas and compromise newer thermoplastic membranes.
• Increased dead load on the structural frame due to redundant layers of roofing material.

Systematic Deconstruction and Forensic Audit

A true engineering audit begins with the total deconstruction of the roof assembly down to the original wood decking. This is not a mere removal process; it is a surgical extraction designed to expose the raw substrate for a comprehensive forensic analysis. The process requires a disciplined approach to ensure that the structural integrity of the building is not compromised during the tear-off. We utilize heavy-duty mechanical stripping tools and precision cutting to remove Modified Bitumen, EPDM, and BUR layers without gouging the wood decking below.

Once the decking is exposed, the audit shifts to a grid-based inspection. The roof is divided into mapped quadrants, and every square foot is scrutinized for signs of saturation, fungal growth, and mechanical wear. This phase is critical because it allows the engineering team to identify "hot spots" where moisture has pooled over time. By documenting the exact location of substrate failure, we can correlate the damage with the building's internal layout, identifying which server halls or power rooms are most at risk from overhead infiltration.

• Complete removal of all flashing, counter-flashing, and redundant membrane layers to reveal the raw substrate.
• Utilization of infrared thermography and moisture probes to identify hidden pockets of saturation within the wood fibers.
• Mapping of structural deflection points where the decking has bowed or sagged due to long-term moisture exposure.
• Verification of fastener integrity and the removal of rusted or stripped nails that could compromise the new system.

Structural Wood Decking Evaluation and Material Science

The evaluation of the wood decking is where master craftsmanship meets material science. Wood is a hygroscopic material, meaning it absorbs and releases moisture based on the environment. In a data center, the constant heat generated by server racks can create a temperature gradient that drives moisture upward into the decking. We analyze the wood for lignin degradation—the breakdown of the organic polymers that give wood its strength. If the wood becomes "punky" or soft, it can no longer support the required loads or provide a secure hold for mechanical fasteners.

We adhere to strict ASTM standards for substrate preparation, ensuring that the wood decking meets the minimum thickness and density requirements for commercial commercial loads. A critical part of this analysis is the measurement of moisture content using calibrated pin-type meters. Wood that exceeds a 19% moisture content is generally considered unsuitable for the immediate application of high-performance membranes, as the trapped moisture will vaporize during the curing process, leading to blisters and premature membrane failure.

• Assessment of fungal decay and the identification of dry rot (Serpula lacrymans) which can compromise structural load-bearing capacity.
• Testing for "delamination" in plywood substrates where the glue layers have failed due to repeated freeze-thaw cycles.
• Analysis of the wood's compressive strength to ensure it can withstand the wind-uplift pressures specified by ANSI standards.
• Verification of the decking's flatness and levelness to prevent the formation of ponding water in the final assembly.

Substrate Remediation and Preparation for High-Performance Membranes

Remediation is the process of returning the substrate to a "clean slate" state. This involves the aggressive removal of all damaged wood panels and the installation of new, structural-grade plywood or OSB that matches the original specifications. We do not believe in "patching" with thin materials; instead, we perform full-panel replacements that extend to the nearest structural joist. This ensures a seamless transition and eliminates the risk of localized sagging. All new panels are fastened using heavy-duty, corrosion-resistant screws in a pattern that exceeds the wind-uplift requirements for the specific geographic region.

The final stage of remediation is the preparation of the surface for the new building envelope. This includes the sanding of high spots, the filling of gaps with commercial-grade sealants, and the application of a high-performance primer if specified. By ensuring the wood decking is clean, dry, and structurally sound, we create a monolithic base that allows the new membrane to perform as engineered. This rigorous approach to substrate remediation transforms the roof from a liability into a high-performance asset, guaranteeing the long-term protection of the mission-critical infrastructure below.

• Full-depth replacement of compromised decking panels with structural-grade materials to restore load-bearing capacity.
• Installation of blocking and shimming to eliminate depressions and ensure a positive slope toward the drainage systems.
• Application of moisture-barrier primers to seal the wood fibers and prevent capillary migration into the new membrane.
• Final engineering sign-off on the substrate's integrity, confirming it is ready for the installation of a high-performance, single-ply or liquid-applied system.

Engineering Audit of Multi-Layered Asphalt Assemblies in Cold Storage Environments

In the specialized field of cold storage freezer warehouses, the building envelope is the primary line of defense against catastrophic thermal bridging and internal condensation. During our recent engineering audit for Aquashield Corporate, we encountered a common but dangerous industry failure: the practice of layering asphalt shingles over previous installations. In a commercial freezer environment, these redundant layers do more than just add unnecessary dead load to the rafters; they create an insulating blanket that traps moisture against the wood sheathing, accelerating organic decay and compromising the structural integrity of the eave assemblies.

From a material science perspective, the accumulation of multiple shingle layers alters the hygrothermal behavior of the roof. Instead of allowing the substrate to breathe, the non-permeable nature of aged asphalt creates a vapor trap. This is particularly critical at the eaves, where the transition between the vertical wall and the horizontal roof plane often suffers from inadequate flashing. Our audit focused on the systemic removal of these layers to return the substrate to a "clean wood" state, ensuring that the structural capacity of the building is restored and that the new envelope can be engineered for maximum thermal efficiency.

• Assessment of dead load increases caused by three layers of aged asphalt shingles.
• Identification of moisture-induced delamination in the plywood sheathing.
• Evaluation of thermal bridging points where rafters meet the exterior wall.
• Analysis of eave drip-edge failure leading to fascia rot.

Systematic Stripping and Substrate Exposure Protocols

The process of stripping a commercial eave down to clean wood sheathing requires a disciplined mechanical approach to avoid damaging the underlying structural members. We employ a systematic "top-down, outside-in" removal strategy, utilizing heavy-duty commercial tear-off equipment calibrated to avoid gouging the wood substrate. The goal is not merely removal, but the complete eradication of all legacy fasteners, asphalt saturated felt, and organic debris. In a cold storage facility, any remaining debris can harbor mold or moisture, which would then be sealed in by the new roofing system, leading to premature failure of the building envelope.

Once the shingles are removed, the focus shifts to the cleaning of the wood sheathing. We utilize high-pressure air systems and industrial scrapers to ensure that the decking is free of old nail shanks and asphalt granules. This stage is critical because the subsequent engineering checks for fastener withdrawal resistance depend entirely on the purity of the wood-to-metal contact. By exposing the raw grain of the sheathing, we can accurately assess the moisture content of the wood using pin-type meters to ensure the substrate is dry enough to receive new fasteners without risking splitting or shrinkage.

• Utilization of mechanical tear-off blades to prevent substrate gouging.
• Complete removal of legacy felt and bitumen-saturated underlayments.
• Manual extraction of rusted fasteners to prevent "ghosting" or oxidation streaks.
• Surface preparation via industrial sanding to remove asphalt residue.

Structural Integrity and Fastener Withdrawal Analysis

A critical component of our engineering case study is the analysis of fastener withdrawal resistance. In older commercial warehouses, the repeated cycling of temperature and the added weight of multiple roof layers often lead to "nail pull" or the enlargement of fastener holes. According to ASTM standards, the connection between the roof decking and the rafters must maintain a specific shear strength to withstand wind uplift and snow loads. We conducted a series of pull-tests across the eave sections, discovering that in several areas, the withdrawal resistance had dropped below the acceptable safety threshold due to wood fiber degradation.

To rectify these structural deficits, we implemented a rigorous sistering program for compromised rafters. Sistering involves the installation of new, kiln-dried structural lumber alongside the existing damaged rafter, secured with a staggered bolting pattern and high-strength construction adhesives. This process effectively transfers the load from the decayed wood to the new member, restoring the original design load of the building. This is especially vital at the eaves, where the cantilevered nature of the roof puts the highest torsional stress on the rafter tails.

• Conducting pull-tests to measure the pounds-per-square-inch (PSI) of fastener resistance.
• Identifying "soft spots" in the rafters using probing tools and moisture mapping.
• Installing sister rafters using structural-grade LVL (Laminated Veneer Lumber) for increased strength.
• Applying ASTM-approved adhesives to ensure a monolithic bond between old and new timber.

Establishing Flat Decking Planes and Envelope Finalization

The final phase of the restoration involves establishing a perfectly flat decking plane. Over decades of service, commercial roofs often develop "sags" or "dips," particularly near the eaves where moisture infiltration is most common. A non-planar roof surface is a failure point for any modern commercial roofing system, as it creates pockets where water can pond, leading to localized hydrostatic pressure and eventual leaks. We utilize a laser-leveling system to map the deviations in the roof plane, allowing us to shim or plane down high spots to achieve a uniform surface.

Once the plane is established, we focus on the final envelope preparation. This includes the installation of a high-performance vapor barrier and a precision-cut drip edge that ensures water is shed completely away from the freezer warehouse walls. By returning the roof to clean wood and correcting the structural geometry, we have created a stable, predictable platform for the final roofing membrane. This comprehensive approach ensures that the cold storage facility maintains its internal temperature gradients while protecting the structural assets of the building for the next several decades.

• Laser-mapping of the roof surface to identify depressions exceeding 1/4 inch.
• Precision planing of high spots to eliminate "humps" in the decking.
• Installation of galvanized steel drip edges to prevent eave-edge capillary action.
• Application of a commercial-grade vapor retarder to prevent internal moisture migration.

The Engineering Challenge of Fleet Hangar Building Envelopes

Commercial fleet maintenance hangars present a unique set of engineering challenges due to their massive open-span architecture and the critical nature of their internal climate control. In a facility where heavy machinery and high-value assets are serviced, the building envelope must function as a seamless, airtight skin. The primary vulnerability in these structures is often found at the intersection of the roofing system and the HVAC air intake units. Because these hangars rely on high-volume air exchange to clear exhaust fumes and chemical vapors from the shop floor, the air intakes act as powerful vacuums, potentially drawing external contaminants or adhesive off-gassing directly into the workspace.

A comprehensive engineering audit reveals that traditional hot-applied adhesives or solvent-based primers are unsuitable for these environments. The thermal shock from torches can compromise the substrate, and the volatile organic compounds (VOCs) released during the curing process can trigger facility-wide evacuations or contaminate sensitive electronic diagnostic equipment used in fleet maintenance. To maintain operational continuity, the envelope must be sealed using materials that offer high tensile strength and immediate bonding without the associated olfactory or chemical footprint.

• Analysis of thermal bridging at mechanical penetrations.
• Evaluation of substrate porosity and moisture content prior to adhesive application.
• Assessment of air-leakage rates around HVAC curbs and flashing.
• Identification of high-stress points where vibration from heavy fleet movement causes membrane fatigue.

Material Science of Low-VOC Polyurethane Bonding Agents

The transition to cold-applied, odorless polyurethane bonding agents represents a significant leap in material science for the commercial roofing industry. Unlike traditional solvent-based adhesives that rely on the evaporation of chemicals to set, these advanced polyurethane agents utilize a moisture-cure mechanism or a two-part chemical reaction that occurs at the molecular level. This ensures that the bond is formed through a stable polymer chain rather than a volatile chemical reaction, effectively eliminating the risk of VOC migration into the hangar's interior.

From an engineering perspective, these adhesives are designed to meet and exceed ASTM standards for peel strength and shear resistance. The cold-applied nature of the product removes the need for heating elements, which eliminates the risk of substrate scorching or the creation of "bubbles" in the membrane. The result is a dense, flexible seal that can accommodate the natural expansion and contraction of the building's steel frame during extreme temperature fluctuations, ensuring that the air intake seals remain airtight over the long term.

• Utilization of low-viscosity resins for deep penetration into porous substrates.
• Implementation of rapid-set catalysts to reduce the window of vulnerability during curing.
• Compliance with ANSI standards for commercial roofing adhesive performance.
• Enhanced chemical resistance to aviation fuels and industrial degreasers common in fleet environments.

HVAC Air Intake Containment and Odor Mitigation Protocols

The most critical phase of the building envelope audit is the execution of the odor mitigation protocol around HVAC intakes. To prevent any trace of adhesive scent from entering the facility, a multi-stage containment strategy is employed. This begins with the installation of temporary, airtight shrouds around the intake curbs, creating a physical barrier between the application zone and the air intake. By utilizing negative pressure zones and strategic ventilation, any residual fumes are directed away from the intake and dispersed into the atmosphere.

The application process follows a strict sequence: the substrate is mechanically cleaned, a low-VOC primer is applied to ensure maximum adhesion, and the polyurethane bonding agent is then injected or spread using precision tools. Because the selected adhesives are formulated to be odorless, the risk of "scent seepage" is virtually eliminated. This allows the maintenance crew inside the hangar to continue their operations without interruption, avoiding the costly downtime associated with traditional roofing methods that require the shutdown of HVAC systems.

• Deployment of temporary polyethylene containment barriers around mechanical curbs.
• Strategic placement of air-scrubbers to maintain a clean perimeter.
• Sequential application of bonding agents to minimize the amount of exposed wet material.
• Real-time air quality monitoring using VOC sensors to verify zero-leakage into the interior.

Zero-Downtime Execution and Quality Assurance Audits

The hallmark of a master-level commercial roofing project is the ability to execute complex engineering tasks without disrupting the client's core business. Zero-downtime execution is achieved through the use of rapid-setting adhesives that reach a structural "tack-free" state within minutes of application. This allows the building envelope to be sealed and the containment barriers removed in a fraction of the time required for traditional systems. The speed of the cure is not a compromise on quality; rather, it is a result of optimized polymer cross-linking that provides an immediate, watertight seal.

Following the application, a rigorous quality assurance audit is conducted to certify the integrity of the envelope. This includes the use of infrared thermography to detect any hidden air leaks or thermal anomalies around the HVAC intakes. By mapping the heat signatures of the roof, engineers can verify that the polyurethane bonds are uniform and that there are no voids where air could penetrate. This data-driven approach ensures that the hangar remains an airtight environment, protecting both the fleet assets and the personnel working within.

• Execution of a "pull-test" to verify the bond strength of the cold-applied adhesives.
• Infrared scanning of all critical penetration points to ensure thermal consistency.
• Verification of water-tightness through controlled flood testing of the curb areas.
• Final documentation of the envelope's air-leakage rate compared to pre-audit benchmarks.

Analysis of Ballasted Compression Set and Point-Load Distribution

In the context of a commercial chemical processing facility, the roof is not merely a cover but a critical component of the building envelope that must withstand volatile atmospheric conditions and significant structural loads. When implementing solar photovoltaic (PV) systems, the industry trend toward ballasted racking—which avoids roof penetrations—introduces a complex engineering challenge: the compression set. A compression set occurs when the constant downward pressure of concrete ballast blocks exceeds the recovery capacity of the roof insulation, typically polyisocyanurate (Polyiso). Over time, this results in permanent deformation of the substrate, creating localized depressions that disrupt the designed slope of the roof.

From a master roofer's perspective, the danger is not the initial load, but the long-term hydrostatic implication. When the insulation compresses, it creates "micro-ponding" areas. In a chemical facility, where atmospheric pollutants can concentrate in standing water, these depressions accelerate the chemical degradation of the membrane. To mitigate this, we analyze the load-bearing capacity using ASTM D1621 standards to ensure the compressive strength of the insulation is matched to the point-load of the racking system. We prioritize the use of high-density insulation layers or reinforced sleepers to distribute the weight across a wider surface area, thereby reducing the psi (pounds per square inch) exerted on any single point of the membrane.

• Evaluation of Polyiso compressive strength (e.g., 25 psi vs. 40 psi) to prevent permanent deformation.
• Calculation of total dead load including racking, panels, and ballast blocks against the building's structural capacity.
• Monitoring of slope deviation to ensure positive drainage is maintained despite the added weight.
• Implementation of load-spreading plates to convert point loads into area loads.

Engineering Sacrificial Slip-Sheets and Abrasion Barriers

The interface between a concrete ballast block and a thermoplastic roof membrane is a zone of high friction and potential failure. In chemical processing environments, thermal expansion and contraction are exacerbated by internal process heat, causing the solar arrays to "creep" or shift slightly. Without a proper interface, this movement leads to abrasive wear, effectively sanding down the membrane's wear layer and compromising the UV-stabilant properties of the TPO or PVC. To counter this, Aquashield employs heavy-duty sacrificial slip-sheets.

These slip-sheets act as a sacrificial anode does in corrosion protection; they are designed to take the abuse so the primary waterproofing layer remains intact. We utilize high-density, reinforced polymers with a low coefficient of friction. This allows the racking system to move independently of the roof membrane during thermal cycles. Furthermore, in chemical facilities, these sheets provide an additional layer of defense against potential chemical spills or off-gassing that could otherwise penetrate the primary membrane through abrasion-induced micro-cracks. The material science focuses on chemical compatibility, ensuring that the slip-sheet does not react with the membrane or the concrete ballast.

• Utilization of non-woven polyester or reinforced TPO slip-sheets to reduce friction coefficients.
• Installation of oversized barriers that extend beyond the footprint of the ballast block to prevent edge-cutting.
• Selection of materials resistant to the specific chemical precursors present in the facility's exhaust.
• Verification of slip-sheet thickness to ensure it can withstand the grit of concrete blocks without tearing.

Pre-fabricated Target Patches and Reinforcement Strategies

A critical failure point in ballasted solar installations is the "edge-load" where the racking frame meets the roof. To prevent membrane tearing and to provide a redundant waterproofing layer, we implement pre-fabricated target patches. Unlike field-cut scraps, these patches are engineered in a controlled environment, ensuring consistent thickness and precise heat-welding parameters. These patches are strategically placed at every point of contact where a ballast block or racking rail interfaces with the roof, creating a reinforced "target" zone.

The engineering logic here is based on redundancy. By installing a reinforced, heat-welded patch over the primary membrane, we create a multi-layered defense system. If the primary membrane is compromised by a shift in the racking system, the target patch serves as a secondary seal. In a chemical processing plant, where a leak can lead to costly production downtime or hazardous internal contamination, this level of redundancy is non-negotiable. We ensure all patches are welded using automated hot-air welding equipment to meet ANSI standards for seam strength and integrity, eliminating the human error associated with manual torching.

• Application of reinforced PVC or TPO patches at high-stress contact points.
• Use of automated welding technology to ensure a molecular bond between the patch and the field membrane.
• Implementation of "double-lap" seams on target patches to increase shear resistance.
• Regular infrared thermography audits to detect any subsurface voids or delamination under the patches.

Cable Tray Routing and Envelope Integrity Management

The final component of the building envelope audit involves the routing of electrical conduits and cable trays. A common oversight in solar installations is the "spaghetti effect," where cables are left loosely draped across the roof surface. In a chemical facility, this is a catastrophic error. Loose cables can act as conduits for water, channeling runoff into areas where it can pool, or worse, they can rub against the membrane during wind events, creating "cable slap" abrasion.

Our approach involves the installation of rigid, UV-stabilized cable trays that are secured to the racking system rather than the roof membrane. This ensures that the building envelope remains untouched by the electrical infrastructure. Where cables must transition from the roof to the interior of the facility, we employ industrial-grade flashing and sealant systems. We avoid standard "boot" penetrations in favor of custom-fabricated curb flashings that are fully integrated into the roof's waterproofing layer. This prevents the ingress of moisture and chemical vapors, maintaining the integrity of the building's internal pressure and environmental controls.

• Routing of all cabling through rigid trays to eliminate direct contact with the roof membrane.
• Installation of stainless steel cable ties to prevent degradation from chemical fumes.
• Engineering of custom-fabricated flashing for all electrical penetrations to ensure a watertight seal.
• Strategic placement of cable runs to avoid crossing existing roof drains or scuppers, preventing blockage and ponding.

Structural Load Analysis and OSHA-Compliant Fall-Arrest Anchoring

In the engineering of a Municipal City Hall and Administrative Complex, the roof is not merely a weather barrier but a critical safety infrastructure. When auditing skylight installations, the primary concern is the mitigation of fall hazards in accordance with OSHA 1910.28 and 1910.29. The installation of heavy-duty security screens is not a matter of simple attachment; it is a calculation of kinetic energy and shear strength. A standard fall-protection screen must be engineered to withstand a concentrated point load of 200 lbs without catastrophic failure of the anchoring system or the supporting curb.

The engineering challenge lies in the transfer of force from the screen to the structural curb. We utilize high-tensile, galvanized steel framing for the screens, ensuring that the load is distributed across the entire perimeter of the curb rather than concentrating it on a single fastener. This prevents the "punch-through" effect where a fastener might tear through the metal flashing or the roof membrane under sudden impact. Our specifications require the use of stainless steel fasteners with a minimum shear strength that exceeds the 200-lb requirement by a safety factor of 2:1, ensuring that the assembly remains rigid during a fall event.

• Utilization of 12-gauge expanded metal mesh to provide maximum structural rigidity and security.
• Installation of heavy-duty L-angle brackets anchored directly into the structural masonry or steel curb.
• Application of ASTM-rated fasteners with oversized washers to distribute clamping pressure across the curb face.
• Verification of anchor embedment depth to ensure pull-out resistance exceeds the calculated impact force of a falling worker.

Curb Flashing Elevation and Hydrostatic Water Shedding

The building envelope's integrity is most vulnerable at the transition points where the roof membrane meets a vertical curb. In a municipal complex, where roof longevity is measured in decades, the flashing elevation must be meticulously calculated to prevent wind-driven rain from infiltrating the interior. We implement a multi-stage flashing system that prioritizes the "shedding" principle, ensuring that water is directed away from the curb's interior and toward the primary drainage system. The flashing must extend high enough above the roof surface to account for potential snow accumulation and the hydrostatic pressure generated during extreme weather events.

A critical failure point in many commercial installations is the lack of a proper capillary break. By elevating the curb flashing and incorporating a reinforced base flashing, we create a redundant barrier. The flashing is integrated into the main roof membrane using a heat-welded process for TPO or a chemically bonded adhesive for EPDM, ensuring a monolithic seal. This prevents the "wicking" effect where moisture is drawn upward behind the flashing through capillary action, which would otherwise lead to slow-leak saturation of the roof insulation and subsequent decking rot.

• Minimum flashing height of 8 inches above the finished roof surface to mitigate wind-driven rain infiltration.
• Implementation of a 45-degree cant strip at the base of the curb to eliminate sharp 90-degree bends in the membrane.
• Use of reinforced flashing membranes to prevent stress cracking at the corner transitions.
• Installation of custom-fabricated metal cap flashing with a drip edge to ensure water sheds away from the curb face.

Compression Termination Bars and Mechanical Fastening Systems

While adhesives provide an initial seal, the master roofer knows that mechanical fastening is the only way to guarantee long-term wind-uplift resistance. In the context of a large administrative complex, the roof is subject to significant wind vortices. To secure the membrane at the top of the skylight curbs, we utilize compression termination bars. These aluminum bars act as a mechanical clamp, locking the membrane against the substrate with uniform pressure. This eliminates the risk of "ballooning," where wind pressure lifts the membrane, creating a vacuum that pulls moisture into the building envelope.

The precision of the termination bar installation is paramount. We specify a fastener spacing of 12 inches on center, utilizing heavy-duty screws with neoprene washers. This ensures that the compression is consistent across the entire length of the curb. The termination bar is not merely a cap; it is a structural component that maintains the tension of the membrane, preventing the thermal expansion and contraction cycles from causing fatigue in the adhesive bonds. This mechanical bond is the final line of defense in maintaining a hermetic seal at the building's most critical penetration points.

• Use of 6063-T5 aluminum termination bars for superior corrosion resistance and structural rigidity.
• Application of a high-grade sealant bead behind the bar to provide a secondary water-tight seal.
• Fastener selection based on the substrate material, utilizing tapping screws for steel or masonry anchors for concrete.
• Strict adherence to a torque specification to avoid over-compressing the membrane, which could lead to tearing.

Thermal Gaskets and Building Envelope Hermeticity

The final component of a high-performance building envelope is the management of thermal bridging. In municipal buildings, energy efficiency is a priority, and the gap between the security screen and the curb is a prime location for air infiltration. To solve this, we integrate high-density thermal gaskets. These gaskets are engineered from closed-cell EPDM or silicone, materials chosen for their low coefficient of thermal expansion and their ability to maintain a compression set over time. By sealing the interface between the security screen and the curb, we eliminate the "chimney effect" where conditioned air escapes the building.

From a material science perspective, the gasket must be capable of absorbing the vibration and movement of the building without losing its seal. We utilize a compression-molded gasket that provides a continuous, airtight barrier. This not only improves the HVAC efficiency of the administrative complex but also prevents the ingress of pests and pollutants. The integration of these gaskets, combined with the structural anchoring and flashing, completes the building envelope, transforming a simple skylight installation into a sophisticated piece of engineered infrastructure.

• Deployment of closed-cell EPDM gaskets to prevent moisture absorption and thermal leakage.
• Calculation of compression ratios to ensure a tight seal without compromising the structural integrity of the gasket.
• Installation of gaskets at all mating surfaces between the security screen frame and the curb flashing.
• Verification of the seal using infrared thermography to identify and eliminate any remaining thermal bridges.

The Mechanics of Harmonic Vibration and Structural Fatigue in Penthouse Towers

In the realm of high-rise commercial construction, the penthouse tower represents the most volatile environment for a building envelope. At these elevations, the intersection of extreme wind loads and the concentrated mass of heavy mechanical equipment creates a complex set of stressors. When massive HVAC chillers, cooling towers, and exhaust fans are bolted directly to a structural deck, they transmit harmonic vibrations throughout the building's skeleton. This phenomenon, known as structural resonance, can lead to microscopic fractures in the concrete slab and, more critically, the premature fatigue of the roofing membrane.

From a master roofer's perspective, the danger is not the vibration itself, but the differential movement it causes between the rigid mechanical equipment and the flexible roofing system. If a unit is not properly isolated, the constant oscillation acts as a slow-motion abrasive, grinding the flashing and wearing down the chemical bonds of the adhesives. Over time, this leads to "membrane creep," where the roofing material pulls away from the curb, creating a direct path for water infiltration into the building's core.

• Harmonic Resonance: The synchronization of mechanical equipment frequency with the building's natural frequency, amplifying structural sway.
• Differential Movement: The variance in displacement between a vibrating mechanical unit and the static roof deck.
• Membrane Fatigue: The degradation of polymer chains in the roofing membrane due to repeated cyclic loading.
• Wind-Induced Oscillation: The added lateral pressure on penthouse towers that compounds the vibration of mechanical equipment.

Engineering Spring-Isolated Equipment Curbs and Isolation Rails

To mitigate the risks of structural fatigue, we implement high-performance spring-mounted curb systems. Unlike standard static curbs, an isolated system utilizes a series of heavy-duty calibrated springs and neoprene isolation pads that act as a shock absorber for the building. The goal is to decouple the mechanical unit from the structural deck, ensuring that the energy produced by the equipment is dissipated within the isolation rail rather than being transferred into the roof envelope.

The engineering of these rails requires a precise calculation of the static load versus the dynamic load. A master tradesman must ensure that the spring constants are matched to the weight of the equipment to prevent "bottoming out" during startup or shutdown cycles. When the equipment is properly seated on these rails, the vibration is dampened, and the movement is restricted to a controlled vertical and lateral plane. This protects the integrity of the roof deck and prevents the transmission of noise and vibration to the occupied floors below.

• Calibrated Spring Constants: Ensuring the spring rate matches the equipment weight to maintain optimal damping.
• Neoprene Isolation Pads: Utilizing high-density elastomers to eliminate metal-to-metal contact and prevent galvanic corrosion.
• Load Distribution Rails: Spreading the weight of the unit across a wider surface area to prevent localized punctures in the roof membrane.
• Lateral Restraints: Implementing snubbers to prevent excessive movement during seismic events or extreme wind gusts.

Advanced Sealant Integration and Fiber-Reinforced Structural Mastics

The most critical failure point in any mechanical penthouse is the interface where the curb meets the roof membrane. Because a spring-isolated unit is designed to move, a traditional, rigid flashing detail is destined to fail. The seal must be capable of sustaining high-amplitude movement while remaining completely watertight. This is where material science and master craftsmanship intersect; we utilize fiber-reinforced structural mastics that offer superior elongation and tear resistance.

We specify a multi-stage sealing process that begins with a high-tack primer and follows with the application of a reinforced mastic. The inclusion of synthetic fibers within the mastic creates a structural matrix that can bridge gaps and withstand the shear forces generated by the vibrating equipment. Following ASTM C920 standards for elastomeric sealants, these materials are applied to create a flexible, monolithic gasket. This "bridge" allows the curb to oscillate independently of the roof deck without compromising the hydrostatic seal of the building envelope.

• Fiber-Reinforced Mastics: Utilizing polymers embedded with structural fibers to increase tensile strength and prevent cracking.
• High-Elongation Properties: Ensuring the sealant can stretch and return to its original shape without losing adhesion.
• ASTM C920 Compliance: Adhering to industry standards for sealant movement capability and adhesion to various substrates.
• Hydrostatic Integrity: Maintaining a water-tight barrier that prevents capillary action from drawing moisture under the curb.

Audit Protocols for Long-Term Envelope Integrity

A building envelope is only as strong as its weakest joint, and in a high-rise penthouse, those joints are under constant assault. An authoritative engineering audit must go beyond a simple visual inspection. We employ a rigorous protocol that combines thermal imaging, torque verification, and physical stress tests to ensure the vibration isolation system is functioning as intended. We look for "witness marks"—signs of unexpected movement—and check for the degradation of the elastomeric seals, which can harden over time due to UV exposure.

The final stage of the audit involves verifying the continuity of the flashing and the compression of the spring mounts. If the springs have lost their tension or the mastic has begun to "alligator" (crack in a pattern resembling reptile skin), immediate remediation is required. By maintaining a strict schedule of audits, Aquashield ensures that the building envelope remains a seamless shield, protecting the multi-million dollar mechanical assets and the structural integrity of the tower from the relentless pressures of the environment.

• Infrared Thermography: Detecting hidden moisture pockets around the curb seals using thermal anomalies.
• Torque Verification: Ensuring all mechanical fasteners on the isolation rails are tightened to engineering specifications.
• Sealant Shore Hardness Testing: Measuring the flexibility of the mastic to ensure it hasn't become brittle.
• Compression Analysis: Checking that the spring-mounted curbs are operating within their designed vertical displacement range.

Environmental Audit and Building Envelope Vulnerabilities

In the specialized environment of a Regional Healthcare Medical Center, the building envelope is subjected to stressors that far exceed those of standard commercial office spaces. A comprehensive engineering audit of these facilities reveals a complex intersection of atmospheric contaminants and structural demands. The primary concern is the exhaust plume generated by laboratory facilities, sterilization centers, and pharmacy compounding areas. These exhaust systems discharge a concentrated stream of corrosive agents directly onto the roofing substrate, creating a localized micro-environment of extreme chemical aggression.

The building envelope must be viewed as a singular, integrated system where the roof membrane serves as the primary defense against moisture and chemical infiltration. When this barrier is compromised, the resulting degradation is not merely a matter of aesthetics but a systemic failure that can lead to structural corrosion and internal air quality contamination. Our audit focuses on the "critical zone"—the area within a twenty-foot radius of the exhaust fans—where the concentration of acid fumes is highest and the risk of membrane failure is most acute.

• Assessment of exhaust plume trajectory and deposition patterns.
• Evaluation of existing flashing integrity around oversized HVAC penetrations.
• Analysis of substrate moisture content and vapor drive dynamics.
• Inspection of perimeter drainage systems for chemical residue buildup.
• Mapping of thermal bridging points that accelerate condensation and chemical reaction.

Chemical Resistance and Acid Fume Interaction

The material science of roofing membranes is put to the ultimate test when exposed to industrial acid fumes, such as hydrochloric and sulfuric acids commonly found in medical lab exhausts. These substances initiate a process of acid-catalyzed hydrolysis, which systematically breaks down the polymer chains of the roofing membrane. Standard thermoplastic membranes that lack specific chemical resistance often exhibit "pitting" or surface etching, which increases the surface area for further chemical attack and allows contaminants to penetrate deeper into the membrane core.

Furthermore, the presence of motor oils and lubricants from rooftop HVAC equipment introduces a different failure mechanism: hydrocarbon saturation. Many traditional membranes are susceptible to swelling and softening when they come into contact with petroleum-based oils. This softening reduces the membrane's tensile strength and makes it significantly more prone to mechanical damage during maintenance activities. The synergy between acid fumes and oil saturation creates a "compounded degradation" effect, where the acid etches the surface and the oils penetrate the resulting voids, leading to rapid delamination from the roof deck.

• ASTM D53 testing for chemical resistance to specific healthcare-grade solvents.
• Monitoring of pH levels on the membrane surface during peak exhaust cycles.
• Evaluation of oil-resistant coatings and their adherence to the primary membrane.
• Analysis of chemical leaching into the insulation layer (Polyiso or EPS).
• Examination of seam weld strength under prolonged chemical exposure.

Plasticizer Retention and Polymer Degradation

A critical engineering concern in healthcare roofing is the retention of plasticizers within the membrane. Plasticizers are the additives that provide flexibility and elongation to polymers like PVC. However, in environments with high chemical exposure and extreme thermal cycling, these plasticizers can migrate out of the membrane—a process known as leaching. Once the plasticizer is lost, the membrane undergoes embrittlement, losing its ability to accommodate the natural expansion and contraction of the building structure.

This loss of elasticity is particularly dangerous around exhaust vents where thermal shock is frequent. When a membrane becomes brittle, it develops micro-fractures, often referred to as "alligatoring." These cracks act as conduits for corrosive fumes to reach the roof insulation and the structural steel deck. In our engineering audits, we utilize forensic sampling to determine the remaining plasticizer content, comparing it against the original manufacturer specifications to predict the remaining service life of the assembly. The goal is to ensure the membrane maintains a high degree of elongation to prevent stress-induced cracking at the fastening points.

• Measurement of Shore A hardness to determine the level of embrittlement.
• Analysis of polymer chain scission caused by UV radiation and acid exposure.
• Evaluation of the "cold-flow" characteristics of the membrane under load.
• Testing for plasticizer migration into adjacent flashing materials.
• Assessment of the membrane's recovery rate after thermal expansion events.

Engineering the Defense and Membrane Selection

To mitigate these risks, the selection of the roofing membrane must be based on a rigorous analysis of the specific chemical profile of the facility. For Regional Healthcare Medical Centers, we recommend a high-performance, reinforced polymer membrane with a chemically inert surface. A modified KEE (Ketone Ethylene Ester) or a specialized high-grade TPO with an integrated chemical-resistant cap sheet is often the superior choice. These materials are engineered to resist the penetration of both acids and oils, ensuring that the polymer matrix remains stable even under constant chemical bombardment.

Beyond material selection, the engineering of the installation is paramount. We specify a "redundant sealing" approach at all exhaust penetrations. This involves the use of chemically compatible flashing and the application of a liquid-applied, high-solids polymer flashing grade that creates a seamless, monolithic bond. By eliminating all mechanical fasteners in the immediate vicinity of the exhaust plumes, we remove the primary points of entry for corrosive agents. The final assembly must adhere to ANSI and ASTM standards for commercial roofing, ensuring a lifecycle that exceeds the typical fifteen-year replacement cycle despite the aggressive environment.

• Specification of chemically inert, reinforced polymer membranes.
• Implementation of heat-welded seams for maximum leak prevention.
• Utilization of liquid-applied flashing for seamless penetration seals.
• Installation of sacrificial "wear layers" in high-oil-drop zones.
• Establishment of a quarterly chemical residue audit and cleaning protocol.

Critical Envelope Audit and Failure Analysis in Research Environments

In the context of a University Research Laboratory, the building envelope is not merely a shell but a critical component of the facility's life-safety and operational integrity. During our engineering audit of the subject facility, we identified a systemic failure in the primary roofing membrane and the associated perimeter flashing. The complexity of research laboratories—characterized by dense clusters of HVAC conduits, exhaust vents, and high-frequency vibration equipment—creates a multitude of penetration points that are prone to fatigue and thermal cycling. When these points fail, the resulting water intrusion is not a simple leak but a catastrophic threat to millions of dollars in sensitive instrumentation and hazardous material storage.

Our analysis revealed that the failure originated from a combination of hydrostatic pressure buildup at the internal drains and the degradation of the flashing at the parapet walls. The thermal bridging occurring at the roof-to-wall transitions accelerated the breakdown of the sealant, allowing moisture to migrate through the substrate via capillary action. In a high-stakes environment, the priority shifts from immediate repair to immediate containment to prevent the saturation of interior ceiling grids and the subsequent contamination of clean-room environments.

• Identification of compromised flashing interfaces at primary HVAC penetration points.
• Analysis of membrane fatigue resulting from excessive ponding and UV degradation.
• Evaluation of substrate moisture content using infrared thermography to map subsurface saturation.
• Assessment of the structural load capacity of the interior ceiling system to support temporary diversion equipment.

Material Science of Industrial Heavy-Duty Vinyl Diversion

When emergency containment is required, the selection of materials is governed by tensile strength, chemical resistance, and impermeability. For this project, we deployed industrial-grade, 22oz PVC-coated polyester vinyl tarps. Unlike standard polyethylene sheeting, which is prone to tearing under the weight of accumulated water and degrades rapidly under chemical exposure, heavy-duty vinyl provides a reinforced matrix that can withstand significant hydraulic loads. The material science behind these diverters ensures that the water is not just caught, but actively channeled without the risk of seepage or rupture.

The vinyl used in our Aquashield diversion systems is engineered to meet rigorous ANSI standards for tear strength and abrasion resistance. This is critical because, in a laboratory setting, the tarps may come into contact with corrosive fumes or cleaning agents. The non-porous nature of the PVC coating prevents the absorption of contaminants, ensuring that the catchment system remains sterile and does not introduce secondary pollutants into the production bay. Furthermore, the heat-welded seams of these tarps eliminate the need for adhesives that could fail under fluctuating temperature gradients.

• Utilization of 22oz reinforced vinyl for maximum puncture resistance and longevity.
• Implementation of heat-welded seams to ensure 100% watertight integrity across large spans.
• Application of UV-stabilized coatings to prevent material embrittlement during exterior staging.
• Selection of chemically inert surfaces to prevent reactions with lab-grade atmospheric contaminants.

Strategic Interior Diversion and Equipment Protection Logistics

The primary objective of the interior production bay diversion is to decouple the leak source from the high-value equipment below. This requires a sophisticated understanding of fluid dynamics and structural anchoring. We implemented a "catch-and-channel" system, where the vinyl tarps were suspended at a calculated pitch to ensure a constant gravitational flow toward designated drainage points. By creating a controlled slope, we eliminated the risk of "belly" formation in the tarp, which would otherwise lead to water pooling and eventual ceiling collapse due to the sheer weight of the stagnant water.

Routing the water away from sensitive electronics and research samples required the installation of temporary PVC conduiting and reinforced hose systems. These were integrated into the vinyl catchment basins and routed directly to the facility's existing floor drains or exterior scuppers. This diversion strategy effectively transformed an uncontrolled emergency leak into a managed plumbing event. The precision of the routing ensured that no water crossed the "red line" of the equipment zones, maintaining the operational continuity of the laboratory while the primary envelope repairs were staged.

• Calculation of maximum flow rates to size the diversion hoses and prevent backup.
• Installation of tensioned cable systems to maintain the necessary pitch for gravity-fed drainage.
• Strategic placement of catchment basins directly beneath identified leak vectors.
• Integration of secondary containment trays beneath the primary diversion hoses as a fail-safe measure.

Long-Term Remediation and Envelope Stabilization Standards

While emergency tarps provide the necessary window for operation, the ultimate goal is the restoration of the building envelope to ASTM standards. The transition from emergency diversion to permanent repair involves a comprehensive stripping of the compromised membrane and a full evaluation of the insulation board. In this case, we identified that the existing insulation had become saturated, which would have led to mold growth and reduced R-value if not addressed. The remediation process began with the removal of all water-damaged materials and the application of a high-performance, fully adhered TPO (Thermoplastic Polyolefin) membrane.

To prevent a recurrence of the failure, we implemented enhanced flashing details at all penetration points, utilizing reinforced flashing boots and wide-lap seams. The integration of a new, oversized drainage system ensured that the roof would no longer suffer from the hydrostatic pressures that caused the initial breach. By adhering to the strictest commercial roofing engineering protocols, we ensured that the laboratory's envelope was not just repaired, but upgraded to a higher standard of resilience. The final audit confirmed a watertight seal across all critical interfaces, providing the university with a long-term, sustainable solution for their research infrastructure.

• Complete removal of saturated insulation to prevent long-term structural rot and mold.
• Installation of a fully adhered TPO membrane system for superior seam strength and UV resistance.
• Upgrading of all perimeter flashing to exceed ANSI/ASTM standards for commercial roofing.
• Implementation of a scheduled preventative maintenance program to monitor membrane integrity and drain functionality.
