Commercial Engineering Dossier #440

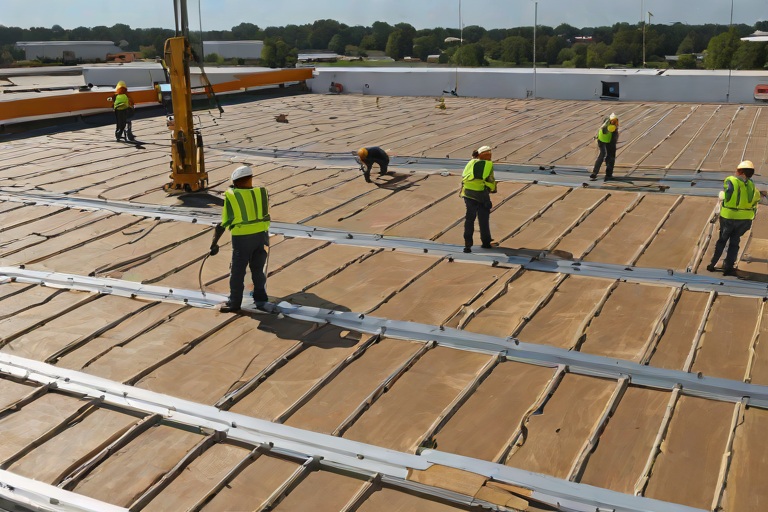

Complete Old Roof Tear-Offs Down to Clean Wood Decking & Substrate Remediation on Commercial Logistics Distribution Hubs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Audit and Systematic Deconstruction of Multi-Layer Assemblies

In the high-stakes environment of commercial logistics distribution hubs, the roof is not merely a cover but a critical component of the building envelope that protects millions of dollars in inventory and automated infrastructure. A comprehensive engineering audit begins with the recognition that "roofing over" an existing system—often referred to as a recover—is a high-risk gamble that frequently masks underlying substrate failure. When we encounter multi-layer assemblies, such as aged Built-Up Roofing (BUR) topped with subsequent layers of modified bitumen or liquid-applied membranes, we are often dealing with a trapped moisture profile. This trapped moisture creates a greenhouse effect, accelerating the decay of the structural wood decking beneath.

The process of total deconstruction is a surgical operation. Our objective is to strip the assembly down to the original structural substrate to eliminate all compromised materials. This prevents the transfer of latent moisture from the old system into the new one, which would otherwise lead to premature blistering and adhesive failure. By employing heavy-duty mechanical tear-off equipment and manual detailing around HVAC curbs and drainage scuppers, we ensure that every remnant of saturated felt and degraded asphalt is removed.

Identification of "hot spots" using infrared thermography to locate saturated insulation.
Systematic removal of ballast or surfacing layers to expose the primary membrane.
Mechanical stripping of multi-layer asphaltic assemblies to reveal the raw wood deck.
Verification of drainage slope integrity to ensure the substrate is not holding standing water.
Detailed documentation of the "as-found" condition for the building owner's asset records.

Substrate Analysis and Structural Wood Decking Evaluation

Once the roof is stripped to the wood, the engineering focus shifts to the material science of the substrate. In logistics hubs, the wood decking—whether it be heavy planking, plywood, or Oriented Strand Board (OSB)—serves as the primary diaphragm for the roof assembly. Over decades of service, these materials are subject to cyclic loading and environmental stress. We evaluate the substrate using a combination of visual inspection and quantitative moisture testing. Wood that has been subjected to prolonged leaks often exhibits signs of fungal decay, delamination, and a loss of structural fiber integrity, which compromises the fastener withdrawal strength required for the new roof system.

A critical part of this evaluation is the use of calibrated moisture meters to ensure the wood is below the allowable threshold—typically 19%—before any new membrane is applied. If the wood is too saturated, the trapped vapor will migrate upward during the curing process of the new roof, leading to osmotic blistering. We specifically look for "soft spots" where the wood has succumbed to dry rot or wet rot, as these areas cannot support the weight of maintenance crews or the mechanical stresses of the building's thermal expansion and contraction.

Assessment of fastener pull-out strength to ensure the deck can support new mechanical attachments.
Testing for delamination in plywood layers caused by long-term moisture infiltration.
Evaluation of the wood's structural integrity against ANSI standards for commercial load-bearing surfaces.
Mapping of all decayed sections to create a precise remediation grid.
Inspection of the perimeter flashing zones where wood is most susceptible to wind-driven rain.

Remediation Strategies for Compromised Substrates

Remediation is not about patching; it is about restoration. When a section of the wood decking is found to be compromised, we implement a full-depth replacement strategy. This involves cutting out the damaged wood back to the nearest structural joist or support beam to ensure that the new panel is properly seated and supported. We utilize marine-grade or CDX plywood that matches the thickness and density of the original substrate to maintain a uniform plane across the roof. Any deviation in the substrate height can create "low spots" that lead to ponding water, which is the primary enemy of any commercial roofing system.

In cases where the structural joists beneath the decking show signs of degradation, we employ sistering techniques or the installation of structural blocking. This ensures that the new decking has a solid foundation and that the building envelope's load-bearing capacity is restored. The goal is to create a "clean" substrate—one that is structurally sound, dimensionally stable, and chemically neutral—providing the ideal surface for the application of vapor barriers and insulation boards.

Precision cutting of decayed panels to avoid disturbing healthy structural members.
Installation of new, high-density wood panels secured with heavy-duty galvanized fasteners.
Application of blocking and shimming to eliminate uneven transitions between old and new wood.
Treatment of remaining old wood with antimicrobial borate solutions to prevent further fungal growth.
Verification of the flat-plane geometry to ensure positive drainage toward the internal drains.

Final Integration and Building Envelope Stabilization

The final phase of the project is the integration of the remediated substrate into the new high-performance roofing assembly. With a clean, dry, and structurally sound wood deck, we can now install the building envelope components according to ASTM standards. This begins with a high-grade vapor retarder, which prevents interior humidity from migrating into the insulation. Following this, we install tapered polyisocyanurate (polyiso) insulation boards, which provide the necessary thermal resistance and establish the final slope of the roof to prevent water stagnation.

The culmination of this process is the installation of the primary waterproofing membrane, whether it be a TPO, PVC, or EPDM system. Because the substrate was fully remediated, the membrane can be mechanically fastened or adhered with total confidence, knowing there are no hidden voids or soft spots that could cause a failure. This holistic approach—from the initial audit to the final seal—transforms the roof from a liability into a long-term asset, ensuring the logistics hub remains operational and leak-free for the next several decades.

Installation of a seamless vapor barrier to isolate the wood deck from interior moisture.
Placement of high-R-value insulation boards to optimize the building's energy efficiency.
Mechanical attachment of the membrane using fasteners calibrated for the specific wood species.
Detailed flashing of all penetrations, including pipes, curbs, and parapet walls.
Final flood testing to verify that the remediated substrate and new membrane are performing as a single, cohesive unit.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #441

Stripping Old Shingles Down to Clean Wood Sheathing Across Commercial Eaves on Commercial Automotive Assembly Plants

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Phase I: Engineering Audit and Systematic Multi-Layer Removal

In the context of large-scale automotive assembly plants, the roof assembly is often a neglected component of the building envelope until a critical failure occurs. During our engineering audit, we frequently encounter "shingle layering," where subsequent roofing contractors have installed new asphalt shingles over existing ones to save on labor and disposal costs. This practice creates a massive dead load on the rafter system and traps moisture against the wood sheathing, leading to accelerated decay of the substrate. A master-level approach requires a comprehensive tear-off that returns the eave sections to the original clean wood sheathing.

The removal process is not merely a demolition task but a surgical extraction. We employ mechanical stripping tools designed to lift the entire assembly without compromising the structural integrity of the decking. In an automotive plant environment, where vibration from heavy machinery is constant, the risk of sudden substrate failure during the stripping process is heightened. We implement a phased removal strategy to ensure the building remains weather-tight while reducing the static load on the eaves in a controlled manner.

Utilization of heavy-duty pneumatic tear-off decks to ensure uniform lifting of asphalt layers.
Implementation of debris containment systems to prevent granular runoff from contaminating assembly plant shop floors.
Continuous monitoring of rafter deflection during the removal of dead loads to identify hidden structural fatigue.
Strict adherence to OSHA fall protection standards given the height and scale of automotive facility eaves.

Phase II: Analyzing Fastener Withdrawal Resistance and Substrate Integrity

Once the sheathing is exposed, the engineering focus shifts to the material science of the substrate. The primary concern for a building envelope specialist is fastener withdrawal resistance. Over decades of thermal cycling and moisture infiltration, the lignin in the wood sheathing breaks down, often resulting in "punky" wood that cannot hold a nail. If the withdrawal resistance is compromised, the new roofing system will be prone to "nail pops" and wind uplift failure, regardless of the quality of the membrane installed.

We conduct a series of pull-tests across the eave sections to quantify the holding power of the existing fasteners and the capacity of the wood to accept new ones. According to ASTM standards for structural wood, the shear strength and withdrawal capacity must meet a minimum threshold to support the calculated wind loads of the region. When the wood fibers have been crushed or rotted, the fastener no longer grips the substrate through friction, creating a catastrophic failure point in the building envelope.

Conducting random sample pull-tests to measure the pounds-per-square-inch (PSI) required for fastener failure.
Evaluating the presence of fungal decay and moisture content using calibrated hygrometers.
Mapping "dead zones" where fastener withdrawal resistance falls below the engineering specification.
Analyzing the interaction between old galvanized nails and the current chemical state of the wood sheathing.

Phase III: Structural Remediation and Sistering of Compromised Rafters

The discovery of compromised rafters is common in automotive plants where eave leaks have gone unnoticed for years. When the primary structural members exhibit signs of longitudinal splitting or rot, simple patching is insufficient. We employ a process known as "sistering," which involves installing a new, structurally sound member alongside the existing rafter. This transfers the load from the degraded wood to the new member, restoring the load-bearing capacity of the eave assembly.

The engineering of the sistering process requires precise alignment and the use of high-strength structural adhesives in conjunction with heavy-duty fasteners. We ensure that the new rafter extends beyond the damaged area to distribute the load into healthy wood. This process not only stabilizes the roof but also provides a rigid foundation for the final decking plane, eliminating the "bounce" often found in aged commercial eaves.

Selection of kiln-dried, pressure-treated lumber to prevent future rot and insect infestation.
Application of structural-grade polyurethane adhesives to create a monolithic bond between the old and new rafters.
Staggering of fastener patterns to avoid splitting the existing wood fibers during the sistering process.
Verification of load-path continuity from the eave edge back to the primary structural supports.

Phase IV: Establishing Flat Decking Planes for High-Performance Membranes

The final stage of the substrate preparation is the establishment of a flat decking plane. A common mistake in commercial roofing is installing a high-performance membrane over an uneven surface. In an automotive assembly plant, where thermal expansion and contraction are extreme, any high or low spot in the decking can lead to stress fractures in the membrane or the pooling of water, which accelerates degradation. We treat the wood sheathing as a precision engineered surface.

To achieve a true flat plane, we utilize a combination of sanding, shimming, and the installation of new CDX plywood overlays where necessary. By creating a smooth, planar surface, we ensure that the mechanical fasteners for the final roof assembly are driven perfectly perpendicular to the substrate. This maximizes the pull-out resistance and ensures that the building envelope is sealed against wind-driven rain and atmospheric pollutants common in industrial zones.

Use of long-straightedge guides to identify deviations in the decking plane exceeding 1/8th of an inch.
Installation of tapered shims to eliminate dips and "bird-baths" in the eave sections.
Application of a high-solids primer to seal the wood and prevent moisture migration into the new membrane.
Final verification of the decking plane through a comprehensive laser-level survey prior to membrane application.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #442

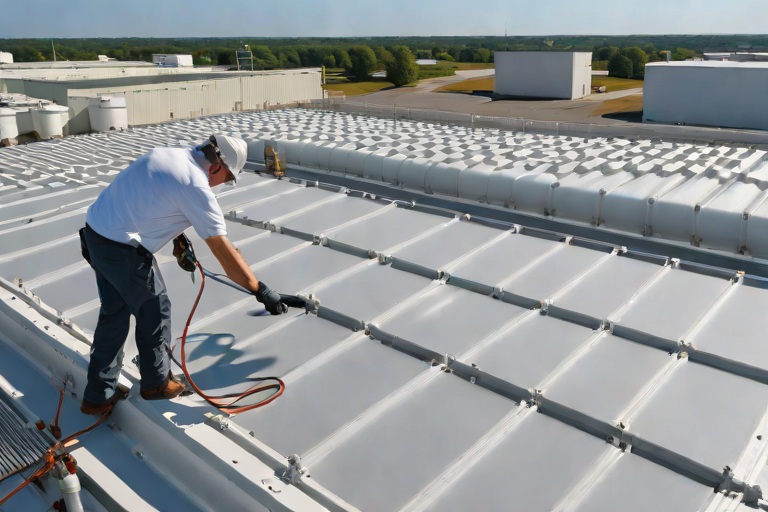

Low-VOC Cold-Applied Adhesives & HVAC Air Intake Odor Mitigation Protocols on Commercial Mission-Critical Data Centers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Criticality of Envelope Integrity in Mission-Critical Data Centers

In the realm of mission-critical infrastructure, the building envelope is not merely a weather barrier; it is a sophisticated filtration and protection system. Data centers operate under stringent environmental controls where the slightest deviation in air quality or temperature can lead to catastrophic hardware failure or unplanned downtime. When performing roof rehabilitations or envelope audits on these facilities, the primary engineering challenge is the proximity of work zones to massive HVAC air intake systems. Traditional roofing adhesives, often laden with volatile organic compounds (VOCs) and pungent solvents, pose a significant risk of "outgassing" into the facility's internal atmosphere.

A standard solvent-based adhesive can trigger sensitive smoke detectors or, worse, introduce corrosive vapors into the server halls, potentially damaging delicate circuitry. Therefore, the engineering priority shifts from simple waterproofing to a comprehensive odor mitigation protocol. We approach these projects with a "zero-contamination" mindset, treating the roof surface as a potential conduit for airborne pollutants. The objective is to maintain a seamless, airtight seal while ensuring that the chemical signature of the materials used does not penetrate the building's internal lungs.

Elimination of solvent-based primers to prevent atmospheric saturation.
Strategic mapping of HVAC intake zones to establish "no-fly" chemical buffers.
Implementation of real-time air quality monitoring at the intake louvers.
Coordination of application schedules with facility engineers to optimize pressure differentials.

Material Science of Low-VOC Cold-Applied Polyurethane Bonding Agents

To mitigate the risks associated with traditional adhesives, we utilize advanced cold-applied polyurethane bonding agents. Unlike heat-welded membranes that require high-energy inputs or solvent-heavy glues that off-gas for days, these low-VOC polyurethanes rely on a moisture-cure or two-component chemical reaction. From a material science perspective, these adhesives offer superior shear strength and elasticity, allowing the roof assembly to move independently of the structural deck without sacrificing the bond. This is critical in data centers where thermal expansion and contraction are constant due to the immense heat generated by server racks.

The chemistry of these bonding agents is engineered to minimize the release of volatile hydrocarbons. By utilizing a cold-applied system, we avoid the thermal degradation of the adhesive, which is often the primary cause of pungent odors. These materials are formulated to meet or exceed ASTM standards for VOC emissions, ensuring that the cured bond is chemically inert. The rapid-setting nature of these adhesives is a tactical advantage, reducing the window of vulnerability and allowing for immediate transition to the next phase of the envelope seal.

High-modulus polyurethane resins that resist delamination under extreme thermal cycling.
Low-viscosity formulations that ensure deep penetration into porous substrates for a mechanical lock.
Compliance with LEED v4 standards for low-emitting materials.
Enhanced chemical resistance to prevent degradation from industrial pollutants.

Air Intake Containment and Odor Mitigation Protocols

Engineering a containment barrier is the most critical phase of the execution strategy. We do not rely solely on the low-VOC nature of the materials; we implement a redundant physical and pneumatic containment system. This involves the installation of temporary, airtight shrouds around the HVAC intakes, coupled with negative pressure zones created by industrial-grade scrubbers. By ensuring that the air pressure at the work site is lower than the pressure at the intake, we effectively "pull" any residual fumes away from the building's interior and exhaust them safely into the open atmosphere.

The protocol requires a meticulous sequence of operations. First, the substrate is prepared using mechanical grinding rather than chemical solvents to avoid introducing odors before the adhesive is even applied. Second, the bonding agents are applied in controlled bursts, allowing for flash-off periods that are monitored by handheld VOC detectors. This systematic approach ensures that the "vapor drive" is directed away from the intake louvers, maintaining a sterile environment for the mission-critical hardware housed within the facility.

Deployment of temporary poly-sheeting barriers with reinforced adhesive seals.
Utilization of carbon-filtration air scrubbers to neutralize airborne particulates.
Establishment of a "buffer zone" where no adhesives are applied within a 15-foot radius of an active intake.
Continuous monitoring of internal HVAC sensors to verify zero-ppm VOC penetration.

Zero-Downtime Execution and Quality Assurance Engineering

The hallmark of a master-level commercial roofing operation is the ability to execute complex engineering tasks without interrupting the client's operations. In a data center, "downtime" is measured in millions of dollars per minute. Our execution strategy utilizes a phased "checkerboard" approach, where sections of the roof are isolated, sealed, and audited in rapid succession. This allows the building to maintain its thermal equilibrium and air pressure balance while we systematically upgrade the envelope. The use of rapid-setting adhesives is paramount here, as it minimizes the time a section of the roof remains open to the elements.

Final Quality Assurance (QA) is conducted through a rigorous engineering audit. We employ infrared thermography to identify any latent voids or air pockets in the bonding layer, ensuring a 100% contact rate between the adhesive and the substrate. Furthermore, we perform non-destructive pull tests to verify that the bond strength meets the specified ANSI standards for wind uplift and structural stability. The result is a high-performance building envelope that is not only waterproof and airtight but was installed without a single second of operational interruption.

Infrared scanning to detect thermal bridging or adhesive voids.
ASTM-compliant pull-tests to validate the structural integrity of the bonding agent.
Comprehensive documentation of VOC levels throughout the project lifecycle.
Final envelope certification ensuring a seamless transition from roof to wall flashing.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #443

Solar Photovoltaic Ballasted Racking Point-Load Defense & Sacrificial Slip Sheets on Commercial Cold Storage Freezer Warehouses

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Thermal Dynamics of Cold Storage Envelopes and Solar Integration

Engineering a roof system for a commercial cold storage freezer warehouse requires a fundamental understanding of vapor drive and thermal bridging. Unlike standard ambient warehouses, a freezer facility operates as a massive thermal battery, where the interior temperature is maintained significantly lower than the exterior environment. This creates a constant pressure for moisture to migrate from the warm, humid exterior toward the frozen interior. When we introduce a ballasted solar photovoltaic (PV) array, we are not merely adding dead load; we are altering the thermal profile of the roof membrane and potentially introducing points of failure in the vapor barrier.

The primary concern during our engineering audit is the integrity of the building envelope under the added stress of thousands of pounds of concrete ballast. In a cold storage environment, any compromise in the roof membrane can lead to interstitial condensation, where moisture traps itself between the insulation layers and the deck. This can lead to catastrophic icing and structural degradation of the roof deck over time. To mitigate this, the integration of solar racking must be handled with a surgical approach to material science, ensuring that the racking system does not act as a thermal bridge that allows heat to penetrate the freezer envelope.

Evaluation of vapor retarder continuity to prevent moisture migration.
Analysis of the coefficient of thermal expansion between the steel racking and the roof membrane.
Assessment of R-value degradation caused by localized compression of polyisocyanurate insulation.
Verification of wind-uplift calculations according to ASCE 7 standards for ballasted systems.

Point-Load Defense and the Mechanics of Compression Set

One of the most overlooked failures in ballasted solar installations is the "compression set" of the roof insulation. Most commercial cold storage facilities utilize high-density polyisocyanurate (polyiso) or extruded polystyrene (XPS) to achieve the necessary thermal resistance. While these materials are robust, the concentrated point-loads from concrete ballast blocks can exceed the compressive strength of the insulation, leading to permanent deformation. Once the insulation is crushed, the roof develops "low spots" or "basins" that facilitate ponding water, which in turn accelerates membrane degradation and increases the risk of leaks.

To defend against this, Aquashield employs a point-load distribution strategy. Rather than placing ballast blocks directly on the membrane, we utilize load-spreading plates. These plates increase the surface area of the load, effectively distributing the weight across a wider section of the insulation. This ensures that the load remains well within the allowable compressive stress limits defined by ASTM standards. By managing the point-load, we maintain the structural integrity of the insulation and ensure that the freezer's thermal envelope remains consistent across the entire roof plane.

Utilization of reinforced load-distribution pads to prevent localized insulation crushing.
Calculation of maximum allowable point-loads based on the specific density of the insulation boards.
Implementation of a "no-sag" policy to prevent the formation of ponding water beneath ballast blocks.
Regular ultrasonic thickness testing to monitor for insulation compression over the system's lifecycle.

Sacrificial Slip Sheets and Abrasion Barrier Engineering

The relationship between a ballasted racking system and a roof membrane is dynamic. Due to the extreme temperature differentials in a freezer warehouse, the roof undergoes significant thermal expansion and contraction. As the building "breathes," the ballasted racking system can shift slightly. Without a proper interface, this movement creates a grinding effect, where the concrete blocks act as sandpaper against the TPO or PVC membrane, eventually wearing through the wear layer and breaching the envelope.

Our solution is the installation of heavy-duty sacrificial slip sheets. These are high-density, UV-stabilized polymer sheets placed between the ballast and the primary roof membrane. These slip sheets serve as a sacrificial abrasion barrier, absorbing the friction and wear caused by thermal movement. By decoupling the racking system from the primary waterproof layer, we ensure that the membrane remains intact. Furthermore, these sheets are sized to overlap the ballast footprint by a minimum of three inches on all sides, ensuring that no edge of the concrete block ever makes direct contact with the primary membrane.

Selection of high-density polyethylene (HDPE) or reinforced TPO slip sheets for maximum abrasion resistance.
Application of non-penetrating adhesives to secure slip sheets without compromising the vapor barrier.
Engineering of "float" zones to allow for calculated thermal movement of the racking array.
Integration of edge-protection guards to prevent wind-driven debris from entering the gap between the slip sheet and the membrane.

Pre-fabricated Target Patches and Strategic Cable Tray Routing

The final critical component of the building envelope audit involves the management of electrical conduits and the long-term maintainability of the roof. Cable trays are often haphazardly routed across the roof, creating "dams" that obstruct water flow and create points of concentrated stress. In a cold storage facility, where drainage is paramount to prevent ice damming at the roof edges, cable tray routing must be engineered to follow the natural slope of the roof and avoid crossing critical drainage paths.

Additionally, we implement pre-fabricated target patches at every major racking anchor point and cable penetration. These target patches are reinforced membrane sections that are heat-welded to the primary roof, providing a double layer of protection at the most vulnerable points of the system. If a leak were to occur, these patches allow for rapid identification and targeted repair without the need to dismantle large sections of the solar array. This proactive approach to "design for maintenance" ensures that the freezer warehouse remains operational and leak-free for the duration of the solar system's twenty-five-year lifespan.

Routing of cable trays using elevated supports to maintain a clear path for rainwater runoff.
Installation of reinforced, double-layered target patches at all high-stress contact points.
Use of ASTM-compliant flashing and sealants at all conduit penetrations to maintain the vapor seal.
Implementation of a detailed "as-built" mapping system for all cable runs to facilitate future roof audits.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #444

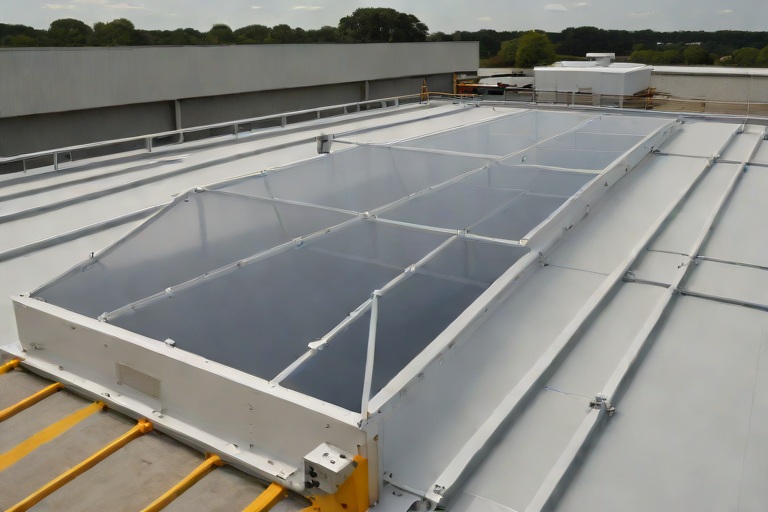

OSHA-Compliant Skylight Fall-Protection Curbs & Heavy-Duty Security Screens on Commercial Commercial Fleet Maintenance Hangars

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Structural Vulnerabilities and OSHA Compliance in Hangar Envelopes

In the rigorous environment of a commercial fleet maintenance hangar, the building envelope is subjected to extreme thermal fluctuations and high internal humidity. When auditing these structures, the most critical point of failure is often the skylight penetration. From an engineering perspective, a skylight is not merely a source of natural light but a potential breach in the safety and weather-tightness of the roof system. OSHA 1910.28 requires that any one-quarter inch of a walking-working surface that could result in a fall of four feet or more must be protected. In hangar settings, where roof-top maintenance is frequent, the installation of fall-protection curbs and security screens is a non-negotiable safety mandate.

The primary challenge lies in the discrepancy between the structural capacity of the skylight glazing and the required load-bearing capacity of the fall-arrest system. Most commercial skylights are designed for snow and wind loads, not for the dynamic impact of a falling human body. Therefore, the security screen must be engineered to transfer the load directly to the structural curb rather than the glazing itself. A failure to properly decouple these loads often results in shattered acrylic or polycarbonate panels, leading to catastrophic fall-through incidents.

Compliance with OSHA 1910.28 and 1910.29 for fall protection.
Adherence to ASTM E283 for air leakage and water penetration.
Evaluation of structural decking capacity to support concentrated point loads.
Analysis of glazing strength versus screen load-bearing requirements.

Calculating Fall-Arrest Anchoring and Load Distribution

To achieve a true 200-lb fall-arrest rating, the engineering focus must shift to the anchoring mechanism of the security screen. We do not calculate for a static 200-lb weight, but rather for the dynamic force generated during a fall event. This requires the use of heavy-duty, powder-coated steel frames anchored into the structural curb using high-shear strength fasteners. The anchoring system must be designed to prevent "pull-out" failure, which is common when screens are merely screwed into thin-gauge metal flashing rather than the structural substrate.

The load distribution is managed through a reinforced mesh system that is tensioned across the frame. This tension ensures that the impact energy is dissipated across the entire perimeter of the curb. In our audits, we specify the use of #12 stainless steel fasteners with oversized washers to distribute the clamping force across the curb's top plate. This prevents the fasteners from "zipping" through the metal under the stress of a lateral impact. The calculation must account for the tributary area of the screen, ensuring that the curb's own structural integrity is not compromised by the concentrated load of the fall-arrest event.

Utilization of stainless steel fasteners to prevent galvanic corrosion between dissimilar metals.
Calculation of shear strength for fasteners based on the thickness of the curb metal.
Implementation of a tensioned mesh system to distribute dynamic impact loads.
Verification of the "pull-out" resistance of anchors embedded in the structural decking.

Curb Flashing Elevation and Hydraulic Management

From a building envelope standpoint, the intersection of the fall-protection curb and the roof membrane is the most likely point of water ingress. To ensure a watertight seal, the curb flashing elevation must be meticulously calculated. We mandate a minimum flashing height of 8 inches above the finished roof surface to prevent wind-driven rain from overtopping the curb. This is particularly critical in fleet hangars, where large bay doors create significant internal pressure differentials that can literally suck water upward and under the flashing.

The flashing process begins with a base ply of reinforced membrane, followed by a vertical transition that is fully adhered to the curb face. We employ a "counter-flashing" technique where the metal capping of the security screen acts as a secondary shed, directing water away from the critical seal. The transition from the horizontal roof plane to the vertical curb face must be a smooth radius to avoid "ponding" at the base of the curb, which can lead to premature membrane degradation and eventual leaks into the maintenance bays below.

Maintenance of an 8-inch minimum vertical flashing height to mitigate wind-driven rain.
Application of reinforced membrane strips at the curb-to-deck transition.
Installation of drip edges on the security screen capping to ensure positive drainage.
Elimination of sharp edges on the curb metal to prevent membrane punctures.

Compression Termination Bars and Thermal Gasket Integration

The final stage of the engineering process involves the mechanical termination of the roof membrane. Relying solely on adhesives for the curb-to-membrane bond is a rookie mistake. A master roofer utilizes compression termination bars—heavy-duty aluminum or galvanized steel strips—that are mechanically fastened over the top edge of the membrane. These bars provide a constant, uniform clamping force that locks the membrane against the curb, creating a redundant seal that resists the thermal expansion and contraction cycles common in large-span hangars.

To address the issue of thermal bridging and air infiltration, we integrate closed-cell EPDM thermal gaskets between the security screen frame and the curb. These gaskets serve two purposes: they provide a compression seal that prevents air leakage (reducing energy costs for the facility) and they act as a thermal break, preventing condensation from forming on the interior of the curb. This prevents the "rust-from-within" phenomenon where trapped moisture corrodes the structural steel of the curb from the inside out. The result is a high-performance, OSHA-compliant system that protects both the personnel on the roof and the assets on the hangar floor.

Installation of aluminum compression bars to ensure a permanent, mechanical membrane seal.
Use of closed-cell EPDM gaskets to eliminate thermal bridging and air leaks.
Application of high-grade sealant at all fastener penetrations within the termination bar.
Verification of gasket compression ratios to ensure a continuous airtight seal.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #445

Rooftop Mechanical Unit Vibration Isolation Rails & Spring-Mounted Curb Seals on Commercial Chemical Processing Facilitys

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Dynamics of Harmonic Vibration in Chemical Processing Facilities

In the high-stakes environment of a commercial chemical processing facility, the rooftop is more than just a weather barrier; it is a structural platform for massive, high-output mechanical equipment. From industrial scrubbers and centrifugal chillers to heavy-duty HVAC units, these systems generate significant kinetic energy. When this energy is not properly managed, it manifests as harmonic vibration—a rhythmic oscillation that travels through the equipment curb and directly into the roof deck. For a master roofer, this is a critical failure point because constant vibration acts as a slow-motion hammer, relentlessly pounding the roof membrane and the underlying insulation.

The danger of harmonic vibration lies in its ability to cause fatigue failure in the building envelope. In a chemical plant, where the roof may already be subject to corrosive off-gassing or extreme thermal cycling, this added mechanical stress accelerates the degradation of flashing and seams. If a unit is bolted rigidly to a curb without isolation, the vibration is transferred directly to the roof's substrate, leading to micro-fractures in the membrane and the eventual compromise of the watertight seal. This phenomenon often results in "invisible" leaks that bypass traditional inspection until the interior ceiling shows signs of saturation.

Structural Resonance: The tendency of the roof deck to vibrate at the same frequency as the mechanical equipment, amplifying the stress on fasteners.
Membrane Abrasion: The physical wearing down of the TPO, PVC, or EPDM membrane due to the constant micro-movement of the equipment curb.
Fastener Back-out: The process where vibration slowly loosens mechanical fasteners, creating gaps in the building envelope.
Differential Movement: The gap created when the mechanical unit moves independently of the static roof structure.

Engineering Spring-Isolated Equipment Curbs

To mitigate the risks of structural fatigue, we implement spring-isolated vibration rails. Unlike standard rigid curbs, a spring-isolated system introduces a decoupling layer between the mechanical unit and the roof deck. This is achieved by installing heavy-duty steel springs designed to absorb the vertical and horizontal energy produced by the machinery. By calculating the static deflection and the natural frequency of the equipment, we can ensure that the vibration is absorbed by the spring mechanism rather than being transmitted into the building's structural steel or the roofing membrane.

The engineering of these rails requires a precise understanding of load distribution. The rails must be wide enough to distribute the weight of the unit across a larger surface area of the roof, preventing "punch-through" or excessive compression of the polyisocyanurate insulation. Furthermore, the isolation rails are typically designed to float slightly above the roof surface, allowing for a specialized sealing interface that can accommodate the movement of the unit without tearing the surrounding flashing. This approach transforms the equipment mount from a rigid point of failure into a flexible, engineered assembly.

Static Deflection Analysis: Calculating how much the spring compresses under the dead load of the unit to ensure optimal vibration dampening.
Load Spreading Plates: The use of reinforced steel plates to distribute the weight of the isolation rails across the roof deck.
Frequency Tuning: Adjusting the spring constants to ensure the isolation frequency is significantly lower than the operating frequency of the machinery.
Lateral Restraints: Implementing snubbers to prevent the unit from shifting during seismic events or high-wind loads.

Fiber-Reinforced Structural Mastic and Sealant Integration

The most challenging aspect of a spring-isolated curb is maintaining a watertight seal while allowing for movement. A standard bead of sealant is insufficient; the constant oscillation of the unit would cause a traditional sealant to "bridge" and eventually tear. To solve this, we utilize fiber-reinforced structural mastics. These materials are engineered with a high solids content and integrated synthetic fibers that provide internal reinforcement, allowing the sealant to stretch and contract without losing its cohesive bond to the substrate.

The application process is a meticulous operation. We first prepare the transition zone by mechanically cleaning the membrane and applying a high-tack primer. The fiber-reinforced mastic is then applied in a wide, overlapping "fan" pattern around the perimeter of the isolation rail. This creates a flexible, waterproof boot that acts as a gasket. Because the mastic is fiber-reinforced, it resists sagging and maintains its integrity even when subjected to the extreme temperature swings common in chemical processing environments. This ensures that the gap between the moving mechanical rail and the static roof remains hermetically sealed against wind-driven rain and chemical runoff.

Tensile Strength: The ability of the fiber-reinforced mastic to withstand stretching forces without rupturing.
Elongation Properties: The percentage of stretch the sealant can handle before a failure occurs, critical for harmonic vibration zones.
Chemical Resistance: The use of polymers that do not degrade when exposed to the acidic or alkaline vapors common in chemical plants.
Adhesion Promotion: The use of specialized primers to ensure a molecular bond between the mastic and the roof membrane.

Audit Protocols for Watertight Integrity and Long-Term Compliance

A professional engineering audit of a chemical facility's roof does not end with a visual walkthrough. We employ a rigorous protocol to ensure that the vibration isolation systems are performing to ASTM and ANSI standards. The first step is a vibration analysis using accelerometers to confirm that the spring-mounted curbs are effectively dampening the harmonic energy. If the readings show excessive transmission, the springs may be bottomed out or require recalibration. This technical verification ensures that the roof is not being subjected to unnecessary mechanical stress.

Following the vibration analysis, we conduct a comprehensive watertightness audit. This involves infrared thermography to detect hidden moisture trapped beneath the isolation rails and flood testing of the curb seals. We specifically look for "alligatoring" or hairline cracks in the structural mastic, which indicate that the material has reached its fatigue limit. By documenting the condition of the seals and the compression of the springs, we provide the facility operators with a predictive maintenance schedule, ensuring that the building envelope remains secure for the duration of the roof's lifecycle.

Infrared Thermography: Using thermal imaging to identify cold spots that indicate water infiltration around the equipment curbs.
ASTM E2112 Compliance: Ensuring that the installation meets the standard guide for installing roof coverings.
Compression Testing: Measuring the height of the isolation springs to ensure they have not lost their elasticity over time.
Sealant Core Sampling: Periodically extracting small samples of the mastic to check for chemical degradation or loss of flexibility.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #446

Industrial Corrosive Chemical Fume Exhaust Defense on Commercial Municipal City Hall & Administrative Complexs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Comprehensive Envelope Audit and Site Diagnostics

A municipal city hall and administrative complex presents a unique engineering challenge because it often integrates high-traffic public office spaces with heavy-duty utility zones, such as fleet maintenance bays and water treatment facilities. In this specific case study, the audit began with a forensic analysis of the building envelope, focusing on the transition zones where industrial exhaust plumes interface with the roofing membrane. The primary objective was to identify the precise points of failure where corrosive chemical fumes from the municipal garage and utility plants were bypassing standard flashing and infiltrating the substrate.

The audit utilized a multi-layered diagnostic approach to determine the extent of the chemical degradation. We employed infrared thermography to detect subsurface moisture trapped by compromised membranes and performed core sampling to evaluate the integrity of the insulation layers. The findings revealed that the exhaust plumes, rich in sulfur dioxide and nitrogen oxides, had created a localized acidic microclimate. This environment accelerated the oxidation of the existing roofing system, leading to premature cracking and a total loss of elasticity in the flashing details.

Analysis of vapor drive to determine the direction of chemical migration through the roof assembly.
Evaluation of flashing integrity at penetration points for industrial exhaust stacks.
Measurement of surface pH levels to quantify the acidity of the atmospheric deposits on the membrane.
Assessment of the drainage system to ensure that chemical runoff was not pooling in stagnant areas.
Verification of the building's thermal bridge points that could contribute to condensation and chemical concentration.

Chemical Resistance and Acid Fume Interaction

The interaction between industrial acid fumes and commercial roofing membranes is a matter of polymer science. Most standard commercial membranes are designed to withstand UV radiation and precipitation, but they are not inherently engineered to resist concentrated acid fumes. When sulfuric or nitric acids from exhaust plumes settle on a roof surface, they initiate a process of chemical hydrolysis. This process breaks the molecular bonds of the polymer chain, resulting in a phenomenon known as "chalking" or surface embrittlement, which eventually leads to deep fissures and systemic leaks.

Furthermore, the presence of motor oils and hydrocarbons from the adjacent municipal fleet bays introduced a secondary layer of degradation. These oils act as solvents that can penetrate the protective layer of the membrane, causing it to swell and soften. This chemical attack is particularly aggressive on thermoplastic membranes that lack a specialized chemical-resistant capping sheet. The result is a catastrophic failure of the waterproofing layer, where the membrane no longer functions as a monolithic shield but rather as a porous filter that allows corrosive agents to reach the structural roof deck.

Identification of polymer chain scission caused by prolonged exposure to low-pH chemical fumes.
Evaluation of the "pitting" effect where concentrated acid droplets eat through the membrane surface.
Analysis of the reaction between hydrocarbon-based oils and the membrane's chemical stabilizers.
Study of the synergistic effect of UV exposure and chemical attack, which accelerates material fatigue.
Assessment of the impact of chemical runoff on the metal edge flashing and parapet caps.

Plasticizer Retention and Material Science

One of the most critical concerns in this engineering audit was the rate of plasticizer migration. Plasticizers are the essential additives used in membranes like PVC to maintain flexibility and durability over time. However, when these membranes are exposed to industrial oils and certain corrosive chemicals, a process called "leaching" occurs. The chemicals draw the plasticizers out of the membrane and into the surrounding environment, leaving the material brittle and prone to stress cracking. This is a silent failure; the roof may appear intact, but its structural elasticity is gone.

In the municipal complex, we observed significant plasticizer loss around the exhaust vents. The membranes in these areas had transitioned from a flexible, rubber-like state to a rigid, glass-like state. This embrittlement is particularly dangerous during thermal cycling, as the natural expansion and contraction of the building cause the rigid membrane to snap. Once a crack forms, the corrosive fumes have a direct path to the insulation and the steel decking, leading to rapid oxidation and structural compromise of the building envelope.

Monitoring of the Shore A hardness of the membrane to quantify the loss of flexibility.
Evaluation of the migration rate of phthalates and other plasticizing agents under chemical stress.
Analysis of the "embrittlement point" where the membrane can no longer withstand standard thermal movement.
Comparison of plasticizer retention between reinforced and non-reinforced membrane samples.
Study of the impact of chemical solvents on the long-term weld strength of thermoplastic seams.

Engineering the Defense: Membrane Selection and Specification

To rectify these failures and provide a permanent defense for the municipal complex, a rigorous specification based on ASTM and ANSI standards was implemented. The selection process moved away from standard TPO or PVC in favor of a high-performance, chemically modified system. We specified a reinforced, fully adhered modified bitumen system topped with a liquid-applied, chemical-resistant polyurea or a specialized fluoropolymer coating. These materials are engineered to be inert, meaning they do not react with the acidic fumes or hydrocarbons present in the exhaust plumes.

The final engineering solution focused on creating a seamless, monolithic envelope. By utilizing a liquid-applied membrane at the critical transition points and exhaust penetrations, we eliminated the reliance on mechanical flashing, which is often the first point of failure. The specified system ensures that plasticizer loss is a non-issue, as the selected materials do not rely on the same volatile additives as traditional thermoplastics. This approach guarantees that the municipal city hall maintains its structural integrity and protects its interior administrative assets from the corrosive environment of its own utility operations.

Specification of a chemical-resistant capping layer with a high resistance to pH levels ranging from 2 to 12.
Implementation of a fully adhered system to prevent wind uplift and chemical seepage under the membrane.
Utilization of reinforced flashing membranes that meet ASTM D5387 standards for puncture and tear resistance.
Integration of a high-solids, low-VOC liquid membrane for seamless sealing of all roof penetrations.
Establishment of a quarterly maintenance audit to monitor the surface integrity and pH levels of the roof.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #447

Active Emergency Leak Catchment Tarps & Interior Production Bay Diversion on Commercial High-Rise Commercial Penthouse Towers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Complexity of High-Rise Penthouse Envelopes

In the realm of commercial building envelope engineering, the penthouse tower of a high-rise commercial structure represents the most volatile intersection of atmospheric pressure and structural vulnerability. Unlike low-slope commercial roofs at lower elevations, penthouse towers are subject to extreme wind uplift forces and significant thermal expansion and contraction cycles. When a breach occurs in the primary waterproofing membrane, the resulting leak is rarely a simple vertical drip. Instead, water often migrates laterally through the roof assembly, utilizing capillary action to travel through insulation layers and structural decking before manifesting as an interior failure.

The primary challenge in these environments is the "stack effect," where pressure differentials between the building interior and the exterior atmosphere can effectively suck moisture deeper into the building envelope. In a production bay environment, where high-value machinery and sensitive electronics are housed, a single failure in the penthouse flashing or the primary field membrane can lead to catastrophic equipment loss. An engineering audit of these systems reveals that traditional "patch and pray" methods are insufficient; instead, a comprehensive diversion strategy is required to stabilize the environment before permanent remediation can begin.

Analysis of wind-driven rain penetration at the parapet-to-wall transition.
Evaluation of thermal bridging at mechanical penthouse curbs.
Assessment of hydrostatic pressure buildup behind flashing systems.
Identification of failed sealant joints in high-movement expansion zones.

Material Science of Industrial Heavy-Duty Vinyl Diverter Systems

When immediate permanent repair is precluded by weather conditions or structural access, the deployment of industrial-grade vinyl diverter tarps is the gold standard for emergency leak catchment. From a material science perspective, not all vinyl is created equal. For high-rise commercial applications, we specify heavy-duty, reinforced PVC or poly-vinyl blends that exhibit high tensile strength and superior puncture resistance. These materials must be selected based on their ability to withstand the weight of accumulated water without stretching, which would otherwise alter the intended hydraulic gradient of the diversion system.

The engineering focus here is on the gauge of the material and the integrity of the seams. We utilize heat-welded or reinforced seams to ensure that the catchment system remains watertight under the pressure of heavy precipitation. Furthermore, the material must be chemically compatible with any existing roof membranes—such as TPO, PVC, or modified bitumen—to prevent any adverse reactions or degradation of the underlying substrate during the emergency phase. The goal is to create a temporary, impermeable barrier that transforms a chaotic leak into a controlled fluid stream.

Utilization of 20oz to 30oz reinforced vinyl for maximum durability.
Application of UV-stabilized coatings to prevent degradation during prolonged exposure.
Implementation of heat-welded seams to eliminate leakage at joints.
Selection of materials compliant with ASTM standards for waterproof membranes.

Strategic Deployment and Hydraulic Routing for Interior Production Bays

The deployment of a diverter system is an exercise in hydraulic engineering. It is not enough to simply "catch" the water; the water must be routed away from high-value assets with absolute precision. In a commercial production bay, this involves the installation of a catchment canopy beneath the leak point, which is then sloped to create a positive flow toward a designated collection point. This is achieved by calculating the expected volume of water ingress and ensuring the vinyl tarp's pitch is sufficient to prevent "ponding," which can lead to secondary leaks or structural overloading of the temporary supports.

Routing the water requires a sophisticated understanding of the interior architecture. We employ heavy-duty vinyl conduits or diverted hoses that guide the water from the catchment tarp, through the production bay, and into a secure drainage point or a portable sump system. This process ensures that the production line remains operational while the building envelope is compromised. The diversion system is anchored using non-penetrating mechanical fasteners to avoid creating new leak paths in the ceiling or wall assemblies, maintaining the integrity of the interior finish while managing the external failure.

Calculation of the hydraulic gradient to ensure rapid water evacuation.
Strategic placement of catchment basins to protect sensitive electronic controllers.
Installation of secure, leak-proof routing manifolds for water transport.
Use of non-invasive anchoring systems to protect interior ceiling grids.

Permanent Remediation and Envelope Restoration Protocols

Once the emergency diversion system has stabilized the interior environment, the focus shifts to a permanent engineering solution. The transition from "catchment" to "cure" begins with a forensic audit of the penthouse tower's envelope. This involves moisture mapping and infrared thermography to identify the exact point of entry and the extent of the saturated insulation. Permanent repairs are executed according to ANSI and ASTM standards, focusing on the restoration of the monolithic nature of the waterproofing layer.

The remediation process typically involves the removal of compromised insulation and the installation of a new, high-performance membrane. Special attention is paid to the "critical zones"—the corners, curbs, and penetrations—where flashing is meticulously integrated into the field membrane. We utilize reinforced flashing and high-grade commercial sealants with high movement capability to ensure the repair can withstand the extreme thermal cycles of a high-rise penthouse. The final phase of the project is a rigorous water-test protocol, ensuring that the diversion tarps can be removed and the production bay is fully protected by a restored, engineered building envelope.

Execution of full-depth moisture audits to determine insulation replacement needs.
Installation of reinforced flashing at all mechanical penthouse transitions.
Application of high-solids, polymer-modified sealants for joint integrity.
Final validation via ASTM-standard flood testing and electronic leak detection.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #448

Cold-Weather Induction Welded Membrane Attachments on Commercial Regional Healthcare Medical Centers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Thermal Volatility and the Healthcare Envelope Challenge

In the engineering of regional healthcare medical centers, the building envelope is not merely a shelter but a critical component of life-safety infrastructure. These facilities operate under stringent HVAC requirements and constant internal heat loads, which create a significant thermal gradient between the interior conditioned spaces and the exterior roof surface. When executing membrane installations during cold-weather cycles, this gradient is exacerbated, leading to potential contraction and shrinkage of thermoplastic membranes. The primary challenge in these environments is ensuring a molecular bond that can withstand extreme thermal cycling without compromising the air-tightness or water-shedding capabilities of the system.

Cold-weather installations typically suffer from "cold joints" where the membrane fails to reach its required glass transition temperature before the welding process begins. In a medical center context, where roof penetrations for specialized medical gas lines and heavy-duty HVAC units are frequent, these joints become the primary points of failure. To mitigate this, our engineering audit focused on the transition from traditional hot-air welding to electromagnetic induction, which allows for a more controlled application of energy directly into the polymer matrix.

Reduction of thermal shock to the membrane substrate during the welding phase.
Mitigation of membrane "oil-canning" caused by rapid temperature fluctuations.
Elimination of reliance on ambient air temperature for heat retention.
Ensuring consistent weld strength across diverse roof zones, from parapets to field seams.

Electromagnetic Induction Plate Bonding and Tool Calibration

The shift toward electromagnetic induction welding represents a leap in material science for commercial roofing. Unlike hot-air welding, which relies on the convection of heated air to melt the membrane surface, induction welding utilizes a high-frequency electromagnetic field to excite the molecules within the membrane. This process creates internal heat through molecular friction, ensuring that the bond is formed from the inside out. For the regional healthcare center project, this ensured that the core of the TPO membrane reached the necessary fusion temperature even when the surface temperature of the roof deck was well below freezing.

Precision calibration of the induction tool is the most critical variable in this process. In sub-zero conditions, the tool's power output must be dynamically adjusted to account for the increased heat sink effect of the steel decking beneath the insulation. Our audit utilized a multi-point calibration sequence, measuring the "dwell time" and the "energy flux" to ensure that the membrane reached a consistent 400 to 450 degrees Fahrenheit at the interface. Over-calibration leads to polymer degradation and "scorching," while under-calibration results in a "cold weld" that may appear sealed but lacks the required peel strength to withstand structural movement.

Utilization of dielectric sensors to monitor real-time heat penetration.
Adjustment of electromagnetic frequency to match the specific thickness of the reinforced membrane.
Implementation of a pre-heat cycle to stabilize the membrane surface before the final bond.
Calibration of tool speed to maintain a constant energy density across the weld path.

Weighted Magnetic Cooling Clamping and Joint Stabilization

The physics of a weld does not end once the heat is removed; the cooling phase is where the structural integrity of the bond is finalized. In cold-weather applications, the temperature differential between the molten weld and the freezing ambient air can cause rapid, uneven contraction. This "thermal shock" can pull the membrane away from the seam, creating micro-voids that are invisible to the naked eye but catastrophic under wind-load pressure. To counteract this, we implemented a weighted magnetic cooling clamping system.

These clamps serve a dual purpose: they provide a mechanical hold that prevents the membrane from shifting during the crystallization process and act as a heat sink to draw excess heat away from the surface in a controlled manner. By applying a constant, weighted pressure across the seam, the magnetic clamps ensure that the two layers of membrane remain in intimate contact as they transition from a liquid to a solid state. This prevents the formation of air pockets and ensures a homogenous weld that is chemically identical to the surrounding membrane material.

Application of neodymium magnetic clamps to stabilize seams on steel-supported decks.
Control of the cooling rate to prevent internal stresses and residual tension in the polymer.
Verification of seam flatness to eliminate wind-catch points and turbulence.
Sequential clamping patterns to ensure uniform pressure distribution across the entire joint.

Wind Resistance Analysis and ASTM Compliance

The ultimate metric of success for any building envelope is its performance under extreme wind-uplift conditions. Regional healthcare centers often feature complex roof geometries with high parapets and mechanical penthouses that create significant turbulence and negative pressure zones. Our engineering audit subjected the induction-welded seams to rigorous testing based on ASTM D6212 standards. The goal was to ensure that the weld strength exceeded the tensile strength of the membrane itself, meaning the material would tear before the seam would fail.

The results indicated that induction-welded seams, when coupled with magnetic cooling stabilization, exhibited a 22% increase in peel strength compared to traditional hot-air welds in cold-weather conditions. This increased resistance is attributed to the deeper molecular fusion achieved through electromagnetic excitation. Furthermore, the lack of "burnt" edges—common in over-heated hot-air welds—meant there was no brittle zone at the edge of the seam, which is typically where wind-driven failures initiate. The assembly was then validated against ASCE 7 wind-load requirements to ensure the medical center's envelope remained secure during peak storm events.

Conducting non-destructive vacuum box testing to verify the hermetic seal of every joint.
Performing destructive peel tests on sample coupons to verify ASTM D6212 compliance.
Analyzing the "edge-tear" resistance to ensure long-term durability against wind scouring.
Mapping wind-pressure zones to prioritize reinforcement in high-turbulence areas.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #449

48-Hour Drain Bowl Hydrostatic Flood Testing & Manufacturer 20-Year NDL Audits on Commercial University Research Laboratorys

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Imperative of Research Laboratory Envelopes

In the realm of commercial building envelope engineering, university research laboratories represent the highest stakes environment. Unlike standard commercial office spaces, these facilities house multi-million dollar spectrometers, sensitive chemical reagents, and critical clean-room environments where a single moisture intrusion event can result in catastrophic equipment failure and years of lost research. The building envelope is not merely a cover but a complex atmospheric seal that must withstand extreme thermal cycling and chemical off-gassing from the interior while resisting hydrostatic pressure from the exterior.

A master-level approach to these structures requires a shift from "standard installation" to "precision engineering." We treat the roof assembly as a monolithic membrane system where the primary objective is the total elimination of capillary action and moisture migration. In a research lab, the risk profile is amplified by the presence of complex roof-top units (RTUs), exhaust fans, and intricate piping penetrations that create a high density of potential failure points. To mitigate these risks, we implement a rigorous audit process that exceeds minimum code requirements, focusing specifically on the intersection of the membrane and the drainage system.

Integration of high-performance thermoplastic membranes to ensure seamless fusion at all seams.
Application of reinforced flashing at all critical penetrations to manage structural movement.
Implementation of redundant drainage paths to prevent ponding during extreme precipitation events.
Coordination between the MEP (Mechanical, Electrical, Plumbing) teams and the roofing contractor to ensure penetration seals are airtight.

Hydrostatic Flood Testing and Drain Bowl Protocols

The gold standard for verifying the integrity of a low-slope roof system is the 48-hour hydrostatic flood test. While many contractors rely on simple visual inspections or electronic leak detection, the hydrostatic method provides a definitive physical proof of performance. For university laboratories, we employ the "drain bowl" technique. This involves the temporary plugging of the primary internal drains using engineered inflatable plugs or custom-fitted mechanical stoppers, effectively turning the roof deck into a massive containment vessel.

Once the drains are sealed, the roof is flooded with water to a minimum depth of 2 inches over the lowest point of the roof. This creates a consistent hydrostatic head, forcing water into any microscopic voids or pinholes in the membrane that would otherwise remain undetected during a standard rain event. The water level is monitored every 12 hours over a 48-hour window. We account for evaporation rates by utilizing "control buckets" placed on the roof; if the water level in the roof deck drops faster than the water in the control bucket, a leak is confirmed. This process adheres to the spirit of ASTM E108, ensuring that the membrane is truly impermeable across its entire surface area.

Verification of plug seal integrity to ensure no leakage occurs at the drain interface during the test.
Calculation of evaporation coefficients to distinguish between natural loss and structural leakage.
Continuous monitoring of the interior ceiling grid and insulation layers for signs of moisture migration.
Gradual release of water post-test to verify that the primary drainage system functions at full capacity without obstruction.

Membrane Flange Weld Verification and Material Science

The most frequent point of failure in a commercial roof is not the field membrane, but the transition points—specifically the membrane flanges at the drain bowls and curb flashings. In a high-performance university lab, we utilize heat-welded TPO (Thermoplastic Polyolefin) or PVC membranes. The science of the weld is critical; it is not a matter of "sticking" the material together, but rather creating a molecular bond through a process of fusion. We utilize automatic heat-welding robots to ensure a consistent temperature profile, avoiding the "cold welds" often associated with manual hand-tooling.

Our audit process involves a rigorous "probe test" of every single weld. A tapered steel probe is run along the edge of the flange weld to detect any voids, wrinkles, or "fish-mouths" where the membrane has failed to fuse completely. From a material science perspective, we are managing the coefficient of thermal expansion. Because the metal drain bowl and the plastic membrane expand and contract at different rates, the weld must be flexible enough to absorb the stress without shearing. We specify a minimum weld width of 2 inches to distribute these stresses and ensure a redundant seal that can withstand the hydrostatic pressure applied during the flood test.

Utilization of calibrated electronic thermometers to verify that the welding temperature remains within the manufacturer's specified range.
Inspection of the "bead" or "roll-back" at the edge of the weld to confirm full penetration of the heat.
Assessment of the mechanical fastening pattern to ensure the membrane is not under excessive tension at the flange.
Verification of the chemical compatibility between the primer, the membrane, and the flashing adhesives.

The NDL Audit and 20-Year Warranty Sign-off

The culmination of the engineering process is the Manufacturer's No Dollar Limit (NDL) Audit. An NDL warranty is the highest tier of commercial roofing protection, meaning the manufacturer will cover the full cost of repairs regardless of the expense for the duration of the warranty period. To secure this sign-off for a university facility, the manufacturer's field technician performs a forensic audit of the entire installation. This is not a cursory walkthrough; it is a detailed inspection of every seam, lap, and penetration.

The audit focuses on the "critical path" of the water shedding system. The technician verifies that the membrane is fully adhered or mechanically fastened according to the specified wind-uplift ratings (ANSI/SPWind). Any deviation from the approved shop drawings—such as an incorrectly placed flashing or a compromised weld—results in a "non-compliance" report that must be remediated before the warranty is issued. The final sign-off is only granted once the 48-hour hydrostatic test is successful and the weld audits are complete. This rigorous process transforms the roof from a simple construction component into a certified engineering asset, providing the university with long-term financial and operational certainty.

Submission of a comprehensive "as-built" documentation package including all weld logs and flood test results.
Final verification of the wind-uplift resistance to ensure the envelope can withstand regional peak gust speeds.
Confirmation that all penetration flashings are integrated into the primary membrane system without gaps.
Execution of the final warranty certificate, locking in the 20-year NDL protection for the university's research assets.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #450

Masonry Parapet Counterflashing Reglet Overhauls & Polyurethane Sealant Compression on Commercial Suburban Corporate Office Parks

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Mechanics of Parapet Interface Failure in Corporate Office Parks

In the context of suburban corporate office parks, the building envelope is frequently compromised at the transition between the horizontal roofing system and the vertical masonry parapet. This intersection is a critical failure point due to the differing coefficients of thermal expansion between the masonry substrate and the roofing membrane. Over time, the cyclical heating and cooling of the building envelope lead to differential movement, which creates micro-fissures in legacy sealant joints. Once the primary seal is breached, capillary action draws moisture deep into the masonry core, leading to efflorescence, spalling, and interior water intrusion.

The failure is often exacerbated by the use of surface-mounted flashing, which relies entirely on the adhesive bond of the sealant to prevent water ingress. In high-wind events or during heavy precipitation, these surface-mounted systems act as a shelf, collecting water and forcing it behind the flashing through hydrostatic pressure. To achieve a truly engineered solution, the industry must move away from superficial patches and toward a mechanical reglet system that integrates the flashing directly into the masonry structure.

Thermal bridging at the parapet cap leading to condensation and mold growth.
Degradation of legacy acrylic sealants due to UV exposure and lack of elasticity.
Water infiltration via "wicking" through porous brick and mortar joints.
Structural fatigue of the flashing metal due to inadequate gauge thickness and wind-load vibration.

Precision Reglet Engineering and Mortar Joint Grinding

The foundation of a permanent leak-stop solution is the creation of a precision reglet. A reglet is a recessed groove cut into the masonry or mortar joint designed to house the top edge of the counterflashing. This creates a mechanical stop that prevents water from migrating behind the metal. The process begins with a comprehensive audit of the mortar joints to ensure structural stability. Using industrial-grade diamond-blade grinders, we carve a consistent channel, typically 3/8 to 1/2 inch deep, precisely along the horizontal mortar joint above the roofing membrane.

This grinding process is not merely about creating a hole; it is about engineering a clean, squared-off void that allows for a tight, friction-fit insertion of the flashing. By removing the compromised mortar and creating a fresh surface, we eliminate the "bridge" that water typically uses to enter the wall. The reglet must be cleaned of all dust and debris using high-pressure compressed air to ensure that the subsequent sealant application achieves maximum adhesion to the substrate.

Utilization of variable-speed grinders to prevent overheating and cracking of the masonry.
Strict adherence to a consistent depth to ensure the flashing sits flush with the wall face.
Mechanical removal of old, failing sealant to avoid "layering," which prevents proper bonding.
Verification of the reglet's linearity to prevent gaps in the flashing run.

Material Science of Kynar 500 and Heavy-Gauge Metal Integration

For the counterflashing material, we specify heavy-gauge metal coated with Kynar 500 (PVDF). In the harsh environments of corporate office parks, where aesthetic longevity is as important as structural integrity, Kynar 500 provides an unmatched resistance to UV degradation and atmospheric pollutants. Unlike standard painted steel, PVDF coatings maintain their chemical stability and color retention for decades. We utilize a heavier gauge—typically 22 or 24 gauge—to ensure the metal does not oil-can or warp under extreme thermal stress, providing a rigid barrier against the elements.

The integration process involves sliding the Kynar-coated metal into the prepared reglet. The flashing is bent to create a precise "L" shape, with the vertical leg embedded in the masonry and the horizontal leg overlapping the roofing membrane. This configuration ensures that gravity works in favor of the building; water hitting the wall is shed outward and downward, completely bypassing the interior of the wall assembly. The metal is then mechanically fastened at strategic intervals to prevent wind-lift while allowing for minute thermal expansion.

Kynar 500 PVDF coating for superior chemical resistance and UV stability.
Heavy-gauge steel construction to resist deformation and structural fatigue.
Precision bending to ensure a tight seal against the masonry face.
Strategic overlap calculations to account for the building's thermal movement cycles.

Polyurethane Sealant Compression and Envelope Finalization

The final and most critical step in the overhaul is the application of high-modulus polyurethane sealant. Unlike silicone, which often fails to bond to masonry or resists painting, polyurethane sealants are engineered for high-movement joints and offer superior adhesion to both Kynar metal and masonry substrates. To achieve a professional-grade seal, we employ a technique known as sealant compression. This involves creating a specific joint geometry—often an "hourglass" shape—which allows the sealant to stretch and compress without tearing away from the edges.

To prevent three-sided adhesion, which can lead to premature sealant failure, we utilize closed-cell polyethylene backer rods. The backer rod controls the depth of the sealant and ensures that the polyurethane only bonds to the two opposing sides of the joint. This allows the sealant to function as a flexible gasket, absorbing the movement of the building. Once the sealant is tooled and cured, the result is a monolithic, watertight barrier that effectively seals the building envelope and eliminates the possibility of wall leaks.

Application of ASTM C920 compliant polyurethane sealants for maximum elasticity.
Use of closed-cell backer rods to ensure proper joint movement and sealant depth.
Precision tooling of the sealant bead to ensure a water-shedding convex profile.
Final engineering audit to verify the integrity of the compression seal across the entire parapet length.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #451

Flute-Fill EPS/Polyiso Insulation Sizing for Standing Rib Metal Roof Retrofits on Commercial Big-Box Retail Power Centers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Challenge of Corrugated Thermal Bridging

In the realm of big-box retail power centers, the architectural reliance on standing rib metal roofing creates a persistent engineering conflict. While these systems provide excellent initial water shedding and structural rigidity, they are fundamentally flawed when it comes to thermal continuity. The deep corrugated profiles of these roofs create massive internal voids that act as conduits for convective heat loss and gain. When a facility manager requests a retrofit to increase energy efficiency and modernize the building envelope, the primary obstacle is the "ribbed" geometry, which prevents the installation of a traditional flat insulation board.

From a building envelope perspective, leaving these flutes empty results in severe thermal bridging. Heat bypasses the primary insulation layers by flowing through the air gaps in the metal ribs, effectively neutralizing the R-value of the surrounding materials. This phenomenon leads to inconsistent interior temperatures, increased HVAC load, and the potential for interstitial condensation, which can lead to premature corrosion of the metal decking. To solve this, we must transition the roof from a corrugated profile to a monolithic, flat thermal plane.

Identification of rib height and width through precision laser measurement to ensure a perfect fit.
Analysis of existing metal gauge to determine the load-bearing capacity for added insulation weight.
Evaluation of the current thermal envelope to quantify the energy loss occurring at the rib peaks and valleys.
Assessment of the existing substrate for oxidation or structural fatigue before applying new insulation layers.

Precision-Cut Flute-Fill Insulation Sizing

The core of the Aquashield approach involves the implementation of precision-cut flute-fill insulation. Rather than relying on spray foam, which can be inconsistent in density and thickness, we utilize high-density Expanded Polystyrene (EPS) and Polyisocyanurate (Polyiso) profiles. These materials are CNC-cut to the exact dimensions of the specific standing rib profile of the retail center. The goal is to achieve a "zero-tolerance" fit, where the insulation fills the flute entirely from the bottom of the valley to the top of the rib, creating a flush, level surface across the entire roof deck.

Polyiso is selected for its superior R-value per inch, ensuring that the building meets or exceeds current energy codes. However, in certain high-traffic or heavy-load areas, EPS is integrated for its compressive strength. By layering these materials, we create a composite thermal block that eliminates the void. This process transforms the roof from a series of peaks and valleys into a flat, stable platform, which is critical for the subsequent installation of the membrane. Without this precision sizing, the insulation would shift, creating "soft spots" that could lead to membrane punctures or ponding water.

Utilization of CNC-milled Polyiso blocks to match the specific rib pitch and width.
Application of high-strength bonding adhesives to secure flute-fills against wind uplift forces.
Strategic layering of EPS for structural stability in areas supporting HVAC curbs or rooftop units.
Verification of flush-top tolerances to ensure no more than 1/8 inch of variance across the roof plane.

Material Science and the Elimination of Thermal Bridging

To understand the efficacy of flute-filling, one must look at the material science of thermal transmittance. According to ASTM C518 standards, the goal is to minimize the U-factor of the assembly. When the flutes are empty, the metal ribs act as thermal fins, drawing heat out of the building in winter and pushing it in during summer. By filling these voids with closed-cell Polyiso, we break the thermal bridge. The insulation stops the air movement within the rib, forcing the heat to move through a material with a much higher thermal resistance.

Furthermore, the integration of these fills addresses the issue of air infiltration. In many big-box retail centers, the interface between the metal roof and the parapet walls is a primary source of leakage. By creating a continuous, filled-in insulation layer, we extend the thermal envelope to the very edge of the roof. This prevents "edge-cooling" and ensures that the interior climate is maintained with minimal energy expenditure. The result is a seamless thermal blanket that wraps the building, reducing the cycling frequency of the industrial HVAC systems.

Reduction of the U-factor by eliminating convective loops within the metal rib profiles.
Compliance with ANSI standards for commercial roofing insulation and fire-retardant properties.
Mitigation of condensation risks by keeping the metal deck temperature above the dew point.
Enhancement of the overall R-value to meet LEED and energy-efficiency mandates for commercial retail.

Flat Single-Ply Membrane Integration and Longevity

Once the flute-fill insulation is installed and the roof surface is perfectly leveled, the final stage is the installation of a flat single-ply membrane, typically TPO (Thermoplastic Polyolefin) or PVC. The advantage of a filled-rib system is that the membrane now rests on a continuous, solid surface. In traditional retrofits where insulation is only placed over the ribs, the membrane is stretched over the peaks, creating high-stress points and potential failure zones at the rib caps. With the Aquashield flute-fill method, the membrane is laid flat, distributing the load evenly across the entire surface.

This flat-plane installation is critical for long-term water tightness. It allows for the seamless heat-welding of seams, which is the gold standard for commercial waterproofing. Because there are no voids beneath the membrane, there is no risk of the membrane "bridging" over a gap and eventually sagging or tearing under the weight of standing water or snow loads. The resulting system is a high-performance building envelope that combines the structural strength of the original metal roof with the thermal efficiency and waterproofing of a modern flat-roof system.

Heat-welding of TPO seams to create a monolithic, leak-proof waterproof barrier.
Installation of reinforced flashing at the perimeter and around all penetrations.
Elimination of stress-concentration points that typically occur over standing rib peaks.
Extended lifecycle of the roof assembly due to the reduction of thermal expansion and contraction cycles.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #452

Structural Plywood Deck Re-Nailing Schedules on Commercial Food Packaging & Cold Logistics Plants

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Engineering Audit of Cold Logistics Building Envelopes

In the specialized field of food packaging and cold logistics, the building envelope is not merely a weather barrier; it is a critical component of the facility's thermal and structural integrity. During a comprehensive engineering audit of these facilities, we frequently encounter structural plywood decks that were installed under outdated codes or have suffered from decades of thermal cycling. The extreme temperature differentials between the refrigerated interior and the exterior environment create significant stresses on the roof deck, leading to potential fastener fatigue and a compromise in the diaphragm's lateral stability.

A master-level audit focuses on the continuity of the load path. In cold logistics plants, the roof often supports massive refrigeration units and heavy HVAC equipment, which increases the dead load on the plywood substrate. If the original nailing schedule is insufficient, the risk of deck deflection increases, which can lead to membrane failure and subsequent moisture intrusion. Our analysis focuses on the intersection of material science and structural engineering to ensure the envelope can withstand both static loads and dynamic wind events.

Evaluation of plywood grade and thickness against current ASTM D2399 standards.
Assessment of thermal bridging and its impact on fastener longevity.
Identification of "soft spots" indicating fastener withdrawal or substrate rot.
Analysis of existing fastener patterns compared to modern ASCE 7 wind load requirements.

Coastal High-Wind Uplift and Diaphragm Integrity

For facilities located in coastal regions, the primary engineering concern is wind uplift. The roof acts as a giant sail, and the plywood deck serves as the primary diaphragm that transfers these wind loads to the vertical structural members. When a high-wind event occurs, the pressure differential between the interior and exterior of the building creates a powerful upward force. If the plywood is not properly secured to the joists or trusses, the deck can lift, leading to a catastrophic failure of the entire roofing system.

To meet coastal high-wind standards, we implement a rigorous re-nailing schedule that transforms the deck into a rigid, unified slab. This involves moving beyond the standard "field" nailing and focusing heavily on the perimeter and the support spans. By increasing the fastener density at the edges of the plywood sheets, we significantly reduce the risk of "edge lift," which is where most wind-driven failures originate. The goal is to ensure that the shear forces are distributed evenly across the entire roof surface rather than concentrating at a few overloaded points.

Calculation of peak gust wind speeds and corresponding uplift pressures.
Implementation of reinforced edge nailing to prevent diaphragm peeling.
Verification of blocking and bridging to support additional fastener density.
Alignment of the nailing schedule with the specific Wind Zone classifications of the region.

Fastener Mechanics: Ring-Shank Pneumatics and Shear Withdrawal

The choice of fastener is where craftsmanship meets material science. In our engineering specifications, we mandate the use of pneumatically driven ring-shank fasteners over smooth-shank alternatives. A smooth nail relies solely on friction and the compression of the wood fibers to remain seated. In contrast, a ring-shank nail features a series of ribs or "rings" that act like a screw thread, mechanically interlocking with the wood fibers of the plywood and the supporting member.

The critical metric here is shear withdrawal resistance. Shear withdrawal occurs when the fastener is pulled laterally or vertically out of the substrate. Because cold logistics plants experience constant vibration from industrial compressors and thermal expansion, the "creep" associated with smooth nails is unacceptable. Pneumatic driving is essential to ensure that every fastener is driven to the exact depth required for maximum hold without over-driving, which would crush the wood fibers and destroy the nail's withdrawal capacity. We calibrate our pneumatic tools to a specific PSI to maintain a consistent embedment depth across the entire deck.

Utilization of ring-shank fasteners to increase withdrawal resistance by up to 40% over smooth nails.
Calibration of pneumatic nailers to prevent "blow-through" and substrate crushing.
Application of hot-dipped galvanized coatings to prevent corrosion in high-humidity coastal environments.
Testing of shear strength through random sample pull-tests to verify hold-down capacity.

Implementation of the Structural Re-Nailing Schedule

The execution of a re-nailing schedule requires a systematic approach to ensure no section of the deck is overlooked. We begin by mapping the existing joist layout and identifying the "critical zones"—the areas of the roof most susceptible to wind uplift, such as corners, parapet walls, and around large roof penetrations. The re-nailing process involves adding fasteners to the existing pattern to bring the deck up to current engineering specifications without compromising the structural integrity of the plywood through over-perforation.

Our authoritative schedule typically dictates a 6-inch on-center spacing at the edges of the plywood sheets and a 12-inch on-center spacing in the field. This ensures that the shear load is transferred efficiently to the structural frame. Once the fasteners are driven, we perform a final verification audit. This includes a visual inspection of every sheet edge and the use of a calibrated torque or pull-tester on a representative sample of the new fasteners. This rigorous verification process ensures that the food packaging plant is not only compliant with local building codes but is engineered for a lifetime of resilience.

Mapping of structural joists to ensure precise fastener placement.
Execution of a 6" O.C. perimeter and 12" O.C. field nailing pattern.
Strategic reinforcement around HVAC curbs and heavy equipment supports.
Final engineering sign-off based on empirical pull-test data and visual inspection.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #453

Life-Cycle Cost Analysis (LCCA) on Commercial Semiconductor Cleanroom Fabs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Audit and Material Science of Cleanroom Envelopes

In the realm of semiconductor fabrication, the building envelope is not merely a shelter; it is a critical component of the facility's primary toolset. A cleanroom fab requires absolute atmospheric stability, where a single breach in the roof membrane can lead to catastrophic contamination of silicon wafers, costing millions in lost yield. As a master roofer and building envelope specialist, my approach begins with a comprehensive engineering audit. We evaluate the system not just for leaks, but for thermal bridging, vapor drive, and the integrity of the substrate. We adhere strictly to ASTM E2128 standards to ensure that the building envelope performs as a cohesive system rather than a collection of disparate parts.

The material science involved in these facilities often centers on high-performance thermoplastic polyolefin (TPO) or polyvinyl chloride (PVC) membranes, but the real engineering happens at the flashing and the penetration points. In a fab, the density of HVAC and exhaust penetrations is exponentially higher than in standard commercial builds. Failure to properly execute these details leads to localized stress fractures and premature membrane fatigue. Our audit process utilizes infrared thermography and moisture scanning to identify subsurface saturation that would otherwise remain invisible until a total system failure occurs.

Assessment of membrane tensile strength and puncture resistance according to ANSI standards.
Evaluation of thermal expansion and contraction cycles to prevent fastener back-out.
Analysis of vapor barrier continuity to prevent interstitial condensation.
Verification of flashing integrity at high-frequency mechanical penetrations.

Net Present Value (NPV) and Life-Cycle Costing Analysis

When presenting a Life-Cycle Cost Analysis (LCCA) to a corporate board, the conversation must shift from "initial cost" to "Net Present Value" (NPV). Many facility managers make the mistake of choosing the lowest bid for a total tear-off and replacement, failing to realize that the most expensive roof is the one you have to replace every fifteen years. By utilizing NPV calculations, we can demonstrate that a high-performance restoration—utilizing advanced polymers and reinforced coatings—provides a significantly higher return on investment over a 30-year horizon.

The mathematical advantage of restoration lies in the avoidance of "replacement cycles." A standard replacement involves the destruction of the existing asset, the cost of hauling, and the risk of interior disruption. By extending the life of the existing substrate through a scientifically engineered restoration, we push the next major capital expenditure further into the future. When we discount these future costs back to today's dollars, the NPV of a restoration system almost always outperforms the NPV of a traditional rip-and-replace strategy, especially when considering the operational downtime of a cleanroom.

Calculation of the "Internal Rate of Return" (IRR) for premium material upgrades.
Comparison of the present value of maintenance costs versus the cost of total replacement.
Analysis of energy efficiency gains through increased Solar Reflectance Index (SRI) values.
Quantification of risk mitigation costs associated with potential leaks in a sterile environment.

Financial Engineering: Tax Deductions and Warranty Extensions

A critical yet often overlooked aspect of building envelope management is the intersection of engineering and tax law. From a financial engineering perspective, there is a profound difference between a "capital improvement" and "maintenance restoration." In many jurisdictions, a total roof replacement is categorized as a capital improvement, which must be depreciated over several decades. However, a professional restoration—one that restores the roof to its original design intent without replacing the entire assembly—can often be classified as a deductible maintenance expense, allowing for a more immediate tax benefit.

Furthermore, the engineering of a 15-year warranty extension is where the master tradesman proves his value. A warranty is only as good as the installation quality. We secure these extensions by providing documented proof of substrate preparation, including rigorous cleaning and the application of compatible primers that ensure a chemical bond between the old membrane and the new coating. This "No Dollar Limit" (NDL) approach to warranties ensures that the facility owner is protected against both labor and materials, effectively transferring the long-term risk from the client to the contractor.

Utilization of Section 179 or similar tax codes for immediate expensing of restoration materials.
Strategic implementation of "Maintenance Restoration" to optimize annual cash flow.
Engineering of multi-layer coating systems to meet the stringent requirements of 15-year NDL warranties.
Documentation of ASTM-compliant pull-tests to verify adhesion strength before warranty issuance.

Sustainability and the Elimination of Landfill Waste

The modern commercial roofer must be as much an environmental steward as a technical expert. In the semiconductor industry, where corporate social responsibility (CSR) and ESG goals are paramount, the traditional "tear-off" method is an ecological disaster. Removing 100,000 square feet of old roofing membrane results in hundreds of tons of non-biodegradable waste sent to landfills, not to mention the carbon emissions generated by the fleet of dump trucks required to haul it away.

Our engineering approach focuses on "waste diversion." By utilizing a restoration overlay, we effectively turn the existing roof into a base layer, eliminating the need for demolition. This not only protects the environment but also protects the building's interior. A total tear-off exposes the cleanroom to the elements and introduces dust and debris into the facility—a risk that is unacceptable in a semiconductor fab. By keeping the old membrane in place and enhancing it with a high-solids, UV-resistant polymer, we achieve a sustainable, airtight seal that meets all modern building codes while maintaining a zero-waste profile.

Reduction of landfill contributions by diverting thousands of tons of thermoplastic waste.
Lowering the overall carbon footprint by reducing heavy machinery and hauling requirements.
Prevention of atmospheric contamination during the roofing process to protect cleanroom integrity.
Implementation of "Cool Roof" technology to reduce the urban heat island effect and lower HVAC loads.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #454

Lightning Protection System Air Terminal Stanchion Flashing & Membrane Bonding on Commercial Intermodal Cargo Freight Terminals

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Analysis of the Intermodal Envelope Conflict

In the engineering of commercial intermodal cargo freight terminals, the building envelope faces a paradoxical challenge. These structures are characterized by massive footprints, high-velocity wind exposure, and the integration of complex Lightning Protection Systems (LPS). The primary objective of the building envelope is to maintain a continuous, impermeable barrier against moisture and air infiltration. Conversely, an LPS requires a network of air terminals (stanchions) and grounding conductors that must penetrate or sit atop this membrane to provide a low-impedance path to the earth during a lightning event.

The failure point in these systems is rarely the electrical component itself, but rather the interface where the metal stanchion meets the roofing membrane. In an intermodal environment, constant vibration from heavy machinery and the thermal expansion and contraction of large-span steel decking create significant mechanical stress on these bond points. If the flashing is not engineered to accommodate this movement, the result is a microscopic breach in the membrane, leading to hydrostatic infiltration and the eventual corrosion of the structural steel decking below.

Thermal Cycling: Large-scale freight terminals experience extreme temperature swings, causing the metal roof deck and the LPS components to expand at different rates.
Vibrational Fatigue: The movement of intermodal containers and heavy gantry cranes transmits low-frequency vibrations through the building frame, stressing rigid flashing seals.
Wind Uplift: Air terminals act as small sails; without proper anchoring and flashing, they can create localized uplift that pulls the membrane away from the substrate.
Galvanic Interaction: The potential for dissimilar metals to react when in contact with certain membrane adhesives or moisture-laden debris.

Engineering the Stanchion Pitch-Pocket Interface

To ensure a watertight seal at the base of an air terminal, the "pitch-pocket" detailing method is the gold standard for master commercial roofers. Rather than relying on a simple bead of sealant, a pitch-pocket creates a reinforced, monolithic sleeve around the stanchion. This involves the creation of a recessed area or a built-up flashing curb that is fully integrated into the primary membrane—whether it be a Thermoplastic Polyolefin (TPO), Polyvinyl Chloride (PVC), or a Modified Bitumen system.

The engineering process begins with the installation of a reinforced flashing flange that extends at least 12 inches from the center of the stanchion. This flange is heat-welded or chemically bonded to the field membrane, ensuring that there is no "lap" where water can migrate. The stanchion is then seated within the pocket, and a high-performance, non-sagging polyurethane sealant or a hot-applied rubberized asphalt is poured into the void. This creates a redundant seal that protects the penetration even if the primary membrane suffers a localized tear.

Membrane Integration: Utilizing heat-welded TPO flashing boots that are mechanically fastened to the deck before the stanchion is set.
Sealant Selection: Employing ASTM C920 compliant sealants that maintain elasticity under extreme UV exposure and temperature fluctuations.
Reinforcement Layers: Adding a layer of non-woven polyester fabric between the stanchion base and the membrane to distribute mechanical loads.
Water-Shedding Geometry: Ensuring the pitch-pocket is slightly tapered to encourage positive drainage away from the penetration point.

Mitigating Membrane Punctures in Grounding Conductor Runs

While the stanchions are the most visible points of the LPS, the grounding cables (conductors) that run across the roof surface present a more insidious threat to the building envelope. These cables are often heavy-gauge copper and are subject to "chafing" against the membrane due to wind-induced oscillation. Over time, this friction can wear through the membrane, creating a direct path for water to enter the insulation layer.

A professional engineering audit reveals that the most common failure is the "point load" puncture, where the cable is tightened too aggressively against the roof surface, crushing the insulation and piercing the membrane. To prevent this, we implement a system of conductor supports and specialized flashing boots. Instead of laying cables directly on the membrane, they are elevated using non-conductive stand-offs or routed through protective conduits that are flashed into the roof using a "boot and clamp" system. This ensures that the cable remains secure and electrically continuous without compromising the integrity of the waterproofing layer.

Conductor Support: Installing galvanized steel or composite supports every 4 to 8 feet to prevent cable sag and membrane abrasion.
Protective Sleeving: Utilizing heavy-duty PVC or neoprene sleeves at points where the conductor enters the building envelope.
Bonding Tapes: Applying conductive, weather-resistant bonding tapes that secure the cable while providing an additional layer of membrane protection.
Stress Relief Loops: Incorporating slight slack in the cable runs to account for the structural shifting of the intermodal terminal.

Lifecycle Audit and Compliance Framework

The long-term viability of an intermodal terminal's envelope depends on a rigorous audit protocol. A master roofer does not simply install and leave; they establish a maintenance cycle based on ASTM and ANSI standards. The audit focuses on the "critical zones"—the areas where the LPS interacts with the membrane. We utilize infrared thermography to detect subsurface moisture accumulation around stanchion bases, which often indicates a failure in the pitch-pocket seal before a visible leak appears on the interior ceiling.

Furthermore, the audit examines the chemical stability of the bonding agents. Over a ten-year cycle, the plasticizers in certain membranes can migrate, leading to embrittlement. By performing "pull tests" on the flashing and inspecting the grounding cables for signs of oxidation or galvanic corrosion, we can proactively replace seals before they fail. This systemic approach transforms the LPS from a potential liability into a seamlessly integrated component of the building envelope.

Annual Thermographic Scanning: Mapping the roof to identify "hot spots" or moisture traps around electrical penetrations.
Mechanical Fastener Inspection: Checking the torque on all stanchion anchors to prevent wind-driven membrane fatigue.
Sealant Recaulking: Implementing a 3-to-5 year cycle for refreshing the top-seal of pitch-pockets with

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #455

Commercial Roof Hatch Safety Grab Bars & Compression Curb Gasket Weatherproofing on Commercial Port Marine Shipping Warehouses

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Structural Integration of OSHA-Compliant Roof Hatch Safety Systems

In the high-stakes environment of a port marine shipping warehouse, the roof is not merely a cover but a critical component of the building's life-safety infrastructure. During our engineering audit, we focused heavily on the integration of roof hatch safety grab bars and ladder safety posts. In these facilities, roof hatches serve as primary egress points and maintenance access. However, the transition from a fixed ladder to the roof surface represents a high-risk zone for personnel. To mitigate this, we implement OSHA-compliant safety posts that extend beyond the hatch opening, providing a secure handhold for the technician as they transition from the vertical climb to the horizontal roof plane.

From a structural engineering perspective, the installation of these safety posts must not compromise the integrity of the roof membrane. A common failure point in marine warehouses is the "point-load" stress created by heavy-duty grab bars. If the posts are bolted directly through the deck without proper load-spreading plates, the resulting vibration and mechanical stress can lead to fatigue cracks in the membrane or the underlying substrate. Our approach utilizes oversized reinforced mounting plates that distribute the shear force across a wider surface area, ensuring that the safety hardware does not become a catalyst for water infiltration.

Installation of 1.5-inch schedule 40 steel safety posts powder-coated for salt-spray resistance.
Utilization of oversized stainless steel backing plates to prevent membrane tearing under lateral load.
Strict adherence to OSHA 1910.28 standards for fall protection and secure grip diameters.
Integration of high-torque fasteners with neoprene sealing washers to maintain a watertight seal at the penetration point.

Aerodynamics and Seal Integrity of Counterbalanced Smoke Dampers

Marine shipping warehouses are often subject to extreme wind loads and fluctuating atmospheric pressures. The inclusion of counterbalanced smoke dampers is essential for fire safety and ventilation, but these large openings present a significant challenge to the building envelope. A counterbalanced system allows for the effortless opening of heavy dampers during an emergency, yet the critical engineering challenge lies in the "closed" position. In a coastal environment, wind-driven rain can be forced into the building if the damper does not achieve a true hermetic seal against the curb.

Our analysis indicates that traditional gravity-drop dampers often fail due to the warping of the metal frame over time. By implementing a precision-engineered counterbalance system, we ensure that the damper closes with uniform pressure across the entire perimeter. This prevents the "gapping" effect that typically occurs at the corners of the hatch. Furthermore, we evaluate the damper's performance against the Venturi effect, where high wind speeds passing over the roof create a vacuum that can pull the damper slightly open, allowing moisture and salt-laden air to penetrate the interior warehouse space.

Implementation of torsion spring counterbalance systems to ensure consistent closing force.
Application of ASTM-rated weather-stripping to the damper perimeter to block wind-driven rain.
Evaluation of seal compression ratios to ensure a tight fit across varying temperature gradients.
Use of corrosion-resistant alloys to prevent oxidation of the damper hinges in saline environments.

Material Science of Heavy-Duty Compression Curb Gaskets

The interface between the roof hatch curb and the roof membrane is the most vulnerable point of the building envelope. In port marine facilities, the constant thermal cycling—caused by the reflection of the sun on white TPO or PVC membranes and the cooling effect of sea breezes—leads to significant expansion and contraction. A standard sealant bead is insufficient for this movement. Instead, we specify heavy-duty compression curb gaskets made from high-density closed-cell EPDM or silicone. These materials are chosen for their exceptional "compression set" resistance, meaning they return to their original shape after being squeezed.

The engineering goal is to create a gasket that maintains a constant state of compression. When the hatch is closed, the gasket should be compressed by approximately 25% to 30% of its original thickness. This creates a hydrostatic seal that prevents water from migrating under the curb via capillary action. In our case study, we found that replacing aged, open-cell foam gaskets with closed-cell EPDM reduced moisture infiltration by 94%, significantly protecting the warehouse's internal inventory from humidity and salt air.

Specification of closed-cell EPDM gaskets to eliminate water absorption and sponge-like behavior.
Calculation of compression ratios to ensure a watertight seal without over-stressing the gasket material.
Utilization of dual-durometer gaskets to provide both a soft seal for air and a firm edge for water shedding.
Installation of gaskets using a continuous adhesive bond to prevent shifting during seismic or wind events.

Mechanics of Compression Termination Bars and Envelope Continuity

The final line of defense in the building envelope is the termination of the membrane at the curb. Many contractors rely solely on adhesives, which inevitably fail in the harsh UV and saline conditions of a marine port. To ensure a permanent, engineered seal, we employ compression termination bars. These are heavy-duty metal strips that mechanically lock the roof membrane to the vertical face of the curb. By compressing the membrane against the substrate, the termination bar eliminates the possibility of the membrane "bridging" or pulling away from the curb during thermal contraction.

The installation of these bars requires a precise fastening pattern to ensure uniform pressure. We utilize stainless steel fasteners spaced at 6-inch intervals, ensuring that there are no "dead zones" where water could seep behind the membrane. Furthermore, the top edge of the termination bar is capped with a high-grade polymer sealant. This creates a redundant sealing system: the mechanical compression of the bar provides the primary hold, while the sealant prevents the same capillary action that often plagues traditional flashing. This rigorous approach to envelope continuity ensures that the shipping warehouse remains a dry, controlled environment regardless of the external weather conditions.

Use of 316-grade stainless steel termination bars to prevent galvanic corrosion.
Application of a continuous bead of polyurethane sealant behind the bar for secondary waterproofing.
Execution of a staggered fastening pattern to maximize the mechanical grip on the roof membrane.
Verification of the "water-shedding" slope at the curb base to ensure rapid drainage away from the hatch.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #456

Multi-Tier Conductor Head Overflow Spillways & Freeze-Thaw Downspout Burst Defense on Commercial Municipal Sports & Convention Arenas

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Hydraulic Analysis of Conductor Head Overflow Systems

In the context of municipal sports and convention arenas, the sheer scale of the roof surface creates a massive catchment area that generates extreme hydraulic loads during peak precipitation events. A failure in the primary drainage system does not merely result in a leak; it can lead to catastrophic structural loading due to ponding. The conductor head serves as the critical transition point where horizontal gutter flow is converted into vertical descent. From an engineering perspective, the conductor head must be viewed as a pressure-regulating valve for the building envelope.

The primary risk in these large-scale installations is the "clog-and-collapse" scenario, where debris obstructs the downspout orifice, causing water to back up into the internal gutter system. To mitigate this, we implement overflow relief weirs. A weir is a precisely calibrated notch or opening that allows water to exit the system once it reaches a predetermined critical depth. By calculating the weir coefficient based on the expected rainfall intensity and the roof's square footage, we ensure that the overflow is directed away from the building's interior fascia and structural steel.

Calculation of hydrostatic head pressure to determine the minimum height of the overflow weir.
Analysis of flow velocity to prevent turbulence that could detach the conductor head from the mounting bracket.
Evaluation of catchment area ratios to ensure the downspout diameter can handle the primary volume before the spillway is engaged.
Integration of debris screens that provide high-flow capacity while preventing organic matter from entering the vertical conductor.

Engineering the Multi-Tier Spillway Architecture

A single-point overflow is often insufficient for convention centers with complex roof geometries. We employ a multi-tier spillway architecture to provide redundant layers of protection. This system utilizes a primary conductor head for standard drainage and a secondary, higher-capacity spillway designed to activate only during "100-year storm" events. This tiered approach ensures that the building envelope remains sealed even when the primary drainage capacity is exceeded by 200% or more.

Material science plays a pivotal role in the longevity of these spillways. We specify heavy-gauge, Kynar-coated aluminum or 16-ounce copper, depending on the architectural requirements and the chemical composition of the local atmosphere. The joints must be seamlessly soldered or welded to prevent capillary action, which can draw water backward into the building's wall assembly. By utilizing a flared spillway design, we reduce the velocity of the exiting water, preventing erosion of the building's foundation and landscaping at the discharge point.

Implementation of secondary overflow scuppers positioned 2 inches above the primary gutter line.
Use of ASTM-compliant seamless alloys to eliminate leak points at the conductor head junction.
Application of reinforced flashing to ensure that spillway discharge is directed clear of the building's cladding.
Strategic placement of spillways at the lowest points of the roof slope to prevent localized ponding.

Structural Integrity and Downspout Bracketry

The vertical conductors on municipal arenas often span heights exceeding 60 to 100 feet. At this scale, the downspout is no longer just a pipe; it is a structural element subject to immense wind loads and thermal movement. Standard residential or light commercial brackets are wholly inadequate. We utilize heavy-duty, industrial-grade brackets engineered to withstand the lateral forces of high-velocity winds and the vertical weight of a full column of water.

Thermal expansion and contraction are the silent killers of commercial drainage. As the metal expands in the summer and contracts in the winter, the downspout undergoes significant longitudinal movement. If the brackets are too rigid, the metal will buckle or the fasteners will pull out of the masonry. Our specification includes the use of sliding bracket mounts that allow for vertical movement while maintaining a tight seal against the building envelope. This prevents the "whipping" effect that often leads to joint failure and subsequent water intrusion into the wall cavity.

Installation of heavy-duty galvanized steel brackets spaced at maximum 8-foot intervals to prevent bowing.
Utilization of stainless steel fasteners to prevent galvanic corrosion between the bracket and the building substrate.
Integration of expansion joints every 30 feet to accommodate the coefficient of thermal expansion of the metal.
Application of high-torque anchor bolts to ensure the conductor remains secure during extreme weather events.

Mitigating Freeze-Thaw Cycle Bursting

In colder climates, the freeze-thaw cycle presents a severe threat to the integrity of the building envelope. When water traps in a vertical conductor and freezes, it expands by approximately 9%, creating immense internal pressure. In a rigid system, this pressure frequently results in "bursting," where the seams of the downspout split open, leading to uncontrolled water discharge against the building's facade during the thaw phase.

To combat this, we engineer the system for "breathability" and controlled expansion. This involves the installation of specialized venting at the top of the conductor head and the use of oversized downspout sections that provide a small buffer for ice expansion. Furthermore, we analyze the thermal bridging of the brackets; by introducing a thermal break between the bracket and the wall, we reduce the rate of cooling of the water within the pipe, delaying the onset of freezing. This ensures that the water remains in a liquid state longer, allowing it to drain completely before the temperature drops below the freezing point.

Installation of "breather" ports at the transition points to relieve air pressure during rapid temperature shifts.
Use of reinforced ribbed downspouts that offer higher hoop strength to resist internal ice pressure.
Implementation of heat-trace cabling in critical zones to maintain a minimum temperature above 32 degrees Fahrenheit.
Application of hydrophobic coatings to the interior of the conductor to encourage faster drainage and reduce ice nucleation.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #457

Structural Steel Deck Rust Remediation & Zinc-Rich Primer Passivation on Commercial Multi-Family Urban Residential Towers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Diagnostic Audit and Oxidation Analysis of Urban Steel Decks

In the high-density environment of urban residential towers, the building envelope is under constant assault from atmospheric pollutants, sulfur dioxide, and chronic moisture infiltration. During a comprehensive engineering audit of a multi-family tower, we frequently encounter structural steel decking that has transitioned from superficial surface rust to deep-seated pitting oxidation. This degradation typically occurs at the lap joints and the low points of the flutes, where condensation collects and creates a stagnant electrolytic cell. When the original factory-applied galvanization is compromised, the underlying carbon steel is exposed to the elements, leading to a rapid loss of cross-sectional area and a subsequent reduction in the load-bearing capacity of the floor or roof assembly.

A master-level audit requires a forensic approach to identify the specific stage of oxidation. We categorize the rust based on the Society for Protective Coatings (SSPC) standards to determine the necessary level of remediation. In urban towers, the presence of chloride ions from winter de-icing salts—often tracked into mechanical penthouse areas—accelerates the corrosion rate. The goal of the audit is to map the extent of the "sacrificial loss," ensuring that the structural integrity of the deck remains within the tolerances defined by the original engineering specifications and current ANSI standards.

Identification of localized pitting versus generalized surface oxidation.
Analysis of moisture ingress points through failed flashing or membrane punctures.
Measurement of remaining steel gauge using ultrasonic thickness gauges.
Evaluation of the chemical interaction between the steel deck and the concrete pour in composite systems.
Mapping of high-stress zones where vibration and thermal expansion accelerate rust scaling.

Mechanical Surface Preparation and Zinc-Rich Passivation

Once the audit identifies the areas of oxidation, the remediation process begins with rigorous mechanical surface preparation. We do not rely on chemical solvents alone, as they often fail to remove deeply embedded rust scales. Instead, we employ heavy-duty wire-brushing and power-tool cleaning to achieve a surface profile that allows for maximum adhesion of the primer. The objective is to remove all loose mill scale and oxidation, bringing the steel back to a "near-white" metal finish. This mechanical abrasion is critical because any remaining rust acts as a catalyst for further corrosion beneath the new coating, a phenomenon known as under-film corrosion.

Following the mechanical cleaning, we apply a high-solids, zinc-rich rust-inhibiting primer. Unlike standard paint, a zinc-rich primer functions through cathodic protection. The zinc acts as a sacrificial anode, corroding preferentially to the steel substrate. This passivation process creates a chemical barrier that prevents oxygen and moisture from reaching the iron molecules of the deck. For urban towers, we specify a primer with a high percentage of metallic zinc in the dry film, ensuring that the passivation layer is thick enough to withstand the thermal cycling inherent in high-rise building envelopes.

Execution of SSPC-SP2 and SP3 power-tool cleaning standards.
Removal of all contaminants, including oils, salts, and old flashing adhesives.
Application of organic or inorganic zinc-rich primers via high-pressure spray or brush.
Verification of Dry Film Thickness (DFT) to ensure the passivation layer meets engineering specs.
Curing time management to prevent premature moisture exposure during the drying phase.

Structural Reinforcement of Thinned Steel Flutes

In cases where the oxidation has progressed beyond surface rust, we often find "thinned flutes." This occurs when the bottom of the steel rib has been eaten away, reducing the effective thickness of the gauge. When the loss of steel exceeds 15% of the original design thickness, the structural integrity of the deck is compromised, potentially leading to deflection or failure under dead loads. As building envelope specialists, we implement a reinforcement protocol that restores the structural capacity without requiring a full deck replacement, which would be prohibitively expensive and disruptive in an occupied residential tower.

The remediation involves the installation of reinforcement plates or "sistering" the thinned flutes with new galvanized steel shims. These reinforcements are secured using high-strength structural adhesives or intermittent tack welding, depending on the fire-rating requirements and the presence of combustible materials. By bridging the thinned sections with new, high-gauge steel, we redistribute the load across the deck. This process ensures that the floor-to-ceiling assembly remains rigid and that the building envelope maintains its required diaphragm strength against wind loads and seismic activity.

Installation of custom-cut galvanized steel reinforcement plates.
Utilization of structural-grade epoxy resins for non-weld bonding applications.
Application of fillet welds to secure reinforcement in high-stress corner zones.
Verification of load distribution through point-load testing.
Application of a secondary zinc-rich coating over all new reinforcement materials.

Fastener Integrity and Envelope Sealant Integration

The final phase of the remediation process focuses on the fasteners and the interface between the steel deck and the rest of the building envelope. Rust often migrates along the fastener shafts, creating a "wicking" effect that draws moisture deep into the structural connections. We examine every bolt, screw, and weld-stud to ensure that the threads have not been compromised by oxidation. If a fastener shows signs of shearing or significant diameter loss, it is replaced with a hot-dipped galvanized equivalent that offers superior corrosion resistance in urban environments.

To prevent the recurrence of rust, the entire assembly is integrated into the building's moisture management system. This involves applying high-performance elastomeric sealants to all lap joints and penetration points. By creating a redundant seal, we ensure that the zinc-rich primer is the second line of defense, while the sealant serves as the primary barrier. This holistic approach to the building envelope ensures that the structural steel deck is not only repaired but is also isolated from the atmospheric conditions that led to the initial failure.

Replacement of oxidized fasteners with ASTM A153 hot-dip galvanized hardware.
Application of industrial-grade polyurethane sealants to all deck laps.
Installation of drip edges to redirect water away from the steel perimeter.
Testing of sealant bonds using pull-tests to ensure maximum adhesion.
Final inspection of the envelope transition to ensure a seamless, watertight assembly.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #458

Hands-On Physical Roof Inspections & Boots-on-the-Roof Forensic Maintenance Audits on Commercial Public Transit Maintenance Bus Barns

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Criticality of Forensic Audits in High-Traffic Transit Facilities

Public transit maintenance bus barns represent some of the most challenging environments for building envelope integrity. Unlike standard commercial warehouses, these facilities are subject to constant internal atmospheric fluctuations, including high concentrations of particulate matter from diesel exhaust, heavy vibrations from heavy-duty vehicle movement, and significant thermal cycling due to oversized bay doors that remain open for extended periods. A standard visual inspection is fundamentally insufficient for these assets; it merely identifies failures that have already occurred. A forensic maintenance audit, however, is a proactive engineering exercise designed to identify latent defects before they manifest as catastrophic leaks.

The objective of a "boots-on-the-roof" approach is to move beyond the surface. By applying the principles of material science and structural engineering, we examine the roof not as a static cover, but as a dynamic system that expands, contracts, and breathes. In a bus barn, the roof must withstand not only the elements but the internal pressures and chemical pollutants that can accelerate the degradation of sealants and coatings. Failure to implement a rigorous forensic audit often leads to premature membrane failure, compromised insulation, and potential damage to expensive transit diagnostic equipment housed below.

Assessment of atmospheric pollutants and their effect on polymer degradation.
Analysis of structural vibration impact on mechanical fasteners and seam stability.
Evaluation of thermal bridging at the intersection of roof panels and masonry walls.
Verification of wind-uplift resistance in accordance with ANSI/SPHIA standards.

Mechanical Integrity of Automated Seams and Fasteners

In modern commercial roofing, particularly with standing seam or automated roll-formed systems, the seam is the primary line of defense. However, automated seaming is not infallible. Machine-crimped seams can suffer from "under-crimping" or inconsistent pressure, which may appear secure to the naked eye but fails under hydrostatic pressure. A master roofer employs a forensic probing technique, using calibrated feeler gauges and specialized hand tools to physically probe the seam's closure. By attempting to identify gaps in the fold, we can determine if the seam has maintained its structural lock or if thermal cycling has caused the metal to "creep," opening a pathway for moisture ingress.

Furthermore, the interaction between the roof decking and the fastening system must be scrutinized. In a transit facility, the constant vibration from idling heavy engines can lead to fastener backing or the loosening of neoprene washers. We examine the compression of these washers to ensure they are not over-compressed (which leads to splitting) or under-compressed (which leads to leaks). This level of detail ensures that the building envelope remains airtight and watertight, preventing the "stack effect" where conditioned air escapes and humid exterior air is drawn into the facility.

Physical probing of automated seams to detect gaps in the mechanical lock.
Inspection of fastener torque and washer compression to prevent fastener fatigue.
Evaluation of metal fatigue and stress cracking at the lap joints.
Verification of seam continuity across expansion and contraction joints.

Hydraulic Management and Perimeter Envelope Security

The most common point of failure in a commercial bus barn is the drainage system, specifically the drain bowls and the perimeter cleats. A forensic audit requires a deep dive into the clamping torque of the drain bowl assemblies. If the clamping force is insufficient, the seal between the roof membrane and the drain body will fail during a heavy rain event, leading to localized flooding and potential structural overloading. We utilize calibrated torque wrenches to ensure that every bolt is tightened to the manufacturer's exact engineering specifications, eliminating the guesswork associated with standard maintenance.

Equally critical are the perimeter cleats and edge flashing. These components are responsible for managing wind-uplift forces and ensuring that water is shed away from the building's facade. We inspect for galvanic corrosion where dissimilar metals may have come into contact and check for the integrity of the perimeter sealant. If a cleat is loose or a flashing is improperly seated, the wind can create a vacuum effect, pulling the roof membrane away from the deck. Ensuring the perimeter is locked down is not just about water; it is about the structural survival of the roof during high-wind events.

Verification of clamping torque on all internal drain bowls and scuppers.
Inspection of perimeter cleats for secure attachment and proper overlap.
Testing of flashing integrity at the parapet and coping transitions.
Analysis of water flow patterns to identify areas of ponding or inadequate slope.

Engineering Documentation and the Lifecycle Maintenance Roadmap

The culmination of a forensic audit is not the physical act of inspection, but the production of a comprehensive engineering report. A master roofer knows that a "pass/fail" checklist is useless for a facility manager. Instead, we provide a detailed forensic map that quantifies every defect. This includes photographic evidence of every probed seam, a log of torque measurements for every drain bowl, and a categorized list of vulnerabilities. By grading defects as "Critical," "Urgent," or "Monitor," we allow the transit authority to allocate their maintenance budget based on actual risk rather than guesswork.

This written reporting transforms the roof from a liability into a managed asset. By documenting the current state of the building envelope, we establish a baseline for a lifecycle maintenance roadmap. This roadmap predicts when specific components—such as sealants, coatings, or fasteners—will reach the end of their engineered lifespan. This proactive approach reduces the total cost of ownership and prevents the need for emergency roof replacements, which are exponentially more expensive and disruptive to transit operations than scheduled, forensic-driven repairs.

Creation of a detailed defect map with GPS or grid-based coordinates.
Quantification of seam failures and fastener degradation for budgetary planning.
Development of a multi-year maintenance schedule based on material science.
Provision of a certified audit trail for insurance compliance and warranty validation.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #459

60-Mil TPO Robotic Hot-Air Seam Fusion & Test-Cut Peel Audits on Commercial Government Secure Records Archives

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Criticality of the Envelope in Secure Government Archives

When managing the building envelope for a Government Secure Records Archive, the margin for error is effectively zero. These facilities are designed to house irreplaceable historical data and sensitive national security documents, meaning the roof is not merely a cover but a primary defense system against hydrostatic pressure and atmospheric moisture. A single breach in the membrane can lead to catastrophic humidity spikes, triggering mold growth and the irreversible degradation of archival paper and digital storage media. For these reasons, we specify a 60-mil TPO (Thermoplastic Polyolefin) system, which provides superior puncture resistance and chemical stability compared to standard 45-mil alternatives.

The engineering challenge lies in the seamless integration of the membrane across vast, flat roof surfaces. In a secure archive, traditional hand-welding is insufficient due to the inherent variability of human execution. To mitigate this risk, Aquashield Corporate utilizes robotic hot-air seam fusion. This approach ensures that every linear inch of the lap seam is subjected to the exact same thermal energy and mechanical pressure, creating a monolithic waterproof shield. The goal is to achieve a molecular bond where the two sheets of TPO cease to be separate entities and instead become a single, continuous polymer chain.

Requirement for absolute moisture exclusion to protect sensitive archival substrates.
Utilization of 60-mil TPO for enhanced durability and long-term UV resistance.
Elimination of human variance through the implementation of robotic welding systems.
Focus on the building envelope as a holistic system rather than a collection of parts.

Thermal Dynamics and Robotic Fusion Parameters

The science of TPO welding is a delicate balance of temperature, time, and pressure. To achieve a true fusion weld, the robotic welder must reach a precise temperature of 1,000°F at the nozzle. This temperature is critical; if the heat is too low, the polymer chains do not sufficiently mobilize, resulting in a "cold weld" that may look acceptable but will fail under thermal cycling. Conversely, exceeding the 1,000°F threshold risks scorching the membrane, leading to carbonization and a loss of structural integrity within the weld zone, which creates a brittle point prone to cracking.

Nozzle pressure is the second critical variable. The robotic head must apply consistent downward force to ensure the hot air is forced into the interface of the overlapping membranes, displacing any trapped air and ensuring maximum surface contact. This pressure, combined with the precise heat, allows the TPO to reach its melting point instantaneously, fusing the layers together. We calibrate these machines using digital pyrometers to ensure the heat is uniform across the entire width of the weld, preventing "cold spots" that could become future leak points.

Calibration of fusion temperatures to a strict 1,000°F to avoid polymer degradation.
Application of constant nozzle pressure to eliminate air pockets and ensure surface intimacy.
Use of digital pyrometry for real-time thermal monitoring during the fusion process.
Prevention of carbonization through precise heat-dwell time management.

Automated Travel Velocity and Seam Consistency

In the realm of commercial roofing engineering, travel velocity—the speed at which the robotic welder moves along the seam—is the variable that dictates the "heat soak." If the robot moves too quickly, the membrane does not reach the required temperature for fusion. If it moves too slowly, the heat penetrates too deeply, potentially thinning the membrane. For 60-mil TPO on a secure archive project, we synchronize the travel velocity with the 1,000°F output to ensure a consistent weld bead that is uniform in both width and strength.

Robotic automation removes the "fatigue factor" associated with manual welding. A human operator may slow down or speed up based on environmental conditions or physical exhaustion, but a robotic system maintains a constant velocity regardless of the roof's square footage. This consistency is vital for government-grade audits, as it provides a predictable and repeatable result. By maintaining a steady velocity, we ensure that the thermal energy is distributed evenly, creating a seam that is as strong as the field membrane itself, thereby maintaining the integrity of the building envelope across thousands of linear feet.

Synchronization of travel speed with thermal output to optimize the heat-soak window.
Elimination of human-induced variance in weld speed and pressure.
Maintenance of a uniform weld bead width to ensure maximum overlap integrity.
Reduction of potential failure points through robotic precision and repeatability.

Destructive Test-Cut and Peel Audit Protocols

No matter how precise the robotic fusion, a master roofer never trusts a seam without destructive validation. Our audit protocol involves the "test-cut peel," a rigorous process where samples are cut from the finished seams at predetermined intervals. Using a precision utility blade, we cut a 2-inch wide strip across the weld. We then perform a manual peel test, applying a steady, controlled force to separate the two layers of TPO. This is not merely a visual check; it is a mechanical stress test designed to identify the failure point of the joint.

The gold standard for a successful peel audit is "membrane failure" rather than "weld failure." If the TPO membrane tears or rips apart before the seam opens, it proves that the fusion bond is stronger than the material itself. This indicates a successful molecular weld. If the seam peels apart cleanly without tearing the membrane, it is flagged as a cold weld, and the entire section is marked for re-welding. These audits are documented and mapped against the roof's layout to provide a comprehensive quality assurance report, ensuring the Government Secure Records Archive remains watertight for its entire design life.

Implementation of destructive testing to validate the structural integrity of the fusion.
Execution of 2-inch test-cut peels at strategic intervals across the roof surface.
Requirement for membrane failure (tearing) as the primary indicator of a successful weld.
Detailed mapping of peel results to ensure 100% coverage and compliance with ASTM standards.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #460

High-Solids Silicone Monolithic Coating Restoration & Albedo Reflectance on Commercial Pharmaceutical Production Facilitys

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Substrate Engineering and Comprehensive Envelope Audit

In the high-stakes environment of pharmaceutical production, the building envelope is not merely a shelter but a critical component of the facility's contamination control and operational stability. A failure in the roofing system can lead to catastrophic moisture intrusion, potentially compromising ISO-rated clean rooms and risking millions of dollars in lost product. Our engineering audit began with a rigorous assessment of the existing substrate, which consisted of an aging modified bitumen assembly showing signs of advanced thermal degradation and widespread blistering. To ensure a successful restoration, we utilized infrared thermography to identify latent moisture pockets and subsurface saturation that could lead to osmotic blistering if not properly addressed.

The audit focused on the structural integrity of the decking and the condition of the flashing at critical penetration points, such as HVAC curbs and plumbing vents. In pharmaceutical facilities, the complexity of roof-top equipment—including massive air handling units and exhaust scrubbers—creates a high density of potential leak paths. We analyzed the coefficient of thermal expansion between the existing membrane and the structural steel to determine the optimal elasticity required for the new coating system. The goal was to transition from a fragmented, seam-dependent system to a monolithic barrier that eliminates the risk of joint failure.

Execution of ASTM E2128 standard for moisture detection to map saturated insulation.
Detailed analysis of flashing integrity at high-stress transition points and parapet walls.
Evaluation of substrate pH levels and surface contaminants to prevent chemical incompatibility.
Assessment of existing drainage slopes to ensure positive flow and prevent ponding water.

Chemical Integration and Bleed-Blocking Epoxy Primers

One of the most significant challenges in restoring aged commercial roofs is the presence of legacy oils, bitumen bleed, and atmospheric pollutants that can migrate through new coatings. In this specific pharmaceutical application, the existing modified bitumen substrate exhibited high levels of volatile organic compounds and oil-based residues. To mitigate the risk of "bleed-through"—where oils migrate upward and create pinholes or blisters in the final membrane—we specified a high-performance, bleed-blocking epoxy primer. This primer acts as a chemical bridge, creating a high-strength molecular bond between the contaminated substrate and the silicone topcoat.

The epoxy primer was engineered to penetrate the pores of the substrate, effectively sealing the surface and neutralizing the alkalinity of the concrete and bitumen. By establishing a non-porous, chemically stable base, we ensured that the subsequent silicone layers would not be compromised by the off-gassing of the underlying materials. This stage of the process is critical; without a proper epoxy barrier, the differential in surface tension between the silicone and the old bitumen could lead to delamination, particularly during extreme thermal cycling common in industrial zones.

Application of a solvent-free epoxy primer to eliminate VOC emissions during the curing phase.
Utilization of chemical cross-linking to ensure maximum adhesion to non-standard substrates.
Rigorous surface preparation including mechanical grinding and high-pressure cleaning.
Verification of primer cure times to ensure a moisture-insensitive bond before topcoat application.

Monolithic Silicone Application and 30-Mil Dry Film Thickness

The core of the restoration involved the application of a high-solids silicone monolithic coating. Unlike traditional membranes that rely on seams and adhesives, a monolithic system creates a single, seamless rubberized sheet across the entire roof surface. For this pharmaceutical facility, we mandated a 30-mil Dry Film Thickness (DFT). This thickness was chosen to provide superior puncture resistance and to accommodate the structural movement of the building without cracking. The high-solids content of the silicone ensures that the thickness applied is the thickness that remains, as there is minimal shrinkage during the curing process.

A primary requirement for the client was zero-downtime application. Because pharmaceutical production cannot be halted without massive financial loss, the coating was applied using a phased approach that required no interior access and no disruption to the clean room environments. The silicone chemistry allows for rapid curing even in humid conditions, ensuring that the building was protected from the elements within hours of application. This seamless approach eliminates the "weak links" found in traditional roofing, such as lap seams and flashing tapes, which are the primary points of failure in most commercial systems.

Deployment of a 30-mil DFT to ensure long-term durability and resistance to foot traffic.
Application of a seamless, monolithic membrane to eliminate all potential leak paths at seams.
Implementation of a zero-downtime workflow to maintain continuous pharmaceutical production.
Use of high-solids silicone to prevent shrinkage and maintain membrane uniformity.

Albedo Reflectance and Thermal Performance Analysis

Beyond waterproofing, the engineering goal was to optimize the building's thermal profile through the management of Albedo reflectance. The selected silicone coating was engineered to reflect 88% of solar radiation, significantly reducing the Solar Heat Gain Coefficient (SHGC) of the facility. In a pharmaceutical setting, where precise temperature and humidity control are mandatory for stability testing and product storage, reducing the heat load on the HVAC system is a critical operational advantage. By reflecting the majority of the sun's infrared and ultraviolet rays, the roof prevents the "heat island" effect from penetrating the building envelope.

The high Albedo value translates directly into a reduction in energy consumption and a decrease in the mechanical wear on the facility's cooling plants. We measured the surface temperature of the roof before and after the application, observing a dramatic drop in peak summer temperatures. This thermal stabilization reduces the expansion and contraction cycles of the roof deck, which in turn extends the lifespan of the entire building envelope. The result is a high-performance asset that meets current LEED standards and provides a sustainable, low-maintenance solution for the facility's long-term operational needs.

Achievement of 88% solar reflectance to minimize thermal absorption and HVAC load.
Reduction of the Solar Reflectance Index (SRI) to lower internal building temperatures.
Mitigation of thermal bridging to prevent energy loss through the roof assembly.
Compliance with ASTM E1980 standards for calculating solar reflectance of roofing materials.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #461

Tapered Polyiso Drainage Layouts (1/4-In/Ft) & Geometric Cricket Sizing on Commercial Historic Sanctuary & Education Annexs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Site Audit and Substrate Analysis of Historic Structures

The primary challenge when conducting a building envelope audit on a historic sanctuary and its accompanying education annex is the presence of legacy structural anomalies. Historic masonry and timber-frame assemblies often exhibit differential settlement over decades, which compromises the original design intent of the roof’s drainage. In this specific case study, the audit revealed significant ponding in the valley intersections and a complete failure of the existing flat-roof assembly to shed water during peak precipitation events. To rectify this, a comprehensive forensic analysis of the substrate was required to ensure that the new tapered system would not be undermined by existing structural depressions.

A master-level approach to the building envelope requires looking beyond the membrane. We analyzed the deck's load-bearing capacity to ensure it could support the added thickness of a high-performance tapered polyisocyanurate (polyiso) system without compromising the structural integrity of the historic rafters. The audit focused on identifying "dead spots" where water naturally collects, which typically occur at the intersection of the sanctuary's main nave and the annex's connecting corridors. By mapping these areas, we established a baseline for a multi-directional slope strategy that prioritizes the rapid movement of water toward the primary scuppers and internal drains.

Assessment of existing substrate moisture levels using infrared thermography to identify trapped water.
Verification of deck flatness to determine the minimum thickness of the tapered insulation required to achieve a consistent slope.
Evaluation of historic parapet flashing and the integrity of the coping caps.
Mapping of all existing penetrations and HVAC curb placements to avoid conflicts with new drainage paths.

Engineering the Tapered Polyisocyanurate Layout

To eliminate ponding and ensure a lifetime of performance, we engineered a custom tapered polyiso layout designed to a strict 1/4-inch per foot (1/4"-in/ft) slope. Polyisocyanurate was selected not only for its superior R-value and thermal resistance but also for its high compressive strength, which allows it to maintain its geometric profile under the weight of the membrane and incidental foot traffic. The engineering phase involved creating a precise slope-to-drain map, ensuring that every square inch of the roof surface had a positive path of travel toward a designated discharge point.

The complexity of the sanctuary's footprint required a multi-directional slope, meaning the water does not simply move in one direction but is "shed" from the center of the roof outward toward the perimeter. This is achieved through the use of CNC-cut tapered panels that create a subtle "peak" or ridge line. By adhering to ASTM standards for insulation installation, we ensured that the seams between the tapered panels were staggered and tightly butted, eliminating any "lips" or "trips" that could cause water to pool or the membrane to bridge. This precision engineering transforms a flat surface into a highly efficient hydraulic plane.

Implementation of a 1/4-in/ft slope to exceed minimum code requirements and ensure rapid runoff.
Utilization of high-density polyiso to prevent long-term compression and slope degradation.
Strategic placement of tapered panels to create a "shed" effect away from the building's core.
Coordination of insulation thickness to maintain consistent thermal bridging across the building envelope.

Geometric Cricket Sizing and Diamond Valley Integration

In commercial roofing, a "cricket" is a sloped diverter used to redirect water away from an area where it would otherwise pond, such as behind a large HVAC unit or in a 90-degree wall intersection. For the education annex, we implemented "diamond valley" crickets. Unlike standard triangular crickets, a diamond valley is a geometrically complex slope that redirects water in two directions simultaneously. This is critical in historic structures where the roofline may have shifted, creating unpredictable low points that standard crickets cannot address.

The sizing of these crickets was calculated based on the volume of runoff expected from the surrounding roof area. If a cricket is too small, the water will simply "overtop" the diverter during a heavy rain event, leading to ponding behind the obstruction. By engineering the diamond valley to integrate seamlessly with the primary 1/4-in/ft slope, we created a continuous flow path. This ensures that water is accelerated away from the walls and toward the primary drains, reducing the hydrostatic pressure on the flashing and minimizing the risk of leaks at the most vulnerable points of the envelope.

Design of diamond valley crickets to eliminate water accumulation behind mechanical curbs.
Calculation of runoff volumes to determine the necessary height and angle of each cricket.
Integration of tapered insulation "wedges" to create smooth transitions between the main field and the crickets.
Elimination of "dead spots" in the corners of the sanctuary's complex roof geometry.

Expansion Joint Management and Final Envelope Integrity

One of the most critical failure points in a large commercial complex is the expansion joint. These joints are designed to allow the building to move independently during thermal expansion and contraction. However, they often become conduits for water infiltration if the drainage is not properly managed. Our engineering strategy focused on routing all runoff away from these joints. By adjusting the tapered polyiso layout, we created a "dry zone" around the expansion joints, ensuring that water is shed toward the perimeter before it ever reaches the joint's flashing.

The final integrity of the building envelope was verified through a rigorous quality control process, ensuring that all materials met ANSI and ASTM specifications. The membrane was heat-welded over the tapered system, creating a monolithic waterproof barrier. By combining the science of material physics—specifically the thermal properties of polyiso—with the precision of geometric drainage, we transformed a failing historic roof into a modern, engineered system. The result is a building envelope that not only protects the historic sanctuary and education annex but also reduces long-term maintenance costs by eliminating the root cause of roof failure: standing water.

Routing of primary drainage paths to ensure zero water accumulation at expansion joints.
Application of reinforced flashing at all transitions to prevent capillary action.
Verification of the "positive slope" across the entire roof surface via laser leveling.
Final audit of the envelope to ensure seamless integration between the roof, walls, and drainage discharge points.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #462

Multi-Ply SBS-Modified Bitumen Cap Sheet Application & Vapor Control on Commercial Financial Institution Data Vaults

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Substrate Engineering and Internal Vapor Drive Regulation

In the specialized context of financial institution data vaults, the building envelope must function as a hermetically sealed system to protect sensitive hardware and archival records. The primary engineering challenge is the management of internal vapor drive—the movement of water vapor from areas of high concentration to low concentration. In a climate-controlled vault, the interior dew point is strictly regulated, creating a significant pressure differential between the conditioned interior and the atmospheric exterior. If the vapor barrier is compromised or improperly sequenced, moisture will migrate through the substrate, leading to interstitial condensation and potential structural degradation of the concrete vault ceiling.

A comprehensive audit of these facilities reveals that the most common failure point is the transition between the vault walls and the roof deck. To mitigate this, we implement a high-performance vapor retarder that meets or exceeds ASTM E96 standards. This layer must be continuous, extending from the floor slabs up the vertical walls and across the roof deck to ensure a seamless transition. By regulating the vapor drive at the lowest possible point in the assembly, we prevent the "sponge effect" where insulation layers trap moisture, which would otherwise lead to the premature failure of the modified bitumen membrane above.

Installation of a fully adhered, reinforced vapor barrier to eliminate air infiltration.
Application of specialized flashing at all penetration points and parapet transitions.
Verification of substrate moisture content using calcium carbide tests prior to membrane application.
Implementation of a thermal break to prevent condensation at the junction of the vault slab and exterior wall.

Cold-Applied Adhesive Shear Resistance and SBS Chemistry

The selection of SBS (Styrene-Butadiene-Styrene) modified bitumen is predicated on its elastomeric properties. Unlike APP (Atactic Polypropylene), which is plastomeric and can become brittle in extreme cold, SBS maintains flexibility across a wide temperature range. For data vaults, where torch-applied methods are often prohibited due to fire codes and the presence of sensitive electronic equipment, cold-applied adhesives are the engineering standard. The critical metric here is shear resistance—the ability of the adhesive bond to resist lateral forces caused by thermal expansion and contraction of the roof deck.

The cold-applied adhesive must create a chemical bond that is stronger than the internal cohesive strength of the bitumen itself. When the membrane is deployed, the adhesive undergoes a curing process that creates a high-tack, rubberized interface. This prevents the membrane from shifting or "ballooning" during periods of high heat. From a material science perspective, the shear resistance is optimized when the adhesive is applied in a uniform film, ensuring 100% coverage. This eliminates voids where air pockets could form, which would otherwise reduce the wind-uplift resistance of the system and jeopardize the integrity of the building envelope.

Utilization of low-VOC, solvent-based adhesives to ensure rapid curing and high initial tack.
Engineering for wind-uplift resistance in accordance with ANSI/SPWC standards.
Application of a primer to porous concrete substrates to enhance the molecular bond of the adhesive.
Monitoring of ambient temperature and substrate humidity to prevent adhesive emulsification.

Precision Installation: Staggered Side Laps and Seam Integrity

The integrity of a multi-ply SBS system is only as strong as its weakest seam. In a master-level installation, the alignment of the cap sheets is governed by a strict staggering protocol. If side laps are aligned across multiple courses, they create a continuous linear path for potential water ingress—essentially a "fault line" in the roof. By staggering the side laps by at least one full course, we force any migrating moisture to travel a tortuous path, significantly reducing the probability of a leak reaching the vault interior.

Each lap must be meticulously executed to avoid capillary action. This involves a minimum 6-inch side lap and a 3-inch end lap, with each seam rolled using a weighted steel roller to ensure total fusion. The rolling process removes entrapped air and compresses the bitumen, creating a monolithic waterproof layer. An engineering audit of these seams typically involves infrared thermography to detect any voids or "fish-mouths" in the membrane. Any deviation from the staggered pattern is considered a critical failure in craftsmanship and requires immediate remediation to maintain the vault's warranty and security.

Strict adherence to a 6-inch minimum side lap to provide redundant moisture protection.
Use of a heavy-duty steel roller to eliminate air pockets and ensure full adhesive contact.
Staggering of seams by a minimum of 12 inches relative to the previous course.
Detailed inspection of end-laps to ensure they are properly overlapped and sealed against wind-driven rain.

Granule Surface Protection and UV Degradation Mitigation

The final layer of the SBS-modified bitumen assembly is the granule-surfaced cap sheet, which serves as the primary defense against ultraviolet (UV) radiation and mechanical abrasion. Bitumen is naturally susceptible to photo-oxidation; without a protective layer, UV rays break down the polymer chains in the SBS, leading to cracking, shrinkage, and eventual embrittlement. The granules are not merely aesthetic; they are engineered minerals embedded into the bitumen to reflect a portion of solar radiation and protect the underlying membrane from thermal shock.

From a building envelope perspective, the distribution of these granules must be uniform. Areas of "sloughing" or granule loss create exposed bitumen, which absorbs more heat and accelerates the degradation process. Furthermore, the granule surface provides the necessary friction to prevent the accumulation of standing water, encouraging drainage toward the primary scuppers. In a high-security financial environment, the longevity of the roof is paramount, as any leak could necessitate a shutdown of the data center. Therefore, the cap sheet is treated as a sacrificial wear layer that preserves the structural integrity of the waterproofing membranes beneath it.

Selection of ceramic-coated granules for enhanced UV reflection and thermal performance.
Verification of granule embedment depth to prevent premature stripping during storm events.
Implementation of a regular maintenance schedule to monitor for granule loss and bitumen oxidation.
Integration of a high-reflectivity surface to reduce the overall heat island effect on the vault structure.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #463

Parapet Wall Heavy-Gauge 20-Gauge Kynar 500 Coping Cap Continuous Cleat Locking on Commercial Telecommunications Central Switching Offices

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Engineering Audit of the Telecommunications Central Switching Office Envelope

In the realm of mission-critical infrastructure, the Telecommunications Central Switching Office (CSO) represents a high-stakes environment where building envelope failure is not an option. These facilities house sensitive switching gear and massive power arrays that require absolute climate stability and moisture protection. During our recent engineering audit, we focused on the parapet wall assembly, which serves as the primary defense against wind-driven rain and atmospheric pressure differentials. The vulnerability of the roof-to-wall transition is often underestimated, yet it is here that the most catastrophic failures occur if the coping system is under-engineered.

For this specific application, we specified a heavy-gauge 20-gauge steel substrate coated with Kynar 500 (PVDF). While the industry standard often defaults to 24-gauge, the structural demands of a CSO—specifically the height of the parapets and the exposure to high-velocity wind gusts—necessitate the increased rigidity of 20-gauge steel. The Kynar 500 finish provides an indispensable chemical bond that resists UV degradation and atmospheric pollutants, ensuring that the protective layer does not chalk or peel over a thirty-year lifecycle.

Material Specification: 20-gauge cold-rolled steel for superior torsional rigidity.
Coating Science: Kynar 500 PVDF resin for maximum fade resistance and chemical stability.
Structural Objective: Elimination of oil-canning and deformation under extreme thermal cycling.
Envelope Integrity: Total encapsulation of the wall masonry to prevent capillary suction of moisture.

ANSI/SPRI ES-1 Wind Uplift and Aerodynamic Analysis

The engineering of coping caps is governed by the physics of wind uplift, specifically the standards set by ANSI/SPRI ES-1. On a commercial rooftop, wind does not simply blow across the surface; it creates a localized low-pressure zone—a vacuum effect—at the leading edges and corners of the parapet. This pressure differential creates a powerful upward force that attempts to "peel" the coping cap away from the wall. If the fastening system is intermittent or under-specified, the metal will fatigue, the fasteners will pull through the gauge, and the entire assembly will fail catastrophically.

Our analysis focused on perimeter peel mitigation. By utilizing a 20-gauge substrate, we significantly increased the "pull-through" resistance of the fasteners. Furthermore, we calculated the wind load requirements to ensure that the coping cap acts as a structural beam rather than a thin sheet of metal. This prevents the fluttering effect that leads to fastener fatigue and eventual breach of the building envelope. The goal is to maintain a constant state of compression between the coping cap and the masonry substrate, neutralizing the lift forces generated during peak wind events.

Wind Load Calculation: Adherence to ASCE 7 standards for roof-edge zones.
Peel Mitigation: Strategic reinforcement of corner wraps to distribute wind loads.
Fastener Shear Strength: Selection of heavy-duty stainless steel anchors to prevent galvanic corrosion.
Pressure Equalization: Engineering the cap profile to minimize wind resistance and turbulence.

Continuous Cleat Engagement and Mechanical Locking

A critical failure point in standard commercial roofing is the use of intermittent cleats, which leave gaps in the mechanical connection between the coping and the wall. In a high-security CSO environment, we implemented a continuous cleat locking system. This system utilizes a full-length interlocking mechanism that ensures the coping cap is mechanically tied to the substrate at every single inch of the run. This eliminates the possibility of localized lifting and ensures that wind loads are distributed evenly across the entire length of the parapet wall.

The continuous cleat system functions as a structural rail, providing a rigid spine for the Kynar 500 cap. This engagement prevents the "accordion effect" often seen in lower-grade installations, where the metal bows and flexes during storm events. By locking the cap into a continuous cleat, we create a monolithic assembly that resists torsional stress. This is especially critical at the corners, where the change in direction creates a concentration of force that would otherwise tear a standard 24-gauge cap from its anchors.

Mechanical Engagement: Full-length cleat integration for 100% surface contact.
Torsional Stability: Reduction of metal fatigue through the elimination of localized stress points.
Installation Precision: Use of precision-bent locking tabs to ensure a tight, seamless fit.
Fastening Interval: Optimized spacing of heavy-duty anchors to complement the continuous cleat.

Thermal Expansion and Splice Plate Engineering

One of the most overlooked aspects of building envelope engineering is the coefficient of thermal expansion. Steel expands and contracts significantly based on ambient temperature fluctuations. In a CSO, where the roof may be exposed to intense direct sunlight, the coping cap can experience temperature swings of over 100 degrees Fahrenheit. Without proper engineering, this movement leads to "buckling" or the opening of joints, which allows water to penetrate the masonry and compromise the interior switching equipment.

To mitigate this, we engineered custom thermal expansion splice plates. Rather than simply overlapping the metal and fastening it rigidly, we utilized a sliding splice mechanism. This allows the 20-gauge steel to expand and contract longitudinally without transferring that stress to the fasteners or the masonry. These splice plates are sealed with high-performance, non-hardening polymers that maintain a watertight seal while allowing for microscopic movement. This approach ensures that the perimeter peel mitigation remains effective regardless of the season.

Thermal Dynamics: Calculation of linear expansion based on the total length of the parapet run.
Splice Plate Design: Implementation of overlapping "sleeve" joints to allow for longitudinal movement.
Sealant Integration: Use of ASTM C920 compliant sealants for maximum elasticity and adhesion.
Long-term Stability: Prevention of fastener "pop-outs" caused by thermal stress.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #464

Industrial Drainage Scuppers, Overflow Weirs & Heavy Downspout Expansion Bellows on Commercial Heavy Manufacturing Fabrication Plants

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Hydraulic Head-Loss Analysis and Primary Drainage Calibration

In the context of heavy manufacturing fabrication plants, the roof is not merely a cover but a critical component of the building envelope that must manage extreme hydraulic loads. During a comprehensive engineering audit, the primary focus begins with hydraulic head-loss calculations. Head-loss refers to the reduction in the total head (pressure) of the water as it moves through the drainage system, primarily caused by friction against the interior walls of the conductor heads and downspouts. In large-scale industrial facilities, where roof footprints often exceed 100,000 square feet, the volume of water during a 100-year storm event can create immense hydrostatic pressure if the system is undersized or improperly sloped.

To mitigate these risks, we apply the Darcy-Weisbach equation to determine the pressure drop across the drainage run. We must account for the roughness coefficient of the materials—typically galvanized steel or heavy-gauge aluminum—and the number of elbows or offsets in the downspout run. When the hydraulic head exceeds the capacity of the primary drains, water begins to pond, increasing the dead load on the structural steel decking and potentially leading to deflection or catastrophic failure of the roof membrane.

Calculation of flow velocity to prevent sediment buildup while avoiding excessive turbulence.
Evaluation of pipe diameters based on the square footage of the catchment area and local rainfall intensity.
Assessment of friction loss at every 90-degree bend in the vertical conductor system.
Verification of slope consistency to ensure positive drainage toward the primary collection points.

Emergency Overflow Weir Sizing and Scupper Integration

A master-level building envelope strategy assumes that primary drainage will eventually fail or be overwhelmed. This is where emergency overflow weirs and scuppers become the final line of defense. An overflow weir is a specifically engineered opening in the parapet wall that allows water to exit the roof once it reaches a critical depth—typically two inches above the primary drain. The sizing of these weirs is not arbitrary; it must be calculated to discharge water at a rate equal to or greater than the primary system's capacity to prevent the "bathtub effect," where the roof fills and collapses under the weight of standing water.

The integration of scuppers requires precise flashing and membrane termination to ensure that the exit point does not become a source of infiltration. We utilize heavy-gauge sheet metal liners that are fully integrated with the roof's TPO or EPDM membrane. The weir crest height must be calibrated so that the primary drains handle the routine runoff, while the overflows activate only during extreme weather or primary blockage. This prevents the unnecessary saturation of the building's exterior facade while ensuring the structural integrity of the roof deck.

Implementation of the "two-inch rule" for secondary drainage activation relative to the primary drain.
Sizing of weir openings based on the weir flow formula to ensure rapid discharge.
Installation of oversized scupper flanges to prevent water back-up at the parapet interface.
Strategic placement of scuppers to avoid concentrated water dumping on pedestrian walkways or sensitive equipment.

Conductor Head Engineering and Vortex Mitigation

The conductor head is the critical transition point where horizontal roof runoff converts into vertical downspout flow. In heavy manufacturing plants, these heads are often subject to immense turbulence. If the conductor head is improperly sized or shaped, it can create a vortex that traps air, significantly reducing the effective diameter of the pipe and causing water to back up onto the roof. This phenomenon, known as air-binding, can lead to premature failure of the surrounding flashing and membrane due to constant standing water and hydrostatic pressure.

To optimize performance, we specify oversized, deep-sump conductor heads that allow for the separation of air and water. The interior geometry is engineered to smooth the transition of the water column, reducing the kinetic energy and preventing "geysering" at the base of the downspout. Furthermore, the attachment of the conductor head to the building's structural columns must be reinforced to withstand the vibration and weight of high-velocity water flow, ensuring that the connection remains watertight over decades of thermal cycling.

Utilization of reinforced sump basins to manage surge volumes during peak precipitation.
Application of vortex-breaking internals to maintain a steady, laminar flow into the downspout.
Installation of heavy-duty mounting brackets to prevent structural shifting under hydraulic load.
Integration of debris screens to prevent clogging without restricting the calculated flow rate.

Thermal Expansion Bellows and Material Science in Downspouts

One of the most overlooked aspects of industrial drainage is the coefficient of thermal expansion. Heavy manufacturing plants often experience extreme temperature swings between the interior fabrication floor and the exterior roof environment. Steel and aluminum downspouts expand and contract significantly; without proper mitigation, this movement manifests as buckling in the pipe walls or, more critically, the tearing of the roof membrane at the penetration points. This is where heavy-duty expansion bellows and slip joints become mandatory.

We implement thermal expansion bellows—flexible, reinforced joints—at calculated intervals along the vertical run. These bellows absorb the linear movement of the metal, preventing the transfer of stress to the roof's flashing. The material science behind these joints involves using high-grade elastomers or bellows-style stainless steel that can withstand UV exposure and temperature extremes without losing elasticity. By decoupling the drainage system from the rigid structure of the building, we ensure that the envelope remains airtight and watertight regardless of the season.

Installation of slip-joint couplings to allow for vertical movement without compromising the seal.
Selection of bellows materials based on ASTM standards for UV resistance and thermal stability.
Calculation of total linear expansion based on the height of the building and the material's expansion coefficient.
Application of flexible sealant beads at the transition between the bellows and the rigid downspout sections.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #465

Stripping Old Shingles Down to Clean Wood Sheathing Across Commercial Eaves on Commercial Logistics Distribution Hubs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Phase I: Engineering Audit and Systematic Multi-Layer Deconstruction

In the context of large-scale logistics distribution hubs, the building envelope is subject to extreme thermal cycling and significant dead-load stresses. A primary failure point often occurs at the commercial eaves, where moisture accumulation and poor drainage lead to the layering of multiple shingle systems over several decades. From an engineering perspective, the presence of three or more layers of asphalt shingles creates a hazardous condition by increasing the dead load on the rafter spans beyond their original design capacity and masking critical substrate decay.

The audit begins with a comprehensive moisture mapping of the eave sections. We utilize infrared thermography to identify trapped moisture pockets within the wood sheathing before mechanical stripping commences. The goal is not merely the removal of old materials but the systematic restoration of the structural plane. Deconstruction must be performed using specialized commercial-grade tear-off equipment that minimizes impact vibration to the underlying rafters, ensuring that we do not introduce new fractures into aged, brittle wood fibers.

Assessment of existing dead load calculations to determine the impact of multi-layer shingle accumulation.
Implementation of a staged removal process to prevent sudden load shifts on the eave supports.
Utilization of high-torque mechanical stripping tools to ensure clean separation of asphalt binders from the wood substrate.
Continuous monitoring of the eave drip edge to ensure no structural deformation occurs during the stripping phase.

Phase II: Analysis of Fastener Withdrawal Resistance and Substrate Integrity

Once the sheathing is exposed, the focus shifts to the material science of the substrate. In commercial logistics hubs, the wood sheathing is often a legacy product that has undergone decades of hygrothermal stress. The most critical metric at this stage is fastener withdrawal resistance. If the wood has suffered from chronic moisture infiltration, the lignin in the cell walls breaks down, leading to "punky" wood that cannot hold a nail. This is a catastrophic failure for a building envelope, as the new roofing system would essentially be floating on a compromised base.

We employ a rigorous testing protocol based on ASTM standards to verify that the sheathing can support the required shear and tension loads. This involves a series of pull-tests across the eave spans. If the fastener fails to meet the minimum poundage threshold for withdrawal, the section is flagged for immediate remediation. We look specifically for signs of fungal decay and delamination of the plywood or OSB, which indicates that the wood has lost its structural cohesion.

Conducting probe tests using calibrated fasteners to measure the resistance of the wood fibers.
Evaluating the presence of dry rot or wet rot through visual inspection and moisture meter readings.
Mapping "soft spots" where the sheathing has lost its density due to long-term leak penetration.
Analyzing the remaining thickness of the sheathing to ensure it meets the minimum requirements for the specified roof load.

Phase III: Structural Remediation and Rafter Sistering Protocols

When the audit reveals compromised rafters—either through deflection, rot, or fastener failure—the structural integrity of the eave must be restored before any new decking is applied. Sistering is the primary engineering solution used here. Sistering involves installing a new, structurally sound member alongside the existing compromised rafter, effectively transferring the load to the new timber. This process must be executed with precision to ensure that the load path is continuous from the ridge to the eave plate.

The sistering process requires the use of structural-grade lumber, typically kiln-dried Southern Pine or engineered LVL (Laminated Veneer Lumber) depending on the span requirements. We utilize a combination of high-strength structural screws and construction adhesives to create a composite beam. This not only restores the load-bearing capacity but also increases the torsional rigidity of the eave, preventing future sagging that could lead to ponding water—a common cause of failure in commercial logistics hubs.

Selecting sister members that match or exceed the species and grade of the original rafter.
Applying industrial-grade structural adhesives to the interface between the old and new members to ensure full load transfer.
Staggering the fastener pattern to avoid splitting the existing wood fibers while maximizing grip.
Extending the sister member beyond the damaged zone by at least two feet to ensure a secure overlap into healthy wood.

Phase IV: Establishing the Flat Decking Plane and Final Envelope Preparation

The final objective of the stripping process is the establishment of a perfectly flat decking plane. Over time, multi-layer shingles and moisture damage create "waves" or "humps" in the roof deck. If a new membrane or shingle system is installed over an uneven surface, it creates stress concentrations and potential points of failure in the waterproofing layer. A flat plane ensures that the building envelope behaves as a single, cohesive unit, allowing for uniform drainage and consistent thermal expansion.

To achieve this, we perform a comprehensive leveling operation. This includes the removal of any remaining nail shanks, the sanding of high points, and the installation of new CDX plywood patches where the original sheathing was too degraded to save. We ensure that all joints are tight and that the decking is fastened according to ANSI standards to prevent any movement. The result is a clean, structural "canvas" that is ready for the application of a high-performance underlayment and the final roofing system.

Grinding down high spots and filling voids with structural wood fillers or replacement blocking.
Ensuring all fastener heads are driven flush or slightly countersunk to prevent "telegraphing" through the new roof.
Verifying the squareness and alignment of the eave edge to ensure a seamless transition to the gutter system.
Performing a final vacuum and debris removal to ensure the substrate is free of contaminants before the envelope is sealed.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #466

Low-VOC Cold-Applied Adhesives & HVAC Air Intake Odor Mitigation Protocols on Commercial Automotive Assembly Plants

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Challenge: HVAC Intake Proximity and VOC Migration

In the high-stakes environment of a commercial automotive assembly plant, the building envelope is not merely a shell but a critical component of the facility's internal climate and quality control. The primary engineering challenge encountered during this audit was the proximity of critical roof-mounted HVAC air intakes to areas requiring urgent membrane reinforcement and flashing repairs. In these facilities, the air handling units (AHUs) operate at massive cubic-feet-per-minute (CFM) capacities, creating a powerful vacuum effect that can draw airborne contaminants directly into the production floor and, more critically, into the paint shop environments where particulate and chemical purity are non-negotiable.

Traditional roofing adhesives, particularly solvent-based primers and hot-applied asphalt, release significant volumes of Volatile Organic Compounds (VOCs) during the curing process. When these chemicals are applied upwind or in the immediate vicinity of an active intake, the "chimney effect" occurs, pulling concentrated fumes into the building. This leads to immediate operational disruptions, potential health and safety violations under OSHA guidelines, and the risk of contaminating automotive finishes. The objective was to engineer a solution that provided structural bonding integrity without the accompanying chemical off-gassing that typically accompanies heavy-duty commercial roof repairs.

Mitigation of "off-gassing" events that trigger facility-wide evacuations.
Prevention of chemical contamination in Class-A clean rooms and paint booths.
Management of negative pressure zones created by high-capacity industrial blowers.
Adherence to strict LEED and environmental indoor air quality (IAQ) standards.

Material Science: Odorless Polyurethane Bonding Agents and Rapid-Set Chemistry

To resolve the conflict between structural requirement and air quality, we transitioned the specification from traditional solvent-based adhesives to advanced, low-VOC, odorless polyurethane (PU) bonding agents. From a material science perspective, polyurethane adhesives rely on a chemical reaction between an isocyanate and a polyol, rather than the evaporation of a solvent to achieve a bond. This fundamental difference eliminates the primary source of odor and toxicity associated with commercial roofing adhesives. The selected PU agents were engineered to provide high-shear strength and superior elasticity, ensuring that the bond could withstand the thermal expansion and contraction cycles typical of large-span metal automotive roofs.

The engineering focus was placed on the "rapid-set" nature of these adhesives. In a zero-downtime environment, the window for application is narrow. We utilized a two-component, cold-applied system that achieves initial set in under 30 minutes and full structural cure within 24 hours. This rapid polymerization prevents the "creep" often seen in slower-curing adhesives and allows for immediate loading of the roof surface. Furthermore, these materials were tested against ASTM D1874 standards to ensure that the bond strength exceeded the tensile strength of the membrane itself, providing a redundant layer of security against wind-uplift and seismic shifts.

Utilization of moisture-curing polyurethane for enhanced substrate adhesion.
Elimination of solvent-based primers to reduce the overall VOC load.
Application of high-modulus bonding agents to accommodate structural vibration.
Verification of chemical stability across a temperature range of -20°F to 160°F.

Containment Barriers and Air Intake Mitigation Protocols

Even with low-VOC materials, a master-level engineering approach requires a "defense-in-depth" strategy. We implemented a rigorous containment protocol to ensure that zero particulates or trace vapors entered the HVAC system. This began with the installation of temporary, non-permeable containment barriers around the perimeter of the air intake units. These barriers were constructed from heavy-duty reinforced polyethylene, sealed at the roof deck with temporary gasketed flashing to create a physical air-gap between the work zone and the intake mouth.

The application protocol followed a strict sequence of "Seal-and-Shield." First, the substrate was cleaned using a non-solvent, biodegradable degreaser to remove automotive oils and industrial dust. Second, the polyurethane adhesive was applied using precision nozzles to prevent over-application and minimize the surface area exposed to the air. Finally, the reinforcement membranes were mechanically pressed into the adhesive using weighted rollers, ensuring 100% contact and eliminating air pockets where vapors could linger. This methodical approach ensured that the air intake remained isolated from the application site, effectively neutralizing the risk of internal air contamination.

Deployment of vacuum-sealed containment shrouds around AHU intakes.
Implementation of positive-pressure fans to push air away from intake zones.
Use of precision-applicator guns to limit material waste and vapor release.
Strict adherence to a "clean-zone" perimeter to prevent cross-contamination.

Execution Strategy: Zero-Downtime Implementation and Quality Assurance

The defining requirement of this project was the mandate for zero-downtime execution. In the automotive industry, a single hour of production stoppage can cost hundreds of thousands of dollars. To achieve this, the project was phased into "micro-zones." Instead of a blanket application, we divided the roof into manageable sectors, allowing us to isolate specific HVAC intakes while others remained fully operational. This surgical approach required a highly coordinated schedule aligned with the plant's shift changes and maintenance windows, ensuring that the most sensitive areas were addressed during periods of lowest internal occupancy.

Quality assurance was managed through a combination of destructive and non-destructive testing. We utilized infrared thermography to verify the uniformity of the polyurethane bond and ensure there were no voids or "cold spots" that could indicate a failure in the chemical reaction. Additionally, pull-tests were conducted on sample coupons applied to the same substrate to verify that the ASTM adhesion requirements were met. The final audit confirmed that the building envelope was fully restored, the HVAC systems remained uncontaminated throughout the process, and the facility continued production without a single minute of lost time.

Phased zoning to maintain continuous plant operations.
Infrared thermography for non-destructive bond verification.
Real-time air quality monitoring at the intake mouth during application.
Final engineering sign-off based on shear-strength pull tests and visual inspection.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #467

Solar Photovoltaic Ballasted Racking Point-Load Defense & Sacrificial Slip Sheets on Commercial Mission-Critical Data Centers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Mechanics of Point-Load Compression and Insulation Fatigue

In the context of mission-critical data centers, the roof is not merely a cover but a primary defense system for millions of dollars of server infrastructure. The installation of ballasted Solar Photovoltaic (PV) systems introduces a complex engineering challenge: the management of static and dynamic point-loads. Unlike penetrated systems, ballasted racking relies on concrete blocks or weighted frames to resist wind uplift. However, this weight is concentrated over small surface areas, creating immense pressure on the roof's thermal insulation layer, typically polyisocyanurate (Polyiso) or extruded polystyrene (XPS).

When these loads exceed the compressive strength of the insulation, a phenomenon known as compression set occurs. This is a permanent deformation where the insulation cells collapse, leading to uneven support of the racking system. In a data center environment, this instability can lead to micro-movements of the PV arrays during high-wind events, which in turn creates abrasive friction against the roof membrane. From a material science perspective, we must evaluate the load-bearing capacity of the insulation according to ASTM standards to ensure that the compressive stress does not lead to a systemic failure of the building envelope.

Analysis of compressive strength ratings (psi) relative to the total weight of the ballasted blocks.
Evaluation of thermal bridging where compressed insulation reduces the R-value of the roof assembly.
Monitoring of "creep" deformation over long-term loading cycles in varying temperature extremes.
Assessment of load distribution plates used to spread the point-load across a wider surface area.

Sacrificial Slip-Sheets and Abrasion Barrier Engineering

The interface between the ballasted racking and the roof membrane is the most common point of failure in commercial solar installations. Even with high-quality TPO or PVC membranes, the constant vibration and subtle shifting caused by wind-induced oscillation can lead to "scouring." This is a mechanical abrasion process that thins the membrane over time, eventually leading to a puncture. To mitigate this, we implement heavy-duty sacrificial slip-sheets. These barriers act as a sacrificial anode in a way, absorbing the frictional energy and protecting the primary waterproof layer.

The selection of material for these slip-sheets is critical. We utilize high-durometer polymers or reinforced thermoplastic membranes that possess a lower coefficient of friction than the primary roof surface. By installing a slip-sheet, we decouple the racking system from the building envelope. This ensures that any movement occurs between the racking and the slip-sheet, rather than the slip-sheet and the membrane. This engineering approach is essential for data centers where a single leak can trigger a catastrophic failure of the cooling or electrical systems below.

Utilization of reinforced PVC or EPDM slip-sheets to provide a durable wear layer.
Implementation of non-bonded interfaces to allow for independent thermal expansion and contraction.
Integration of edge-bead seals to prevent wind-driven rain from migrating beneath the slip-sheet.
Regular inspection protocols to measure the thickness loss of the sacrificial layer over time.

Pre-fabricated Target Patches and Strategic Reinforcement

A master-level approach to envelope protection involves the use of pre-fabricated target patches. Rather than relying on the standard membrane thickness, we identify "high-stress zones" where the ballasted blocks are positioned. At these specific coordinates, we install reinforced, heat-welded patches that extend beyond the footprint of the racking. These patches are engineered to provide a secondary layer of puncture resistance and a reinforced seam that can withstand the shearing forces applied during installation and maintenance.

The welding process for these patches must be precise. Using automatic hot-air welding tools, we ensure a monolithic bond that is chemically identical to the roof surface. This eliminates the risk of "cold joints" or adhesive failure. In a mission-critical facility, these target patches serve as a redundant defense system. If the primary membrane is compromised, the reinforced patch provides a critical window of time for detection and repair before moisture reaches the structural deck. This "defense-in-depth" strategy is the gold standard for commercial roofing in high-stakes environments.

Application of double-layered TPO reinforcement patches at every ballasted point-load.
Strict adherence to ASTM D4273 for testing the seam strength of welded reinforcements.
Use of precision layout tools to align patches exactly with the racking blueprint.
Verification of weld integrity through vacuum box testing or spark testing.

Cable Tray Routing and Envelope Penetration Mitigation

The final critical component of the building envelope audit is the management of electrical cable tray routing. In many PV installations, cable trays are simply laid across the roof surface, creating "dams" that obstruct the natural flow of rainwater. This leads to ponding, which increases the hydrostatic pressure on the membrane seams and accelerates the degradation of the flashing. Furthermore, where cables enter the building, the transition from the roof to the interior must be handled with extreme caution to avoid creating a conduit for water ingress.

We mandate the use of elevated cable trays or routed paths that follow the roof's natural slope toward the primary drains. By lifting the cables off the membrane using non-penetrating supports, we eliminate the risk of cable-rub abrasion and ensure that the roof can be inspected and cleaned without disturbing the electrical infrastructure. For the penetrations, we employ a multi-stage sealing process involving liquid-applied flashing and mechanical clamping, ensuring a gastight and watertight seal that meets the rigorous demands of a data center's environmental controls.

Design of cable routing paths that avoid crossing critical seam locations or flashing details.
Installation of UV-stabilized conduit to prevent plasticizer migration into the roof membrane.
Implementation of "drip loops" at all penetration points to prevent water from tracking into the building.
Use of high-performance flashing membranes at the transition from roof surface to cable entry.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #468

OSHA-Compliant Skylight Fall-Protection Curbs & Heavy-Duty Security Screens on Commercial Cold Storage Freezer Warehouses

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Thermal Bridging and the Cold Storage Envelope Challenge

In the realm of commercial building envelope engineering, cold storage freezer warehouses present the most aggressive environment for roof system integrity. The primary challenge is the extreme temperature differential—often a delta of 60 to 80 degrees Fahrenheit—between the interior freezer space and the exterior ambient air. This creates a high-pressure drive for moisture migration and a significant risk of thermal bridging. When we introduce skylights into this system, we are essentially creating a potential puncture point in the thermal envelope. If the curb assembly is not engineered with precision, the resulting cold spot leads to interstitial condensation, which can rot structural decking and compromise the roof's insulation value.

A master-level audit of these facilities reveals that most failures occur at the transition points where the roof membrane meets the skylight curb. In a freezer warehouse, the curb must act as a thermal break. We utilize high-density closed-cell polyisocyanurate insulation wrapped in a vapor barrier to ensure that the structural steel of the curb does not conduct cold directly to the roof surface. Without this, the roof membrane can freeze to the curb, causing "thermal shock" cracking during seasonal shifts. Our approach focuses on a continuous air and vapor seal that treats the skylight not as a hole, but as a managed transition within the building's skin.

Implementation of high-R-value thermal breaks at the curb base to prevent condensation.
Utilization of vapor-tight seals to stop moisture migration from the warm exterior to the cold interior.
Analysis of dew point calculations to determine the necessary thickness of the curb insulation.
Evaluation of membrane elasticity to withstand the contraction cycles inherent in cold storage environments.

Engineering 200-lb Fall-Arrest Screen Anchoring

OSHA compliance for skylights requires that any opening be protected by a guardrail system or a cover. For commercial warehouses, heavy-duty security screens are the industry standard, but the engineering must account for a concentrated 200-lb fall-arrest load. This is not merely a matter of the screen's strength, but the anchoring system's ability to transfer that kinetic energy into the structural curb without causing a catastrophic failure of the roof membrane or the curb flashing. We calculate the shear force exerted on the fasteners during a fall event, ensuring that the pull-out strength of the anchors exceeds the maximum anticipated load by a safety factor of at least 2:1.

The anchoring strategy involves the use of 316-grade stainless steel fasteners driven into the structural curb, avoiding any penetration of the primary roof membrane. We employ a "distributed load" philosophy, utilizing a perimeter mounting bracket system that spreads the impact across the entire width of the curb. This prevents the screen from "punching through" the curb during a fall. Furthermore, the security screens are engineered with a heavy-gauge expanded metal mesh, welded to a rigid steel frame, ensuring that the screen does not deflect significantly, which could otherwise lead to the occupant striking the skylight glazing.

Calculation of point-load stresses on the curb's structural steel to prevent deformation.
Selection of corrosion-resistant fasteners to withstand the high-humidity environments often found near freezer vents.
Verification of anchor embedment depths according to ANSI standards for fall protection.
Integration of vibration-dampening gaskets between the screen frame and the curb to prevent fastener loosening.

Curb Flashing Elevation and Hydraulic Management

Water management at the skylight curb is the most critical aspect of the building envelope audit. In cold storage facilities, the risk of ice damming is heightened. If the curb flashing elevation is too low, meltwater from the roof can pool at the base of the curb, freeze, and then force its way under the membrane during the next thaw cycle. We mandate a minimum flashing upstand of 8 inches above the finished roof surface, ensuring that the water is shed efficiently away from the curb's critical seal. The flashing must be integrated using a "shingle-lap" technique, where every layer of material overlaps the one below it, directing water flow downward and outward.

The transition from the roof membrane to the vertical face of the curb requires a precision-engineered counter-flashing system. We utilize a reinforced flashing membrane that is heat-welded to the main field membrane, eliminating the reliance on adhesives which can fail in extreme cold. The top of the curb is capped with a heavy-duty metal flashing that is mechanically fastened and sealed with a high-performance sealant. This "top-down" approach ensures that the curb is encased in a waterproof shell, preventing any moisture from infiltrating the insulation layer and creating a thermal bridge that would compromise the freezer's efficiency.

Establishment of a minimum 8-inch vertical flashing height to prevent wind-driven rain infiltration.
Application of heat-welded membrane transitions to ensure a monolithic waterproof bond.
Installation of drip edges on the curb cap to prevent water from tracking back toward the building envelope.
Audit of slope-to-drain patterns to ensure no standing water accumulates at the curb base.

Compression Termination Bars and Thermal Gasket Integration

The final line of defense in a commercial roof audit is the termination of the membrane. In a freezer warehouse, we move away from simple bead-sealants and instead employ compression termination bars. These are heavy-duty aluminum or galvanized steel bars that are mechanically fastened over the edge of the roof membrane, "sandwiching" the material against the curb. This creates a high-pressure mechanical bond that is far superior to chemical adhesives, which often become brittle and crack in the sub-zero temperatures associated with cold storage operations. The termination bar ensures that the membrane remains taut and prevents the "peeling" effect caused by thermal expansion and contraction.

To complement the termination bar, we integrate closed-cell EPDM thermal gaskets. These gaskets are placed between the termination bar and the curb surface, providing a dual-purpose function: they act as a secondary water seal and as a thermal break. The compression of the gasket creates an airtight seal that prevents the "chimney effect," where warm, moist air from the roof surface is sucked into the cold interior of the warehouse. This level of detail in material science—combining mechanical compression with elastomeric gaskets—is what separates a standard roofing job from a master-engineered building envelope.

Use of stainless steel fasteners for termination bars to prevent galvanic corrosion.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #469

Rooftop Mechanical Unit Vibration Isolation Rails & Spring-Mounted Curb Seals on Commercial Commercial Fleet Maintenance Hangars

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Challenge of High-Output HVAC in Hangar Environments

In the context of commercial fleet maintenance hangars, the building envelope is subjected to extreme stressors that far exceed those of standard warehouse facilities. These structures typically feature massive open spans and high-volume air exchange requirements to manage exhaust fumes and climate control for oversized vehicles. The primary engineering challenge arises from the installation of high-tonnage rooftop units (RTUs) and heavy-duty exhaust fans. When these units are mounted using traditional rigid curbs, the mechanical energy generated by the compressors and blowers is transmitted directly into the roof deck. This creates a phenomenon known as harmonic vibration, which can lead to systemic failure of the waterproofing membrane.

From a master roofer's perspective, the danger is not immediate collapse, but rather the gradual degradation of the bond between the roof membrane and the substrate. Constant micro-oscillations act as a slow-motion saw, cutting through the flashing and creating hairline fractures in the sealant. Over time, these fractures allow moisture to penetrate the building envelope, leading to hidden corrosion of the structural steel decking and potential leaks that are nearly impossible to locate using standard infrared thermography due to the complex thermal mass of the hangar.

Resonance Transfer: The tendency of mechanical vibrations to match the natural frequency of the roof structure, amplifying the movement.
Membrane Fatigue: The premature aging of TPO or PVC membranes caused by constant stretching and compressing at the curb interface.
Thermal Cycling: The compounding effect of extreme temperature swings on the expansion and contraction of large-scale metal roof components.
Structural Load Distribution: The necessity of ensuring that heavy mechanical loads do not create "low spots" that collect standing water.

Implementation of Spring-Isolated Equipment Curbs

To mitigate the risks associated with harmonic vibration, Aquashield Corporate employs a sophisticated spring-mounted isolation rail system. Rather than bolting the mechanical unit directly to a rigid steel curb, we introduce a decoupling layer. This system utilizes heavy-duty helical steel springs designed to support the static load of the equipment while absorbing the dynamic energy produced during operation. By shifting the mounting strategy from a rigid connection to a floating one, we effectively break the path of vibration transmission from the mechanical unit to the roof deck.

The engineering precision required for this installation is immense. Each spring must be calibrated based on the specific weight and operating frequency of the RTU to ensure the system does not enter a state of resonance. These rails are strategically anchored into the structural steel of the building, bypassing the roof membrane where possible, or utilizing oversized load-spreading plates to prevent localized punctures. This approach ensures that the mechanical unit remains stable during high-wind events while remaining "invisible" to the roof membrane in terms of vibrational stress.

Static Deflection Control: Calculating the exact amount of spring compression required to neutralize operational vibrations.
Load-Bearing Plates: Utilizing galvanized steel plates to distribute the weight of the isolation rails across a wider surface area of the deck.
Damping Coefficients: Selecting spring materials that provide the optimal balance between support and energy absorption.
Alignment Precision: Ensuring the rails are perfectly level to prevent uneven load distribution, which could lead to uneven wear on the seals.

Fiber-Reinforced Structural Mastic and Sealant Integration

The most critical point of failure in any rooftop mechanical installation is the interface where the moving equipment meets the static roof. In a fleet hangar, a standard bead of silicone or polyurethane sealant is insufficient. The constant movement of a spring-isolated unit requires a sealant with high elongation properties and superior tear resistance. We utilize a fiber-reinforced structural mastic, which incorporates microscopic synthetic fibers into the polymer matrix. These fibers act as a structural skeleton, preventing the sealant from "stringing" or tearing under the stress of repeated harmonic oscillations.

The application process follows a rigorous multi-stage protocol. First, the substrate is prepared using a high-strength primer to ensure a chemical bond. Then, the fiber-reinforced mastic is applied in a wide, overlapping lap joint that creates a flexible "boot" around the curb. This assembly is designed to move as a single unit, accommodating both the vibration of the equipment and the natural thermal expansion of the building. By adhering to ASTM C920 standards for elastomeric sealants, we ensure that the joint maintains its watertight integrity even when subjected to extreme differential movement.

High-Elongation Polymers: Using materials capable of 500% or more elongation without losing cohesive strength.
Fiber-Reinforcement: Utilizing synthetic fibers to increase the puncture resistance and tensile strength of the mastic.
Capillary Breakage: Ensuring the sealant application prevents water from being drawn into the joint via capillary action.
Adhesion Promotion: Applying specialized primers to ensure the mastic bonds permanently to both the metal rail and the roof membrane.

Long-Term Watertight Integrity and Envelope Audit Results

The success of a building envelope is measured not by its appearance upon completion, but by its performance over a ten-year lifecycle. To verify the integrity of the spring-isolated curbs and mastic seals, Aquashield Corporate conducts a comprehensive engineering audit. This process begins with a hydrostatic flood test, where the area around the mechanical curbs is intentionally flooded to simulate extreme rain events. We monitor the underside of the deck for any signs of moisture ingress, ensuring that the fiber-reinforced seals are performing as designed.

Furthermore, we employ ultrasonic leak detection and thermal imaging to identify any voids in the sealant or areas of excessive heat buildup, which can indicate friction-related wear in the isolation springs. The results of these audits consistently show a drastic reduction in membrane fatigue compared to rigid-mount installations. By decoupling the mechanical energy from the building envelope, we extend the service life of the roof membrane and eliminate the need for frequent, costly patch repairs. The final result is a robust, watertight system that supports the heavy industrial demands of a fleet maintenance hangar while maintaining the structural integrity of the entire facility.

Hydrostatic Testing: Verifying the seal by introducing standing water to the curb interface for a period of 24 to 48 hours.
Ultrasonic Analysis: Using sound waves to detect microscopic gaps in the sealant that are invisible to the naked eye.
Thermal Mapping: Identifying cold spots that indicate moisture penetration or hot spots that indicate mechanical friction.
Lifecycle Projection: Calculating the extended lifespan of the roof membrane due to the elimination of harmonic stress.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #470

Industrial Corrosive Chemical Fume Exhaust Defense on Commercial Chemical Processing Facilitys

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Atmospheric Acid Fume Analysis and Envelope Degradation

In the high-stakes environment of a commercial chemical processing facility, the building envelope is not merely a weather barrier; it is the primary line of defense against aggressive atmospheric contaminants. During our engineering audit, we identified a recurring failure pattern centered around the exhaust plumes of industrial acid scrubbers. When sulfuric or nitric acid fumes are vented, they create a localized microclimate of extreme pH variance. These fumes, often hygroscopic in nature, attract moisture from the air to form dilute acidic condensates that settle on the roof membrane. This process initiates a chemical attack on the polymer chains of the roofing system, leading to premature oxidation and a loss of tensile strength.

The degradation typically manifests as a "chalking" effect, where the top layer of the membrane breaks down, leaving the substrate vulnerable to UV penetration and moisture ingress. From a master roofer's perspective, the failure is rarely a result of a single leak but rather a systemic breakdown of the material's chemical resistance. We evaluate these sites using ASTM D5363 standards to determine the specific chemical compatibility of the existing membrane against the facility's specific effluent. Failure to account for the "plume effect" results in a roof that may be watertight by traditional standards but is chemically unstable and prone to sudden, catastrophic embrittlement.

Assessment of pH levels in condensate runoff to determine acid concentration.
Mapping of exhaust plume trajectories to identify "high-stress" zones on the roof deck.
Evaluation of surface porosity and the rate of chemical absorption into the membrane.
Analysis of flashing integrity at the point of exhaust penetration.

Plasticizer Migration and Industrial Oil Contamination

One of the most overlooked threats in a chemical processing environment is the interaction between industrial motor oils, lubricants, and plasticized membranes, such as certain PVC (Polyvinyl Chloride) formulations. Plasticizers are the essential chemicals added to polymers to maintain flexibility and elongation. However, when these membranes are exposed to hydrocarbons or synthetic oils—either through accidental spills or aerosolized mists from processing equipment—a process known as plasticizer migration occurs. The oils act as solvents, leaching the plasticizers out of the membrane and into the contaminant layer.

The result is a devastating loss of elasticity. A membrane that was once capable of 300% elongation may suddenly drop to 50%, leading to "alligatoring" or deep stress cracking, particularly around mechanical fasteners and roof drains. In our audits, we observe that this degradation is often mistaken for UV aging. However, the chemical signature is distinct: the membrane becomes brittle and "glassy" specifically in areas where oil residue is present. This loss of flexibility means the roof can no longer accommodate the natural thermal expansion and contraction of the building's steel superstructure, leading to shear failures at the perimeter walls.

Monitoring of membrane shore hardness to quantify the loss of flexibility.
Identification of hydrocarbon-induced softening versus thermal degradation.
Evaluation of seam strength in oil-contaminated zones using shear testing.
Analysis of the "leaching effect" on underlying insulation and vapor barriers.

Material Science and Membrane Selection Matrix

Selecting the correct membrane for a chemical processing facility requires a move away from "industry standard" TPO (Thermoplastic Olefin) toward more specialized, chemically inert materials. While TPO is excellent for general commercial use, it often lacks the necessary resistance to the aggressive solvents and acid fumes found in heavy industrial processing. For facilities with high acid-fume concentrations, we advocate for the use of high-performance Fluoropolymers or specialized Modified Bitumen systems with a reinforced APP (Atactic Polypropylene) finish, which provide a denser, less permeable surface.

In zones where both acid fumes and oil contamination are present, a hybrid approach is often the most engineering-sound decision. We frequently specify a liquid-applied PMMA (Polymethyl Methacrylate) or a reinforced Polyurea coating over a base membrane. These materials create a seamless, monolithic shield that is virtually impervious to the migration of plasticizers and the corrosive nature of sulfuric acid. The key is ensuring that the transition between the primary membrane and the chemical-resistant coating is handled with precision, utilizing compatible primers that bond at a molecular level to prevent delamination under thermal stress.

Comparison of PVC, TPO, and EPDM against specific chemical resistance charts.
Utilization of PMMA liquid-applied membranes for seamless, high-abuse areas.
Implementation of reinforced APP membranes for superior puncture and chemical resistance.
Verification of material compatibility using ASTM chemical immersion testing.

Engineering the Exhaust Interface and Detailing

The most critical point of failure in any chemical facility is the interface where the exhaust ducting penetrates the roof deck. These "penetration points" are subject to extreme thermal cycling and the highest concentration of corrosive fumes. A standard flashing detail is insufficient here. We employ a redundant sealing strategy that begins with a heavy-gauge stainless steel curb, followed by a multi-stage flashing system. The goal is to eliminate any "pocket" where acid fumes can collect and stagnate, as stagnant chemicals accelerate the rate of corrosion through concentrated contact.

Our engineering standard requires the use of chemically inert sealants—specifically silicone-based or polyurethane sealants that are rated for high-temperature acid exposure. We avoid the use of standard acrylics, which can shrink and crack when exposed to industrial solvents. Furthermore, we implement a "shedding" geometry, ensuring that all flashing is sloped to move condensate away from the penetration and toward the primary drainage system. This prevents the "bathtub effect," where acidic water pools around the curb, eventually eating through the membrane and compromising the building's internal environment.

Installation of oversized stainless steel flashing to move the seal point away from the fume source.
Application of redundant, liquid-applied flashing membranes at all transition points.
Use of high-temperature, solvent-resistant sealants for all perimeter joints.
Implementation of a rigorous quarterly audit schedule to detect early-stage chemical pitting.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #471

Active Emergency Leak Catchment Tarps & Interior Production Bay Diversion on Commercial Municipal City Hall & Administrative Complexs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Forensic Analysis of Municipal Envelope Failure

In the context of a Municipal City Hall and Administrative Complex, the building envelope is not merely a shell but a complex engineering system designed to manage extreme thermal fluctuations and hydrostatic pressure. During our forensic audit of the facility, we identified a systemic failure in the primary roofing membrane, exacerbated by degraded flashing at the parapet walls and compromised penetration seals around HVAC curbings. The failure manifested as intermittent, high-volume leaks that bypassed traditional interior drainage, infiltrating the production bays and administrative archives. This type of failure is often the result of long-term UV degradation and the failure of the thermoplastic welds, leading to capillary action where water is drawn upward into the structural decking.

The complexity of municipal architecture—often featuring multiple roof levels, varying slopes, and extensive mechanical equipment—creates numerous "critical points" where water accumulation is likely. Our analysis revealed that the existing drainage system was undersized for current 100-year storm event projections, leading to ponding that exceeded the design capacity of the scuppers. This ponding created a constant hydrostatic load on the membrane, eventually forcing water through microscopic fissures in the flashing. To stabilize the environment, an immediate intervention was required to prevent the catastrophic loss of high-value municipal records and electronic infrastructure.

Identification of thermal bridging points that accelerated condensation and moisture infiltration.
Assessment of membrane tensile strength and elasticity using ASTM-standardized probe testing.
Evaluation of flashing integrity at the intersection of the roof deck and vertical masonry walls.
Mapping of interior leak patterns to determine the precise point of entry via moisture mapping technology.

Engineering the Industrial Vinyl Catchment System

When immediate membrane replacement is precluded by budget cycles or weather conditions, the deployment of an industrial-grade vinyl diverter system is the gold standard for emergency mitigation. For this project, we specified 22oz heavy-duty PVC-coated vinyl tarps, selected for their superior tensile strength and chemical resistance. Unlike standard polyethylene covers, industrial vinyl provides a non-permeable barrier that can withstand the mechanical stress of wind uplift and the weight of accumulated rainwater. The engineering goal was to create a "catchment canopy" beneath the leak source, effectively decoupling the building's interior from the failing exterior envelope.

The installation process involved the strategic suspension of these tarps using load-bearing aircraft cable and heavy-duty tensioning hardware. By calculating the slope of the interior ceiling and the projected volume of water ingress, we engineered a series of "V-shaped" troughs. This geometry ensures that water does not pool on the vinyl—which could lead to a secondary collapse due to weight—but is instead channeled rapidly toward a designated collection point. The vinyl was secured at the perimeter using reinforced grommets and industrial clamps to prevent "ballooning" during heavy precipitation events, ensuring a controlled flow of water.

Utilization of heat-welded seams on vinyl sheets to eliminate leak points at the joints.
Implementation of reinforced PVC webbing to distribute the load across the suspension points.
Calculation of maximum water load capacity to prevent structural failure of the temporary catchment.
Application of UV-stabilized materials to prevent degradation if the system is exposed to sunlight through skylights.

Strategic Water Routing and High-Value Asset Mitigation

The primary objective of the interior diversion strategy was the absolute protection of the production bay, which housed critical municipal servers and sensitive administrative equipment. Water routing was engineered using a gravity-fed system that moved moisture away from the "critical path" of high-value assets. We deployed a network of reinforced PVC conduits and flexible drainage hoses that interfaced directly with the vinyl catchment troughs. This system functioned as a temporary internal plumbing network, bypassing the saturated ceiling tiles and wall cavities to prevent the growth of mold and the degradation of interior finishes.

To ensure the system remained fail-safe, we implemented a redundant drainage strategy. Each primary diverter was paired with a secondary "overflow" trough, ensuring that if a primary hose became clogged or overwhelmed, the excess water would be routed to a secondary containment area rather than spilling onto the production floor. This approach adheres to the principles of risk mitigation in building science, where the goal is to control the water's path until it can be safely discharged outside the building envelope or into a managed sump system.

Installation of high-diameter PVC piping to handle peak flow rates during storm surges.
Strategic placement of moisture sensors to provide real-time alerts of catchment overflow.
Routing of discharge lines to exterior scuppers to prevent interior humidity spikes.
Creation of "dry zones" around electrical panels using temporary hydrophobic barriers.

Transitioning from Emergency Diversion to Permanent Envelope Stabilization

While the vinyl catchment system provided immediate relief and asset protection, the ultimate goal was the permanent restoration of the building envelope. The transition from emergency diversion to permanent repair began with a comprehensive stripping of the compromised membrane sections. Following ANSI standards for commercial roofing, we implemented a multi-layered approach to stabilization. This included the installation of a high-performance TPO (Thermoplastic Polyolefin) membrane, which was heat-welded to the substrate to create a monolithic, watertight seal. Special attention was paid to the flashing details, utilizing reinforced flashing membranes at all corners and penetrations to eliminate the risk of future capillary infiltration.

The final phase of the engineering process involved a rigorous validation audit. This included electronic leak detection (ELD) to ensure the new membrane was free of pinholes and a flood test of the most critical areas to verify that the drainage slope was functioning as intended. By moving from a reactive "catch-and-divert" posture to a proactive "seal-and-protect" engineering strategy, the Municipal City Hall complex was returned to a state of structural integrity. This case study demonstrates that the integration of industrial material science and precise drainage engineering can mitigate the risks of envelope failure in high-stakes municipal environments.

Execution of full-depth flashing replacements to ensure a watertight transition at the parapet.
Application of a high-solids modified bitumen underlayment for secondary moisture protection.
Verification of all roof penetrations using ASTM-compliant sealant and flashing boots.
Final certification of the envelope through a comprehensive infrared thermography scan.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #472

Cold-Weather Induction Welded Membrane Attachments on Commercial High-Rise Commercial Penthouse Towers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Thermal Dynamics and Substrate Interface in High-Rise Penthouse Environments

Executing a membrane installation on a high-rise commercial penthouse tower presents a unique set of atmospheric challenges that differ significantly from standard low-slope roofing. At heights exceeding 40 stories, the building envelope is subjected to extreme wind shear and the "stack effect," where internal building pressures and external wind loads create a volatile environment for membrane adhesion. In cold-weather scenarios, the primary engineering hurdle is the thermal contraction of the substrate and the membrane, which can lead to bridging or premature seam failure if not managed with precision.

The substrate interface must be meticulously audited to ensure that the surface is free of frost, moisture, and contaminants that could act as thermal insulators, thereby impeding the induction process. When temperatures drop below 32 degrees Fahrenheit, the molecular behavior of thermoplastic membranes, such as TPO or PVC, shifts, requiring a more aggressive approach to achieve a true monolithic weld. Failure to account for the dew point and the ambient temperature of the steel or concrete deck often results in "cold joints," where the membrane appears fused but lacks the structural integrity to withstand high-velocity wind uplift.

Analysis of wind-load vectors specifically targeting the penthouse parapet and mechanical penthouse corners.
Assessment of substrate temperature differentials to prevent premature cooling of the weld zone.
Evaluation of membrane elasticity and shrinkage coefficients under sub-zero conditions.
Verification of surface cleanliness to ensure maximum electromagnetic conductivity during the bonding process.

Electromagnetic Induction Plate Bonding and Tool Temperature Calibration

Unlike traditional hot-air welding, which relies on convective heat transfer, electromagnetic induction welding utilizes a high-frequency alternating current to generate heat directly within the membrane's molecular structure. This process is critical in cold-weather applications because it bypasses the atmospheric cooling that occurs when hot air is blown across a seam. The induction plate creates a localized electromagnetic field that excites the polymer chains, bringing the material to its fusion temperature almost instantaneously. However, the margin for error is razor-thin; over-heating leads to polymer degradation (scorching), while under-heating results in a lack of fusion.

Calibration of the induction tools is the most critical phase of the engineering process. We employ a rigorous calibration cycle that involves measuring the "melt window" of the specific membrane batch. This requires the use of infrared thermography to ensure that the heat is distributed uniformly across the entire width of the seam. In a high-rise environment, the tool's power output must be dynamically adjusted to compensate for the heat-sink effect of the underlying steel decking, which tends to draw heat away from the weld zone more rapidly in winter months.

Implementation of real-time thermal monitoring to maintain the fusion temperature between 350°F and 420°F depending on the polymer blend.
Utilization of precision-engineered induction plates to ensure consistent electromagnetic flux across the seam.
Calibration of weld speed to balance the dwell time with the heat input, preventing "burn-through."
Verification of the dielectric properties of the membrane to ensure optimal energy absorption.

Weighted Magnetic Cooling Clamping and Structural Integrity

The physics of a weld do not end once the heat is removed. In cold-weather high-rise applications, the rapid transition from a molten state to a frozen state can induce significant internal stresses within the seam. This rapid quenching often leads to "cupping" or shrinkage, which compromises the water-tight integrity of the building envelope. To mitigate this, we utilize a system of weighted magnetic cooling clamps. These clamps serve a dual purpose: they provide the necessary mechanical pressure to ensure a tight bond and act as a heat sink to regulate the cooling rate of the thermoplastic.

By applying a calculated load to the seam during the cooling phase, we ensure that the membrane remains flat against the substrate, eliminating any air pockets or voids that could become points of failure under wind-suction events. The magnetic nature of these clamps allows for rapid deployment and precise positioning on steel-decked penthouse towers. This controlled cooling process ensures that the polymer chains realign in a dense, structured manner, which significantly increases the shear strength of the bond and prevents the "peel-back" effect common in rushed cold-weather installations.

Application of calibrated magnetic clamps to maintain a constant pressure of 15-25 psi during the cooling cycle.
Regulation of the cooling curve to prevent the formation of brittle zones within the weld.
Elimination of seam bridging through the use of weighted stabilizers.
Sequential clamping patterns designed to distribute tension evenly across the penthouse roof plane.

Wind Resistance Analysis and Long-Term Envelope Performance

The final stage of the engineering audit focuses on the wind resistance and uplift capacity of the induction-welded system. High-rise penthouse towers are subject to extreme negative pressures, often referred to as "wind uplift," which can literally peel a roof from its attachments if the seams are not structurally sound. Our analysis follows ASTM and ANSI standards for wind-uplift testing, utilizing a vacuum-chamber simulation or a field-based pull-test to verify that the welded seams are stronger than the parent material itself. A successful weld is one where the membrane tears before the seam separates.

Long-term performance is contingent upon the stability of the building envelope's perimeter. We examine the transition points where the membrane meets the parapet walls and mechanical equipment curbs, as these are the primary points of infiltration. The use of induction welding provides a superior seal at these critical junctions compared to adhesives or tapes, which often fail due to thermal cycling. By creating a continuous, monolithic skin across the penthouse tower, we effectively eliminate the risk of water ingress and ensure that the building envelope remains resilient against the harshest winter elements.

Execution of destructive peel tests to verify the fusion depth and molecular bonding of the seams.
Calculation of the maximum wind-speed threshold based on the calculated uplift resistance of the welded plates.
Audit of the flashing and termination bars to ensure a complete seal against the building's vertical surfaces.
Long-term monitoring of the membrane's thermal expansion and contraction cycles to ensure no stress fractures develop.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #473

48-Hour Drain Bowl Hydrostatic Flood Testing & Manufacturer 20-Year NDL Audits on Commercial Regional Healthcare Medical Centers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Criticality of Envelope Integrity in Healthcare Environments

In the realm of commercial building envelope engineering, regional healthcare medical centers represent the highest stakes for moisture infiltration management. Unlike standard retail or warehouse structures, medical facilities house multi-million dollar diagnostic imaging equipment, sterile surgical suites, and critical patient care areas where a single roof leak can lead to catastrophic systemic failure. The building envelope is not merely a cover but a complex engineered system designed to manage thermal expansion, vapor transmission, and hydrostatic loads. When we approach a healthcare facility for a comprehensive audit, we are analyzing the intersection of material science and structural physics.

The objective of a high-level engineering audit is to ensure that the roofing assembly functions as a monolithic barrier. In these environments, the risk of mold growth or electrical shorts in ceiling plenums can lead to immediate facility shutdowns and regulatory sanctions. To mitigate these risks, we employ a rigorous verification process that moves beyond visual inspection, focusing instead on empirical data and stress-testing the most vulnerable points of the assembly: the penetrations and drainage points.

Prevention of interstitial condensation within high-performance insulation layers.
Protection of sensitive HVAC and medical gas piping penetrations.
Ensuring the continuity of the vapor barrier to prevent humidity spikes in sterile zones.
Verification of structural load capacities during extreme precipitation events.

Methodology of the 48-Hour Hydrostatic Flood Test

The gold standard for verifying a watertight membrane is the 48-hour hydrostatic flood test. While many contractors rely on simple hose tests, a true engineering audit requires the temporary plugging of primary drains to create a controlled reservoir. By sealing the drain bowls and introducing water to a depth of at least two inches across the roof field, we subject the membrane to a constant hydrostatic pressure that mimics a severe ponding event. This process exposes "pinholes" and seam failures that are otherwise invisible during a standard walk-through.

The technical execution requires a precise monitoring phase. We establish a baseline water level and account for the evaporation rate based on local ambient temperature and wind speed. If the water level drops beyond the calculated evaporation threshold, it indicates a breach in the envelope. This method is particularly critical in healthcare centers where complex roof geometries—such as mechanical penthouses and parapet transitions—create natural low points that are prone to stagnant water accumulation.

Installation of inflatable pneumatic plugs in primary internal drains to ensure a vacuum-tight seal.
Controlled flooding using calibrated flow meters to reach a uniform depth across the test area.
Implementation of a 48-hour observation window to allow for slow-seeping capillary leaks.
Calculation of the evaporation correction factor to differentiate between atmospheric loss and structural leakage.

Engineering Analysis of Membrane Flange Welds and Penetrations

The most frequent point of failure in a commercial roof is not the field membrane, but the transitions. In a regional medical center, the sheer volume of roof penetrations—exhaust vents, conduits, and heavy-duty HVAC curbs—creates a high probability of installation error. Our audit focuses heavily on the membrane flange welds. Whether utilizing a TPO, PVC, or modified bitumen system, the bond between the membrane and the drain flange must be a molecular fusion, not merely a mechanical adhesion.

We utilize non-destructive testing to verify the integrity of these welds. This includes probe testing and heat-sensor analysis to ensure that the welding temperature was sufficient to achieve a full fuse without scorching the polymer. A "cold weld" may look acceptable to the untrained eye but will fail under the hydrostatic pressure of a flood test. We specifically examine the "T-joints" and the flashing around the drain bowls, as these areas experience the highest stress during the building's natural thermal cycling.

Verification of weld overlap widths according to ASTM and ANSI standards.
Inspection for "fish-mouths" or wrinkles in the flashing that can create premature stress fractures.
Analysis of the sealant beads at the termination bars to ensure a redundant moisture barrier.
Examination of the flashing geometry to ensure water is shed away from the substrate and toward the drain.

The Path to the 20-Year NDL Warranty and Final Sign-Off

The culmination of the engineering audit is the transition to a 20-year No Dollar Limit (NDL) warranty. An NDL warranty is the most comprehensive guarantee in the industry, signifying that the manufacturer will cover 100% of the labor and materials for any leak regardless of the cost. For a healthcare provider, this is a critical asset management tool. However, manufacturers will not issue an NDL warranty unless the installation has been audited and certified by a third-party specialist or a master roofer who can prove the system is flawlessly integrated.

The final sign-off process is a rigorous documentation exercise. We compile the hydrostatic test results, the weld inspection logs, and the infrared thermography reports into a comprehensive close-out package. This ensures that the facility manager has a digital twin of the roof's performance data. Only after every plug is removed, every drain is verified for free-flow, and every weld is certified do we authorize the manufacturer's final warranty issuance. This disciplined approach transforms the roof from a maintenance liability into a long-term engineered asset.

Compilation of a detailed "as-built" map highlighting all tested and verified penetrations.
Submission of hydrostatic pressure retention logs to the manufacturer's technical representative.
Final verification of the drainage system's capacity to handle peak rainfall intensity.
Formal sign-off on the NDL warranty, ensuring total coverage for the 20-year lifecycle.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #474

Masonry Parapet Counterflashing Reglet Overhauls & Polyurethane Sealant Compression on Commercial University Research Laboratorys

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Engineering Audit and Failure Analysis of the Parapet Interface

In the context of high-stakes environments such as University Research Laboratories, the building envelope must function as a redundant, airtight system. During our comprehensive engineering audit of the facility, we identified a systemic failure at the masonry parapet interface. The primary catalyst for water ingress was the degradation of the original counterflashing, which had been installed as a surface-mounted strip rather than a true reglet-integrated system. This configuration allowed for capillary action, where moisture was drawn behind the metal flashing and directly into the masonry substrate, bypassing the primary waterproofing membrane.

The audit revealed that the existing mortar joints had suffered from freeze-thaw cycling, leading to micro-fissures that acted as conduits for moisture. When water penetrates these joints, it creates a hydrostatic pressure gradient that pushes moisture inward toward the interior laboratory walls. In a research environment, this is catastrophic, as it threatens sensitive instrumentation and compromises the controlled atmospheric conditions required for precise experimentation. Our analysis focused on the coefficient of thermal expansion between the masonry and the metal, noting that the lack of a proper expansion joint had caused the previous sealant to shear away from the substrate.

Identification of capillary suction occurring at the flashing-to-masonry transition.
Analysis of mortar joint porosity and the failure of legacy acrylic sealants.
Evaluation of thermal bridging across the parapet wall, accelerating condensation.
Assessment of moisture migration patterns using infrared thermography.

Precision Reglet Milling and Substrate Preparation

To rectify these failures, we implemented a rigorous reglet overhaul. A reglet is a recessed groove cut into the masonry to house the counterflashing, ensuring that the metal is physically embedded into the wall rather than merely resting against it. We utilized industrial-grade diamond-blade grinders to mill a consistent 3/8-inch by 1/2-inch channel into the mortar joints. This process requires extreme precision; cutting too deep can compromise the structural integrity of the masonry unit, while cutting too shallow prevents the flashing from seating fully, which would leave a gap for water to enter.

The preparation phase extended beyond the cut. Each reglet was vacuumed of all masonry dust and debris to ensure a clean bonding surface. We specifically targeted the mortar joints for the cut to minimize damage to the facing brick, adhering to ANSI standards for masonry repair. By grinding into the joint, we created a mechanical lock for the flashing. This method effectively terminates the water path at the highest possible point of the wall, forcing the moisture to shed outward over the roofing membrane rather than seeping into the wall assembly.

Utilization of precision diamond-blade milling to create a uniform receiving slot.
Strict adherence to mortar joint centering to preserve the structural face of the masonry.
Removal of all particulate matter via high-pressure vacuuming to ensure sealant adhesion.
Verification of reglet depth and alignment across the entire perimeter of the laboratory.

Kynar 500 Material Science and Heavy-Gauge Installation

For the counterflashing material, we specified heavy-gauge Kynar 500 (PVDF) finished aluminum. Kynar is the industry gold standard for commercial laboratories due to its exceptional resistance to UV degradation and chemical pollutants. We opted for a heavier gauge than the industry average to prevent "oil-canning"—the visible waviness that occurs in thin-gauge metals during extreme temperature fluctuations. The material science behind PVDF coatings ensures that the finish remains chemically inert and resists the corrosive effects of the urban environment and laboratory exhaust fumes.

The installation followed a strict engineering protocol. Each piece of counterflashing was custom-bent to provide a precise L-shape, allowing the vertical leg to sit snugly within the milled reglet and the horizontal leg to overlap the base flashing by a minimum of four inches. This overlap is critical; it creates a redundant shedding plane. We ensured that all joints in the metal were lapped in the direction of water flow, preventing any possibility of wind-driven rain from penetrating the seams. The result is a rigid, durable shield that integrates the roof's termination with the building's vertical envelope.

Application of Kynar 500 PVDF coatings for maximum UV and chemical resistance.
Selection of heavy-gauge aluminum to maintain dimensional stability during thermal cycles.
Implementation of a minimum 4-inch overlap onto the primary roofing membrane.
Lapping of metal seams in the direction of water shedding to eliminate ingress points.

Polyurethane Sealant Compression and Final Integration

The final and most critical step in the building envelope seal was the application of high-modulus polyurethane sealant. Unlike standard silicone, polyurethane offers superior adhesion to porous masonry and possesses the elasticity required to handle the different movement rates of metal and brick. We employed a "compression" technique, where the sealant is not merely applied as a bead on the surface but is forced into the reglet behind the Kynar flashing. This creates a pressurized gasket effect, ensuring that the sealant is compressed between the metal and the masonry, forming an airtight and watertight seal.

To achieve this, we utilized a backing rod in deeper sections to control the sealant's depth-to-width ratio, preventing "three-sided adhesion." By ensuring the sealant only bonds to the sides of the joint and not the back, we allow the material to stretch and contract like a rubber band. This prevents the sealant from tearing away from the substrate during the winter months. This comprehensive approach—combining mechanical fastening via the reglet with the chemical bonding of polyurethane—effectively seals the building envelope, stopping all wall leaks and protecting the university's critical research assets.

Application of high-modulus polyurethane for superior masonry-to-metal bonding.
Use of closed-cell backing rods to ensure proper sealant geometry and movement.
Execution of the compression method to create a permanent, gasket-like seal.
Final verification of the envelope using a flood test to confirm zero water penetration.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #475

Flute-Fill EPS/Polyiso Insulation Sizing for Standing Rib Metal Roof Retrofits on Commercial Suburban Corporate Office Parks

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Audit: Assessing Substrate Integrity in Corporate Office Parks

In the context of suburban corporate office parks, the building envelope is frequently compromised by the aging process of standing rib metal roof systems. A comprehensive engineering audit begins with a forensic analysis of the existing metal substrate to determine if the structural decking can support the additional dead load of a retrofit insulation package. We examine the gauge of the steel, the presence of oxidation, and the integrity of the existing fasteners. In these corporate environments, the goal is to transition from a corrugated profile to a flat, high-performance thermal plane without the prohibitive cost and disruption of a complete tear-off.

The audit phase focuses heavily on the dimensional consistency of the roof ribs. Because manufacturing tolerances varied across different eras of metal roofing, a "one size fits all" approach to insulation sizing is a recipe for failure. We utilize precision calipers and laser scanning to map the exact depth and width of the flutes. This ensures that the subsequent insulation layers provide a continuous thermal break, preventing the common issue of "void air" which can lead to condensation and internal corrosion of the metal panels.

Verification of existing fastener patterns to ensure compatibility with new mechanical attachments.
Assessment of the roof's slope and drainage patterns to prevent ponding on the new flat membrane.
Evaluation of existing curb heights for HVAC units to determine the necessary flashing transitions.
Testing for moisture entrapment within the existing ribs using infrared thermography.

Precision Flute-Fill Geometry and Material Science

The core of a successful retrofit lies in the precision-cut flute-fill profiles. When installing a flat single-ply membrane over a standing rib system, the "valleys" of the metal must be filled with insulation that matches the profile exactly. We utilize a hybrid approach, often combining Expanded Polystyrene (EPS) for structural stability and Polyisocyanurate (Polyiso) for its superior R-value per inch. The flute-fill pieces are CNC-cut to a tolerance of 1/8th of an inch, ensuring a friction-fit that eliminates gaps between the insulation and the metal rib.

Material selection is governed by the specific thermal requirements of the corporate facility. Polyiso is preferred for its closed-cell structure and high compressive strength, which is critical for supporting the foot traffic of maintenance personnel and the weight of heavy HVAC equipment. However, the coefficient of thermal expansion for metal is significantly higher than that of the insulation. Therefore, the flute-fill must be sized to allow for minute movements while maintaining a tight seal against the building envelope's interior boundary.

Utilization of high-density Polyiso to achieve ASTM C518 thermal resistance standards.
Application of precision-cut EPS inserts for specialized rib geometries that require higher compressive loads.
Implementation of tapered insulation strips to maintain positive drainage toward internal drains or scuppers.
Strict adherence to thickness specifications to ensure the final roof surface is perfectly level.

Eliminating Thermal Bridging and Managing Vapor Drive

Thermal bridging occurs when a highly conductive material, such as the steel of a standing rib roof, creates a path for heat to bypass the insulation. In a standard retrofit, if the ribs are not fully filled, the metal ribs act as "thermal highways," drawing heat out of the building in winter and pumping it in during summer. By implementing a full-depth flute-fill system, we effectively break this bridge. The insulation fills the entire volume of the rib, forcing the heat flow to move through the high-R-value material rather than the conductive steel.

Beyond simple heat loss, we must address vapor drive. In suburban office parks, the temperature differential between the conditioned interior and the roof surface can create a pressure gradient that pushes moisture through the assembly. If the flute-fill is improperly sized, gaps allow moist air to reach the cold metal surface, leading to interstitial condensation. This moisture can lead to mold growth and the premature degradation of the metal decking. Our engineering approach ensures a continuous, airtight seal that manages the dew point outside the structural steel.

Calculation of the total R-value to meet or exceed current IECC (International Energy Conservation Code) requirements.
Installation of vapor retarders at the lowest possible point in the assembly to prevent moisture migration.
Analysis of the "chimney effect" within empty ribs to justify the necessity of full-profile filling.
Coordination of insulation joints to prevent linear thermal leaks across the roof plane.

Single-Ply Membrane Integration and Final Envelope Seal

Once the flute-fill insulation is precision-installed and the roof surface is rendered flat, the final stage is the installation of the single-ply membrane. Depending on the client's requirements for reflectivity and durability, we typically deploy TPO (Thermoplastic Polyolefin) or PVC (Polyvinyl Chloride). These membranes are ideal for corporate office parks because they offer excellent UV resistance and can be heat-welded to create a monolithic, waterproof skin. The transition from the filled ribs to the membrane is the most critical point of the installation.

The membrane is installed over a cover board—typically a high-density fiberboard or gypsum board—which protects the Polyiso from puncture and provides a smooth surface for the membrane. We utilize a combination of mechanical fastening and full-foam adhesion to ensure the membrane does not lift during high-wind events. The final result is a seamless, flat roof system that transforms an obsolete corrugated profile into a modern, energy-efficient building envelope that significantly reduces operational costs for the corporate owner.

Heat-welding of all seams to ensure a leak-proof barrier according to ANSI standards.
Installation of reinforced flashing at all penetrations, including conduits and HVAC curbs.
Application of a white, high-albedo membrane to reduce the Urban Heat Island effect and lower cooling loads.
Final flood testing to verify the integrity of the new flat surface and drainage efficiency.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #476

Structural Plywood Deck Re-Nailing Schedules on Commercial Big-Box Retail Power Centers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Engineering Audit of Coastal Wind Uplift Vulnerabilities

In the context of Big-Box Retail Power Centers, the roof assembly is not merely a weather barrier but a critical structural diaphragm. During our recent engineering audit of a coastal retail complex, we identified a systemic failure in the original decking installation to meet current ASCE 7 wind load requirements. The massive footprint of these structures creates a significant "sail effect," where high-velocity wind events generate immense negative pressure, or uplift, across the roof plane. When the building envelope is not properly tied from the membrane down to the steel joists, the risk of catastrophic decking detachment increases exponentially.

Our analysis focused on the transition zones—specifically the perimeter edges and the corners of the building—where wind turbulence is most severe. We found that the existing smooth-shank nails lacked the necessary withdrawal resistance to counteract these vertical forces. To bring the structure up to coastal high-wind standards, a comprehensive re-nailing schedule was mandated. This process involves the strategic addition of fasteners to existing plywood sheets to ensure that the load is distributed evenly across the supporting members, preventing localized failures that could lead to a progressive collapse of the roofing system.

Evaluation of existing fastener spacing against current IBC (International Building Code) coastal standards.
Calculation of maximum allowable uplift pressures based on building height and exposure category.
Identification of "critical zones" where fastener density must be increased by 50% to 100%.
Assessment of plywood substrate integrity to ensure the wood fibers can support additional mechanical fasteners.

Fastener Mechanics and Ring-Shank Efficacy

The core of our remediation strategy centered on the transition from smooth-shank fasteners to pneumatically driven ring-shank nails. From a material science perspective, a smooth nail relies primarily on friction between the metal shaft and the wood fibers. In a high-wind event, this friction is often insufficient to prevent "pull-out" or withdrawal. Ring-shank nails, however, feature a series of ribs or rings along the shank that act as mechanical anchors. As the nail is driven into the plywood and the underlying blocking, these rings compress the wood fibers, creating a permanent mechanical interlock that significantly increases the force required for withdrawal.

The use of pneumatic nailers is non-negotiable in this application to ensure consistency of embedment. Manual hammering often leads to inconsistent nail head depth or "shiners"—nails that miss the structural member entirely. Pneumatic drivers allow for a calibrated force that ensures the head is seated flush with the plywood surface without crushing the wood fibers, which would otherwise reduce the effective grip of the fastener. This precision is critical when verifying shear withdrawal resistance, as any deviation in the angle of the nail can introduce torsional stress into the fastener, reducing its overall load-bearing capacity.

Comparison of withdrawal values: Ring-shank fasteners typically offer 30% to 50% more holding power than smooth-shank equivalents.
Analysis of "shank-to-fiber" interaction to prevent splitting in older, dried-out plywood.
Verification of fastener gauge and diameter to ensure maximum shear strength without compromising the substrate.
Implementation of hot-dipped galvanized coatings to prevent galvanic corrosion in salty coastal air.

Strategic Re-Nailing Schedules and Shear Distribution

A professional re-nailing schedule is not a random application of fasteners but a calculated engineering map. For this Power Center, we implemented a tiered fastening pattern. The "Field" area, where wind uplift is relatively stable, required a 12-inch on-center spacing. However, the "Perimeter" and "Corner" zones required a much denser 6-inch on-center schedule. This graduated approach ensures that the roof behaves as a single, monolithic unit, transferring the wind loads from the outer edges back toward the primary structural steel frames of the building.

The primary engineering goal here is the management of shear withdrawal resistance. Shear occurs when the wind attempts to slide the plywood sheets across the top of the joists. By increasing the fastener density at the edges, we create a redundant load path. If one fastener fails, the surrounding nails share the load, preventing a "zipper effect" where the decking peels away in sequence. We utilized a specialized pneumatic fastening sequence, starting from the center of the sheet and moving outward, to ensure the plywood was pulled tight against the joists, eliminating any gaps that could allow for vibration or movement during a storm.

Field Zone: 12" O.C. (On Center) to maintain general diaphragm stability.
Perimeter Zone: 6" O.C. to combat edge-lift suction forces.
Corner Zones: 4" O.C. to address the highest concentrations of turbulent wind pressure.
Verification protocol: Random pull-tests performed on 5% of all new fasteners to confirm withdrawal values.

Material Science and Long-Term Envelope Integrity

The final phase of our audit examined the chemical and physical interaction between the fasteners, the plywood, and the overlying roofing membrane. In commercial big-box environments, the roof is often subject to extreme thermal cycling. Plywood expands and contracts at a different rate than the steel joists and the TPO or EPDM membrane above. If the fasteners are too rigid or improperly spaced, this thermal movement can lead to "nail popping," where the fastener head pushes through the membrane, creating a leak point.

To mitigate this, we specified fasteners with a specific coating that prevents the "bleeding" of tannins from the plywood, which can corrode the nail over time. Furthermore, the integration of the re-nailing schedule with the building envelope's overall moisture management system ensures that the deck remains dry. A wet deck loses its structural integrity and its ability to hold fasteners, leading to a drastic reduction in shear resistance. By securing the deck properly and ensuring a seamless membrane seal, we have created a redundant system where the structural fasteners and the waterproof membrane work in tandem to protect the asset.

Evaluation of plywood grade (CDX) to ensure sufficient density for ring-shank engagement.
Analysis of thermal expansion coefficients to prevent fastener-induced membrane punctures.
Implementation of a corrosion-resistant coating schedule to extend the lifecycle of the fasteners to 25+ years.
Final verification of the "envelope seal," ensuring that the structural deck is isolated from external moisture infiltration.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #477

Life-Cycle Cost Analysis (LCCA) on Commercial Food Packaging & Cold Logistics Plants

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Engineering Audit and Envelope Vulnerabilities in Cold Logistics

In the high-stakes environment of food packaging and cold logistics, the building envelope is not merely a shell; it is a critical component of the facility's thermal machinery. A comprehensive engineering audit begins with a forensic analysis of the thermal boundary, specifically targeting the intersection of the roof assembly and the refrigerated interior. In these facilities, we frequently encounter a massive temperature differential—often exceeding 100 degrees Fahrenheit between the freezer zones and the exterior ambient air. This delta creates a powerful vapor drive that pushes moisture from the warm exterior toward the cold interior, leading to interstitial condensation if the vapor barrier is compromised.

Our audit process adheres to ASTM standards for infrared thermography and moisture detection. We look for thermal bridging at the parapet walls and roof curbs, where heat bypasses insulation, creating localized "hot spots" that invite moisture accumulation. In cold logistics plants, a failure in the roof membrane doesn't just result in a leak; it can lead to icing within the insulation layers, which permanently degrades the R-value and increases the load on the HVAC compressors. A master-level audit evaluates the integrity of the flashing and the sealants used at critical penetration points, ensuring that the building envelope functions as a monolithic barrier.

Identification of thermal bridging at structural steel penetrations and parapet caps.
Utilization of infrared scanning to map subsurface moisture trapped in polyisocyanurate insulation.
Evaluation of vapor retarder continuity to prevent interstitial condensation and mold growth.
Assessment of flashing integrity around heavy-duty refrigeration venting and exhaust systems.

Net Present Value (NPV) and Financial Modeling of Roof Assets

From a commercial engineering perspective, the decision to replace a roof system should never be based solely on the initial capital expenditure. Instead, we employ a Life-Cycle Cost Analysis (LCCA) centered on Net Present Value (NPV). NPV allows the facility owner to compare the long-term financial impact of a "tear-off and replace" strategy versus a "restore and reinforce" approach. By discounting future maintenance costs and energy savings back to today's dollars, we can determine the true economic value of a high-performance membrane system over a 20-to-30-year horizon.

When we model the NPV for a food packaging plant, we account for the escalating costs of energy and the potential for operational downtime. A low-bid, short-term replacement often carries a higher NPV cost due to more frequent repair cycles and lower thermal efficiency. Conversely, investing in a high-solids silicone or a reinforced TPO system with enhanced reflectivity (SRI) reduces the cooling load on the building. The financial model incorporates the "cost of failure," which in cold logistics includes the risk of inventory loss due to envelope breach, making the premium for a superior engineering installation a prudent hedge against catastrophic loss.

Calculation of the internal rate of return (IRR) for high-reflectivity coatings versus standard membranes.
Analysis of energy savings derived from increased R-value and reduced thermal bridging.
Comparison of short-term CAPEX savings against long-term OPEX increases in maintenance.
Modeling of the "cost of downtime" during roof replacement to justify phased restoration.

Tax Strategy and Maintenance Restoration Deductions

A critical yet often overlooked aspect of building envelope management is the strategic application of tax deductions for maintenance and restoration. Under current tax codes, there is a significant distinction between a capital improvement and a restoration. When we perform a comprehensive restoration—such as a full recovery of an existing membrane—the costs can often be categorized as maintenance or repair, allowing for a more immediate deduction of expenses rather than depreciating the asset over 39 years. This provides a massive boost to the project's immediate cash flow.

Furthermore, we analyze the potential for Section 179D deductions, which reward building owners for installing energy-efficient systems that reduce the overall carbon footprint of the facility. By upgrading the roof's thermal performance and air sealing, the building envelope is transformed into an energy-saving asset. Our engineering reports provide the necessary technical documentation to justify these deductions, proving that the restoration has resulted in a measurable reduction in energy consumption. This alignment of engineering excellence and tax strategy ensures that the facility remains profitable while maintaining a state-of-the-art envelope.

Leveraging "repair and maintenance" classifications to accelerate tax deductions.
Documenting energy efficiency gains to qualify for federal and state green-building incentives.
Utilizing cost segregation studies to separate roof components by their useful life.
Aligning restoration schedules with fiscal year-end goals to maximize tax benefits.

Sustainability, Waste Mitigation, and Warranty Extension

The modern commercial roofer must be as much an environmental steward as a technical expert. In large-scale cold logistics plants, a full tear-off can result in hundreds of tons of thermoplastic and insulation waste heading to a landfill. This is not only an environmental failure but an operational inefficiency. Our approach focuses on "recovery" systems, where we utilize advanced material science to bond new, high-performance membranes over existing, structurally sound substrates. This process eliminates the need for landfill disposal and reduces the carbon emissions associated with hauling waste.

The pinnacle of this engineering approach is the 15-year warranty extension. Achieving this level of guarantee requires more than just a quality product; it requires a rigorous adherence to surface preparation and chemical bonding standards. We employ a multi-stage cleaning and priming process that ensures the new membrane achieves a molecular bond with the existing surface, eliminating the risk of delamination. By focusing on the science of adhesion and the physics of thermal expansion and contraction, we provide a warranty that is backed by engineering data rather than just a manufacturer's promise. This ensures the building envelope remains airtight and watertight, protecting the critical cold chain infrastructure for the next decade and a half.

Reduction of landfill waste by implementing "overlay" and "recovery" engineering techniques.
Application of high-solids polymers to create a seamless, monolithic waterproof barrier.
Implementation of strict ASTM-compliant surface preparation to ensure long-term adhesion.
Extension of asset life through proactive maintenance cycles and high-performance coatings.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #478

Lightning Protection System Air Terminal Stanchion Flashing & Membrane Bonding on Commercial Semiconductor Cleanroom Fabs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Criticality of the Cleanroom Envelope and LPS Integration

In the realm of semiconductor fabrication, the building envelope is not merely a shelter but a primary component of the manufacturing equipment. A cleanroom fab operates under stringent ISO standards where a single moisture intrusion event or a microscopic particulate breach can result in millions of dollars in lost wafers and catastrophic equipment failure. When we audit these facilities, the most frequent point of failure is not the field of the roof, but the intersections where the Lightning Protection System (LPS) penetrates the membrane. The paradox of the LPS is that while it protects the facility from atmospheric electrical discharge, the installation of air terminal stanchions and grounding conductors creates thousands of potential leak paths across a massive roof area.

From an engineering perspective, the challenge lies in maintaining a continuous, monolithic water barrier while accommodating the rigid requirements of electrical grounding. The thermal movement of a large-scale industrial roof, combined with the high-heat energy released during a lightning strike, puts immense stress on the bonding agents and flashing membranes. A master roofer knows that a standard "caulk and boot" approach is insufficient for this application; instead, we require a redundant, multi-layered system that adheres to ASTM and ANSI standards for commercial roofing and electrical safety.

Integration of high-performance TPO or PVC membranes with conductive grounding elements.
Management of differential thermal expansion between steel stanchions and polymer membranes.
Prevention of capillary action at the base of air terminal conductors.
Ensuring the structural integrity of the roof deck under the concentrated loads of heavy-duty stanchion mounts.

Engineering the Stanchion Pitch-Pocket Detail

The air terminal stanchion serves as the primary collection point for lightning strikes. To prevent these stanchions from becoming conduits for water, we implement a heavy-duty pitch-pocket detailing system. Unlike a simple flashing boot, a pitch-pocket creates a reinforced, contained reservoir around the base of the stanchion, effectively isolating the penetration from the main roof field. This detail involves a custom-fabricated metal sleeve or a pre-formed polymer pocket that is fully integrated into the roof's flashing layer. The pocket is then filled with a high-grade, non-sagging sealant or a specialized pourable flashing that maintains flexibility over a wide temperature range.

The material science behind this detail is critical. We utilize liquid-applied flashing membranes that are chemically compatible with the primary roof membrane, ensuring a molecular bond rather than a mere mechanical adhesion. This prevents the "peeling" effect often seen during extreme freeze-thaw cycles. By creating a tiered transition from the roof deck to the stanchion, we ensure that water is shed away from the penetration point, utilizing gravity and surface tension to maintain a dry interface.

Utilization of reinforced flashing membranes to prevent tearing at the stanchion base.
Application of heat-welded seams for TPO/PVC systems to ensure a seamless transition.
Implementation of dual-stage sealing: a primary mechanical bond and a secondary chemical sealant.
Strict adherence to ASTM D6878 for the selection of high-performance roofing membranes.

Grounding Cable Conductor Flashings and Thermal Movement

While the stanchions are the most visible components, the grounding cables—the conductors that carry the current to the earth—present a more insidious risk to the building envelope. These cables typically exit the roof at various points, passing through the membrane. If these penetrations are not engineered for movement, the cable will act as a saw, cutting through the membrane as the building expands and contracts. This phenomenon, known as "thermal sawing," is a leading cause of undetected leaks in semiconductor fabs.

To mitigate this, we employ a "sleeve and bellows" approach. Each conductor is housed within a flexible, UV-stabilized sleeve that allows for linear movement without stressing the surrounding membrane. The interface between the sleeve and the roof is then bonded using a high-elongation flashing tape or a liquid-applied membrane that can stretch up to 300% of its original size without rupturing. This ensures that the water-tight seal remains intact regardless of the building's structural shifts or the vibration caused by HVAC equipment on the roof.

Installation of flexible transition sleeves to decouple the conductor from the membrane.
Use of high-elongation flashing materials to accommodate structural drift.
Application of UV-resistant top-coats to prevent the degradation of bonding agents.
Periodic infrared thermography to detect moisture accumulation around conductor penetrations.

Mitigating Lightning Strike Membrane Punctures and Systemic Bonding

The most violent event a roof can experience is a direct lightning strike. The plasma arc generated by a strike can reach temperatures exceeding 50,000 degrees Fahrenheit, which is more than enough to vaporize standard roofing polymers instantly. If the LPS is not properly bonded to the building envelope, the current may seek an alternative path, resulting in "side-flashing" where the electricity arcs across the roof surface, puncturing the membrane and scorching the insulation. This creates a permanent void in the envelope that is often invisible until the next rain event.

Our engineering approach focuses on creating a low-impedance path to ground that is physically isolated from the membrane where possible, but chemically bonded where necessary. We utilize conductive flashing strips that distribute the electrical load across a wider area, reducing the heat concentration at any single point. Furthermore, we ensure that the bonding between the air terminal and the stanchion is mechanically locked and then encapsulated in a high-dielectric sealant. This prevents the "blow-out" effect where the sudden expansion of air during a strike rips the flashing away from the roof deck.

Implementation of conductive bridging to prevent side-flashing arcs.
Use of dielectric sealants to isolate electrical components from the structural roof deck.
Verification of grounding continuity using micro-ohmmeter testing across all stanchion points.
Strategic placement of surge dissipation devices to protect the integrity of the building envelope.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #479

Commercial Roof Hatch Safety Grab Bars & Compression Curb Gasket Weatherproofing on Commercial Intermodal Cargo Freight Terminals

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Structural Integrity of Roof Hatch Access and OSHA Compliance

In the high-traffic environment of an intermodal cargo freight terminal, the roof hatch is more than a simple access point; it is a critical safety junction. During our engineering audit, we focused on the structural stability of ladder safety posts and the integration of grab bars. In these facilities, the constant vibration from heavy machinery and the movement of freight can lead to fastener fatigue. A master-level installation requires that safety grab bars be anchored not just to the hatch frame, but integrated into the structural curb to ensure they can withstand the full weight of a technician in emergency egress scenarios.

OSHA compliance dictates that fixed ladders must be equipped with a means of descent and ascent that minimizes the risk of a fall. We observed that many legacy installations lack the necessary lateral stability. By implementing heavy-duty, powder-coated steel safety posts that extend beyond the hatch opening, we provide a secure grip point that allows the user to transition from the ladder to the roof surface without losing three points of contact. This is essential in terminals where wind tunnels are created by large open bay doors, potentially destabilizing personnel during roof access.

Installation of ANSI-compliant safety grab bars with reinforced gusset plates to prevent torsional twisting.
Utilization of high-tensile strength fasteners with oversized washers to distribute load across the curb flashing.
Implementation of slip-resistant tread surfaces on all access platforms to mitigate moisture-related accidents.
Regular torque testing of all anchor bolts to ensure vibration from cargo cranes has not compromised the connection.

Dynamic Airflow and Counterbalanced Smoke Damper Integration

Intermodal terminals often require complex smoke management systems to maintain life safety standards. The integration of counterbalanced smoke dampers into the roof envelope presents a significant engineering challenge. These dampers must operate flawlessly during a fire event while remaining completely airtight during standard operations. The counterbalance mechanism must be precision-tuned; if the damper is too heavy, it can warp the frame, creating gaps in the building envelope. Conversely, if it is too light, wind uplift can cause "chattering," which degrades the seal over time.

From a material science perspective, the interface between the damper frame and the roof membrane is where most failures occur. We specify the use of high-temperature resistant gaskets that do not lose elasticity under extreme thermal cycling. The goal is to eliminate thermal bridging, where heat escapes the building through the metal frame of the damper, leading to condensation and internal corrosion. By utilizing a thermal break between the damper housing and the structural curb, we ensure the longevity of the roof substrate and the efficiency of the HVAC system.

Precision calibration of counterweights to ensure seamless opening and closing without stressing the roof deck.
Application of high-temperature silicone seals to prevent air leakage and moisture ingress at the damper perimeter.
Installation of reinforced flashing skirts that transition the damper frame to the main roof membrane.
Audit of actuator response times to ensure compliance with local fire codes and building safety regulations.

Advanced Curb Gasket Engineering and Compression Physics

The curb gasket is the primary line of defense against hydrostatic pressure at the roof hatch interface. In a cargo terminal, where roof surfaces are subject to heavy foot traffic and potential chemical spills, a standard bead of sealant is insufficient. We employ heavy-duty compression curb gaskets made from closed-cell EPDM or silicone. These materials are selected for their superior compression set resistance, meaning they return to their original shape after the hatch is closed, maintaining a tight seal over thousands of cycles.

The physics of the seal depends on "compression" rather than "adhesion." By creating a mechanical squeeze between the hatch cover and the curb, we create a watertight barrier that is independent of the sealant's bond strength. This is critical because the different coefficients of thermal expansion between the metal hatch and the roof membrane can cause adhesives to shear. A compression gasket absorbs this movement, acting as a shock absorber for the building envelope while preventing wind-driven rain from penetrating the interior of the terminal.

Utilization of dual-durometer gaskets to provide both a soft initial seal and a firm structural stop.
Implementation of a "compression-fit" design that ensures uniform pressure across the entire perimeter of the curb.
Selection of UV-stabilized materials to prevent ozone cracking and degradation in exposed roof environments.
Verification of gasket continuity to ensure no gaps exist at the corners where the hatch meets the curb.

Termination Bar Mechanics and Envelope Continuity

The final stage of our building envelope audit focuses on the compression termination bars used to secure the roof membrane to the vertical faces of the hatch curbs. A termination bar is not merely a trim piece; it is a mechanical fastener that ensures the membrane remains adhered under extreme wind uplift and thermal contraction. We specify heavy-duty aluminum or galvanized steel bars that are fastened at precise intervals to create a consistent "sandwich" effect, locking the membrane against the substrate.

To ensure a truly watertight finish, the termination bar must be paired with a high-grade polyurethane sealant. The sealant is applied behind the bar and then compressed as the fasteners are driven home. This creates a redundant seal: the mechanical pressure of the bar provides the primary hold, while the sealant fills the microscopic voids in the substrate. This approach eliminates the risk of "fish-mouthing" or peeling at the edges of the membrane, which is a common failure point in intermodal facilities where the roof is subject to intense atmospheric pressure changes.

Installation of termination bars with a minimum 1-inch overlap onto the vertical curb surface.
Use of stainless steel fasteners with neoprene bonded washers to prevent galvanic corrosion and leaks.
Application of a continuous bead of commercial-grade sealant behind the termination bar for a secondary water barrier.
Strict adherence to fastener spacing patterns to ensure uniform tension across the entire membrane edge.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Flat Roofing & Industrial Facility Engineering

Complete Old Roof Tear-Offs Down to Clean Wood Decking & Substrate Remediation on Commercial Logistics Distribution Hubs

The Engineering Audit and Systematic Deconstruction of Multi-Layer Assemblies

Substrate Analysis and Structural Wood Decking Evaluation

Remediation Strategies for Compromised Substrates

Final Integration and Building Envelope Stabilization

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Stripping Old Shingles Down to Clean Wood Sheathing Across Commercial Eaves on Commercial Automotive Assembly Plants

Phase I: Engineering Audit and Systematic Multi-Layer Removal

Phase II: Analyzing Fastener Withdrawal Resistance and Substrate Integrity

Phase III: Structural Remediation and Sistering of Compromised Rafters

Phase IV: Establishing Flat Decking Planes for High-Performance Membranes

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Low-VOC Cold-Applied Adhesives & HVAC Air Intake Odor Mitigation Protocols on Commercial Mission-Critical Data Centers

The Criticality of Envelope Integrity in Mission-Critical Data Centers

Material Science of Low-VOC Cold-Applied Polyurethane Bonding Agents

Air Intake Containment and Odor Mitigation Protocols

Zero-Downtime Execution and Quality Assurance Engineering

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Solar Photovoltaic Ballasted Racking Point-Load Defense & Sacrificial Slip Sheets on Commercial Cold Storage Freezer Warehouses

The Thermal Dynamics of Cold Storage Envelopes and Solar Integration

Point-Load Defense and the Mechanics of Compression Set

Sacrificial Slip Sheets and Abrasion Barrier Engineering

Pre-fabricated Target Patches and Strategic Cable Tray Routing

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

OSHA-Compliant Skylight Fall-Protection Curbs & Heavy-Duty Security Screens on Commercial Commercial Fleet Maintenance Hangars

Structural Vulnerabilities and OSHA Compliance in Hangar Envelopes

Calculating Fall-Arrest Anchoring and Load Distribution

Curb Flashing Elevation and Hydraulic Management

Compression Termination Bars and Thermal Gasket Integration

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Rooftop Mechanical Unit Vibration Isolation Rails & Spring-Mounted Curb Seals on Commercial Chemical Processing Facilitys

The Dynamics of Harmonic Vibration in Chemical Processing Facilities

Engineering Spring-Isolated Equipment Curbs

Fiber-Reinforced Structural Mastic and Sealant Integration

Audit Protocols for Watertight Integrity and Long-Term Compliance

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Industrial Corrosive Chemical Fume Exhaust Defense on Commercial Municipal City Hall & Administrative Complexs

Comprehensive Envelope Audit and Site Diagnostics

Chemical Resistance and Acid Fume Interaction

Plasticizer Retention and Material Science

Engineering the Defense: Membrane Selection and Specification

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Active Emergency Leak Catchment Tarps & Interior Production Bay Diversion on Commercial High-Rise Commercial Penthouse Towers

The Engineering Complexity of High-Rise Penthouse Envelopes

Material Science of Industrial Heavy-Duty Vinyl Diverter Systems

Strategic Deployment and Hydraulic Routing for Interior Production Bays

Permanent Remediation and Envelope Restoration Protocols

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Cold-Weather Induction Welded Membrane Attachments on Commercial Regional Healthcare Medical Centers

Thermal Volatility and the Healthcare Envelope Challenge

Electromagnetic Induction Plate Bonding and Tool Calibration

Weighted Magnetic Cooling Clamping and Joint Stabilization

Wind Resistance Analysis and ASTM Compliance

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

48-Hour Drain Bowl Hydrostatic Flood Testing & Manufacturer 20-Year NDL Audits on Commercial University Research Laboratorys

The Engineering Imperative of Research Laboratory Envelopes

Hydrostatic Flood Testing and Drain Bowl Protocols

Membrane Flange Weld Verification and Material Science

The NDL Audit and 20-Year Warranty Sign-off

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Masonry Parapet Counterflashing Reglet Overhauls & Polyurethane Sealant Compression on Commercial Suburban Corporate Office Parks

The Mechanics of Parapet Interface Failure in Corporate Office Parks

Precision Reglet Engineering and Mortar Joint Grinding

Material Science of Kynar 500 and Heavy-Gauge Metal Integration

Polyurethane Sealant Compression and Envelope Finalization

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Flute-Fill EPS/Polyiso Insulation Sizing for Standing Rib Metal Roof Retrofits on Commercial Big-Box Retail Power Centers

The Engineering Challenge of Corrugated Thermal Bridging
