Commercial Engineering Dossier #480

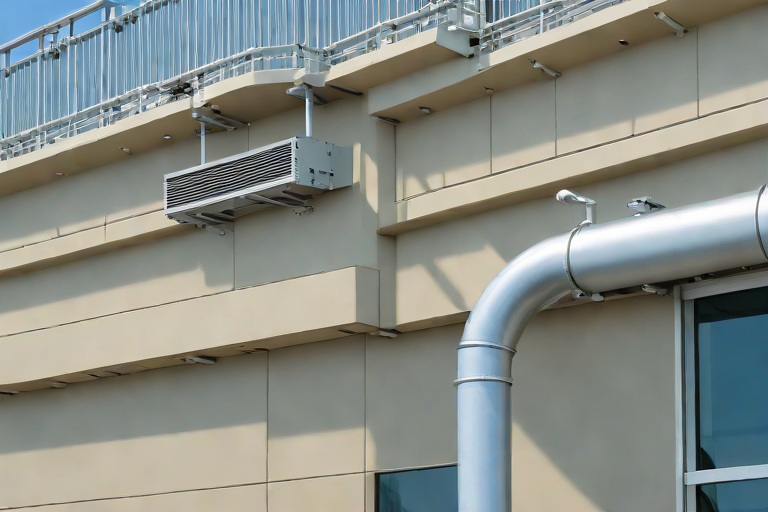

Multi-Tier Conductor Head Overflow Spillways & Freeze-Thaw Downspout Burst Defense on Commercial Port Marine Shipping Warehouses

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Hydraulic Analysis of Conductor Head Overflow Systems

In the context of port marine shipping warehouses, the roof surface area is often staggering, creating a massive catchment basin for precipitation. When dealing with these vast footprints, the conductor head serves as the critical transition point between the horizontal roof drainage plane and the vertical downspout system. A failure at this junction does not merely result in a leak; it leads to catastrophic hydrostatic loading on the roof deck, which can cause structural deflection or total collapse. To prevent this, we implement a rigorous engineering audit of the overflow relief weir calculations.

The primary objective is to ensure that the discharge capacity of the conductor head exceeds the peak rainfall intensity for the specific geographic region, adjusted for the building's runoff coefficient. We utilize the weir flow formula to determine the exact point at which water will breach the primary drain and begin spilling over the secondary relief tier. This prevents the "bathtub effect," where water rises above the flashing height and enters the building envelope through the parapet or roof-to-wall intersections.

Calculation of the coefficient of discharge to account for turbulence at the conductor head entry.
Assessment of the "head" or water depth required to trigger the secondary overflow spillway.
Verification of the roof slope to ensure positive drainage toward the conductor heads without creating stagnant ponds.
Analysis of debris accumulation rates which can effectively reduce the available orifice area of the drain.

Engineering the Multi-Tier Spillway Architecture

A standard conductor head is often insufficient for the extreme weather volatility found in marine environments. Our specification for Aquashield Corporate involves a multi-tier spillway architecture. This system acts as a failsafe mechanism. The first tier handles standard rain events, directing water efficiently into the downspout. The second and third tiers are engineered as overflow weirs, positioned at precise elevations to discharge water externally onto the apron or into a secondary collection system before the water level reaches the critical roof-deck height.

Material science is paramount here. Given the saline atmosphere of a shipping port, we mandate the use of heavy-gauge 316 stainless steel or high-performance G90 galvanized steel with a Kynar 500 finish. This prevents galvanic corrosion and ensures that the spillway edges remain sharp and effective. The geometry of the spillway must be precision-cut to avoid "curling" of the water, which can lead to water tracking back under the flashing and infiltrating the building envelope.

Implementation of stepped overflow tiers to manage varying intensities of precipitation.
Use of reinforced welding at all joints to withstand the kinetic energy of high-volume water flow.
Integration of debris screens that allow for high-flow capacity while preventing large objects from clogging the primary conductor.
Precision alignment of the spillway discharge to ensure water is thrown clear of the building facade.

Structural Integrity and Heavy-Duty Downspout Bracketry

Downspouts on massive warehouses are not merely plumbing; they are structural elements subject to immense wind loads and vibration. In a port environment, wind gusts can create a "sail effect" on large-diameter downspouts, leading to fatigue at the connection points. If a bracket fails, the resulting misalignment can cause the conductor head to pull away from the roof deck, creating a direct path for water to enter the warehouse interior.

We specify heavy-duty, oversized brackets constructed from 12-gauge steel, spaced at intervals that exceed ANSI standards for wind-load resistance. These brackets are not simply screwed into the masonry; they are anchored using stainless steel expansion bolts or chemical anchors to ensure they remain seated during seismic events or extreme storms. Furthermore, the connection between the conductor head and the downspout must be secured with a reinforced collar to prevent the pipe from "kicking out" under the weight of a full column of water.

Installation of reinforced gusset plates on brackets to distribute the load across a wider surface area of the wall.
Application of neoprene vibration isolation pads between the bracket and the building envelope to prevent mechanical wear.
Strict adherence to fastener torque specifications to prevent stripping of the substrate.
Use of oversized collars at the conductor head transition to ensure a watertight, rigid seal.

Mitigating Freeze-Thaw Cycle Bursting and Thermal Expansion

One of the most overlooked failures in commercial roofing is the freeze-thaw cycle's impact on vertical drainage. In colder climates, water can trap within the downspout, freeze, and expand. This expansion creates immense internal pressure that can burst the seams of the downspout or, more dangerously, heave the conductor head upward, breaking the waterproof seal at the roof line. This is a critical vulnerability in the building envelope that requires a proactive engineering approach.

To defend against this, we implement a "breathable" drainage strategy. By ensuring the conductor head has a slight air gap and that the downspouts are properly sloped toward the discharge point, we prevent the formation of "ice slugs." Additionally, we utilize materials with a lower coefficient of thermal expansion to ensure that the metal does not contract and pull away from the flashing during extreme temperature drops. The integration of thermal breaks at the mounting points further protects the building envelope from thermal bridging, which can lead to internal condensation and mold growth.

Installation of air-release vents at the top of the downspout run to prevent vacuum locks and pressure spikes during rapid freezing.
Application of heat-trace cabling in critical zones to maintain water flow during sub-zero temperature events.
Utilization of flexible coupling joints in long vertical runs to allow for thermal expansion and contraction without stressing the joints.
Implementation of a "bottom-up" drainage slope to ensure no standing water remains in the pipe to freeze.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #481

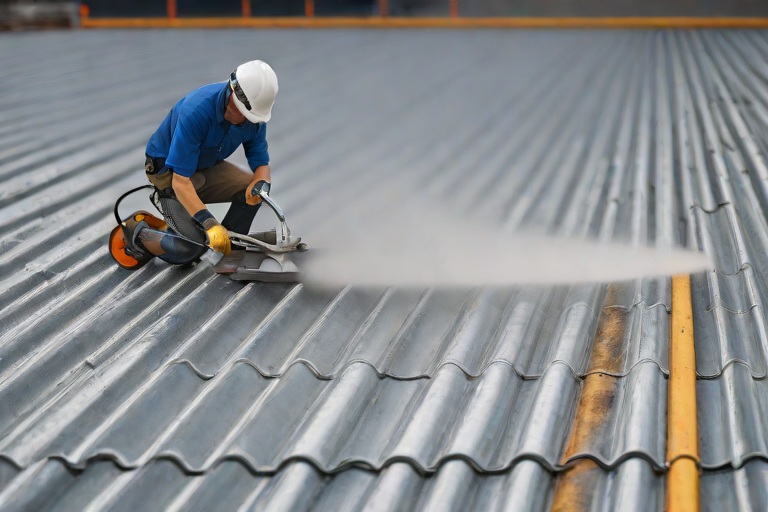

Structural Steel Deck Rust Remediation & Zinc-Rich Primer Passivation on Commercial Municipal Sports & Convention Arenas

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Diagnostic Audit and Oxidation Analysis of Large-Span Arena Envelopes

In the context of municipal sports and convention arenas, the building envelope is subjected to extreme thermal fluctuations and significant moisture loads. A comprehensive engineering audit of these structures often reveals systemic oxidation of the structural steel decking, typically occurring at the interface where the roof membrane meets the perimeter flashing or near HVAC penetration points. The primary catalyst for this degradation is interstitial condensation, where warm, humid interior air meets the cooler steel substrate, leading to the formation of microscopic water droplets that settle in the low points of the deck flutes.

From a material science perspective, this oxidation is not merely a surface aesthetic issue but a progressive loss of structural section. When iron reacts with oxygen and moisture, it forms hydrated iron oxide, which expands and pushes away from the substrate, creating a porous layer that traps further moisture. In high-traffic municipal venues, the vibration from crowd movement and mechanical equipment can accelerate the delamination of existing coatings, exposing raw steel to the elements and initiating pitting corrosion.

Identification of "hot spots" using infrared thermography to locate moisture entrapment.
Assessment of steel gauge loss to determine if the structural integrity of the flutes has been compromised.
Evaluation of existing coating failure using ASTM D3359 adhesion testing.
Analysis of the electrochemical potential of the steel to determine the rate of active corrosion.
Mapping of fastener degradation and shear strength loss in high-stress load-bearing zones.

Mechanical Surface Preparation and Decontamination Protocols

Remediation begins with the aggressive removal of all non-viable material. To achieve a surface profile suitable for high-performance primers, we adhere to the Society for Protective Coatings (SSPC) standards, specifically targeting an SSPC-SP2 or SP3 level of cleanliness. Wire-brushing is employed not simply to remove loose rust, but to break the surface tension of the oxidation layer and remove mill scale that can hide deep-seated pitting. This mechanical agitation ensures that the subsequent chemical passivation can penetrate the pores of the steel.

The process requires a meticulous approach to avoid "over-brushing," which can inadvertently thin the steel flutes further in areas already weakened by corrosion. Our technicians utilize pneumatic wire-brushing tools with calibrated pressure to ensure a consistent anchor profile. Once the mechanical removal is complete, the substrate must be chemically degreased and vacuumed to remove all carbonized dust and metallic shards, as any residual contaminant will act as a barrier between the zinc-rich primer and the steel substrate, leading to premature coating failure.

Execution of mechanical wire-brushing to remove loose scale and flaky oxidation.
Application of solvent-based degreasers to eliminate oils and atmospheric pollutants.
Verification of surface profile depth to ensure optimal mechanical bonding.
Removal of all debris from the bottom of the flutes to prevent moisture damming.
Inspection of the cleaned substrate to ensure no "shadow rust" remains in the corners of the decking.

Electrochemical Passivation via Zinc-Rich Primer Application

Once the steel is cleaned and profiled, the critical phase of passivation begins. We utilize a high-solids, organic zinc-rich primer designed for industrial-grade corrosion inhibition. Unlike standard paint, which acts as a simple physical barrier, a zinc-rich primer functions as a sacrificial anode. Because zinc is more electronegative than steel, it preferentially corrodes in the presence of moisture, effectively "sacrificing" itself to protect the underlying iron from oxidation. This galvanic protection is essential in the humid environments typical of large convention centers.

The application process involves a multi-stage pass to ensure total encapsulation of the steel flutes. We focus heavily on the "lap joints" and the edges of the decking, where capillary action often draws moisture into the structure. By achieving a high Dry Film Thickness (DFT) in these critical areas, we create a chemical shield that prevents the migration of chloride ions and other corrosive agents. This passivation process transforms the steel surface from a reactive state to a stable, protected state, extending the lifecycle of the roof deck by several decades.

Application of zinc-rich primers to provide cathodic protection to the steel.
Ensuring full coverage of the flute webs and flanges to prevent edge-creep corrosion.
Monitoring DFT (Dry Film Thickness) to meet manufacturer and engineering specifications.
Implementation of a curing window to allow the zinc particles to bond chemically with the substrate.
Verification of the passivation layer through non-destructive testing.

Structural Reinforcement and Fastener Integrity Stabilization

In cases where the audit reveals significant section loss—specifically where the steel flutes have been thinned by deep pitting—simple coating is insufficient. We implement structural reinforcement protocols to restore the load-bearing capacity of the deck. This involves the installation of reinforcement plates or the application of high-strength structural adhesives and steel shims to bridge the gaps created by oxidation. This ensures that the deck can continue to support the dead load of the roofing system and the live loads of maintenance personnel.

Finally, the integrity of the fastening system is addressed. Rust often migrates along the fastener shafts, leading to "crevice corrosion" that can cause screws or bolts to snap under thermal expansion and contraction. We replace compromised fasteners with oversized, corrosion-resistant alloys and secure them using heavy-duty sealing washers. This holistic approach ensures that the building envelope is not only chemically protected but structurally sound, preventing any potential failure of the roof assembly during extreme weather events.

Welding of reinforcement plates to flutes exhibiting more than 20% section loss.
Replacement of oxidized fasteners with galvanized or stainless steel alternatives.
Installation of oversized sealing washers to prevent moisture ingress at penetration points.
Torque-testing of all structural connections to ensure maximum shear resistance.
Final sealing of all reinforced zones with a high-performance elastomeric sealant.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #482

Hands-On Physical Roof Inspections & Boots-on-the-Roof Forensic Maintenance Audits on Commercial Multi-Family Urban Residential Towers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Forensic Philosophy of Urban High-Rise Envelope Audits

In the realm of commercial multi-family urban residential towers, the distinction between a standard roof inspection and a forensic maintenance audit is the difference between a superficial glance and a structural interrogation. A standard inspection typically relies on visual observation—identifying obvious ponding or visible punctures. However, a forensic audit, as practiced by Aquashield Corporate, treats the roof membrane as a complex engineering system subject to extreme thermal cycling, high-velocity wind uplift, and hydrostatic pressure. In urban corridors, the Venturi effect creates unpredictable pressure differentials that can fatigue fasteners and compromise flashing in ways that a visual walk-through will never detect.

The objective of a boots-on-the-roof audit is to validate the actual performance of the building envelope against its theoretical design. For residential towers, where a single leak can migrate through multiple floors of luxury units, the cost of failure is exponential. We approach the roof not as a static cover, but as a dynamic skin. This requires a deep understanding of material science, specifically the coefficient of thermal expansion in TPO, PVC, and modified bitumen, and how these materials interact with the concrete or steel decks common in high-rise construction.

Validation of manufacturer-specified installation tolerances against field reality.
Identification of latent defects in membrane welding and adhesion.
Analysis of wind-scour patterns at the building perimeter.
Evaluation of the interface between the primary membrane and secondary flashing systems.

Mechanical Integrity and the Science of Seam Probing

Automated seams, while efficient for large-scale coverage, are not infallible. The reliance on robotic welders often leads to a false sense of security among building owners. A forensic audit demands a manual, physical probe of these seams using precision hand tools. We utilize a tapered steel probe to check for "cold welds"—areas where the heat was insufficient to create a molecular bond between the membrane sheets. This is critical because a seam may look visually closed but possess zero structural integrity, allowing water to be drawn in via capillary action during a heavy rain event.

The engineering focus here is on the weld consistency. We examine the "bead" of the weld to ensure there is no excessive burning or under-welding. In multi-family towers, the roof often undergoes significant movement due to the building's sway and thermal expansion. If the seams are too rigid or improperly welded, they become the primary point of failure. By systematically probing high-stress areas, such as the transition from the field membrane to the parapet wall, we can quantify the percentage of seam failure and predict the remaining service life of the assembly.

Utilization of 1/16-inch probes to detect microscopic voids in heat-welded seams.
Testing for "fish-mouths" or wrinkles that create preferential flow paths for water.
Assessment of lap-joint overlap widths to ensure compliance with ANSI standards.
Verification of seam integrity around complex geometric transitions and HVAC curbs.

Critical Penetrations: Drain Bowls and Perimeter Cleats

The most catastrophic failures in urban towers typically occur at the points of penetration. The drain bowl is the most critical component of the roof; it is where the entire volume of storm water converges. A forensic audit involves a rigorous check of the clamping torque on the drain bowl. If the clamping ring is under-torqued, the seal is compromised; if it is over-torqued, the membrane can stretch and tear over time. We employ calibrated torque wrenches to ensure that the mechanical fastening matches the engineering specifications provided by the manufacturer.

Equally important are the perimeter cleats and edge metal fastenings. In high-rise environments, the edges of the roof are subject to the highest wind loads. We inspect the perimeter cleats for signs of "backing out" or fastener fatigue. When a cleat fails, the membrane can peel back, leading to a rapid succession of failures across the roof edge. We examine the sealant beads at the termination bars and the integrity of the counter-flashing to ensure a watertight transition. This level of detail prevents the "edge-creep" phenomenon where wind-driven rain is forced under the membrane at the perimeter.

Measurement of clamping ring torque to prevent membrane deformation or leakage.
Inspection of drain bowl gaskets for degradation or compression set.
Verification of fastener spacing and embedment depth in perimeter cleats.
Analysis of flashing continuity at the transition from horizontal field to vertical wall.

Engineering Documentation and Lifecycle Reporting

A forensic audit is only as valuable as the written report that documents the findings. For Aquashield Corporate, the report is an engineering document designed to mitigate risk for the building owner and provide a roadmap for capital expenditure. We avoid vague descriptors like "fair" or "poor," replacing them with quantified data. Every defect is mapped to a specific coordinate on the roof plan, allowing the facility manager to track the progression of wear and tear over several years. This longitudinal data is essential for determining whether a roof requires localized repair or a full systemic replacement.

The final reporting framework categorizes findings into three tiers of urgency: Critical, Major, and Minor. A critical finding is a breach in the envelope that poses an immediate threat to the interior assets. A major finding is a systemic weakness that will likely fail within 12 to 24 months. A minor finding is a maintenance item that, if ignored, will accelerate the degradation of the system. By providing this level of granularity, we transform the roof from a hidden liability into a managed asset, ensuring the long-term viability of the building envelope.

Creation of a detailed defect map linked to the original architectural roof plan.
Quantification of failed seams per square foot to determine overall system health.
Development of a prioritized remediation schedule based on risk-weighted analysis.
Provision of photographic evidence with technical annotations for every identified failure.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #483

60-Mil TPO Robotic Hot-Air Seam Fusion & Test-Cut Peel Audits on Commercial Public Transit Maintenance Bus Barns

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Thermal Dynamics of TPO Molecular Fusion

In the realm of high-performance building envelopes, the integrity of a 60-mil Thermoplastic Polyolefin (TPO) membrane is not determined by the material thickness alone, but by the molecular bond achieved during the seam fusion process. For a public transit maintenance bus barn, where the roof spans are vast and the internal environmental stressors are high, relying on standard hand-welding is an unacceptable risk. We utilize robotic hot-air fusion to ensure a consistent, repeatable thermal bridge across every linear inch of the seam.

The critical threshold for a successful weld is the achievement of a precise temperature window, typically calibrated to 1,000°F at the nozzle. This temperature is necessary to bring the TPO polymer to its melting point without inducing thermal degradation or "burning" the membrane. When the hot air is applied, the polymer chains of the overlapping sheets are agitated, allowing them to intermingle and create a monolithic bond. This process, known as molecular entanglement, transforms two separate sheets of plastic into a single, continuous waterproof barrier.

Thermal Equilibrium: Ensuring the membrane surface reaches the required temperature to allow for polymer flow.
Avoidance of Charring: Maintaining a strict ceiling on temperature to prevent the breakdown of the TPO chemical structure.
Heat Soak Consistency: Ensuring the heat penetrates the full 60-mil thickness to avoid "cold welds" at the base of the seam.
Atmospheric Compensation: Adjusting temperatures based on ambient humidity and substrate temperature to maintain a constant fusion window.

Robotic Calibration and Kinematic Precision

The transition from manual welding to robotic automation removes the variable of human fatigue and inconsistency. In our engineering audits for Aquashield Corporate, we focus on the triad of robotic calibration: nozzle pressure, travel velocity, and heat output. If any of these three variables fluctuate, the structural integrity of the seam is compromised. For instance, a slight increase in travel velocity without a corresponding increase in temperature results in an under-welded seam that may appear visually correct but will fail under wind-uplift pressure.

Nozzle pressure is equally critical; it ensures that the hot air is forced into the overlap, displacing air pockets and ensuring maximum contact between the two membrane layers. We calibrate our robotic welders to maintain a constant pressure that compresses the TPO sheets together while the air is injected. This mechanical pressure, combined with the 1,000°F airflow, creates a high-pressure fusion zone that is far superior to traditional methods.

Travel Velocity Optimization: Calibrating the robot to move at a speed that allows for maximum heat soak without overheating the material.
Pressure Roller Integration: Utilizing heavy-duty silicone rollers to flatten the seam and expel trapped gases during the fusion process.
Real-Time Telemetry: Monitoring the robotic arm's movement to ensure a perfectly straight seam path, reducing stress concentrations.
Automated Overlap Control: Ensuring a consistent 6-inch overlap to provide a redundant safety margin against edge failure.

Destructive Test-Cut Peel Audits and Validation

A visual inspection of a TPO seam is a superficial metric; the only way to truly validate a weld is through a destructive peel audit. This process involves cutting a sample strip from the completed seam and attempting to pull the two sheets apart using a calibrated force gauge. In a professional engineering audit, we are looking for "film tear." If the weld fails before the membrane tears, the weld is a failure. If the membrane itself rips while the weld remains intact, the fusion is considered a structural success.

These audits are performed according to ASTM standards, ensuring that the sample size and the pull-rate are consistent across the entire roof surface. We perform these tests at random intervals—specifically at the corners, T-joints, and long-run seams—to ensure that the robotic welder did not drift in calibration. This rigorous validation process provides the building owner with empirical evidence that the building envelope is airtight and watertight.

Film Tear Analysis: Confirming that the bond strength exceeds the tensile strength of the 60-mil TPO material.
Shear Strength Testing: Measuring the force required to separate the fused layers under lateral tension.
Sample Frequency: Implementing a strict audit schedule, such as one peel test for every 500 linear feet of welding.
Void Detection: Using the peel test to identify "cold spots" where the robotic nozzle may have been partially obstructed.

Envelope Integrity in Transit Maintenance Environments

Public transit bus barns present a unique set of challenges for building envelope specialists. These facilities are characterized by massive open bays, high ceilings, and constant vibrations from heavy machinery and vehicle movement. Furthermore, the exhaust fumes from diesel and CNG buses can introduce chemical stressors to the roof membrane. A 60-mil TPO system, when fused robotically, provides the necessary durability to withstand these specific environmental pressures.

The primary concern in these structures is wind uplift. Because bus barns have such large internal volumes, the pressure differentials during a storm can be extreme. The robotic fusion process ensures that the seams—the weakest point of any roofing system—are effectively eliminated, turning the roof into a single, massive sheet of reinforced polymer. This reduces the risk of seam blowouts and ensures that the building remains weather-tight for the duration of its intended lifecycle.

Vibration Resistance: Ensuring the weld can withstand the constant micro-oscillations caused by heavy bus traffic.
Chemical Resilience: Utilizing TPO's inherent resistance to oils and fumes common in maintenance bays.
Wind Uplift Mitigation: Creating a monolithic surface that minimizes the "parachute effect" during high-wind events.
Long-Term Lifecycle Extension: Reducing the need for frequent patching and maintenance through superior initial installation engineering.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #484

High-Solids Silicone Monolithic Coating Restoration & Albedo Reflectance on Commercial Government Secure Records Archives

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Substrate Forensic Audit and Envelope Vulnerability Assessment

The restoration of a Government Secure Records Archive presents a unique set of engineering challenges that extend far beyond standard commercial roofing. In a facility designed to house sensitive, irreplaceable physical data, the building envelope must function as a redundant moisture barrier. Our initial engineering audit revealed a degraded substrate consisting of aged modified bitumen with significant thermal fatigue and widespread micro-cracking. The primary concern was not merely the presence of leaks, but the potential for hydrostatic pressure to drive moisture into the insulation core, which could jeopardize the climate-controlled environment required for archival preservation.

A comprehensive forensic analysis was conducted using infrared thermography and electronic leak detection to map subsurface moisture pockets. The audit identified several critical failure points, including deteriorated flashing at the parapet walls and compromised penetration seals around HVAC conduits. Because the facility operates under strict security protocols, the restoration strategy required a solution that eliminated the need for invasive tear-offs, which would have exposed the interior archives to atmospheric contaminants and security breaches.

ASTM D2144 standard compliance for moisture vapor transmission analysis.
Infrared thermographic mapping to identify saturated insulation zones.
Evaluation of substrate tensile strength to ensure adequate bonding for high-solids coatings.
Assessment of existing drainage slopes to prevent ponding water during the curing phase.
Verification of parapet wall integrity and flashing compatibility.

Chemical Engineering of Bleed-Blocking Epoxy Primers

One of the most significant risks when applying a high-performance silicone system over an aged bituminous substrate is the phenomenon of "bleed-through." Residual oils, tars, and plasticizers within the old roofing membrane can migrate to the surface, chemically reacting with the new coating and causing delamination or unsightly staining. To mitigate this, we engineered a priming phase utilizing a high-solids, bleed-blocking epoxy primer. This primer acts as a chemical bridge, creating an impermeable barrier that seals the substrate and prevents the migration of contaminants into the monolithic topcoat.

The epoxy primer was selected for its superior adhesion properties and its ability to penetrate the porous surface of the weathered substrate. By creating a cross-linked molecular bond, the primer ensures that the subsequent silicone layers are anchored to a stable, non-reactive surface. This process is critical in government-grade facilities where the longevity of the roof is measured in decades rather than years. The primer not only blocks oils but also fills micro-fissures in the substrate, providing a smooth, uniform base that optimizes the application of the high-build silicone.

Utilization of solvent-free epoxy chemistry to eliminate VOC off-gassing.
Chemical neutralization of surface contaminants to ensure maximum bond strength.
Creation of a non-permeable seal to prevent moisture vapor from pushing through the coating.
Enhanced surface profile preparation to increase the mechanical grip of the silicone.
Precision application to ensure uniform coverage across complex geometric transitions.

Monolithic Silicone Application and 30-Mil Dry Film Thickness

The core of the restoration involved the application of a high-solids silicone monolithic coating, engineered to provide a seamless, waterproof membrane across the entire roof surface. Unlike traditional multi-ply systems, a monolithic coating eliminates seams—the most common point of failure in commercial roofing. We specified a 30-mil Dry Film Thickness (DFT), a rigorous standard that ensures the membrane can withstand extreme thermal expansion and contraction without cracking or losing its structural integrity.

Achieving a consistent 30-mil DFT requires precision application and a deep understanding of material science. The silicone was applied in strategic lifts, allowing the material to level and cure while maintaining the required thickness. This thickness provides a robust defense against puncture and abrasion, while the inherent elasticity of the silicone allows the roof to move in tandem with the building's structural shifts. The result is a continuous, rubberized shield that is completely impervious to standing water and UV degradation, effectively sealing the archive against all external environmental threats.

Application of high-solids silicone to achieve a seamless, monolithic surface.
Strict adherence to 30-mil DFT specifications to ensure long-term durability.
UV-stable chemical composition that prevents brittleness over time.
High elongation properties allowing for significant thermal movement.
Elimination of mechanical fasteners and seams to remove potential leak paths.

Albedo Reflectance and Zero-Downtime Operational Integration

For a government facility of this magnitude, energy efficiency and operational continuity are paramount. We focused on the "albedo effect"—the measure of the surface's ability to reflect solar radiation. By utilizing a high-reflectance white silicone, the system achieved an initial solar reflectance index (SRI) reflecting 88% of solar radiation. This drastic reduction in heat absorption lowers the thermal load on the building's HVAC systems, which is critical for maintaining the precise temperature and humidity levels required for secure records archives.

Perhaps the most impressive aspect of this engineering feat was the zero-downtime application. Because the high-solids silicone system is applied as a liquid and cures chemically, there was no need to evacuate the building or disrupt the secure operations of the archive. The application process was coordinated to ensure that security personnel and staff could continue their duties without interruption. The transition from a degraded, heat-absorbing roof to a high-albedo, waterproof envelope was completed without a single hour of facility downtime, proving that high-engineering standards and operational efficiency can coexist.

Achieving 88% solar radiation reflectance to lower internal cooling costs.
Reduction of the urban heat island effect through high-albedo surface engineering.
Zero-downtime application ensuring no disruption to secure government operations.
Significant decrease in peak roof surface temperatures during summer months.
Long-term reduction in HVAC cycling, extending the life of mechanical equipment.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #485

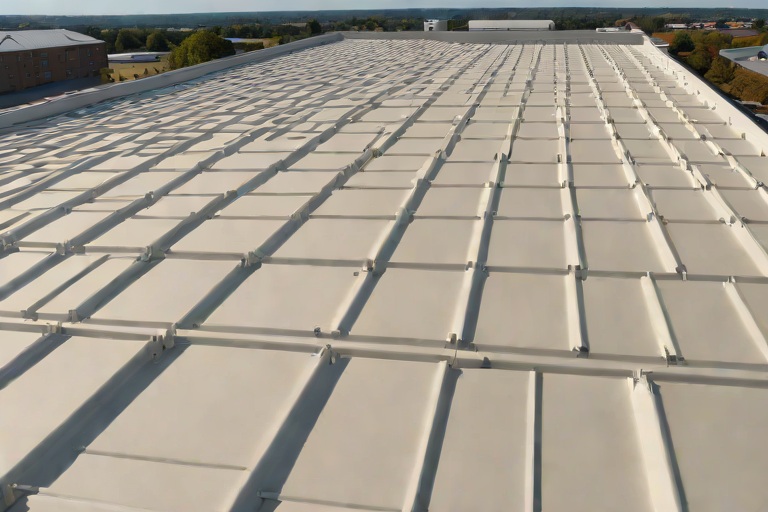

Tapered Polyiso Drainage Layouts (1/4-In/Ft) & Geometric Cricket Sizing on Commercial Pharmaceutical Production Facilitys

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Criticality of Slope Engineering in Pharmaceutical Environments

In the realm of commercial building envelope engineering, pharmaceutical production facilities represent the highest stakes in water management. These structures often house multi-million dollar clean rooms, sensitive laboratory equipment, and sterile environments where a single roof leak is not merely a maintenance issue, but a catastrophic failure of the facility's operational integrity. During our recent engineering audit for Aquashield Corporate, we identified a systemic failure in the existing drainage layout, where inadequate slope and poor routing had led to chronic ponding and hydrostatic pressure buildup against the primary membrane.

To rectify these deficiencies, we implemented a rigorous adherence to the 1/4-inch per foot (1/4"/ft) slope standard, which is the industry benchmark for ensuring positive drainage on flat roof systems. Achieving this precision requires more than just a general inclination; it demands a comprehensive understanding of the building's structural deflections and the material science of the insulation layers. In pharmaceutical settings, where HVAC equipment and heavy processing machinery create numerous roof penetrations, the risk of "dead spots" is significantly increased.

Compliance with ASTM standards for slope and drainage to ensure no standing water remains 48 hours after a rain event.
Analysis of structural camber and deflection to ensure the tapered system maintains its pitch under full dead load.
Evaluation of the vapor drive and thermal bridging at the perimeter to prevent interstitial condensation.
Integration of high-density polyisocyanurate to provide the necessary compressive strength for heavy foot-traffic maintenance zones.

Precision Tapered Polyiso Layouts and Multi-Directional Flow

The core of our remediation strategy involved the deployment of a custom-engineered tapered polyisocyanurate (polyiso) system. Unlike traditional slope-to-drain methods that rely on a single direction of flow, pharmaceutical facilities often require multi-directional slope engineering. This approach involves creating a series of intersecting planes that funnel water from the center of the roof toward the perimeter drains and internal scuppers, effectively reducing the distance water must travel across the membrane.

The engineering of these layouts requires a meticulous "cut-and-paste" precision. Each piece of tapered insulation is CNC-cut to a specific geometry, ensuring that the seams are tight and the transition between slopes is seamless. By maintaining a consistent 1/4"/ft pitch, we eliminate the risk of "birdbaths"—small depressions where water collects—which are the primary catalysts for membrane degradation and premature failure of the flashing. The use of polyiso is critical here due to its high R-value and closed-cell structure, which provides both thermal efficiency and the structural rigidity needed to maintain the engineered slope over time.

Utilization of CNC-cut tapered panels to ensure a tolerance of less than 1/8-inch across the entire roof plane.
Implementation of multi-directional "valley" routing to accelerate runoff during peak precipitation events.
Strategic placement of tapered sleepers to create a gradual transition from the main roof to the drainage points.
Verification of slope using digital laser levels and infrared thermography to identify hidden ponding areas.

Geometric Cricket Sizing and Diamond Valley Implementation

One of the most complex challenges in this audit was the management of water around large HVAC curbs and mechanical penthouses. Standard crickets—the sloped transitions used to divert water around obstacles—are often undersized or improperly angled, leading to water accumulation behind the curb. To solve this, we engineered "Diamond Valley" crickets. This geometric approach involves creating a four-sided sloped diversion system that pushes water away from the curb in all directions, effectively creating a "shed" effect that prevents water from stagnating against the flashing.

The sizing of these crickets is a matter of precise trigonometry. For a pharmaceutical facility, we cannot rely on "rule of thumb" sizing. We calculate the catchment area of the roof section feeding into the cricket and size the valley to handle the calculated gallons-per-minute flow rate. By expanding the footprint of the cricket and integrating it into the wider tapered polyiso layout, we ensure that water is diverted into the primary drainage channels without creating turbulence or overloading a single drain point.

Calculation of catchment areas to determine the necessary width and pitch of each geometric cricket.
Installation of diamond valley configurations to eliminate the "damming" effect common at mechanical curbs.
Reinforcement of cricket transitions with reinforced membrane strips to handle increased water velocity.
Coordination of cricket heights to ensure they do not interfere with the building's parapet flashing or coping.

Expansion Joint Integration and Ponding Elimination

Pharmaceutical facilities are often massive structures that require expansion joints to accommodate thermal expansion and contraction. These joints are the most vulnerable points in the building envelope. Our audit revealed that runoff was being routed directly toward these joints, increasing the risk of infiltration through the joint sealant. To mitigate this, we re-engineered the drainage layout to route all runoff away from the expansion joints, creating "dry zones" around the most critical movement points of the building.

Eliminating ponding is the final and most crucial step of the engineering process. Ponding water does not just degrade the membrane; it creates a thermal sink that reduces the R-value of the polyiso insulation and can lead to structural overloading during heavy snow or rain events. By combining the 1/4"/ft tapered layout with strategic diamond valleys and joint-diversion routing, we achieved a state of "positive drainage." This means that every square inch of the roof surface has a clear, unobstructed path to a drainage point, ensuring the long-term viability of the pharmaceutical production environment.

Routing runoff away from expansion joints using "saddle" tapered layouts to protect joint integrity.
Implementation of a final flood test to verify the absence of ponding across all roof quadrants.
Application of high-performance flashing at all transition points to ensure a monolithic water-tight seal.
Establishment of a long-term maintenance schedule based on the engineered drainage paths to prevent debris buildup in the valleys.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #486

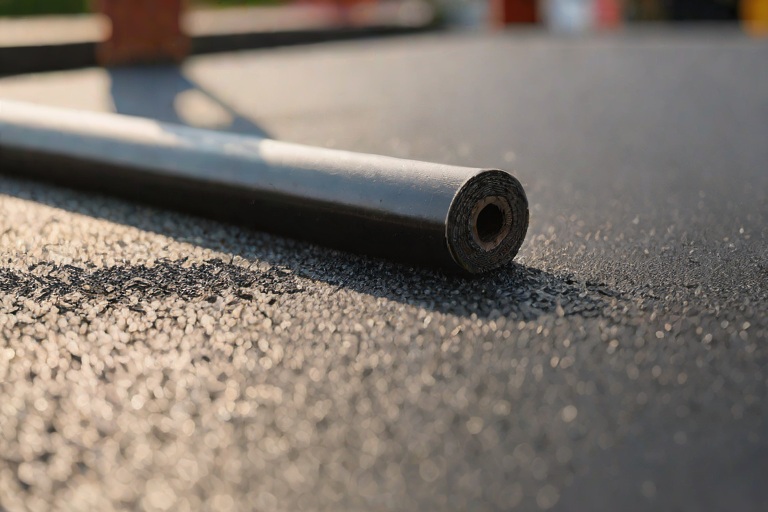

Multi-Ply SBS-Modified Bitumen Cap Sheet Application & Vapor Control on Commercial Historic Sanctuary & Education Annexs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Substrate Analysis and Building Envelope Audit of Historic Structures

The engineering audit of the Historic Sanctuary and its accompanying Education Annex reveals a complex building envelope characterized by aging masonry and legacy roofing systems. In historic commercial structures, the primary challenge is the reconciliation of original breathable materials with modern, impermeable waterproofing membranes. Our audit focused on the structural integrity of the roof deck and the presence of interstitial condensation, which often plagues sanctuary-style buildings with high vaulted ceilings and inconsistent thermal zoning.

The substrate analysis indicated a combination of decayed wood decking and early-century concrete slabs. To ensure a monolithic bond for the SBS-modified bitumen, the substrate required a comprehensive stabilization process. We identified significant thermal bridging at the parapet walls, where the transition from the vertical masonry to the horizontal roof plane created a vulnerability for water infiltration. The audit necessitated a full mapping of the moisture content within the substrate to prevent the entrapment of water vapor, which could lead to premature blistering of the new membrane.

Assessment of substrate moisture levels using infrared thermography to identify saturated zones.
Evaluation of existing flashing failures at the Education Annex junction.
Verification of structural load-bearing capacity for the multi-ply system.
Analysis of existing vapor retarders to determine the current permeability rating.
Mapping of architectural anomalies, including ornate cornices and drainage scuppers.

Cold-Applied Adhesive Shear Resistance and SBS Bonding

For this project, the selection of a cold-applied SBS-modified bitumen system was a strategic decision based on the fire-risk profile of the historic sanctuary. Unlike torch-down applications, cold-applied adhesives eliminate the risk of ignition within the old timber framing while providing superior viscoelastic properties. The engineering focus here is on shear resistance—the ability of the adhesive bond to withstand lateral forces caused by thermal expansion and contraction of the building envelope.

The shear resistance of the cold-applied adhesive is dependent on the chemical interaction between the modified bitumen and the primer. By utilizing a high-solids adhesive, we achieved a bond that exceeds the internal cohesive strength of the bitumen itself. This ensures that under extreme temperature swings, the membrane moves as a single unit with the substrate, preventing the "alligatoring" or tearing often seen in rigid systems. The material science behind SBS (Styrene-Butadiene-Styrene) allows for a high degree of elasticity, which is critical for the Education Annex, where different structural settling rates occur compared to the main sanctuary.

Application of a high-performance primer to increase the surface energy of the substrate.
Utilization of cold-process adhesives to ensure a low-VOC, fire-safe installation.
Calculation of shear stress limits to prevent membrane slippage during peak summer thermal loads.
Implementation of a "wet-set" technique to ensure 100% adhesive coverage across the field.
Testing of bond strength via random pull-tests to verify ASTM compliance.

Geometric Precision in Multi-Ply Staggered Side Laps

The integrity of a multi-ply cap sheet system is only as strong as its laps. In this application, we employed a rigorous staggered side lap protocol to eliminate continuous seams that could act as conduits for water penetration. By offsetting the joints of the second ply relative to the first, we effectively doubled the travel distance for any potential leak, significantly reducing the probability of a breach reaching the roof deck.

Precision in the overlap is not merely a matter of craftsmanship but of hydrostatic engineering. We maintained a minimum side lap of six inches and an end lap of twelve inches, ensuring that the laps were positioned to shed water according to the roof's natural slope. The application of the cap sheet required a meticulous rolling process to remove entrapped air, which otherwise creates "voids" that can collapse under the weight of standing water or snow loads. This mechanical bonding, combined with the cold-applied adhesive, creates a redundant waterproofing barrier that is essential for high-value historic assets.

Execution of a 12-inch offset for all subsequent ply joints to prevent seam alignment.
Strict adherence to a "shingle-fashion" overlap to ensure positive water shedding.
Use of heavy-duty rollers to ensure full saturation and elimination of air pockets.
Detailed flashing of all penetrations using reinforced SBS strips.
Verification of lap width through manual measurement and quality control audits.

Internal Vapor Drive Regulation and Granule Surface Protection

One of the most overlooked aspects of commercial roofing is the regulation of internal vapor drive. In a sanctuary environment, the difference in humidity and temperature between the interior and exterior creates a pressure gradient that pushes moisture upward through the roof assembly. If the system is too impermeable, this vapor condenses at the dew point within the insulation, leading to rot and structural failure. Our engineering approach involved the installation of a balanced vapor retarder that allows for a controlled release of moisture while blocking liquid water.

To protect the SBS membrane from ultraviolet (UV) degradation and mechanical wear, a high-density granule surface was specified. These granules are not merely aesthetic; they serve as a sacrificial layer that absorbs UV radiation and protects the bitumen from thermal shock. The granule embedment process was monitored to ensure uniform coverage, as "bald spots" in the granules lead to localized overheating and accelerated oxidation of the bitumen. By regulating both the internal vapor drive and the external UV exposure, we have extended the lifecycle of the building envelope by several decades.

Installation of a breathable vapor barrier to mitigate interstitial condensation.
Calculation of the vapor transmission rate to balance interior climate control and exterior sealing.
Application of ceramic-coated granules to reflect solar radiation and reduce the heat island effect.
Monitoring of granule embedment depth to ensure long-term UV resistance.
Integration of a comprehensive drainage plan to prevent ponding water from saturating the granule layer.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #487

Parapet Wall Heavy-Gauge 20-Gauge Kynar 500 Coping Cap Continuous Cleat Locking on Commercial Financial Institution Data Vaults

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Material Specification and Structural Rigidity for High-Security Enclosures

In the engineering of a financial institution data vault, the building envelope is not merely a weather barrier but a critical component of the facility's security and structural integrity. For these specific applications, we specify a heavy-gauge 20-gauge steel substrate for the coping cap. While standard commercial projects often utilize 24-gauge or 22-gauge materials, the 20-gauge specification provides the necessary rigidity to resist deformation under extreme wind loads and prevents the "oil-canning" effect common in thinner metals. This increased thickness ensures that the parapet wall remains a formidable barrier, maintaining the precise geometry required for a seamless fit over the vault's reinforced concrete masonry units.

The selection of a Kynar 500 (PVDF) finish is non-negotiable for a project of this magnitude. Kynar 500 is a high-performance fluoropolymer coating that offers superior resistance to ultraviolet radiation, atmospheric pollutants, and chemical corrosive agents. In the context of a data vault, where the roof may be subject to limited maintenance access and extreme environmental exposure, the chemical stability of the PVDF resin ensures that the color and protective properties do not degrade over a thirty-year lifecycle. This coating prevents the oxidation of the heavy-gauge steel, ensuring that the structural thickness of the metal is not compromised by rust or pitting.

20-Gauge Steel: Provides maximum structural stiffness and resistance to mechanical impact.
Kynar 500 Finish: Ensures long-term UV stability and prevents surface degradation.
Substrate Compatibility: Engineered to interface with high-density concrete parapet walls.
Corrosion Resistance: High-performance coating prevents oxidation in high-humidity environments.

Wind Uplift Engineering and ANSI/SPRI ES-1 Compliance

The most significant failure point for parapet coping is wind-induced uplift, particularly at the corners and edges where the Venturi effect creates localized low-pressure zones. To mitigate this, our engineering audit mandates strict adherence to ANSI/SPRI ES-1 standards. This standard governs the wind load resistance of metal roofing and flashing. For data vaults, which are often located in high-exposure zones, the coping cap must be engineered to withstand peak gusts without lifting or peeling. Traditional intermittent fastening—where screws are placed every 24 inches—creates "weak points" between fasteners, allowing the wind to get under the metal and peel it back like a lid.

To solve this, we implement a continuous cleat locking system. This system utilizes a heavy-duty cleat that runs the entire length of the parapet, mechanically locking the coping cap into place across its entire perimeter. By distributing the wind load across the full length of the wall rather than concentrating it at isolated screw points, we effectively eliminate the possibility of localized failure. The continuous cleat ensures that the uplift force is transferred directly into the structural masonry of the vault, providing a level of security that far exceeds standard building codes.

ANSI/SPRI ES-1: The benchmark for calculating wind uplift and ensuring fastener spacing.
Continuous Cleat Engagement: Eliminates the "gap" vulnerability found in intermittent fastening.
Load Distribution: Spreads wind pressure across the entire length of the parapet wall.
Vortex Shedding Mitigation: Reduces the turbulence at the roof edge to prevent cap lift.

Thermal Dynamics and Expansion Splice Plate Engineering

Steel is a dynamic material that expands and contracts based on ambient temperature fluctuations. In a large-scale commercial facility, the cumulative expansion of a long parapet run can be substantial. If the coping cap is fastened too rigidly, the thermal stress will manifest as buckling, warping, or the shearing of fasteners. Conversely, if the joints are too loose, water infiltration occurs, compromising the building envelope and potentially endangering the sensitive electronic equipment within the data vault below.

Our engineering solution involves the integration of precision-engineered thermal expansion splice plates. These plates are designed to allow for lateral movement while maintaining a watertight seal. We utilize a "sliding lap" configuration where the splice plate overlaps the adjacent sections of the coping cap, secured with oversized holes to permit the metal to breathe. These joints are further sealed with high-grade industrial sealants that possess a high elongation percentage, allowing them to stretch and compress without losing adhesion. This ensures that the integrity of the envelope is maintained regardless of whether the facility is experiencing a heatwave or a deep freeze.

Coefficient of Thermal Expansion: Accounted for in the spacing of all mechanical fasteners.
Sliding Lap Joints: Allows for longitudinal movement without compromising the water seal.
Oversized Fastener Holes: Prevents the steel from buckling under thermal stress.
High-Elongation Sealants: Maintains a waterproof barrier during expansion and contraction cycles.

Perimeter Peel Mitigation and Final Envelope Sealing

The most critical vulnerability in any coping system is the perimeter—the corners and the ends of the runs. This is where "perimeter peel" occurs, a phenomenon where wind pressure enters the gap between the coping and the wall, creating an internal pressure that lifts the metal from the edge inward. For a financial institution's data vault, a breach at the perimeter is an unacceptable risk. We mitigate this by utilizing custom-fabricated corner wraps and end-caps that are mechanically locked into the continuous cleat system, leaving no exposed edges for the wind to catch.

The final stage of the building envelope audit focuses on the interface between the coping cap and the underlying waterproofing membrane. We ensure that the membrane is extended up the face of the parapet and properly dressed over the top before the 20-gauge cap is installed. This "double-barrier" approach ensures that even if a mechanical fastener were to fail, the secondary membrane prevents water from entering the vault. The result is a monolithic, armored cap that protects the critical infrastructure of the data vault from the most severe meteorological conditions.

Perimeter Peel Mitigation: Mechanical locking of end-caps to prevent wind entry.
Custom Corner Wraps: Eliminates gaps at the most vulnerable points of the envelope.
Double-Barrier Protection: Integration of the roofing membrane with the metal coping.
Final Audit Protocol: Vacuum testing and visual inspection of all lap joints and seals.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #488

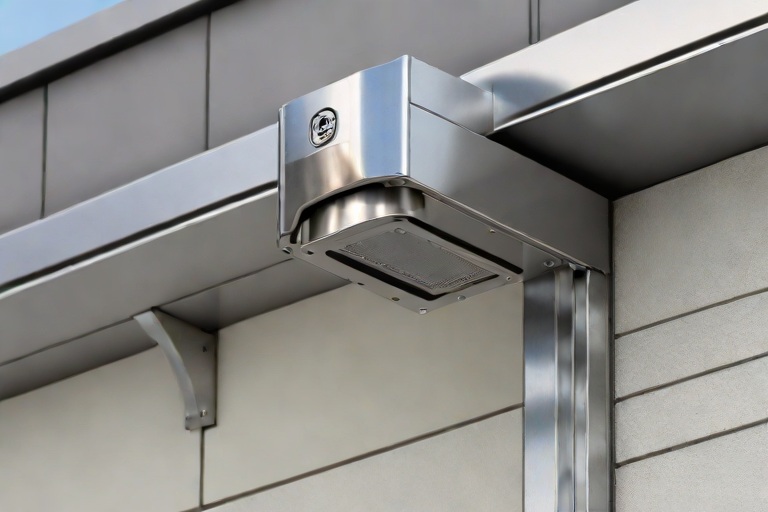

Industrial Drainage Scuppers, Overflow Weirs & Heavy Downspout Expansion Bellows on Commercial Telecommunications Central Switching Offices

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Hydraulic Head-Loss Analysis and Primary Drainage Optimization

In the engineering audit of a Telecommunications Central Switching Office (CSO), the building envelope must be treated as a critical life-safety system. These facilities house sensitive switching gear and massive power arrays that cannot tolerate even a minor moisture intrusion. The primary challenge in these structures is the management of hydraulic head-loss within the internal drainage system. Head-loss occurs when the friction between the water and the interior wall of the conductor pipe reduces the effective pressure, potentially leading to "slugging" or air-locking within the vertical runs.

To mitigate these risks, we analyze the system using the Hazen-Williams equation to determine the flow capacity relative to the pipe diameter and material roughness. In a CSO environment, where roof areas are often vast and flat, the accumulation of water during a 100-year storm event can create significant hydrostatic pressure on the roof membrane. If the primary drains are undersized or suffer from excessive friction loss due to improper jointing or internal corrosion, the resulting backup can lead to catastrophic ponding.

Evaluation of pipe roughness coefficients based on galvanized steel versus schedule 40 PVC.
Calculation of the hydraulic gradient to ensure gravity-fed systems maintain a minimum scouring velocity.
Assessment of the "critical point" where vertical conductors transition to horizontal collectors.
Analysis of the impact of debris accumulation on the coefficient of discharge.

Emergency Overflow Weir Sizing and Strategic Placement

A master-level roofing system is defined not by how it handles normal rain, but by how it fails during a system collapse. Emergency overflow weirs, or scuppers, serve as the secondary defense mechanism. In a CSO, these weirs must be sized to discharge the entire volume of a peak rain event should the primary drains become completely obstructed. The engineering focus here is the "weir crest," the lowest point of the overflow opening. If the crest is set too high, the roof will sustain dangerous loads of standing water before the weir activates; if set too low, the system may trigger prematurely, bypassing the internal filtration and drainage systems.

The sizing of these weirs is governed by the weir flow formula, calculating the discharge rate based on the width of the opening and the head of water above the crest. We specify a minimum of two inches of head above the primary drain before the overflow engages. This ensures that the primary system is fully utilized while providing a definitive safety valve to prevent structural roof collapse due to water weight. Furthermore, the placement of these weirs must be strategically aligned with the structural beams to avoid compromising the building's load-bearing capacity.

Determination of the "critical head" height to balance primary efficiency and emergency safety.
Sizing of scupper widths based on the square footage of the roof tributary area.
Installation of heavy-gauge flashing to prevent "water-lapping" back under the roof membrane.
Verification of discharge paths to ensure water is directed away from the building foundation.

Conductor Head Design and Kinetic Energy Management

The transition from the roof surface to the vertical downspout is a high-turbulence zone. In commercial telecommunications buildings, the height of the structure often results in extreme velocities as water descends. The conductor head, or "drain dome," is engineered to manage this kinetic energy. A poorly designed conductor head creates a "venturi effect," where air is trapped in the pipe, creating a bubble that slows the descent of water and increases the risk of a backup at the roof level.

Our engineering standard requires a flared, bell-shaped conductor head that promotes aeration. By allowing air to enter the pipe alongside the water, we eliminate the vacuum effect and ensure a smooth, laminar flow. Additionally, the conductor head must be seamlessly integrated into the roofing membrane using a reinforced flashing detail. In a CSO, where thermal movement is constant due to the heat generated by the internal server banks, the connection between the conductor head and the roof must be flexible enough to move without tearing the membrane, yet rigid enough to withstand the vibration of high-velocity water flow.

Implementation of aeration vents to prevent air-locking in high-rise vertical runs.
Use of stainless steel strainers to prevent organic debris from entering the conductor.
Application of high-performance sealant at the membrane-to-metal interface to prevent capillary suction.
Analysis of splash-back patterns to prevent moisture saturation of the fascia.

Thermal Expansion Bellows and Material Science in Downspouts

One of the most overlooked aspects of building envelope engineering is the thermal expansion and contraction of the drainage metals. Telecommunications offices are often constructed with large steel frames that expand and contract significantly between seasonal extremes. A vertical downspout run that spans 100 feet can experience several inches of linear movement. Without the integration of heavy-duty expansion bellows or slip joints, this movement manifests as "buckling" in the pipe or, more dangerously, as a failure of the joints, leading to internal wall leaks.

We specify the use of industrial-grade expansion bellows—flexible, reinforced connectors that act as a spring between rigid sections of the downspout. These bellows are engineered from high-density elastomers or corrugated stainless steel, depending on the environmental exposure. The material science here is critical; the bellows must resist UV degradation and ozone cracking while maintaining a watertight seal under the pressure of flowing water. By installing these slip joints at calculated intervals, we decouple the drainage system from the structural movement of the building, ensuring the integrity of the envelope remains intact over the lifecycle of the facility.

Calculation of the linear expansion coefficient for galvanized steel and aluminum conductors.
Strategic placement of expansion bellows at structural transition points and floor slabs.
Selection of bellows materials based on ASTM standards for weatherability and tensile strength.
Inspection of joint tolerances to ensure no "bottoming out" occurs during maximum contraction.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #489

AOC 581 Elastomeric Structural Mastic Detailing Around Rooftop HVAC Curbs on Commercial Heavy Manufacturing Fabrication Plants

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Analysis of Environmental Stressors in Heavy Manufacturing Envelopes

During a comprehensive building envelope engineering audit of a heavy manufacturing fabrication plant, the primary challenge is the intersection of extreme mechanical vibration and erratic thermal cycling. Unlike standard commercial warehouses, fabrication plants house high-tonnage machinery that generates constant harmonic resonance. This vibration travels through the structural steel and manifests at the roof level, specifically where heavy HVAC equipment is mounted on curbs. These curbs act as focal points for stress concentration, often leading to the premature failure of standard flashing membranes.

The building envelope must be viewed as a dynamic system rather than a static barrier. In these environments, we observe significant thermal expansion drift, where the roof deck and the HVAC curb expand and contract at different rates due to the coefficient of thermal expansion of the underlying materials. When a rigid sealant is used, the resulting shear stress inevitably leads to cohesive or adhesive failure, creating micro-fissures that allow moisture ingress via capillary action.

Harmonic vibration from heavy-duty fabrication presses causing fatigue in membrane bonds.
Differential thermal movement between reinforced concrete curbs and metal roof decking.
Chemical off-gassing from industrial processes that can degrade low-grade polymers.
High-velocity wind uplift pressures concentrated around oversized mechanical equipment.

Mitigating Mechanical Vibration and Structural Drift

To address the issue of structural drift, the engineering focus must shift toward materials with a high modulus of elasticity and superior elongation properties. The goal is to create a transition zone around the HVAC curb that can absorb the kinetic energy of the vibrating equipment without tearing. This is where the application of AOC 581 Elastomeric Structural Mastic becomes critical. By utilizing a material that remains flexible across a wide temperature range, we can accommodate the constant shifting of the curb relative to the roof field.

The failure of traditional flashing usually occurs at the 90-degree angle where the roof deck meets the vertical face of the curb. In a heavy manufacturing setting, this corner is subject to the highest amount of stress. Our engineering approach involves creating a reinforced "cushion" of elastomeric mastic that distributes the load over a wider surface area, thereby reducing the pressure on any single point of the seal. This prevents the "peeling" effect common in standard liquid-applied membranes.

Implementation of flexible transition strips to bridge the gap between rigid curb flashing and the roof membrane.
Calculation of maximum expected drift to determine the necessary width of the mastic overlap.
Use of vibration-dampening gaskets beneath the HVAC units to reduce the energy transferred to the curb.
Strategic placement of relief joints to allow for longitudinal expansion of the roofing system.

Technical Execution of Fiber-Reinforced Trowel Application

The application of AOC 581 is not a mere coating process; it is a structural installation. To ensure a watertight seal that survives the rigors of an industrial plant, a fiber-reinforced trowel application is mandatory. The inclusion of synthetic fibers within the mastic matrix provides internal reinforcement, effectively creating a composite material that resists tearing and punctures. This is far superior to brush-applied coatings, which often lack the necessary build-up to withstand ponding water or mechanical abrasion.

The master tradesman approach requires a multi-stage application process. First, the substrate must be mechanically cleaned and primed to ensure a molecular bond. The AOC 581 is then applied using a heavy-duty notched trowel, forcing the mastic into every void and crevice of the curb interface. This "wet-on-wet" technique, combined with the fiber reinforcement, eliminates air pockets and ensures that the seal is monolithic. The result is a seamless, waterproof boot that encapsulates the curb, providing a permanent barrier against hydrostatic pressure.

Substrate preparation involving abrasive cleaning to achieve a specified surface profile (CSP).
Trowel-driven embedding of the mastic to ensure 100% contact with the vertical and horizontal surfaces.
Layering of fiber-reinforced mastic to create a reinforced bridge over expansion joints.
Curing protocols that adhere to ASTM standards to ensure full polymerization of the elastomeric resin.

Validation of Watertight Integrity and Engineering Standards

The final phase of the building envelope audit is the validation of the seal's integrity. In a fabrication plant, a leak is not merely a maintenance issue; it is a risk to expensive machinery and worker safety. We employ a rigorous testing regimen to ensure that the AOC 581 detailing meets or exceeds ANSI and ASTM standards for commercial roofing. This includes the use of infrared thermography to detect hidden moisture pockets and flood testing to simulate extreme precipitation events.

Long-term durability is measured by the seal's ability to maintain its elastomeric properties over time. Because AOC 581 is engineered for structural stability, it resists the UV degradation and ozone cracking that typically plague rooftop installations. By documenting the performance of the mastic under actual operating conditions—including the peak vibration periods of the manufacturing plant—we can certify that the envelope is secure. The integration of high-performance materials with master-level craftsmanship ensures a lifecycle extension of the roof system, reducing the total cost of ownership for the facility.

ASTM E2128 standard testing for water penetration resistance at the curb interface.
Infrared scanning to verify the absence of thermal bridging or moisture entrapment.
Annual audit cycles to monitor the elongation and recovery of the elastomeric seals.
Comparison of failure rates between traditional flashing and AOC 581 structural detailing.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #490

Low-VOC Cold-Applied Adhesives & HVAC Air Intake Odor Mitigation Protocols on Commercial Logistics Distribution Hubs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Challenge of Large-Scale Logistics Hub Envelopes

In the realm of commercial building envelope engineering, the logistics distribution hub presents a unique set of challenges due to its massive footprint and the critical nature of its internal climate control. When performing roof rehabilitations or installing new membrane systems on these facilities, the primary technical risk is not merely the water-tightness of the assembly, but the atmospheric integrity of the interior space. Most distribution hubs utilize massive rooftop units (RTUs) that draw in enormous volumes of external air to maintain worker safety and equipment cooling. The proximity of these HVAC intakes to the roof deck creates a direct conduit for volatile organic compounds (VOCs) to enter the facility during the application of adhesives and primers.

Traditional solvent-based adhesives, while effective for bonding, release high concentrations of hydrocarbons that can trigger building-wide evacuations or compromise the health of personnel. For a facility operating 24/7, any downtime resulting from odor infiltration represents a catastrophic financial loss. Therefore, the engineering objective shifts from simple adhesion to a comprehensive odor mitigation strategy. This requires a fundamental reassessment of the chemical composition of the bonding agents and a rigorous protocol for air intake containment to ensure that the building envelope remains a barrier, not a bridge, for chemical fumes.

Analysis of RTU intake proximity to critical bonding zones.
Evaluation of existing substrate porosity and its impact on adhesive off-gassing.
Assessment of internal airflow patterns to predict the migration of airborne contaminants.
Calculation of permissible VOC thresholds based on OSHA and ANSI guidelines.

Material Science of Low-VOC Polyurethane Bonding Agents

To eliminate the risk of interior contamination, we transition from solvent-borne systems to advanced cold-applied, low-VOC polyurethane bonding agents. From a material science perspective, these adhesives rely on a moisture-cure or two-component chemical reaction rather than the evaporation of a solvent to achieve a bond. This distinction is critical; because there is no solvent to evaporate, the "smell" associated with traditional roofing adhesives is virtually eliminated. These polyurethane agents provide superior tensile strength and flexibility, allowing the roof assembly to withstand the thermal expansion and contraction cycles typical of large-span metal decks.

The engineering advantage of these rapid-setting adhesives lies in their ability to create a high-strength molecular bond with the substrate almost immediately upon application. By utilizing a cold-applied method, we eliminate the risks associated with hot-applied asphalt or rubberized bitumen, such as thermal shock to the insulation or the release of toxic fumes during the heating process. These materials are engineered to meet stringent ASTM standards for peel strength and shear resistance, ensuring that the membrane remains adhered even under extreme wind-uplift conditions common in open-lot logistics hubs.

Utilization of moisture-curing chemistry to reduce atmospheric off-gassing.
Enhanced elasticity to accommodate substrate movement without bond failure.
Compliance with LEED v4 standards for low-emitting materials.
Rapid-set curing profiles that reduce the window of vulnerability during installation.

HVAC Air Intake Containment and Odor Mitigation Protocols

Even with the use of low-VOC materials, a master-level engineering approach dictates a "defense-in-depth" strategy. We implement a rigorous air intake containment protocol to ensure zero-leakage of any residual odors into the facility. This begins with the installation of temporary, airtight containment barriers around each RTU intake. These barriers are constructed from heavy-duty reinforced polyethylene and are sealed to the roof deck using non-permanent adhesive gaskets. This creates a physical isolation zone, preventing the HVAC system from drawing in air from the immediate vicinity of the application area.

Furthermore, we employ a negative pressure management strategy during the application process. By utilizing portable HEPA-filtered air scrubbers and industrial blowers, we can direct the airflow away from the intakes and toward a designated exhaust point. This ensures that any minimal vapors released during the curing process are mechanically moved away from the building's respiratory system. The protocol includes continuous atmospheric monitoring using photoionization detectors (PIDs) to verify that VOC levels remain below the detection threshold at the intake mouth, providing a quantitative guarantee of air quality.

Installation of custom-fit polyethylene shrouds over all active HVAC intakes.
Deployment of high-volume air movers to create a positive pressure zone away from the building.
Real-time VOC monitoring using PID sensors at critical intake points.
Coordination with facility engineers to adjust HVAC dampers during high-risk application phases.

Execution Strategy for Zero-Downtime Building Envelope Integration

The hallmark of a professional commercial roofing operation is the ability to execute complex engineering tasks without interrupting the client's core operations. Achieving zero-downtime requires a meticulously phased execution strategy. We divide the roof into "work zones," ensuring that only a small fraction of the envelope is exposed at any given time. This phased approach allows us to maintain the integrity of the overall building envelope while focusing our containment and bonding efforts on a manageable area. The use of rapid-setting polyurethane adhesives is central to this strategy, as it allows for immediate loading and movement on the roof surface.

The final stage of the process is a comprehensive engineering audit. This involves a multi-point inspection of all bonding seams, a vacuum test of the membrane to ensure a void-free seal, and a final verification of the HVAC system's air quality. By combining advanced material science with rigorous containment protocols, we transform a potentially disruptive maintenance event into a seamless infrastructure upgrade. The result is a high-performance building envelope that meets all ANSI and ASTM standards for commercial durability while maintaining a healthy, odor-free environment for the facility's workforce.

Zonal phasing to maintain continuous facility operation.
Implementation of a "Check-Apply-Verify" workflow for every bonding section.
Post-installation vacuum testing to confirm absolute membrane adhesion.
Final handover documentation including VOC logs and substrate performance reports.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #491

Solar Photovoltaic Ballasted Racking Point-Load Defense & Sacrificial Slip Sheets on Commercial Automotive Assembly Plants

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Analysis of Ballasted Compression Set and Membrane Fatigue

In the context of a large-scale automotive assembly plant, the roof is not merely a cover but a critical component of the building envelope that must withstand extreme thermal cycling and structural vibration. The introduction of ballasted solar photovoltaic (PV) systems introduces a complex engineering challenge: the concentrated point load. Unlike penetrated systems, ballasted racking relies on concrete blocks or heavy steel frames to resist wind uplift. Over time, these loads create a "compression set" within the roof's insulation layer, typically polyisocyanurate (polyiso). When the insulation compresses, it creates a localized depression that can trap standing water and increase the mechanical stress on the overlying membrane.

From a material science perspective, the risk is not just the initial load, but the dynamic movement caused by wind-induced oscillation. In an automotive facility, where internal HVAC systems and heavy machinery create constant micro-vibrations, the racking feet can act as abrasive grinders against the membrane. If the compression set is uneven, the membrane is stretched beyond its elastic limit, leading to stress cracking or "alligatoring" around the perimeter of the racking foot. To mitigate this, we evaluate the load-bearing capacity of the roof deck and the compressive strength of the insulation to ensure the system remains within the allowable tolerances of ASTM standards.

Evaluation of PSI (pounds per square inch) at each racking contact point to prevent insulation crushing.
Assessment of membrane elongation properties to ensure the material can handle localized deformation without tearing.
Analysis of the "ponding" effect caused by compression depressions, which can lead to premature membrane degradation.
Monitoring of thermal expansion and contraction cycles that exacerbate the movement of ballasted blocks.

Engineering the Sacrificial Slip-Sheet Interface

To combat the inevitable abrasion caused by the movement of ballasted racking, the implementation of heavy-duty sacrificial slip-sheets is mandatory. A slip-sheet is a secondary, high-density polymer layer placed between the racking foot and the primary roof membrane. The objective is to shift the coefficient of friction away from the primary waterproofing layer and onto a replaceable barrier. In our audit of automotive assembly plants, we have found that standard TPO or PVC membranes are insufficient when subjected to the constant rubbing of a concrete block during a high-wind event.

The engineering specification for these slip-sheets involves utilizing reinforced ethylene propylene diene monomer (EPDM) or high-density polyethylene (HDPE) sheets. These materials are selected for their superior abrasion resistance and chemical stability. By creating a "sacrificial" interface, the building owner ensures that any wear and tear occurs on a non-critical layer. This approach adheres to the principle of redundant defense; if the slip-sheet fails, the primary membrane remains intact. Furthermore, the slip-sheets must be sized to extend beyond the footprint of the racking foot to prevent "edge-cutting," where the edge of the block slices through the membrane during a shift.

Utilization of non-adhered, oversized slip-sheets to allow for minor racking shifts without compromising the primary seal.
Selection of materials with a low coefficient of friction to reduce the shear force transferred to the roof deck.
Implementation of UV-stabilized polymers to prevent the slip-sheets from becoming brittle over a twenty-year lifecycle.
Verification of material compatibility to ensure no plasticizer migration occurs between the slip-sheet and the roof membrane.

Pre-fabricated Target Patches and Strategic Reinforcement

A critical failure point in ballasted solar installations is the reliance on the general field membrane to support concentrated loads. To solve this, we employ "target patches"—pre-fabricated, multi-layered reinforcement zones installed at every predicted point of contact. Unlike a standard patch, a target patch is an engineered assembly consisting of a reinforced membrane base, a cushioning layer, and a heat-welded perimeter. This creates a "hardened" zone on the roof that is specifically designed to absorb the energy of the ballasted block.

The installation of these patches requires precision welding and a strict adherence to ANSI standards for seam integrity. In an automotive plant environment, where the roof may be subject to chemical off-gassing or industrial pollutants, the target patch provides an additional layer of chemical resistance. By reinforcing the membrane before the racking is placed, we eliminate the risk of "point-puncture" during the installation process. This proactive reinforcement strategy transforms the roof from a passive surface into an active engineering system capable of supporting several tons of distributed solar equipment.

Application of double-layered reinforced TPO patches to increase the puncture resistance rating.
Use of electronic leak detection (ELD) to verify the integrity of target patches prior to the placement of racking.
Strategic placement of patches based on the structural blueprints of the roof's steel joists to align loads with supports.
Implementation of a "buffer zone" around each patch to prevent stress concentrations at the weld lines.

Cable Tray Routing and Envelope Integrity

The final component of the building envelope audit focuses on the routing of electrical conduits and cable trays. In many failed installations, cable trays are haphazardly adhered to the roof surface using aggressive adhesives or mechanical fasteners that create thousands of tiny penetrations. For an automotive assembly plant, this is unacceptable. The cable trays must be engineered to float above the membrane, utilizing the solar racking itself for support, thereby avoiding any direct contact with the roof surface that could lead to "water damming."

Water damming occurs when a cable tray or conduit creates a physical barrier that prevents water from reaching the primary drains. This leads to hydrostatic pressure buildup, which can force water under the membrane seams. Our specification requires the use of suspended cable trays with integrated drip edges. Furthermore, where cables must penetrate the roof to enter the building, we utilize pre-fabricated flashing boots and liquid-applied flashing membranes to ensure a monolithic seal. This eliminates the "human error" factor associated with manual caulking and ensures the envelope remains airtight and watertight.

Requirement for "floating" cable trays that are mechanically fastened to the racking, not the roof deck.
Installation of tapered transition strips under cable runs to maintain positive drainage flow toward scuppers.
Use of industrial-grade, UV-resistant conduit to prevent degradation and subsequent leaking of the electrical shielding.
Strict enforcement of "no-drill" zones around the perimeter of the roof to protect the critical flashing and parapet interfaces.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #492

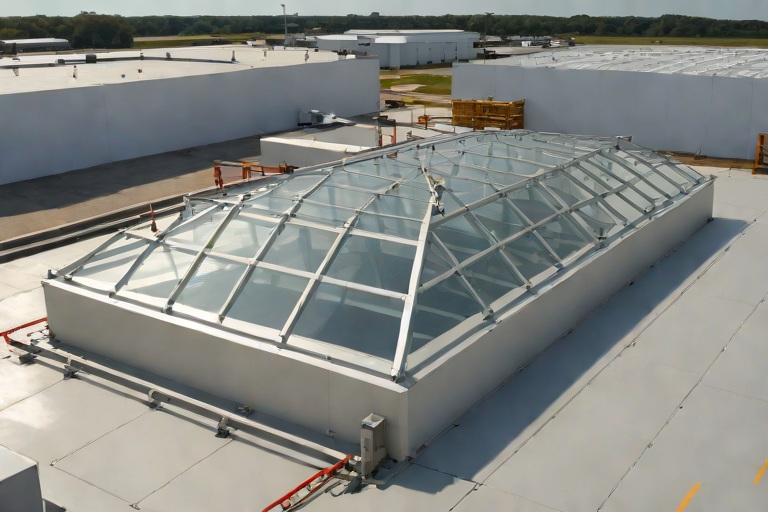

OSHA-Compliant Skylight Fall-Protection Curbs & Heavy-Duty Security Screens on Commercial Mission-Critical Data Centers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Structural Analysis of 200-lb Fall-Arrest Anchoring Systems

In the context of mission-critical data centers, the roof is not merely a cover but a primary defensive layer of the building envelope. When auditing skylight openings, the primary engineering concern is the mitigation of fall hazards during routine maintenance. OSHA and ANSI Z359 standards dictate that fall-protection systems must be capable of supporting a specific concentrated load—typically 5,000 lbs for a single person—but the security screens themselves must be anchored to withstand a minimum 200-lb concentrated impact load without structural failure or displacement.

The engineering challenge lies in the transfer of these forces from the security screen frame into the structural roof deck. In our audit, we analyze the shear strength of the fasteners and the pull-out resistance of the substrate. For data centers utilizing reinforced concrete decks or heavy-gauge steel decking, the anchoring strategy must account for the potential of dynamic loading. We specify high-tensile stainless steel fasteners with oversized washers to distribute the load across a wider surface area of the curb, preventing the "pull-through" effect during a fall event.

Calculation of fastener spacing to ensure load distribution across the entire perimeter of the skylight curb.
Verification of embedment depth for anchors in concrete substrates to exceed the required shear capacity.
Assessment of the gauge of the security screen frame to prevent deformation under 200-lb point loads.
Evaluation of the weld integrity between the screen mesh and the perimeter frame using non-destructive testing.

Curb Flashing Elevation and Water Infiltration Mitigation

Water is the ultimate enemy of a data center. A single leak over a server rack can result in millions of dollars in hardware loss and catastrophic downtime. The skylight curb is a notorious point of failure because it introduces a vertical transition in the roof plane. Our engineering approach focuses on the "critical height" of the flashing elevation. We mandate that all curb flashing extends a minimum of 8 inches above the finished roof surface to prevent wind-driven rain from being forced over the edge and under the membrane.

The flashing must be integrated into the primary roofing system—whether TPO, PVC, or EPDM—using a fully adhered method. We examine the transition from the horizontal field membrane to the vertical curb face, ensuring that the flashing is not merely draped but is mechanically and thermally fused. This creates a monolithic seal that eliminates the risk of capillary action, where water is drawn upward into the curb assembly through microscopic gaps in the sealant.

Implementation of reinforced flashing corners to prevent stress cracking during thermal expansion and contraction.
Verification of the overlap sequence to ensure all flashing laps are oriented to shed water away from the curb.
Analysis of the flashing-to-curb bond strength to resist high-velocity wind uplift common in open-area data center sites.
Inspection of the counter-flashing to ensure a secondary barrier exists against moisture penetration.

Compression Termination Bars and Mechanical Fastening

While adhesives and heat-welding provide the primary seal, the building envelope specialist knows that mechanical fastening is the only way to guarantee long-term stability. We utilize heavy-duty aluminum or stainless steel compression termination bars to lock the membrane to the curb. These bars act as a mechanical clamp, compressing the flashing against the curb substrate and ensuring that the membrane cannot peel or lift over time due to UV degradation or wind suction.

The spacing of the fasteners for these termination bars is calculated based on the wind-load requirements of the specific geographic region. In high-wind zones, we reduce the fastener spacing to 6 inches on center. This ensures that the edge of the membrane is under constant, uniform pressure, which effectively seals the interface between the roof and the skylight curb. This method eliminates the reliance on caulking or sealants, which are known to fail prematurely in extreme temperature fluctuations.

Selection of corrosion-resistant fasteners to prevent galvanic reaction between the termination bar and the curb.
Application of a continuous bead of high-grade sealant behind the termination bar for an added layer of redundancy.
Verification of the bar's rigidity to ensure no bowing occurs between fastener points.
Alignment checks to ensure the termination bar is perfectly perpendicular to the membrane edge.

Thermal Gasketry and Envelope Continuity

The final component of a high-performance skylight assembly is the management of thermal bridging and air leakage. In a data center, maintaining a precise internal temperature is critical for cooling efficiency. If the skylight curb is not properly gasketed, it becomes a thermal bridge, allowing conditioned air to escape and moisture-laden outside air to enter. This can lead to condensation forming on the interior of the curb, which may drip onto sensitive electronic equipment below.

We specify the use of closed-cell EPDM or silicone thermal gaskets. These materials are chosen for their ability to maintain a compression seal over a wide range of temperatures. The gaskets are installed between the security screen frame and the curb, creating an airtight and watertight seal that does not degrade under UV exposure. By maintaining envelope continuity, we reduce the load on the HVAC systems and eliminate the risk of interstitial condensation within the roof assembly.

Installation of continuous perimeter gaskets to prevent air infiltration at the screen-to-curb interface.
Use of thermal breaks in the curb construction to minimize heat transfer from the exterior to the interior.
Testing of the seal using smoke pens or infrared thermography to identify hidden air leaks.
Verification that gasket compression is uniform across the entire perimeter to avoid localized "cold spots."

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #493

Rooftop Mechanical Unit Vibration Isolation Rails & Spring-Mounted Curb Seals on Commercial Cold Storage Freezer Warehouses

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Dynamics of Harmonic Resonance in Cold Storage Envelopes

In the specialized field of cold storage freezer warehouses, the building envelope is subjected to extreme thermal gradients that create a volatile environment for rooftop mechanical installations. When we audit these facilities, we are not merely looking for leaks; we are analyzing the intersection of thermodynamics and structural kinetics. The primary challenge arises from the massive HVAC and refrigeration compressors required to maintain sub-zero internal temperatures. These units generate significant harmonic vibrations—low-frequency oscillations that, if transferred directly to the roof deck, act as a slow-motion jackhammer against the waterproofing membrane.

From a master roofer's perspective, the danger is not the initial installation, but the long-term fatigue caused by these vibrations. In a standard warehouse, a curb might remain static. In a freezer warehouse, the constant cycling of heavy compressors creates a dynamic load. This movement leads to "membrane creep," where the roofing material gradually stretches and thins around the perimeter of the equipment curb. Over time, this results in micro-fissures that allow moisture to penetrate the insulation, leading to catastrophic icing and thermal bridging.

Thermal Bridging: The transfer of heat from the exterior roof to the freezer interior via conductive metal curbs.
Harmonic Coupling: The synchronization of equipment vibration with the natural frequency of the roof joists.
Membrane Fatigue: The degradation of polymer-modified membranes due to constant cyclic loading.
Differential Expansion: The varying rates of expansion and contraction between the steel equipment rails and the roof substrate.

Engineering Spring-Mounted Isolation Rails for Vibration Mitigation

To combat the destructive nature of harmonic resonance, we implement spring-mounted vibration isolation rails. Rather than bolting the equipment directly to a rigid curb, the unit is seated on a series of heavy-duty helical steel springs. These springs act as a mechanical filter, decoupling the equipment's kinetic energy from the building's structural envelope. This ensures that the vibration is absorbed and dissipated within the isolation assembly rather than being transmitted into the roof deck and the underlying insulation.

The engineering specification for these rails must adhere to strict ANSI and ASTM standards for load-bearing capacity and deflection. A properly engineered isolation rail system allows for a controlled amount of movement, which prevents the rigid "shearing" action that typically destroys flashing at the curb line. By isolating the equipment, we maintain the integrity of the roof's "water-tight" seal, as the membrane is no longer being subjected to the constant rubbing and pulling forces of the machinery.

Helical Spring Isolators: Used to provide a low natural frequency and high damping capacity.
Neoprene Pads: Integrated into the rail assembly to eliminate high-frequency noise transmission.
Load Distribution Plates: Steel plates that spread the weight of the unit across a wider area of the roof deck to prevent puncture.
Deflection Limits: Calculated tolerances that ensure the unit remains stable during high-wind events or seismic activity.

Fiber-Reinforced Structural Mastic and Watertight Integrity

The most critical failure point in any commercial rooftop installation is the transition between the rigid equipment curb and the flexible roofing membrane. In cold storage environments, traditional sealants often fail because they cannot withstand the extreme temperature swings or the residual vibrations that bypass the isolation rails. This is where fiber-reinforced structural mastic becomes indispensable. Unlike standard caulking, structural mastic is a high-solids, polymer-modified compound reinforced with synthetic fibers that provide internal tensile strength.

When applying this mastic, we employ a multi-stage sealing protocol. First, the substrate is primed to ensure a chemical bond. Then, the fiber-reinforced mastic is applied in a thick, continuous bead, creating a flexible "gasket" that can expand and contract without cracking. The fibers within the mastic act as a bridge, preventing the propagation of tears and ensuring that the seal remains airtight and watertight even as the building shifts. This creates a redundant barrier that protects the thermal envelope from moisture ingress, which is the primary cause of insulation failure in freezer warehouses.

Tensile Reinforcement: The use of embedded fibers to prevent the mastic from splitting under shear stress.
Hydrostatic Resistance: The ability of the seal to prevent water penetration under standing water conditions.
Elastomeric Properties: The capacity of the material to return to its original shape after deformation.
Chemical Compatibility: Ensuring the mastic does not react negatively with TPO, PVC, or EPDM membranes.

Audit Metrics for Long-Term Envelope Sustainability

A comprehensive engineering audit of a cold storage roof requires a forensic approach to material science. We do not simply look for visible holes; we utilize infrared thermography to detect "cold spots" that indicate a breach in the thermal envelope. If a vibration isolation rail has failed or a mastic seal has degraded, the resulting air leak will manifest as a localized temperature drop on the roof surface. This allows us to pinpoint the exact location of the failure before it leads to a full-scale roof collapse or a loss of internal temperature control.

The goal of the Aquashield Corporate standard is to move from reactive maintenance to predictive engineering. By monitoring the deflection of the spring-mounted curbs and the elasticity of the fiber-reinforced seals, we can predict the lifecycle of the roofing system. A successful installation is one where the mechanical equipment and the building envelope exist in a state of equilibrium, where the energy of the machinery is completely neutralized before it ever touches the waterproofing layer.

Infrared Thermography: Detecting thermal bridges and moisture entrapment within the insulation layers.
Compression Testing: Verifying that the isolation springs are still operating within their specified load range.
Adhesion Testing: Using pull-tests to ensure the structural mastic remains bonded to the curb and membrane.
Cycle Analysis: Evaluating the frequency of equipment starts and stops to determine the rate of material fatigue.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #494

Industrial Corrosive Chemical Fume Exhaust Defense on Commercial Commercial Fleet Maintenance Hangars

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Environmental Stressors in Fleet Maintenance Enclosures

A commercial fleet maintenance hangar is not a standard industrial warehouse; it is a high-stress chemical environment that subjects the building envelope to relentless assault. The primary engineering challenge lies in the coexistence of volatile organic compounds (VOCs), petroleum-based hydrocarbons, and concentrated acid fumes resulting from battery charging stations and industrial degreasing processes. These elements create a corrosive atmosphere that can prematurely degrade standard roofing membranes, leading to systemic failure of the building envelope.

The "chimney effect" created by industrial exhaust systems concentrates these corrosive agents at the roof penetration points. As fumes are forced upward and outward, they create a localized microclimate of high acidity and heat. This accelerates the oxidation of metal flashing and the chemical breakdown of polymer-based membranes. To ensure a fifty-year design life, the engineering audit must prioritize the chemical compatibility of the roof surface with the specific exhaust profile of the facility.

Sulfuric and Nitric Acid Fumes: Generated during heavy-duty battery maintenance and chemical cleaning, leading to rapid etching of unprotected surfaces.
Petroleum Hydrocarbons: Motor oils, hydraulic fluids, and diesel particulates that can migrate via aerosolized droplets and settle on the roof membrane.
Thermal Cycling: Extreme temperature differentials between the interior heated shop and the exterior environment, causing repeated expansion and contraction of the substrate.
Aerosolized Degreasers: High-pH alkaline cleaners that can strip away protective coatings and compromise the bond between the membrane and the flashing.

Material Science and Plasticizer Retention

From a material science perspective, the selection of a roofing membrane for a chemical-heavy environment requires a deep understanding of plasticizer migration. In many flexible membranes, such as standard PVC, plasticizers are added to maintain flexibility. However, when exposed to industrial oils and acid fumes, these plasticizers can be leached out of the material. This process, known as plasticizer migration, results in the membrane becoming brittle, cracking, and eventually losing its ability to bridge thermal movements.

ASTM standards for chemical resistance dictate that a membrane must maintain its tensile strength and elongation properties even after prolonged exposure to aggressive solvents. In our audit, we examine the coefficient of thermal expansion and the chemical stability of the polymer chain. For fleet hangars, we move away from generic membranes toward high-performance, reinforced polymers that utilize a non-plasticized or highly stable chemical structure to prevent the "glassing" effect that occurs when oils penetrate the polymer matrix.

Polymer Degradation: The breaking of molecular bonds in the membrane caused by acid-catalyzed hydrolysis.
Elastomeric Recovery: The ability of the membrane to return to its original shape after thermal stress without developing micro-fissures.
Hydrocarbon Resistance: The capacity of the membrane to repel oil-based contaminants rather than absorbing them into the substrate.
ASTM D5338 Compliance: Ensuring the material meets rigorous standards for chemical resistance and durability in industrial settings.

Engineering the Exhaust Interface and Penetration Detailing

The most critical failure point in any fleet hangar is the interface between the exhaust ducting and the roof membrane. This is where the highest concentration of corrosive fumes is released. Standard flashing techniques often fail here because the sealants used are not compatible with the chemical output of the exhaust. If a sealant is not chemically inert, the acid fumes will eat through the bond, creating a direct path for moisture and chemicals to enter the roof assembly, leading to the corrosion of the structural steel decking below.

A master-level engineering approach requires the implementation of a redundant sealing system. This involves the use of chemically resistant liquid-applied flashing membranes that create a seamless, monolithic bond around the penetration. By eliminating mechanical fasteners at the immediate point of exhaust, we reduce the risk of galvanic corrosion. Furthermore, the use of oversized flashing collars ensures that the "drip line" of the exhaust condensate is moved away from the primary membrane seam, preventing localized pitting.

Monolithic Flashing: Utilizing liquid-applied polymers to eliminate seams at the most vulnerable points of the envelope.
Galvanic Isolation: Using non-conductive separators between metal ducting and the roof deck to prevent electrochemical corrosion.
Thermal Bridging Mitigation: Installing high-density insulation around penetrations to prevent condensation from forming inside the roof assembly.
Condensate Management: Engineering the slope and drainage around exhaust vents to ensure acidic runoff is neutralized and diverted.

Final Membrane Selection and Lifecycle Audit

After a comprehensive audit of the chemical load and structural requirements, the recommended specification for a fleet maintenance hangar is a reinforced, high-performance TPO or a specialized modified bitumen system with a chemical-resistant cap sheet. The goal is to create a "hardened" envelope that acts as a sacrificial barrier against the industrial environment. The selection process is based on the balance between flexibility, chemical inertness, and the ease of future maintenance.

The lifecycle of the roof is maintained through a rigorous audit schedule. We implement a quarterly chemical residue analysis, where the roof surface is tested for the accumulation of oils and acids. If the residue levels exceed a specific threshold, a neutralizing wash is performed to prevent the long-term degradation of the polymer. This proactive engineering approach shifts the paradigm from "reactive repair" to "preventative asset management," ensuring the building envelope remains impermeable to the hazardous environment it contains.

Membrane Specification: Selection of a 60-mil or 80-mil reinforced membrane with an integrated chemical-resistant scrim.
Quarterly Residue Audits: Systematic testing of the roof surface to identify areas of high chemical concentration.
Neutralization Protocols: The application of pH-balancing cleaners to remove acidic deposits from the membrane surface.
Structural Integrity Checks: Annual infrared thermography to detect subsurface moisture or delamination caused by chemical seepage.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #495

Active Emergency Leak Catchment Tarps & Interior Production Bay Diversion on Commercial Chemical Processing Facilitys

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Envelope Failure Analysis in Chemical Processing Environments

In the high-stakes environment of a commercial chemical processing facility, the building envelope is not merely a shelter but a critical component of the facility's safety and operational integrity. During our comprehensive engineering audit, we observed a systemic failure of the primary roofing membrane, likely accelerated by a combination of aggressive chemical off-gassing and extreme thermal cycling. In these facilities, the interaction between industrial exhaust and the roof surface often leads to premature plasticizer migration in PVC or TPO membranes, resulting in embrittlement and subsequent stress cracking along the seams.

The failure points were most prevalent around roof penetrations and HVAC curb flashings. We identified significant capillary action where water had bypassed the flashing details, migrating horizontally beneath the membrane before infiltrating the structural deck. This phenomenon is common in aging chemical plants where the vibration from heavy machinery creates micro-fissures in the sealant joints. Once the building envelope is breached, the risk to the interior production bay becomes an immediate liability, particularly when high-value reactors and sensitive electronic control panels are situated directly beneath the leak points.

Degradation of thermoplastic membranes due to chemical vapor exposure.
Failure of counter-flashing at parapet walls and mechanical curbs.
Thermal shock induced by rapid temperature swings between interior processing and exterior ambient conditions.
Mechanical fatigue of the roof deck caused by industrial-scale vibration.

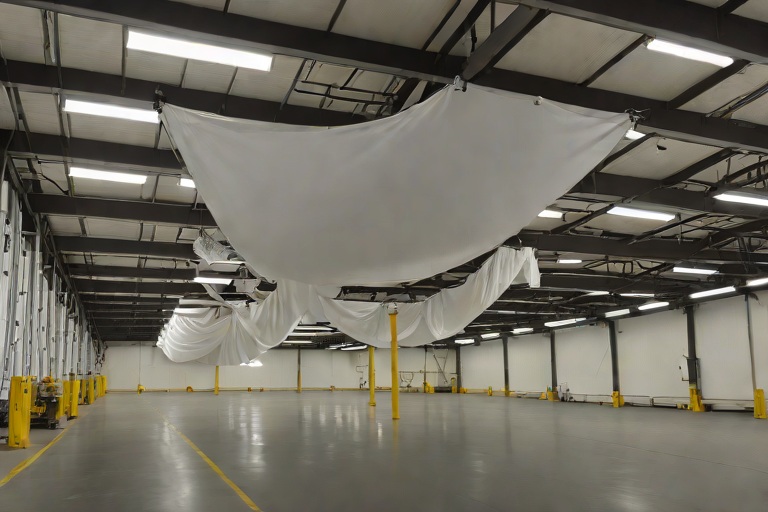

Engineering the Industrial Diversion Strategy

When a catastrophic leak occurs over a production bay, immediate permanent repair is often impossible due to the volatility of the chemicals being processed below. In these scenarios, we deploy an active emergency leak catchment system. This is not a simple "tarping" job; it is a precision engineering exercise in fluid dynamics. We utilize industrial-grade, heavy-duty reinforced vinyl tarps, specifically selected for their high tensile strength and chemical resistance. These materials are engineered to withstand the hydrostatic pressure of pooled water without stretching or tearing, ensuring that the catchment remains taut and effective.

The deployment strategy involves creating a controlled catchment basin beneath the leak point. By calculating the anticipated flow rate and the surface area of the leak, we determine the optimal pitch for the diversion tarp. The vinyl is secured using heavy-duty tensioning systems that distribute the load across the structural steel of the building, avoiding point-load failures. This ensures that the water is captured at the highest possible point of entry and is immediately directed away from the equipment, preventing the "splatter effect" that often leads to secondary contamination of machinery.

Utilization of 20-mil PVC-coated polyester for maximum puncture resistance.
Implementation of heat-welded seams on custom-fabricated catchment basins.
Strategic tensioning using industrial ratcheting systems to maintain a consistent slope.
Integration of flame-retardant materials to comply with facility safety codes.

Routing and High-Value Asset Protection

The primary objective of interior diversion is the total isolation of water from high-value assets. In a chemical processing facility, a single gallon of water entering a reactor or an electrical switchgear can result in millions of dollars in downtime and equipment replacement. Our routing protocol involves the installation of secondary diversion conduits. Once the water is captured by the vinyl tarp, it is funneled into reinforced hoses or custom-fabricated aluminum troughs that act as temporary gutters, guiding the effluent to a safe discharge point or a collection sump.

This routing must be meticulously planned to avoid "dead spots" where water could pool and eventually overflow. We employ a gravity-fed system, ensuring a minimum slope of 1/4 inch per foot to maintain a steady flow. Furthermore, we implement a redundant containment strategy; if the primary diversion hose were to fail, a secondary catchment layer is positioned beneath the most critical equipment. This layered defense strategy is a hallmark of professional building envelope management, treating the interior of the facility with the same rigor as the exterior roof surface.

Mapping of "no-go" zones where water infiltration would cause catastrophic equipment failure.
Installation of temporary drainage conduits to route water to facility sumps.
Use of secondary containment liners beneath critical electrical panels.
Continuous monitoring of flow rates to ensure diversion capacity is not exceeded.

Long-Term Remediation and ASTM Compliance

Emergency diversion is a temporary stabilization measure; the ultimate goal is the restoration of the building envelope to a condition that meets or exceeds ASTM and ANSI standards. Once the production bay is secured and the immediate threat is mitigated, we transition to a permanent remediation phase. This begins with a comprehensive moisture survey and infrared thermography to identify the full extent of the saturated insulation. Removing wet insulation is critical, as trapped moisture in a chemical environment can lead to the corrosion of the steel deck and the growth of hazardous mold.

The final repair sequence involves the application of a high-performance, chemical-resistant membrane system. We prioritize the installation of reinforced flashing and the use of industrial-grade sealants that are specifically rated for the chemical profiles of the facility. To ensure the integrity of the repair, we conduct a rigorous flood test in accordance with ASTM E2128, ensuring that the repaired sections are completely watertight. This transition from emergency catchment to engineered restoration ensures that the facility can return to full operational capacity with a building envelope that is resilient against future failures.

Conducting infrared moisture scans to determine the scope of insulation replacement.
Applying ASTM-compliant heat-welded membranes for seamless integration.
Installing reinforced flashing details at all critical penetration points.
Performing final hydrostatic testing to validate the integrity of the building envelope.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #496

Cold-Weather Induction Welded Membrane Attachments on Commercial Municipal City Hall & Administrative Complexs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Thermal Inertia and the Challenges of Low-Ambient Membrane Bonding

In the execution of a comprehensive building envelope audit for a Municipal City Hall and Administrative Complex, the primary engineering hurdle is the management of thermal inertia within the roofing substrate. When installing thermoplastic membranes—specifically TPO and PVC—during cold-weather cycles, the polymer chains exhibit increased rigidity and a higher resistance to fusion. In a municipal complex of this scale, the roof typically consists of massive flat sections that act as heat sinks, drawing thermal energy away from the weld zone faster than traditional hot-air welding can replenish it.

The risk of a "cold weld" is the most significant threat to the building's envelope integrity. A cold weld occurs when the membrane reaches a temperature sufficient to appear fused, but fails to achieve the necessary molecular entanglement required for a true monolithic bond. This results in a failure point that may pass a visual inspection but will fail catastrophically under the stress of wind-driven pressure or thermal cycling. To mitigate this, our engineering approach shifts from atmospheric heating to electromagnetic induction, which allows for precise, internal heating of the bonding agent regardless of the ambient air temperature.

Reduction of polymer flexibility due to temperatures falling below the glass transition point.
Increased risk of membrane shrinkage and bridging at the perimeter flashing.
Accelerated heat loss through the steel or concrete deck, necessitating higher energy input.
Potential for interstitial condensation if the vapor barrier is compromised during cold-weather seams.

Electromagnetic Induction Plate Bonding and Tool Calibration

Unlike traditional heat welding, which relies on the transfer of hot air to the surface of the membrane, electromagnetic induction utilizes a high-frequency alternating current to generate heat directly within a conductive bonding plate or a specialized metallic interlayer. For the City Hall complex, we implemented a calibrated induction system that ensures the heat is generated at the interface of the two membrane layers. This eliminates the "cooling gap" that typically occurs when a hot-air welder moves across a frozen substrate, as the heat is applied internally and instantaneously.

Calibration of the induction tool is the most critical phase of the installation. We utilize a dual-stage temperature verification process. First, the tool is calibrated to a specific wattage to ensure the electromagnetic field is sufficient to excite the molecules of the bonding plate. Second, we employ infrared thermography to verify that the membrane surface has reached the precise fusion temperature—typically between 350°F and 450°F depending on the polymer blend—without exceeding the degradation threshold. Overheating the membrane leads to carbonization, which destroys the structural integrity of the polymer and creates a brittle joint.

Utilization of high-frequency induction coils to create localized thermal zones.
Real-time temperature monitoring via calibrated thermocouples embedded in the bonding plate.
Adjustment of dwell time to account for the thickness of the membrane and the thermal mass of the deck.
Strict adherence to ANSI standards for electrical safety and tool grounding in municipal environments.

Weighted Magnetic Cooling Clamping and Structural Stabilization

The physics of thermoplastic welding does not end once the heat is removed; the cooling phase is where the actual structural strength of the bond is forged. In cold-weather applications, the temperature differential between the molten weld and the freezing ambient air creates a high risk of rapid contraction. This rapid cooling can lead to "pull-away" or internal stresses that cause the seam to crack or lift. To counteract this, we employ a system of weighted magnetic cooling clamps.

These clamps serve a dual purpose: they provide constant, uniform downward pressure to ensure maximum surface contact during the critical transition from a liquid to a solid state, and they act as a heat sink to regulate the cooling rate. By applying a controlled, weighted load, we prevent the membrane from shrinking prematurely. The magnetic aspect of the clamping system allows for rapid deployment and precise positioning over the steel decking common in municipal administrative buildings, ensuring that the bond is not subject to any shear forces while the polymer is still in its semi-molten phase.

Prevention of "thermal shock" through controlled cooling rates.
Application of uniform PSI across the entire width of the welded seam.
Elimination of air pockets and voids that could lead to moisture infiltration.
Stabilization of the membrane to prevent bridging at the corners of the administrative complex.

Wind Uplift Resistance and ASTM Engineering Validation

The final stage of the engineering audit focuses on the wind resistance of the building envelope. Municipal buildings are often subject to stringent safety codes and must withstand extreme weather events without failure. The integrity of the induction-welded attachments is validated through a series of destructive and non-destructive tests. We utilize the ASTM E1527 standard to evaluate the shear strength of the bonds, ensuring that the welded seams are stronger than the parent material of the membrane itself.

Wind uplift is calculated based on the building's height, the surrounding topography of the city center, and the specific geometry of the roof's parapets. Because induction welding creates a more consistent and deeper fusion than traditional methods, the resulting bond is significantly more resistant to the "peel" forces generated by high-velocity wind. Our audit includes a vacuum-chamber test on sample coupons taken from the roof, verifying that the seal remains airtight under negative pressure. This ensures that the City Hall complex remains a sealed environment, protecting the critical administrative infrastructure from water ingress and atmospheric pollutants.

Execution of "pull tests" to verify the monolithic nature of the induction weld.
Calculation of wind-load pressures based on ASCE 7 standards for municipal structures.
Verification of perimeter fastening patterns to prevent edge-lift during storm events.
Long-term durability analysis focusing on the coefficient of thermal expansion between the membrane and the substrate.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #497

48-Hour Drain Bowl Hydrostatic Flood Testing & Manufacturer 20-Year NDL Audits on Commercial High-Rise Commercial Penthouse Towers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Logic of Hydrostatic Flood Testing in High-Rise Penthouse Towers

In the realm of high-rise commercial building envelope engineering, the penthouse tower represents the most vulnerable point of the structure. Exposed to the highest wind loads, extreme thermal cycling, and the most aggressive UV radiation, the roofing system must function as a seamless, monolithic barrier. For Aquashield Corporate, the gold standard for verifying this integrity is the 48-hour hydrostatic flood test. Unlike a simple hose test, which only checks for immediate leaks, a hydrostatic test subjects the entire membrane assembly to a sustained column of water, simulating extreme weather events and identifying latent defects in the substrate or membrane.

The primary objective is to establish a controlled environment where the hydrostatic head—the pressure exerted by the standing water—forces moisture into any microscopic void or improper weld. In a penthouse setting, where a single failure can lead to catastrophic damage to luxury interiors and critical mechanical equipment, the margin for error is zero. We adhere to a rigorous protocol that aligns with ASTM standards for water penetration, ensuring that the membrane is not merely "water-resistant" but completely impermeable under pressure.

Verification of slope-to-drain accuracy to prevent stagnant water pockets outside the test zone.
Assessment of membrane elasticity and its ability to withstand the added weight of the water column.
Evaluation of the flashing-to-field transitions, which are the most common points of failure in high-rise assemblies.
Calibration of monitoring equipment to distinguish between evaporation loss and actual structural leakage.

Primary Drain Plugging and Hydrostatic Pressure Retention

The technical execution of a hydrostatic test begins with the strategic isolation of the primary drainage system. In a commercial penthouse tower, the drain bowls are engineered to move massive volumes of water quickly; however, for the purpose of an audit, these must be rendered completely airtight. We utilize heavy-duty mechanical expansion plugs or inflatable pneumatic bladders specifically sized for the drain diameter. These plugs are seated deep within the drain bowl to ensure that the seal is not compromised by the weight of the water resting atop the plug.

Once the drains are secured, the roof is flooded to a minimum depth of two inches above the highest point of the roof surface, or as specified by the manufacturer's NDL requirements. The critical phase of this process is the 48-hour retention period. During this window, the building envelope specialist monitors the water level using precision gauges. Any drop in the water level that exceeds the calculated evaporation rate for the current ambient temperature and humidity is flagged as a potential breach. This process reveals "slow leaks" that would otherwise go unnoticed during a standard rain event but could lead to systemic failure over a twenty-year lifecycle.

Deployment of industrial-grade neoprene plugs to ensure a vacuum-tight seal within the cast-iron or PVC drain bowls.
Calculation of the "evaporation constant" based on local psychrometric data to avoid false-positive leak readings.
Continuous monitoring of the lower-level ceilings and wall cavities to detect seepage through the structural slab.
Gradual filling of the deck to avoid sudden hydrostatic shocks that could stress the membrane seams.

Membrane Flange Weld Verification and Thermal Analysis

The most critical point of any commercial roof is the interface between the membrane and the drain flange. In a high-rise environment, the thermal expansion and contraction of the building's steel and concrete frame put immense stress on these welds. As a master roofer, I focus my audit on the fusion quality of the TPO or PVC membranes. We utilize infrared thermography and manual probe testing to ensure that the heat-welding process has achieved a complete molecular bond, rather than a mere surface adhesion.

A "cold weld" is the enemy of the building envelope. If the automatic heat welder was not calibrated to the specific thickness of the membrane or the ambient temperature of the substrate, the weld may appear visually sound but fail under hydrostatic pressure. We examine the "lap" of the membrane around the drain bowl, ensuring that the flange is properly integrated into the field membrane with a minimum overlap that exceeds ANSI standards. Any evidence of "fish-mouthing" or bridging at the flange is grounds for immediate remediation and a restart of the 48-hour clock.

Utilization of electronic leak detection (ELD) to pinpoint the exact coordinates of a breach during the flood test.
Inspection of the "bead" of the weld to ensure consistent temperature application across the entire circumference of the drain.
Verification of the mechanical fastening pattern around the perimeter to ensure the membrane is not over-stressed at the corners.
Analysis of the substrate moisture content prior to welding to prevent the entrapment of water vapor, which can cause blistering.

The NDL Audit and 20-Year Warranty Sign-off

The culmination of the engineering audit is the Manufacturer's No Dollar Limit (NDL) warranty sign-off. An NDL warranty is the highest tier of commercial roofing protection, signifying that the manufacturer will cover the full cost of repairs regardless of the expense. To grant this, the manufacturer's representative and the building envelope specialist must conduct a final walk-through to verify that every technical specification has been met. This is not a cursory glance; it is a forensic examination of the entire roof assembly.

The final audit involves a comprehensive review of the hydrostatic test logs, the weld inspection reports, and the flashing details. We ensure that all penetration flashings, including HVAC curbs and pipe peneters, have been treated with the same rigor as the primary drains. Only after the 48-hour flood test is successfully passed—with zero unaccounted-for water loss—is the system deemed "watertight." This certification provides the building owner with the certainty that the penthouse tower is protected against the elements for the next two decades, mitigating the risk of costly interior renovations and structural degradation.

Final verification of the "as-built" drawings against the actual installation to ensure compliance with engineering specs.
Submission of the hydrostatic pressure logs as empirical evidence of membrane integrity.
Confirmation that all manufacturer-approved sealants and adhesives were used in the correct proportions and application temperatures.
Formal sign-off on the NDL warranty, transitioning the project from the installation phase to the long-term asset management phase.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #498

Masonry Parapet Counterflashing Reglet Overhauls & Polyurethane Sealant Compression on Commercial Regional Healthcare Medical Centers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Diagnostic Audit of Healthcare Building Envelopes

In the high-stakes environment of a Regional Healthcare Medical Center, the building envelope is not merely a structural shell; it is a critical component of infection control and facility stability. A comprehensive engineering audit of these facilities often reveals a systemic failure at the parapet wall termination. The primary point of failure is typically the intersection where the roofing membrane meets the masonry wall. Over time, thermal cycling and structural settling cause the original counterflashing to pull away or the sealant to fatigue, creating a direct path for moisture ingress. In medical facilities, this infiltration is catastrophic, potentially leading to mold growth in sterile environments and the degradation of sensitive diagnostic equipment.

Our audit process utilizes infrared thermography and moisture probes to identify saturated insulation and hidden leaks behind the masonry veneer. We focus specifically on the "capillary break," ensuring that water cannot be drawn upward into the wall assembly. The failure of the original reglet—the recessed groove into which the flashing is set—is usually the culprit. When the reglet is shallow or improperly sealed, water tracks behind the metal, bypassing the primary waterproofing layer and saturating the masonry core.

Identification of hydrostatic pressure buildup at the parapet base.
Analysis of thermal bridging where metal flashing meets masonry.
Evaluation of existing sealant adhesion and cohesive failure patterns.
Assessment of masonry spalling caused by freeze-thaw cycles in saturated joints.

Precision Reglet Preparation and Mortar Joint Grinding

Correcting a failing parapet requires a surgical approach to masonry modification. We do not believe in "overlaying" old flashing, as this merely traps moisture and accelerates decay. Instead, we implement a full reglet overhaul. This process begins with the precision grinding of mortar joints using industrial-grade diamond grinding wheels. The goal is to create a clean, uniform channel that allows the counterflashing to sit flush against the masonry, ensuring a mechanical lock that prevents water from migrating behind the metal.

The grinding process must be executed with extreme precision to avoid compromising the structural integrity of the masonry unit. We specify a reglet depth of 3/8 to 1/2 inch, depending on the gauge of the metal being installed. By grinding directly into the mortar joint rather than the brick or block face, we maintain the structural bond of the wall while creating a dedicated void for the flashing. This method eliminates the reliance on surface-mounted adhesives and creates a permanent architectural feature that directs water away from the building interior.

Utilization of variable-speed grinders to prevent heat-induced cracking of the mortar.
Strict adherence to depth gauges to ensure a consistent reglet width across the entire perimeter.
Vacuum-assisted dust extraction to maintain air quality in active healthcare zones.
Mechanical cleaning of the reglet to remove all debris, ensuring a high-bond surface for sealants.

Kynar 500 Counterflashing and Material Science

For healthcare facilities, where longevity and low maintenance are non-negotiable, we specify heavy-gauge steel coated with Kynar 500 (PVDF). Kynar is the gold standard in commercial building envelopes due to its exceptional resistance to ultraviolet radiation and chemical pollutants. Unlike standard painted steel or thin-gauge aluminum, Kynar-coated steel provides the necessary rigidity to withstand wind-uplift forces while maintaining a finish that will not chalk or fade over decades of exposure.

The installation involves inserting the flashing into the newly ground reglet with a slight outward pitch. This ensures that gravity works in favor of the building, shedding water immediately. The gauge of the metal is critical; we utilize a minimum of 22-gauge steel to prevent "oil-canning" or warping during extreme temperature swings. This material science approach ensures that the coefficient of thermal expansion is managed, reducing the stress placed on the sealant joints at the termination points.

Application of Kynar 500 for superior color retention and corrosion resistance.
Selection of heavy-gauge steel to provide structural rigidity against parapet vibration.
Precision bending of the flashing "kick" to ensure a positive water shed.
Integration of the counterflashing with the primary roof membrane to create a redundant seal.

Polyurethane Sealant Compression and Envelope Integrity

The final and most critical stage of the overhaul is the application of high-modulus polyurethane sealant. Many contractors make the mistake of simply "caulking" the gap. As master roofers, we utilize the principle of sealant compression. By designing the joint to allow for a specific percentage of movement, we ensure that the sealant remains in a state of compression rather than tension. This prevents the "pull-away" effect common in lower-grade acrylic or silicone applications.

We adhere strictly to ASTM C920 standards for elastomeric joint sealants. The polyurethane is injected into the reglet, creating a gasket-like seal between the Kynar flashing and the masonry. This compression seal acts as the final barrier, stopping wall leaks by creating a watertight plug that can expand and contract with the building's natural movement. The result is a fully integrated building envelope where the masonry, metal, and sealant work in harmony to protect the critical infrastructure of the medical center.

Implementation of a closed-cell backing rod to control sealant depth and prevent three-sided adhesion.
Use of high-modulus polyurethane for its superior adhesion to both masonry and Kynar-coated steel.
Execution of a concave tool finish to optimize water runoff and reduce sealant stress.
Final flood testing of the parapet area to verify the absolute integrity of the compression seal.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #499

Flute-Fill EPS/Polyiso Insulation Sizing for Standing Rib Metal Roof Retrofits on Commercial University Research Laboratorys

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Challenge of Corrugated Substrates in Research Environments

During a comprehensive building envelope audit of a University Research Laboratory, the primary technical failure identified was the systemic thermal bypass occurring at the roof deck. The facility utilized a standing rib metal roof, a common architectural choice for durability, but one that presents significant challenges during retrofit operations. In a laboratory setting, where precise climate control and humidity stabilization are critical for sensitive instrumentation and chemical stability, the existence of thermal bridges is not merely an energy efficiency concern; it is a risk to the integrity of the research itself.

The fundamental issue with traditional retrofit methods on corrugated profiles is the tendency to "over-lay" insulation across the top of the ribs. This creates large, unoccupied voids within the flutes of the metal decking. These voids act as conduits for convective heat transfer, allowing conditioned air to leak out and external temperature fluctuations to penetrate the building envelope. From a master roofer's perspective, ignoring the geometry of the substrate leads to a failure in the continuous insulation (CI) requirement, effectively neutralizing the theoretical R-value of the insulation boards.

Thermal Bridging: The metal ribs act as high-conductivity paths, transferring heat rapidly between the interior and exterior.
Convective Loops: Unfilled flutes allow air to circulate, creating a "chimney effect" that accelerates heat loss.
Structural Stress: Uneven loading of insulation can lead to localized compression and potential deformation of the metal ribs over time.
Environmental Instability: Inconsistent surface temperatures on the roof deck can lead to condensation and interstitial moisture accumulation.

Precision Flute-Fill Geometry and Material Selection

To rectify these deficiencies, our engineering approach centered on the implementation of precision-cut flute-fill insulation. Rather than relying on standard flat boards, we utilized CNC-routed profiles designed to match the exact dimensions and pitch of the existing standing rib system. This process ensures a friction-fit installation that eliminates the air gaps typically found in corrugated retrofits. The selection of materials was governed by the need for high compressive strength and a superior thermal resistance coefficient.

We deployed a hybrid strategy utilizing Expanded Polystyrene (EPS) for structural shaping and Polyisocyanurate (Polyiso) for primary thermal resistance. Polyiso is the industry standard for commercial envelopes due to its closed-cell structure and high R-value per inch. However, the precision-cut EPS inserts provided the necessary stability within the deep flutes of the research lab's specific rib profile. By ensuring the insulation was cut to a tolerance of less than 1/8th of an inch, we were able to create a seamless thermal block that conforms to the substrate's anatomy.

CNC Routing: Computer-aided manufacturing ensures that each flute-fill piece matches the rib width and depth perfectly.
Material Synergy: Combining the dimensional stability of EPS with the thermal performance of Polyiso optimizes the envelope.
Compression Resistance: Utilizing high-density boards prevents the insulation from crushing under the weight of the final membrane and foot traffic.
ASTM C1285 Compliance: All materials were selected to meet or exceed the standards for thermal insulation for buildings.

Mitigating Thermal Bridging and Vapor Drive

The core objective of the flute-fill system is the elimination of the thermal bridge. In a standard installation, the metal rib penetrates the insulation layer, creating a direct path for heat to travel. By filling the flute, we effectively move the thermal break to the outermost possible point of the substrate. This creates a continuous thermal barrier that forces heat to move through the insulation rather than around it. In the context of a university lab, this stabilization reduces the load on the HVAC systems and prevents the "cold spots" that often lead to mold growth on the underside of the roof deck.

Furthermore, the precision fit of the flute-fill system addresses the issue of vapor drive. When warm, moist interior air hits a cold metal rib, it reaches its dew point and condenses. By filling the void and adding a layer of continuous insulation, we maintain the temperature of the metal deck above the dew point. This prevents interstitial condensation, which is the leading cause of premature corrosion in metal roof systems. The result is a monolithic thermal mass that behaves as a single unit rather than a series of disconnected panels.

Thermal Decoupling: Separating the interior environment from the exterior skin using a non-conductive, precision-fit barrier.
Dew Point Management: Ensuring the substrate remains warm enough to prevent moisture from condensing on the metal.
R-Value Optimization: Achieving the actual designed thermal resistance by eliminating the "void factor" of the corrugated ribs.
Air Infiltration Control: Reducing the volume of air that can migrate through the roof assembly.

Membrane Integration and Final Envelope Seal

Once the flute-fill insulation was seated and the roof surface was rendered flat, the final phase involved the installation of a high-performance single-ply membrane. The transition from a ribbed profile to a flat, insulated surface is critical. We utilized a fully adhered TPO (Thermoplastic Olefin) membrane, which provides excellent UV resistance and superior weldability. Because the flute-fill system created a level deck, the membrane could be installed without the risk of "bridging" or stretching over the ribs, which often leads to premature punctures and leaks.

The installation process focused on meticulous seam welding and perimeter flashing. Each lap joint was heat-welded using automatic machinery to ensure a molecular bond, creating a watertight seal that is impervious to the harsh environmental conditions typical of university campuses. The final envelope was then subjected to a rigorous electronic leak detection (ELD) test to verify the integrity of the seal. This comprehensive approach—from the precision of the flute-fill to the final weld of the membrane—ensures that the research laboratory remains a controlled environment for decades to come.

Single-Ply TPO: Chosen for its reflectivity (cool roof properties) and long-term durability.
Heat-Welded Seams: Ensuring a permanent, watertight bond that outperforms traditional adhesives.
Flat-Deck Advantage: Eliminating the stress points associated with installing membranes over corrugated ribs.
Envelope Verification: Utilizing ASTM-standard testing to confirm the absence of leaks or thermal anomalies.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #500

Structural Plywood Deck Re-Nailing Schedules on Commercial Suburban Corporate Office Parks

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Audit Parameters for Substrate Integrity and Wind Uplift Compliance

During a comprehensive building envelope engineering audit of a suburban corporate office park, the primary concern is often the discrepancy between the original construction documents and current coastal high-wind uplift standards. Many of these corporate assets were constructed using standard residential-grade fastening patterns that fail to meet the rigorous demands of ASCE 7 wind load requirements. When a building is subjected to high-velocity wind events, the roof acts as a giant wing, creating massive negative pressure that attempts to lift the plywood decking away from the structural members. If the fastening schedule is insufficient, the resulting diaphragm failure can lead to a catastrophic collapse of the entire building envelope.

Our audit focuses on the structural plywood decking, specifically examining the "nail-out" patterns at the perimeter and field areas. In a corporate office environment, these roofs often house expensive HVAC equipment and extensive flashing systems that add significant dead load, yet the uplift forces are driven by the building's height and exposure category. To bring these structures up to modern engineering standards, we implement a rigorous re-nailing schedule designed to increase the total number of fastener points, thereby distributing the uplift load across a wider array of structural connections.

Assessment of existing fastener spacing to identify "dead zones" where uplift resistance is minimal.
Calculation of peak wind pressures based on the building's height and local coastal exposure categories.
Verification of the plywood grade and thickness to ensure the substrate can support additional fasteners without splitting.
Evaluation of the existing flashing and membrane attachment points to ensure they are not compromising the decking.
Mapping of the structural frame to align re-nailing patterns with the centerlines of the supporting joists.

Mechanics of Pneumatically Driven Ring-Shank Fasteners

The transition from smooth-shank nails to ring-shank fasteners represents a critical upgrade in mechanical interlocking. A smooth-shank nail relies primarily on friction and the compression of the wood fibers to remain seated. In contrast, a ring-shank fastener features a series of ribs or "rings" machined into the shank, which act like a screw thread. When driven pneumatically into the structural members, these rings bite into the wood fibers, creating a mechanical lock that significantly increases the force required to pull the nail out of the substrate.

The use of pneumatic nailers is non-negotiable for a project of this scale. Hand-nailing introduces human error and inconsistent embedment depths, which can lead to localized failures. Pneumatic systems allow for a consistent driving pressure, ensuring that the fastener is fully seated without over-driving, which would otherwise crush the wood fibers and reduce the overall holding power. We specify a precise PSI range for the pneumatic tools to ensure that the ring-shanks are driven deep into the structural joists, maximizing the shear resistance of the connection.

Utilization of 8d or 10d ring-shank nails to provide superior withdrawal resistance compared to common smooth nails.
Calibration of pneumatic nailers to prevent "blow-through" or head-sink, which can compromise the plywood surface.
Strict adherence to ASTM F1667 standards for the quality and metallurgy of the fasteners used.
Implementation of a staggered nailing pattern to prevent the splitting of the plywood grain along a single line.
Verification of fastener penetration depths to ensure a minimum of 1.5 inches of embedment into the structural framing.

Analyzing Shear Withdrawal Resistance and Load Path Continuity

From an engineering perspective, the goal of re-nailing is to establish a continuous load path from the roof membrane down to the foundation. Shear withdrawal resistance is the measure of how much force a fastener can withstand before it is pulled out of the wood or the wood itself fails. In a high-wind event, the plywood decking is subjected to intense vertical forces. If the fasteners lack sufficient shear resistance, the decking will "pop," causing the roof membrane to tear and allowing wind-driven rain to penetrate the building envelope.

The physics of the connection depend heavily on the "edge distance" and the "spacing" of the fasteners. When fasteners are placed too close to the edge of a joist, the risk of shear-out increases. Our engineering approach involves calculating the required number of fasteners per square foot to meet the target uplift pressure. By increasing the fastener density, we reduce the load carried by each individual nail, ensuring that the system operates well within its elastic limit and providing a significant factor of safety against sudden failure.

Calculation of the total withdrawal capacity per fastener based on the species of the structural lumber.
Analysis of the "tributary area" for each fastener to ensure load distribution is uniform across the deck.
Evaluation of the shear plane to prevent the fasteners from acting as a wedge that splits the joist.
Verification of the plywood's internal bond strength to ensure the fastener doesn't pull through the face of the sheet.
Monitoring of the torsional shear forces that occur at the corners of the building where wind turbulence is highest.

Implementation of the Professional Re-Nailing Schedule

The execution of a re-nailing schedule requires a master tradesman's precision. We do not simply add nails at random; we follow a strict geometric grid that optimizes the structural integrity of the diaphragm. The process begins with the "perimeter zone," where the wind pressures are most volatile. Here, we reduce the spacing of the ring-shank fasteners to 6 inches on center. In the "field zone," where pressures are more stable, we maintain a 12-inch on-center spacing. This tiered approach ensures that the most vulnerable areas of the corporate office park are the most heavily reinforced.

Quality control is the final and most important step of the process. Every section of the roof is inspected to ensure that the fasteners are driven perpendicular to the substrate. Any nail that is driven at an angle reduces the effective shear resistance and can create a "bump" in the decking that may puncture the overlying roofing membrane. Our team utilizes a systematic marking process, where each joist is verified and signed off by the lead technician, ensuring that no structural member is missed during the reinforcement phase.

Execution of a 6-inch on-center fastening pattern at all roof perimeters and corners.
Implementation of a 12-inch on-center fastening pattern across the interior field of the roof deck.
Verification of fastener alignment to ensure a 90-degree entry angle into the structural framing.
Inspection of the plywood surface for any splitting or crushing caused by the pneumatic driving process.
Final audit of the fastening density to confirm compliance with the project's engineering specifications.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #501

Life-Cycle Cost Analysis (LCCA) on Commercial Big-Box Retail Power Centers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Engineering Audit and Material Degradation Analysis

A comprehensive building envelope audit for a Big-Box Retail Power Center begins with a forensic examination of the roof assembly's current state. In these massive footprints, the primary challenge is managing the coefficient of thermal expansion across thousands of square feet of membrane. We utilize ASTM-standard core sampling and infrared thermography to identify subsurface moisture migration and failing insulation. When a roof reaches its mid-life stage, we typically see a breakdown in the polymer chains of TPO or EPDM membranes, leading to a loss of elasticity and the emergence of "alligatoring" or stress cracks at the seams.

The engineering focus is not merely on the surface, but on the systemic integrity of the entire assembly, including the flashing, scuppers, and curb details. In a power center environment, high-traffic HVAC units and rooftop units (RTUs) create localized stress points that often lead to premature membrane fatigue. Our audit evaluates the tensile strength of the existing substrate to determine if the roof can support a restorative coating or if the structural decking has been compromised by oxidation and corrosion.

ASTM D-series testing for membrane puncture resistance and tear strength.
Infrared moisture mapping to detect saturated insulation layers.
Evaluation of wind-uplift resistance according to ANSI/SPWind standards.
Analysis of flashing integrity at critical penetration points and parapet walls.
Assessment of ponding water patterns that accelerate chemical degradation.

Net Present Value (NPV) and Life-Cycle Cost Analysis

From a financial engineering perspective, the decision to replace or restore a commercial roof is driven by Net Present Value (NPV) calculations. A traditional "tear-off and replace" strategy involves massive upfront Capital Expenditure (CapEx), including the cost of new materials, labor, and significant disposal fees. Conversely, a high-solids restorative system represents a strategic investment that extends the asset's life while deferring the cost of a full replacement. By applying a discount rate to future costs, we can demonstrate that restoration often yields a higher NPV over a 15-to-20 year horizon.

The LCCA (Life-Cycle Cost Analysis) incorporates not only the initial application cost but also the reduction in energy expenditures. High-albedo coatings, such as cool-roof silicones, significantly reduce the heat island effect and lower the cooling load for the interior retail space. When we model the energy savings alongside the avoided cost of a full replacement, the financial advantage of restoration becomes undeniable. We analyze the "cost per square foot per year" to provide the asset manager with a clear metric of performance and value retention.

Comparison of immediate CapEx for replacement versus phased OpEx for restoration.
Calculation of energy savings via Solar Reflectance Index (SRI) improvements.
Analysis of the "cost of vacancy" or business interruption during roof construction.
Projected inflation rates for raw materials like PVC and TPO resins.
Amortization schedules comparing 20-year replacement cycles to 15-year restoration extensions.

Tax Deductions and Maintenance Restoration Strategies

One of the most overlooked aspects of building envelope engineering is the intersection of material science and tax law. Under current tax codes, there is a critical distinction between a "capital improvement" and a "repair and maintenance" expense. A full roof replacement is typically classified as a capital improvement, which must be depreciated over a long period, often 39 years for commercial properties. However, a professional restoration—which returns the roof to its original design specification without changing the fundamental structure—can often be categorized as a maintenance restoration.

This distinction allows the property owner to deduct the cost of the restoration in the current tax year, significantly improving immediate cash flow. By utilizing a high-performance coating system that restores the waterproofing integrity of the existing membrane, the owner avoids the long-term depreciation schedule of a new asset. Our engineering reports are designed to provide the necessary documentation to justify these deductions, proving that the work performed was a necessary repair to maintain the building's envelope and prevent structural deterioration.

Strategic shift from long-term depreciation to immediate maintenance write-offs.
Documentation of "repair vs. improvement" for tax compliance and auditing.
Utilization of Section 179 deductions for qualifying equipment and materials.
Reduction of taxable income through aggressive maintenance scheduling.
Alignment of envelope audits with annual fiscal budgeting cycles.

Environmental Stewardship and Warranty Extension

The environmental impact of commercial roofing is staggering. A typical Big-Box Retail Power Center replacement can send hundreds of tons of thermoplastic membranes and saturated insulation into landfills. This not only creates a massive waste stream but also increases the carbon footprint of the facility. Our approach focuses on "circularity" by preserving the existing embedded carbon of the roof assembly. By applying a high-solids, VOC-compliant silicone or acrylic system, we eliminate the need for a tear-off, thereby avoiding the landfill entirely.

To ensure long-term reliability, we implement a 15-year warranty extension program. This is not a simple piece of paper, but a performance guarantee backed by rigorous engineering standards. The warranty is contingent upon the successful execution of the restoration, including the meticulous detailing of all seams and penetrations. We utilize a multi-layered application process that ensures the coating is chemically bonded to the substrate, providing a seamless, monolithic waterproof barrier that is resistant to UV degradation and chemical pollutants.

Elimination of landfill waste by avoiding the "tear-off" process.
Reduction of VOC emissions through the use of advanced water-based or high-solids polymers.
Implementation of a 15-year manufacturer-backed warranty on material performance.
Lowering the overall carbon footprint by reducing the demand for new virgin plastics.
Enhancement of the building's LEED certification through sustainable roof management.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #502

Lightning Protection System Air Terminal Stanchion Flashing & Membrane Bonding on Commercial Food Packaging & Cold Logistics Plants

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Conflict: LPS Integration in Cold Logistics Environments

In the specialized realm of food packaging and cold logistics plants, the building envelope is subjected to extreme thermal gradients. The interior of a cold storage facility may be maintained at -10°F, while the roof surface, exposed to direct solar radiation, can easily exceed 150°F. This creates a massive differential that induces significant thermal movement across the roof membrane. When a Lightning Protection System (LPS) is integrated into this environment, we introduce rigid steel air terminal stanchions that do not expand or contract at the same rate as the thermoplastic or rubberized membranes.

The primary engineering challenge is the prevention of membrane puncture during a lightning strike event. A strike generates an instantaneous, massive surge of heat and electrical energy. If the bonding between the stanchion and the membrane is insufficient, the resulting plasma arc can vaporize the roofing material, creating a direct path for water infiltration. Furthermore, the physical vibration of the stanchion during high-wind events can cause mechanical abrasion at the flashing interface, leading to premature fatigue and failure of the waterproof seal.

Thermal Shock Resistance: The ability of the flashing to withstand rapid temperature swings without cracking or delaminating.
Coefficient of Thermal Expansion (CTE) Mismatch: The disparity between the steel stanchion and the TPO, PVC, or EPDM membrane.
Dielectric Integrity: Ensuring the membrane does not become a conductive path that could lead to secondary flashing failures.
Vibration Fatigue: The long-term wear caused by wind-induced oscillation of the air terminals.

High-Performance Stanchion Pitch-Pocket Detailing

To mitigate the risks associated with rigid penetrations, we employ a heavy-duty pitch-pocket detailing strategy. Rather than relying on a simple adhered boot, which is prone to tearing under thermal stress, the pitch-pocket creates a reinforced, multi-layered containment zone around the base of the air terminal. This process begins with a mechanical fastening of the stanchion to the structural deck, followed by the application of a high-build, polymer-modified flashing grade sealant that acts as a primary hydrostatic barrier.

The engineering focus here is on the transition from the flat roof plane to the vertical surface of the stanchion. We utilize a reinforced membrane wrap that is heat-welded or chemically bonded to the field membrane, ensuring a monolithic seal. The "pocket" is then filled with a non-shrink, weather-resistant sealant that allows for microscopic movement while remaining completely impermeable to water. This ensures that even if the primary membrane is compromised, the secondary sealant layer prevents moisture from reaching the insulation and the structural steel deck.

Reinforced Membrane Wraps: Utilizing a higher mil-thickness material at the penetration point to resist abrasion.
Polymer-Modified Sealants: Using materials that maintain elasticity at sub-zero temperatures to prevent brittle failure.
Heat-Welded Interfaces: Ensuring a molecular bond between the flashing and the TPO/PVC membrane for a leak-proof transition.
Compression Gaskets: Implementing neoprene or EPDM gaskets at the base of the stanchion to distribute loads.

Grounding Cable Conductor Flashings and Penetration Management

While the air terminals receive the strike, the grounding cables—the conductors that lead the current safely to the earth—present their own set of envelope vulnerabilities. These cables often penetrate the roof at multiple points or run across the membrane surface. In a cold logistics plant, these cables are subject to "sawing" actions as the roof shifts. If a cable is simply caulked into a hole, the movement of the building will eventually pull the cable through the sealant, creating a "sieve" effect that allows water to pour into the facility.

Our authoritative approach involves the use of flexible conductor flashing systems. We implement specialized flashing boots that incorporate a flexible throat, allowing the cable to move independently of the roof membrane. For cables running across the roof surface, we utilize protective shielding and cushioned saddles. This prevents the heavy-gauge copper or aluminum conductors from rubbing directly against the membrane, which would otherwise lead to thinning of the material and eventual puncture during a thermal cycle.

Flexible Throat Boots: Reducing mechanical stress on the membrane by allowing cable oscillation.
Cushioned Saddles: Distributing the weight of the grounding conductors to prevent localized membrane depression.
Non-Conductive Spacers: Preventing galvanic corrosion between the conductor and the roof's metal components.
Crimp-Locking Mechanisms: Ensuring the flashing remains secure without relying solely on adhesives.

Lifecycle Analysis and Engineering Audit Protocols

A building envelope is only as strong as its weakest penetration. For food packaging plants, where hygiene and moisture control are critical to prevent mold and contamination, the LPS flashing must be audited on a rigorous schedule. Our audit protocol focuses on the "failure modes" common to these systems. We look for "tenting," where the membrane lifts away from the stanchion, and "fish-mouthing," where the flashing folds over itself, creating a pocket for standing water and organic growth.

The long-term integrity of the bonding is verified through non-destructive testing, including infrared thermography to detect hidden moisture traps around the stanchion bases. We adhere to ASTM and ANSI standards for lightning protection and roofing, ensuring that the electrical grounding does not compromise the building's hydrothermal performance. By treating the LPS not as an add-on, but as an integral part of the building envelope engineering, we extend the lifecycle of the roof and ensure the safety of the facility's infrastructure.

Infrared Thermography: Identifying thermal bridges and moisture accumulation at the flashing interfaces.
Visual Stress Analysis: Checking for crazing or cracking in the polymer sealants around the pitch pockets.
Tension Testing: Ensuring that grounding cables are not under excessive tension that could pull the flashings loose.
ASTM E2128 Compliance: Following standard practices for installing roof penetrations to ensure long-term water tightness.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #503

Commercial Roof Hatch Safety Grab Bars & Compression Curb Gasket Weatherproofing on Commercial Semiconductor Cleanroom Fabs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Criticality of the Cleanroom Envelope in Semiconductor Fabrication

In the realm of industrial roofing, few environments demand the precision and rigor of a semiconductor cleanroom fabrication plant. These facilities operate under strict positive pressure regimes to prevent the ingress of airborne particulates, meaning the building envelope is not merely a shelter but a critical component of the manufacturing process. A single breach in the roof membrane or a failure in a penetration seal can lead to catastrophic contamination of silicon wafers, resulting in millions of dollars in lost yield. From a master roofer's perspective, the roof hatch is the most vulnerable point of the envelope because it represents a mechanical interruption in an otherwise continuous waterproof and airtight barrier.

Engineering an audit for these facilities requires a deep dive into the material science of the roofing assembly. We are typically dealing with high-performance TPO (Thermoplastic Polyolefin) or modified bitumen systems that must interface seamlessly with galvanized steel curbs. The primary objective is to eliminate thermal bridging and air leakage. When the internal pressure of the fab is higher than the external atmospheric pressure, the envelope is effectively trying to "push" its way out. This puts immense stress on the termination points and the gaskets surrounding roof hatches.

ASTM E2112 compliance for moisture-resistant exterior wall and roof assemblies.
Maintenance of ISO Class 1 to Class 5 cleanliness standards through airtight sealing.
Mitigation of hydrostatic pressure at the curb-to-deck interface.
Prevention of interstitial condensation within the insulation layers of the roof curb.

OSHA-Compliant Egress and Mechanical Safety Engineering

Safety on a semiconductor roof is not just about fall protection; it is about the engineering of egress and access. Roof hatches in these facilities are often heavy-duty, oversized units designed to accommodate large HVAC components or smoke evacuation systems. To meet OSHA 1910.28 and 1910.23 standards, the installation of safety grab bars and ladder posts is non-negotiable. A master craftsman knows that a grab bar is not a mere handle; it is a load-bearing safety device that must be structurally integrated into the hatch frame to prevent weld failure during emergency egress.

Furthermore, the integration of counterbalanced smoke dampers within the hatch assembly adds a layer of complexity. These dampers must operate flawlessly during a fire event to vent toxic gases while remaining perfectly sealed during normal operations to maintain the cleanroom's pressure. The counterbalance mechanism must be calibrated to the specific weight of the hatch cover, ensuring that a technician can open the unit with minimal effort without compromising the seal's integrity upon closure. If the counterbalance is too loose, the hatch may "bounce," creating momentary gaps in the weatherproofing.

Installation of ANSI-rated safety posts to provide secure handholds during the transition from ladder to roof surface.
Utilization of heavy-duty galvanized steel for all grab bars to prevent corrosion in industrial environments.
Precision calibration of spring-loaded or gas-strut counterbalances for smoke damper operation.
Verification of weld penetration and structural bonding on all safety-critical attachment points.

Compression Curb Gaskets and Air-Tightness Material Science

The interface between the roof hatch frame and the curb is where most building envelope failures occur. In a semiconductor fab, a standard weatherstrip is insufficient. We employ heavy-duty compression curb gaskets, typically fabricated from closed-cell EPDM (Ethylene Propylene Diene Monomer) or high-grade silicone. These materials are chosen for their exceptional compression set resistance, meaning they return to their original thickness after being compressed, maintaining a tight seal over thousands of cycles.

The engineering focus here is on the "compression ratio." If the gasket is over-compressed, it can split or permanently deform; if under-compressed, it allows for air infiltration. We specify a gasket profile that ensures a continuous, unbroken seal around the entire perimeter of the curb. This is critical because any leak allows the fab's expensive conditioned air to escape and unfiltered outside air to enter, potentially introducing contaminants. The gasket must be chemically compatible with the roof membrane to prevent plasticizer migration, which can cause the rubber to shrink or harden over time.

Application of closed-cell EPDM gaskets to prevent capillary action and water wicking.
Implementation of dual-seal gaskets to provide a primary weather seal and a secondary air-barrier seal.
Analysis of thermal expansion and contraction coefficients between the steel curb and the gasket material.
Verification of uniform clamping pressure across the entire curb perimeter to avoid "low spots" in the seal.

Termination Bars and Long-Term Waterproofing Integrity

The final line of defense in the building envelope is the termination of the roofing membrane at the roof hatch curb. We utilize compression termination bars—heavy-duty metal strips that mechanically lock the membrane against the vertical face of the curb. Unlike simple adhesive beads or lap sealant, a termination bar provides a constant, mechanical compression that prevents the membrane from pulling away due to wind uplift or thermal cycling. This is a critical requirement in high-wind zones or on roofs with significant vibration from industrial air handlers.

To ensure a truly watertight finish, the termination bar is installed with a continuous bead of high-solids polyurethane sealant behind the metal. This creates a redundant system: the sealant provides the initial waterproof barrier, and the termination bar provides the structural force to keep that barrier in place. The fasteners are typically spaced every 6 to 12 inches, ensuring that the membrane is held under uniform tension. This prevents the formation of "fish-mouths" or wrinkles in the TPO, which are common points of failure where water can pool and eventually penetrate the substrate.

Use of stainless steel or hot-dipped galvanized fasteners to eliminate galvanic corrosion.
Application of a continuous sealant bead to prevent water from migrating behind the membrane.
Strict adherence to the "stretch and set" method to ensure the membrane is not over-tensioned.
Final capping of the termination bar with a reinforced flashing detail to shed water away from the curb.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #504

Multi-Tier Conductor Head Overflow Spillways & Freeze-Thaw Downspout Burst Defense on Commercial Intermodal Cargo Freight Terminals

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Challenge of Intermodal Terminal Roof Envelopes

Intermodal cargo freight terminals present some of the most demanding environments for commercial building envelope engineering. These structures are characterized by massive contiguous roof planes, often exceeding several hundred thousand square feet, which create immense hydraulic loads during peak precipitation events. The primary challenge lies in the rapid transit of water from the roof surface to the ground-level storm system without compromising the structural integrity of the building envelope or allowing internal flooding.

In these facilities, the roof is not merely a cover but a complex water-management system. The sheer scale of these buildings means that even a minor slope deviation can lead to significant ponding, increasing the hydrostatic pressure on seams and flashing. Furthermore, the proximity to heavy rail and trucking activity introduces constant low-frequency vibrations that can loosen mechanical fasteners and compromise the seal of conductor heads and downspout assemblies over time.

High-volume runoff management to prevent structural overloading of the roof deck.
Mitigation of vibration-induced fatigue in drainage hardware and mounting brackets.
Prevention of internal water intrusion during primary drainage failure.
Management of thermal expansion and contraction across vast metallic surfaces.

Hydraulic Analysis of Multi-Tier Conductor Head Overflow Spillways

A critical failure point in large-scale commercial drainage is the reliance on a single point of discharge. When a primary downspout becomes obstructed by debris or ice, the resulting backup can lead to a catastrophic breach of the roof membrane. To mitigate this, we implement multi-tier conductor head overflow spillways. These systems act as a hydraulic relief valve, utilizing a calculated weir height to ensure that once water reaches a critical depth, it is diverted externally rather than overflowing into the warehouse interior.

The engineering of these spillways requires precise calculations of the coefficient of discharge and the anticipated rainfall intensity based on local 100-year storm data. By integrating a secondary overflow weir into the conductor head, we create a fail-safe mechanism. The spillway is calibrated so that the primary drain handles the standard load, while the overflow tier activates only when the hydraulic head exceeds the safe operating limit of the primary system. This ensures that the building envelope remains sealed even during extreme weather anomalies.

Calculation of weir crest length to match the volumetric flow rate of the roof quadrant.
Integration of oversized conductor heads to reduce turbulence and prevent vortexing.
Strategic placement of overflow outlets to ensure water is cast clear of the building facade.
Use of seamless, heavy-gauge seamless aluminum or galvanized steel to prevent leak points at the joints.

Structural Integrity of Heavy-Duty Downspout Brackets and Fastening

In an intermodal environment, standard residential or light commercial gutter hangers are insufficient. The mass of the water moving through a 6-inch or 8-inch downspout, combined with the wind-load pressures acting on the building's exterior, necessitates an industrial-grade fastening system. We specify heavy-duty, reinforced steel brackets that are engineered to distribute the load across a wider area of the building's structural girts, preventing the "pull-out" effect common in lower-quality installations.

Furthermore, the vibration from freight locomotives and heavy-haul trucks can lead to mechanical loosening of fasteners. To counter this, we employ ANSI-standard vibration-resistant fasteners and oversized washers to prevent the bolts from chewing through the cladding. The brackets are spaced at intervals that prevent the downspout from bowing or vibrating, which would otherwise create fatigue cracks in the metal and lead to premature failure of the joints. This rigorous approach to mechanical fastening ensures that the drainage system remains rigid and functional throughout the lifecycle of the facility.

Utilization of 12-gauge galvanized steel brackets for maximum rigidity and load bearing.
Implementation of neoprene vibration-dampening gaskets between the bracket and the building envelope.
Adherence to ASTM standards for corrosion-resistant coatings to prevent galvanic reaction.
Strict spacing protocols to eliminate harmonic resonance caused by high-velocity water flow.

Material Science and Freeze-Thaw Downspout Burst Defense

One of the most persistent threats to commercial drainage in cold-weather climates is the freeze-thaw cycle. When water traps in the bottom of a downspout or within a clogged elbow, it undergoes a phase change that results in a volumetric expansion of approximately 9%. In a rigid, sealed system, this expansion creates immense internal pressure, often leading to "ice-jacking," where the downspout seams are ripped open or the pipe is physically buckled. This not only destroys the drainage hardware but can also pull the conductor head away from the roofline, creating a direct path for water intrusion.

To defend against this, we utilize a combination of material science and strategic engineering. We specify alloys with higher ductility that can withstand slight deformations without fracturing. Additionally, we implement "burst-defense" venting and strategic drainage points at the base of the downspout to ensure that water does not pool in the vertical shaft. By ensuring a complete and rapid exit of water from the system, we eliminate the standing water that fuels the freeze-thaw cycle. The result is a building envelope that remains impervious to the seasonal shifts of the environment.

Application of thermal-break spacers to reduce the rate of heat loss at the roof-to-wall transition.
Installation of heated cable systems in critical zones to prevent ice damming in conductor heads.
Selection of ASTM-compliant alloys that maintain structural ductility at sub-zero temperatures.
Engineering of flared base outlets to prevent the accumulation of ice and debris at the discharge point.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #505

Structural Steel Deck Rust Remediation & Zinc-Rich Primer Passivation on Commercial Port Marine Shipping Warehouses

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Environmental Analysis and the Mechanics of Marine-Induced Oxidation

In the context of port marine shipping warehouses, the building envelope is subjected to one of the most aggressive atmospheric environments known to structural engineering. The primary catalyst for degradation is the high concentration of airborne chloride ions, which, when combined with constant humidity and cyclical temperature fluctuations, create a hyper-corrosive electrolyte on the surface of structural steel. This process, known as chloride-induced corrosion, accelerates the natural oxidation of carbon steel, leading to the formation of hydrated ferric oxide, or rust. Unlike the stable patina found on weathering steel, the rust on standard commercial steel decks is porous and non-adherent, allowing moisture and salts to penetrate deeper into the substrate.

From a building envelope perspective, the steel deck serves as both a structural diaphragm and a critical component of the thermal and moisture barrier. When oxidation occurs, particularly at the laps and the bottom of the flutes where condensation typically collects, the structural integrity of the deck is compromised. This leads to a reduction in the effective cross-sectional area of the steel, which can result in sagging or localized failure under live loads. To mitigate these risks, an engineering audit must identify the specific stages of corrosion, ranging from superficial surface rust to deep pitting and significant section loss.

Atmospheric Salinity: The constant deposition of salt crystals that attract moisture via hygroscopic action.
Galvanic Cells: The creation of localized anodic and cathodic areas on the steel surface, accelerating pitting.
Condensation Cycles: The "dew point" effect where warm, moist marine air hits the cooler steel deck, trapping chlorides against the metal.
ASTM G44 Standards: Utilizing standardized testing to evaluate the corrosion resistance of coated organic coatings in salt spray environments.

Mechanical Surface Preparation and Oxidation Remediation

The efficacy of any passivation system is entirely dependent on the quality of the surface preparation. In a marine warehouse environment, simply painting over rust is a recipe for premature coating failure, as the corrosion continues to migrate beneath the new film—a phenomenon known as under-film corrosion. To ensure a permanent bond, we implement a rigorous mechanical cleaning protocol based on the Surface Preparation Steel Council (SSPC) standards. For these specific applications, we target SSPC-SP2 (Hand Tool Cleaning) and SSPC-SP3 (Power Tool Cleaning) to remove all loose mill scale, flaky rust, and foreign contaminants.

Wire-brushing, when performed with industrial-grade power tools, serves a dual purpose: it removes the oxidized layers and creates a mechanical profile, or "anchor pattern," in the steel. This profile is essential for the zinc-rich primer to bite into the substrate. Without this mechanical key, the primer would rely solely on chemical adhesion, which is insufficient for the high-stress environment of a shipping warehouse. Our technicians focus heavily on the "valleys" of the steel flutes, as these areas act as collection troughs for debris and moisture, making them the most common points of failure in the building envelope.

SSPC-SP3 Compliance: Utilizing pneumatic needle scalers and wire wheels to achieve a clean, metallic surface.
Profile Depth Analysis: Ensuring the surface roughness is sufficient to support the dry film thickness (DFT) of the primer.
Contaminant Removal: Using solvent wiping to remove residual oils or salts that could interfere with the chemical bond.
Visual Inspection: Conducting a 100% audit of the deck surface to ensure no "shadow" rust remains in the lap joints.

Chemical Passivation and Zinc-Rich Primer Application

Once the substrate is mechanically cleaned, the goal shifts from remediation to passivation. We employ a high-solids, zinc-rich primer that functions through the principle of cathodic protection. In this electrochemical relationship, zinc acts as a sacrificial anode. Because zinc is more electronegative than steel, it preferentially corrodes in the presence of moisture and oxygen, thereby protecting the underlying iron from oxidation. This is not merely a physical barrier like a standard acrylic paint; it is a chemical defense system that prevents the formation of iron oxide even if the coating is scratched or abraded.

The application process requires precision to avoid "pinholing," which are microscopic voids in the coating that can allow chlorides to reach the steel. We utilize a combination of airless spray for broad coverage and brush-and-roll for critical detail work in the flutes and fasteners. The primer must be applied to a specific Dry Film Thickness (DFT) to ensure that the zinc particles are in electrical contact with the steel substrate. This ensures that the passivation layer remains active across the entire surface of the deck, creating a durable, conductive shield that extends the lifecycle of the structural steel by decades.

Sacrificial Anode Logic: The zinc layer oxidizes first, preventing the structural steel from losing its gauge.
Passivation Layer: The formation of a stable zinc carbonate film that further seals the surface from the atmosphere.
DFT Verification: Using magnetic gauges to ensure the primer meets the manufacturer's engineering specifications.
Curing Parameters: Monitoring ambient humidity and temperature to ensure the primer achieves full chemical cross-linking.

Structural Reinforcement and Fastener Integrity

In cases where the engineering audit reveals significant section loss—specifically where the steel flutes have thinned beyond acceptable tolerances—passivation alone is insufficient. When the structural gauge is compromised, the deck no longer meets the original design load requirements. To remedy this, we implement structural reinforcement by welding supplementary steel shims or plating to the thinned areas. This restores the load-bearing capacity of the diaphragm and ensures that the warehouse can continue to support heavy HVAC units, piping, and roofing membranes without the risk of deflection.

Finally, the integrity of the building envelope depends on the security of the fasteners. In marine environments, fasteners often suffer from "crevice corrosion," where moisture is trapped between the fastener head and the deck. We replace compromised fasteners with hot-dipped galvanized or stainless steel alternatives, ensuring they are torqued to ANSI standards. Each fastener head is then encapsulated with a high-performance sealant to prevent moisture ingress. This holistic approach—combining mechanical cleaning, chemical passivation, and structural reinforcement—creates a fortified building envelope capable of withstanding the harshest maritime conditions.

Section Loss Analysis: Calculating the remaining thickness of the steel flutes to determine the need for reinforcement.
Weldment Integration: Applying fillet welds to attach reinforcement plates to the existing structural deck.
Fastener Upgrade: Transitioning from standard carbon steel screws to ASTM A325 or equivalent high-strength galvanized bolts.
Envelope Sealing: Applying industrial-grade polymer sealants to all penetration points to eliminate moisture pathways.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #506

Hands-On Physical Roof Inspections & Boots-on-the-Roof Forensic Maintenance Audits on Commercial Municipal Sports & Convention Arenas

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Forensic Philosophy of High-Span Arena Envelope Audits

In the realm of commercial building envelope engineering, municipal sports and convention arenas represent some of the most challenging assets to maintain. These structures are characterized by massive contiguous surface areas, complex geometry, and extreme thermal fluctuations. A standard visual inspection is fundamentally insufficient for these assets; it merely identifies failures that have already manifested as leaks. A true forensic maintenance audit requires a "boots-on-the-roof" approach, shifting the objective from symptom identification to the detection of latent systemic failures.

The primary engineering challenge in these arenas is the management of thermal movement. Because of the vast expanse of the roof membrane, the coefficient of thermal expansion causes significant stress on seams and flashing. When a building breathes, the membrane shifts, creating shear stress at the attachment points. A forensic audit analyzes these stress points to determine if the installation meets the original design intent and the current environmental loads.

Evaluation of membrane elasticity and plasticizer migration over the asset's lifecycle.
Analysis of substrate deflection and its impact on membrane fatigue.
Assessment of wind uplift pressures relative to the perimeter fastening schedule.
Identification of "ponding" zones that indicate structural sagging or improper slope.

Mechanical Integrity and the Science of Seam Probing

Modern arenas often utilize automated welding systems for TPO or PVC membranes to ensure consistency across thousands of linear feet of seams. However, automation introduces the risk of "cold welds"—areas where the heat element failed to reach the required temperature or the roller pressure was insufficient. These defects are invisible to the naked eye but are catastrophic under hydrostatic pressure. Forensic auditing requires the use of specialized hand tools, such as calibrated seam probes, to physically verify the molecular bond of the weld.

The process involves a systematic "probe-and-pull" technique. The inspector uses a blunt-tip probe to apply consistent pressure along the seam edge. If the probe penetrates the weld, it indicates a failure in the fusion process. This is not merely a localized leak but a sign of a systemic failure in the automated welding parameters used during installation. From an engineering perspective, this represents a breach in the primary water-shedding layer, necessitating immediate remedial heat-welding or cold-applied flashing.

Verification of weld width and consistency according to ASTM standards.
Detection of "fish-mouths" or wrinkles in the seam that create preferential flow paths for water.
Testing the shear strength of the lap joints in high-stress transition zones.
Mapping of failed seam segments to identify patterns related to specific welding equipment or crew shifts.

Critical Penetration Engineering and Perimeter Fastening

The most vulnerable points of a municipal arena's envelope are the penetrations and the perimeter. Drain bowls, in particular, are subject to immense stress due to the volume of water they must process during storm events. A forensic audit focuses heavily on the clamping torque of the drain bowl assemblies. If the clamping rings are under-torqued, the seal between the membrane and the metal flange is compromised, leading to slow-seeping leaks that damage the interior structural steel and convention hall ceilings.

Furthermore, the perimeter cleats and termination bars must be inspected for mechanical fatigue. In high-wind zones, the perimeter of the roof acts as a wing, creating significant uplift forces. If the fasteners are backed out or the cleats are distorted, the membrane can peel away from the parapet. We utilize torque wrenches and physical stress tests to ensure that the fastening schedule adheres to the ANSI standards for wind-uplift resistance, ensuring the building envelope remains intact during extreme weather events.

Inspection of drain bowl clamping rings for correct torque specifications to prevent gasket failure.
Examination of perimeter termination bars for oxidation, fastener backing, and sealant degradation.
Evaluation of flashing integrity around HVAC curbs and oversized ventilation shafts.
Verification of the mechanical bond between the membrane and the perimeter nail plates.

Synthesis of Field Data and Engineering Reporting

The final phase of a forensic audit is the translation of physical findings into a technical engineering report. A master roofer does not simply provide a list of leaks; they provide a diagnostic map of the building's health. This report synthesizes the data from seam probing, torque testing, and perimeter analysis into a prioritized matrix of risk. By categorizing deficiencies into "Critical," "Urgent," and "Maintenance," the facility manager can allocate capital expenditure (CapEx) more effectively.

The reporting process includes the creation of a deficiency map, which overlays the physical findings onto the original architectural roof plan. This allows for the identification of "hot zones"—areas of the roof that are failing at a higher rate than others. This data is critical for determining whether the roof requires localized repairs or if the entire system has reached the end of its engineered service life. The goal is to move the municipality from a reactive repair cycle to a proactive asset management strategy.

Documentation of all failed probes with precise GPS or grid-based coordinates.
Calculation of the percentage of seam failure relative to the total linear footage of the roof.
Provision of photographic evidence contrasting "industry standard" installations with "observed" failures.
Development of a multi-year maintenance roadmap based on material science and degradation rates.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #507

60-Mil TPO Robotic Hot-Air Seam Fusion & Test-Cut Peel Audits on Commercial Multi-Family Urban Residential Towers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Thermal Dynamics and the Molecular Fusion of 60-Mil TPO

In the realm of high-rise urban residential towers, the building envelope is only as resilient as its weakest seam. When deploying 60-mil Thermoplastic Polyolefin (TPO) membranes, the objective is not merely to overlap materials but to achieve a true molecular fusion. This process requires a precise thermal window where the polymer chains of the upper and lower membranes intermingle and solidify into a single, monolithic sheet. For Aquashield Corporate, achieving this requires the calibration of hot-air welding equipment to a sustained 1,000°F. At this temperature, the TPO reaches its optimal melting point without crossing the threshold into thermal degradation, which would otherwise cause the membrane to scorch and lose its tensile strength.

The science of the weld depends on the balance between heat input and the material's heat-sink capacity. In a multi-family tower, varying substrate temperatures and wind-chill factors on the roof deck can fluctuate the actual heat delivered to the seam. To counteract this, our engineering approach utilizes a closed-loop feedback system that monitors the temperature at the nozzle exit. If the temperature drops below the critical fusion threshold, the robotic system automatically adjusts the blower output to maintain the 1,000°F set point, ensuring that the "melt zone" is consistent across every linear inch of the seam.

Molecular Cohesion: The transition from two separate sheets to a single fused entity.
Thermal Degradation Limits: Avoiding the "burn-through" point where the polymer chain breaks.
Heat Soak Analysis: Calculating the time required for the 60-mil thickness to reach fusion temperature.
Substrate Influence: Managing how the underlying insulation affects the thermal draw of the TPO.

Robotic Kinematics and Nozzle Pressure Calibration

Human error is the primary catalyst for envelope failure in commercial roofing. By implementing robotic hot-air seam fusion, we eliminate the inconsistency of manual hand-welding. The critical variables in this automated process are travel velocity and nozzle pressure. Travel velocity must be synchronized with the heat output; if the robot moves too quickly, the membrane does not receive sufficient heat soak, resulting in a "cold weld." Conversely, excessive dwell time leads to overheating and potential voiding of the membrane's internal reinforcement.

Nozzle pressure is equally vital. The hot air must be forced into the overlap with enough pressure to displace any trapped air and ensure a tight, intimate contact between the two layers of TPO. This pneumatic pressure, combined with the robotic roller's downward force, compresses the molten polymer, squeezing out impurities and ensuring a dense, void-free weld. In urban tower environments, where wind uplift pressures are extreme, this level of compression is the only way to guarantee that the seam can withstand the negative pressures exerted during high-wind events.

Automated Travel Velocity: Precision movement measured in inches per minute to ensure uniform heat distribution.
Pneumatic Nozzle Pressure: High-velocity air delivery to ensure deep penetration of the thermal energy.
Robotic Roller Compression: Mechanical pressure applied immediately following the heat application to lock the fusion.
Consistency Metrics: Reducing the variance in weld quality across thousands of linear feet of seams.

Destructive Test-Cut Peel Audits and Validation

No matter how precise the robotic calibration, a master roofer never trusts a seam without physical validation. We employ a rigorous destructive testing protocol known as the "Peel Audit." This process involves taking a test-cut—a sample section of the seam—and attempting to pull the two membranes apart manually or with a calibrated tension gauge. The goal of a successful peel test is not to see if the seam holds, but to observe where the failure occurs. In a perfect fusion, the membrane itself will tear (a "film-tear failure") before the weld separates. This indicates that the bond at the seam is stronger than the material of the membrane itself.

If the membranes separate cleanly at the weld interface, it is a "peel failure," indicating a cold weld or insufficient nozzle pressure. These failures are often invisible to the naked eye and cannot be detected by simple visual inspections or infrared thermography. By performing these destructive audits at randomized intervals across the tower's roof, we create a statistical map of the envelope's integrity. This data-driven approach allows us to identify any drift in the robotic calibration and perform corrective re-welding before the building is commissioned.

Film-Tear Validation: The gold standard of welding where the material fails before the bond.
Interfacial Separation: Identifying "cold welds" where the layers are merely touching but not fused.
Randomized Sampling: Ensuring a representative audit across different roof zones and orientations.
Tension Gauging: Using calibrated tools to measure the exact force required to break the fusion.

Building Envelope Integrity and Long-Term Risk Mitigation

For multi-family urban residential towers, the roof is the primary defense against catastrophic water intrusion. A failure in the TPO seams can lead to systemic leaks that damage high-value interior finishes and compromise the structural integrity of the concrete decking. By adhering to ASTM and ANSI standards for thermoplastic roofing, Aquashield Corporate ensures that the building envelope is engineered for a fifty-year lifecycle. The integration of robotic fusion and destructive testing transforms the roofing process from a craft-based installation into a predictable engineering science.

The long-term risk mitigation strategy focuses on the synergy between material science and mechanical execution. When 60-mil TPO is fused at 1,000°F with robotic precision, the resulting seam is virtually impervious to the hydrostatic pressure of ponding water and the mechanical stress of thermal expansion and contraction. This rigorous audit process provides the building owner with a certified "birth certificate" for their roof, proving that every seam has been validated through empirical testing rather than mere observation.

Hydrostatic Resistance: Ensuring the seam can withstand standing water without capillary action.
Thermal Expansion Management: Allowing the roof to move without stressing the fused joints.
Wind Uplift Compliance: Meeting the stringent requirements for high-rise urban wind loads.
Lifecycle Cost Reduction: Minimizing future maintenance by eliminating infant mortality in the seams.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #508

High-Solids Silicone Monolithic Coating Restoration & Albedo Reflectance on Commercial Public Transit Maintenance Bus Barns

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Comprehensive Building Envelope Audit and Substrate Diagnostics

In the specialized environment of a public transit maintenance bus barn, the building envelope is subjected to extreme stressors that exceed standard commercial warehouse conditions. Our engineering audit began with a forensic analysis of the existing roof assembly, which had suffered from chronic thermal cycling and chemical degradation. Bus barns are unique because they combine high-volume interior exhaust emissions with massive roof surface areas, often leading to accelerated oxidation of the upper membrane. The primary objective was to identify points of failure in the existing substrate, specifically looking for compromised seams, moisture entrapment, and the presence of legacy bitumen bleed.

A critical component of this audit was the assessment of the substrate's structural integrity and its capacity to bond with a high-performance coating system. We utilized infrared thermography to map subsurface moisture pockets, ensuring that the restoration would not trap water, which could lead to osmotic blistering. The audit revealed a degraded surface with significant UV degradation and a loss of elasticity, necessitating a system that could bridge existing hairline fractures while providing a seamless, monolithic barrier against future infiltration.

Evaluation of existing membrane tensile strength and elasticity.
Infrared thermographic mapping to identify saturated insulation zones.
Analysis of chemical contaminants from diesel exhaust and industrial lubricants.
Assessment of flashing integrity at parapet walls and HVAC curb penetrations.
Verification of slope-to-drain ratios to mitigate ponding water risks.

Advanced Bleed-Blocking Epoxy Primers and Chemical Adhesion

The most significant challenge in restoring aged transit facilities is the presence of legacy asphaltic materials and oils that migrate to the surface, known as "bleed-through." Standard acrylic or silicone coatings often fail in these scenarios because the oils break the chemical bond between the coating and the substrate. To counteract this, we engineered a specification centered on a high-solids, bleed-blocking epoxy primer. This primer acts as a molecular bridge, creating a non-porous, chemically inert layer that seals the substrate and prevents contaminants from migrating upward into the final silicone membrane.

The epoxy primer was selected for its superior adhesion properties and its ability to encapsulate unstable substrates. By applying this primer in a strategic, targeted manner across the entire field and specifically around high-risk transition zones, we ensured a stable foundation. This process is not merely about coverage; it is about creating a high-strength mechanical bond that can withstand the differential movement of the building's steel frame during extreme temperature swings. The result is a locked-in substrate that is fully prepared for the application of the high-solids silicone.

Utilization of solvent-free epoxy chemistry to eliminate shrinkage and VOC off-gassing.
Implementation of a cross-linking polymer chain to block bitumen migration.
Precision application to ensure total encapsulation of porous concrete and metal substrates.
Verification of cure times to ensure the primer reached full hardness before the topcoat.
Enhanced scrub-resistance and abrasion resistance at the primer level.

Engineering the 30-Mil Monolithic Silicone Membrane

To achieve a permanent restoration, we specified a high-solids silicone monolithic coating applied to a strict 30-mil dry film thickness (DFT). Unlike traditional roof coatings that rely on thin layers, a 30-mil DFT provides a substantial physical barrier that is inherently resistant to ponding water—a common failure point in large-scale bus barn roofs. The term "monolithic" is critical here; the system is applied as a single, continuous fluid mass that eliminates all seams, laps, and fasteners, which are the primary entry points for water during wind-driven rain events.

The material science behind high-solids silicone allows for a unique combination of flexibility and hardness. The membrane can elongate significantly to accommodate the thermal expansion and contraction of the building envelope without cracking. Furthermore, the silicone chemistry is naturally hydrophobic and UV-stable, meaning it does not break down under intense solar radiation. By maintaining a consistent 30-mil thickness across the entire roof surface, we ensured that the building envelope was completely sealed, effectively turning the roof into a single, seamless waterproof "envelope" that protects the critical maintenance equipment below.

Strict adherence to 30-mil DFT to ensure long-term durability and water-shedding.
Elimination of all mechanical fasteners to remove potential leak paths.
Application of high-solids content to minimize shrinkage during the curing process.
Integration of the membrane with existing flashing for a seamless transition.
Utilization of a monolithic structure to prevent capillary action at the seams.

Albedo Reflectance and Zero-Downtime Operational Logistics

The final phase of the restoration focused on the thermal performance of the building, specifically the Albedo effect. By utilizing a coating with 88% solar radiation reflectance, we significantly reduced the Solar Heat Gain Coefficient (SHGC) of the facility. High Albedo surfaces reflect the majority of the sun's energy back into the atmosphere rather than absorbing it into the building's structure. For a transit bus barn, this results in a dramatic reduction in interior ambient temperatures, lowering the load on HVAC systems and reducing the energy costs associated with cooling a massive open-span volume.

Perhaps the most demanding requirement of this project was the mandate for zero-downtime application. Public transit operations cannot cease for roof maintenance. We coordinated the application in phased quadrants, utilizing a specialized deployment strategy that allowed buses to move freely in and out of the bays while crews worked overhead. Because the silicone system cures chemically rather than relying on a slow evaporation process, the roof returned to service almost immediately after application. This engineering approach ensured that the facility remained 100% operational while upgrading the building envelope to a modern, energy-efficient standard.

Achievement of 88% solar reflectance to mitigate the urban heat island effect.
Reduction of internal thermal loading, leading to lower operational energy costs.
Implementation of a phased application schedule to avoid operational interruptions.
Use of rapid-cure silicone technology to ensure immediate return-to-service.
Compliance with ASTM standards for solar reflectance and emissivity.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #509

Tapered Polyiso Drainage Layouts (1/4-In/Ft) & Geometric Cricket Sizing on Commercial Government Secure Records Archives

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Zero-Failure Mandate: Engineering the Secure Records Archive Envelope

When auditing a Government Secure Records Archive, the margin for error is non-existent. Unlike standard commercial warehouses, these facilities house irreplaceable historical and legal data, meaning a single roof leak is not merely a maintenance issue—it is a catastrophic failure of the building envelope. The primary objective of this engineering audit was to evaluate the efficacy of the existing drainage strategy and implement a rigorous tapered polyisocyanurate (Polyiso) system designed to eliminate standing water. In high-security archives, the structural deck is often heavily loaded, which can lead to subtle deflections over time, making the precision of the slope layout critical to preventing hydrostatic pressure buildup against the membrane.

To achieve a "zero-ponding" environment, we adhered to the industry gold standard of a 1/4-inch per foot (1/4"-in/ft) minimum slope. This gradient ensures that gravity consistently overcomes the surface tension of the water and the slight irregularities of the roof deck. Our audit focused on the intersection of material science and geometric precision, ensuring that every square inch of the roof surface had a clear, unobstructed path to a primary or secondary drain. The following engineering priorities were established to secure the envelope:

Verification of substrate flatness to ensure tapered insulation sits flush without creating air gaps.
Analysis of thermal bridging at the perimeter to prevent condensation within the archive walls.
Assessment of the membrane's compatibility with the high-density Polyiso core.
Evaluation of the primary drainage capacity against 100-year storm event projections.

Tapered Polyiso Layouts and Multi-Directional Slope Engineering

The core of the drainage solution lies in the deployment of tapered Polyiso insulation. Polyisocyanurate is selected not only for its superior R-value but for its ability to be precision-cut into specific slopes. In this project, we utilized a multi-directional slope layout, which means the roof does not simply tilt in one direction but is engineered as a series of "sheds" or "valleys" that converge at the primary drains. This requires a sophisticated layout map where each piece of insulation is numbered and placed according to a strict geometric grid, ensuring that the 1/4"-in/ft slope is maintained regardless of the direction of the water flow.

The challenge in large-scale government archives is the presence of massive HVAC units and rooftop equipment that create "shadow areas" where water naturally collects. To solve this, we engineered a custom tapered layout that creates a positive flow around these obstructions. By manipulating the slope of the Polyiso, we effectively "lifted" the roof surface around the equipment, forcing the water to route around the curbs rather than pooling against them. This prevents the common failure point of flashing leaks at the equipment curbs.

Implementation of factory-cut tapered panels to eliminate the inconsistencies of field-cutting.
Use of high-density Polyiso to withstand the compressive loads of heavy archival shelving systems.
Strategic placement of "tapered strips" to transition between different slope planes.
Strict adherence to ASTM D2118 standards for thermal insulation materials.

Geometric Cricket Sizing and Diamond Valley Integration

Crickets are the unsung heroes of commercial roofing, acting as diversionary dams that redirect water away from walls, parapets, and internal corners. In this archive project, standard crickets were insufficient due to the complex geometry of the building's footprint. We implemented "Diamond Valley" crickets—a sophisticated geometric arrangement where four triangular slope planes meet at a central peak, creating a diamond-shaped valley that channels water in two opposite directions. This is particularly effective in corners where water typically stagnates, as it forces the runoff to move diagonally toward the nearest drain.

The sizing of these crickets was calculated based on the volume of runoff expected from the surrounding roof area. A cricket that is too small fails to move the volume of water, leading to "over-topping" and ponding. A cricket that is too steep can create a localized "dam" effect if the surrounding slope is not perfectly synchronized. By maintaining a consistent 1/4"-in/ft slope on the cricket faces, we ensured a seamless transition from the main roof field into the diamond valley, eliminating the turbulence that often leads to membrane fatigue and premature wear.

Calculation of catchment areas to determine the necessary width and height of each cricket.
Engineering of diamond valleys to prevent "dead spots" in 90-degree internal corners.
Precision flashing of cricket peaks to ensure a watertight seal at the highest point of the diversion.
Integration of the cricket slope with the overall tapered layout to avoid "counter-sloping."

Expansion Joint Routing and Final Envelope Integrity Audit

Expansion joints are the most vulnerable points in a building envelope, as they are designed to allow the structure to move and breathe. However, these joints often become collection points for debris and water. Our engineering strategy involved routing all runoff away from the expansion joints using specialized tapered "wedges" of Polyiso. By creating a subtle but firm slope that pushes water away from the joint and toward the drains, we reduced the hydrostatic load on the joint covers and flashing, significantly lowering the risk of infiltration into the secure archive below.

The final phase of the audit involved a comprehensive integrity check using infrared thermography and flood testing. By simulating a heavy rain event, we were able to verify that the 1/4"-in/ft slope was functioning as intended across the entire surface. The results confirmed that the combination of tapered Polyiso, diamond valley crickets, and expansion joint routing had successfully eliminated all areas of ponding. This rigorous approach ensures that the building envelope remains impervious to the elements, protecting the government's secure records for decades to come.

Installation of tapered wedges to create a "shed" effect away from structural expansion joints.
Application of reinforced flashing at all transition points between the slope and the joint cover.
Conducting infrared scans to identify hidden moisture pockets within the insulation layers.
Final verification of the "positive flow" mandate through comprehensive flood testing.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #510

Multi-Ply SBS-Modified Bitumen Cap Sheet Application & Vapor Control on Commercial Pharmaceutical Production Facilitys

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Cold-Applied Adhesive Shear Resistance and SBS Membrane Stability

In the rigorous environment of a pharmaceutical production facility, the building envelope must function as a monolithic shield. Our engineering audit focused heavily on the shear resistance of cold-applied adhesives used to secure the SBS (Styrene-Butadiene-Styrene) modified bitumen cap sheets. Unlike traditional hot-mop applications, cold-applied adhesives rely on a chemical bond that must withstand significant lateral forces caused by thermal expansion and contraction of the roof deck. In a facility with high-output HVAC systems, the roof surface undergoes rapid temperature fluctuations, creating a dynamic stress environment.

The shear resistance of the adhesive is the primary defense against membrane migration. When the adhesive fails to maintain a consistent bond across the entire field, the membrane can shift, leading to "fish-mouths" or creases that compromise the water-tight integrity. We analyzed the bond strength using ASTM standards, ensuring that the adhesive’s cohesive strength exceeded the tensile strength of the reinforcement scrim. This ensures that under extreme wind uplift or thermal shock, the failure occurs within the material rather than at the bond line.

Evaluation of adhesive wetting patterns to ensure 100% coverage of the substrate.
Analysis of the curing timeline to prevent premature loading of the membrane.
Verification of shear strength to mitigate the risk of "creep" during peak summer UV exposure.
Assessment of the chemical compatibility between the SBS polymer and the cold-applied adhesive resin.

Precision Geometry in Staggered Side Laps and Seam Engineering

The most critical failure point in any multi-ply bitumen system is the seam. In pharmaceutical facilities, where internal pressure differentials are often maintained for clean-room standards, the roof is subject to unique internal pressures. Our audit revealed that the adherence to a strict staggered side-lap pattern is non-negotiable. By offsetting the seams of the cap sheet from the seams of the base sheet by a minimum of three feet, we eliminate the creation of a continuous linear path for moisture penetration, known as "stacking."

Properly engineered side laps must maintain a minimum width of six inches to ensure a sufficient overlap for the adhesive to create a permanent seal. We observed that improper staggering often leads to concentrated stress points, which can cause the bitumen to pull away from the substrate. By employing a precise staggered geometry, the load is distributed across the roof surface, reducing the likelihood of capillary action drawing water into the assembly. This approach transforms the roof from a series of overlapping sheets into a continuous, integrated waterproof membrane.

Implementation of a 36-inch minimum offset for all vertical and horizontal seams.
Verification of lap-seam compression to ensure zero air voids within the adhesive layer.
Inspection for "bridging" at the corners, ensuring the membrane remains in full contact with the deck.
Utilization of a seam-roller to mechanically set the SBS membrane into the adhesive.

Granule Surface Protection and UV Degradation Mitigation

The uppermost layer of the SBS cap sheet—the granule surface—is not merely aesthetic; it is a critical engineering component designed for UV protection and mechanical durability. In pharmaceutical production, roofs are often subject to heavy foot traffic from maintenance personnel and HVAC technicians. The granules act as a sacrificial wear layer, protecting the bitumen from direct ultraviolet radiation, which would otherwise cause the polymers to oxidize and become brittle over time.

Our analysis focused on the granule embedment rate and the uniformity of the surface. Poorly embedded granules lead to "scouring," where the bitumen is exposed to the elements, accelerating the degradation of the SBS modifier. We monitored the surface temperature of the roof using infrared thermography, noting that a high-quality, consistent granule layer significantly reduces the "heat island" effect on the roof surface. This reduction in surface temperature lowers the thermal load on the facility's internal climate control systems, contributing to overall energy efficiency.

Measurement of granule distribution to prevent "bald spots" in the bitumen.
Assessment of UV reflectance values to mitigate thermal expansion cycles.
Evaluation of the granule composition for resistance to chemical pollutants.
Monitoring of the surface for signs of "alligatoring" or premature bitumen oxidation.

Internal Vapor Drive Regulation and Envelope Integrity

Pharmaceutical facilities are unique because they often generate significant internal moisture and maintain strict humidity levels, creating a powerful internal vapor drive. If the building envelope is not engineered to regulate this pressure, water vapor will migrate from the warm interior toward the cold exterior. When this vapor hits the dew point within the roof assembly, it condenses, leading to interstitial condensation that can rot decking and cause the SBS membrane to delaminate from the inside out.

To combat this, we audited the vapor retarder installation beneath the insulation layers. The goal is to create a continuous vapor barrier that prevents moisture from entering the insulation. By regulating the vapor drive, we ensure that the SBS cap sheet is not fighting a "double-sided" battle—keeping liquid water out while simultaneously fighting internal vapor pressure. This holistic approach to the building envelope ensures that the roof system remains stable and that the pharmaceutical production environment remains uncontaminated and dry.

Audit of the vapor barrier continuity at all penetrations and curb flashings.
Analysis of the dew point calculations relative to the facility's internal climate settings.
Verification of the insulation's R-value to prevent thermal bridging at the roof perimeter.
Inspection of the transition zones where the roof membrane meets the vertical wall assembly.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #511

Parapet Wall Heavy-Gauge 20-Gauge Kynar 500 Coping Cap Continuous Cleat Locking on Commercial Historic Sanctuary & Education Annexs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Engineering Audit and Substrate Analysis of Historic Masonry

The building envelope audit of the Historic Sanctuary and Education Annex revealed a critical failure in the legacy parapet capping system. Over decades, the previous lightweight gauge metal had succumbed to galvanic corrosion and fatigue, leading to systemic water infiltration into the masonry core. In historic structures, the parapet acts as the primary defense mechanism for the entire roof assembly; once the coping fails, the capillary action draws moisture deep into the brick and mortar, compromising the structural integrity of the wall head.

To rectify these deficiencies, we specified a heavy-gauge 20-gauge Kynar 500 finished steel system. The decision to move to 20-gauge—significantly heavier than the industry-standard 24-gauge—was driven by the need for increased rigidity and a higher moment of inertia to resist deflection across long spans of the Education Annex. The Kynar 500 (PVDF) coating was selected not merely for its aesthetic consistency with the historic facade, but for its superior resistance to ultraviolet degradation and atmospheric pollutants common in urban commercial environments.

Evaluation of masonry saturation levels using infrared thermography to identify hidden moisture pockets.
Assessment of the existing wall plate stability to ensure the substrate could support the increased dead load of 20-gauge steel.
Analysis of the jointing mortar to determine the appropriate fastening frequency for the continuous cleat system.
Verification of the coping profile to ensure a positive slope toward the roof field, preventing internal pooling.

ANSI/SPRI ES-1 Wind Uplift and Aerodynamic Engineering

Commercial parapets are subject to extreme wind pressures, specifically negative pressure zones that create a "vacuum" effect, attempting to lift the coping cap off the wall. For this project, our engineering calculations were based on ANSI/SPRI ES-1 standards, which dictate the wind uplift resistance required for roof-mounted equipment and perimeter flashing. The sanctuary's height and exposure make it susceptible to high-velocity wind gusts that can cause "perimeter peel," where the wind catches the edge of the metal and peels it back like a lid.

To mitigate this, we engineered a continuous cleat locking system. Unlike intermittent fasteners, which create localized points of high stress, the continuous cleat distributes the wind load evenly across the entire length of the parapet. This ensures that the uplift force is shared across the entire fastening array, reducing the probability of a catastrophic failure at any single point. The locking mechanism creates a mechanical bond that resists both vertical lift and lateral sliding, maintaining the envelope's seal during peak wind events.

Calculation of the wind load coefficients based on the building's geographic exposure and height.
Implementation of reinforced corner wraps to eliminate the vulnerability of the "wind-corner" effect.
Utilization of heavy-duty anchors that penetrate deep into the masonry to prevent pull-out failure.
Strict adherence to the ES-1 guidelines for fastener spacing to ensure the metal does not "oil-can" or flutter under pressure.

Continuous Cleat Engagement and Mechanical Fastening

The core of this installation is the continuous cleat engagement system, a master-level craftsmanship approach to building envelope security. In a standard installation, a roofer might use a "blind" fastener or a simple screw. However, for a high-stakes commercial sanctuary, we utilized a custom-fabricated locking cleat that runs the full length of the parapet. This cleat acts as a structural rail, providing a consistent seat for the 20-gauge coping cap and ensuring that the metal remains perfectly aligned regardless of the substrate's irregularities.

The engagement process involves a precision-fit locking mechanism that secures the coping cap to the cleat, effectively sandwiching the wall head. This eliminates the gap where water typically enters and provides a secondary layer of protection against thermal movement. By utilizing a continuous locking system, we have effectively turned the coping cap into a singular, rigid beam that spans the parapet, significantly increasing the overall stiffness of the assembly and preventing the sagging often seen in lighter-gauge materials.

Precision fabrication of the 20-gauge steel to ensure a tight tolerance fit over the continuous cleat.
Use of stainless steel fasteners to prevent the bimetallic corrosion often found in historic masonry environments.
Application of a high-grade sealant at the cleat-to-wall interface to create a redundant moisture barrier.
Verification of the mechanical lock via torque testing to ensure the engagement is permanent and secure.

Thermal Dynamics and Perimeter Peel Mitigation

One of the most overlooked aspects of commercial coping is the coefficient of thermal expansion. Steel expands and contracts at a different rate than masonry. In a long run, such as the Education Annex, this movement can lead to "buckling" or the opening of joints, which invites water into the building envelope. To solve this, we engineered thermal expansion splice plates. These plates allow the 20-gauge Kynar 500 panels to slide microscopically during temperature swings while maintaining a watertight overlap.

Perimeter peel mitigation was further addressed by integrating a custom-folded drip edge and a secure wrap-around at the termination points. By extending the coping cap over the edge of the wall and securing it with a heavy-duty return, we eliminate the "lip" that wind typically catches. This creates a streamlined aerodynamic profile that encourages wind to flow over the cap rather than under it. The result is a building envelope that is not only watertight but is structurally tuned to the environmental stresses of its specific location.

Installation of oversized splice plates to accommodate the thermal movement of heavy-gauge steel.
Implementation of a "lapping" sequence that ensures water always flows away from the structural joints.
Application of a perimeter sealant bead using high-performance polyurethane to prevent capillary suction.
Final inspection of all corner miters to ensure they are fully welded and sealed, removing any potential entry points for wind-driven rain.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #512

Industrial Drainage Scuppers, Overflow Weirs & Heavy Downspout Expansion Bellows on Commercial Financial Institution Data Vaults

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Hydraulic Head-Loss Analysis and Primary Drainage Dynamics

In the specialized context of a Financial Institution Data Vault, the building envelope is not merely a shelter but a critical security layer. The primary objective of the drainage system is the total elimination of standing water, as any hydrostatic pressure accumulation against the vault's reinforced concrete shell can lead to capillary infiltration. During our engineering audit, we focused on the hydraulic head-loss calculations, which determine the pressure drop as water moves from the roof surface through the primary drainage conduits. When water encounters a restriction—such as a sharp bend in a conductor head or a partially obstructed scupper—the resulting head-loss can cause water to back up, increasing the depth of the water film across the roof membrane.

For these high-stakes environments, we utilize a modified Darcy-Weisbach approach to calculate friction loss within the heavy-gauge aluminum leaders. We must account for the roughness coefficient of the interior pipe walls and the velocity of the flow during a 100-year storm event. If the hydraulic head exceeds the design threshold, the roof transitions from a shedding surface to a storage basin, placing thousands of pounds of unplanned dead load on the structural slab. Our analysis indicates that maintaining a minimum slope of 1/4" per foot toward the primary drains is insufficient if the conductor heads are undersized, as the bottleneck creates a localized high-pressure zone that can compromise the flashing at the curb.

Calculation of laminar versus turbulent flow to prevent air-locking in the downspouts.
Assessment of the Manning roughness coefficient for galvanized steel versus Kynar-coated aluminum.
Evaluation of the "critical depth" to ensure the primary drains operate under gravity flow without surcharging.
Analysis of the impact of debris accumulation on the coefficient of discharge at the scupper throat.

Emergency Overflow Weir Sizing and Fail-Safe Integration

A primary drainage failure in a data vault scenario is a catastrophic event. Therefore, the integration of emergency overflow weirs is the most critical fail-safe in the building envelope. An overflow weir is designed to activate the moment the water level reaches a predetermined height—typically two inches above the roof surface—discharging water to the exterior before it can penetrate the parapet wall or seep into the mechanical penthouse. The sizing of these weirs is governed by the weir equation, where the discharge rate is proportional to the length of the weir crest and the height of the water above that crest raised to the power of 1.5.

During the audit, we identified that many legacy financial vaults suffer from "undersized weir syndrome," where the overflow capacity is calculated based on outdated rainfall data. We insist on a redundant system where the total capacity of the overflow weirs equals or exceeds 150% of the primary drainage capacity. This ensures that even if 50% of the primary drains are blocked by wind-borne debris, the building remains structurally sound and the interior data servers remain dry. The positioning of these weirs must be strategically placed at the highest point of the roof's low-spots to prevent "ponding pockets" that can lead to membrane degradation and premature failure of the waterproofing layer.

Application of the Francis Formula for calculating rectangular weir discharge rates.
Verification of the "overtopping" height to ensure water exits the building rather than entering the interior wall cavity.
Integration of overflow sensors that trigger an immediate alert to the facility's Building Management System (BMS).
Strategic placement of weirs to avoid discharging water onto critical entry points or adjacent lower-roof sections.

Conductor Head Engineering and Vortex Mitigation

The conductor head serves as the transition point between the horizontal roof plane and the vertical downspout. In high-volume industrial applications, this is often the point of maximum turbulence. If a conductor head is poorly engineered, it creates a vortex that traps air, significantly reducing the effective diameter of the pipe and causing a "backup" effect. This phenomenon increases the hydraulic head on the roof, effectively neutralizing the efficiency of the primary drains. Our standard for data vault envelopes requires a custom-fabricated, heavy-gauge conductor head with a flared intake to smooth the transition of water and minimize air entrainment.

Furthermore, the connection between the conductor head and the roof membrane must be executed with surgical precision. We utilize a reinforced flashing detail that incorporates a liquid-applied flashing membrane over a traditional heat-welded TPO or PVC sheet. This dual-layer approach ensures that the vibration caused by high-velocity water flow does not fatigue the membrane. The conductor head must be securely anchored to the structural deck to prevent shifting during thermal expansion cycles, which could otherwise tear the flashing and create a direct path for water to enter the vault's sensitive electronics environment.

Implementation of vortex-breaking baffles within the conductor head to stabilize flow.
Utilization of 16-gauge stainless steel for conductor heads to prevent corrosion from atmospheric pollutants.
Detailed inspection of the "sump" area to ensure no standing water remains trapped beneath the head.
Verification of the seal between the conductor head and the downspout to prevent leakage into the building envelope.

Thermal Expansion Bellows and Material Science in Downspouts

One of the most overlooked aspects of commercial drainage is the physical movement of the building. Financial data vaults are often constructed with massive concrete rafts that exhibit different thermal expansion coefficients than the steel or aluminum drainage systems attached to them. As the exterior temperature fluctuates, the vertical runs of the downspouts expand and contract. Without proper accommodation, this movement manifests as stress on the roof connections, leading to "crushing" of the insulation or the tearing of the membrane at the penetration points.

To mitigate this, we specify the installation of heavy-duty expansion bellows or slip joints at calculated intervals along the downspout run. These bellows are constructed from reinforced industrial elastomers or telescoping metal sleeves that allow for linear movement without compromising the watertight integrity of the system. By incorporating these slip joints, we decouple the drainage system from the structural movements of the building. This prevents the "jacking" effect, where a contracting pipe pulls away from the roof, creating a gap that allows water to migrate into the wall assembly. Our approach adheres to ASTM standards for thermal cycling, ensuring that the materials used in the bellows can withstand extreme temperature swings without becoming brittle or losing their elasticity.

Calculation of linear expansion based on the coefficient of thermal expansion for aluminum (approx. 23 microns/m°C).
Installation of telescoping slip joints every 30 feet of vertical run to absorb longitudinal stress.
Selection of EPDM or silicone-based bellows for superior UV resistance and thermal stability.
Audit of the fastening brackets to ensure they allow for slight lateral movement while maintaining vertical alignment.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #513

AOC 581 Elastomeric Structural Mastic Detailing Around Rooftop HVAC Curbs on Commercial Telecommunications Central Switching Offices

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Critical Vulnerabilities of Telecommunications Central Switching Office Envelopes

In the realm of commercial building envelope engineering, Telecommunications Central Switching Offices (CSOs) represent some of the most demanding environments for a roofing professional. These facilities are not merely warehouses; they are mission-critical hubs housing millions of dollars in sensitive switching gear and fiber-optic infrastructure. The primary engineering challenge lies in the intersection of the roof membrane and the heavy-duty HVAC curbs required to cool the massive heat loads generated by the internal hardware. Because a single leak can lead to catastrophic equipment failure and regional communication outages, the margin for error is zero.

A comprehensive engineering audit of these facilities typically reveals a recurring failure point: the curb-to-deck transition. In CSOs, the sheer weight of the mechanical equipment creates localized stress points on the roof deck. When combined with the high-velocity airflow from industrial condensers, the building envelope is subjected to constant pressure differentials. Standard flashing often fails because it cannot accommodate the specific dynamic loads of a switching office, leading to hairline fractures in the membrane that allow moisture to migrate via capillary action.

High-density equipment loads causing localized substrate deflection.
Extreme thermal gradients between the cooled interior and the sun-beaten roof surface.
The necessity for non-disruptive maintenance to avoid downtime of critical switching services.
Increased risk of hydrostatic pressure buildup at the base of oversized HVAC curbs.

Mitigating Mechanical Vibration and Thermal Expansion Drift

One of the most overlooked aspects of CSO roof engineering is the impact of mechanical vibration. Large-scale HVAC units, particularly those with heavy compressors and cooling fans, transmit constant harmonic vibrations through the curb and into the roof substrate. Over time, these vibrations act as a mechanical saw, gradually breaking the bond between traditional sealants and the substrate. This process, coupled with thermal expansion drift—the physical movement of the building materials as they heat and cool—creates a "breathing" effect that opens gaps in the flashing.

To combat this, the application of AOC 581 Elastomeric Structural Mastic is essential. Unlike rigid sealants, this material is engineered with a high degree of elasticity and a low modulus of elasticity, allowing it to stretch and recover without losing its adhesive bond. By creating a flexible, structural bridge at the curb interface, the mastic absorbs the kinetic energy of the HVAC equipment and accommodates the diurnal movement of the roof deck. This prevents the formation of stress cracks and ensures that the seal remains intact regardless of the mechanical activity occurring above it.

Reduction of shear stress at the membrane-to-curb interface.
Absorption of harmonic frequencies to prevent substrate fatigue.
Compensation for the different coefficients of thermal expansion between steel curbs and bitumen or TPO membranes.
Prevention of "alligatoring" or surface cracking common in non-elastomeric fillers.

Engineering the Fiber-Reinforced Trowel Application

The application of AOC 581 is not a simple coating process; it is a precise engineering exercise in material science. To achieve a truly watertight seal, a fiber-reinforced trowel application is utilized. The introduction of synthetic fibers into the mastic matrix increases the tensile strength of the seal, providing a reinforced "web" that can resist tearing under extreme building movement. The trowel application ensures that the material is forced into the microscopic pores of the substrate, creating a mechanical lock that is far superior to brush or spray applications.

The process begins with a rigorous substrate preparation, removing all oxidized material and contaminants to ensure a chemically clean surface. The mastic is then applied in a heavy-build layer, meticulously worked into the corners and fillets of the HVAC curb. By utilizing a fiber-reinforced approach, we eliminate the risk of "slumping" on vertical surfaces, ensuring a consistent thickness across the entire transition. This creates a seamless, monolithic barrier that encapsulates the curb, effectively turning the mechanical penetration into a permanent part of the waterproof envelope.

Utilization of high-tensile synthetic fibers to prevent shrinkage and cracking.
Mechanical keying of the mastic into the substrate for maximum adhesion.
Application of a reinforced fillet at the 90-degree transition to distribute stress.
Ensuring a minimum dry-film thickness (DFT) that meets or exceeds ASTM standards for commercial waterproofing.

Validation of Watertight Seals and Long-Term Envelope Integrity

The final phase of the engineering audit is the validation of the seal's integrity. A successful application of AOC 581 is measured not by its immediate appearance, but by its performance under hydrostatic pressure and thermal cycling. In a CSO environment, we employ rigorous testing protocols to ensure that the building envelope is fully closed. This includes infrared thermography to detect hidden moisture pockets and flood testing around the HVAC curbs to simulate extreme weather events. The goal is to ensure that the transition from the horizontal roof plane to the vertical curb face is completely impervious to water ingress.

Long-term integrity is maintained through the material's resistance to UV degradation and ozone exposure. Because AOC 581 is an elastomeric structural mastic, it does not become brittle with age. Instead, it maintains its flexibility, ensuring that the CSO remains protected for the duration of the roof's lifecycle. By integrating this high-performance detailing into the building envelope, we move from a reactive maintenance posture—patching leaks as they appear—to a proactive engineering posture, where the roof is designed to withstand the specific mechanical and thermal stresses of a telecommunications hub.

Conducting ASTM-compliant leak detection tests to verify seal continuity.
Monitoring the elastomeric recovery rate after significant thermal shifts.
Evaluating the bond strength between the mastic and the existing roof membrane.
Establishing a scheduled audit cycle to ensure the envelope remains compliant with corporate facility standards.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #514

UL 2218 Class 4 Severe Hail Defense on Commercial Heavy Manufacturing Fabrication Plants

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Challenge of Heavy Manufacturing Envelopes

In the realm of heavy manufacturing fabrication plants, the roof is not merely a cover but a critical component of the building envelope that protects millions of dollars in precision machinery and raw materials. These structures typically feature expansive, low-slope footprints that are highly susceptible to severe convective weather events. When analyzing the risk profile of these assets, the primary concern is the impact of large-diameter hail, which can deliver concentrated point-load forces capable of compromising standard commercial roofing assemblies. A failure in the building envelope during a storm does not just result in leaks; it leads to catastrophic internal contamination and unplanned operational downtime.

To mitigate these risks, we implement a rigorous engineering standard centered on UL 2218 Class 4 ratings. This classification represents the highest level of impact resistance, ensuring that the roofing material can withstand the strike of larger steel balls—simulating hail—without cracking, tearing, or puncturing. In a heavy manufacturing environment, the challenge is amplified by the scale of the roof, where the probability of a strike is statistically higher. Our approach focuses on a holistic envelope audit, ensuring that the membrane, the adhesive system, and the underlying insulation work in concert to maintain a watertight seal under extreme kinetic stress.

Assessment of existing roof age and material fatigue to determine baseline vulnerability.
Analysis of local meteorological data to establish the maximum expected hailstone diameter.
Evaluation of the roof's structural slope to ensure proper drainage and prevent ponding after impact events.
Identification of critical "high-risk" zones, such as HVAC curbs and penetration points, where hail often accumulates.

Kinetic Energy Attenuation and Impact Physics

The fundamental physics of a hail strike involve the rapid transfer of kinetic energy from a falling ice mass to the roofing membrane. For a fabrication plant, the goal is not simply to provide a hard surface, but to create a system capable of kinetic energy attenuation. When a hailstone strikes a rigid, brittle surface, the energy is transferred directly downward, often resulting in a fracture or a puncture. In contrast, a Class 4 severe hail defense system is engineered to dissipate this energy across a wider surface area, reducing the peak pressure exerted on any single point of the membrane.

This attenuation is achieved through a combination of material elasticity and the "trampoline effect." By utilizing high-performance polymers and reinforced membranes, the system allows for a microscopic amount of deflection. This controlled movement absorbs the initial shock of the impact and spreads the load to the underlying substrate. If the membrane is too rigid, it fails via brittle fracture; if it is too soft, it allows the hailstone to drive deep into the insulation core. The engineering sweet spot is a balanced modulus of elasticity that maintains structural integrity while neutralizing the force of the strike.

Utilization of modified bitumen or high-grade TPO/PVC with reinforced scrims for superior tear resistance.
Implementation of energy-absorbing underlayments that act as a secondary buffer between the membrane and the deck.
Calculation of impact force based on terminal velocity and mass to ensure the system exceeds the expected load.
Optimization of the bond strength between the membrane and the insulation to prevent delamination during high-velocity impacts.

Compressive Strength and Insulation Core Integrity

A critical, often overlooked aspect of hail defense is the compressive strength of the insulation core. While the membrane is the first line of defense, the insulation provides the structural support. In many standard commercial installations, polyisocyanurate (polyiso) boards are used, which can be susceptible to "dimpling" or crushing under the concentrated load of a severe hailstone. If the insulation core fails, the membrane is left unsupported, creating a depression that collects water and becomes a focal point for future mechanical failure. This is why we mandate a compressive strength exceeding 25 PSI for heavy manufacturing plants.

When the compressive strength is maintained above 25 PSI, the insulation acts as a rigid platform that prevents the "cookie-cutter" effect, where the hailstone pushes the membrane through the insulation into the roof deck. By utilizing high-density cores or layered insulation strategies, we ensure that the load is distributed vertically and horizontally. This prevents the crushing of the closed-cell structure within the insulation, which is vital for maintaining the thermal R-value and the overall stability of the building envelope. A failure in the core's compressive strength effectively nullifies the benefits of a Class 4 membrane.

Specification of high-density polyiso or specialized XPS boards to ensure structural rigidity.
Verification of board thickness and density through random core sampling during the engineering audit.
Analysis of the "sandwich" effect, where multiple layers of insulation are staggered to eliminate continuous seams.
Evaluation of the fastener pattern to ensure the insulation is securely anchored, preventing shifting during impact.

Audit Methodology and Long-Term Envelope Resilience

The final phase of our engineering case study involves the implementation of a comprehensive building envelope audit. This is not a simple visual inspection but a forensic analysis of the roof's performance capabilities. We employ non-destructive testing and material science diagnostics to verify that the installed system meets the theoretical specifications of the UL 2218 Class 4 standard. This includes checking for voids in the adhesive, measuring the thickness of the membrane at various points, and ensuring that all flashing and edge details are integrated into the hail defense strategy.

Long-term resilience in a fabrication plant requires a proactive maintenance cycle. Hail defense is not a "set it and forget it" solution; the integrity of the envelope must be monitored for UV degradation and thermal cycling, which can make membranes more brittle over time. By establishing a baseline of performance through an engineering audit, Aquashield Corporate can provide plant operators with a quantifiable risk reduction profile. This authoritative approach ensures that the facility remains operational regardless of the severity of the storm, protecting the core business assets through superior material science and master-level craftsmanship.

Conducting infrared thermography to detect hidden moisture or insulation voids that could weaken the roof's structure.
Performing pull-tests on membrane seams to ensure maximum bond strength and resistance to wind-driven hail.
Establishing a scheduled audit cadence to monitor the degradation of the polymer chains in the membrane.
Documenting all material certifications and ASTM test results to ensure full compliance with insurance and safety regulations.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #515

Solar Photovoltaic Ballasted Racking Point-Load Defense & Sacrificial Slip Sheets on Commercial Logistics Distribution Hubs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Mechanics of Ballasted Point-Load Compression and Insulation Fatigue

In the context of massive logistics distribution hubs, the transition to solar photovoltaic (PV) arrays introduces a complex set of structural stressors to the building envelope. Unlike penetrated systems, ballasted racking relies on dead weight to resist wind uplift and seismic forces. However, this approach transforms a uniform roof surface into a grid of high-pressure point-loads. From an engineering perspective, the primary concern is the "compression set" of the roof insulation—typically polyisocyanurate (polyiso) or extruded polystyrene (XPS). When heavy concrete blocks are placed directly atop the membrane, the localized pressure can exceed the compressive strength of the insulation, leading to permanent deformation.

This compression is not merely a structural concern but a hydraulic one. When insulation compresses, it creates a localized depression or "bowl" in the roof surface. Over time, these depressions act as collection points for rainwater, leading to ponding that exceeds the industry-standard 48-hour drainage window. This standing water increases the hydrostatic pressure on the membrane seams and accelerates the degradation of the thermoplastic polymers. To maintain the integrity of the envelope, we must analyze the load-bearing capacity of the insulation layers against the specific gravity of the ballast blocks used.

Assessment of compressive strength measured in pounds per square inch (psi) relative to the total static load of the PV array.
Evaluation of the "crush factor" in tapered insulation systems, where point-loads may cause uneven settling.
Analysis of thermal bridging occurring at the points of maximum compression, potentially leading to interior condensation.
Verification of ASTM D1621 standards to ensure the insulation can withstand long-term deformation without losing its R-value.

Sacrificial Slip-Sheet Engineering and Abrasion Mitigation

The interface between a concrete ballast block and a single-ply membrane—whether TPO, PVC, or EPDM—is a zone of high friction and potential failure. While the system is designed to be static, wind-induced oscillations and thermal expansion and contraction of the building's steel frame cause micro-movements. These infinitesimal shifts act like sandpaper, grinding the membrane against the rough surface of the concrete. Without a sacrificial barrier, this abrasion eventually breaches the wear layer of the membrane, leading to a catastrophic failure of the waterproof seal.

To mitigate this, we implement heavy-duty slip-sheets. These are not mere pieces of rubber, but engineered barriers designed with a specific coefficient of friction to allow for thermal movement while protecting the primary membrane. We specify high-density polyethylene (HDPE) or reinforced recycled rubber sheets that are oversized relative to the ballast footprint. This ensures that even during a high-wind event, the edge of the ballast block never makes direct contact with the roof membrane. The slip-sheet acts as a sacrificial anode in a way, absorbing the mechanical wear so the building envelope remains untouched.

Utilization of non-reactive polymers to prevent chemical leaching or plasticizer migration between the slip-sheet and the membrane.
Implementation of oversized footprints to account for lateral shifting during extreme weather events.
Selection of UV-stabilized materials to prevent the slip-sheets from becoming brittle and cracking over a 20-year lifecycle.
Integration of load-spreading plates to distribute the vertical force across a wider surface area, reducing the psi on the membrane.

Pre-fabricated Target Patches and Strategic Reinforcement

For high-value logistics hubs, relying solely on a slip-sheet is often insufficient. The "belt and suspenders" approach to envelope engineering involves the installation of pre-fabricated target patches. These are reinforced sections of membrane, heat-welded or chemically adhered, specifically at the coordinates where the racking feet will be positioned. By creating a double-layer of protection, we ensure that any potential puncture or abrasion must first penetrate a secondary, reinforced membrane before reaching the primary waterproofing layer.

The engineering of these patches requires precision. They must be fully integrated into the existing roof system to avoid creating new "lips" that could catch debris or create turbulence. We utilize a reinforced scrim or a thicker gauge of the same membrane material to increase the puncture resistance. This method is particularly critical in hubs where the roof may undergo periodic maintenance or where the PV array may be reconfigured in the future. The target patch provides a designated "sacrificial zone" that can be inspected and replaced without compromising the entire roof section.

Application of reinforced membrane patches using ASTM-approved welding techniques to ensure a monolithic bond.
Coordination of patch placement with the PV layout to ensure 100% coverage of all point-load zones.
Use of high-tensile strength materials to prevent "stretching" or thinning of the membrane under the weight of the ballast.
Implementation of a rigorous quality control audit, including vacuum testing of the patches to ensure a leak-proof seal.

Cable Tray Routing and Envelope Integrity Management

The final critical component of the building envelope audit is the management of the electrical infrastructure. Cable trays and conduits, if improperly routed, can become the primary source of roof failure. Common mistakes include allowing cables to "sag" and touch the membrane, or securing trays in a manner that creates new punctures in the roof. When cables rub against the membrane due to wind vibration, they create "chafing" points that are often overlooked during standard inspections. Furthermore, poorly placed cable trays can obstruct the natural flow of water toward the internal drains.

Our approach involves the use of elevated, UV-resistant cable trays that are supported by non-penetrating blocks. This ensures that the electrical runs are physically separated from the roof surface. We mandate that all routing follows the "high points" of the roof, avoiding any valley or low spot where water might collect. Additionally, where cables must transition from the roof to the interior of the building, we employ engineered flashing and sealant systems that exceed the standard penetration requirements. This prevents the "chimney effect," where air and moisture are drawn into the building through gaps in the electrical penetrations.

Installation of non-penetrating support systems to eliminate the need for additional roof fasteners.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #516

OSHA-Compliant Skylight Fall-Protection Curbs & Heavy-Duty Security Screens on Commercial Automotive Assembly Plants

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Structural Integrity and Fall-Arrest Load Calculations

In the high-stakes environment of an automotive assembly plant, the roof is more than just a cover; it is a critical component of the facility's safety infrastructure. During our engineering audit, the primary focus was the validation of skylight fall-protection screens. Per OSHA 1910.28 and ANSI Z358.1 standards, any skylight opening must be protected to prevent a worker from falling through the glazing. The industry standard for a "fall-through" hazard requires the screen to support a concentrated load of at least 200 pounds in any direction without failure.

Calculating the anchoring for these screens requires a deep dive into the structural capacity of the existing roof deck, which in these plants is typically a heavy-gauge corrugated steel or reinforced concrete. We analyzed the shear strength of the fasteners and the pull-out resistance of the anchoring bolts. To achieve a true 200-lb fall-arrest rating, the screen cannot simply be "screwed" into the curb; it must be mechanically tied into the structural members of the building envelope to ensure that the impact energy is distributed across the frame rather than concentrated on a single point of the flashing.

Evaluation of fastener pull-out strength based on substrate density.
Analysis of weld-strength for custom-fabricated steel security grids.
Verification of load-bearing capacity for the perimeter curb frames.
Assessment of the deflection limits of the screen mesh under maximum load.

Curb Flashing Elevation and Water Shedding Dynamics

Water ingress at the skylight curb is the most common point of failure in commercial automotive envelopes. Because these plants often utilize large-scale HVAC systems and overhead cranes, the roof is subject to significant vibration and thermal movement. Our audit focused on the curb flashing elevation, ensuring that the flashing rises sufficiently above the finished roof surface to prevent "wicking" or capillary action during extreme precipitation events.

The engineering standard for these curbs requires a minimum flashing height that exceeds the maximum expected ponding depth. We implemented a tiered flashing system where the base membrane is integrated into the curb using a reinforced flashing membrane, then capped with a metal drip edge. This ensures that water is shed away from the curb interface and back onto the primary roof field. Proper elevation prevents the "damming" effect, where debris accumulates against the curb, creating a stagnant pool of water that can eventually penetrate the membrane through osmotic pressure.

Calculation of minimum flashing height relative to local rainfall intensity.
Implementation of counter-flashing to prevent wind-driven rain penetration.
Inspection of the "lap" sequence to ensure water flows over, not under, the seams.
Verification of the slope-to-drain ratio surrounding the skylight perimeter.

Compression Termination Bars and Mechanical Fastening

A critical failure point in many commercial installations is the reliance on adhesives or sealants alone to secure the roof membrane to the skylight curb. In an automotive plant, where thermal cycling is constant due to painting and curing ovens, sealants eventually degrade. To mitigate this, we specified the installation of heavy-duty compression termination bars. These bars provide a mechanical lock, compressing the membrane against the curb substrate to create a redundant, watertight seal that does not rely on chemical bonding.

The termination bars must be fastened with a precise spacing pattern—typically every 12 inches on center—using stainless steel fasteners with neoprene washers. This creates a uniform compression load across the entire perimeter of the skylight. By utilizing a compression-based system, we eliminate the risk of wind uplift, which can peel back membranes during high-wind events. The result is a rigid, engineered boundary that maintains the integrity of the building envelope regardless of the substrate's expansion or contraction.

Specification of 316-grade stainless steel for termination bars to prevent galvanic corrosion.
Application of high-density neoprene gaskets beneath the bars for airtight compression.
Standardization of fastener torque to prevent crushing the membrane.
Audit of the perimeter seal to ensure zero gaps in the mechanical fastening sequence.

Thermal Gaskets and Material Science in High-Vibration Zones

The final element of our envelope audit involved the analysis of thermal gaskets and the mitigation of thermal bridging. Automotive assembly plants are notorious for high-vibration environments, which can cause traditional gaskets to fatigue and crack. We analyzed the coefficient of thermal expansion for the skylight frames versus the roof decking. When these two materials expand at different rates, the resulting stress can tear the flashing or compromise the seal.

To solve this, we integrated closed-cell EPDM (Ethylene Propylene Diene Monomer) gaskets. Unlike open-cell foams, closed-cell EPDM does not absorb moisture and maintains its elasticity over a wide temperature range. These gaskets act as a thermal break, reducing the transfer of heat from the interior of the plant to the roof surface, which in turn prevents the formation of condensation on the underside of the skylight. This is essential for preventing "indoor rain," where condensed moisture drips onto sensitive automotive electronics or assembly line robotics.

Selection of EPDM gaskets for superior UV and ozone resistance.
Analysis of thermal bridging to reduce energy loss through the curb.
Testing of gasket compression sets to ensure long-term recovery after loading.
Verification of the chemical compatibility between the gasket material and the roof membrane.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #517

Rooftop Mechanical Unit Vibration Isolation Rails & Spring-Mounted Curb Seals on Commercial Mission-Critical Data Centers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Dynamics of Harmonic Resonance in Mission-Critical Enclosures

In the realm of mission-critical data centers, the rooftop is not merely a cover but a complex engineering interface. These facilities house massive cooling arrays, including industrial chillers and CRAH units, which generate significant kinetic energy. When these units operate at peak capacity, they produce harmonic vibrations—low-frequency oscillations that can travel through the structural steel and into the roofing membrane. If a mechanical unit is bolted rigidly to a curb, these vibrations act as a constant mechanical saw, gradually fatiguing the roof's flashing and compromising the building envelope.

From a master roofer's perspective, the primary risk is the failure of the membrane at the point of penetration. In a standard commercial build, a rigid curb is acceptable; however, in a data center, the constant micro-movement leads to "membrane fatigue." This manifests as hairline fractures in the polymer or the pulling away of the flashing from the curb face. Once the watertight seal is breached, the risk of moisture intrusion into a server hall is a catastrophic failure scenario that no facility manager can afford.

Mechanical Resonance: The synchronization of equipment vibration with the building's natural frequency, leading to amplified structural stress.
Membrane Fatigue: The degradation of thermoplastic or elastomeric membranes due to repeated cyclic loading.
Thermal Bridging: The loss of energy efficiency where metal isolation rails penetrate the insulation layer.
Hydrostatic Pressure: The accumulation of water around the curb base during heavy rain events, exacerbated by vibration-induced gaps.

Engineering Spring-Isolated Equipment Curbs and Isolation Rails

To mitigate the risks of harmonic transfer, we implement spring-mounted vibration isolation rails. Unlike simple rubber pads, which can degrade under UV exposure and lose their elasticity over time, engineered spring isolators provide a predictable spring constant that decouples the mechanical unit from the roof deck. These systems are designed to absorb the energy of the equipment and dissipate it before it reaches the structural substrate. The engineering goal is to ensure that the displacement occurs within the isolator, not within the roofing membrane.

The installation of these rails requires precision alignment to ensure that the load is distributed evenly across the roof's structural members. If the load is eccentric, the resulting torque can cause the curb to tilt, putting uneven tension on the flashing. We specify heavy-gauge galvanized steel for the rails to prevent corrosion and ensure that the spring assemblies are rated for the specific operational weight and frequency of the HVAC equipment, adhering to strict ANSI standards for structural stability.

Dynamic Load Distribution: Spreading the weight of the unit across a wider footprint to prevent localized membrane crushing.
Spring Constant Calibration: Matching the stiffness of the isolator to the mass of the equipment to prevent resonance.
Galvanized Steel Interfaces: Utilizing corrosion-resistant materials to ensure the longevity of the isolation rail system.
Decoupling Mechanics: The physical separation of the vibrating mass from the static building envelope.

Fiber-Reinforced Structural Mastics and High-Elongation Seals

The most critical failure point in a vibration-isolated system is the seal between the moving equipment curb and the static roof membrane. Standard polyurethane sealants are insufficient here because they lack the tear resistance and elongation capabilities required to handle constant micro-oscillations. For these applications, we utilize fiber-reinforced structural mastics. These materials are engineered with internal reinforcement fibers that provide high tensile strength while maintaining a low modulus of elasticity, allowing the seal to stretch and contract without losing its bond.

The application process involves a multi-stage bonding sequence. First, the substrate is cleaned and primed to ensure a molecular bond with the membrane. Then, the fiber-reinforced mastic is applied in a wide, tapered bead. This geometry is essential; a tapered edge reduces the stress concentration at the perimeter of the seal, distributing the movement across a larger surface area. This approach follows the principles of material science, ensuring that the sealant can accommodate the differential movement between the spring-mounted rail and the roof deck without experiencing cohesive or adhesive failure.

Low Modulus Elasticity: The ability of the sealant to deform under low stress, preventing it from pulling away from the substrate.
Tear Resistance: The capacity of the fiber-reinforced mastic to resist ripping during extreme vibration events.
Adhesion Promotion: The use of specialized primers to ensure a permanent bond to TPO, PVC, or EPDM membranes.
ASTM C920 Compliance: Ensuring sealants meet the industry standard for elastomeric joint sealants.

Audit Protocols for Long-Term Watertight Integrity

A building envelope is only as good as its maintenance and audit cycle. For mission-critical data centers, we employ a rigorous engineering audit protocol to detect failures before they become leaks. The focus is on the "critical zone"—the first 24 inches around each mechanical curb. We utilize infrared thermography to identify hidden moisture pockets that may have formed due to micro-cracks in the mastic. Thermal anomalies often indicate where the seal has failed and water has wicked into the insulation layer via capillary action.

Furthermore, we conduct physical "pull tests" and visual inspections for "alligatoring" of the sealant, which is a sign of UV degradation and loss of plasticity. The audit also includes a review of the spring isolators to ensure they have not bottomed out or suffered from metal fatigue. By combining material science with disciplined inspection, we ensure that the rooftop envelope remains an impenetrable barrier, protecting the millions of dollars of hardware residing beneath the deck.

Infrared Thermography: Using heat signatures to detect subsurface moisture infiltration around the curbs.
Capillary Action Analysis: Evaluating how water moves through small gaps in the flashing system.
Visual Fatigue Inspection: Checking for cracking, peeling, or voiding in the structural mastic.
Load-Bearing Verification: Ensuring the spring-mounted rails are still operating within their designed displacement parameters.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #518

Industrial Corrosive Chemical Fume Exhaust Defense on Commercial Cold Storage Freezer Warehouses

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Cold Storage Paradox: Envelope Integrity and Thermal Dynamics

In the realm of commercial building envelope engineering, the cold storage freezer warehouse represents one of the most hostile environments for a roofing system. We are dealing with a "Cold Storage Paradox": the interior must be maintained at sub-zero temperatures to preserve inventory, while the exterior membrane is subjected to extreme UV radiation, thermal cycling, and, in this specific case, the corrosive output of industrial chemical exhaust systems. The temperature differential between the freezer interior and the roof surface creates a massive thermal gradient that puts immense stress on the building's structural joints and the membrane's elasticity.

From a master roofer's perspective, the primary concern is not just the water barrier, but the management of the dew point within the insulation layers. When industrial acid fumes are introduced into the environment, they don't just sit on the surface; they can penetrate micro-fissures caused by thermal contraction, leading to subsurface corrosion of the metal decking. A failure in the envelope of a freezer warehouse is not a mere leak; it is a systemic failure that can lead to ice lensing, where moisture freezes inside the insulation, expanding and lifting the membrane from the substrate.

Thermal Bridging: The tendency of heat to bypass insulation through structural members, creating localized condensation points.
Coefficient of Thermal Expansion: The variance in how the membrane and the steel deck expand and contract at different rates.
Vapor Drive: The relentless movement of moisture from warm, humid exterior air toward the freezing interior.
Substrate Stability: The requirement for a non-compressible, moisture-free base to prevent membrane puncture during freeze-thaw cycles.

Chemical Attack Vectors: Acid Fumes and Hydrocarbon Penetration

The introduction of industrial corrosive chemical fumes—specifically sulfuric and nitric acid vapors—transforms a standard roofing project into a high-stakes engineering challenge. These fumes, typically exhausted from nearby processing equipment or internal chemical scrubbers, act as catalysts for polymer degradation. When these acidic vapors settle on a roof membrane, they initiate a process of chemical etching. This etching breaks down the molecular bonds of the top ply, increasing the surface porosity and allowing subsequent contaminants to penetrate deeper into the material.

Furthermore, the presence of motor oils and hydraulic fluids from loading dock machinery and HVAC condensers introduces a hydrocarbon threat. Many standard thermoplastic membranes are susceptible to "solvent swelling" when exposed to long-term oil contact. The hydrocarbons act as solvents, softening the polymer matrix and making the roof vulnerable to mechanical damage. If the membrane is not specifically engineered for chemical resistance, these oils can migrate through the membrane, contaminating the insulation and compromising the R-value of the entire assembly.

Acidic Etching: The chemical reaction where acid fumes strip away the protective UV layer of the membrane.
Hydrocarbon Migration: The process by which oils penetrate the polymer chain, leading to softening and deformation.
Oxidative Stress: The acceleration of material aging due to the synergy between UV exposure and chemical pollutants.
Surface Tension Reduction: How oils allow water to spread more effectively into seams, increasing the risk of infiltration.

Material Science: Plasticizer Retention and Polymer Stability

One of the most critical technical failures in commercial roofing is the loss of plasticizers. Plasticizers are the additives that keep a membrane flexible, allowing it to stretch and move with the building. In a cold storage environment, the membrane is already fighting the tendency to become brittle. When corrosive fumes and oils enter the equation, they accelerate "plasticizer migration," where these essential chemicals are leached out of the membrane and into the atmosphere or the surrounding pollutants.

Once the plasticizers are gone, the membrane undergoes a phase change from a flexible elastomer to a brittle plastic. This is where we see "alligatoring" or stress cracking, particularly around the exhaust vents and drainage points. From an engineering standpoint, we evaluate this using ASTM standards for tensile strength and elongation. A membrane that has lost its plasticizers will fail a puncture test and will inevitably crack during a hard freeze, creating a direct path for acid fumes to enter the building envelope and attack the structural steel.

Plasticizer Leaching: The chemical process where additives migrate to the surface and are washed away or chemically reacted.
Embrittlement: The loss of flexibility that leads to catastrophic cracking under thermal stress.
Polymer Cross-linking: The chemical bonding that can either strengthen a membrane or, if done incorrectly, make it too rigid.
ASTM E2128: The standard for evaluating the effectiveness of the building envelope's air leakage and vapor barrier.

Engineering the Defense: Membrane Selection and Specification

To defend a cold storage warehouse against this specific cocktail of threats, a standard TPO or PVC roof is often insufficient. The engineering specification must call for a high-performance, chemical-resistant membrane, such as a modified KEE (Ketone Ethylene Ester) or a specialized reinforced PVC with a high-density polymer core. These materials are engineered for superior plasticizer retention and have a much higher resistance to the acidic pH levels found in industrial exhaust. The goal is to create an impermeable shield that maintains its elasticity from -40°C to +80°C.

The installation process must be equally rigorous. We utilize heat-welded seams that are physically tested for strength to ensure there are no "cold joints" where chemicals can seep in. Additionally, the integration of a heavy-duty flashing system around the exhaust stacks is mandatory. These stacks are the primary points of failure; therefore, we specify a chemical-resistant liquid-applied flashing that creates a seamless, monolithic bond between the metal vent and the roof membrane. This eliminates the reliance on adhesives, which are often the first components to fail when exposed to motor oils and acid fumes.

KEE Membranes: Preferred for their exceptional resistance to chemicals and extreme temperature fluctuations.
Heat-Welded Seams: Ensuring a molecular bond that is stronger than the membrane itself.
Monolithic Flashing: Using liquid-applied membranes to eliminate seams at critical penetration points.
ANSI/ASTM Compliance: Ensuring all materials meet the rigorous standards for industrial chemical exposure and UV stability.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #519

Active Emergency Leak Catchment Tarps & Interior Production Bay Diversion on Commercial Commercial Fleet Maintenance Hangars

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Envelope Failure Analysis and Diagnostic Audits in Fleet Hangars

In the context of large-scale commercial fleet maintenance hangars, the building envelope is subjected to extreme stresses that differ significantly from standard warehouse environments. The vast open spans required for heavy vehicle maneuverability create massive roof planes that are prone to significant thermal expansion and contraction. When we conduct an engineering audit on these structures, we are not merely looking for holes; we are analyzing the systemic failure of the membrane and its integration with the parapets and curb flashings. In fleet hangars, the presence of heavy exhaust fumes and chemical runoff can accelerate the degradation of certain thermoplastic membranes, leading to premature embrittlement and stress cracking.

The primary challenge in these facilities is the "catastrophic leak event," where a failure in the primary drainage system or a puncture in the field of the roof leads to high-volume water ingress. Because these hangars often house millions of dollars in diagnostic equipment, hydraulic lifts, and engine components, a single breach in the envelope can lead to immediate operational shutdown. Our diagnostic process involves infrared thermography to identify trapped moisture and a rigorous inspection of the fastening patterns to ensure the wind-uplift ratings are still compliant with current ANSI standards.

Assessment of membrane fatigue at the seams and lap joints.
Evaluation of flashing integrity around HVAC curbs and skylight penetrations.
Analysis of ponding water patterns that indicate structural deflection.
Inspection of the substrate for saturation and potential decking rot.
Verification of perimeter drainage efficiency to prevent back-flow.

Engineering the Industrial Vinyl Diversion Strategy

When a primary roof system fails in a production bay, the immediate priority is not the repair—which may be impossible during a storm or peak operational hours—but the mitigation of interior damage. We deploy a specialized emergency catchment system utilizing industrial-grade, 18oz PVC-coated polyester vinyl tarps. Unlike standard poly-sheeting, these heavy-duty diverters are engineered for high tensile strength and tear resistance, ensuring they do not fail under the weight of accumulated water during a heavy precipitation event. The physics of the diversion relies on creating a controlled slope that directs water away from the leak source and toward a designated collection point.

The installation of these diverters requires a precise engineering approach to tensioning. If the vinyl is too loose, it will "belly," creating a secondary ponding area that can collapse the support structure or leak through the seams. We utilize mechanical fasteners and reinforced grommets to secure the vinyl to the structural steel of the hangar, ensuring the catchment system is integrated into the building's framework without compromising the structural integrity of the purlins. This creates a temporary, waterproof "secondary skin" beneath the failed primary membrane.

Utilization of heat-welded seams on vinyl tarps to prevent leakage at the joins.
Implementation of tensioning cables to maintain a consistent pitch for water runoff.
Selection of UV-stabilized materials to prevent degradation during long-term emergency deployment.
Calculation of load-bearing capacity for the catchment system based on anticipated rainfall intensity.
Deployment of reinforced perimeter seals to prevent "splashing" onto sensitive equipment.

Strategic Routing and High-Value Asset Protection

The most critical phase of an emergency diversion is the routing of the captured water. In a fleet hangar, the floor is often treated with high-performance epoxy or contains recessed pits for oil drainage, but these are not designed to handle concentrated torrents of water from a roof breach. We implement a "gravity-fed conduit" system, where the vinyl diverter feeds into heavy-duty flexible piping or reinforced troughs. This ensures that water is routed entirely around high-value assets such as computerized alignment racks, pneumatic tool stations, and electrical panels.

Our routing strategy focuses on the concept of "hydraulic isolation." By creating a physical barrier between the water path and the production equipment, we eliminate the risk of hydrostatic pressure forcing water into electrical conduits or under-floor utilities. The water is directed toward the hangar's primary drainage sumps or routed externally through the bay doors using temporary pumping stations. This methodical approach transforms a chaotic leak into a managed plumbing event, allowing the maintenance crew to continue operations while the roof remains compromised.

Mapping of "no-go" zones where water routing is strictly prohibited.
Installation of catchment basins at the terminus of the vinyl diverters.
Use of industrial sump pumps for rapid evacuation of collected water.
Strategic placement of absorbent booms as a secondary fail-safe against overflow.
Coordination of drainage paths to avoid interference with vehicle movement and safety walkways.

Transition to Permanent Remediation and ASTM Compliance

Emergency diversion is a stop-gap measure; the ultimate goal is the restoration of the building envelope to its original engineering specifications. The transition from a vinyl catchment system to a permanent repair begins with a comprehensive moisture map of the roof deck. Once the weather window allows, we strip the failed membrane back to the substrate, ensuring all saturated insulation is removed and replaced. This prevents the "sandwich effect," where trapped moisture causes the new membrane to blister or the decking to corrode from the underside.

Permanent repairs are executed according to ASTM D1227 and other relevant industry standards for commercial roofing. We prioritize the use of heat-welded TPO or PVC membranes, which provide superior seam strength and chemical resistance compared to adhered systems. Every penetration is flashed with reinforced flashing and sealed with high-grade termination bars to ensure a watertight seal. The final phase of the project involves a rigorous flood test and an electronic leak detection scan to certify that the envelope is once again an impenetrable barrier, returning the fleet hangar to full operational capacity with a renewed service life.

Removal of all temporary vinyl diverters and restoration of interior bay aesthetics.
Installation of high-density cover boards to improve puncture resistance.
Execution of full-width heat-welded seams for maximum structural integrity.
Application of ASTM-compliant flashing at all critical transition points.
Final certification of the building envelope through infrared moisture scanning.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Flat Roofing & Industrial Facility Engineering

Multi-Tier Conductor Head Overflow Spillways & Freeze-Thaw Downspout Burst Defense on Commercial Port Marine Shipping Warehouses

Hydraulic Analysis of Conductor Head Overflow Systems

Engineering the Multi-Tier Spillway Architecture

Structural Integrity and Heavy-Duty Downspout Bracketry

Mitigating Freeze-Thaw Cycle Bursting and Thermal Expansion

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Structural Steel Deck Rust Remediation & Zinc-Rich Primer Passivation on Commercial Municipal Sports & Convention Arenas

Diagnostic Audit and Oxidation Analysis of Large-Span Arena Envelopes

Mechanical Surface Preparation and Decontamination Protocols

Electrochemical Passivation via Zinc-Rich Primer Application

Structural Reinforcement and Fastener Integrity Stabilization

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Hands-On Physical Roof Inspections & Boots-on-the-Roof Forensic Maintenance Audits on Commercial Multi-Family Urban Residential Towers

The Forensic Philosophy of Urban High-Rise Envelope Audits

Mechanical Integrity and the Science of Seam Probing

Critical Penetrations: Drain Bowls and Perimeter Cleats

Engineering Documentation and Lifecycle Reporting

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

60-Mil TPO Robotic Hot-Air Seam Fusion & Test-Cut Peel Audits on Commercial Public Transit Maintenance Bus Barns

Thermal Dynamics of TPO Molecular Fusion

Robotic Calibration and Kinematic Precision

Destructive Test-Cut Peel Audits and Validation

Envelope Integrity in Transit Maintenance Environments

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

High-Solids Silicone Monolithic Coating Restoration & Albedo Reflectance on Commercial Government Secure Records Archives

Substrate Forensic Audit and Envelope Vulnerability Assessment

Chemical Engineering of Bleed-Blocking Epoxy Primers

Monolithic Silicone Application and 30-Mil Dry Film Thickness

Albedo Reflectance and Zero-Downtime Operational Integration

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Tapered Polyiso Drainage Layouts (1/4-In/Ft) & Geometric Cricket Sizing on Commercial Pharmaceutical Production Facilitys

The Criticality of Slope Engineering in Pharmaceutical Environments

Precision Tapered Polyiso Layouts and Multi-Directional Flow

Geometric Cricket Sizing and Diamond Valley Implementation

Expansion Joint Integration and Ponding Elimination

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Multi-Ply SBS-Modified Bitumen Cap Sheet Application & Vapor Control on Commercial Historic Sanctuary & Education Annexs

Substrate Analysis and Building Envelope Audit of Historic Structures

Cold-Applied Adhesive Shear Resistance and SBS Bonding

Geometric Precision in Multi-Ply Staggered Side Laps

Internal Vapor Drive Regulation and Granule Surface Protection

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Parapet Wall Heavy-Gauge 20-Gauge Kynar 500 Coping Cap Continuous Cleat Locking on Commercial Financial Institution Data Vaults

Material Specification and Structural Rigidity for High-Security Enclosures

Wind Uplift Engineering and ANSI/SPRI ES-1 Compliance

Thermal Dynamics and Expansion Splice Plate Engineering

Perimeter Peel Mitigation and Final Envelope Sealing

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Industrial Drainage Scuppers, Overflow Weirs & Heavy Downspout Expansion Bellows on Commercial Telecommunications Central Switching Offices

Hydraulic Head-Loss Analysis and Primary Drainage Optimization

Emergency Overflow Weir Sizing and Strategic Placement

Conductor Head Design and Kinetic Energy Management

Thermal Expansion Bellows and Material Science in Downspouts

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

AOC 581 Elastomeric Structural Mastic Detailing Around Rooftop HVAC Curbs on Commercial Heavy Manufacturing Fabrication Plants

Analysis of Environmental Stressors in Heavy Manufacturing Envelopes

Mitigating Mechanical Vibration and Structural Drift

Technical Execution of Fiber-Reinforced Trowel Application

Validation of Watertight Integrity and Engineering Standards

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Low-VOC Cold-Applied Adhesives & HVAC Air Intake Odor Mitigation Protocols on Commercial Logistics Distribution Hubs

The Engineering Challenge of Large-Scale Logistics Hub Envelopes

Material Science of Low-VOC Polyurethane Bonding Agents

HVAC Air Intake Containment and Odor Mitigation Protocols

Execution Strategy for Zero-Downtime Building Envelope Integration

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Solar Photovoltaic Ballasted Racking Point-Load Defense & Sacrificial Slip Sheets on Commercial Automotive Assembly Plants

Analysis of Ballasted Compression Set and Membrane Fatigue
