Commercial Engineering Dossier #600

Multi-Tier Conductor Head Overflow Spillways & Freeze-Thaw Downspout Burst Defense on Commercial Suburban Corporate Office Parks

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Anatomy of Hydraulic Failure in Corporate Office Park Drainage

During a comprehensive building envelope audit of a typical suburban corporate office park, the most frequent point of systemic failure is not the membrane itself, but the transition from the roof plane to the vertical drainage system. In these sprawling architectural footprints, the conductor head serves as the critical junction. However, many installations rely on undersized, standard-gauge conductor heads that fail to account for peak precipitation events, leading to catastrophic ponding. When the volume of water exceeds the capacity of the downspout, the conductor head becomes a bottleneck, creating a hydrostatic load that can compromise the structural integrity of the roof deck.

From an engineering perspective, the failure occurs when the inflow rate exceeds the discharge capacity of the vertical leader. This creates a backup that puts immense pressure on the flashing and the parapet wall interface. To mitigate this, a master roofer must evaluate the system based on the square footage of the roof area and the local rainfall intensity metrics. Failure to implement a redundant overflow system often results in water bypassing the drainage system entirely and infiltrating the building envelope through the fascia or the interior ceiling grid.

Analysis of catchment area versus downspout diameter to determine hydraulic capacity.
Evaluation of flashing integrity at the conductor head transition to prevent capillary action.
Assessment of debris accumulation rates which effectively reduce the available orifice size.
Verification of slope consistency to ensure water is not stagnating before reaching the head.

Multi-Tier Overflow Relief Weir Calculations and Implementation

To prevent the aforementioned structural compromise, we implement multi-tier overflow relief weirs. A weir is essentially a precision-cut spillway that allows water to exit the conductor head at a controlled height before the water level reaches the roof membrane. By calculating the specific height of the overflow notch, we can ensure that the primary downspout handles the standard load, while the spillway activates only during extreme weather events. This "fail-safe" mechanism prevents the roof from becoming a swimming pool, which could otherwise lead to a total collapse of the decking under the weight of standing water.

The engineering of these spillways requires a deep understanding of fluid dynamics. We calculate the discharge coefficient of the weir to ensure that the overflow volume is directed away from the building facade and toward a designated splash block or drainage basin. This prevents the "waterfall effect" from eroding the foundation or infiltrating the building's basement levels. The spillway must be integrated into the conductor head with seamless welding or high-grade sealant to ensure that the relief valve does not become a leak source during normal operation.

Calculation of the "critical depth" at which the overflow weir activates to protect the membrane.
Implementation of tiered spillways to manage varying intensities of precipitation.
Precision cutting of the conductor head to create a smooth, non-turbulent flow path.
Strategic placement of overflow outlets to avoid saturation of the building's primary structural supports.

Structural Reinforcement and Heavy-Duty Downspout Bracketry

A common oversight in commercial roofing is the reliance on lightweight, residential-grade brackets for heavy-duty commercial downspouts. In a corporate office park setting, the sheer volume of water moving through a conductor head creates significant kinetic energy and vibration. Over time, this vibration leads to material fatigue at the connection points. If the brackets are not engineered to withstand these dynamic loads, the downspout can pull away from the wall, causing the conductor head to tilt and the roof-to-wall flashing to tear, opening a direct path for water into the building envelope.

We specify heavy-duty, oversized galvanized steel brackets that are anchored directly into the structural masonry or steel framing. These brackets must be spaced according to ANSI standards to prevent "bowing" or "bellying" of the downspout, which can create pockets where debris collects and ice forms. Furthermore, we address the issue of thermal expansion and contraction. Because these buildings are subject to extreme temperature swings, the bracketry must allow for a marginal amount of vertical movement to prevent the shearing of fasteners or the buckling of the metal piping.

Utilization of stainless steel or hot-dipped galvanized fasteners to prevent galvanic corrosion.
Installation of reinforced support collars at the junction of the conductor head and the leader.
Implementation of a rigid spacing schedule to maintain the verticality of the drainage run.
Application of industrial-grade vibration dampeners to reduce the impact of high-velocity water flow.

Engineering Defenses Against Freeze-Thaw Downspout Bursting

In colder climates, the freeze-thaw cycle is the primary enemy of the building envelope. When water remains trapped in a downspout during a sudden temperature drop, it expands by approximately 9%, exerting thousands of pounds of pressure per square inch against the interior walls of the pipe. If the downspout is a closed system or is obstructed by debris, this expansion leads to "bursting," where the seams of the downspout split open. This not only destroys the drainage system but often causes the conductor head to shift, compromising the roof's watertight seal.

To defend against this, we employ a strategy of "thermal venting" and material science. By ensuring that the downspouts are perfectly plumb and free of internal obstructions, we minimize the risk of standing water. In high-risk zones, we recommend the use of thicker-gauge steel or reinforced polymers that can withstand higher internal pressures. Additionally, we implement strategic expansion joints that allow the metal to contract and expand without compromising the structural integrity of the joints. This holistic approach ensures that the drainage system remains operational throughout the winter, preventing ice dams from forming at the conductor head and spilling back onto the roof membrane.

Installation of thermal break spacers to reduce the rate of heat loss within the drainage column.
Implementation of a rigorous pre-winter debris removal protocol to ensure maximum flow.
Use of high-tensile strength alloys in areas prone to extreme temperature fluctuations.
Integration of specialized venting caps that allow air to escape, reducing the vacuum effect during rapid thawing.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #601

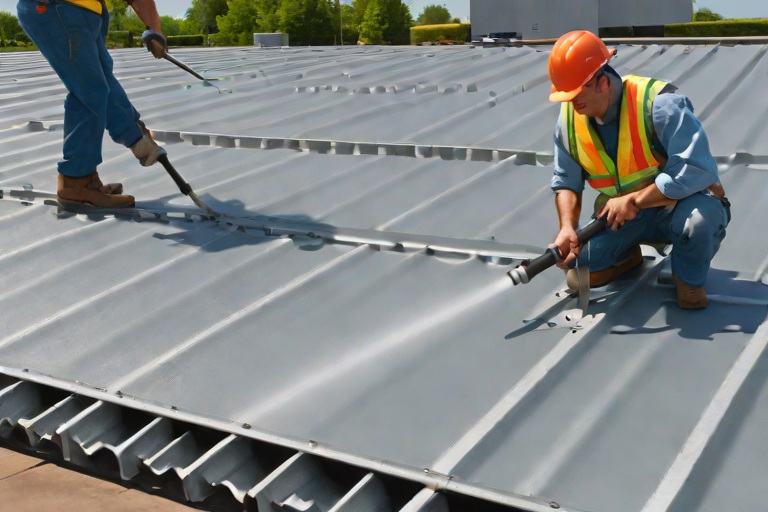

Structural Steel Deck Rust Remediation & Zinc-Rich Primer Passivation on Commercial Big-Box Retail Power Centers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Engineering Audit and the Mechanics of Deck Oxidation

In the lifecycle of a Big-Box Retail Power Center, the structural steel deck serves as the critical diaphragm for the entire roofing assembly. During a comprehensive building envelope engineering audit, we frequently encounter advanced oxidation localized around roof curbs, HVAC equipment pads, and perimeter parapets. This corrosion is rarely uniform; instead, it manifests as pitting and exfoliating rust caused by prolonged moisture infiltration and interstitial condensation. When the protective mill scale or original galvanization fails, the underlying carbon steel is exposed to an oxygen-rich environment, triggering a rapid electrochemical reaction that compromises the deck's load-bearing capacity.

From a material science perspective, the degradation of the steel flutes is often accelerated by the presence of volatile organic compounds or salts that may have leaked from faulty roofing membranes. Our audit process utilizes ultrasonic thickness gauging to determine the remaining gauge of the steel. If the oxidation has progressed to a state of "scaling," the structural integrity of the flute is jeopardized, potentially leading to deflection under snow or equipment loads. We evaluate these failures against ASTM standards to determine if the steel requires simple passivation or full structural reinforcement.

Identification of localized pitting and deep-seated oxidation in the valley of the steel flutes.
Analysis of moisture ingress points, specifically focusing on failing flashing and compromised curb seals.
Utilization of ultrasonic thickness gauges to quantify material loss in thinned steel sections.
Assessment of the existing coating failure to determine the necessity of a full mechanical strip.
Mapping of high-stress zones where fastener shear is most likely to occur due to corrosion.

Mechanical Remediation and Surface Preparation Protocols

Effective rust remediation is not a matter of covering the damage, but of eliminating the catalyst for further decay. The industry standard for high-performance remediation in commercial settings is the rigorous removal of all loose oxidation and mill scale. We employ a systematic approach to mechanical surface preparation, utilizing heavy-duty wire-brushing and power-tool cleaning in accordance with SSPC-SP2 and SSPC-SP3 standards. This process is critical because applying a primer over active rust merely traps the moisture and oxygen, creating a "pocket" that allows the corrosion to continue unabated beneath the new coating.

Our crews focus on the "near-white" metal finish, ensuring that the steel surface is physically agitated to remove the oxide layer. This mechanical action increases the surface profile of the steel, creating a microscopic "tooth" that allows the subsequent zinc-rich primer to bond chemically and mechanically to the substrate. In the context of a Big-Box retail environment, where the roof area is vast, consistency in surface preparation is the difference between a ten-year fix and a permanent structural restoration.

Execution of SSPC-SP2 hand-tool cleaning to remove loose rust, scale, and old coatings.
Application of power-wire brushing to achieve a clean, metallic luster on the flute webs.
Degreasing of the substrate using industrial-grade solvents to remove oils and atmospheric contaminants.
Vacuuming of all debris from the flutes to ensure no particulate matter interferes with primer adhesion.
Verification of surface cleanliness through the "tape test" to ensure zero residual oxidation.

Passivation and the Application of Zinc-Rich Primers

Once the steel is mechanically cleaned, the priority shifts to passivation. We utilize high-solids, zinc-rich rust-inhibiting primers that function as a sacrificial anode. Unlike standard paint, which acts as a simple barrier, a zinc-rich primer provides galvanic protection. Because zinc is more electronegative than steel, the zinc particles in the primer corrode preferentially, sacrificing themselves to protect the underlying iron. This chemical process prevents the formation of iron oxide and ensures that any future scratches or abrasions in the coating do not lead to immediate structural pitting.

The application process requires precision to ensure total coverage of the flutes and the underside of the deck laps. We employ a combination of airless spraying and brush-detailing to ensure the primer penetrates the deepest points of the steel profile. The primer must be applied at the specified Dry Film Thickness (DFT) to ensure the zinc particles are in electrical contact with the steel, creating a continuous conductive path for the galvanic protection to function. This step is the cornerstone of the building envelope's internal defense system.

Application of cold-galvanizing zinc-rich primers to provide a permanent sacrificial layer.
Ensuring a seamless transition between the remediated steel and the existing galvanized sections.
Monitoring ambient temperature and humidity to ensure optimal curing and chemical bonding.
Verification of DFT (Dry Film Thickness) to meet manufacturer and engineering specifications.
Application of a secondary topcoat where chemical exposure or extreme moisture is anticipated.

Structural Reinforcement and Fastener Integrity

In cases where the engineering audit reveals significant gauge loss—specifically where the steel flutes have been thinned by more than 20%—passivation alone is insufficient. We implement structural reinforcement by installing custom-fabricated steel shims or reinforcement plates. These plates are strategically welded or fastened to the thinned sections to restore the original load-bearing capacity of the deck. This process ensures that the roof can continue to support heavy HVAC units and rooftop equipment without the risk of localized collapse or excessive deflection.

The final phase of the remediation involves the audit and securing of all deck fasteners. Corrosion often concentrates at the fastener points, leading to "pull-through" failures where the screw head penetrates the thinned steel. We replace compromised fasteners with heavy-duty, oversized galvanized screws and ensure they are torqued to the correct specifications. By securing the deck tightly to the structural joists, we eliminate the micro-movements that lead to friction-based wear and future coating failure, thereby locking in the integrity of the building envelope.

Installation of reinforcement plates over thinned steel flutes to restore structural diaphragm strength.
Replacement of corroded fasteners with oversized, high-torque galvanized alternatives.
Application of sealant to fastener heads to prevent moisture from migrating into the steel deck.
Verification of deck-to-joist connectivity to ensure the assembly meets ANSI structural standards.
Final engineering sign-off confirming the restoration of the deck's original design load capacity.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #602

Hands-On Physical Roof Inspections & Boots-on-the-Roof Forensic Maintenance Audits on Commercial Food Packaging & Cold Logistics Plants

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Thermal Dynamics of Cold Logistics Building Envelopes

In the specialized realm of food packaging and cold logistics, the roof is not merely a weather barrier; it is a critical component of a complex thermal envelope. The extreme temperature differentials between a freezer interior—often maintained at sub-zero temperatures—and the external ambient environment create a permanent state of thermal stress. This gradient drives moisture migration, where water vapor seeks to move from warm to cold areas, often resulting in interstitial condensation if the vapor barrier is compromised. A forensic audit must first account for these thermal bridges, as the contraction and expansion cycles of the roof deck and membrane are far more aggressive than those found in standard warehouse environments.

When conducting a building envelope engineering audit, we analyze the interaction between the insulation layers and the outer membrane. In cold logistics plants, the risk of "frost heave" within the insulation or the degradation of adhesive bonds due to thermal cycling is high. We examine the integrity of the thermal break at the roof-to-wall transition to ensure that the cold chain is not compromised by heat gain, which would otherwise increase operational costs and risk food spoilage.

Analysis of R-value degradation over the asset's lifecycle.
Identification of thermal bridging at penetration points and curb flashing.
Evaluation of vapor retarder continuity to prevent internal condensation.
Assessment of substrate stability under extreme temperature fluctuations.

Forensic Probing of Automated Seams and Material Science

Modern commercial roofs in the food industry often utilize automated seaming or heat-welding processes to ensure speed and consistency. However, automation can mask systemic failures. A "boots-on-the-roof" approach requires the use of manual probing tools to verify the actual fusion of these seams. We utilize specialized seam probes and feeler gauges to identify "cold welds" in TPO or PVC membranes, where the automated welder may have reached the correct temperature but failed to achieve a molecular bond due to contaminants or improper speed settings.

From a material science perspective, the integrity of a seam is the primary failure point of any membrane system. We look for signs of polymer degradation, such as "alligatoring" or brittleness, which suggests UV degradation or chemical exposure from food processing off-gassing. Probing is not a random act; it is a systematic forensic process where we target high-stress areas, such as the corners of the roof and the points where the membrane transitions from a horizontal plane to a vertical flashing.

Manual probing of 100% of critical lap joints in high-risk zones.
Testing for "pull-apart" strength in heat-welded seams.
Inspection for micro-fissures in automated folds using high-magnification optics.
Verification of weld width and consistency against manufacturer specifications.

Mechanical Integrity: Drain Bowl Torque and Perimeter Cleats

Water management is the most critical aspect of roof longevity. In cold logistics plants, where roof surfaces may experience icing or heavy condensation, the drain bowl assembly is a frequent point of failure. A forensic audit involves checking the clamping torque of the drain bowl fasteners. If the torque is insufficient, the seal is compromised, allowing water to seep via capillary action into the insulation. Conversely, over-torquing can crush the membrane or strip the threads, leading to a catastrophic failure during a heavy rain event.

Equally important are the perimeter cleats and edge termination bars. These components are the first line of defense against wind uplift and wind-driven rain. We inspect for galvanic corrosion between dissimilar metals and ensure that fasteners are seated according to ANSI and ASTM standards. We specifically look for "backing out" of screws, which occurs when the roof undergoes repeated thermal expansion and contraction, effectively unscrewing the fasteners from the substrate over time.

Application of calibrated torque wrenches to verify drain bowl clamping force.
Inspection of perimeter cleats for deformation or fastener fatigue.
Verification of sealant integrity at the interface of the drain bowl and the roof deck.
Assessment of wind-uplift resistance at the roof edge based on local building codes.

Engineering Reporting and Asset Management Documentation

The final phase of a forensic maintenance audit is the translation of field observations into a technical engineering report. A master roofer does not simply report a "leak"; we document a "failure of the flashing interface at the northeast quadrant, resulting in moisture infiltration into the polyisocyanurate insulation." This level of precision is required for insurance claims, warranty disputes, and long-term capital expenditure planning. The report serves as a legal and technical record of the building envelope's current state.

Our reporting structure follows a rigorous hierarchy of severity, categorizing findings into immediate threats, deferred maintenance, and lifecycle observations. By quantifying the percentage of failed seams or the number of loose fasteners, we provide the facility manager with a data-driven roadmap for remediation. This transforms the roof from a reactive liability into a managed asset, ensuring that the cold logistics plant remains operational without the risk of unplanned shutdowns due to envelope failure.

Categorization of defects by severity: Critical, Major, and Minor.
Mapping of all identified anomalies using a detailed roof plan overlay.
Correlation of field findings with ASTM E2128 standards for moisture surveys.
Provision of a prioritized remediation schedule with estimated life-extension metrics.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #603

60-Mil TPO Robotic Hot-Air Seam Fusion & Test-Cut Peel Audits on Commercial Semiconductor Cleanroom Fabs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Criticality of the Building Envelope in Semiconductor Fabrication

In the realm of semiconductor manufacturing, the building envelope is not merely a shelter but a primary component of the facility's life-support system. Cleanroom environments require absolute atmospheric control, where the slightest infiltration of moisture or particulate matter can compromise millions of dollars in silicon wafers. For these high-stakes assets, we specify a 60-mil Thermoplastic Polyolefin (TPO) membrane, providing a robust barrier against UV degradation and thermal cycling. However, the integrity of the membrane is only as strong as its seams. In a facility where vibration and pressure differentials are constant, traditional hand-welding is an unacceptable risk.

To mitigate human error and ensure a monolithic seal, Aquashield Corporate utilizes robotic hot-air fusion systems. These automated platforms eliminate the variability inherent in manual torching, ensuring that every linear inch of the seam is subjected to the exact same thermal load. The objective is to achieve a molecular bond that transforms two separate sheets of TPO into a single, continuous piece of plastic. This level of precision is mandatory when adhering to the stringent building envelope standards required for ISO-certified cleanrooms.

Elimination of "cold spots" common in manual welding patterns.
Reduction of seam-related failures during high-pressure atmospheric shifts.
Enhanced longevity of the roof system through consistent heat application.
Strict adherence to ASTM standards for thermoplastic roofing membranes.

Thermodynamic Calibration and Nozzle Pressure Dynamics

Achieving a perfect fusion requires a precise balance of thermodynamics and pneumatic pressure. We calibrate our robotic welders to a target temperature of 1,000°F at the nozzle exit. This temperature is calculated to push the TPO past its melting point without reaching the threshold of polymer degradation. If the temperature drops below the critical window, the result is a "cold weld," which may appear sealed but lacks the molecular cohesion to withstand wind uplift or thermal expansion. Conversely, exceeding the thermal limit can cause the membrane to scorch, thinning the 60-mil profile and creating a structural weak point.

Temperature alone is insufficient; nozzle pressure is the catalyst that forces the heated air into the overlap, ensuring the heat penetrates the full thickness of the membrane. We utilize high-pressure nozzles that create a focused heat flux, stripping away the boundary layer of air and driving the thermal energy directly into the TPO. This ensures that the bottom sheet is sufficiently softened before the top sheet makes contact, facilitating a seamless fusion process that is uniform across the entire width of the seam.

Calibration of thermocouples to ensure real-time temperature monitoring.
Optimization of air-flow velocity to prevent uneven heating across the weld.
Management of the "melt zone" to ensure full-depth penetration of the 60-mil gauge.
Prevention of oxidation during the heating phase through controlled air delivery.

Automated Travel Velocity and Heat Flux Consistency

The third pillar of the robotic welding process is travel velocity. In commercial roofing engineering, the relationship between heat and time is absolute. If the robotic welder moves too quickly, the TPO does not receive enough thermal energy to reach its glass transition temperature, leading to a failure in adhesion. If the velocity is too slow, the heat accumulates, potentially burning through the membrane or causing the TPO to shrink and pull away from the perimeter flashing. We synchronize the travel speed with the 1,000°F output to maintain a constant heat flux.

By automating the travel velocity, we ensure that the "dwell time"—the duration the membrane is exposed to the heat source—remains constant regardless of the roof's geometry. This is particularly critical on semiconductor fabs, where complex roof penetrations and HVAC equipment curbs often create bottlenecks. The robotic system adjusts its pathing and speed to maintain a consistent weld bead, ensuring that the seam remains structurally sound even around tight radii and high-stress corners.

Precision synchronization of motor drive speeds with heat output.
Reduction of "heat soak" in areas where the robot must decelerate.
Maintenance of a consistent weld bead width to exceed manufacturer specifications.
Integration of laser-guided pathing to ensure perfectly straight, overlap-consistent seams.

Destructive Test-Cut Peel Audits and Validation

No matter how precise the robotic calibration, a master roofer never trusts a machine blindly. The final stage of our engineering audit is the destructive test-cut peel. This process involves cutting a sample section of the welded seam—typically a 2-inch by 6-inch strip—and subjecting it to a manual or mechanical peel test. The goal is to validate that the fusion has occurred at a molecular level. In a successful peel test, the TPO membrane itself should tear (film tear) before the weld separates. If the seam splits cleanly without tearing the membrane, it indicates a failure in the fusion process, necessitating a full audit of the affected area.

These audits are performed at random intervals across the entire roof surface, focusing on high-risk zones such as T-joints and perimeter laps. We document the results of these peels to create a quality assurance map of the facility. This data-driven approach provides the facility owners with empirical evidence that the building envelope is airtight and watertight. By combining the precision of robotic fusion with the rigor of destructive testing, Aquashield Corporate ensures that the semiconductor cleanroom remains an isolated, controlled environment, free from the catastrophic risks of roof system failure.

Verification of "film tear" to confirm a monolithic molecular bond.
Documentation of peel strength in accordance with ANSI/ASTM standards.
Identification of "cold welds" through physical stress testing.
Final certification of the building envelope's hydrostatic integrity.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #604

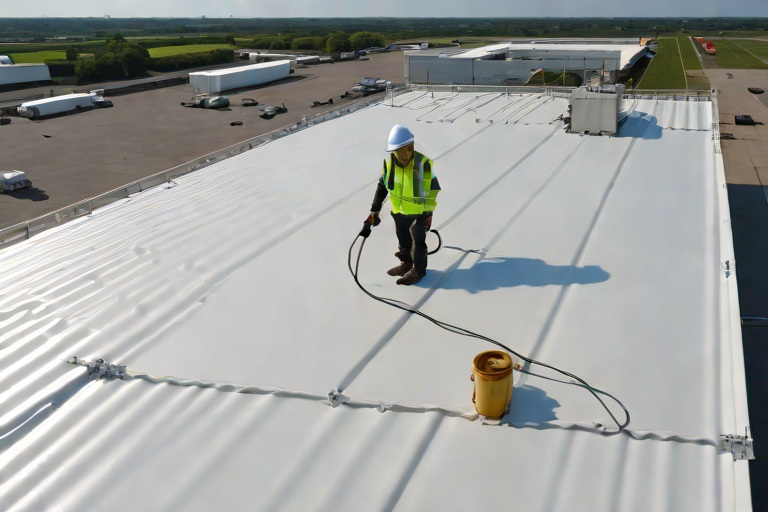

High-Solids Silicone Monolithic Coating Restoration & Albedo Reflectance on Commercial Intermodal Cargo Freight Terminals

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Substrate Diagnostics and Envelope Engineering Audit

In the high-stress environment of an intermodal cargo freight terminal, the building envelope is subjected to extreme mechanical stressors, including constant vibration from heavy machinery, diesel particulate deposition, and severe thermal cycling. A comprehensive engineering audit of these facilities typically reveals a compromised substrate characterized by micro-fissures in the existing membrane and the presence of legacy bitumen oils that migrate to the surface. To ensure a permanent restoration, we first conduct a rigorous analysis of the substrate's structural integrity and surface energy.

The primary challenge in these terminals is the accumulation of industrial contaminants that act as bond-breakers. Without a precise diagnostic phase, any coating application is predisposed to premature delamination. Our audit focuses on identifying areas of ponding water and assessing the tensile strength of the existing roof deck to determine if the system can support a high-solids monolithic overlay without adding excessive dead load to the structure.

Assessment of substrate porosity using ASTM-standard moisture probes to ensure moisture vapor emission rates (MVER) are within acceptable limits.
Identification of chemical contaminants, including hydraulic fluids and carbon-based soot, which necessitate aggressive mechanical cleaning.
Mapping of existing thermal bridges and flashing failures at parapet walls and HVAC curb penetrations.
Evaluation of the existing roof's slope to ensure positive drainage and prevent the formation of stagnant water pockets.

The Chemistry of Adhesion: Bleed-Blocking Epoxy Primers

The critical failure point in most commercial roof restorations is the interface between the old substrate and the new coating. In intermodal terminals, old asphaltic materials often "bleed" oils and volatiles during the summer months, which can contaminate a top-coat and cause blistering. To mitigate this, we employ a high-performance, bleed-blocking epoxy primer. This primer serves as a chemical bridge, penetrating the pores of the substrate to create a mechanical lock while simultaneously sealing the substrate against the migration of oils.

Unlike standard acrylic primers, a high-solids epoxy primer provides a non-porous, dense barrier that prevents the "wicking" effect. This ensures that the subsequent silicone layers are not compromised by the chemical instability of the underlying roof. The epoxy primer is engineered to be solvent-free, reducing the risk of shrinkage and ensuring a stable foundation for the monolithic membrane.

Utilization of 100% solids epoxy chemistry to eliminate VOC off-gassing and shrinkage during the curing process.
Implementation of a "scrub-in" application technique to ensure the primer reaches the deepest recesses of the substrate's profile.
Creation of a chemically inert surface that is compatible with high-solids silicone, preventing inter-layer incompatibility.
Establishment of a moisture-tolerant bond that remains stable even in high-humidity environments typical of freight hubs.

Engineering the Monolithic Membrane: 30-Mil Dry Film Thickness

The core of the restoration is the application of a high-solids silicone monolithic coating, engineered to a 30-mil Dry Film Thickness (DFT). A monolithic system is fundamentally different from a layered membrane; it creates a single, seamless, rubberized skin over the entire roof surface. This eliminates the seams, laps, and fasteners that are traditionally the primary points of failure in commercial roofing. By achieving a 30-mil DFT, we provide a robust wear layer capable of withstanding the atmospheric pressures and particulate abrasion common in cargo terminals.

The precision of the DFT is maintained through calibrated spray equipment and rigorous wet-film thickness (WFT) monitoring during application. This thickness is critical because it provides the necessary elasticity to bridge hairline cracks in the substrate while maintaining enough mass to resist puncture and UV degradation. The silicone chemistry is inherently hydrophobic, meaning it repels water at a molecular level, ensuring that the building envelope remains impervious to leaks regardless of the weather event.

Application of high-solids silicone that does not rely on evaporation for curing, ensuring the thickness applied is the thickness that remains.
Elimination of all mechanical fasteners and seams, removing the risk of "fastener pull-out" caused by terminal vibrations.
Provision of a high elongation rate, allowing the membrane to expand and contract during extreme temperature swings without cracking.
Integration of the membrane over all roof penetrations, creating a continuous, watertight seal from the roof deck to the coping.

Albedo Reflectance and Zero-Downtime Operational Integration

Thermal management in massive freight terminals is a significant operational expense. By engineering the final surface to reflect 88% of solar radiation, we drastically increase the roof's albedo—the measure of diffuse reflection of solar radiation. This high reflectance prevents the "heat soak" effect, where the roof deck absorbs thermal energy and radiates it downward into the warehouse. This results in a substantial reduction in HVAC cooling loads and protects sensitive cargo from temperature fluctuations.

Perhaps the most critical requirement for an intermodal terminal is the avoidance of operational downtime. These facilities operate on a 24/7 logistics cycle where a single day of closure can cost thousands of dollars in lost throughput. Our application process is designed for zero-downtime integration. Because the silicone system is applied in a liquid state and cures chemically, it can be installed in sections without interfering with the loading docks or the movement of freight below.

Reduction of the Urban Heat Island effect through an 88% solar reflectance index (SRI), lowering the ambient temperature of the building envelope.
Implementation of a "phased-zone" application strategy, allowing terminal operations to continue uninterrupted.
Utilization of fast-cure chemistry that allows the roof to return to full service shortly after the final coat is applied.
Long-term reduction in maintenance costs due to the self-cleaning properties of the silicone surface, which resists the accumulation of industrial grime.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #605

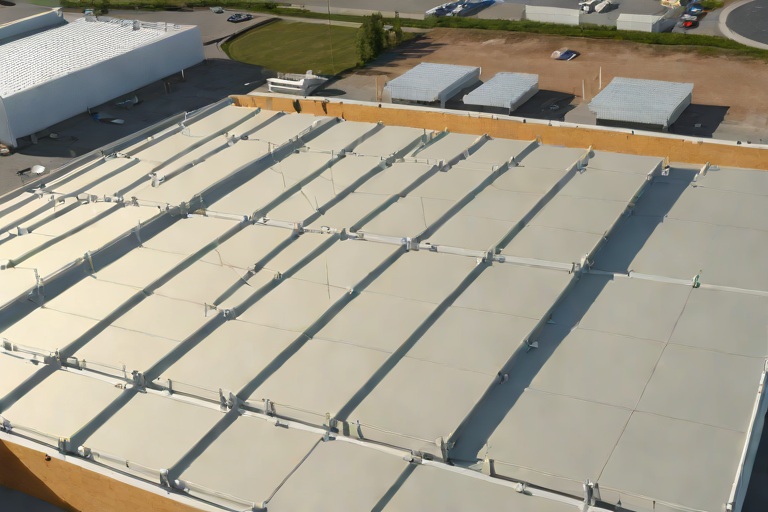

Tapered Polyiso Drainage Layouts (1/4-In/Ft) & Geometric Cricket Sizing on Commercial Port Marine Shipping Warehouses

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Challenge of Port Marine Warehouse Envelopes

In the context of port marine shipping warehouses, the building envelope is subjected to extreme environmental stressors, including high-velocity wind loads, saline atmospheric corrosion, and massive structural footprints that are prone to subtle deflection. During our recent engineering audit for Aquashield Corporate, we identified a critical failure in the existing drainage strategy of a 250,000-square-foot facility. The primary issue was a reliance on nominal slopes that failed to account for the structural "sag" inherent in long-span steel joist systems. When a roof is designed with a minimal slope, even a fraction of an inch of structural deflection can create "dead spots" where water collects, leading to chronic ponding and accelerated membrane degradation.

To rectify these systemic failures, we implemented a rigorous 1/4-inch per foot (1/4"/ft) tapered polyisocyanurate (polyiso) layout. This specific gradient is the industry benchmark for ensuring positive flow in commercial applications, as it provides a sufficient safety margin to overcome minor substrate irregularities. In a marine environment, where humidity is constant and the dew point often fluctuates, eliminating standing water is not merely a maintenance preference—it is a structural necessity to prevent the infiltration of moisture into the insulation core and the underlying steel deck.

Analysis of structural deflection points to determine the "true" low points of the roof plane.
Evaluation of existing internal drain capacities against peak rainfall intensity data.
Assessment of membrane elasticity and its interaction with tapered insulation edges.
Identification of high-risk zones near parapet walls and HVAC curb installations.

Tapered Polyiso Design and Multi-Directional Slope Engineering

The transition from a flat substrate to a multi-directional drainage plane requires precision engineering of polyiso insulation. Polyisocyanurate is selected for its high R-value and compressive strength, but its effectiveness depends entirely on the accuracy of the tapered cut. Our approach utilizes a multi-directional slope strategy, where the roof is divided into distinct "drainage quadrants." Instead of routing all water toward a single perimeter point, we engineer the slope to move water diagonally toward strategically placed internal drains and scuppers, reducing the distance water must travel across the membrane.

This engineering method minimizes the hydrostatic pressure exerted on the membrane and reduces the likelihood of "wind-driven" water pooling. By maintaining a consistent 1/4"/ft slope, we ensure that the velocity of the runoff is sufficient to carry debris away from the drains, preventing the organic buildup that often leads to clogs in industrial settings. The layout is mapped using CAD software to ensure that every single square inch of the roof has a positive path to a discharge point, leaving no room for the "birdbaths" typically found in standard flat-roof installations.

Utilization of CNC-cut tapered insulation panels for millimeter-precision fitment.
Implementation of staggered jointing to prevent linear leak paths through the insulation.
Application of high-density polyiso to withstand heavy foot traffic and equipment loads.
Integration of tapered edge strips to ensure a seamless transition to the roof perimeter.

Geometric Cricket Sizing and Diamond Valley Implementation

One of the most complex aspects of the port warehouse audit was the management of water around large mechanical penetrations and structural columns. Standard crickets—small sloped sections used to divert water—are often undersized in commercial builds, leading to water accumulation behind curbs. To solve this, we introduced "Diamond Valley" crickets. A diamond valley is a geometrically engineered diversion system that creates a V-shaped trough, forcing water to split and route around an obstruction with maximum efficiency.

The sizing of these crickets is calculated based on the tributary area of the roof. For a shipping warehouse, the volume of water moving toward a curb can be immense. By increasing the cricket slope to 1/2" per foot—double the standard roof slope—we create a high-velocity "shed zone" that aggressively pushes water away from the curb flashing. This prevents the common failure point where water backs up against a curb, saturating the flashing and eventually leaking into the warehouse interior, which can compromise sensitive shipping manifests and electronic inventory systems.

Calculation of tributary water loads to determine the necessary width of the diamond valley.
Engineering of "saddle" slopes to transition water from the main field to the cricket.
Use of reinforced membrane strips at the valley base to handle increased water friction.
Verification of cricket geometry via laser leveling to ensure zero-point stagnation.

Expansion Joint Integration and Ponding Mitigation

Expansion joints are the most vulnerable points in a large-scale marine warehouse envelope. Because these buildings are designed to shift and breathe, the expansion joints are subject to constant movement. If the drainage layout allows water to flow directly into or settle atop an expansion joint, the risk of catastrophic failure increases exponentially. Our engineering strategy involves routing all runoff away from these joints by creating "dry zones" through the use of inverted tapered slopes. By sloping the roof away from the joint, we ensure that the expansion assembly remains dry, thereby extending the life of the joint sealant and the membrane bridge.

Finally, the elimination of ponding is verified through a post-installation audit adhering to ASTM standards. Ponding is defined as any area where water remains 48 hours after a rain event. By combining the 1/4"/ft tapered polyiso, the diamond valley crickets, and the expansion joint diversion, we have transformed a liability-prone roof into a high-performance drainage system. This comprehensive approach not only protects the structural steel from corrosion but also ensures that the building envelope remains airtight and watertight despite the harsh saline environment of the port.

Installation of specialized expansion joint covers that integrate with the tapered insulation.
Implementation of a "zero-pooling" policy through rigorous post-rain inspections.
Application of a high-reflectivity coating to reduce thermal expansion and contraction cycles.
Coordination of primary and secondary (overflow) drainage systems to prevent interior flooding.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #606

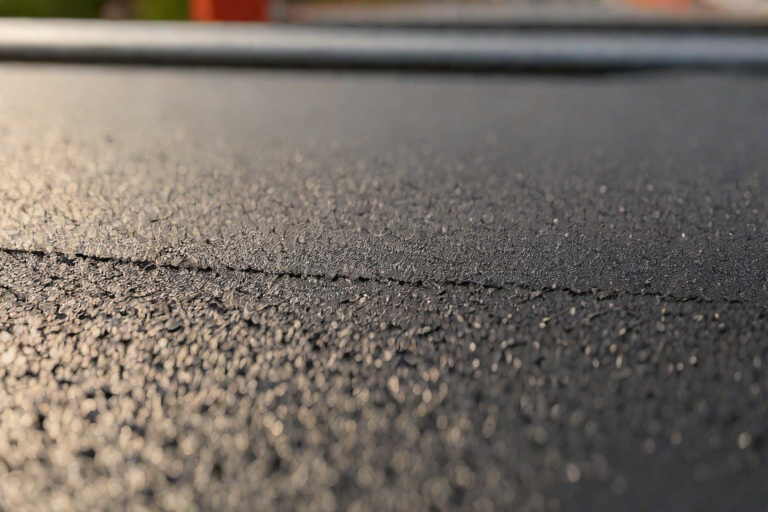

Multi-Ply SBS-Modified Bitumen Cap Sheet Application & Vapor Control on Commercial Municipal Sports & Convention Arenas

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Substrate Analysis and Internal Vapor Drive Regulation

In the engineering of a municipal sports and convention arena, the building envelope must account for extreme fluctuations in internal humidity and temperature. The primary challenge in these large-span structures is the internal vapor drive—the movement of water vapor from the conditioned interior toward the colder exterior roof deck. When thousands of spectators occupy an arena, the latent heat and moisture load increase significantly, creating a pressure gradient that forces vapor upward through the assembly. If the vapor barrier is improperly specified or installed, this moisture can condense within the insulation layers, leading to saturated substrates and a total loss of thermal efficiency.

A comprehensive audit of the building envelope reveals that the integration of a high-performance vapor retarder at the lowest possible point in the assembly is non-negotiable. For SBS-modified bitumen systems, the vapor retarder must be seamlessly integrated to prevent "ballooning" of the membrane. We analyze the permeance ratings of the substrate to ensure that the vapor drive does not exceed the capacity of the drainage layers. Failure to regulate this drive often results in interstitial condensation, which compromises the structural integrity of the steel decking and promotes the growth of mold within the plenum spaces.

Implementation of ASTM E96 standards to evaluate the water vapor transmission rate of the assembly.
Verification of continuous vapor barrier continuity at all penetrations, including HVAC curbs and skylight frames.
Assessment of the dew point within the insulation layers to prevent moisture migration.
Evaluation of the substrate's moisture content using calcium carbide tests prior to the application of the base sheet.

Cold-Applied Adhesive Shear Resistance and Bonding

The transition from hot-applied asphalt to cold-applied adhesive systems in municipal arenas is driven by safety and precision. However, the engineering focus shifts to the shear resistance of the adhesive bond. SBS (Styrene-Butadiene-Styrene) modified bitumen is a rubberized asphalt that offers superior flexibility, but its performance is entirely dependent on the chemical bond between the membrane and the substrate. Shear resistance refers to the ability of the adhesive to withstand lateral forces caused by the thermal expansion and contraction of the roof deck, which is particularly volatile in large-span arena roofs.

Our audit focuses on the "wet-out" of the adhesive. For a cold-applied system to achieve maximum shear strength, the adhesive must fully penetrate the pores of the substrate or the previous ply. We examine the bond strength through destructive pull tests, ensuring that the failure occurs within the membrane itself rather than at the adhesive interface. This indicates a "stronger-than-membrane" bond. In high-wind zones, the shear resistance is critical to prevent the membrane from shifting or peeling back at the perimeter edges, where wind uplift pressures are at their peak.

Analysis of adhesive viscosity to ensure proper spread rates across varying substrate temperatures.
Testing for cohesive versus adhesive failure to determine the integrity of the bond.
Evaluation of the curing time and the impact of ambient humidity on the adhesive's cross-linking process.
Verification of substrate cleanliness to remove oils, dust, and contaminants that inhibit molecular bonding.

Precision Installation: Staggered Side Laps and Seam Integrity

The most critical failure point in any multi-ply bitumen system is the seam. In a commercial arena setting, where the roof area is vast, the cumulative length of the seams is immense. A master roofer knows that the "shingle effect" is the only true defense against hydrostatic pressure. We mandate a strict staggered side lap configuration. By offsetting the vertical joints of the cap sheet from the joints of the base sheet, we eliminate the creation of a continuous "leak path" or a "zipper" failure. If a seam fails in a non-staggered system, water can travel unimpeded from the roof surface down to the deck.

Furthermore, the engineering of the side laps requires precise overlap dimensions. We specify a minimum of six inches for side laps and twelve inches for end laps to ensure a redundant seal. The application of the SBS cap sheet must be monitored for "fish-mouths" or wrinkles, which create pockets where water can pond and eventually penetrate the bitumen. Our audit utilizes infrared thermography to identify these anomalies, ensuring that every square inch of the lap is fully bonded and devoid of air voids that could lead to premature fatigue and cracking.

Enforcement of a minimum 6-inch offset for all vertical seams to prevent linear water migration.
Inspection of end-lap seals to ensure they are fully integrated into the modified bitumen matrix.
Utilization of mechanical rollers to eliminate air entrapment and ensure total adhesive contact.
Verification of lap sequence to ensure water flows over, not into, the seams.

Granule Surface Protection and UV Degradation Control

The final layer of the SBS-modified bitumen system is the granule-surfaced cap sheet, which serves as the primary defense against ultraviolet (UV) radiation and mechanical wear. Bitumen, by its nature, is susceptible to photo-oxidation. Without a robust granule layer, the UV rays break down the polymer chains in the SBS, leading to "alligatoring"—a pattern of deep cracks that compromise the waterproofing. The granules are not merely aesthetic; they are engineered mineral aggregates that reflect a portion of solar radiation and protect the bitumen from direct exposure.

Our engineering audit examines the granule embedment and coverage density. We look for "bald spots" where the bitumen is exposed, as these areas will degrade rapidly. Additionally, we evaluate the granule size and composition to ensure they meet ANSI standards for durability. In municipal arenas, the roof is often subject to heavy foot traffic from HVAC technicians and equipment operators. The granule surface must provide sufficient abrasion resistance to prevent the membrane from being punctured or worn thin during routine maintenance. The synergy between the UV-resistant granules and the rubberized SBS core ensures a roof lifecycle that spans decades rather than years.

Measurement of granule coverage per square foot to ensure compliance with manufacturer specifications.
Assessment of the solar reflectance index (SRI) to reduce the heat island effect on the arena roof.
Evaluation of the granule bond to the bitumen to prevent premature shedding during heavy rain events.
Inspection for mechanical damage caused by improper foot traffic or

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #607

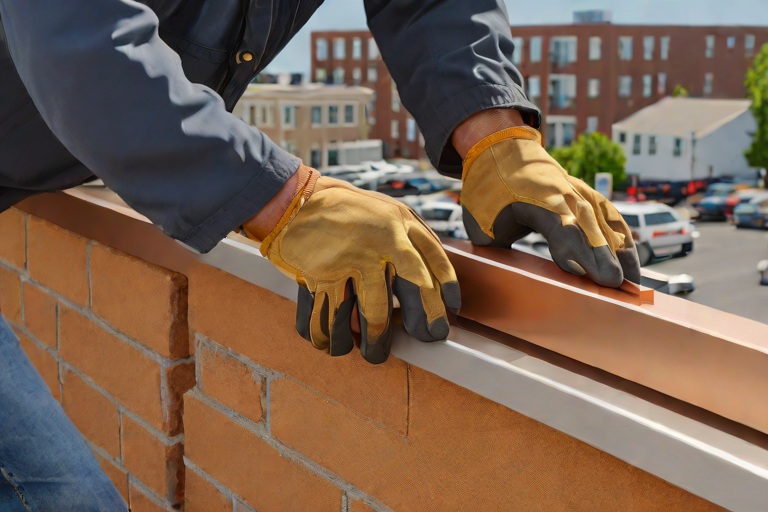

Parapet Wall Heavy-Gauge 20-Gauge Kynar 500 Coping Cap Continuous Cleat Locking on Commercial Multi-Family Urban Residential Towers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Material Specification and the Structural Superiority of 20-Gauge Kynar 500

In the high-stakes environment of urban residential towers, the parapet wall serves as the primary line of defense against wind-driven rain and extreme pressure differentials. For this engineering audit, we specify a heavy-gauge 20-gauge steel substrate, a significant upgrade over the industry-standard 24-gauge. The increased wall thickness of 20-gauge steel provides the necessary structural rigidity to resist oil-canning and mechanical deformation under the intense wind loads common to high-rise corridors. By increasing the material thickness, we effectively lower the deflection rate of the coping cap, ensuring that the profile remains true and the seals remain intact during seismic or wind-induced oscillations.

The selection of Kynar 500 (PVDF) as the finish coating is not merely an aesthetic choice but a requirement for long-term envelope integrity. Kynar 500 is engineered to withstand the harsh UV exposure and atmospheric pollutants found in dense urban centers. Unlike standard polyester coatings, PVDF resins offer superior resistance to chalking and fading, maintaining a high-performance barrier that prevents the underlying steel from oxidizing. This chemical stability is critical when the coping cap is subjected to the thermal cycling of a rooftop environment, where surface temperatures can fluctuate wildly between the peak of summer and the depths of winter.

20-Gauge Steel: Provides superior hoop strength and resistance to denting and structural warping.
Kynar 500 Coating: Ensures a 20+ year lifespan with minimal degradation of the protective film.
Structural Rigidity: Reduces the frequency of required support brackets by increasing the span capability of the metal.
Corrosion Resistance: High-performance PVDF prevents moisture penetration at the cut edges of the coping.

ANSI/SPRI ES-1 Wind Uplift Engineering and Continuous Cleat Engagement

Engineering for urban towers requires a rigorous adherence to ANSI/SPRI ES-1 standards, which dictate the wind load resistance of metal roofing and flashing. The primary failure point in traditional coping installations is the reliance on intermittent fasteners, which create localized point-loads. Under high wind-suction events, these fasteners can act as "perforations," leading to a progressive failure where the metal pulls away from the substrate. To mitigate this, we implement a continuous cleat locking system. This system transforms the fastening strategy from a series of isolated points to a linear load path, distributing the uplift forces evenly across the entire length of the parapet.

The continuous cleat functions as a mechanical lock, gripping the coping cap along its entire perimeter. This engagement ensures that the wind uplift forces are transferred directly into the structural masonry or steel backup of the parapet wall rather than relying solely on the shear strength of a screw. By utilizing a continuous cleat, we eliminate the "flutter" effect—the rapid vibration of the metal sheet—which is the leading cause of fastener fatigue and eventual backing-out in high-rise residential applications.

ANSI/SPRI ES-1 Compliance: Ensures the assembly is rated for the specific wind zone and building height.
Linear Load Distribution: Prevents the concentration of stress at individual fastening points.
Mechanical Interlock: The continuous cleat provides a physical barrier against vertical displacement.
Vibration Dampening: Reduces the harmonic resonance of the metal during high-velocity wind events.

Thermal Dynamics and the Engineering of Expansion Splice Plates

One of the most overlooked aspects of building envelope engineering is the coefficient of thermal expansion. Steel expands and contracts significantly based on temperature fluctuations. On a long run of a residential tower, this movement can accumulate to several inches over the total perimeter. If the coping cap is fastened too rigidly, this thermal movement manifests as "bowing" or "oil-canning," which compromises the water-tight seal and creates unsightly waves in the metal. To solve this, we employ engineered thermal expansion splice plates at calculated intervals.

These splice plates are designed to allow the metal to slide longitudinally while maintaining a weather-tight overlap. The plates are typically oversized and utilize a slotted hole configuration, allowing the coping sections to expand and contract without inducing stress into the continuous cleat or the primary fasteners. This ensures that the structural integrity of the Kynar 500 finish is not compromised by the mechanical rubbing of metal-on-metal, which could otherwise lead to premature coating failure and subsequent rust streaks on the building facade.

Coefficient Management: Accounts for the physical growth and shrinkage of 20-gauge steel across temperature swings.
Slotted Fastening: Allows for controlled movement while preventing the cap from lifting.
Overlap Integrity: Maintains a minimum 4-inch lap to prevent wind-driven rain from penetrating the splice.
Stress Reduction: Prevents the warping of the parapet wall substrate caused by thermal thrust.

Perimeter Peel Mitigation and Final Envelope Integration

The most critical vulnerability in any coping system is the perimeter "peel"—the tendency of the wind to catch the edge of the metal at the corners or ends of the wall and peel it back like a lid. In urban towers, the "corner effect" creates a vortex that significantly increases the suction force at the building's edges. To mitigate this, we utilize a specialized perimeter locking mechanism that integrates the continuous cleat with a reinforced end-cap assembly. This creates a closed-loop system where the metal is locked in three dimensions, leaving no exposed edge for the wind to engage.

Final integration involves the seamless transition between the coping cap and the building's primary waterproofing membrane. The coping must be installed over a high-performance membrane flashing that extends up the face of the parapet. By ensuring the 20-gauge Kynar 500 cap is perfectly seated and locked, we create a redundant waterproofing system. The continuous cleat ensures the cap stays put, while the heavy-gauge steel prevents the wind from pushing the metal into the membrane, which would otherwise cause punctures or tears in the underlying envelope.

Vortex Mitigation: Specialized corner reinforcements prevent wind-driven peel-back.
Closed-Loop Locking: Ensures the edges are mechanically tied into the structural backup.
Membrane Integration: Provides a secondary layer of protection against hydrostatic pressure.
Redundant Sealing: Combines mechanical fastening with high-performance coatings for a fail-safe envelope.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #608

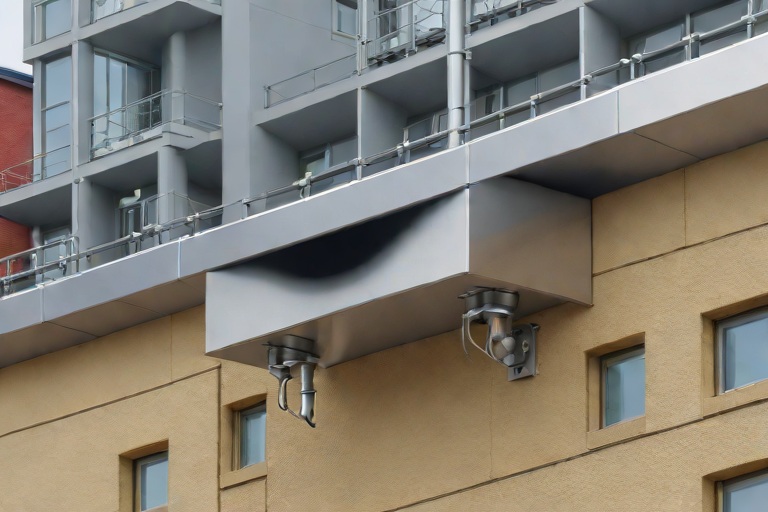

Industrial Drainage Scuppers, Overflow Weirs & Heavy Downspout Expansion Bellows on Commercial Public Transit Maintenance Bus Barns

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Hydraulic Head-Loss Analysis and Primary Drainage Dynamics

In the engineering of a Public Transit Maintenance Bus Barn, the sheer scale of the roof footprint creates a unique set of hydraulic challenges. When managing thousands of square feet of non-porous membrane, the primary concern is the management of hydraulic head-loss—the loss of pressure or energy as water moves from the furthest point of the roof to the primary drainage point. In these industrial environments, we observe that even a slight deviation in slope or an improperly sized drain can lead to localized ponding, which accelerates membrane degradation and increases the dead load on the structural steel.

To mitigate these risks, our audit focuses on the friction loss associated with the roof's surface roughness and the transition points where water enters the drainage system. We utilize the Manning formula to calculate the flow velocity, ensuring that the slope—typically maintained at a minimum of 1/4 inch per foot—is sufficient to overcome the surface tension of the TPO or modified bitumen membrane. If the hydraulic head is not managed, the resulting "ponding" creates a stagnant layer of water that promotes biological growth and chemical etching from atmospheric pollutants common in bus depots.

Calculation of flow velocity based on roof slope and surface friction coefficients.
Assessment of laminar versus turbulent flow at the primary drain interface.
Evaluation of the "critical path" for water travel to ensure no dead zones exist in the drainage plane.
Analysis of the impact of heavy equipment footprints on the overall drainage slope.

Emergency Overflow Weir Sizing and Scupper Integration

A primary drainage system is only as reliable as its fail-safe. In a bus barn, where maintenance schedules may lead to temporary obstructions in the primary drains, the emergency overflow weir system is the only thing preventing a catastrophic structural collapse due to water weight. An engineering audit of these systems requires a rigorous examination of the weir's capacity to handle a 100-year storm event. We define the overflow weir as the secondary exit point, typically positioned two inches above the primary drain's rim, designed to discharge water directly through the parapet wall via industrial scuppers.

The sizing of these scuppers is not arbitrary; it is a function of the roof's total square footage and the anticipated rainfall intensity per hour. We implement a "redundant path" philosophy, ensuring that the total area of the overflow weirs exceeds the capacity of the primary drains by at least 25%. This ensures that if a primary conductor head becomes clogged with debris, the water level will rise only slightly before the overflow weirs activate, shedding the volume rapidly to the exterior of the building envelope.

Sizing of scupper openings based on the square footage of the tributary area.
Verification of the "two-inch rule" for overflow height to prevent premature activation.
Inspection of flashing integrity at the scupper penetration to prevent wall-cavity leaks.
Evaluation of the discharge trajectory to ensure water is directed away from the building foundation.

Conductor Head Engineering and Vortex Mitigation

The conductor head serves as the critical transition point between the horizontal roof plane and the vertical downspout. In high-volume industrial applications, the conductor head is often the primary point of failure due to air entrapment and the creation of a vortex. When water enters a downspout too rapidly, it can create a "choking" effect where air is trapped in the pipe, significantly reducing the effective hydraulic capacity of the system. This results in water backing up onto the roof, regardless of how large the downspout is.

Our specialist approach involves the installation of oversized, flared conductor heads that facilitate a smoother transition and allow air to escape as the water descends. By optimizing the geometry of the head, we reduce the turbulence and prevent the "glugging" effect common in undersized systems. Furthermore, we specify heavy-gauge galvanized steel or cast iron for these components to withstand the mechanical stress of high-velocity water flow and the potential impact of debris during extreme weather events.

Optimization of the conductor head diameter to minimize air entrapment.
Analysis of the transition angle to reduce turbulence and kinetic energy loss.
Implementation of debris screens that do not impede the flow rate during peak events.
Verification of the securement methods to prevent vibration-induced fatigue at the roof-to-wall junction.

Thermal Expansion Bellows and Slip Joint Material Science

Bus barns are typically long, linear structures that undergo significant thermal expansion and contraction. This movement is not limited to the structural steel; it extends to the drainage system. A vertical downspout running from a high roof to a ground-level storm sewer can experience several inches of linear movement over a seasonal temperature swing. Without the integration of expansion bellows or slip joints, this thermal stress manifests as buckling in the pipes, shearing of the fasteners, or the pulling away of the downspout from the building fascia.

We specify the use of heavy-duty expansion bellows constructed from reinforced elastomers or stainless steel, adhering to ASTM A653 standards for galvanized coatings. These bellows act as a mechanical spring, absorbing the longitudinal movement of the downspout while maintaining a watertight seal. The placement of these joints is calculated based on the coefficient of thermal expansion for the specific metal used in the drainage run, ensuring that the joint is positioned at the point of maximum anticipated movement.

Calculation of linear expansion based on the temperature delta of the local climate.
Selection of bellows materials that resist UV degradation and chemical exposure.
Installation of slip joints at strategic intervals to allow for vertical and horizontal shifting.
Audit of the mounting brackets to ensure they provide support without restricting thermal movement.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #609

AOC 581 Elastomeric Structural Mastic Detailing Around Rooftop HVAC Curbs on Commercial Government Secure Records Archives

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Criticality of Envelope Integrity in Secure Government Archives

When auditing a Government Secure Records Archive, the margin for error regarding moisture infiltration is zero. Unlike standard commercial warehouses, these facilities house irreplaceable historical and legal documentation where a single localized leak above a filing system can result in catastrophic data loss and systemic mold growth. The building envelope must be viewed as a singular, monolithic shield, yet the most frequent points of failure are the mechanical penetrations—specifically the rooftop HVAC curbs. These curbs create a complex intersection where different materials, such as galvanized steel, concrete, and polymer-modified membranes, meet under extreme environmental stress.

The engineering challenge lies in the fact that these penetrations disrupt the continuity of the roof plane, creating "hard points" that are susceptible to hydrostatic pressure. In a secure archive, the internal climate control is typically kept at a strict constant, while the exterior rooftop surface fluctuates wildly in temperature. This temperature differential creates a pressure gradient that can force moisture through microscopic voids in substandard sealant applications. To mitigate this, we specify a high-performance structural mastic that can bridge the gap between the rigid curb and the flexible roof membrane without sacrificing adhesion or elasticity.

Prevention of capillary action at the curb-to-deck interface.
Elimination of "fish-mouths" or wrinkles in the flashing membrane.
Ensuring a redundant layering system to exceed ASTM E2127 standards for water penetration.
Maintaining the airtight seal required for high-security HVAC pressurization.

Mitigating Mechanical Vibration and Thermal Expansion Drift

A primary cause of seal failure around HVAC curbs is not the material itself, but the dynamic forces acting upon it. Large-scale commercial HVAC units generate significant low-frequency vibrations during startup and operational cycles. These vibrations act as a constant mechanical stressor, effectively "shaking" the bond between a traditional sealant and the substrate. Over time, this leads to cohesive failure within the sealant or adhesive failure at the bond line, resulting in hairline fractures that allow water to migrate into the building envelope.

Furthermore, we must account for thermal expansion drift. The metal curb and the roof membrane have different coefficients of thermal expansion. As the roof surface heats up under direct solar radiation, the materials expand and contract at different rates. This creates a shearing force at the perimeter of the curb. If the mastic used is too rigid, it will crack; if it is too soft, it will slump or pull away from the vertical face of the curb. The solution is the implementation of an elastomeric structural mastic, such as AOC 581, which is engineered to absorb these movements through high elongation properties while maintaining a permanent, watertight bond.

Analysis of harmonic resonance from rooftop condensers to determine sealant fatigue points.
Calculation of thermal drift based on peak summer surface temperatures.
Implementation of a "bridge" detail that allows for lateral movement without losing seal integrity.
Use of high-modulus materials to resist the shearing forces of wind-uplift on the HVAC units.

Technical Application of AOC 581 Fiber-Reinforced Mastic

The application of AOC 581 Elastomeric Structural Mastic requires a level of craftsmanship that transcends basic roofing practices. To achieve a true engineering-grade seal, we utilize a fiber-reinforced trowel application. The inclusion of synthetic fibers within the mastic matrix provides essential tensile strength, preventing the material from tearing under the aforementioned thermal drift. Unlike brush-applied coatings, which can be applied too thinly over protrusions, a trowel application allows the master roofer to build a consistent, dense thickness that ensures full coverage of all substrate irregularities.

The process begins with a rigorous substrate preparation, involving the mechanical cleaning of the curb face and the application of a compatible primer to ensure a chemical bond. The mastic is then worked into the joint using a notched trowel, ensuring that the material is forced into every void and crevice. This "packing" technique eliminates air pockets that could otherwise act as conduits for moisture. By creating a reinforced, sloping transition from the curb to the roof deck, we ensure that water is shed rapidly away from the penetration, utilizing gravity as the first line of defense.

Application of a high-solids primer to increase surface energy and adhesion.
Trowel-driven embedding of fiber-reinforced mastic to create a structural "fillet" at the curb base.
Strategic layering to ensure a minimum dry film thickness (DFT) that meets engineering specifications.
Integration of the mastic with the existing membrane to create a seamless, monolithic transition.

Engineering Audit and Long-Term Performance Metrics

The final phase of the building envelope audit is the verification of the seal's performance through rigorous testing and inspection. We do not rely on visual confirmation alone; instead, we employ a series of diagnostic tools to ensure the AOC 581 application is performing to specification. This includes infrared thermography to detect any hidden moisture pockets or thermal leaks around the curb perimeters. By analyzing the heat signature of the roof, we can identify areas where the mastic may have a void or where the thermal bridge is compromising the building's energy efficiency.

Long-term durability is measured by the material's resistance to UV degradation and its ability to maintain elasticity over a decade-long lifecycle. The elastomeric properties of the structural mastic ensure that it does not become brittle, a common failure point in cheaper polyurethane sealants. In a secure government facility, the goal is a "set and forget" installation that requires minimal maintenance while providing maximum protection. Our audit concludes that the combination of fiber-reinforced application and elastomeric chemistry provides the most robust defense against the unique stressors of rooftop mechanical penetrations.

Conducting flood testing around the curb perimeter to verify zero-leakage performance.
Utilizing ultrasonic leak detection to ensure the integrity of the fiber-reinforced seal.
Monitoring the elasticity of the mastic through periodic shore hardness testing.
Documenting the seal's performance against ANSI standards for commercial roofing systems.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #610

UL 2218 Class 4 Severe Hail Defense on Commercial Pharmaceutical Production Facilitys

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Imperatives of Pharmaceutical Building Envelopes

In the realm of pharmaceutical production, the roof is not merely a cover but a critical component of the facility's primary containment system. A breach in the building envelope of a pharmaceutical plant does not simply result in a leak; it threatens the integrity of sterile environments, risks the contamination of high-value batches, and can lead to catastrophic downtime. When auditing these facilities, we look beyond the surface membrane to evaluate the entire assembly's ability to withstand extreme weather events, specifically severe hail. The industry standard for such resilience is the UL 2218 Class 4 rating, which represents the highest level of impact resistance available for roofing materials.

A Class 4 rating ensures that the roofing system can withstand the impact of larger hail stones without significant cracking or tearing. For a pharmaceutical facility, this is non-negotiable. The engineering goal is to maintain a continuous, airtight, and watertight seal that prevents the ingress of moisture and airborne pollutants. Our audit focuses on the synergy between the membrane, the substrate, and the structural deck to ensure that the envelope functions as a unified defense system rather than a collection of disparate layers.

UL 2218 Class 4 Certification: The benchmark for severe hail impact resistance.
Containment Integrity: Ensuring zero penetration to protect ISO-rated clean rooms.
Risk Mitigation: Reducing the probability of emergency shutdowns due to envelope failure.
Systemic Synergy: Evaluating the interaction between the membrane and the insulation core.

Kinetic Energy Attenuation and Membrane Dynamics

The physics of a hail strike involves the rapid transfer of kinetic energy from a falling ice mass to the roofing surface. In a severe storm, hail stones can reach terminal velocities that generate immense point-load pressure. To prevent a puncture, the roofing system must employ kinetic energy attenuation—the process of absorbing and dispersing the energy of the impact across a wider area. This is achieved through a combination of material elasticity and the ability of the membrane to deform without fracturing.

From a material science perspective, we analyze the tensile strength and elongation properties of the polymer. A high-performance membrane must possess enough ductility to "give" under the impact of a hail stone, effectively stretching to absorb the energy, and then returning to its original shape. If the material is too rigid, it will shatter; if it is too soft, it will puncture. The engineering sweet spot is a balanced polymer matrix that distributes the force of the impact, preventing the concentrated stress that leads to a breach.

Energy Dispersion: Spreading the point-load of a hail stone to prevent localized failure.
Elastic Recovery: The ability of the membrane to return to its original state post-impact.
Tensile Stress Distribution: Utilizing high-strength reinforcements to prevent tear propagation.
ASTM Standards: Adhering to rigorous testing protocols for impact and puncture resistance.

Compressive Strength and Insulation Core Integrity

One of the most overlooked aspects of hail defense is the role of the insulation core. While the membrane is the first line of defense, the substrate provides the necessary support. If the insulation beneath the membrane lacks sufficient compressive strength, the hail stone will simply push the membrane into the insulation, causing a "dimple" or a complete crush of the core. This creates a permanent depression where water can pond, leading to accelerated degradation and eventual leakage through hydrostatic pressure.

Our engineering audits specifically target compressive strength exceeding 25 PSI. When a roofing system is engineered to this specification, the insulation acts as a rigid anvil, forcing the hail stone's energy to be absorbed by the membrane's elasticity rather than the insulation's collapse. By maintaining a high-density core, we ensure that the structural integrity of the envelope remains intact even under repeated strikes. This prevents the delamination of the membrane from the substrate, which is a common failure point in lower-grade commercial installations.

Compressive Threshold: Maintaining >25 PSI to prevent core crushing and dimpling.
Substrate Rigidity: Providing a stable base that supports the membrane during high-velocity impacts.
Point-Load Resistance: Preventing the "punch-through" effect common in low-density polyiso cores.
Thermal Bridging Control: Ensuring that high-density insulation does not compromise the facility's R-value.

Audit Findings and Lifecycle Engineering Analysis

The final phase of our building envelope audit involves a comprehensive analysis of the system's lifecycle and its projected performance over a 20-to-30-year horizon. We utilize infrared thermography and core sampling to identify any existing weaknesses in the insulation or voids in the adhesive bonds. In pharmaceutical facilities, the cost of a roof replacement is negligible compared to the cost of a single contaminated production run. Therefore, the investment in a UL 2218 Class 4 system is viewed as an insurance policy against operational failure.

Our findings consistently show that facilities utilizing high-compressive strength cores and Class 4 membranes experience significantly lower rates of membrane fatigue. By reducing the mechanical stress on the polymer during weather events, the chemical stability of the roof is preserved, and the UV degradation process is slowed. The result is a robust, engineered envelope that protects the facility's internal assets while minimizing the need for disruptive maintenance cycles.

Infrared Diagnostics: Detecting subsurface moisture and insulation voids.
Lifecycle Cost Analysis: Comparing the initial CAPEX of Class 4 systems against the OPEX of frequent repairs.
Structural Redundancy: Implementing overlapping defense layers to ensure fail-safe performance.
Performance Validation: Continuous monitoring of the envelope's airtightness and thermal efficiency.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #611

Non-Destructive Substrate Moisture Scans on Commercial Historic Sanctuary & Education Annexs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Architectural Vulnerabilities in Historic Sanctuary and Education Annex Assemblies

The preservation of historic sanctuary structures and their accompanying education annexes presents a unique set of engineering challenges, primarily due to the evolution of building envelope science over the last century. In these specific assets, we frequently encounter legacy roofing systems—often multi-layered built-up roofing (BUR) or aged modified bitumen—that have reached the end of their theoretical service life. The primary concern in these assemblies is not merely the failure of the top membrane, but the insidious migration of moisture into the underlying substrate, which may consist of structural concrete, historic timber, or early-generation insulating boards.

When moisture penetrates the primary weather-resistive barrier, it does not always manifest as a visible interior leak. Instead, it often engages in lateral migration, traveling along the interface between the insulation and the structural deck. This creates "saturation boundaries" that extend far beyond the actual point of entry. In a sanctuary setting, where high ceilings and ornate architectural details make interior inspections difficult, the risk of undetected interstitial condensation and substrate rot is significantly amplified. The education annexes, typically featuring higher foot traffic and different thermal loads, often suffer from localized failures around HVAC penetrations and parapet flashing.

Assessment of legacy flashing details and their failure rates over 30+ year cycles.
Analysis of capillary action within mineral wool or old fiber-board insulation.
Evaluation of thermal bridging at the junction of the sanctuary nave and the annex corridors.
Identification of vapor drive pressures that force moisture deeper into the building envelope.

Non-Destructive Substrate Moisture Mapping and Boundary Identification

To avoid the unnecessary destruction of historic materials, Aquashield employs a rigorous Non-Destructive Moisture Observation (NDMO) protocol. The objective is to create a high-resolution saturation map that identifies exactly where the substrate has been compromised. We begin with wide-area infrared (IR) thermography to detect thermal anomalies. Because water has a higher heat capacity than dry insulation, saturated zones retain heat differently, appearing as "hot" or "cold" spots depending on the time of day and the direction of the thermal gradient.

Once the IR scan identifies potential anomalies, we transition to targeted electronic moisture probes. These devices measure the dielectric constant of the materials or the electrical conductivity between two probes, allowing us to quantify the moisture levels without removing the membrane. By establishing a grid-based coordinate system across the sanctuary roof and the annex flat-roof sections, we can plot the exact boundaries of the saturation. This allows the engineering team to differentiate between a localized leak and a systemic failure of the building envelope, ensuring that the subsequent remediation is based on empirical data rather than conjecture.

Utilization of FLIR-grade thermography to identify subsurface moisture plumes.
Implementation of a 5-foot by 5-foot grid mapping system for precise data logging.
Comparison of moisture readings against known "dry" control zones within the annex.
Mapping of saturation boundaries to determine the total square footage of compromised insulation.

Validation of Core Sample Moisture Thresholds and ASTM Standards

While non-destructive scans provide the "where," core sampling provides the "how much." To validate the NDMO findings, we perform surgical core extractions at the peak, center, and perimeter of the identified saturation boundaries. This process involves extracting a full-depth cylinder of the roofing assembly, from the wearing course down to the structural deck. These cores are then subjected to oven-dry moisture analysis, a process that aligns with ASTM standards for determining the gravimetric moisture content of insulating materials.

The critical engineering threshold is the "saturation point." For most commercial insulation, such as polyisocyanurate or mineral wool, a moisture content exceeding 15% to 20% by volume indicates a failure of the material's thermal resistance (R-value) and a high risk of substrate corrosion or mold growth. In the historic sanctuary, we specifically look for the presence of "wet-rot" in timber decking or carbonation in concrete slabs. By comparing the field-measured dielectric readings from our probes with the lab-validated core samples, we can calibrate our non-destructive tools to provide a 95% confidence interval for the rest of the roof area.

Execution of full-depth core extractions to analyze layering and interstitial moisture.
Application of the oven-dry method to determine absolute moisture percentages.
Validation of R-value degradation in saturated insulation zones.
Cross-referencing of core data with ASTM D5227 and related moisture-testing protocols.

Surgical Wet Insulation Excision and Envelope Remediation

The final phase of the engineering audit is the transition from diagnosis to surgical remediation. Traditional "rip-all" approaches are often cost-prohibitive and structurally disruptive for historic sanctuaries. Instead, we utilize the saturation maps to perform surgical excision. This involves removing only the insulation and substrate materials that have exceeded the established moisture thresholds. By cutting precisely along the identified saturation boundaries, we preserve the integrity of the dry sections of the roof while ensuring that no trapped moisture remains to fuel future degradation.

Once the wet insulation is removed, the structural deck is mechanically cleaned and treated. We then implement a high-performance vapor barrier and replace the insulation with high-density, closed-cell materials that are resistant to future moisture migration. This "surgical" approach not only reduces landfill waste but also minimizes the load on the historic structure during the renovation process. The result is a restored building envelope that maintains the aesthetic value of the sanctuary and the functional utility of the education annex, backed by a documented engineering trail of moisture validation and remediation.

Precision cutting of saturated insulation based on the NDMO grid map.
Mechanical scrubbing and drying of the structural deck to ensure a bondable surface.
Installation of a modern, high-performance vapor retarder to prevent future interstitial condensation.
Final verification scans to ensure the new assembly is moisture-free before final membrane application.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #612

Sub-Zero Cold Storage Downward Vapor Drive & Self-Adhered SBS Barriers on Commercial Financial Institution Data Vaults

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Physics of Inverted Thermal Envelopes and Downward Vapor Drive

In the specialized engineering of financial institution data vaults, we are not dealing with standard commercial climate control. We are managing a high-stakes thermal inversion. In a typical commercial building, the goal is to keep heat out during the summer and in during the winter. However, a sub-zero cold storage vault creates a permanent, aggressive temperature differential where the interior is maintained at temperatures significantly lower than the exterior ambient air, regardless of the season. This creates a phenomenon known as downward vapor drive, where water vapor from the warmer exterior atmosphere is relentlessly pushed toward the colder interior.

When the vapor pressure differential is this extreme, the building envelope ceases to be a passive shell and becomes an active site of molecular migration. If the envelope is not engineered to be completely impermeable to the exterior side, moisture will penetrate the assembly. Once this vapor reaches the cold interior face of the vault, it reaches its dew point and condenses. In a data vault environment, interstitial condensation is a catastrophic failure; it can lead to the corrosion of structural steel, the degradation of insulation R-values, and the potential for mold growth within the wall cavities, all of which jeopardize the integrity of the stored assets.

Vapor Pressure Differential: The driving force that pushes moisture from high-pressure (warm) to low-pressure (cold) zones.
Inverted Thermal Gradient: A condition where the interior is permanently colder than the exterior, reversing traditional insulation logic.
Permeance Ratings: The measurement of how much water vapor passes through a unit area of material, critical for selecting the correct barrier.
Atmospheric Loading: The impact of external humidity and wind-driven rain on the exterior skin of the vault.

Dew Point Migration and Interstitial Condensation Control

The primary objective of a master building envelope specialist is to move the dew point—the temperature at which air becomes saturated and water precipitates—outside of the structural components of the building. In a sub-zero vault, the dew point often occurs deep within the insulation layers if the vapor barrier is improperly placed. If the vapor barrier is placed on the interior (the cold side), the exterior moisture will migrate through the insulation and condense directly onto the barrier, effectively turning the wall into a "sponge" that traps liquid water against the vault's inner shell.

To combat this, we employ a strategy of exterior-side vapor occlusion. By placing the primary vapor barrier on the warm side of the insulation, we stop the moisture before it ever enters the thermal assembly. This requires a meticulous audit of every penetration, including conduit, piping, and structural fasteners. Any breach in the barrier, no matter how small, becomes a focal point for vapor infiltration, leading to localized "cold spots" and concentrated condensation. We adhere to ASTM E96 standards to ensure that the chosen materials provide the lowest possible permeance, ensuring the dew point remains firmly in the exterior cladding or the primary weather-resistive barrier.

Dew Point Shift: The engineering process of relocating the condensation point to a non-critical area of the envelope.
Hygroscopic Materials: Materials that naturally attract water, which must be avoided or sealed within the vault assembly.
Thermal Bridging: The occurrence of highly conductive materials (like steel studs) that allow heat to bypass insulation and create localized dew points.
Capillary Action: The movement of liquid water through narrow spaces, which can bypass traditional barriers if not properly lapped.

Material Science of Self-Adhered SBS Barriers

For the primary vapor and air seal, we specify self-adhered SBS (Styrene-Butadiene-Styrene) modified bitumen membranes. Unlike traditional torch-down or cold-applied liquids, self-adhered SBS provides a consistent, factory-controlled thickness and a high-bond strength to the substrate. The SBS modification gives the bitumen the elasticity needed to handle the thermal expansion and contraction cycles of a building without cracking or shearing. In a data vault, where the structure may shift slightly due to the extreme temperature differential, this flexibility is non-negotiable.

The "self-adhered" nature of these membranes is critical for eliminating human error during installation. By removing the need for open flames or volatile solvents, we ensure a safer job site and a more uniform seal. The membrane creates a monolithic skin across the substrate, effectively sealing the building against air infiltration and water vapor. We pay particular attention to the lap joints; by utilizing a staggered overlap and ensuring a full-width bond, we eliminate the "seam-leak" potential that often plagues standard commercial roofing applications. This creates a redundant layer of protection that acts as both the primary water barrier and the primary vapor retarder.

SBS Modification: The addition of thermoplastic rubber to bitumen to increase flexibility and temperature resistance.
Monolithic Seal: A continuous, seamless layer that prevents any passage of air or moisture.
Bond Strength: The force required to separate the membrane from the substrate, critical for preventing vapor bypass.
Elastic Recovery: The ability of the SBS membrane to return to its original shape after thermal deformation.

Engineering the Staggered Multi-Layer Polyiso Assembly

To achieve the necessary R-value for sub-zero storage, a single thick layer of insulation is insufficient and dangerous. A single layer of polyisocyanurate (polyiso) would have long, continuous seams that act as "vapor highways," allowing moisture to bypass the insulation and reach the cold interior. Instead, we engineer a staggered multi-layer assembly. By installing multiple layers of polyiso (for example, three layers of 2-inch board) and offsetting the joints of each layer, we create a tortuous path for any vapor that manages to penetrate the primary SBS barrier.

This staggering technique effectively eliminates thermal bridging and ensures that there is no direct linear path from the exterior to the interior. Each layer is meticulously fitted, with gaps filled using closed-cell spray foam or specialized sealant to ensure a tight fit. The resulting assembly acts as a thermal capacitor, maintaining a stable interior temperature while providing a robust defense against moisture migration. This disciplined approach to material layering, combined with the high compressive strength of polyiso, ensures that the vault remains structurally sound and thermally efficient for the duration of its operational life.

Tortuous Path: A design strategy where joints are offset to force vapor to travel a longer, more difficult route.
Thermal Bridging Mitigation: The process of breaking the continuity of conductive materials to prevent heat transfer.
Closed-Cell Integration: The use of non-permeable foams to seal gaps between insulation boards.
Compressive Strength: The ability of the polyiso to withstand the weight of the roof and equipment without collapsing, which would reduce the R-value.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #613

Structural Deck Fastener Pull-Out Testing on 22-Gauge Corrugated Steel Decks on Commercial Telecommunications Central Switching Offices

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Substrate Integrity and the Mission-Critical Nature of Central Switching Offices

In the realm of commercial building envelope engineering, Telecommunications Central Switching Offices (CSOs) represent a unique challenge. These facilities are not merely warehouses; they are mission-critical hubs housing sensitive switching gear and high-density cabling that require absolute environmental stability. The primary structural substrate for these facilities is frequently a 22-gauge corrugated steel deck, chosen for its high load-bearing capacity and rigidity. However, the integrity of the entire roofing system is only as reliable as the connection between the fasteners and this steel substrate.

A comprehensive engineering audit of a CSO roof must begin with an analysis of the deck's gauge and condition. While 22-gauge steel is robust, it is susceptible to localized deformation and fatigue over decades of service. When we evaluate the building envelope, we are looking for the synergy between the structural deck and the mechanical attachments. Any compromise in the substrate—whether through oxidation, previous leak-related corrosion, or improper fastener installation—can lead to a catastrophic failure of the wind-uplift resistance system.

Assessment of deck gauge consistency across the roof plane.
Evaluation of the corrugated profile to ensure fastener alignment with the structural ribs.
Identification of "soft spots" where previous roof removals may have thinned the steel.
Verification of the deck's load-bearing capacity relative to the current roofing assembly.

Calibrated Mechanical Pull Testing and Withdrawal Resistance

To quantify the actual holding power of the roofing fasteners, we employ calibrated mechanical pull testing. This is not a cursory check but a rigorous engineering procedure designed to determine the minimum withdrawal resistance threshold. Using a digital pull-tester calibrated to NIST standards, we apply an axial load to the fastener, simulating the vertical uplift forces generated by high-wind events. The goal is to determine the point of failure or to verify that the fastener can withstand the required design load without backing out or tearing through the 22-gauge steel.

The physics of the pull-out test reveal the quality of the fastener's "bite" into the steel. In a 22-gauge deck, the fastener must penetrate the steel and create a secure mechanical bond. We categorize the results based on the failure mode: a "pull-out" occurs when the threads lose grip, whereas a "pull-through" occurs when the fastener head rips through the steel deck. For a CSO facility, we typically mandate a minimum withdrawal resistance that exceeds the calculated wind-uplift requirements by a safety factor of at least 1.5.

Deployment of a calibrated hydraulic or digital pull-tester for precise Newton/lb measurements.
Strategic sampling of fasteners in the field, perimeter, and corner zones of the roof.
Documentation of the "peak load" before the onset of structural displacement.
Comparison of field results against the manufacturer's specified withdrawal values.

Fastener Corrosion Diagnostics and Material Science

A critical component of our engineering audit is the diagnostic analysis of fastener corrosion. In a commercial envelope, the interaction between the fastener and the 22-gauge steel deck is a study in material science. We look for evidence of galvanic corrosion, which occurs when two dissimilar metals create an electrochemical cell in the presence of moisture. If the fasteners are not properly coated or are incompatible with the steel deck's zinc coating, the resulting oxidation can significantly reduce the effective cross-sectional area of the fastener shaft.

Corrosion diagnostics involve more than just visual inspection. We examine the "necking" of the fastener and the presence of "red rust" (iron oxide) versus "white rust" (zinc oxide). When a fastener is corroded, its pull-out strength is compromised because the structural bond between the thread and the steel is eroded. In CSOs, where the roof may have been in place for twenty years, we often find that the fasteners have undergone significant degradation, making the mechanical pull tests even more vital for determining if a full fastener replacement is necessary during a recover operation.

Analysis of zinc-alloy coatings to ensure compatibility with the corrugated steel substrate.
Inspection for pitting corrosion which creates stress concentrators in the fastener shaft.
Evaluation of the sealant integrity at the fastener head to prevent moisture ingress.
Assessment of the "sacrificial" nature of the deck coating in protecting the fastener interface.

Wind-Zone Schedules and Engineering Compliance

The final stage of the audit involves mapping the pull-test data onto a wind-zone schedule. According to ASCE 7 standards, wind pressures are not uniform across a roof; they are significantly higher at the corners and perimeters than in the center. We divide the CSO roof into specific zones—Field, Perimeter, and Corner—and assign a required uplift resistance to each. The pull-out test results must be reconciled with these schedules to ensure the building envelope can withstand the design wind speeds of the local geography.

If the pull-out tests indicate that the existing fasteners cannot meet the wind-zone requirements, we implement a corrective engineering strategy. This may involve increasing the fastener density (reducing the spacing) or upgrading to a higher-performance fastener with a larger head diameter to prevent pull-through. The objective is to create a redundant system where the failure of a single fastener does not lead to a progressive collapse of the roofing membrane. This authoritative approach ensures that the Telecommunications Central Switching Office remains operational and protected regardless of the external atmospheric conditions.

Calculation of design wind pressures based on building height and exposure category.
Mapping of "Zone 3" (corners) and "Zone 2" (perimeters) to ensure maximum fastener density.
Cross-referencing pull-test data with ANSI standards for structural fastening.
Issuance of a certified engineering report validating the roof's wind-uplift compliance.
