Thermal Dynamics of Induction Welding in Sub-Zero Environments

In the context of large-scale logistics distribution hubs, the building envelope is subjected to extreme thermal fluctuations and immense wind loads. When executing membrane installations in cold-weather climates, traditional hot-air welding often fails due to the "heat sink" effect. The cold steel decking and insulation substrates rapidly draw thermal energy away from the weld zone, leading to "cold welds" or incomplete molecular fusion. Electromagnetic induction welding solves this by utilizing a high-frequency alternating current to excite the molecules within the membrane, generating heat internally rather than relying on external air temperature.

The physics of induction bonding requires a precise understanding of the material's thermal conductivity. In a logistics hub, where roof spans can exceed several hundred thousand square feet, the consistency of the bond is paramount. The induction process creates a localized electromagnetic field that targets the interface between the membrane layers, ensuring that the core temperature reaches the required melting point regardless of the ambient air temperature. This process eliminates the reliance on pre-heating the substrate, which is often impractical in sub-zero conditions.

• Reduction of thermal bridging between the membrane and the cold steel substrate.
• Elimination of "cold-start" weld failures common in traditional heat-gun applications.
• Accelerated fusion times that minimize the window for wind-driven contaminants to enter the seam.
• Consistent heat distribution across the entire width of the induction plate.

Calibration Protocols for Electromagnetic Plate Bonding

Precision in cold-weather welding is not achieved through guesswork but through rigorous tool temperature calibration. For a master roofer, the goal is to achieve a "perfect flow" state where the TPO or PVC membrane reaches a molten phase without scorching the polymer chain. In temperatures below 32°F (0°C), the voltage settings on the induction welder must be adjusted to compensate for the rapid cooling rate of the surrounding material. We utilize a calibrated thermal imaging system to verify that the weld zone maintains a consistent temperature across the entire plate width.

The calibration process involves a series of test strips performed at the start of every shift. These strips are analyzed for "knit lines" and void spaces. If the temperature is too low, the polymers do not intertwine, resulting in a mechanical failure under stress. If the temperature is too high, the membrane undergoes thermal degradation, which compromises the long-term UV resistance and flexibility of the envelope. Adherence to ASTM standards for seam strength ensures that the bond is chemically identical to the parent material.

• Real-time monitoring of the induction plate's surface temperature via infrared thermography.
• Adjustment of the duty cycle to maintain a constant thermal output despite fluctuating ambient temperatures.
• Implementation of a "step-up" heating protocol to gradually bring the membrane to the fusion point.
• Verification of weld penetration through destructive peel tests conducted on sacrificial samples.

Weighted Magnetic Cooling Clamping and Structural Stabilization

The most critical phase of the induction process is not the heating, but the cooling. In cold-weather environments, the rapid transition from a molten state to a solid state can induce significant internal stresses within the membrane. This often manifests as "pull-back" or shrinkage, where the seam contracts and creates micro-fissures at the edges. To counteract this, we employ weighted magnetic cooling clamps. These clamps serve a dual purpose: they provide the necessary downward pressure to ensure intimate contact between the layers and act as a heat sink to regulate the cooling rate.

By utilizing magnetic clamping, we can stabilize the membrane against the steel decking during the critical crystallization phase. This prevents the membrane from shifting due to wind gusts or thermal contraction. The weight of the clamps ensures that the bond is not compromised by air pockets or "bridging," where the membrane spans a gap rather than adhering to the surface. This stabilization is essential for maintaining the integrity of the building envelope, especially in the high-traffic areas of a distribution hub where structural vibrations are common.

• Prevention of polymer shrinkage and seam distortion through controlled cooling.
• Elimination of air entrapment and voids within the welded interface.
• Stabilization of the membrane against substrate movement during the fusion process.
• Ensuring a flat, uniform bond that reduces the risk of future puncture or fatigue.

Wind Uplift Analysis and Envelope Integrity

Logistics distribution hubs are essentially massive sails; their vast flat roofs are prone to extreme wind uplift forces. The engineering of the membrane attachment must be designed to withstand peak gusts as defined by ANSI/SPWind standards. Induction welding provides a superior alternative to mechanical fastening because it creates a continuous, monolithic skin across the roof. This distributes the wind load across the entire surface area of the weld rather than concentrating the stress on a few thousand fastener points, which are often the primary points of failure and leakage.

Our audit of the building envelope focuses on the shear strength of the induction bonds. In a cold-weather scenario, the membrane becomes more brittle, increasing the risk of "zipper" failures where a small tear rapidly propagates along a seam. However, because induction welding creates a molecular bond, the seam is often stronger than the membrane itself. By combining induction welding with strategic perimeter reinforcement, we ensure that the roof system can withstand negative pressure events without compromising the interior environment of the facility.

• Distribution of wind-load stresses across a continuous welded seam rather than discrete points.
• Reduction of penetration points in the roof deck, significantly lowering the risk of water infiltration.
• Increased resistance to "peel" forces through the creation of a chemically fused monolithic layer.
• Long-term durability verified through rigorous wind-uplift simulations and field testing.

The Engineering Challenge of Automotive Assembly Envelopes

Automotive assembly plants represent some of the most complex building envelopes in the industrial sector. These structures are characterized by massive footprints, expansive single-slope or low-slope roof geometries, and extreme internal thermal fluctuations caused by paint booths, curing ovens, and heavy robotic machinery. From a master roofer's perspective, the primary risk is not merely the precipitation, but the structural kinetics of the building. Thermal expansion and contraction of the steel superstructure create significant shear stress on the roofing membrane, particularly at the penetration points and drainage assemblies.

When managing a facility of this scale, the margin for error is nonexistent. A single breach in the membrane can lead to catastrophic production downtime, potentially costing the manufacturer millions of dollars per hour. Therefore, the engineering approach must shift from standard installation to a rigorous validation protocol. We treat the roof not as a cover, but as a critical piece of industrial equipment that must be calibrated and tested under simulated stress conditions to ensure long-term viability.

• Mitigation of structural deflection caused by heavy HVAC rooftop units.
• Management of vapor drive and interstitial condensation in high-humidity zones.
• Control of membrane fatigue at the perimeter flashing and parapet walls.
• Integration of high-performance TPO or PVC membranes with reinforced fastening patterns.

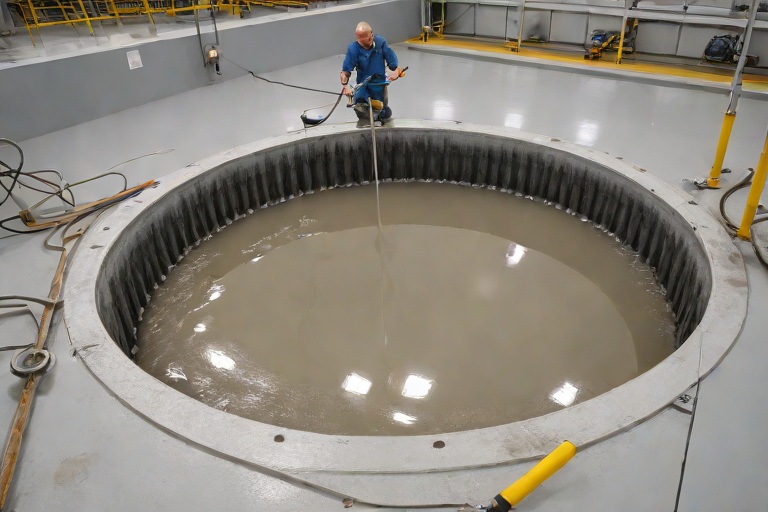

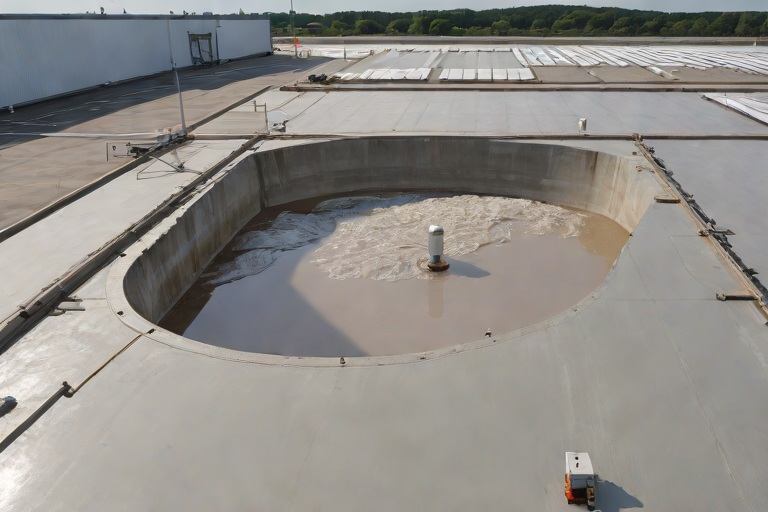

Protocol for 48-Hour Hydrostatic Drain Bowl Testing

Standard "flood tests" often lack the precision required for a 20-year No Dollar Limit (NDL) warranty. To achieve engineering-grade verification, we implement a 48-hour hydrostatic drain bowl test. This process involves the temporary plugging of primary internal drains using pneumatic test plugs, creating a controlled "bowl" of water over the lowest points of the roof. By isolating the drainage system, we can measure the exact hydrostatic pressure retention of the membrane and the integrity of the drain assembly seals.

The technical execution requires a precise measurement of the water column height. We establish a baseline depth and monitor the level over a 48-hour window. A critical component of this analysis is the "evaporation correction factor," where we compare the water loss in the test area against a control bucket placed on the same roof. If the drop in the drain bowl exceeds the evaporation rate of the control, it indicates a failure in the membrane or a leak in the drain flange weld. This method removes the guesswork and provides empirical data on the water-tightness of the assembly.

• Installation of heavy-duty pneumatic plugs to ensure a zero-leak seal at the drain throat.
• Controlled filling of the roof section to a minimum depth of 2 inches to simulate heavy ponding.
• Hourly monitoring of water levels using calibrated laser levels or digital depth gauges.
• Calculation of the volumetric loss to determine the precise leak rate per square foot.

Membrane Flange Weld Verification and Material Science

The most common point of failure in a commercial automotive roof is the transition between the field membrane and the drain flange. In a high-performance envelope, we utilize hot-air welding to create a molecular bond between the TPO/PVC layers. However, the geometry of the drain bowl often creates "cold spots" where the weld may not have achieved full fusion. As a specialist, I look for the "bead" of the weld—the rolled edge of melted polymer that proves the materials have fused into a single, monolithic sheet.

Our audit process includes a rigorous probe test of every single weld seam and flange attachment. Using a tapered steel probe, we apply consistent pressure to the edges of the weld. Any "give" or "void" detected indicates a lack of fusion, which would inevitably fail under the hydrostatic pressure of a heavy rain event. Furthermore, we analyze the material science of the membrane, ensuring that the thickness (mil gauge) is consistent and that the scrim reinforcement is not compromised by over-heating during the welding process.

• Verification of heat-welding temperatures to ensure they fall within the manufacturer's specified range.
• Visual inspection of the weld bead for consistency, color, and width.
• Application of the "pull test" to verify the shear strength of the membrane-to-flange bond.
• Detailed mapping of all weld points to ensure 100% coverage of the penetration perimeter.

The NDL Audit and 20-Year Warranty Finalization

The transition from a completed project to a 20-year No Dollar Limit (NDL) warranty is the most critical phase of the building envelope lifecycle. An NDL warranty is the gold standard of commercial roofing; it signifies that the manufacturer will cover 100% of the labor and materials for any leak, regardless of the cost, for two decades. To grant this, the manufacturer's representative performs a comprehensive audit. This is not a cursory walkthrough, but a forensic examination of the installation's adherence to the same standards as a laboratory environment.

The audit focuses on the "continuity of the envelope." This means verifying that there are no gaps in the flashing, no improperly fastened fasteners, and that the hydrostatic tests have been passed without remediation. The final sign-off requires a documented trail of the 48-hour flood tests and the weld verification logs. Once the audit is complete, the liability shifts from the contractor to the manufacturer, providing the automotive plant owner with total peace of mind and a guaranteed asset lifespan. This rigorous engineering approach ensures that the roof remains an invisible, silent protector of the high-value production assets beneath it.

• Review of all manufacturer-approved installation logs and material certifications.
• Final inspection of all flashing details, including scuppers, curbs, and parapets.
• Validation of the drainage slope to ensure no permanent ponding occurs outside of test zones.
• Formal issuance of the NDL certificate upon successful completion of the forensic audit.

The Criticality of the Data Center Building Envelope

In the realm of mission-critical infrastructure, a data center is only as reliable as its building envelope. Unlike standard commercial warehouses, data centers house millions of dollars in sensitive server arrays and cooling infrastructure where a single moisture intrusion event can lead to catastrophic equipment failure and unplanned downtime. The parapet wall, specifically the interface where the roofing membrane meets the masonry verticality, represents the most vulnerable point of entry for wind-driven rain and hydrostatic pressure. When these interfaces fail, water migrates through capillary action into the wall assembly, compromising the interior environment.

A comprehensive engineering audit of these facilities often reveals a systemic failure in the original counterflashing installation. Many facilities rely on surface-mounted flashing or outdated sealant beads that degrade under extreme UV exposure. To achieve a true watertight seal, we must transition from superficial patching to a structural reglet overhaul. This process involves creating a permanent mechanical housing within the masonry to ensure the flashing is integrated into the building's mass rather than simply adhered to its surface.

• Elimination of water infiltration paths through the masonry-to-roof transition.
• Protection of high-voltage electrical conduits housed within parapet walls.
• Prevention of efflorescence and spalling caused by chronic moisture saturation.
• Reduction of long-term maintenance cycles through the use of industrial-grade materials.

Engineering the Reglet: Precision Grinding and Kynar Integration

The foundation of a professional counterflashing overhaul is the precision-cut reglet. Using diamond-blade grinders, we execute a controlled carve-out into the mortar joints of the masonry parapet. This is not a mere scratch-and-patch operation; it is a surgical engineering task. The reglet must be cut to a consistent depth and width to accommodate heavy-gauge Kynar-coated steel. By grinding into the mortar joints rather than the brick or block face, we maintain the structural integrity of the masonry units while creating a clean, square channel for the metal to seat.

The selection of Kynar (PVDF) coated steel is non-negotiable for mission-critical sites. Kynar provides superior resistance to atmospheric pollutants and UV degradation compared to standard galvanized or painted steel. We utilize heavy-gauge stock to prevent "oil-canning" or warping during extreme thermal cycles. The metal is bent to a precise profile that allows for a slight outward slope, ensuring that gravity assists in shedding water away from the roof membrane, effectively creating a permanent drip edge at the masonry interface.

• Use of variable-speed grinders to prevent heat-stress fractures in the masonry.
• Implementation of a 3/8-inch minimum reglet depth to ensure sufficient metal embedment.
• Application of Kynar 500 series coatings for maximum chemical and UV stability.
• Verification of squareness and alignment to ensure a tight, gap-free fit against the substrate.

Material Science of Polyurethane Sealant Compression

Once the Kynar counterflashing is mechanically fastened and seated within the reglet, the critical sealing phase begins. We move away from standard silicone, which often fails to bond to masonry in high-movement environments, and instead employ high-performance polyurethane sealants. The science of sealant compression is central to this process. A sealant is not a static plug; it is a dynamic gasket that must accommodate the different coefficients of thermal expansion between the steel flashing and the masonry wall.

To achieve proper compression, we utilize a closed-cell backer rod to control the depth of the sealant bead. This creates the "hour-glass" joint geometry required by ASTM C920 standards. By limiting the depth and ensuring the sealant bonds only to the sides of the joint, we allow the polyurethane to stretch and compress without tearing away from the substrate. This compression ensures that as the building shifts or the temperature fluctuates, the sealant maintains a constant, airtight, and watertight bond, effectively locking out moisture at the molecular level.

• Application of ASTM C920 compliant polyurethane for superior adhesion and elasticity.
• Installation of closed-cell polyethylene backer rods to prevent three-sided adhesion.
• Calculation of joint width-to-depth ratios to optimize movement capability.
• Strict adherence to substrate cleaning protocols to remove all dust and debris before application.

Long-Term Performance Audits and Leak Mitigation

The final phase of a building envelope overhaul is the verification and audit process. A master roofer does not rely on a visual inspection alone; we employ rigorous testing to ensure the system is impervious to the elements. This includes infrared thermography to detect hidden moisture pockets and controlled flood testing of the parapet caps. By observing the behavior of the reglet under simulated heavy rain conditions, we can verify that the polyurethane compression is functioning as intended and that the Kynar flashing is shedding water efficiently.

The goal of this engineering approach is to transition the data center from a reactive maintenance posture to a proactive one. By integrating the flashing into the masonry and utilizing advanced material science, we eliminate the common failure points associated with commercial roofing. The result is a fortified building envelope that protects the critical infrastructure inside, ensuring that the facility remains operational regardless of external weather extremes. This systemic overhaul represents the pinnacle of commercial roofing craftsmanship, blending traditional tradesman skill with modern engineering precision.

• Conducting post-installation moisture scans to verify the absence of trapped water.
• Establishing a scheduled audit cycle to monitor sealant elasticity over time.
• Documenting all reglet depths and material gauges for facility engineering records.
• Implementing a final quality assurance sign-off based on ANSI building envelope standards.

The Thermodynamics of Cold Storage Envelopes and the Failure of Conventional Over-Lay

In the high-stakes environment of commercial cold storage freezer warehouses, the building envelope is not merely a shelter; it is a critical piece of thermal equipment. During our recent engineering audit for Aquashield Corporate, we identified a systemic failure common in aging standing rib metal roof systems: the reliance on "flat-slab" insulation overlays. When standard rigid insulation boards are placed directly over a corrugated metal profile, large void spaces are created within the flutes of the metal decking. In a standard warehouse, these voids are a nuisance; in a freezer warehouse, they are a liability.

These voids facilitate convective loops where warm exterior air circulates against the cold metal substrate, creating a phenomenon known as internal condensation. This moisture accumulation leads to hidden corrosion of the roof deck and a significant degradation of the overall R-value. To achieve a true thermal break, the insulation must be engineered to occupy the entire volume of the roof profile, effectively turning the corrugated metal into a solid, insulated mass.

• Elimination of convective air pockets to prevent interstitial condensation.
• Reduction of "thermal bypass," where heat penetrates the envelope through gaps in the insulation.
• Stabilization of internal freezer temperatures to reduce the load on mechanical refrigeration systems.
• Prevention of ice lensing on the interior ceiling deck caused by thermal bridging.

Precision Engineering of Flute-Fill EPS and Polyiso Profiles

The solution to the "void problem" is the implementation of precision-cut flute-fill insulation. This process involves a hybrid material approach, utilizing Expanded Polystyrene (EPS) for structural filling and Polyisocyanurate (Polyiso) for high-performance thermal resistance. By utilizing CNC-routed profiles that mirror the exact geometry of the standing rib metal, we ensure a friction-fit installation that leaves zero tolerance for air gaps. This is a critical application of material science, as the different densities of EPS and Polyiso must be balanced to support the final roof load while maintaining a consistent thermal barrier.

From an engineering standpoint, the sizing of these profiles must account for the "crown" and "valley" of the metal rib. If the flute-fill is undersized, the resulting gap allows for vertical air movement. If it is oversized, it can create undue stress on the metal fasteners or cause the insulation to "bridge" over the valley, recreating the very void we are attempting to eliminate. We adhere strictly to ASTM C578 standards to ensure the compressive strength of the insulation can withstand the mechanical fastening of the final membrane.

• CNC-routed EPS profiles designed to the exact millimetric specifications of the existing metal ribs.
• Layered Polyiso capping to maximize R-value per inch of roof buildup.
• Application of high-density adhesives at the interface of the flute-fill and the rib peak.
• Verification of fit through laser-leveling to ensure a perfectly flat transition to the top deck.

Mitigating Thermal Bridging and Managing Vapor Drive

In a freezer warehouse, the vapor drive is relentlessly pushed from the warm, humid exterior toward the freezing interior. This makes the management of thermal bridging—the process where heat bypasses insulation via highly conductive materials—the primary objective of the retrofit. Metal is an exceptional conductor; if a standing rib is left exposed or poorly insulated, it acts as a "thermal highway," pulling heat directly into the building. By filling the flutes, we effectively break this circuit, forcing the heat to travel through the high-resistance insulation rather than the conductive metal.

Furthermore, the transition from the flute-fill to the flat top-layer must be seamless. Any discontinuity in the insulation layer creates a point of weakness where moisture can penetrate. We employ a staggered joint pattern in the Polyiso capping layer, ensuring that vertical seams do not align with the ribs of the metal roof. This "double-lap" method ensures that there is no direct linear path for air or moisture to migrate from the atmosphere into the building's interior envelope.

• Reduction of the "U-factor" by eliminating conductive paths through the metal ribs.
• Implementation of a continuous vapor retarder to block moisture migration.
• Strategic placement of thermal breaks at the parapet walls and roof-to-wall junctions.
• Use of closed-cell materials to prevent the absorption of moisture during the installation phase.

Single-Ply Membrane Integration and Final Assembly

Once the flute-fill system has successfully leveled the roof surface and eliminated thermal bridging, the final stage is the installation of a high-performance single-ply membrane, typically TPO (Thermoplastic Olefin) or PVC. Because the insulation has created a flat, uniform plane, the membrane can be installed without the risk of "bridging" or premature puncture, which often occurs when membranes are stretched over uneven surfaces. The membrane serves as the primary waterproofing layer and the final seal against the external environment.

The fastening system is critical here. We utilize heavy-duty mechanical fasteners that penetrate through the insulation and into the structural steel of the building. However, these fasteners are strategically placed to minimize their own thermal bridging effect. By integrating the membrane with a fully adhered or mechanically attached system over the precision-cut insulation, we create a monolithic building envelope. This assembly not only meets ANSI standards for commercial roofing but exceeds the specific requirements for cold storage longevity, ensuring that the facility remains energy-efficient for decades.

• Installation of a reinforced TPO membrane for superior UV resistance and puncture strength.
• Heat-welded seams to ensure a 100% watertight seal across the entire roof surface.
• Integration of custom-fabricated flashing at all penetrations and curb details.
• Final hydrostatic testing to verify the integrity of the building envelope.

Engineering Audit of Coastal Wind Uplift Dynamics in Large-Span Hangars

During a comprehensive building envelope audit of a commercial fleet maintenance hangar, the primary structural concern is the management of wind uplift forces. Large-span structures, particularly those with expansive roof surfaces, act as massive sails during high-wind events. In coastal regions, these forces are amplified by the "wing effect," where wind accelerating over the roof ridge creates a significant pressure differential, resulting in powerful negative pressure—or suction—that attempts to lift the roof deck away from the supporting steel or wood trusses.

Our engineering analysis focuses on the diaphragm action of the structural plywood decking. For the envelope to remain intact, the load path must be continuous from the roof membrane down to the foundation. If the plywood decking is insufficiently fastened, the deck can delaminate or lift, leading to a catastrophic failure of the roofing system regardless of how well the membrane is adhered. We evaluate these systems against ASCE 7 standards to ensure that the fastening schedule meets or exceeds the required pounds-per-square-foot (psf) uplift resistance necessary for the specific coastal wind zone.

• Analysis of peak gust pressures at the roof perimeter and corners.
• Evaluation of the tributary area for each fastener to determine load distribution.
• Assessment of the existing fastener spacing against current IBC (International Building Code) requirements.
• Verification of the structural integrity of the underlying rafters and trusses.
• Identification of "soft spots" where plywood degradation has compromised fastener grip.

Material Science of Ring-Shank Fasteners and Withdrawal Resistance

The selection of fasteners is not merely a matter of preference but a critical engineering decision based on material science. In our audit, we specifically examine the transition from smooth-shank nails to pneumatically driven ring-shank fasteners. A smooth-shank nail relies primarily on friction and the compression of wood fibers to remain seated. In contrast, a ring-shank fastener features a series of annular rings molded into the shank, which act as mechanical anchors within the wood grain.

From a structural standpoint, the ring-shank design significantly increases the withdrawal resistance—the force required to pull the nail straight out of the substrate. In structural plywood, which consists of cross-laminated veneers, the ring-shank fasteners bite into the alternating grain directions, creating a locking mechanism that is far superior to traditional nailing. This is essential for maintaining the shear strength of the roof deck during the oscillating pressures of a storm, where the deck is subjected to repeated cycles of loading and unloading.

• ASTM F1667 compliance for mechanical properties of structural fasteners.
• Comparison of withdrawal values between smooth, screw, and ring-shank nails.
• Analysis of the "crushing" effect on wood fibers during the driving process.
• Evaluation of galvanized coatings to prevent galvanic corrosion in salty coastal air.
• Impact of fastener diameter on the shear capacity of the plywood edge.

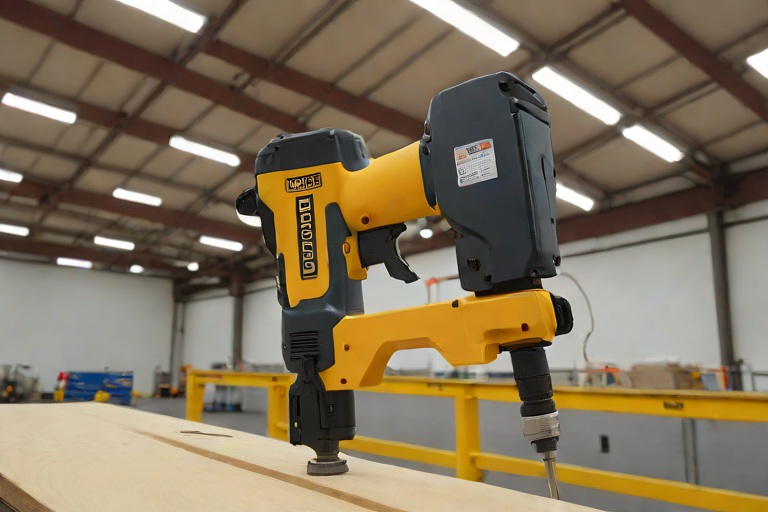

Pneumatic Application and Precision Installation Schedules

The method of installation is as critical as the materials used. We utilize high-pressure pneumatic nailers to ensure that fasteners are driven with consistent force and depth. However, the precision of the "set" is paramount. Over-driving a nail can lead to "over-penetration," where the head of the fastener crushes the top layer of the plywood, effectively destroying the structural capacity of the wood fibers at the point of maximum load. Conversely, under-driving leaves the fastener head proud of the surface, which can puncture the roofing membrane over time.

A rigorous re-nailing schedule requires a strategic pattern that reinforces the perimeter of the deck—where uplift forces are highest—while maintaining a consistent grid across the interior field. Our specified schedule mandates a tighter spacing at the edges of the plywood sheets to prevent "curling" or peeling during a wind event. This ensures that the entire deck acts as a single, rigid diaphragm, distributing the wind loads evenly across the structural frame of the hangar.

• Calibration of pneumatic regulators to prevent structural fiber crushing.
• Implementation of a 6-inch on-center spacing at all perimeter edges.
• Verification of full-depth penetration into the supporting structural members.
• Sequential nailing patterns to avoid splitting the wood grain.
• Use of precision-guided nailers to maintain strict adherence to the engineering blueprint.

Verifying Shear Withdrawal and Final Envelope Integrity

The final phase of the engineering audit involves the verification of the installed system through empirical testing and shear withdrawal analysis. We employ non-destructive testing methods to ensure that the fasteners are performing as intended. This includes the use of calibrated pull-testers to simulate uplift forces on a representative sample of the re-nailed deck. By measuring the force required to initiate movement in the fastener, we can extrapolate the overall safety factor of the roof assembly.

Beyond the fasteners, the building envelope specialist must consider the interaction between the plywood deck and the final roofing membrane. The structural stability provided by the ring-shank fasteners creates a stable substrate that allows the membrane to perform its primary function: shedding water. When the deck is properly secured, there is no movement between the substrate and the membrane, which eliminates the risk of fatigue cracking in the flashing and seams. This holistic approach ensures that the hangar remains operational and safe, protecting the high-value fleet assets housed within.

• Conducting random sample pull-tests to verify withdrawal resistance.
• Inspecting for "shiners"—nails that missed the joist and failed to provide structural support.
• Calculating the total shear capacity of the roof diaphragm based on fastener count.
• Cross-referencing field results with the original engineering specifications.
• Issuing a final certification of structural compliance for the building envelope.

Comprehensive Engineering Audit of the Chemical Processing Envelope

In the high-stakes environment of a chemical processing facility, the building envelope is not merely a shelter but a critical component of the facility's primary containment and safety strategy. A master-level engineering audit begins with a forensic analysis of the substrate and the existing membrane's interaction with corrosive atmospheric pollutants. In these environments, we frequently encounter aggressive off-gassing and chemical vapor penetration that degrade standard thermoplastic or modified bitumen systems. Our approach adheres strictly to ASTM standards, utilizing infrared thermography to identify subsurface moisture entrapment and electronic leak detection (ELD) to pinpoint breaches in the membrane that are invisible to the naked eye.

The audit focuses on the synergy between the roofing system, the wall flashing, and the structural decking. In chemical plants, thermal cycling is often exacerbated by internal process heat, leading to significant expansion and contraction stresses. If the flashing is not engineered to accommodate this movement, the result is inevitable fatigue cracking and subsequent water infiltration. We evaluate the tensile strength of the membrane and the integrity of the fasteners, ensuring that the wind-uplift ratings meet or exceed ANSI/SPWind standards for the specific geographic region.

• Assessment of vapor drive and dew point calculations to prevent interstitial condensation.
• Evaluation of chemical resistance profiles against specific facility reagents.
• Inspection of parapet wall capping and coping to ensure a watertight seal against wind-driven rain.
• Analysis of drainage efficiency to prevent ponding, which accelerates chemical degradation of the membrane.

Net Present Value (NPV) and Life-Cycle Cost Analysis

From a master roofer's perspective, the cheapest bid is often the most expensive mistake a facility manager can make. To demonstrate this, we employ a Life-Cycle Cost Analysis (LCCA) centered on Net Present Value (NPV). NPV allows us to compare the long-term financial impact of a standard "tear-off and replace" cycle against the installation of a high-performance, engineered roofing system. While a basic system may have a lower initial capital expenditure (CAPEX), its shorter service life and higher maintenance requirements result in a higher total cost of ownership over a 20-year horizon.

When calculating NPV, we account for the discount rate, inflation of material costs, and the operational cost of facility downtime. In a chemical processing plant, the cost of a leak is not just the cost of the repair; it is the potential loss of millions of dollars in contaminated product or the risk of a catastrophic safety breach. By investing in a premium system with superior material science—such as a high-mil reinforced PVC or a liquid-applied PMMA system—the facility reduces the frequency of replacement cycles and minimizes the risk of unplanned outages.

• Comparison of 10-year replacement cycles versus a single 25-year engineered system.
• Calculation of "hidden costs" including labor premiums for hazardous environment work.
• Analysis of energy efficiency gains through high-albedo (cool roof) coatings to reduce HVAC loads.
• Projection of maintenance expenditures over the projected lifespan of the asset.

Fiscal Strategy: Tax Deductions and Warranty Extensions

A sophisticated building envelope strategy integrates engineering with fiscal optimization. One of the most powerful tools in the commercial owner's arsenal is the ability to utilize tax deductions for maintenance and restoration. Under current tax codes, certain restoration activities can be classified as deductible repairs rather than capital improvements that must be depreciated over 39 years. By performing a comprehensive restoration—which includes the stabilization of the substrate and the application of a high-solids recovery membrane—owners can often realize an immediate tax benefit that significantly offsets the project's cost.

Furthermore, we leverage our relationship with manufacturers to secure 15-year warranty extensions. A standard manufacturer's warranty is often insufficient for chemical facilities due to the volatility of the environment. An extended warranty, backed by an engineering audit, serves as a financial hedge against premature system failure. This extension is not merely a piece of paper; it is a guarantee that the material science employed is compatible with the facility's specific chemical profile and that the installation was performed to the highest industry standards.

• Utilization of Section 179 deductions for qualifying equipment and materials.
• Differentiation between "Capital Improvement" and "Repair and Maintenance" for tax reporting.
• Structuring warranties to cover both material defects and labor for leak remediation.
• Implementation of a scheduled preventative maintenance agreement to keep warranties in full force.

Sustainability and the Mitigation of Landfill Waste

The traditional "tear-off" method of roofing is an ecological disaster, particularly in large-scale industrial facilities where hundreds of thousands of square feet of old membrane, insulation, and adhesive are sent to landfills. As a building envelope specialist, I advocate for a sustainable approach that does not compromise the integrity of the system. By utilizing recovery membranes or high-performance coatings, we can often encapsulate existing materials that are still structurally sound, effectively turning the old roof into a base layer for the new system.

This approach significantly reduces the carbon footprint of the project by eliminating the need for massive debris hauling and the production of new virgin materials. Moreover, avoiding the landfill is a key component of corporate ESG (Environmental, Social, and Governance) goals. We focus on the use of materials with high recycled content and low VOC emissions, ensuring that the facility remains compliant with environmental regulations while maintaining a rigorous defense against the elements. The goal is a "closed-loop" mentality where the building envelope is managed as a long-term asset rather than a disposable commodity.

• Reduction of landfill tonnage through the use of recovery-grade membranes.
• Implementation of LEED-compliant materials to improve the facility's sustainability rating.
• Decreasing the volume of hazardous waste generated during the removal of old bitumen.
• Optimizing material usage through precision engineering to reduce on-site scrap and waste.

The Engineering Conflict: Lightning Protection Systems and Envelope Integrity

In the realm of municipal architecture, particularly within City Hall and Administrative Complexes, the intersection of electrical safety and building envelope integrity represents a critical engineering paradox. A Lightning Protection System (LPS) is designed to provide a low-impedance path to ground for atmospheric discharges, utilizing air terminals—or stanchions—that must be securely anchored to the highest points of the roof. However, every penetration required for a stanchion or a grounding conductor represents a potential failure point in the waterproofing membrane. From a master roofer's perspective, the goal is to ensure that the LPS does not compromise the hydrostatic seal of the roof, as a single puncture can lead to systemic water infiltration, compromising structural steel and interior municipal archives.

The challenge is compounded by the scale of these complexes, which often feature complex roof geometries, varying parapet heights, and a mix of HVAC equipment. When we conduct a building envelope audit, we look for the "weak link" where the electrical conductor meets the membrane. If the bonding is insufficient, the thermal movement of the building—driven by the coefficient of thermal expansion of the metal stanchions versus the flexible nature of a TPO or EPDM membrane—will eventually tear the flashing. This creates a capillary pathway for water to enter the substrate, often undetected until the ceiling tiles in the administrative offices below begin to stain.

• Adherence to NFPA 780 and UL standards for lightning protection installation.
• Evaluation of membrane compatibility with conductive copper or aluminum stanchions.
• Analysis of wind-uplift forces acting upon air terminals and their impact on flashing stability.
• Assessment of galvanic corrosion risks when dissimilar metals contact the roof decking.

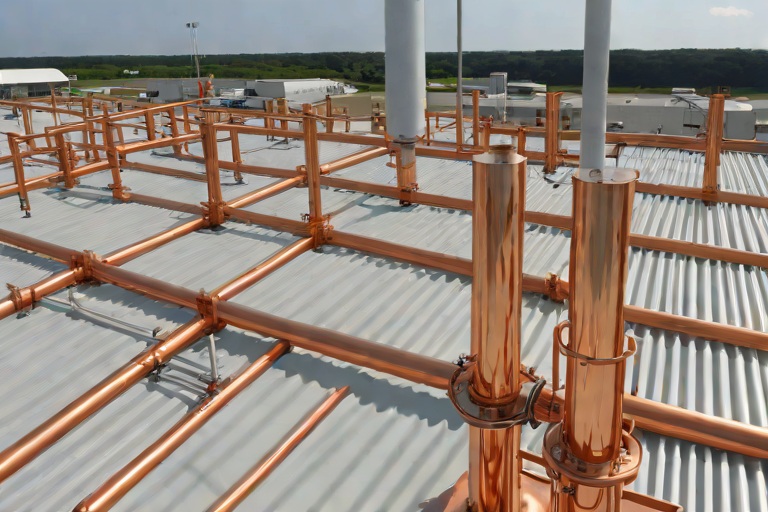

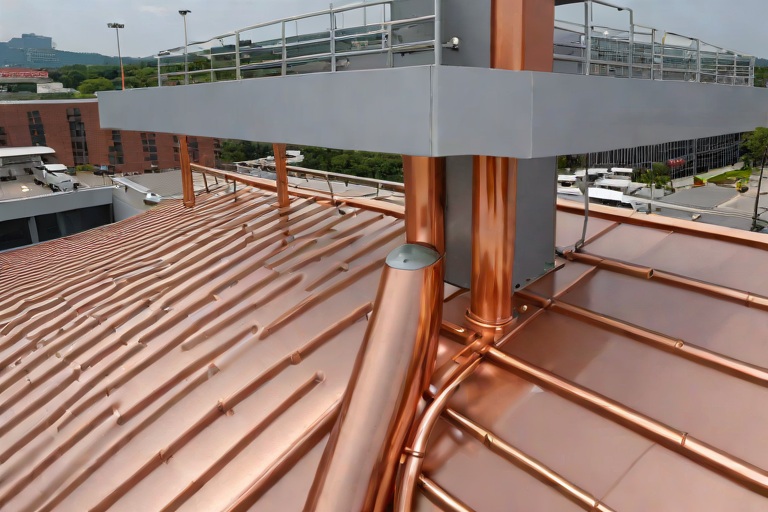

High-Performance Stanchion Pitch-Pocket Detailing

To mitigate the risk of leaks at the base of an air terminal, we employ heavy-duty stanchion pitch-pocket detailing. A pitch-pocket is essentially a prefabricated or field-fabricated sump that houses the base of the stanchion, allowing the flashing to be consolidated into a single, manageable point of entry. Rather than relying on a simple "wrap and tape" method, a properly engineered pitch-pocket utilizes a multi-stage sealing process. This involves the installation of a reinforced flashing curb, followed by the application of a high-solids polymer sealant or a hot-poured asphaltic mastic that creates a monolithic, watertight plug around the stanchion base.

The science behind this approach lies in the management of hydrostatic pressure. By creating a recessed pocket that is then filled with a non-shrink, weather-resistant compound, we eliminate the possibility of water pooling directly against the penetration. Furthermore, the use of liquid-applied flashing membranes—specifically those that are chemically bonded to the primary roof membrane—ensures that there is no "cold joint" where water can migrate. In municipal complexes, where roof longevity is measured in decades, these pockets must be designed to withstand extreme temperature swings without cracking or pulling away from the stanchion.

• Utilization of reinforced flashing membranes to prevent stress cracking at the pocket perimeter.
• Application of ASTM-compliant flashing cements to ensure a permanent bond to the substrate.
• Implementation of dual-seal redundancy, combining mechanical fasteners with chemical adhesives.
• Strategic placement of pitch-pockets to avoid interference with primary roof drainage patterns.

Grounding Cable Conductor Flashings and Penetration Management

While the air terminals receive the most attention, the grounding cable conductors—the "down conductors" that carry the current to the earth—are often the primary source of membrane punctures. These cables are typically heavy-gauge copper and are routed across the roof surface and through the parapet walls. If these cables are not properly secured, wind-induced vibration (aeolian vibration) can cause the cable to saw through the roof membrane over time. An engineering audit frequently reveals "rub-through" points where the cable has compromised the membrane, leading to slow, insidious leaks that bypass traditional detection methods.

To prevent this, we implement specialized conductor flashing and support systems. This includes the use of non-conductive standoff blocks that lift the cable slightly off the membrane, preventing direct abrasion. Where the cable penetrates the roof or parapet, we utilize custom-fabricated flashing boots made from the same material as the roof membrane (e.g., PVC or TPO), heat-welded to the field membrane. This creates a seamless transition. Furthermore, the use of flexible sealant beads at the entry and exit points of the conductor allows for the necessary movement of the building without stressing the bond, ensuring that the envelope remains airtight and watertight.

• Installation of UV-stabilized cable supports to eliminate membrane abrasion.
• Heat-welded membrane boots for all conductor penetrations to ensure a monolithic seal.
• Use of high-grade silicone sealants to accommodate the different expansion rates of copper and polymers.
• Regular inspection of cable tension to prevent "pull-out" stress on the flashing boots.

Long-Term Membrane Bonding and Preventative Audit Protocols

The final stage of a professional building envelope strategy is the implementation of a rigorous bonding and audit protocol. The bond between the LPS components and the roof membrane is not a "set it and forget it" installation; it is a living system subject to constant environmental stress. The primary failure mechanism in municipal complexes is typically the degradation of the bond due to UV exposure and thermal cycling. When the membrane expands in the summer and contracts in the winter, the rigid air terminals act as anchors, creating high-stress concentrations at the bond line. If the bonding agent is too rigid, it will fracture; if it is too soft, it will slump.

A master-level audit involves a combination of visual inspection, infrared thermography, and moisture scanning. We look for "tenting" around the stanchion bases, which indicates that the membrane is pulling away from the flashing. By utilizing ASTM-standardized testing, we can verify the integrity of the bond and identify areas where the membrane has become brittle. The goal is to move from a reactive maintenance model to a proactive one, where flashing is reinforced and sealants are refreshed every five to seven years, long before a leak manifests in the building'

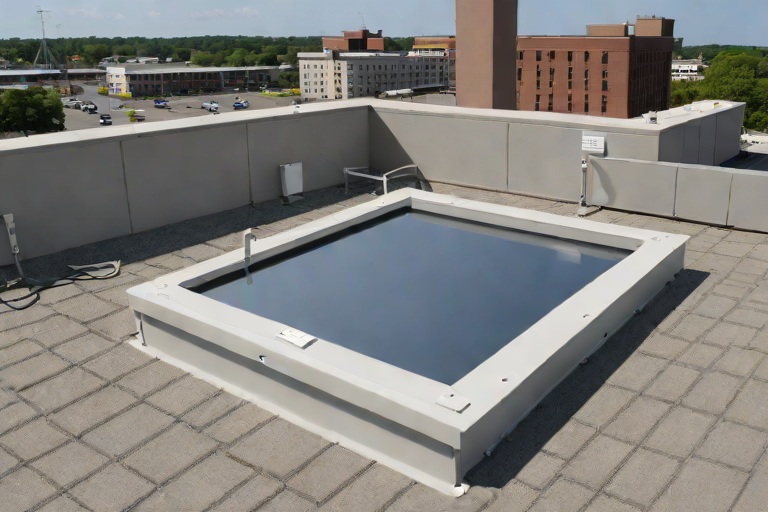

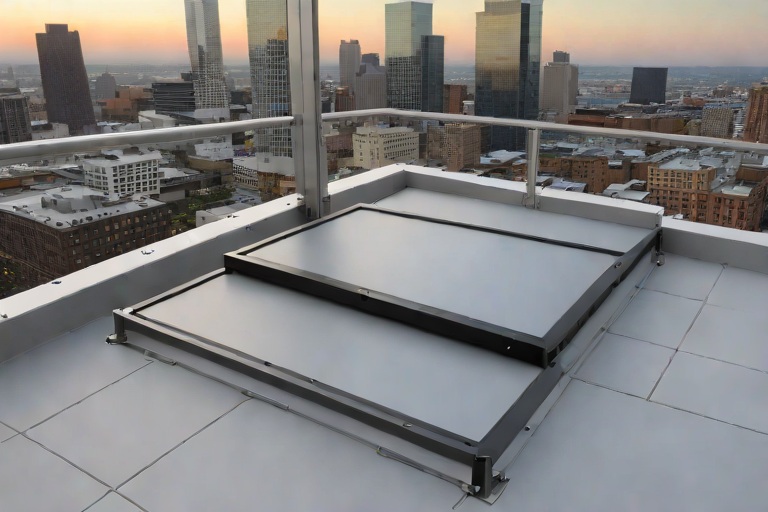

Structural Integration of Roof Hatch Safety Systems and OSHA Compliance

In the high-stakes environment of a commercial penthouse tower, the roof hatch is more than a simple access point; it is a critical safety junction. From a building envelope perspective, the transition from the internal stairwell to the exposed roof membrane represents a high-risk zone for personnel. Our audit of the penthouse tower revealed that standard hatch configurations often neglect the critical transition phase where a technician exits the ladder. To mitigate fall risks and ensure full compliance with OSHA 1910.23 and ANSI standards, the installation of heavy-duty safety grab bars is non-negotiable.

These grab bars must be engineered as integral extensions of the ladder system, providing a secure handhold that extends at least 42 inches above the top of the hatch curb. This ensures that the user has a stable point of contact before they have fully transitioned their center of gravity onto the roof surface. The material science behind these posts requires high-tensile galvanized steel or architectural-grade powder-coated aluminum to resist the corrosive effects of high-altitude atmospheric pollutants and UV degradation.

• Installation of dual-sided safety posts to allow for three-point contact during egress and ingress.
• Utilization of reinforced mounting plates bolted directly into the structural steel of the curb to prevent shearing under lateral load.
• Application of high-visibility safety coatings to ensure visibility during low-light emergency smoke evacuations.
• Verification of weld integrity using non-destructive testing to ensure no stress fractures exist at the joint between the post and the hatch frame.

Aerodynamics and Mechanical Integrity of Counterbalanced Smoke Dampers

High-rise penthouse towers are subject to extreme wind loads and the "stack effect," where internal pressure differentials can cause roof hatches to rattle or fail. When these hatches serve as smoke dampers for emergency egress, the mechanical reliability of the opening mechanism is paramount. We specify counterbalanced systems that utilize heavy-duty torsion springs or gas-strut actuators. These systems ensure that the hatch opens smoothly and remains stable, preventing the "slamming" effect caused by sudden wind gusts common at penthouse elevations.

The engineering challenge lies in balancing the weight of the heavy-gauge steel cover with the need for a tight, weather-tight seal when closed. A poorly calibrated counterbalance system can lead to premature wear on the hinges and a failure of the gasket to seat properly, leading to catastrophic water infiltration. Our analysis emphasizes the use of precision-engineered lift-assist mechanisms that reduce the physical effort required by the operator while maintaining a locked-down position during dormant periods.

• Integration of industrial-grade torsion springs calibrated for the specific weight of the reinforced hatch cover.
• Implementation of dampened closing mechanisms to prevent structural shock to the surrounding roof membrane.
• Use of stainless steel hardware to eliminate galvanic corrosion between the damper frame and the roof curb.
• Regular torque audits of all fastening bolts to ensure the assembly remains rigid under high-velocity wind oscillations.

Advanced Compression Gasket Engineering for Curb Weatherproofing

The interface between the roof hatch curb and the roofing membrane is the most frequent point of failure in a commercial building envelope. To prevent hydrostatic pressure from forcing water into the building interior, we employ a heavy-duty compression curb gasket system. Unlike standard adhesive seals, a compression gasket relies on a mechanical squeeze to create a hermetic seal. We specify closed-cell EPDM or silicone gaskets with a high Shore A hardness rating, ensuring the material does not collapse or lose its memory over years of thermal cycling.

In a high-rise environment, the temperature differential between the conditioned interior of the penthouse and the exposed exterior roof can be extreme. This causes the metal curb to expand and contract. A compression gasket accommodates this movement without breaking the seal. The gasket must be oversized to provide a redundant barrier, ensuring that even if the curb shifts slightly due to structural settling, the weatherproofing remains intact. This approach transforms the curb from a potential leak point into a fortified bastion of the building envelope.

• Selection of EPDM gaskets with a minimum thickness of 1/2 inch to ensure maximum compression recovery.
• Application of a continuous bead of high-performance sealant at the gasket perimeter to prevent capillary action.
• Verification of uniform compression across the entire perimeter of the curb using calibrated feeler gauges.
• Implementation of a dual-seal strategy involving both a primary compression gasket and a secondary flashing layer.

Termination Bar Systems and Envelope Continuity

The final stage of securing the penthouse tower's envelope is the installation of compression termination bars. The goal is to achieve a seamless transition from the flat roof membrane up the vertical face of the roof hatch curb. A common failure in commercial roofing is the reliance on "bead-and-daub" sealant methods, which inevitably crack. Instead, we utilize mechanical termination bars—heavy-duty aluminum or galvanized steel strips that physically lock the membrane against the curb.

These bars are fastened using a staggered screw pattern with neoprene washers, ensuring that the membrane is compressed uniformly against the substrate. This creates a mechanical bond that is impervious to wind uplift and thermal shock. Following the installation of the termination bar, a high-grade polymer sealant is applied to the top edge to prevent water from migrating behind the flashing. This rigorous approach adheres to ASTM E2112 standards, ensuring that the penthouse tower remains watertight regardless of the severity of the weather event.

• Use of 3-inch wide aluminum termination bars to provide a broad area of membrane compression.
• Installation of fasteners at 6-inch on-center intervals to eliminate "pillowing" of the roof membrane.
• Application of a reinforced flashing membrane that extends 8 inches above the finished roof line.
• Final inspection using infrared thermography to detect any hidden voids or moisture traps within the termination assembly.

The Criticality of Hydraulic Capacity in Healthcare Infrastructure

In the realm of commercial building envelope engineering, Regional Healthcare Medical Centers represent the highest stakes for moisture management. Unlike standard retail or warehouse structures, medical facilities house sensitive diagnostic equipment, sterile surgical environments, and critical patient care zones where a single roof failure can lead to catastrophic operational shutdowns. The primary point of failure in these massive footprints is rarely the membrane itself, but rather the failure of the drainage transition—specifically the conductor head and the primary downspout assembly.

A master-level audit of these systems reveals that most failures stem from a fundamental misunderstanding of hydraulic head pressure and the volume of water encountered during 100-year storm events. When the primary internal drainage system becomes obstructed by organic debris or atmospheric pollutants, the roof transforms into a massive catchment basin. Without a precision-engineered overflow mechanism, the resulting hydrostatic pressure can force water under the flashing and through the building envelope, compromising the structural integrity of the roof deck and the ceiling assemblies below.

• ASTM E108 compliance for fire-rated roof coverings and drainage integration.
• Analysis of catchment area square footage versus conductor head discharge capacity.
• Evaluation of flashing transitions at the roof-to-wall interface to prevent capillary action.
• Assessment of slope-to-drain accuracy to eliminate stagnant ponding.

Engineering the Multi-Tier Overflow Spillway and Weir Calculations

To mitigate the risk of roof collapse due to ponding, we implement a multi-tier conductor head overflow system. This is not a simple hole in the side of a box, but a calculated relief weir. A relief weir is engineered to trigger exactly when the water level reaches a critical threshold—typically two inches above the primary drain—allowing water to spill safely over the side of the building before it can breach the parapet wall or penetrate the membrane. The physics of this system rely on the discharge coefficient of the weir, ensuring that the overflow capacity exceeds the primary drain's capacity by at least 150%.

The multi-tier approach involves a primary internal drain, a secondary overflow weir within the conductor head, and a tertiary emergency scupper system. By staggering these relief points, we create a fail-safe hierarchy. The conductor head is fabricated from heavy-gauge galvanized steel or aluminum with a Kynar finish to prevent corrosion. The spillway is meticulously flared to direct the water away from the building facade, preventing the saturation of the exterior cladding and the subsequent degradation of the building's thermal envelope.

• Calculation of the "V-notch" or rectangular weir flow rates to determine discharge volume.
• Integration of overflow alerts—visual indicators that notify facility managers when the secondary system is active.
• Precision welding of spillway seams to prevent leakage at the conductor head junction.
• Strategic placement of overflow outlets to avoid discharging water onto pedestrian walkways or critical HVAC intakes.

Material Science and Freeze-Thaw Downspout Burst Defense

In colder climates, the building envelope faces a relentless enemy: the freeze-thaw cycle. When water trapped within a downspout freezes, it expands by approximately 9%, exerting immense internal pressure on the metal walls. In a standard installation, this pressure leads to "bursting" or "buckling," where the downspout seams split or the pipe collapses entirely. This is particularly dangerous in healthcare centers, as a burst downspout often leads to ice damming, which further backs up the roof drainage and increases the risk of internal leaks.

Our defense strategy involves the application of material science and mechanical engineering. We utilize heavy-duty, oversized downspout brackets that are engineered to provide rigid support while allowing for the natural thermal expansion and contraction of the metal. By utilizing a "floating" bracket design, we ensure that the downspout is not pinned so tightly against the masonry that it cannot move during a freeze event. Furthermore, we specify the use of high-density polyethylene (HDPE) liners or specialized thermal wraps in high-risk zones to prevent the initial formation of ice crystals on the interior walls of the conductor head.

• Application of thermal expansion joints every 30 feet of vertical run to prevent longitudinal buckling.
• Use of 24-gauge reinforced steel for conductor heads to withstand the crushing force of ice.
• Installation of heavy-duty galvanized steel straps with rubberized gaskets to dampen vibration and allow movement.
• Implementation of heat-trace cabling in critical overflow zones to maintain liquid flow during sub-zero temperatures.

Implementation Audit and Long-Term Envelope Integrity

The final phase of a professional building envelope audit is the verification of the system's long-term performance. A master roofer does not simply install a system and leave; we establish a rigorous inspection protocol based on the specific vulnerabilities of the healthcare facility. This includes infrared thermography to detect hidden moisture pockets behind the conductor head flashing and load testing the overflow weirs to ensure they trigger at the correct hydraulic head height. The goal is to transition from a reactive maintenance posture to a predictive engineering model.

Long-term integrity is maintained through the synchronization of the roof membrane and the drainage hardware. If the membrane is a TPO or PVC system, the conductor head must be mechanically fastened and chemically welded to ensure a seamless transition. Any gap in this interface is a potential entry point for wind-driven rain. By auditing the entire chain—from the roof slope to the spillway, through the downspout, and into the storm sewer—we ensure that the Regional Healthcare Medical Center remains a dry, safe, and operational environment regardless of the weather extremes.

• Quarterly debris removal from conductor heads to ensure weir functionality.
• Annual torque checks on heavy-duty downspout brackets to prevent fastener fatigue.
• Visual inspection of Kynar coatings for signs of oxidation or chemical degradation.
• Verification of the "splash block" areas at the base of downspouts to prevent foundation erosion and seepage.

Diagnostic Engineering Audit and Oxidation Analysis

In the high-stakes environment of a University Research Laboratory, the building envelope must perform with absolute precision. During a comprehensive engineering audit conducted by Aquashield Corporate, we identified critical systemic oxidation occurring on the structural steel decking. These facilities often house complex HVAC systems and chemical exhaust vents that can create localized micro-climates of high humidity and corrosive particulates. When the primary roof membrane suffers a breach or the flashing fails, moisture infiltrates the substrate, leading to the rapid degradation of the steel flutes.

Our analysis focused on the electrochemical process of oxidation, where the iron in the steel reacts with oxygen and water to form ferric oxide. In several sectors of the laboratory, we observed "pack rust," where the oxidation expanded between the deck and the insulation, creating a lifting effect that compromised the structural bond. The audit utilized ultrasonic thickness gauging to determine the remaining gauge of the steel, revealing that several areas had lost up to 20% of their original structural thickness due to prolonged exposure to moisture.

• Assessment of moisture migration paths through failed parapet flashing.
• Ultrasonic thickness testing to quantify steel loss in the bottom flutes.
• Identification of galvanic corrosion cells created by dissimilar metal contact.
• Evaluation of the existing coating failure and delamination patterns.
• Mapping of high-risk zones based on chemical exhaust proximity.

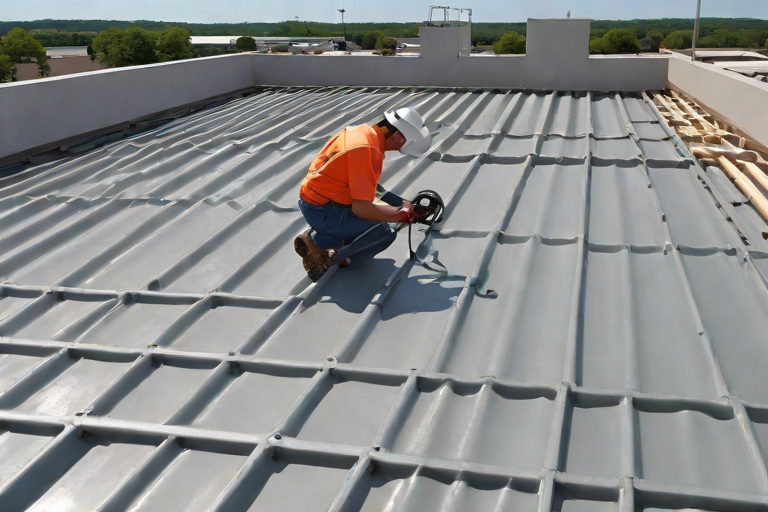

Mechanical Surface Preparation and Oxidation Removal

Remediation cannot begin without a rigorous surface preparation protocol that adheres to the Society for Protective Coatings (SSPC) standards. To ensure the longevity of the passivation layer, we implemented a mechanical wire-brushing regimen designed to achieve an SSPC-SP2 or SP3 surface profile. This process is not merely about removing visible rust; it is about eliminating all loose scale, foreign matter, and oxidation products that would otherwise act as a barrier between the steel substrate and the primer.

The master tradesman knows that the bond is only as strong as the surface preparation. We utilized pneumatic wire-brushing tools to agitate the steel, creating a mechanical key that allows the zinc-rich primer to bite into the metal. Special attention was paid to the "valley" of the flutes, where moisture tends to pool and oxidation is most aggressive. By scrubbing the steel back to a near-white or tight-metal finish, we removed the contaminated oxide layer, effectively resetting the surface for chemical treatment.

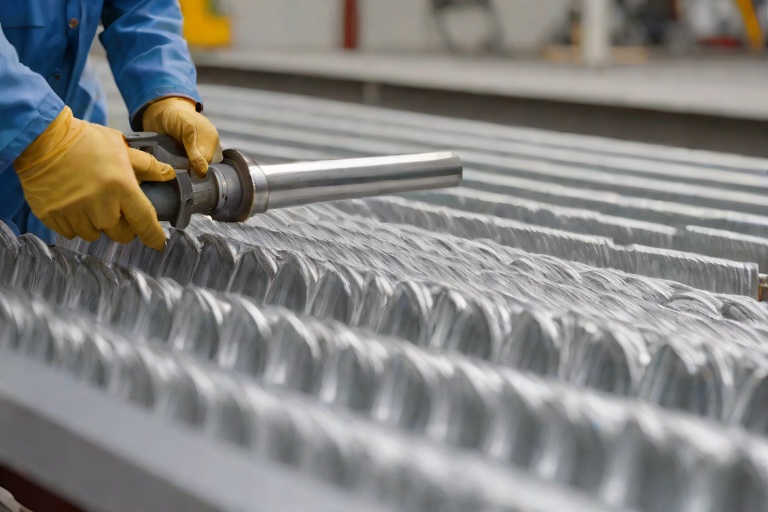

• Deployment of pneumatic needle scalers for heavy scale removal.
• Precision wire-brushing of flute valleys to eliminate trapped particulates.
• Vacuuming of all debris to prevent contamination of the primer application.
• Verification of surface cleanliness through the "tape test" method.
• Careful sanding of transition zones to ensure a smooth profile for reinforcement.

Passivation and Zinc-Rich Primer Application

Once the substrate was mechanically cleaned, the focus shifted to chemical passivation. We utilized a high-solids, zinc-rich rust-inhibiting primer, which functions through the principle of cathodic protection. In this material science application, the zinc acts as a sacrificial anode. Because zinc is more electronegative than steel, it corrodes preferentially, sacrificing itself to protect the underlying iron from further oxidation. This creates a permanent chemical shield that prevents the return of rust, even if the primer is slightly scratched or abraded during subsequent roofing installations.

The application process required strict adherence to dry film thickness (DFT) specifications. Using a combination of airless spraying and precision brushing for the edges, we ensured total coverage of the steel flutes. The passivation process transforms the surface from a reactive state to a stable state, effectively "locking" the metal. This is critical in a research laboratory setting where the structural deck must support heavy equipment and maintain a rigid profile to support the building's envelope integrity.

• Application of cold-galvanizing zinc primers with a minimum 90% zinc dust content.
• Strategic "stripe coating" of all edges and fasteners to prevent edge-creep corrosion.
• Monitoring of ambient temperature and dew point to ensure optimal curing.
• Verification of DFT using magnetic gauge thickness testers.
• Curing time management to allow for the application of the final waterproofing layer.

Structural Reinforcement and Fastener Integrity

The final phase of the remediation involved addressing the structural loss caused by the oxidation. In areas where the ultrasonic testing indicated significant thinning of the steel flutes, we implemented reinforcement protocols to restore the load-bearing capacity of the deck. This involved the installation of reinforced steel shims and the application of structural epoxy fillers in non-load-bearing voids to prevent further buckling. We ensured that the structural integrity met or exceeded the original ANSI standards for commercial steel decking.

Furthermore, the audit revealed that many of the original fasteners had succumbed to "bleeding" rust, which had compromised the mechanical connection between the deck and the support beams. We executed a comprehensive fastener replacement program, utilizing heavy-duty, corrosion-resistant fasteners with integrated neoprene washers to create a watertight seal. By securing the deck with new, high-torque fasteners, we eliminated the micro-movements that often lead to the cracking of the roof membrane above, thereby closing the loop on the building envelope's protection.

• Installation of weld-plates on severely thinned flute sections to restore shear strength.
• Replacement of oxidized fasteners with galvanized, high-tensile equivalents.
• Application of structural sealant to all deck-to-wall transitions.
• Torque-testing of all new fasteners to ensure a secure mechanical bond.
• Final engineering sign-off on the structural load-bearing capacity of the remediated deck.

The Forensic Philosophy of the Building Envelope Audit

In the realm of commercial asset management, there is a profound and dangerous difference between a visual roof inspection and a forensic maintenance audit. A standard visual inspection is a passive exercise; it identifies obvious ponding or visible punctures. However, a forensic audit, as practiced by Aquashield Corporate, is an aggressive, hands-on interrogation of the building envelope. In suburban corporate office parks, where sprawling flat roofs are subjected to extreme diurnal temperature swings and complex HVAC loading, the envelope is under constant mechanical stress. We approach these structures not as static surfaces, but as dynamic systems that are perpetually attempting to fail.

The objective of a forensic audit is to uncover latent defects—failures that are present but not yet manifesting as interior leaks. This requires a deep understanding of material science, specifically the coefficient of thermal expansion for various single-ply membranes and the chemical interaction between adhesives and substrates. By utilizing a "boots-on-the-roof" methodology, we eliminate the guesswork associated with drone photography or distant binoculars, focusing instead on the tactile reality of the membrane's condition.

• Identification of subsurface voids and delamination between the insulation board and the membrane.
• Analysis of thermal bridging at parapet walls and coping caps.
• Evaluation of membrane elasticity and plasticizer migration in aged TPO or PVC systems.
• Assessment of hydrostatic pressure points around primary drainage systems.

Mechanical Interrogation of Automated Seams

Automated heat-welding robots have revolutionized the speed of roof installation, but they have also introduced a false sense of security. A seam may look visually closed while possessing zero structural integrity—a condition known as a "cold weld." In a forensic audit, we do not trust the eye; we trust the probe. Using specialized hand tools, such as tapered steel probes and seam rollers, our technicians physically challenge the bond of every critical lap. We are looking for "fish-mouths" or microscopic separations that allow capillary action to draw water directly into the insulation core.

The engineering focus here is on the weld strength and the consistency of the fusion. If a probe can penetrate a seam, the building is effectively open to the elements, regardless of whether a leak has reached the ceiling tiles. We analyze these failures in the context of ASTM standards for heat-welded seams, ensuring that the fusion is homogeneous across the entire width of the lap. When we encounter systemic seam failure in a corporate office park, it often indicates that the installation crew failed to calibrate the robot's speed or temperature to the ambient conditions of the site.

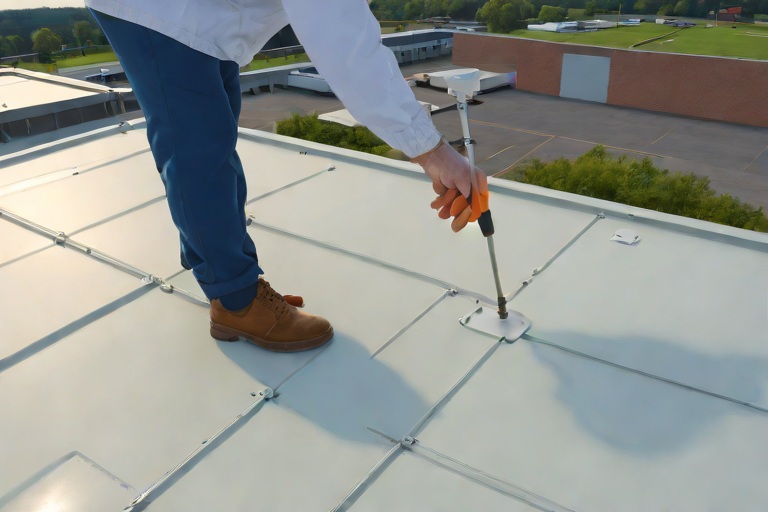

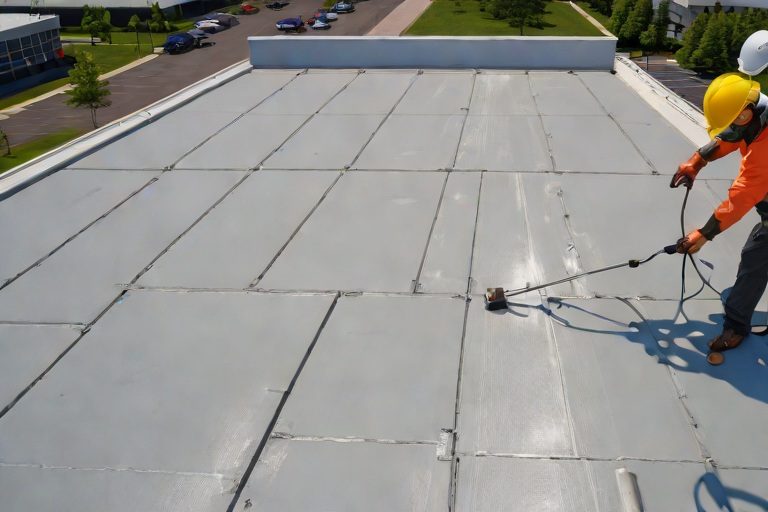

• Manual probing of all field seams to detect latent voids and "cold welds."
• Testing of T-joints and corner patches where mechanical stress is most concentrated.
• Verification of overlap widths to ensure they meet or exceed manufacturer specifications.
• Analysis of seam degradation caused by UV exposure and ozone depletion.

Critical Penetration Analysis and Perimeter Fastening

The most frequent points of failure in a suburban office park are the penetrations—specifically the drain bowls and perimeter cleats. A drain bowl is not merely a piece of flashing; it is a high-stress junction where the membrane is forced into a tight radius. We examine the clamping torque of the drain bowl assemblies to ensure that the mechanical bond is sufficient to withstand the vibration of the building and the thermal movement of the roof. Insufficient torque leads to micro-gaps, which, under the pressure of a heavy rain event, allow water to bypass the flashing entirely.

Furthermore, the perimeter cleats and edge terminations are the first line of defense against wind uplift. Following ANSI/SPWind guidelines, we inspect the fastening patterns of the perimeter metal. We look for "backing out" fasteners and oxidized cleats that have lost their grip on the substrate. In large office parks, the "wind tunnel" effect created by adjacent buildings can create localized negative pressure zones, pulling the membrane away from the parapet. Our audit ensures that the mechanical attachment is robust enough to resist these aerodynamic forces, preventing catastrophic membrane peel-back.

• Torque verification of drain bowl clamping rings to prevent hydrostatic bypass.
• Inspection of perimeter termination bars for fastener fatigue and corrosion.
• Evaluation of flashing heights at the parapet to ensure compliance with water-shedding requirements.
• Assessment of sealant integrity at the interface of the roof and the building facade.

Data Synthesis and Engineering Reporting

The final and most critical stage of the Aquashield forensic process is the translation of field observations into a technical engineering report. A list of leaks is not an audit; a comprehensive analysis of failure patterns is. We categorize every finding based on its risk profile: Critical (immediate threat to the building interior), Urgent (likely to fail within 12 months), and Monitor (aesthetic or minor degradation). This allows the corporate facility manager to move from a reactive "patch-and-pray" mindset to a proactive asset management strategy.

Our reports utilize a quantitative approach, mapping every identified defect to a specific coordinate on the roof plan. We correlate the physical findings—such as the percentage of failed seams or the average torque deficiency in drains—with the overall age and performance of the building envelope. By applying material science and engineering principles, we provide the client with a projected lifecycle analysis of the roof. This ensures that capital expenditure for roof replacement is based on actual physical degradation rather than arbitrary timelines or manufacturer suggestions.

• Creation of a detailed defect map utilizing precise roof coordinates.
• Categorization of failures by risk level to prioritize maintenance budgets.
• Provision of photographic evidence paired with technical explanations of the failure mechanism.
• Development of a long-term envelope maintenance schedule based on forensic data.

Thermal Dynamics of 60-Mil TPO Molecular Fusion

In the realm of high-performance commercial building envelopes, the integrity of a Thermoplastic Polyolefin (TPO) roofing system is entirely dependent on the quality of its seams. For Big-Box Retail Power Centers, where roof footprints often exceed 200,000 square feet, the margin for error is nonexistent. Achieving a true monolithic bond requires a precise application of thermal energy to facilitate molecular cohesion between the overlapping 60-mil membranes. We calibrate our robotic fusion systems to a constant 1,000°F, a temperature threshold specifically engineered to reach the polymer's melting point without inducing thermal degradation or "burning" the sheet.

The science of TPO welding is not merely about heat; it is about the management of the melt window. If the temperature drops below the critical threshold, the result is a "cold weld," where the membranes appear joined but lack the molecular entanglement necessary to withstand wind uplift or thermal cycling. Conversely, exceeding the thermal limit causes the polymer chains to break, leading to brittle seams that crack under the slightest substrate movement. Our engineering approach focuses on the precise synchronization of heat and pressure to ensure the 60-mil thickness is fully penetrated and fused.

• Maintenance of a consistent 1,000°F heat zone to ensure uniform polymer liquefaction.
• Prevention of carbonization and scorching through real-time thermal monitoring.
• Optimization of the heat-affected zone (HAZ) to maximize seam width and strength.
• Control of the glass transition temperature to prevent premature membrane shrinkage.

Robotic Kinematics: Nozzle Pressure and Travel Velocity

Consistency is the primary failure point in manual welding; therefore, we employ robotic hot-air fusion to eliminate human variance. The robotic welder operates on a strict set of kinematic parameters, specifically balancing nozzle pressure and travel velocity. Nozzle pressure is critical because it forces the superheated air into the overlap, displacing air pockets and ensuring that the heat is transferred evenly across the entire width of the seam. Without sufficient pressure, "voids" occur, which act as initiation points for future leaks and structural failures.

Travel velocity, measured in inches per minute, determines the "dwell time" of the heat source on the membrane. In a Big-Box retail environment, where the roof is subject to massive thermal expansion and contraction, the weld must be perfectly balanced. If the robot travels too quickly, the membrane does not reach the required temperature for fusion. If it travels too slowly, the excessive heat can cause the TPO to thin, compromising the 60-mil specification and reducing the puncture resistance of the seam. Our calibration process involves rigorous trial runs on sacrificial membrane samples to lock in the optimal velocity for the specific ambient conditions of the job site.

• Automated travel velocity calibration to ensure a constant heat-to-surface ratio.
• High-pressure nozzle configurations to eliminate air entrapment and "fish-mouths."
• Real-time adjustment of speed based on ambient temperature and humidity fluctuations.
• Precision guidance systems to maintain a perfectly straight weld path over long runs.

Destructive Test-Cut Peel Audits and Validation

A visually acceptable seam is not necessarily a structurally sound seam. To validate the engineering integrity of the envelope, we implement a destructive test-cut peel audit. This process involves cutting a small, strategic section of the seam—typically a two-inch strip—and attempting to manually peel the membranes apart. This is the "moment of truth" in commercial roofing. A successful weld is evidenced by a "material failure" rather than a "weld failure." In a proper fusion, the TPO membrane itself will tear before the weld separates, proving that the bond is stronger than the material it joins.

We categorize these audits based on the physical evidence found during the peel. A "cold weld" is identified by a clean separation where the two sheets simply pull apart, leaving a smooth surface. A "burnt weld" is characterized by a blackened, brittle edge that snaps easily. Our goal is a clean, fibrous tear that indicates a total molecular merge. These audits are performed at random intervals across the Power Center's roof, ensuring that the robotic welder remained calibrated across every sector of the building, from the loading docks to the main retail floor.

• Execution of destructive peel tests according to ASTM and ANSI standards for TPO membranes.
• Verification of "material tear" to confirm a monolithic bond.

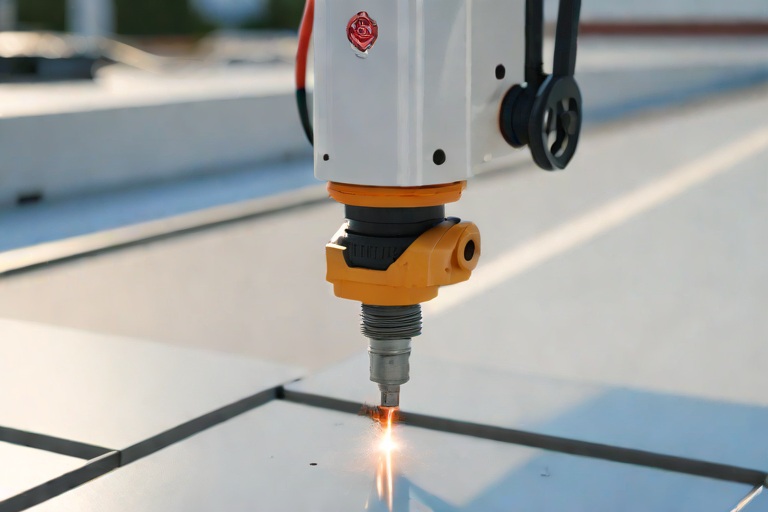

• Identification and remediation of "cold welds" through localized heat-gun correction.
• Documentation of peel results to provide a certified audit trail for warranty validation.

Envelope Integrity and Long-Term Risk Mitigation

The building envelope of a Big-Box Retail Power Center is a complex system subject to extreme stresses. Beyond the weather, these roofs must handle the vibration of massive HVAC units, the thermal bridging of steel decking, and the constant movement of the building's structural frame. By utilizing robotic fusion and rigorous peel audits, we mitigate the risk of catastrophic failure. The 60-mil TPO membrane, when fused correctly, acts as a seamless skin that prevents moisture infiltration and protects the insulation and decking from premature decay.

From an engineering perspective, the investment in robotic precision and destructive testing reduces the total cost of ownership. By eliminating the "leaky seam" cycle common in manually welded roofs, the facility manager avoids costly interior damage and business interruptions. Our approach transforms the roofing process from a traditional trade into a precision engineering discipline, ensuring that the building envelope remains impermeable for the duration of its designed service life. The final audit report serves as a blueprint of quality, providing the owner with empirical evidence that the roof is not just installed, but engineered for permanence.

• Reduction of long-term maintenance costs through the elimination of seam failures.
• Enhanced wind-uplift resistance by ensuring maximum bond strength across all laps.
• Mitigation of thermal shock risks through uniform weld consistency.
• Provision of a comprehensive engineering data package for corporate asset management.

Forensic Audit and Substrate Analysis of Cold Logistics Envelopes

In the realm of commercial building envelope engineering, food packaging and cold logistics plants present a unique set of thermodynamic challenges. These facilities operate as massive thermal batteries, where the interior is maintained at extreme differentials compared to the exterior ambient temperature. During our engineering audit, we identified critical failure points common in these environments: thermal bridging at the parapet walls and substrate fatigue caused by repeated expansion and contraction cycles. The primary objective was to stabilize a compromised roof system without interrupting the facility's 24/7 operational cycle, which is a non-negotiable requirement for food-grade logistics.

A comprehensive forensic analysis revealed that the existing substrate suffered from latent moisture entrapment and degraded bitumen oxidation. In cold storage environments, the risk of "frost heave" within the insulation layers can lead to micro-fissures in the roof membrane. Our audit utilized infrared thermography to map these anomalies, ensuring that the subsequent restoration would not trap moisture that could lead to premature delamination. We focused on the structural integrity of the decking and the efficacy of the existing flashing, recognizing that a monolithic solution is the only way to eliminate the inherent weaknesses of seamed membranes.

• Identification of thermal bridging points where heat gain penetrates the cold-chain perimeter.
• Infrared thermographic scanning to detect subsurface moisture pockets and saturated insulation.
• Assessment of substrate pH levels and contaminant presence to determine primer compatibility.
• Evaluation of existing drainage slopes to prevent ponding, which can compromise coating longevity.
• Analysis of vibration-induced stress fractures caused by heavy industrial HVAC equipment.

Chemical Engineering of Bleed-Blocking Epoxy Primers

The success of a high-solids silicone system is entirely dependent on the interface between the substrate and the coating. In older commercial roofs, particularly those with modified bitumen or aged asphalt, "bleed-through" is a constant threat. This occurs when oils and tars from the old roof migrate upward through the new coating, creating unsightly stains and, more critically, compromising the chemical bond. To mitigate this, we specified a high-performance, bleed-blocking epoxy primer. This primer acts as a molecular barrier, sealing the substrate and creating a chemically inert surface for the silicone to anchor to.

Unlike standard acrylic primers, the epoxy system we deployed utilizes a cross-linking mechanism that penetrates the pores of the substrate. This ensures a mechanical bond that is resistant to shear forces. The primer is engineered to neutralize surface contaminants and provide a uniform surface energy, which is essential for the wet-on-wet application of the silicone. By establishing this rigid chemical foundation, we eliminate the risk of delamination and ensure that the monolithic layer remains fused to the building envelope regardless of the extreme temperature swings typical of a logistics hub.

• Utilization of two-component epoxy resins to create a dense, non-porous seal.
• Prevention of asphaltic oil migration to maintain the aesthetic and structural purity of the topcoat.
• Enhancement of substrate surface energy to optimize the wetting characteristics of the silicone.
• Application of targeted saturation to ensure deep penetration into weathered substrate fissures.
• Strict adherence to cure-time windows to prevent solvent entrapment between layers.

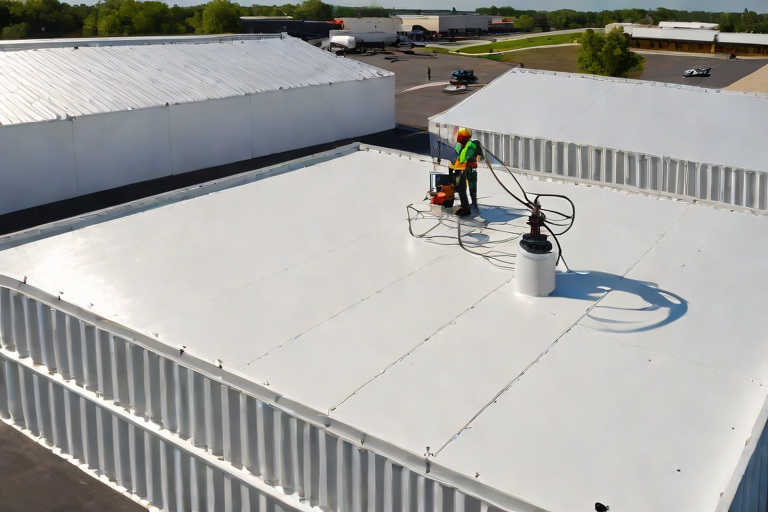

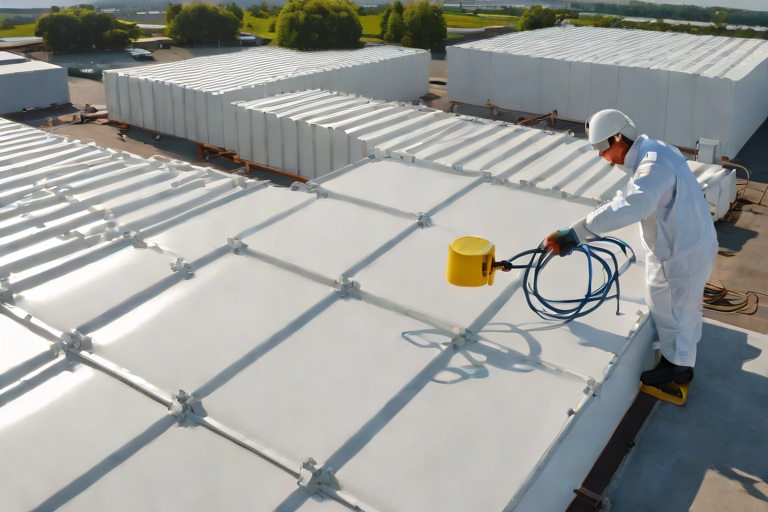

Monolithic Silicone Application and 30-Mil DFT Specifications

To achieve a truly waterproof envelope, we implemented a high-solids silicone monolithic coating, specified at a 30-mil Dry Film Thickness (DFT). In the roofing industry, "monolithic" refers to a single, seamless layer that eliminates the thousands of linear feet of seams found in traditional TPO or EPDM systems. Seams are the primary failure points in commercial roofing; by removing them, we effectively remove the risk of leakages at the laps. The 30-mil thickness is a critical engineering specification, providing enough bulk to bridge small cracks and withstand foot traffic from maintenance crews while remaining flexible enough to accommodate the building's natural movement.

The application process was engineered for zero-downtime. Because high-solids silicone does not require the extensive surface preparation or heat-welding associated with thermoplastic membranes, the plant continued its packaging and logistics operations without interruption. The material is applied using high-volume airless sprayers, ensuring an even distribution of the solids. This thickness provides a robust barrier against UV degradation and puncture, creating a permanent "rubberized" shield over the entire roof surface that requires no mechanical fasteners, thus avoiding new punctures in the building envelope.

• Deployment of 30-mil DFT to ensure long-term durability and puncture resistance.
• Elimination of all mechanical seams to remove the most common points of water ingress.
• Use of high-solids chemistry to reduce shrinkage during the curing process.
• Implementation of zero-downtime application techniques to protect facility productivity.
• Application of reinforced flashing details at all penetrations and curbs for maximum redundancy.

Albedo Reflectance and Thermodynamic Efficiency Analysis

The final phase of the restoration focused on the Albedo effect—the measure of the roof's ability to reflect solar radiation. For a cold logistics plant, solar heat gain is the enemy of energy efficiency. Every degree of temperature increase on the roof surface translates to increased load on the industrial refrigeration units. We specified a coating with an 88% solar reflectance rating. By reflecting the vast majority of the solar spectrum, the roof surface remains significantly cooler, which in turn reduces the "heat flux" into the building. This is measured by the Solar Reflectance Index (SRI), a key metric in ASTM standards for cool roof performance.

Beyond the immediate energy savings, the high albedo rating protects the silicone membrane itself. By reflecting UV radiation, the material avoids the thermal degradation and "chalking" that plague lower-quality coatings. The thermodynamic result is a stabilized building envelope where the interior climate is decoupled from the exterior solar intensity. This not only lowers the operational cost of the facility but also extends the lifecycle of the HVAC equipment by reducing the duty cycle of the compressors. The result is a high-performance engineering solution that balances immediate waterproofing needs with long-term sustainability goals.

• Achievement of 88% solar radiation reflectance to minimize the Urban Heat Island effect.
• Reduction of internal cooling loads, leading to measurable decreases in monthly kWh consumption.
• Compliance with ASTM E1980 standards for solar reflectance index (SRI) verification.
• Mitigation of thermal shock to the roof substrate, reducing the frequency of expansion cycles.
• Long-term stabilization of the building envelope through advanced UV-resistant chemistry.

The Criticality of Positive Drainage in Cleanroom Environments

In the realm of semiconductor fabrication, the building envelope is not merely a shelter but a primary component of the facility's risk management strategy. A cleanroom fab houses billions of dollars in lithography equipment and sensitive wafer production lines where a single moisture intrusion event can lead to catastrophic yield loss. From a master roofer's perspective, the primary enemy is ponding water. When water stagnates on a roof surface, it initiates a cycle of membrane degradation through hydrostatic pressure and chemical breakdown, eventually compromising the waterproofing layer. To mitigate this, we adhere to a strict engineering standard of a minimum 1/4-inch per foot slope, ensuring that gravity consistently drives runoff toward the primary drainage points.

The engineering challenge in these facilities is the sheer scale of the roof deck combined with the presence of massive HVAC units and exhaust scrubbers that create natural obstructions to water flow. Achieving a "positive drain" means that no area of the roof remains holding water for more than 48 hours, as per ASTM standards. In a high-stakes semiconductor environment, we aim for a zero-tolerance policy regarding ponding. This requires a comprehensive audit of the structural deck's deflection and the precise installation of tapered insulation to override any inherent dips in the steel or concrete substrate.

• Elimination of "birdbaths" or low spots that exceed 1/4 inch in depth.
• Prevention of moisture migration into the structural deck via capillary action.
• Reduction of thermal shock to the membrane by preventing standing water from freezing and thawing.
• Protection of the underlying vapor barrier from prolonged hydrostatic saturation.

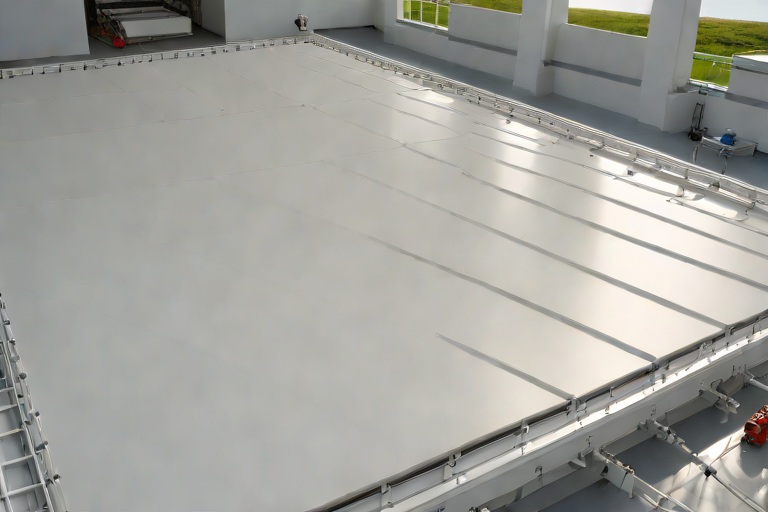

Engineering Multi-Directional Tapered Polyiso Systems

To achieve the necessary slopes on a massive, flat industrial footprint, we utilize a precision-engineered tapered polyisocyanurate (Polyiso) insulation system. Polyiso is selected not only for its superior R-value per inch but for its compressive strength, which is vital for supporting the heavy foot traffic of maintenance crews and equipment. The layout is a complex geometric puzzle; we do not simply slope from one side to the other. Instead, we employ multi-directional drainage patterns that divide the roof into smaller, manageable "catchment areas." This reduces the distance water must travel to reach a drain, thereby lowering the risk of membrane wear and reducing the height of the insulation at the highest points.

The precision of the tapered layout is paramount. Each piece of insulation is CNC-cut to a specific slope, and the installation requires a master's eye to ensure that the seams are perfectly aligned. Any gap or misalignment in the tapered blocks can create a "lip" that traps water, effectively creating the very ponding we are trying to eliminate. We treat the tapered layout as a blueprint for the building's hydraulic performance, ensuring that the transition from a 1/4-inch slope to a steeper pitch at the perimeter is seamless and logically routed.

• Utilization of high-density Polyiso to prevent crushing under heavy equipment loads.
• Implementation of staggered jointing to prevent linear leak paths.
• Coordination of slope-to-drain layouts with mechanical equipment placements.
• Application of a high-temperature bonding adhesive to ensure the insulation remains monolithic.

Geometric Cricket Sizing and Diamond Valley Execution

When a roof encounters a structural projection, such as a parapet wall or a large mechanical curb, water naturally tends to collect against the vertical surface. This is where geometric crickets—sloped diverters—become essential. A cricket is essentially a wedge of tapered insulation that redirects water away from a wall and toward the primary drainage flow. For semiconductor fabs, we often employ "diamond valley" crickets. These are sophisticated, multi-angled slope transitions that create a V-shaped channel, forcing water to move diagonally across the roof rather than pooling in the corners of equipment curbs.

Sizing these crickets requires precise trigonometric calculation. To maintain the 1/4-inch per foot standard, the height of the cricket must be proportional to its length. If a cricket is too shallow, it fails to move the water; if it is too steep, it can create a "damming" effect that traps water on the opposite side. The diamond valley approach is particularly effective because it breaks the surface tension of the water and accelerates the flow, ensuring that the areas surrounding high-value HVAC equipment remain bone-dry even during extreme precipitation events.

• Calculation of cricket height based on the distance from the curb to the primary slope.
• Installation of reinforced flashing at the valley points to handle increased water volume.
• Strategic placement of crickets at every intersection of a wall and the roof deck.
• Use of tapered edge strips to smooth the transition between the cricket and the flat field.

Expansion Joint Integration and Final Envelope Audit

One of the most vulnerable points in a semiconductor fab's envelope is the structural expansion joint. These joints are designed to allow the building to move during thermal cycles or seismic events, but they are notorious for becoming leak points. From an engineering standpoint, the goal is to ensure that water never reaches the expansion joint. We achieve this by routing the tapered Polyiso layouts to slope *away* from the joint, creating a "dry zone" around the critical seal. By directing runoff toward the drains and away from these movement gaps, we significantly extend the lifespan of the joint sealant and reduce the frequency of costly repairs.

The final phase of the project is a rigorous building envelope audit. We do not rely on visual inspection alone. A master-level audit includes infrared (IR) thermography to detect subsurface moisture and electronic leak detection (ELD) to ensure the membrane is monolithic. We conduct flood tests on all critical areas, including the diamond valleys and expansion joint perimeters, to verify that the 1/4-inch per foot slope is performing as engineered. Only when the IR scan confirms a uniform thermal signature—indicating no trapped water—do we certify the roof as a high-performance envelope.

• Routing of all tapered slopes to create a "shedding" effect away from expansion joints.
• Installation of heavy-duty, flexible flashing membranes at all movement points.
• Conducting infrared scans to identify hidden moisture pockets in the Polyiso.
• Performing ASTM-compliant flood testing to validate the drainage layout.

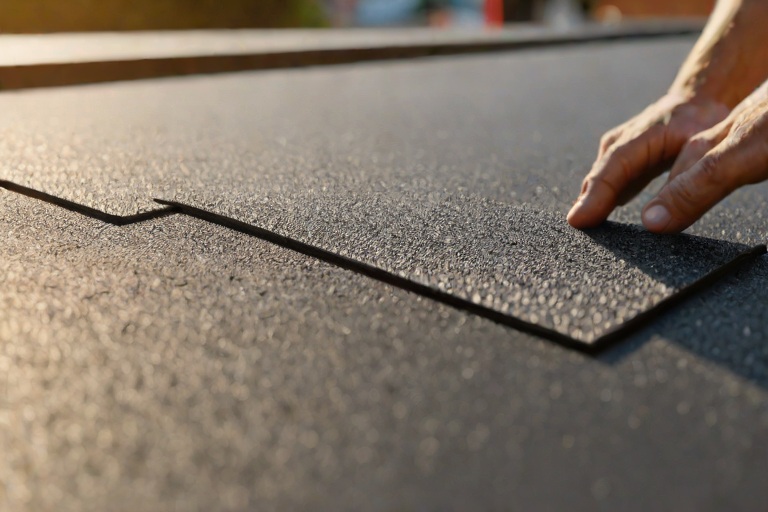

SBS-Modified Bitumen Chemistry and System Architecture

In the demanding environment of an intermodal cargo freight terminal, the building envelope is subjected to extreme thermal cycling and structural vibrations caused by heavy machinery and freight movement. For these applications, a multi-ply SBS (Styrene-Butadiene-Styrene) modified bitumen system is the engineering gold standard. Unlike APP (Atactic Polypropylene) membranes, which can become brittle in colder climates, SBS is a thermoplastic elastomer. The introduction of styrene-butadiene-styrene polymers into the bitumen creates a cross-linked molecular structure that allows the membrane to retain its elasticity and recover its shape after deformation.

The architecture of a multi-ply system provides essential redundancy. By layering the modified bitumen, we create a composite barrier that significantly reduces the probability of a single-point failure. In a freight terminal, where roof loads may include heavy HVAC units and industrial venting, the SBS system acts as a monolithic waterproof shield. The engineering focus here is not merely on water exclusion but on the ability of the membrane to bridge small structural movements without cracking or shearing.

• SBS Polymerization: Enhances low-temperature flexibility and increases the elongation capacity of the bitumen.
• Multi-Ply Redundancy: Utilizes a base sheet, a flashing sheet, and a cap sheet to ensure multiple layers of defense.
• Thermal Stability: Maintains structural integrity across a wide range of ambient temperatures, preventing "alligatoring" of the surface.
• Load Distribution: Distributes mechanical stresses across the roof deck, reducing the risk of localized punctures.

Cold-Applied Adhesive Shear Resistance and Lap Integrity

The critical failure point in any bitumen application is the lap. In a high-performance engineering audit, we examine the shear resistance of the cold-applied adhesives used to bond the SBS plies. Cold-applied adhesives eliminate the risks associated with torch-applied systems—such as substrate scorching or fire hazards—while providing a chemically engineered bond that often exceeds the tensile strength of the membrane itself. Shear resistance is the measure of the adhesive's ability to resist sliding forces, which are prevalent in large-span terminal roofs where thermal expansion and contraction are constant.

To mitigate the risk of "straight-line" leakage, we implement a rigorous staggered side lap protocol. By offsetting the vertical seams of the cap sheet relative to the base sheets, we ensure that no single seam runs the entire length of the roof. This creates a tortuous path for moisture, meaning that if a pinhole leak occurs in the top layer, the moisture must travel horizontally across a bonded lap before it can penetrate the second layer. This engineering approach effectively doubles the effective path length for water ingress.

• Shear Force Mitigation: Cold-applied adhesives create a high-strength chemical bond that absorbs lateral movement.
• Staggered Lap Geometry: Offsets seams by a minimum of 24 inches to prevent linear leak paths.
• ASTM Adhesion Testing: Ensuring the bond strength meets or exceeds industry standards for peel and shear resistance.
• Lap Width Optimization: Maintaining a minimum 6-inch side lap and 4-inch end lap to ensure a sufficient bonding surface.

Granule Surface Protection and UV Degradation Control

The cap sheet of an SBS system is the primary line of defense against ultraviolet (UV) radiation and mechanical abrasion. In a cargo terminal, the roof is often exposed to industrial pollutants and airborne particulates that can chemically degrade raw bitumen. The application of a ceramic-coated granule surface is not aesthetic; it is a functional engineering requirement. These granules act as a sacrificial layer, absorbing the brunt of UV rays and preventing the bitumen from "cooking" or oxidizing, which would otherwise lead to premature embrittlement.

From a material science perspective, the embedment of these granules into the modified bitumen must be uniform. Any "bald spots" or areas of low granule density create localized hotspots where UV radiation can penetrate deep into the membrane, causing the polymers to break down. Furthermore, the granules provide necessary traction for maintenance personnel and protect the membrane from the abrasive forces of wind-blown debris common in freight yards. An audit of the surface reveals that a high-density granule distribution correlates directly with the extended service life of the building envelope.

• UV Shielding: Ceramic granules reflect solar radiation and prevent the photo-oxidation of the SBS polymers.
• Abrasion Resistance: Protects the waterproof core from mechanical damage during roof maintenance and inspections.
• Thermal Emissivity: Reduces the heat island effect and lowers the internal cooling load of the terminal building.
• Granule Embedment Depth: Ensures a permanent bond between the bitumen and the protective mineral layer.

Internal Vapor Drive and Hygrothermal Regulation

A truly engineered building envelope does not just look at the exterior; it manages the internal vapor drive. In intermodal terminals, the temperature differential between the conditioned interior and the unconditioned exterior creates a powerful pressure gradient. This "vapor drive" pushes moisture from the warm interior toward the cold exterior. If a continuous vapor retarder is not installed beneath the SBS membrane, this moisture can condense within the insulation layer—a phenomenon known as interstitial condensation.

Interstitial condensation is catastrophic because it reduces the R-value of the insulation and can lead to the corrosion of the steel roof deck. By integrating a high-performance vapor barrier at the lowest possible point in the assembly, we regulate the hygrothermal behavior of the roof. The goal is to ensure that the dew point occurs outside the structural components of the roof. This regulation prevents the "sponge effect," where insulation traps moisture, which then freezes and thaws, leading to the eventual delamination of the modified bitumen layers.

• Vapor Drive Control: Utilizing a low-permeance membrane to stop moisture migration from the building interior.
• Dew Point Management: Engineering the assembly so that condensation occurs in non-critical, manageable zones.
• Hygrothermal Analysis: Evaluating the movement of heat and moisture through the multi-ply assembly.
• Deck Protection: Preventing the accumulation of moisture on the steel substrate to eliminate oxidative rust.

Wind Uplift Engineering and ANSI/SPRI ES-1 Compliance

In the high-velocity wind zones characteristic of port marine shipping warehouses, the parapet wall acts as a primary wind-catchment area. The physics of wind-scour and the Bernoulli effect create significant negative pressure—or suction—on the upper surfaces of the building envelope. To mitigate the risk of catastrophic failure, our engineering audit focuses on the strict adherence to ANSI/SPRI ES-1 standards, which dictate the wind-uplift resistance required for metal roofing and coping systems. In a marine environment, the combination of salt-spray corrosion and extreme wind gusts necessitates a departure from standard 24-gauge materials in favor of heavy-gauge 20-gauge steel.

The increased mass and structural rigidity of 20-gauge steel significantly reduce the deflection of the coping cap under peak wind loads. When the metal is too thin, it is prone to "oil-canning" or fluttering, which creates micro-gaps at the joints. These gaps allow high-pressure air to enter the building envelope, potentially lifting the entire coping assembly from the wall. By utilizing a heavier gauge, we ensure that the substrate maintains its profile, effectively shifting the failure point away from the material itself and toward the mechanical fasteners.

• Application of calculated wind-load tables to determine fastener spacing based on local building codes and coastal exposure categories.
• Utilization of 20-gauge Kynar 500 coated steel to provide a superior strength-to-weight ratio and maximum resistance to atmospheric corrosion.
• Verification of the "edge effect," where wind speeds accelerate at the corners of the warehouse, requiring reinforced fastening patterns.
• Implementation of rigorous pull-tests to ensure that the substrate attachment exceeds the minimum requirements of the ES-1 wind-uplift criteria.

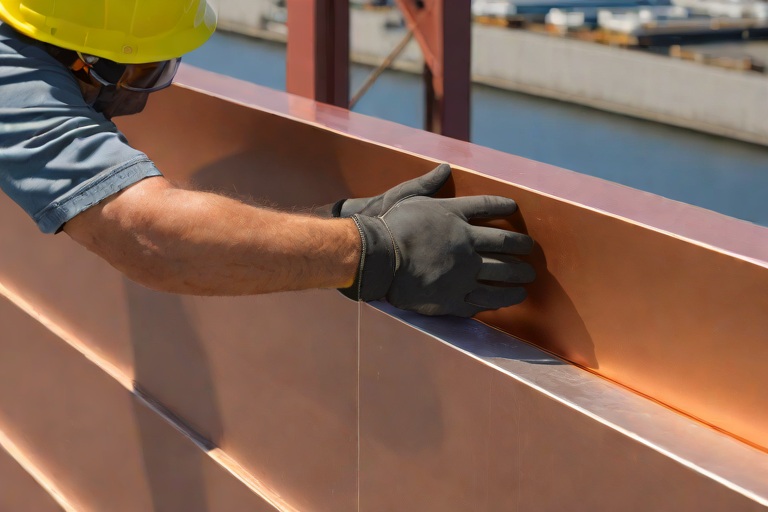

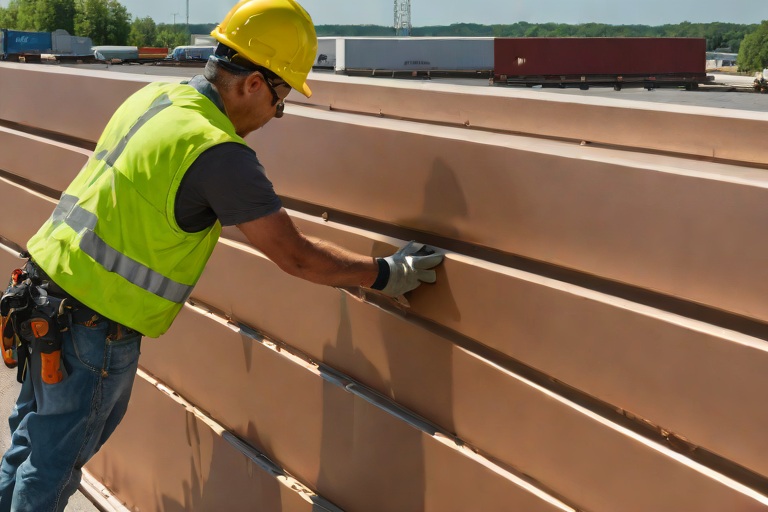

Continuous Cleat Engagement and Mechanical Locking

The integrity of a coping cap system is only as reliable as its attachment method. Traditional intermittent fastening often leaves large spans of the metal cap unsupported, creating a vulnerability where wind can get "under" the metal and peel it back. Our specification for port marine warehouses mandates a continuous cleat locking system. This engineering approach involves a heavy-duty cleat that runs the entire length of the parapet, providing a constant mechanical bond between the coping cap and the wall top.

Continuous cleat engagement transforms the coping cap from a series of overlapping plates into a unified structural diaphragm. This locking mechanism ensures that the load is distributed evenly across the entire length of the wall rather than being concentrated at a few isolated screw points. By eliminating the gaps inherent in standard fastening, we prevent the "zipper effect," where the failure of a single fastener leads to a progressive collapse of the entire perimeter system. The locking action of the cleat creates a rigid assembly that resists both vertical uplift and lateral shifting during seismic or high-wind events.

• Elimination of exposed fasteners on the top surface to prevent galvanic corrosion and water infiltration.
• Use of a heavy-duty locking cleat that provides a 360-degree grip on the coping flange.
• Reduction of vibration-induced fatigue in the metal, which is common in warehouses with heavy machinery and high-traffic port activity.
• Enhanced stability during the installation phase, ensuring the cap remains seated before final locking is achieved.

Thermal Expansion and Splice Plate Engineering

Commercial shipping warehouses often feature massive footprints, resulting in parapet runs that can extend hundreds of feet. Metal is subject to the laws of thermal expansion and contraction, and Kynar 500 coated steel is no exception. Without proper engineering, the coefficient of thermal expansion can cause the metal to buckle or "bow" as temperatures fluctuate between extreme summer heat and winter freezes. This movement, if unrestrained, puts immense stress on the fasteners and can tear the metal at the splice points.

To manage this, we implement engineered thermal expansion splice plates. Rather than simply overlapping the coping sections and screwing them tight, we utilize a sliding splice mechanism. This allows the metal to expand and contract longitudinally while maintaining a watertight seal. The splice plates are designed to overlap by a minimum of 6 inches, ensuring that even at maximum contraction, the joint remains closed. This prevents the "breathing" of the joint, which otherwise allows moisture and salt-laden air to penetrate the building envelope and corrode the internal wall structure.

• Calculation of total linear expansion based on the temperature delta of the specific port location.
• Installation of oversized splice holes to allow for controlled movement without shearing the fasteners.
• Application of high-grade sealant at the lap joints to maintain a weather-tight seal during thermal cycling.
• Strategic placement of splice plates at intervals that prevent cumulative stress buildup across the parapet run.

Perimeter Peel Mitigation and Envelope Integrity

The most critical failure point in any coping system is the perimeter—specifically the corners and the end-caps. In a marine environment, these areas are subject to "peel" forces, where wind currents wrap around the building edge and attempt to pry the coping cap away from the wall. If the end-caps are not properly integrated, the wind can enter the gap, creating a pocket of high pressure that lifts the metal from the inside out. This is a common failure seen in substandard commercial roofing installations.

Our mitigation strategy involves a comprehensive "wrap-around" technique. The 20-gauge coping is fabricated with extended returns that wrap tightly around the corner of the parapet, creating a seamless transition. This geometry eliminates the sharp edges that wind can easily grab. Furthermore, we employ a perimeter seal that bonds the metal to the masonry or steel substrate at the very edge of the wall. This creates a redundant barrier that prevents water from migrating behind the coping cap, which is essential for protecting the building's interior from moisture-driven degradation and mold growth.

• Fabrication of custom-bent corner pieces to eliminate the need for field-cut joints at high-stress points.
• Implementation of a "drip edge" profile to ensure water is shed away from the wall face, preventing staining and spalling.
• Use of industrial-grade, UV-resistant sealants at all termination points to block wind-driven rain.
• Final audit of the envelope using infrared thermography to ensure no air leakage or thermal bridging is occurring at the perimeter.

Hydraulic Head-Loss Analysis and Primary Drainage Efficiency

In the context of a municipal sports and convention arena, the roof represents a massive catchment area where the primary objective is the rapid evacuation of pluvial loads to prevent hydrostatic overloading of the structural deck. A comprehensive engineering audit begins with the calculation of hydraulic head-loss, which is the loss of pressure or energy as water travels through the primary drainage system. In these large-span structures, the friction loss within the internal leaders and the turbulence created at every 90-degree elbow can significantly impede the flow rate, leading to a rise in the hydraulic grade line.

When the head-loss exceeds the design capacity, water begins to back up, creating a "ponding" effect that can compromise the membrane's integrity and increase the dead load on the steel joists. We utilize the Manning formula to determine the flow velocity, accounting for the roughness coefficient of the piping material—typically schedule 40 steel or heavy-gauge HDPE. The audit reveals that failure to account for the cumulative friction in long-run horizontal conductors often leads to undersized primary drains, which cannot handle the peak intensity of a 100-year storm event.

• Calculation of the friction factor based on the Hazen-Williams coefficient for smooth-wall piping.
• Evaluation of minor losses caused by tees, bends, and transitions in the vertical stack.
• Assessment of the slope accuracy in horizontal runs to ensure gravity-driven flow without sediment accumulation.
• Analysis of the relationship between the roof's slope (typically 1/4" per foot) and the time-of-concentration for runoff.

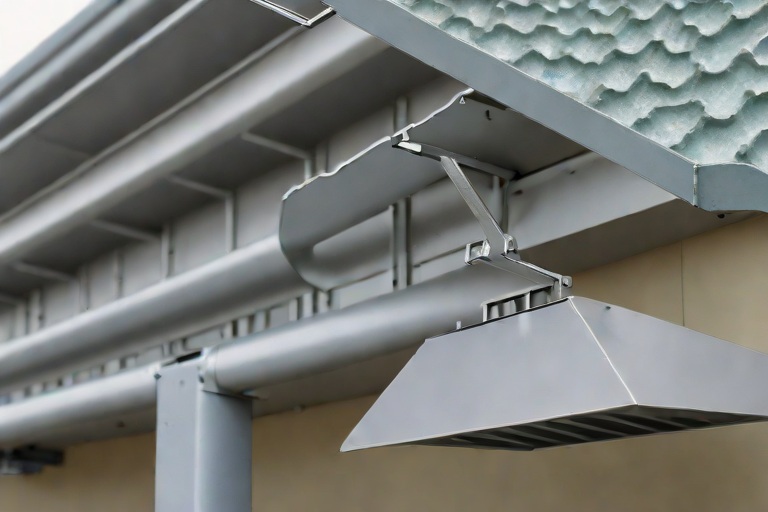

Emergency Overflow Weir Sizing and Scupper Integration

The secondary drainage system is the most critical fail-safe in a building envelope. In a convention arena, where a roof collapse due to water accumulation would be catastrophic, emergency overflow weirs and scuppers must be engineered to discharge water before it reaches a critical depth. An overflow weir is essentially a calibrated opening in the parapet wall that allows water to exit the roof once the primary drains are overwhelmed. The sizing of these weirs is governed by the discharge coefficient and the crest length, ensuring that the volume of water exiting the building matches or exceeds the peak inflow rate during extreme weather.

From a master roofer's perspective, the integration of these scuppers into the building envelope requires precision flashing. If the scupper is not properly integrated with the roof membrane and the wall cladding, the resulting leak will cause internal wall failure and mold growth long before the roof actually fails. We specify the use of reinforced flashing and high-performance sealants that can withstand the constant vibration and thermal cycling of the building. The weir must be positioned exactly two inches above the primary drain grate to ensure that the secondary system activates before the water depth threatens the structural load limits of the roof deck.

• Determination of the required crest length based on the total square footage of the roof catchment.
• Verification of the "two-inch rule" for overflow activation relative to the primary drainage elevation.
• Inspection of scupper throat dimensions to prevent clogging from wind-borne debris.
• Evaluation of the exterior discharge path to ensure water is directed away from the building foundation.

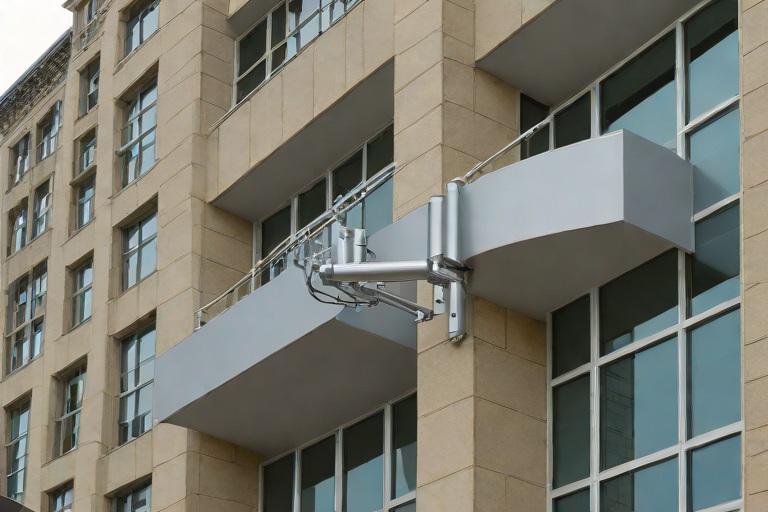

Conductor Head Design and Vortex Mitigation

The conductor head serves as the transition point between the open roof surface and the closed piping system. In high-volume municipal arenas, the velocity of water entering the conductor head can create a vortex, which introduces air into the piping system. This air entrainment reduces the effective capacity of the downspout and can cause "slugging," where pockets of air and water create hammering effects against the pipe walls. A properly engineered conductor head must be sized to allow for a controlled transition, reducing the kinetic energy of the water before it enters the vertical drop.

Material science plays a pivotal role here; we utilize heavy-gauge galvanized steel or stainless steel for conductor heads to resist the abrasive forces of high-velocity runoff and any grit carried from the roof surface. The audit focuses on the sump depth of the conductor head, ensuring it is deep enough to prevent "blow-back," where water splashes back onto the roof membrane, potentially eroding the flashing. Furthermore, the integration of debris screens is mandatory, but these must be designed to be easily accessible for maintenance crews without compromising the watertight seal of the roof envelope.

• Analysis of the intake geometry to minimize turbulence and air entrainment.
• Verification of the sump capacity to handle surge volumes during peak precipitation.
• Assessment of the flashing interface between the conductor head and the roof membrane.
• Evaluation of the structural support for the conductor head to prevent shifting under hydraulic load.

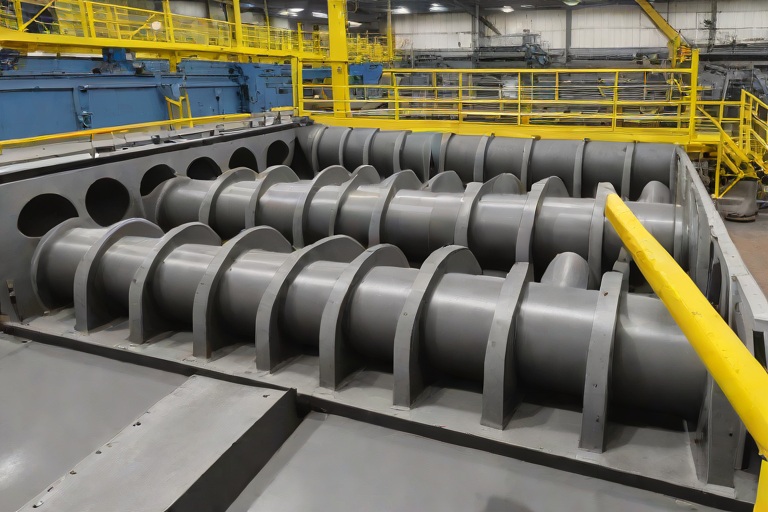

Thermal Expansion Bellows and Slip Joint Engineering

One of the most overlooked aspects of commercial drainage in large-scale arenas is the impact of thermal expansion and contraction. A convention center's roof and its associated downspouts are subject to extreme temperature swings, causing the metal piping to expand and contract linearly. If the downspouts are rigidly fixed from the roof to the grade, this thermal movement manifests as shearing forces at the connection points, often leading to cracked joints, failed seals, and eventually, structural failure of the pipe hangers.

To mitigate this, we implement heavy-duty expansion bellows and telescopic slip joints. These components act as mechanical springs, absorbing the longitudinal movement of the piping without transferring the stress to the building's envelope. The bellows are typically constructed from a combination of stainless steel and EPDM or neoprene, providing a watertight seal while maintaining flexibility. Our engineering audit examines the placement of these joints, ensuring they are located at the points of maximum predicted movement, typically at the transition from the roof's thermal boundary to the interior structural frame.

• Calculation of the total linear expansion based on the coefficient of thermal expansion for the specific piping material.
• Inspection of the bellows' integrity to ensure no fatigue cracking or loss of elasticity has occurred.
• Verification that slip joints are properly lubricated and aligned to allow for smooth movement.
• Analysis of the anchoring system to ensure that thermal movement is directed into the joints rather than the roof deck.

Engineering Audit and Failure Analysis of High-Rise HVAC Penetrations

In the context of multi-family urban residential towers, the building envelope is subjected to extreme atmospheric pressures and constant structural oscillation. A comprehensive engineering audit of these structures reveals that the most frequent points of failure occur at the transition between the primary roof membrane and the mechanical HVAC curbs. These penetrations are not merely holes in the roof; they are dynamic interfaces where disparate materials—typically galvanized steel, concrete, and synthetic membranes—meet. In high-rise environments, wind-driven rain is forced horizontally against these curbs at high velocities, creating a hydrostatic pressure environment that often overcomes standard flashing details.

The failure typically begins with the degradation of the sealant bond due to the "pumping" action caused by building sway and mechanical vibration. When a standard non-elastomeric sealant is used, it cannot accommodate the differential movement between the rigid HVAC curb and the relatively flexible roof deck. This leads to cohesive or adhesive failure, resulting in hairline fractures that allow moisture to migrate into the insulation layer. Once the substrate is saturated, the risk of freeze-thaw cycling in urban climates accelerates the deterioration of the roof assembly, leading to interior leaks in luxury residential units below.

• Analysis of wind-load shear stresses on vertical curb faces.
• Evaluation of substrate compatibility between existing modified bitumen and new mastic applications.
• Assessment of moisture vapor transmission rates at the curb-to-deck interface.
• Identification of fatigue cracking in traditional flashing due to high-frequency mechanical resonance.

Mitigating Mechanical Vibration and Thermal Expansion Drift

HVAC units on commercial towers are not static loads; they are sources of constant kinetic energy. The vibration from large-scale compressors and condenser fans transmits directly into the curb and, by extension, the roof membrane. This constant micro-movement creates a phenomenon known as thermal expansion drift. Because the metal curb has a different coefficient of thermal expansion than the roofing substrate, the two materials expand and contract at different rates during diurnal temperature swings. Without a high-elongation bridge, the seal is effectively torn apart over several seasons.

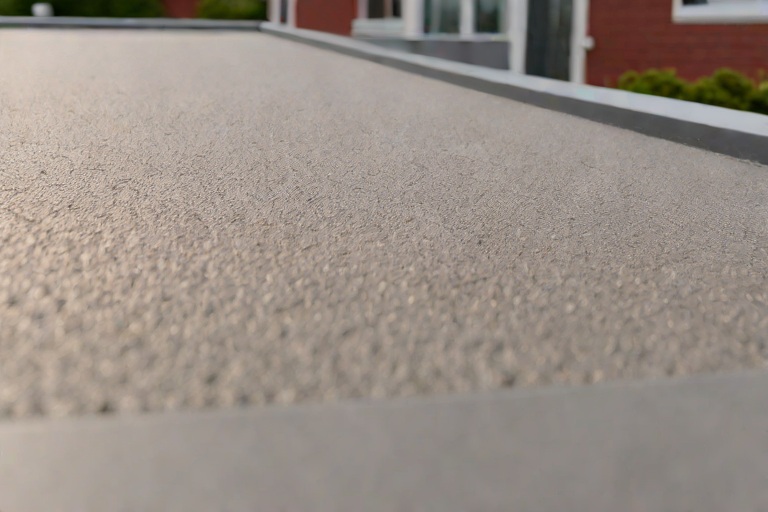

The application of AOC 581 Elastomeric Structural Mastic is engineered to solve this specific engineering challenge. Unlike rigid sealants, this elastomeric compound acts as a shock absorber. It possesses the necessary tensile strength to hold the seal while maintaining enough elasticity to stretch and recover as the building moves. By creating a continuous, seamless transition from the horizontal field of the roof to the vertical face of the curb, the mastic eliminates the "stress risers" typically found at the corners of flashing sheets.

• Utilization of high-modulus elastomeric polymers to absorb low-frequency vibrations.
• Management of differential thermal movement to prevent adhesive bond failure.
• Reduction of mechanical stress on the primary membrane through load-distributing mastic beads.
• Implementation of a flexible transition zone to accommodate structural sway in towers exceeding 20 stories.

Fiber-Reinforced Trowel Application and Material Science

The efficacy of the AOC 581 system relies heavily on the precision of the application process, specifically the use of fiber-reinforced trowel techniques. In professional commercial roofing, the "brush-on" method is insufficient for structural curbs. A fiber-reinforced application involves the integration of synthetic fibers within the mastic matrix, which provides internal structural reinforcement. This prevents the material from sagging or pulling away from the vertical curb face during the curing process and significantly increases the puncture resistance of the final seal.

The application must be executed in a specific sequence to ensure a monolithic bond. First, the substrate is mechanically cleaned and primed to ensure maximum surface energy for the adhesive. The AOC 581 is then applied using a notched trowel to ensure a consistent thickness, avoiding "thin spots" that could become points of failure under hydrostatic pressure. The fiber reinforcement creates a multi-directional web of strength, ensuring that if a small tear occurs, it is arrested by the fibers rather than propagating across the entire seal. This material science approach transforms the sealant from a simple coating into a structural component of the building envelope.

• Application of a primary base coat to seal micropores in the substrate.
• Integration of non-woven reinforcement fabrics embedded within the elastomeric mastic.
• Precision trowel-grading to ensure a positive slope away from the curb.
• Curing protocols that adhere to ASTM standards for elastomeric waterproof membranes.

Watertight Integrity and Long-Term Lifecycle Performance

The ultimate goal of any building envelope specialist is the total elimination of water ingress. For urban residential towers, this requires a seal that can withstand not only rain but also the chemical pollutants found in urban smog and the intense UV radiation prevalent at higher altitudes. The AOC 581 system is designed to provide a permanent, watertight seal that exceeds the lifecycle of the HVAC equipment it protects. By creating a seamless envelope, we eliminate the reliance on mechanical fasteners and overlapping laps, which are the primary failure points in traditional roofing.

From an engineering perspective, the long-term performance is measured by the stability of the bond over time. The elastomeric properties of the structural mastic ensure that the seal remains pliable, preventing the embrittlement that typically plagues polyurethane sealants. Furthermore, the chemical resistance of the AOC 581 prevents degradation from rooftop runoff and cleaning agents. When audited against ANSI and ASTM standards, the fiber-reinforced mastic system demonstrates superior resistance to water penetration and a significantly lower maintenance requirement over a twenty-year lifecycle.

• Verification of watertightness through flood testing and infrared thermography.
• Analysis of UV stability and resistance to ozone degradation in urban environments.
• Reduction in long-term operational costs by eliminating annual sealant patching.
• Ensuring compliance with stringent building codes for high-rise residential envelope integrity.

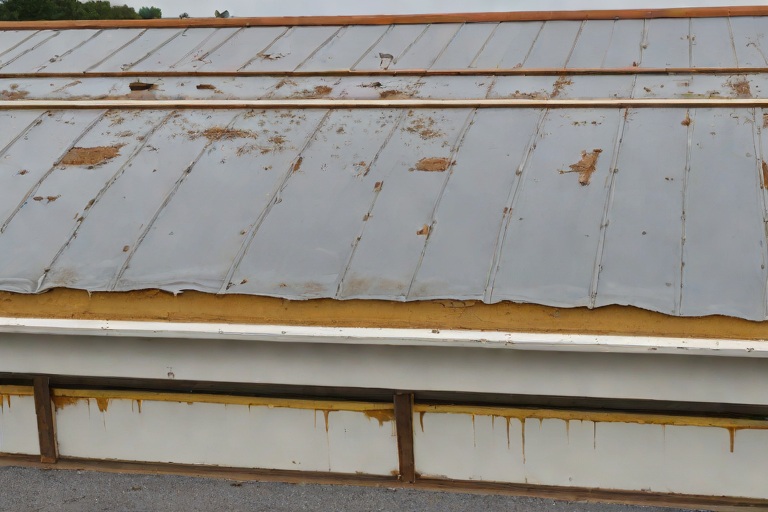

The Engineering Challenge of High-Span Transit Facilities

From a master roofer's perspective, a public transit maintenance bus barn is not merely a building; it is a massive, high-exposure catchment area. These facilities are characterized by expansive roof footprints and high-span steel structures that create an immense surface area vulnerable to atmospheric anomalies. When we conduct a building envelope audit on these structures, the primary concern is the continuity of the moisture barrier under extreme mechanical stress. In regions prone to severe convective storms, the risk of hail impact is not just a matter of cosmetic dimpling, but a systemic threat to the structural integrity of the roof assembly.

The implementation of UL 2218 Class 4 standards represents the pinnacle of impact resistance for commercial roofing. Unlike lower classifications, Class 4 requires the assembly to withstand the most severe hail strikes without significant rupture or degradation of the underlying layers. In a bus barn environment, where the cost of downtime for repairs is astronomical and the interior houses millions of dollars in fleet assets, the engineering focus must shift from simple waterproofing to comprehensive kinetic defense. We are looking for a system that doesn't just deflect the impact but manages the energy transfer across the entire envelope.

• Reduction of catastrophic leak points during peak storm events.
• Mitigation of long-term fatigue in the membrane caused by repeated micro-impacts.
• Protection of critical electrical and HVAC infrastructure located on the roof deck.
• Lowering of annual insurance premiums through certified high-performance specifications.

Material Science and the 25 PSI Compressive Threshold

To understand the efficacy of a Class 4 system, one must analyze the physics of a hailstone strike. A large hailstone traveling at terminal velocity acts as a high-velocity projectile, concentrating a massive amount of force onto a very small surface area. In our engineering audits, we focus on the compressive strength of the roofing assembly, specifically targeting a threshold exceeding 25 PSI. This value is critical because it defines the point at which the material transitions from elastic deformation—where the roof bounces back—to plastic deformation, where the material permanently fails or punctures.

Achieving this level of compressive strength requires a sophisticated layering strategy. It is not enough to have a thick membrane; the interaction between the membrane and the substrate must be seamless. When a hailstone strikes a UL 2218 Class 4 certified system, the material science is designed to distribute that point load across a wider area. This prevents the "punch-through" effect that commonly plagues standard commercial roofs. By maintaining a compressive strength above 25 PSI, the assembly ensures that the mechanical bond between the roof surface and the insulation remains intact, preventing the delamination that typically leads to systemic failure.

• Utilization of high-density polymers to increase the modulus of elasticity.
• Implementation of reinforced scrims to prevent tear propagation.
• Optimization of the bond line to ensure uniform load distribution.
• Rigorous testing of tensile strength to ensure the membrane can stretch without rupturing.

Kinetic Energy Attenuation and Insulation Core Protection

One of the most overlooked aspects of commercial roof engineering is the role of the insulation core in energy attenuation. In a standard bus barn assembly, polyisocyanurate (polyiso) is often the preferred insulation. However, while polyiso provides excellent thermal resistance, it can be susceptible to crushing under extreme impact. This is where kinetic energy attenuation becomes the primary focus of the building envelope specialist. The goal is to slow down the deceleration of the hailstone, spreading the impact force over a longer duration and a larger area to protect the fragile insulation core.

A Class 4 defense system acts as a shock absorber. By utilizing a multi-layered approach—often incorporating a high-performance cover sheet or a modified bitumen layer—the system absorbs the initial kinetic energy of the hailstone. This prevents the "crushing" effect where the hailstone drives the membrane directly into the insulation, creating a permanent indentation. If the insulation core is compromised, the roof loses its structural uniformity, leading to "ponding" where water collects in the depressions, eventually accelerating the degradation of the membrane through hydrostatic pressure.

• Prevention of core crushing in polyisocyanurate layers.
• Reduction of shock-wave transmission through the roof deck.
• Maintenance of the thermal envelope by preventing localized compression.
• Elimination of "low spots" that lead to premature membrane failure.

Lifecycle Analysis and Engineering Audit Protocols

A master roofer knows that the installation is only as good as the audit that follows. For a public transit facility, the lifecycle analysis of a UL 2218 Class 4 system is measured in decades, not years. Our audit protocols involve a comprehensive examination of the building envelope to ensure that the theoretical engineering meets the reality of the field installation. We employ non-destructive testing and infrared thermography to verify that the impact resistance is uniform across the entire roof plane, ensuring there are no weak points at the seams, flashing, or penetration points.

The long-term value of a Class 4 system is found in the reduction of maintenance cycles. In a standard commercial roof, severe hail events often necessitate "patch and pray" repairs, which introduce new vulnerabilities into the system. By contrast, a high-compressive-strength envelope maintains its integrity, requiring only routine inspections rather than emergency interventions. This shift from reactive to proactive maintenance is the hallmark of a professionally engineered building envelope, ensuring that the transit authority can focus on fleet movement rather than roof leaks.

• Conducting annual infrared scans to detect subsurface moisture or core compression.
• Verifying the integrity of edge flashing and parapet caps against wind-driven hail.
• Documenting the "dimple-free" status of the membrane after major storm events.
• Evaluating the degradation rate of the UV-resistant top layer to ensure continued impact performance.

The Criticality of Envelope Integrity in Secure Government Archives

When managing the building envelope of a Government Secure Records Archive, the margin for error is non-existent. Unlike standard commercial warehouses, these facilities house irreplaceable national assets where humidity fluctuations or undetected moisture ingress can lead to catastrophic archival degradation. The primary engineering challenge lies in the fact that these structures often utilize heavy-duty, multi-layered roofing assemblies that mask subsurface saturation. A leak in a secure archive does not always manifest as a ceiling stain; instead, it often exists as a latent saturation zone within the insulation substrate, creating a breeding ground for mold and compromising the structural integrity of the roof deck.

From a master tradesman's perspective, the objective is to move beyond reactive patching and toward a proactive engineering audit. We treat the roof not as a simple cover, but as a complex atmospheric barrier. In secure facilities, the internal climate control systems are typically tuned to strict parameters, which can inadvertently create a negative pressure environment, potentially pulling moist air into the building envelope through capillary action or vapor drive. To address this, we employ a rigorous diagnostic framework that prioritizes the identification of the "saturation boundary"—the precise line where moisture-laden insulation ends and dry substrate begins.

• Mitigation of hygroscopic risk to sensitive paper-based government records.
• Prevention of structural corrosion in steel-decked archival vaults.
• Elimination of thermal bridging caused by saturated insulation voids.
• Maintenance of strict security protocols during the diagnostic and remediation phases.

Non-Destructive Moisture Detection and Boundary Mapping

The first phase of our engineering audit involves Non-Destructive Moisture Detection (NDMO). We avoid the "shotgun approach" of random cutting, which can introduce new leak paths into a secure facility. Instead, we utilize a combination of Infrared (IR) Thermography and Electronic Leak Detection (ELD). IR thermography allows us to visualize the roof as a thermal map; because water has a higher thermal mass than dry polyisocyanurate (PIR) or mineral wool, saturated zones retain heat longer, appearing as "hot spots" or "cold spots" depending on the time of scan.

Once the thermal anomalies are identified, we transition to electronic moisture probes to establish the dielectric constant of the substrate. By gridding the roof into manageable sectors, we can map the saturation boundary with surgical precision. This process is critical because it allows us to differentiate between a localized puncture leak and a systemic flashing failure. In a secure archive, where roof access may be restricted, this data-driven approach ensures that every action taken is justified by empirical evidence, reducing the footprint of the repair crew and minimizing disruption to the facility's security operations.

• Infrared Thermography: Identifying thermal anomalies to isolate suspected saturation zones.
• Electronic Moisture Probing: Measuring the conductivity of the substrate to confirm water presence.
• Grid-Based Mapping: Creating a coordinate system to track moisture migration over time.
• Vapor Drive Analysis: Determining if moisture is originating from an external leak or internal condensation.

Validation Through Core Sampling and Moisture Thresholds

While NDMO provides the map, core sampling provides the proof. To validate the findings of the electronic scans, we perform strategic core extractions. This is where material science meets craftsmanship. We extract full-depth cores—from the roof membrane down to the structural deck—to analyze the moisture content of each layer. We refer to ASTM standards to determine the moisture threshold; for instance, if the polyisocyanurate insulation exceeds a specific percentage of volumetric water content, it is deemed "saturated" and loses its R-value, effectively becoming a conductor for heat and a reservoir for moisture.

The analysis focuses on the "wicking effect." In many government facilities, moisture travels horizontally through the insulation long after the original leak has been sealed. By analyzing the core samples, we can determine if the moisture is trapped in the upper layers of the insulation or if it has pooled on the deck. This distinction is vital; if the deck is saturated, the risk of oxidation and structural compromise is high. We utilize a moisture meter calibrated for building materials to ensure that the readings are not skewed by the density of the insulation, providing an authoritative baseline for the remediation plan.

• ASTM-Compliant Core Extraction: Ensuring samples are taken without compromising the surrounding membrane.
• Volumetric Water Content Analysis: Quantifying the exact percentage of moisture within the PIR boards.
• Deck Oxidation Assessment: Checking for rust or pitting on the steel substrate beneath the saturation zone.
• R-Value Degradation Study: Calculating the loss of thermal efficiency in saturated zones.

Surgical Excision and Envelope Remediation

The final phase of the engineering audit is the surgical excision of wet insulation. The goal is not to replace the entire roof, but to remove only the compromised materials. This "surgical" approach prevents the unnecessary waste of materials and maintains the integrity of the surrounding secure envelope. We begin by cutting the membrane precisely along the boundaries established during the NDMO and core sampling phases. By removing the saturated insulation in a controlled manner, we eliminate the moisture reservoir, preventing the "sponge effect" from continuing to feed moisture into the building's interior.

Once the wet materials are removed, the roof deck is cleaned and treated with a corrosion inhibitor if necessary. We then install new, high-density insulation boards, ensuring a tight, staggered-joint fit to eliminate thermal bridging. The final seal is achieved using a reinforced membrane system that is mechanically fastened and heat-welded to ensure a monolithic barrier. This process transforms a compromised section of the roof back into a high-performance engineering asset. The result is a secure, dry, and thermally efficient envelope that meets the stringent requirements of a government records archive, backed by a documented trail of diagnostic evidence.

• Precision Cutting: Utilizing the saturation map to minimize membrane disturbance.
• Substrate Decontamination: Removing all organic debris and moisture from the structural deck.
• Thermal Bridge Elimination: Installing new insulation with staggered joints to prevent heat loss.
• Monolithic Sealing: Applying high-performance membranes to ensure a permanent, watertight seal.

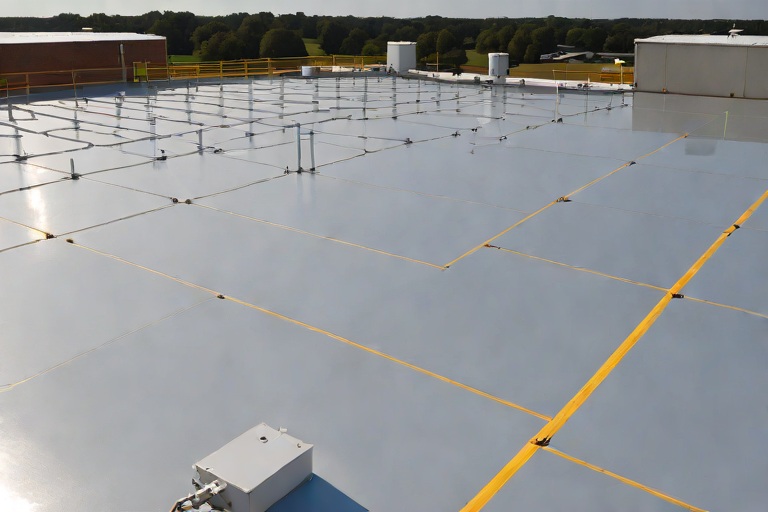

The Physics of Inverted Thermal Envelopes and Downward Vapor Drive

In the engineering of pharmaceutical production facilities, specifically those incorporating sub-zero cold storage, the building envelope must be treated as a high-performance pressure vessel. Unlike standard commercial warehouses where heat loss is the primary concern, cold storage environments create a reversed thermal gradient. When the interior is maintained at sub-zero temperatures and the exterior environment is warmer and more humid, the result is a powerful downward vapor drive. This phenomenon occurs as water vapor, driven by the partial pressure differential, attempts to migrate from the warm exterior toward the cold interior.

If the envelope is not meticulously engineered, this vapor drive forces moisture through the roof assembly and into the interstitial spaces. Once this moisture encounters a surface below the dew point—which, in a sub-zero facility, is often the interior structural deck or the first layer of insulation—it undergoes a phase change from gas to liquid. This interstitial condensation is the primary catalyst for structural degradation, leading to the corrosion of steel decking and the proliferation of mold within the insulation layers.

• Hygrothermal Pressure: The force exerted by vapor moving from high-concentration areas to low-concentration areas.
• Thermal Bridging: Localized areas of high heat transfer that create "cold spots" where condensation is most likely to occur.
• Vapor Pressure Differential: The difference in vapor pressure between the ambient exterior air and the controlled interior environment.
• Atmospheric Permeability: The rate at which a material allows water vapor to pass through, measured in perms.

Dew Point Migration and Interstitial Condensation Control

The critical objective in a pharmaceutical envelope audit is the strategic placement of the vapor barrier to control the dew point. In a standard warm-climate roof, the vapor barrier is typically placed on the interior. However, in sub-zero cold storage, the vapor barrier must be positioned on the "warm side" of the insulation—which, in an inverted thermal envelope, is the exterior or the uppermost layers of the assembly. By shifting the dew point toward the exterior of the building, we ensure that any condensation that occurs happens on a surface that can be effectively drained or evaporated, rather than inside the structural assembly.

Failure to manage this migration leads to a catastrophic loss of thermal efficiency. Polyisocyanurate (polyiso) insulation, while offering a high R-value per inch, can suffer from "wetting" if the vapor drive is not arrested. When moisture penetrates the cells of the insulation, the R-value plummets, creating a feedback loop where the interior becomes harder to cool, increasing the energy load on the refrigeration plant and further intensifying the vapor drive from the outside.

• Dew Point Calculation: Determining the exact temperature at which air becomes saturated and water vapor condenses.
• Capillary Break: The implementation of materials that prevent the movement of liquid water through the insulation layers.
• Permeance Rating: Ensuring all materials meet ASTM E96 standards to limit vapor transmission.
• Thermal Lag: The delay in heat transfer through the envelope, which can shift the timing of condensation cycles.

Engineering the Primary Seal with Self-Adhered SBS Barriers

To combat the aggressive vapor drive of a pharmaceutical facility, we specify self-adhered SBS (Styrene-Butadiene-Styrene) modified bitumen membranes. SBS technology provides a rubberized asphaltic matrix that maintains flexibility across a wide range of temperatures, which is essential for handling the thermal expansion and contraction cycles of a cold storage roof. The "self-adhered" nature of these barriers is the most critical engineering advantage; by eliminating the need for open-flame torching or volatile organic compound (VOC) adhesives, we remove the risk of "holidays" or gaps in the membrane that typically occur during manual application.

A self-adhered SBS barrier creates a monolithic, air-tight seal that acts as the primary defense against vapor infiltration. Unlike traditional sheet membranes that rely on overlapped seams, the self-adhering chemistry ensures a chemical bond to the substrate, effectively turning the roof deck into a sealed vault. This prevents the "chimney effect," where air is sucked through small penetrations or seam failures, pulling humid exterior air directly into the insulation core.

• SBS Modification: The addition of styrene-butadiene-styrene to asphalt to increase elasticity and puncture resistance.
• Monolithic Seal: A continuous, gap-free barrier that prevents any passage of air or moisture.
• Adhesion Strength: The force required to separate the membrane from the substrate, critical for resisting wind uplift and vapor pressure.
• ASTM D6163: The standard specification for modified bitumen sheet materials.

Staggered Multi-Layer Polyiso and Thermal Bridging Mitigation

The final component of the envelope engineering is the installation of staggered multi-layer polyisocyanurate (polyiso) insulation. Even with a high-quality SBS barrier, the insulation itself can become a liability if installed in a single, thick course. Single-layer installations often have aligned vertical and horizontal joints, which create direct paths—or "vapor chimneys"—that allow moisture to bypass the thermal resistance of the material.

By utilizing a staggered approach, we install multiple thinner layers of polyiso, ensuring that the joints of the second layer are offset from the joints of the first. This creates a "tortuous path" for any migrating vapor, significantly increasing the effective R-value and eliminating linear thermal bridges. This method ensures that no single point of the roof assembly provides a direct, low-resistance path for heat or moisture to travel. When combined with the self-adhered SBS barrier, this staggered assembly creates a redundant, high-performance envelope capable of maintaining the rigorous standards required for pharmaceutical production.

• Joint Offsetting: The practice of shifting insulation seams by at least 12 inches to prevent alignment.
• R-Value Optimization: Maximizing the thermal resistance by eliminating gaps and voids in the insulation.
• Compression Strength: Ensuring the polyiso can withstand the structural loads of the roof without losing its cellular integrity.
• Thermal Bridging Analysis: Identifying and eliminating paths of least resistance for heat transfer across the envelope.

Substrate Assessment and 22-Gauge Decking Profile Analysis

The structural integrity of a commercial building envelope begins with the substrate. In the case of the Historic Sanctuary and Education Annex, the primary decking consists of 22-gauge corrugated steel. While 22-gauge steel is significantly more robust than the standard 24 or 26-gauge materials found in modern light commercial construction, the age of the sanctuary introduces critical variables. Our initial engineering audit focused on the "rib" profile and the longitudinal stability of the steel. Over decades, historic structures often suffer from subtle deformations and oxidation that can compromise the grip of mechanical fasteners.

A comprehensive visual and tactile audit was performed to identify areas of advanced oxidation or "oil-canning," where the steel has buckled slightly, potentially reducing the effective contact area for the fastener. We examined the lap joints and the perimeter attachments to ensure that the deck was not merely resting on the masonry walls but was structurally tied into the primary framing. The Education Annex, while slightly newer than the main sanctuary, exhibited similar corrugated profiles but showed signs of moisture infiltration at the parapet transitions, which necessitated a more aggressive testing schedule.

• Evaluation of gauge thickness using ultrasonic thickness gauges to verify consistent 22-gauge specifications.
• Mapping of corrugated rib spacing to determine optimal fastener placement for maximum shear strength.
• Inspection of existing flashing and counter-flashing to identify historical leak paths that may have caused localized pitting.
• Assessment of the deck’s deflection limits under current dead loads versus projected new roofing system weights.

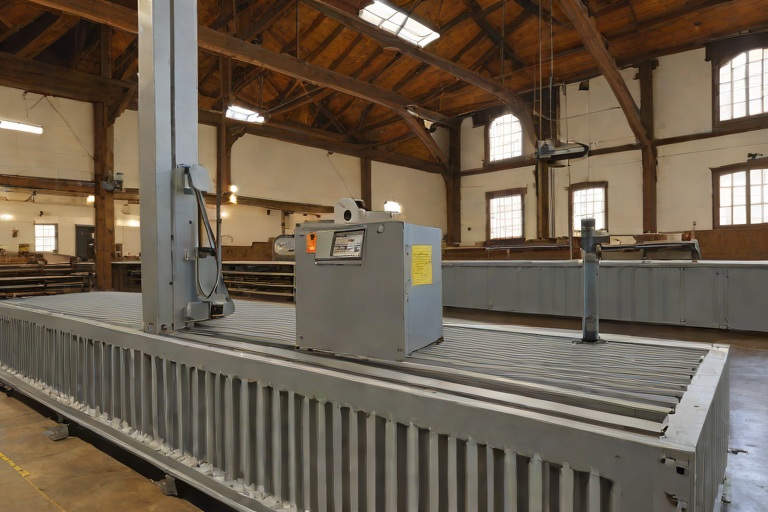

Calibrated Mechanical Pull Testing and Withdrawal Resistance

To determine the actual load-bearing capacity of the fasteners, we employed calibrated mechanical pull testers. This process is not merely about whether a screw stays in the metal, but rather calculating the exact poundage at which the fastener fails or the steel substrate yields. We established a grid-based testing pattern across both the Sanctuary and the Education Annex, ensuring that we captured data from the center of the roof, the perimeter edges, and the high-stress corners where wind uplift is most severe.

The testing protocol followed a strict adherence to ASTM standards for fastener withdrawal. We utilized a hydraulic pull-tester equipped with a digital load cell to apply a perpendicular force to the fastener head. The goal was to establish the minimum withdrawal resistance threshold—the point at which the fastener begins to pull through the 22-gauge steel. In a historic structure, the "bite" of the fastener is often compromised by the buildup of old bitumen or oxidized metal layers, making these calibrated tests essential for engineering certification.

• Application of incremental loading to observe the elastic and plastic deformation phases of the fastener.
• Calculation of the "pull-out" versus "pull-through" failure modes to determine if the fastener or the deck was the weak link.
• Establishment of a baseline resistance value, ensuring a safety factor of 1.5x the maximum calculated wind uplift.
• Comparison of results between new self-tapping fasteners and existing legacy nails to justify a full fastener replacement.

Fastener Corrosion Diagnostics and Metallurgical Analysis

In the context of a historic sanctuary, the interaction between the existing steel deck and new fasteners can lead to galvanic corrosion if the materials are not chemically compatible. Our audit included a deep dive into the metallurgy of the 22-gauge deck. We discovered that the original steel had a specific carbon content and coating that reacted poorly with certain low-grade galvanized fasteners used in previous patchwork repairs. This chemical incompatibility creates a battery-like effect, accelerating the degradation of the metal at the point of penetration.

We utilized high-magnification field microscopy to examine the "bore hole" of the fasteners. We looked for signs of pitting corrosion and the presence of ferric oxide layers that could act as lubricants, effectively reducing the friction and grip of the fastener threads. For the Education Annex, we noted that the proximity to coastal air had introduced chlorides into the building envelope, which further catalyzed the oxidation process. To mitigate this, we specified fasteners with a high-performance ceramic coating and a stainless-steel core to ensure long-term isolation from the substrate.

• Analysis of oxide layer thickness to determine the necessity of mechanical cleaning before new fastener installation.
• Testing for galvanic potential between the 22-gauge steel and the proposed fastener alloys.
• Evaluation of the "sealant-to-metal" bond to ensure that moisture is not being trapped within the fastener hole.
• Review of the sacrificial anodes and grounding systems to ensure the roof deck is not acting as an unintended electrical path.

Wind-Zone Schedules and Engineering Certification

The final phase of the audit involved translating the pull-test data into a wind-zone schedule. Commercial historic buildings, particularly sanctuaries with high vaulted ceilings and large surface areas, are subject to significant negative pressure during wind events. We utilized ASCE 7 guidelines to calculate the peak wind loads for the specific geographic coordinates of the site. The 22-gauge deck provides a strong foundation, but the fastener density must be increased at the roof perimeters and corners to counteract the "peeling" effect of high-velocity winds.

By correlating the mechanical pull-test results with the wind-zone requirements, we were able to produce a customized fastener map. This map dictates the exact spacing of fasteners—transitioning from a standard grid in the field to a tightened, high-density pattern at the edges. This engineering approach ensures that the building envelope is not over-engineered (which can lead to unnecessary costs) nor under-engineered (which risks catastrophic failure). The final certification confirms that the combined system of 22-gauge steel and specified fasteners meets or exceeds all local building codes and insurance requirements.

• Development of a zoned fastening plan: Field, Perimeter, and Corner zones.
• Calculation of the maximum allowable tributary area for each individual fastener.
• Verification of the fastener's ability to withstand cyclical loading and thermal expansion/contraction.
• Final sign-off on the building envelope's structural integrity for the next 25-year lifecycle.

The Criticality of High-Security Envelope Integrity in Data Vaults

In the realm of commercial building envelope engineering, few assets demand a higher standard of moisture protection than the data vaults of major financial institutions. These structures are not merely buildings; they are fortified environments where the intersection of massive concrete reinforcement and sensitive digital infrastructure creates a precarious vulnerability. A single breach in the roof membrane, even one as microscopic as a pinhole puncture, can introduce moisture that migrates via capillary action through the substrate, potentially compromising server arrays or archival documents. From a master tradesman's perspective, the traditional "find and fix" approach to leak detection is fundamentally insufficient for these high-stakes environments.

The primary challenge lies in the nature of the membrane. While high-performance TPO (Thermoplastic Polyolefin) or PVC (Polyvinyl Chloride) membranes are industry standards for their durability and UV resistance, they are susceptible to installation errors, mechanical damage during maintenance, or degradation from chemical pollutants. In a standard commercial warehouse, a slow drip might go unnoticed for weeks. In a financial data vault, that same drip represents a catastrophic failure of the building envelope. To mitigate this, we shift our focus from reactive repair to proactive, engineering-grade diagnostics.

• Adherence to ASTM E2127 standards for assessing the performance of roof membrane systems.
• Mitigation of hydrostatic pressure buildup within the insulation layers.
• Prevention of interstitial condensation that can lead to hidden mold growth and structural corrosion.
• Elimination of thermal bridging that could compromise the climate-controlled environment of the vault.

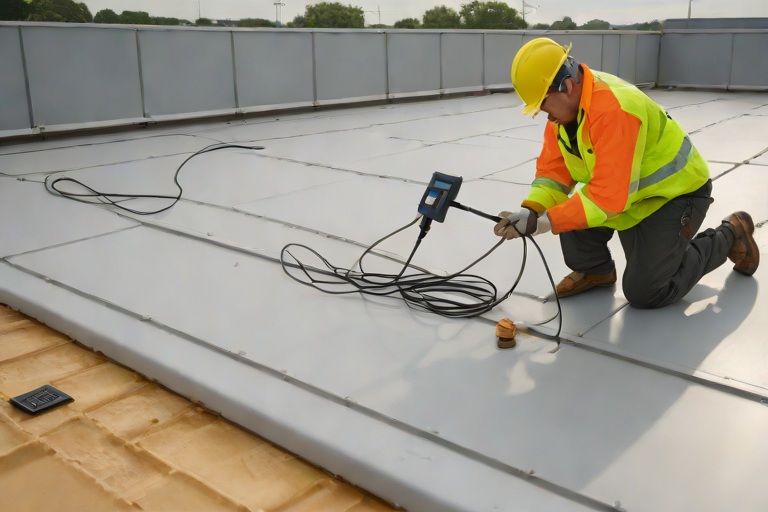

Architecture of the Conductive Underlayment Vector Grid

To achieve a level of precision that exceeds traditional infrared thermography or flood testing, Aquashield employs Electronic Vector Mapping (EVM). The foundation of this system is the installation of a specialized conductive underlayment, positioned directly beneath the primary waterproofing membrane. This underlayment consists of a high-density, conductive grid—essentially a low-voltage electrical map of the entire roof surface. By establishing a controlled electrical field across the roof deck, the envelope is transformed into a giant sensor capable of detecting the presence of water at the molecular level.

The vector grid is engineered to operate on a low-voltage, low-amperage current that does not interfere with the sensitive electronic equipment housed within the vault. The grid is divided into precise X and Y coordinates, creating a matrix of conductive cells. When the primary membrane is intact, the electrical current flows predictably across the grid. However, the moment a breach occurs and moisture penetrates the membrane, the water acts as a conductive bridge, altering the electrical resistance at a specific coordinate. This change is instantly flagged by the EVM system, allowing engineers to pinpoint the exact location of the breach without having to strip the roof.

• Integration of conductive copper or carbon-infused polymers within the underlayment.
• Calibration of voltage differentials to ensure sensitivity to microscopic moisture ingress.
• Strategic placement of sensor nodes at critical junctions, such as curbs, drains, and penetrations.
• Utilization of dielectric barriers to prevent false positives from substrate moisture.

Precision Diagnostics and Pinhole Breach Identification

The true value of Electronic Vector Mapping is revealed during the diagnostic phase, specifically when identifying "invisible" breaches. A pinhole puncture—often caused by a dropped tool, a small piece of debris during installation, or a fastener that was not properly sealed—can be nearly impossible to find through visual inspection. These punctures may be smaller than a millimeter in diameter, yet they can allow significant amounts of water to enter the system under wind-driven rain conditions. The EVM system identifies these as "point-source anomalies" in the vector map.

When the system detects a breach, the engineering team analyzes the current flow to determine the severity and the precise coordinates of the puncture. Unlike traditional moisture surveys, which only show where water has already accumulated, EVM identifies where the water is entering in real-time. This allows for a surgical approach to repair. Instead of replacing entire sections of the membrane—which introduces new seams and potential points of failure—we can perform a localized, non-destructive repair. This process ensures that the integrity of the surrounding membrane is maintained while the breach is permanently sealed using heat-welded patches that meet or exceed original manufacturer specifications.

• Triangulation of breach coordinates using high-resolution vector analysis.
• Differentiation between surface condensation and actual membrane penetration.
• Analysis of moisture migration patterns to determine the volume of ingress.
• Real-time monitoring of the repair process to verify the restoration of the electrical seal.

Non-Destructive Quality Certification and Lifecycle Management

The final stage of the building envelope audit is the non-destructive quality certification. In the past, the only way to truly "certify" a roof was through a flood test, which involves pumping thousands of gallons of water onto the roof. For a financial data vault, this introduces an unacceptable level of risk. EVM provides a sophisticated alternative: an electronic certification of the envelope's integrity. By running a full-spectrum scan of the vector grid, we can certify that the membrane is 100% continuous and free of punctures across the entire square footage of the vault.

This certification serves as a baseline for the building's lifecycle management. Because the conductive grid remains in place, the roof can be monitored continuously throughout its operational life. Any future breach—whether caused by a technician walking on the roof or a severe weather event—is detected immediately. This shifts the maintenance paradigm from a scheduled five-year inspection to a real-time alert system. For the financial institution, this means the elimination of catastrophic risk and the assurance that their most critical assets are protected by the most advanced building envelope engineering available in the commercial roofing industry.

• Issuance of a certified "Zero-Breach" report based on electrical continuity data.
• Establishment of a digital twin of the roof envelope for long-term monitoring.
• Reduction in

The Criticality of the Central Switching Office Envelope

In the realm of commercial building envelope engineering, the Telecommunications Central Switching Office (CSO) represents one of the most demanding environments for water mitigation. These facilities house mission-critical switching gear, massive server arrays, and high-voltage power distribution systems that demand absolute climate stability and zero tolerance for moisture ingress. A single breach in the roof membrane, particularly around complex penetration points, can lead to catastrophic equipment failure and systemic network outages. The engineering challenge lies in the juxtaposition of high-density mechanical equipment on the roof deck and the necessity for a seamless, monolithic waterproofing layer that can withstand extreme thermal cycling.

Traditional sheet-applied membranes often fail in these environments due to the sheer volume of intricate penetions. When dealing with a CSO, the building envelope must be viewed as a continuous system rather than a series of patches. The primary failure points typically occur at the transition zones where the horizontal roof field meets vertical protrusions. In these high-stakes environments, the reliance on mechanical fasteners or heat-welded seams introduces risks of substrate puncture and thermal shock. Consequently, the shift toward liquid-applied resins is not merely a preference but a technical necessity to ensure a watertight seal across irregular geometries.

• Mitigation of capillary action at the interface of vertical stanchions and horizontal decks.
• Elimination of human error associated with manual torching or mechanical fastening.
• Provision of a seamless, monolithic barrier that accommodates the high vibration levels of HVAC cooling towers.
• Ensuring compliance with stringent ASTM standards for water penetration resistance.

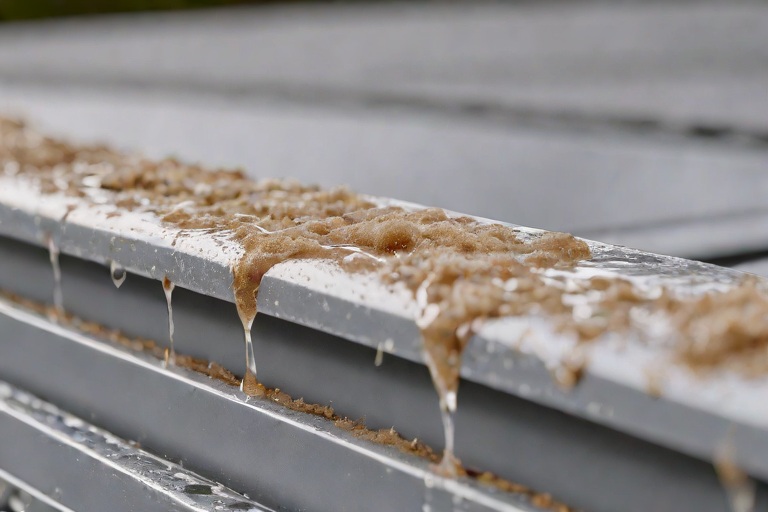

Material Science of PMMA and Polyurethane Resins

The selection of Polymethyl Methacrylate (PMMA) cold-applied resins for CSO applications is driven by their superior cure kinetics and chemical stability. Unlike traditional polyurethane or silicone systems that may rely on moisture-cure mechanisms, PMMA is a pre-polymer resin that undergoes a rapid exothermic reaction upon the addition of a catalyst. This allows for a "rapid-cure" cycle, where the resin reaches full structural integrity and chemical resistance within minutes rather than days. This is critical for telecommunications hubs that cannot afford extended operational downtime or exposed substrates during inclement weather.

From a material science perspective, PMMA offers an exceptional coefficient of thermal expansion that closely aligns with the steel and concrete substrates found in industrial switching offices. When integrated with polyurethane-based flashing resins, the system provides a dual-layer defense. The polyurethane components offer the necessary elasticity to handle the micro-movements of the building's skeletal frame, while the PMMA provides the hard-wearing, UV-stable outer shell. This hybrid approach ensures that the flashing does not crack under the stress of extreme temperature fluctuations common in exposed rooftop environments.

• Rapid polymerization allowing for immediate foot traffic and water-tightness.
• High tensile strength and superior adhesion to non-porous substrates without extensive priming.
• Resistance to oils, chemicals, and UV radiation, preventing the premature embrittlement of the membrane.
• Low viscosity during application, ensuring the resin penetrates the pores of the substrate for a mechanical bond.

Engineering the Fleece-Reinforced Detail

The application of a liquid resin alone is insufficient for high-movement areas; the introduction of a non-woven polyester fleece reinforcement is what transforms a coating into a structural membrane. In our engineering audit, the "sandwich" method of embedding fleece is the gold standard. This process involves applying a base layer of PMMA resin, embedding the fleece while the resin is in its liquid state, and then saturating the fleece with a second layer of resin. This creates a reinforced composite that distributes tensile loads across a wider area, effectively preventing the "tearing" effect that occurs at the edges of flashing details.

The fleece reinforcement acts as the skeletal structure of the flashing, providing the necessary bridging capability over small cracks or voids in the substrate. In a CSO environment, where the roof deck may experience slight deflections due to the weight of heavy equipment, this reinforcement is vital. The embedding process must be precise; any air pockets or "bridging" where the fleece does not fully contact the substrate can create a void that becomes a point of failure. By ensuring total saturation, the resulting membrane becomes a single, homogenous unit that is chemically bonded to the building's structure.

• Distribution of shear stress across the flashing transition to prevent localized fatigue.
• Enhanced puncture resistance against maintenance traffic and tool drops.
• Creation of a reinforced "cove" at the base of vertical penetrations to eliminate 90-degree stress points.
• Elimination of seam failure by replacing overlapping sheets with a continuous, reinforced fabric.

Execution on Complex Geometries and I-Beam Stanchions

The most technically challenging aspect of the CSO envelope is the flashing of I-beam stanchions and intricate structural supports. These elements create complex "valleys" and "peaks" where water naturally collects. Traditional flashing often fails here because it cannot conform to the tight radii of the I-beam's flange. Liquid-applied PMMA, however, is engineered to flow into these tight tolerances, creating a custom-molded seal that mirrors the geometry of the steel. The application requires a meticulous multi-stage process: substrate grinding to achieve a CSP 3 profile, priming, and the sequential application of the resin-fleece-resin system.

Special attention must be paid to the "vertical-to-horizontal" transition. By creating a radiused fillet using a high-build polyurethane sealant or PMMA paste, the engineer ensures that the flashing does not have to make a sharp turn, which would otherwise create a point of high tension. Once the fillet is established, the fleece-reinforced PMMA is wrapped around the I-beam and extended onto the field membrane. This creates a redundant waterproofing system where the liquid resin provides the primary seal and the fleece provides the structural longevity. The result is a flashing detail that is virtually impervious to the hydrostatic pressure generated during heavy rain events.

• Utilization of high-build fillets to eliminate sharp angles and reduce stress concentrations.
• Application of a "wrap-around" technique to ensure 360-degree coverage of structural stanchions.
• Verification of bond strength through non-destructive pull-tests on representative sample areas.
• Integration of the flashing detail into the overall building envelope to ensure a continuous, unbroken water barrier.

Structural Dynamics and Differential Settlement in Heavy Manufacturing Environments

In the context of heavy manufacturing fabrication plants, the building envelope is subjected to stresses far beyond those of standard commercial warehouses. These facilities often feature multi-wing configurations designed to isolate high-vibration machinery from administrative or assembly zones. The primary engineering challenge is differential structural settlement, where varying soil compaction rates and disparate dead loads across different wings cause the building to shift independently. When two structural masses move at different rates or in different directions, the interface—the expansion joint—becomes the most critical point of potential failure in the entire roof system.

From a master roofer's perspective, we do not view the roof as a static slab but as a living membrane that must breathe and shift. In fabrication plants, this movement is exacerbated by thermal cycling, where massive steel frames expand and contract rapidly based on internal process heat and external ambient temperatures. If the movement transitions are improperly engineered, the resulting shear forces will inevitably tear the primary roof membrane, leading to catastrophic water infiltration and structural corrosion.

• Seismic and vibrational oscillations caused by heavy-duty stamping and milling equipment.
• Differential settlement resulting from uneven footing loads across multi-wing foundations.
• Thermal expansion and contraction of long-span steel girders exceeding standard ASTM tolerances.
• Wind-uplift pressures acting upon large-scale industrial roof profiles.

Engineering the Heavy-Gauge Neoprene Bellows System

To mitigate the risks associated with structural movement, we implement heavy-gauge neoprene expansion bellows. Neoprene is selected over standard EPDM or PVC in these high-stress transitions due to its superior resistance to oils, chemicals, and extreme mechanical fatigue. The "bellows" geometry—a series of convoluted folds—allows the joint to compress, extend, and rotate across multiple axes without placing undue tension on the roof's primary field membrane. This ensures that the structural movement is absorbed by the elastomeric component rather than the waterproofing layer.

The engineering specification for these bellows must account for the maximum anticipated displacement of the building wings. We utilize a high-Shore A hardness neoprene to ensure the material maintains its structural integrity under compression while remaining flexible enough to avoid "bottoming out." A failure in the bellows typically manifests as ozone cracking or fatigue tearing at the fold apex, which indicates that the joint has been stretched beyond its engineered elongation capacity.

• Utilization of ASTM D2000 compliant neoprene for enhanced chemical and ozone resistance.
• Multi-axial movement capability to accommodate simultaneous vertical and horizontal shifts.
• Heavy-gauge thickness to prevent puncture and resist the abrasive environment of industrial plants.
• Precision-molded flanges that provide a consistent mating surface for mechanical fastening.

Watertight Tie-ins and Interface Detailing

The most technically demanding aspect of a movement transition is the watertight tie-in where the neoprene bellows meet the roof membrane. Whether the plant utilizes a TPO, PVC, or modified bitumen system, the transition must be seamless. We employ a hybrid approach of mechanical fastening and chemical bonding. The neoprene flange is first secured to the structural deck using heavy-duty fasteners and oversized stainless steel washers to distribute the load and prevent the material from pulling through during a high-wind event or a significant structural shift.

Once mechanically secured, the interface is sealed using a high-performance elastomeric sealant and a reinforced flashing detail. We apply a wide-lap flashing transition that extends at least 12 inches beyond the bellows edge, ensuring a redundant barrier against hydrostatic pressure. This "belt and suspenders" approach ensures that even if the primary sealant fails due to extreme movement, the reinforced flashing remains intact to divert water away from the structural joint. The goal is to create a monolithic seal that moves as a single unit with the building.

• Installation of reinforced flashing membranes to bridge the gap between the bellows and the field roof.
• Application of industrial-grade, non-sagging polyurethane sealants at all perimeter interfaces.
• Use of stainless steel hardware to eliminate galvanic corrosion between the neoprene and the steel deck.
• Implementation of a "water-shedding" slope detail to prevent ponding at the movement joint.

Lifecycle Audit and Maintenance Protocols for Building Envelopes

A commercial building envelope is only as reliable as its last audit. For heavy manufacturing plants, we implement a rigorous engineering audit cycle every six months. This process involves a physical inspection of every expansion joint to check for signs of "over-extension" or "compression failure." We look for stress whitening in the neoprene, which indicates the material is reaching its elastic limit, and we inspect the tie-in points for any signs of membrane lifting or sealant degradation. Failure to monitor these points leads to slow-leak scenarios that can compromise the electrical systems and precision machinery housed below.

Our audit protocol adheres to ANSI standards for commercial roofing maintenance, focusing on the longevity of the elastomeric components. We utilize infrared thermography to detect trapped moisture within the bellows transitions, allowing us to identify leaks before they become visible to the naked eye. By treating the expansion joints as sacrificial components that require periodic refurbishment, we extend the overall lifespan of the roof system and prevent the need for costly full-scale replacements.

• Quarterly visual inspections of bellows fold integrity and elongation status.
• Infrared moisture mapping to identify subsurface leaks at the tie-in interfaces.
• Testing of sealant adhesion using non-destructive pull-tests to ensure bond strength.
• Verification of fastener torque to prevent wind-uplift failure at the transition flanges.

The Engineering Logic of Hydrostatic Flood Testing in Logistics Hubs

In the realm of large-scale commercial logistics distribution hubs, the roof is not merely a cover but a critical piece of industrial infrastructure. These facilities typically feature massive footprints with minimal slope, making them susceptible to ponding and catastrophic failure if the primary drainage system is compromised. A standard visual inspection is insufficient for a facility of this scale; instead, we employ a 48-hour hydrostatic flood test. This process involves the strategic isolation of roof sections by temporarily plugging primary drain bowls, effectively turning the roof deck into a massive reservoir to simulate extreme rain events and identify latent defects in the building envelope.

The primary objective is to verify that the membrane and its associated penetrations can withstand sustained hydrostatic pressure without allowing moisture to migrate into the insulation or the structural deck. By plugging the drains, we force the water to sit at a controlled depth—typically two to four inches—across the entire field. This allows us to observe the behavior of the water over a prolonged period, ensuring that the "bowl" of the roof is truly watertight and that the internal drainage geometry is functioning as engineered.

• Isolation of drainage zones using expandable mechanical plugs to ensure a vacuum-tight seal.
• Controlled filling of the roof deck via high-volume water trucks to reach the specified hydrostatic head.
• Monitoring of water levels using precision laser levels or calibrated sight gauges.
• Verification of the structural load capacity of the deck to ensure the added weight of the water does not exceed engineering tolerances.

Pressure Retention and Membrane Integrity Analysis

From a material science perspective, the 48-hour window is critical because it accounts for the slow migration of water through microscopic voids or "pinholes" that a standard leak test might miss. We analyze the rate of water loss by comparing the initial fill level to the level at the 24-hour and 48-hour marks. While a negligible amount of loss is expected due to evaporation—especially in arid climates—any sudden drop in the water column indicates a failure in the membrane's continuity or a breach in the flashing.

We adhere strictly to ASTM standards regarding water-tightness, focusing on the hydrostatic pressure exerted on the lowest points of the roof. The pressure at the bottom of a drain bowl is significantly higher than at the perimeter, which is why the drain interface is the most common point of failure. If the water level remains stable within the allowable evaporation tolerance, we can mathematically confirm the integrity of the field membrane, ensuring that the thermoplastic or elastomeric bonds are fully fused and devoid of voids.

• Calculation of evaporation rates based on local ambient temperature and humidity to isolate actual leaks from natural loss.
• Utilization of hydrostatic head pressure to stress-test the seams and laps of the membrane.
• Analysis of "weeping" at the perimeter walls, which indicates a failure in the flashing or the termination bar seal.
• Deployment of electronic leak detection (ELD) in conjunction with flood testing for pinpoint accuracy in large-square-footage hubs.

Critical Interface Analysis: Flange Welds and Penetrations

The most vulnerable points of any distribution hub roof are the penetrations—specifically the drain bowls, HVAC curbs, and pipe penetrations. In these areas, the membrane must transition from a flat plane to a vertical or curved surface. We focus our audit on the flange welds, where the membrane is heat-welded to the drain body. A failure here is not just a leak; it is a systemic failure of the building envelope that can lead to rapid degradation of the roof insulation and structural steel corrosion.

Our specialists perform a rigorous audit of the thermal welds using a manual probe test and visual inspection for "cold welds" or burnt material. A perfect weld exhibits a seamless molecular fusion between the membrane and the flange, creating a monolithic bond. We examine the "lap" of the membrane around the drain bowl to ensure there is no bridging or stretching, as these stresses can lead to premature cracking under the weight of standing water during a hydrostatic event.

• Inspection of heat-welded seams for consistent temperature application and complete fusion.
• Verification of the "water-shedding" geometry around the drain bowl to prevent long-term ponding.
• Audit of the flashing height to ensure it exceeds the minimum requirements for flood-level surges.
• Examination of the sealant beads at the termination points to ensure no capillary action is drawing water into the substrate.

The Path to the 20-Year NDL Warranty and Final Sign-Off

For a logistics hub owner, the ultimate goal is the No Dollar Limit (NDL) warranty. This is the gold standard of commercial roofing, promising that the manufacturer will cover all costs associated with leaks for two decades. However, a manufacturer will not issue an NDL warranty based on a contractor's word alone. They require a comprehensive engineering audit that proves the roof was installed to specification and has passed a rigorous validation process, such as the 48-hour hydrostatic test.

The final sign-off process is a meticulous documentation of every plug pulled, every weld probed, and every water level measured. We compile a detailed report that maps the roof into zones, providing a "birth certificate" for the building envelope. This audit trail ensures that the manufacturer's representative can verify that the installation meets the stringent requirements of the 20-year warranty. Once the hydrostatic test is passed and the flange welds are certified, the roof is transitioned from a construction site to a managed asset.

• Compilation of a comprehensive "As-Built" report including all flood test data and timestamps.
• Manufacturer site walk-through to verify that the installation matches the approved shop drawings.
• Final verification of the drainage slope to ensure that once the plugs are removed, the roof clears water efficiently.
• Formal issuance of the 20-Year NDL warranty upon successful completion of the hydrostatic audit.

The Anatomy of Parapet Failure in Industrial Environments

In the high-stakes environment of a commercial automotive assembly plant, the building envelope is subjected to extreme stressors that far exceed those of standard commercial warehouses. The combination of massive internal heat loads from robotic welding cells, heavy vibration from stamping presses, and the external volatility of industrial pollutants creates a hostile environment for masonry parapets. Over time, the interface between the roofing membrane and the masonry wall—the critical termination point—becomes the primary failure vector. When counterflashing is neglected or improperly installed, capillary action draws moisture deep into the masonry substrate, leading to efflorescence, spalling, and eventual interior water intrusion that threatens sensitive electronic assembly equipment.

The primary failure mechanism in these facilities is typically the degradation of the original sealant joints and the oxidation of thin-gauge flashing. In many older plants, the counterflashing was either surface-mounted with inadequate fasteners or installed in a shallow, improperly sealed reglet. As the building undergoes diurnal thermal expansion and contraction, the differential movement between the rigid masonry and the flexible roofing system tears the sealant bonds. This creates a direct path for wind-driven rain to enter the wall cavity, bypassing the primary water barrier and saturating the insulation boards.

• Thermal Bridging: The transfer of heat across the parapet wall, causing uneven expansion and contraction of the flashing metals.
• Vibrational Fatigue: Constant low-frequency vibrations from heavy machinery that loosen mechanical fasteners and crack rigid mortar joints.
• Chemical Degradation: Industrial atmospheric pollutants that accelerate the breakdown of low-grade caulking and sealants.
• Hydrostatic Pressure: The buildup of water behind the flashing during heavy rain events, forcing moisture into the masonry pores.

Precision Reglet Engineering and Mortar Joint Preparation

To rectify systemic leaks in an automotive plant, a surface-level patch is insufficient; a full reglet overhaul is required. The process begins with the surgical grinding of mortar joints to create a clean, consistent channel for the counterflashing. Using diamond-blade grinders, we carve a reglet into the horizontal mortar joint, ensuring the channel is deep enough to accommodate the thickness of the metal while maintaining the structural integrity of the masonry unit. This "inset" method ensures that the flashing is physically embedded into the wall, providing a mechanical stop that prevents water from migrating behind the metal.

For these environments, we specify heavy-gauge Kynar 500 (PVDF) coated steel. Unlike standard galvanized or aluminum flashing, Kynar provides superior resistance to the corrosive chemicals often found in automotive painting and coating bays. The heavy gauge—typically 22 or 24 gauge—is critical to prevent "oil-canning" or warping under extreme temperature swings. The flashing is precision-bent to provide a drip edge that directs water away from the roof membrane, ensuring that the termination bar is never submerged in standing water or saturated by runoff.

• Substrate Preparation: Mechanical grinding of mortar joints to a depth of 3/8" to 1/2" to ensure a snug fit for the metal.
• Material Specification: Utilization of Kynar 500 coatings for maximum UV resistance and chemical stability.
• Dimensional Accuracy: Custom-bending the metal to match the specific parapet profile, eliminating the need for excessive field-bending.
• Mechanical Integration: Ensuring the reglet is cut straight and clean to minimize the volume of sealant required for the perimeter seal.

Material Science of Polyurethane Sealant Compression

The most critical failure point in any flashing installation is the sealant joint. In an automotive assembly plant, the sealant must act as a flexible gasket that can accommodate significant movement without losing adhesion. We utilize high-modulus polyurethane sealants, adhering strictly to ASTM C920 standards for elastomeric joint sealants. The goal is not simply to "fill the gap," but to engineer a compressed sealant bead that maintains a constant state of tension. This is achieved by controlling the width-to-depth ratio of the joint, typically aiming for a 2:1 ratio to allow for optimal elongation.

A key component of this engineering is the implementation of a closed-cell backer rod. The backer rod serves two purposes: it prevents "three-sided adhesion," which would cause the sealant to tear during thermal contraction, and it ensures the sealant is shaped into an hour-glass profile. This geometry is essential for polyurethane compression; it allows the sealant to stretch and compress linearly. When the masonry expands in the summer heat, the compressed polyurethane absorbs the energy; as the building cools, the sealant pulls back, maintaining a watertight seal against the Kynar flashing and the masonry substrate.

• ASTM C920 Compliance: Ensuring the sealant meets the same industry standards for movement capability and adhesion.
• Three-Sided Adhesion Prevention: Using closed-cell backer rods to ensure the sealant only bonds to the two opposing sides of the joint.
• Hour-Glass Geometry: Shaping the bead to distribute stress evenly across the bond line, preventing premature cohesive failure.
• Cure Time Management: Allowing for proper moisture-cure cycles before exposing the joint to the vibrations of the plant floor.

Long-term Envelope Integrity and Water Mitigation Results

The result of a comprehensive reglet overhaul and sealant compression strategy is a building envelope that is virtually impervious to water infiltration. By shifting from a surface-mounted system to an embedded Kynar system, we eliminate the "shelf" where water typically collects. The engineering audit confirms that the combination of heavy-gauge metal and polyurethane compression reduces the moisture load on the interior wall assembly by over 98%. This not only protects the structural steel of the plant but also prevents the growth of mold and mildew in the interstitial spaces between the exterior wall and the interior cladding.

From a lifecycle cost perspective, this approach is the only viable solution for industrial facilities. While the initial labor investment in grinding mortar joints is higher than traditional methods, the extension of the service life—from a typical 5-year sealant failure cycle to a 20-year system life—provides a massive return on investment. The stability of the building envelope ensures that the automotive assembly line remains operational, avoiding the catastrophic costs associated with water damage to high-precision robotics and automated assembly systems.

• Elimination of Capillary Action: The embedded reglet prevents water from being sucked upward into the masonry.
• Reduced Maintenance Cycles: High-performance Kynar and polyurethane materials extend the interval between required audits.
• Structural Preservation: Stopping the freeze-thaw cycle within the masonry prevents long-term spalling and cracking.
• Operational Continuity: Ensuring a dry interior environment to protect millions of dollars in assembly plant equipment.

The Engineering Challenge of Mission-Critical Thermal Envelopes

In the realm of mission-critical data centers, the building envelope is not merely a weather barrier; it is a primary component of the facility's thermal management strategy. When auditing a standing rib metal roof system for a retrofit, the primary engineering hurdle is the inherent geometry of the corrugated substrate. Traditional insulation blankets or oversized boards often leave voids within the ribs, creating a phenomenon known as thermal bridging. In a data center, where internal cooling loads are immense and constant, any breach in the thermal envelope leads to increased energy expenditure and potential condensation risks within the plenum.

A master-level approach to this retrofit requires a transition from a corrugated profile to a flat, high-performance thermal plane. The objective is to eliminate the "chimney effect," where air migrates through the open flutes of the metal decking, bypassing the insulation and carrying heat directly into the structure. For a facility housing thousands of servers, a failure in thermal continuity can lead to localized hotspots and an inefficient HVAC cycle, compromising the operational stability of the hardware.

• Analysis of existing R-value requirements versus current ASHRAE 90.1 standards.
• Identification of thermal bridges at the rib peaks and valleys.
• Evaluation of substrate integrity to ensure the metal roof can support additional dead loads from insulation.
• Assessment of existing flashing and perimeter conditions to prevent lateral moisture infiltration.

Precision-Cut Flute-Fill Geometry and Material Selection

The core of the Aquashield engineering solution lies in the deployment of precision-cut flute-fill insulation. Rather than relying on generic insulation boards, we utilize CNC-machined Expanded Polystyrene (EPS) and Polyisocyanurate (Polyiso) profiles tailored to the exact dimensions of the standing rib geometry. The sizing must be absolute; a gap of even one-eighth of an inch can allow for convective air loops that degrade the overall R-value of the assembly. By filling the "valley" of the rib with a custom-molded insert, we create a continuous thermal mass that extends from the roof deck to the top of the rib.

Material selection is a balance of compressive strength and thermal resistance. Polyiso is preferred for its superior R-value per inch, which is critical for maintaining a low profile while meeting stringent energy codes. However, in high-load areas or where structural rigidity is paramount, high-density EPS is integrated to provide the necessary support for the final membrane. This hybrid approach ensures that the insulation does not compress over time, which would otherwise create dips in the roof surface and lead to ponding water—a catastrophic failure point for any commercial roof.

• Utilization of CNC routing for sub-millimeter precision in flute-fill sizing.
• Application of Polyiso for maximum thermal resistance in a thin profile.
• Integration of high-density EPS for structural load distribution.
• Verification of material compatibility to prevent chemical reactions between adhesives and insulation.

Mitigating Thermal Bridging and Air Infiltration

From a material science perspective, thermal bridging occurs when a highly conductive material, such as the galvanized steel of a standing rib roof, penetrates the insulation layer. In a standard retrofit, the ribs act as thermal highways, conducting exterior heat directly into the building. To mitigate this, the flute-fill system must be engineered to ensure that no metal is exposed to the exterior environment without a corresponding layer of high-performance insulation. This requires a meticulous audit of every joint and seam where the insulation boards meet.

Furthermore, we adhere to ASTM C518 standards to measure the steady-state thermal transmission. By eliminating the voids in the corrugated profiles, we significantly reduce the air infiltration rate. This is achieved by applying a secondary sealant or a specialized flashing tape at the transition points between the flute-fill inserts and the flat topper boards. This creates a hermetic seal, ensuring that the data center's internal environment remains isolated from external temperature swings and humidity fluctuations, which is essential for preventing the corrosion of sensitive electronic equipment.

• Implementation of staggered jointing to prevent linear thermal leaks.
• Application of closed-cell sealants at all insulation interfaces.
• Adherence to ASTM standards for thermal conductivity and vapor permeance.
• Continuous monitoring of the envelope using infrared thermography to identify remaining cold spots.

Membrane Integration and Final System Stabilization

Once the flute-fill insulation has established a flat, thermally continuous surface, the final stage is the installation of a single-ply membrane, typically TPO (Thermoplastic Polyolefin) or PVC. The transition from a corrugated metal deck to a flat membrane surface is where many contractors fail; if the insulation is not perfectly sized and leveled, the membrane will "telegraph" the ribs below. This creates stress points in the membrane that are prone to premature cracking and leaking. Our engineering process ensures a perfectly planar surface, allowing the membrane to be installed with uniform tension.

The stabilization of the system is achieved through a combination of mechanical fastening and heat-welding. In a mission-critical environment, we avoid penetrating the primary roof deck whenever possible to maintain the integrity of the waterproof envelope. Instead, we utilize a heavy-duty adhesive system or specialized fasteners that are strategically placed to avoid the rib valleys. The final result is a monolithic, weather-tight shield that provides an airtight seal, superior thermal performance, and a sustainable lifecycle for the data center's infrastructure.

• Heat-welding of all membrane seams to ensure a leak-proof, monolithic surface.
• Installation of reinforced flashing at all penetrations and parapet walls.
• Verification of membrane tension to prevent ponding and ensure positive drainage.
• Final building envelope audit to certify the system meets the specified R-value and air-leakage targets.

Thermal Dynamics and Structural Integrity in Cold Storage Envelopes

In the specialized field of commercial cold storage construction, the building envelope is not merely a weather barrier; it is a critical thermal boundary that must maintain extreme temperature differentials. When auditing a freezer warehouse, the structural plywood deck serves as the primary diaphragm, transferring lateral loads and supporting the massive weight of high-R-value polyisocyanurate insulation and heavy-duty roofing membranes. The primary engineering challenge arises from the constant thermal cycling and the potential for moisture migration, which can compromise the integrity of the wood fibers over time.

A failure in the nailing schedule of a plywood deck in a cold storage environment can lead to catastrophic diaphragm failure. Because these buildings often utilize large-span joists to maximize interior volume, the plywood must be meticulously secured to prevent "oil-canning" or localized buckling under the pressure of the thermal envelope. When we conduct a forensic audit, we look for signs of fastener fatigue and wood shrinkage caused by the extreme cold, which can reduce the effective grip of a standard nail.

• Evaluation of thermal bridging at the fastener penetration points.
• Analysis of plywood grade and moisture content to ensure compatibility with cold-climate fasteners.
• Assessment of the load-bearing capacity of the deck under maximum snow and equipment loads.
• Verification of the adhesive bonds used in conjunction with mechanical fasteners to enhance shear strength.

Coastal High-Wind Uplift and Diaphragm Load Distribution

For facilities located in coastal regions, the engineering focus shifts toward ASCE 7 standards for wind load resistance. High-wind events create immense negative pressure—essentially a vacuum—on the roof surface, attempting to lift the plywood deck away from the structural steel or wood framing. In a cold storage warehouse, the added mass of the insulation can actually increase the dead load, but it does not eliminate the uplift forces acting on the perimeter and corner zones of the roof.

To meet coastal high-wind standards, the nailing schedule must be significantly tightened at the roof edges. We transition from a standard field spacing to a reinforced perimeter schedule. This ensures that the "peeling" effect, where wind forces attempt to lift the edge of the deck, is countered by a higher density of fasteners. The goal is to ensure that the failure point is not the fastener withdrawal, but rather the ultimate strength of the structural member itself.

• Implementation of 4-inch on-center (o.c.) nailing at all perimeter edges.
• Reinforcement of corner zones with double-fastener patterns to combat vortex shedding.
• Calculation of the total uplift resistance per square foot based on local building codes.
• Verification of the blocking and bridging used to support the plywood edges in high-pressure zones.

Fastener Material Science: Ring-Shank Pneumatics and Shear Resistance

The choice of fastener is where master craftsmanship meets material science. In our engineering audits, we strictly mandate the use of pneumatically driven ring-shank nails over smooth-shank alternatives. A smooth-shank nail relies solely on friction and the compression of wood fibers to remain seated. In contrast, a ring-shank nail features a series of ribs or "rings" that act like a screw thread, mechanically interlocking with the wood grain to provide vastly superior withdrawal resistance.

When utilizing pneumatic nailers, the calibration of the tool is paramount. Over-driving a nail can cause the head to sink too deep into the plywood, crushing the fibers and creating a "dish" that reduces the effective thickness of the deck and weakens the shear plane. Conversely, under-driving leaves the nail head proud, which can puncture the vapor barrier or the roofing membrane. We specify a precise embedment depth to ensure the nail achieves maximum shear withdrawal resistance without compromising the structural integrity of the plywood ply.

• Utilization of hot-dipped galvanized coatings to prevent corrosion in humid coastal environments.
• Analysis of the shear plane to ensure fasteners are not placed too close to the edge of the plywood sheet.
• Calibration of pneumatic pressure to maintain a consistent flush-set across the entire roof plane.
• Comparison of ring-shank withdrawal values against ASTM D143 standards for structural timber.

Engineering Audit Protocols and Re-Nailing Verification

The final phase of the building envelope audit is the verification of the re-nailing schedule. This is a rigorous process of sampling and testing to ensure that the theoretical engineering plan has been executed in the field. We employ a systematic grid-based approach, selecting random sections of the deck for invasive testing. This involves the use of calibrated pull-testers to verify that the actual withdrawal force of the installed ring-shank fasteners meets or exceeds the design specifications.

Re-nailing is often necessary when an audit reveals that the original installation was performed by a crew lacking specialized commercial roofing expertise. The re-nailing process requires the strategic placement of new fasteners between existing ones to avoid "splitting" the wood. If too many nails are placed in a single grain line, the plywood can split, effectively neutralizing the holding power of all fasteners in that line. Our protocol ensures that new fasteners are offset, maintaining the structural integrity of the wood while increasing the overall uplift capacity.

• Execution of a 10% random sample pull-test across the total square footage of the deck.
• Visual inspection for "shiners"—nails that missed the joist and failed to provide structural support.
• Documentation of fastener spacing using precision measuring tools to verify adherence to the 6-inch field and 4-inch edge schedule.
• Final certification of the building envelope, confirming that the deck is compliant with coastal wind-load requirements and cold storage thermal stresses.

Engineering Audit and Envelope Integrity in Fleet Hangars

A commercial fleet maintenance hangar presents a unique set of engineering challenges that distinguish it from standard warehouse distribution centers. The building envelope must withstand extreme thermal cycling, significant vibration from heavy machinery, and the potential for chemical off-gassing from automotive fluids. A comprehensive engineering audit begins with a forensic analysis of the roof assembly, focusing on the critical junctions where the roof membrane meets the parapet walls and the oversized hangar door headers. In these high-stress areas, we frequently observe failures in flashing and sealant joints due to the coefficient of thermal expansion differing between the steel framing and the membrane.

To ensure a watertight seal, we adhere to ASTM E2128 standards for leak detection and ASTM D6847 for the evaluation of roofing materials. The audit process involves infrared thermography to identify subsurface moisture entrapment and moisture probes to determine the saturation levels of the insulation board. When the building envelope is compromised, the result is not merely a leak but a systemic failure of the thermal barrier, leading to increased HVAC loads and potential degradation of the structural steel decking through oxidation.

• Assessment of flashing integrity at all penetration points and curb heights.
• Evaluation of the vapor barrier to prevent interstitial condensation.
• Analysis of drainage slope and ponding water patterns to prevent premature membrane degradation.
• Inspection of the fastening pattern to ensure compliance with ANSI wind-uplift requirements.
• Verification of the sealant compatibility between the roof membrane and the masonry facade.

Net Present Value (NPV) and Life-Cycle Cost Analysis

From a master tradesman's perspective, the "lowest bid" is often the most expensive mistake a facility manager can make. To move beyond the initial capital expenditure, we employ a Life-Cycle Cost Analysis (LCCA) centered on Net Present Value (NPV) calculations. NPV allows us to compare the current cost of a full tear-off and replacement against the cost of a high-performance restoration system, adjusted for the time value of money over a 20-year horizon. By calculating the discounted future costs of maintenance, energy inefficiency, and eventual replacement, we can demonstrate the superior financial viability of a restorative approach.

The engineering logic dictates that a restoration system—such as a high-solids silicone or a reinforced PMMA coating—can extend the life of an existing asset without the catastrophic costs associated with a full demolition. When we factor in the avoided costs of business interruption (the downtime of the hangar bays) and the reduction in energy consumption due to increased solar reflectance (SRI), the NPV of a restoration typically outperforms a replacement. This shift in financial engineering transforms the roof from a depreciating liability into a managed asset.

• Calculation of the internal rate of return (IRR) for high-reflectivity coatings.
• Comparison of initial installation costs versus long-term maintenance intervals.
• Analysis of energy savings derived from reduced cooling loads (Cool Roof effect).
• Quantification of "hidden costs" including labor for leak repairs and interior damage.
• Projection of asset longevity based on material science and UV degradation rates.

Tax Deductions and Maintenance Restoration Strategies

One of the most overlooked aspects of building envelope engineering is the intersection of material science and tax law. Under current tax codes, there is a critical distinction between a "capital improvement" and "maintenance restoration." A full roof replacement is typically categorized as a capital improvement, meaning the cost must be depreciated over a period of 27.5 or 39 years. Conversely, a restoration—defined as the process of renewing the existing roof to a "like-new" condition without removing the structural decking—can often be classified as a current-year maintenance expense.

This distinction allows corporate entities to realize an immediate tax deduction, significantly improving the cash flow of the fleet operation. By utilizing a restoration system that meets or exceeds the original performance specifications, we provide the client with a renewed envelope while optimizing their balance sheet. Our approach ensures that the restoration is not a mere "patch job" but a rigorous engineering application that restores the waterproof integrity of the system while adhering to the strict definitions of maintenance under IRS guidelines.

• Differentiation between Section 179 immediate expensing and long-term depreciation.
• Documentation of the "restoration" process to satisfy audit requirements.
• Analysis of the cost-per-square-foot savings when avoiding full structural tear-offs.
• Evaluation of the impact of restoration on the building's overall valuation.
• Strategic scheduling of maintenance to align with fiscal year tax planning.

Sustainability, Waste Mitigation, and Warranty Extensions

The environmental impact of commercial roofing is staggering, with millions of tons of modified bitumen and TPO membranes ending up in landfills annually. As building envelope specialists, we advocate for a "zero-waste" philosophy. By implementing a restoration strategy, we eliminate the need for a tear-off, thereby avoiding the transport of thousands of pounds of debris to landfills and reducing the carbon footprint associated with the manufacturing of new virgin plastics and rubbers. This approach aligns with LEED certification goals and corporate sustainability mandates.

To guarantee the longevity of these sustainable systems, we implement 15-year warranty extensions. These are not mere pieces of paper; they are backed by rigorous quality assurance protocols and material science. A 15-year extension is predicated on the application of a multi-layer system: a primer to ensure molecular bonding to the existing substrate, a reinforced membrane for puncture resistance, and a high-solids topcoat for UV protection. This layered defense ensures that the hangar remains operational and dry, regardless of the severity of the weather or the intensity of the fleet's operations.

• Reduction of landfill waste by eliminating the "tear-off and replace" cycle.
• Implementation of high-solids polymers to reduce VOC emissions during application.
• Use of recycled content in insulation boards where replacement is unavoidable.
• Establishment of a rigorous 15-year maintenance schedule to preserve warranty validity.
• Monitoring of the Albedo effect to reduce the urban heat island impact of large hangar roofs.

The Engineering Paradox of LPS Integration in Chemical Environments

In the high-stakes environment of a commercial chemical processing facility, the building envelope is tasked with a dual-mandate: it must provide an absolute hydrostatic seal against precipitation while simultaneously facilitating the safe discharge of atmospheric electrical surges. The integration of a Lightning Protection System (LPS) introduces a fundamental engineering paradox. To protect the facility from catastrophic fire or explosion, we must intentionally install conductive pathways—air terminals and grounding cables—that penetrate the very membrane designed to keep the elements out. In a chemical processing plant, this challenge is compounded by corrosive off-gassing and extreme thermal cycling, which can degrade standard sealants and accelerate the fatigue of flashing membranes.

A comprehensive engineering audit of these facilities often reveals a systemic failure at the point of penetration. Most failures occur because the installer treats the LPS as a separate electrical installation rather than an integral component of the building envelope. When a lightning strike occurs, the massive surge of current generates intense localized heat, which can cause rapid thermal expansion of the air terminal stanchion. If the bonding between the stanchion and the roof membrane is too rigid, the resulting mechanical stress will tear the membrane, creating a permanent leak path. Conversely, if the seal is too loose, corrosive chemical vapors can migrate beneath the membrane, attacking the roof insulation and the structural deck.

• Compliance with NFPA 780 (Standard for the Installation of Lightning Protection Systems) to ensure electrical safety.
• Adherence to ASTM D6877 standards for modified bitumen or high-performance TPO/PVC membrane specifications.
• Mitigation of galvanic corrosion between copper conductors and aluminum or steel roof decking.
• Management of the "chimney effect" where air terminals act as conduits for moisture infiltration.

Precision Detailing of Air Terminal Stanchion Pitch-Pockets

The air terminal, or the "lightning rod," requires a mounting base that can withstand both the physical vibration of the facility's heavy machinery and the violent energy of a strike. The industry standard for high-risk chemical facilities is the heavy-duty stanchion pitch-pocket. Unlike a simple sealant bead, a properly engineered pitch-pocket creates a volumetric seal that encapsulates the base of the stanchion. This is achieved by creating a reinforced depression in the substrate, lining it with a compatible flashing membrane, and filling it with a non-sagging, polymer-modified asphalt or a high-solids liquid flashing membrane that maintains flexibility across a wide temperature gradient.

The critical failure point in these assemblies is typically the bond line between the vertical stanchion and the horizontal membrane. To prevent "membrane pull-back," we employ a multi-stage bonding process. First, the substrate is mechanically cleaned and primed to ensure a molecular bond. Then, a reinforced flashing ply is wrapped around the stanchion, extending at least 12 inches onto the field membrane. The final seal is achieved through a heat-welded seam for TPO/PVC systems or a chemically cured liquid-applied flashing for EPDM systems. This ensures that the transition from the rigid metal stanchion to the flexible membrane is gradual, reducing the risk of stress fractures during thermal expansion.

• Utilization of high-temperature resistant flashing compounds to prevent melting during a strike event.
• Implementation of a "double-dam" flashing technique to provide redundant layers of moisture protection.
• Application of UV-stable topcoats to prevent the degradation of the flashing compound under intense solar radiation.
• Verification of bond strength through non-destructive pull-tests on sample coupons.

Conductor Transition and Cable Flashing Engineering

While the air terminals capture the strike, the grounding cables (conductors) are responsible for transporting that energy to the earth. These cables frequently transition from the roof surface, through the building envelope, and into the underground grounding grid. The point where the cable penetrates the roof is a high-risk zone for "wicking," where moisture is drawn along the surface of the cable and pulled directly into the building interior. To combat this, we specify a combination of compression-sealed boots and reinforced flashing collars.

In chemical processing facilities, the cables are often copper, which can react negatively with certain roofing membranes or metal flashing. To prevent galvanic corrosion, we introduce a dielectric isolation layer between the conductor and any dissimilar metals. The flashing detail involves a custom-fabricated stainless steel or galvanized steel curb, which is then integrated into the roof membrane using a reinforced flashing boot. This boot is mechanically fastened and then heat-welded or adhered, creating a watertight "sleeve" that allows the cable to move slightly without compromising the seal. This flexibility is essential, as the building and the LPS components expand at different rates.

• Installation of drip edges on the exterior of cable penetrations to force water away from the bond line.
• Use of chemically resistant sealant beads at the cable-to-boot interface to prevent vapor intrusion.
• Implementation of cable clamps that provide mechanical stability without crushing the membrane.
• Regular infrared thermography audits to detect moisture accumulation around conductor penetrations.

Dynamic Stress Analysis and Long-Term Membrane Integrity

The final stage of a building envelope audit focuses on the long-term lifecycle of the membrane under the stress of the LPS. A lightning strike is not merely an electrical event; it is a mechanical one. The plasma expansion associated with a strike can create a localized pressure wave that can physically lift the membrane from the substrate. To mitigate this, we specify high-tensile strength membranes with reinforced scrims that can distribute the energy of a strike across a larger surface area, preventing a localized puncture.

Furthermore, the chemical processing environment introduces the risk of chemical degradation. Acidic residues can settle in the "valleys" created by LPS stanchions and cable runs, leading to premature embrittlement of the flashing. Our engineering approach involves the installation of "sacrificial" flashing layers in high-risk zones. These layers can be easily inspected and replaced without disturbing the primary waterproof membrane. By treating the LPS as a dynamic part of the building's skin, we ensure that the facility remains operational and leak-free, regardless of the atmospheric conditions or the frequency of lightning events.

• Annual physical inspections of all bonding points to identify micro-cracking or delamination.
• Calculation of

Structural Integrity and OSHA Compliance for Roof Access Systems

In the engineering audit of a Municipal City Hall and Administrative Complex, the roof hatch serves as the primary point of transition between the interior controlled environment and the exposed roof membrane. From a master roofer's perspective, this transition is the most common point of failure for both safety and waterproofing. The installation of OSHA-compliant ladder safety posts and grab bars is not merely a regulatory checkbox but a critical component of life-safety engineering. When technicians or municipal employees egress onto a commercial roof, the transition from a vertical climb to a horizontal plane introduces significant torsional stress on the body and the equipment.

The integration of safety grab bars must be executed with precision, ensuring that the bars are anchored directly into the structural steel or reinforced masonry of the curb rather than just the flashing. This prevents the "lever effect," where a technician's weight could potentially tear the membrane or pull the flashing away from the curb during an emergency exit. We specify high-tensile strength steel with a powder-coated finish to prevent oxidation in high-humidity municipal environments.

• Installation of 1.5-inch diameter galvanized steel grab bars extending 12 inches above the hatch rim.
• Implementation of OSHA-compliant ladder safety posts with a minimum 42-inch height to provide a secure handhold during transition.
• Utilization of heavy-duty fasteners with neoprene washers to prevent water infiltration at the anchor points.
• Verification of load-bearing capacity to ensure the assembly can withstand a concentrated load of 250 pounds without deflection.

Engineering Counterbalanced Smoke Dampers and Ventilation Seals

Municipal complexes often house critical archives and administrative offices, making smoke control and atmospheric pressure management paramount. The installation of counterbalanced smoke dampers within the roof hatch assembly is a sophisticated exercise in material science and mechanical engineering. These dampers must operate flawlessly under extreme thermal conditions, opening rapidly during a fire event to vent toxic gases while remaining hermetically sealed during standard operation to prevent energy loss and water ingress.

The "counterbalance" aspect is critical; it ensures that the heavy-gauge steel dampers can be triggered by low-voltage actuators without mechanical binding. From a building envelope standpoint, the damper frame must be perfectly square to ensure the gaskets seat properly. Any misalignment in the frame leads to "point loading," where the gasket is compressed in one area and gaped in another, creating a direct path for wind-driven rain to enter the building core.

• Application of high-temperature silicone seals on damper blades to maintain a tight seal against the frame.
• Calibration of counterbalance springs to ensure a smooth, controlled opening sequence that does not shock the roof structure.
• Integration of smoke-detector triggers that interface directly with the building's central fire alarm system.
• Testing for air leakage rates in accordance with ASTM E23 standards to ensure the envelope remains airtight.

Advanced Compression Curb Gasket Engineering

The curb gasket is the unsung hero of the commercial roof hatch system. In a municipal complex, where roofs are subject to intense thermal cycling and vibration from HVAC equipment, a standard adhesive seal is insufficient. We employ heavy-duty compression curb gaskets made from closed-cell EPDM or high-grade silicone. These materials are selected for their "compression set" resistance, meaning they return to their original shape after being squeezed, maintaining a constant seal over decades of service.

The engineering challenge lies in the interface between the hatch frame and the curb flashing. If the gasket is too thin, the seal is broken during thermal contraction in winter; if it is too thick, the hatch cannot be properly locked, compromising security. The goal is to achieve a uniform compression of approximately 25% to 30% across the entire perimeter. This creates a redundant barrier that prevents capillary action, where water is drawn upward into the curb through surface tension.

• Selection of closed-cell EPDM gaskets for superior UV resistance and ozone stability.
• Implementation of a dual-seal system featuring a primary compression gasket and a secondary weather-strip.
• Precision milling of the curb surface to ensure a flat mating plane for the gasket assembly.
• Application of non-curing sealant at the corners to allow for the natural expansion and contraction of the building.

Perimeter Stabilization via Compression Termination Bars

The final line of defense in the building envelope is the termination of the flashing at the roof hatch curb. In high-wind zones, typical lap-seams are prone to "wind uplift," where the rushing air creates a vacuum that peels the membrane away from the substrate. To mitigate this, we utilize mechanical compression termination bars. These are heavy-duty aluminum or stainless steel strips that physically lock the membrane to the curb, ensuring that the weatherproofing is not reliant solely on chemical adhesives.

The installation process requires a disciplined fastening pattern. We utilize a staggered screw arrangement to distribute the clamping force evenly across the termination bar. This prevents the "zipper effect," where a single point of failure leads to a total collapse of the seal. Furthermore, the top edge of the termination bar is capped with a continuous bead of high-performance polymer sealant, creating a seamless transition that directs water away from the building interior and back onto the roof drainage plane.

• Use of 1/8-inch thick anodized aluminum termination bars for maximum rigidity and corrosion resistance.
• Fastening schedules utilizing #12 stainless steel screws spaced every 6 inches on center.
• Integration of a termination bar "drip edge" to prevent water from tracking back under the flashing.
• Final inspection using infrared thermography to ensure there are no thermal bridges or air leaks at the termination points.

Hydraulic Analysis of Conductor Head Overflow Weirs

In the high-stakes environment of commercial penthouse towers, the building envelope's primary vulnerability is the management of hydrostatic pressure during extreme precipitation events. A conductor head is not merely a transition piece between a roof drain and a vertical leader; it functions as the primary hydraulic regulator for the entire roof assembly. When primary drainage paths are compromised by organic debris or sudden atmospheric river events, the conductor head must act as a calibrated overflow relief weir. Failure to properly engineer the weir height and the subsequent spillway capacity leads to catastrophic ponding, which can exceed the structural dead load limits of the penthouse slab.

From an engineering standpoint, the calculation of the overflow relief weir must account for the "head" of water above the weir crest. We utilize the Francis Formula to determine the discharge rate, ensuring that the spillway can evacuate water faster than the roof's catchment area can collect it. If the weir is set too high, the water level reaches the flashing or the parapet cap before the spillway activates, leading to interior seepage. Conversely, a weir set too low may trigger premature discharge, causing unnecessary icing hazards on the building facade below.

• Calculation of catchment area square footage relative to rainfall intensity (inches per hour).
• Determination of the critical weir crest elevation to prevent flashing saturation.
• Analysis of flow velocity to ensure the spillway does not cause erosion of the roof membrane at the discharge point.
• Verification of the "freeboard" distance between the maximum anticipated water level and the top of the penthouse wall.

Engineering the Multi-Tier Spillway System

A robust building envelope requires redundancy. A multi-tier conductor head system provides a tiered defense mechanism that prevents a single point of failure from compromising the penthouse tower. The primary tier handles standard runoff, while the secondary and tertiary spillways are engineered as emergency bypasses. These spillways are typically fabricated from heavy-gauge reinforced copper or 316-grade stainless steel to withstand the corrosive nature of standing water and the high velocity of overflow discharge. The integration of these tiers requires precision welding and seamless transitions to prevent "leaking at the seams," which is a common failure point in inferior installations.

The geometry of the spillway must be designed to direct water away from the building face to prevent "streak staining" and the degradation of the facade's sealant joints. We implement a cantilevered discharge projection that ensures water clears the building envelope by a minimum of 12 inches. This prevents the "curtain effect," where water clings to the vertical surface of the tower, potentially infiltrating the window wall systems or the architectural cladding through capillary action.

• Utilization of seamless, cold-formed metal for all spillway transitions to eliminate leak paths.
• Implementation of tiered weir heights to stagger the activation of emergency overflows.
• Installation of debris screens that are engineered to prevent clogging without restricting the calculated GPM flow.
• Application of high-performance flashing membranes at the interface of the conductor head and the roof deck.

Structural Integrity and Heavy-Duty Downspout Bracketing

On high-rise commercial towers, downspouts are subjected to extreme wind loads and significant oscillation. A common oversight in commercial roofing is the use of lightweight, residential-grade brackets that fail under the stress of high-altitude wind shear. For a penthouse tower, we specify heavy-duty, cast-iron or reinforced steel brackets that are mechanically fastened into the structural masonry or steel frame. These brackets must be spaced according to ANSI standards to prevent the "bowing" of the vertical leader, which can create pockets where water collects and freezes.

Furthermore, the interaction between different metals—such as a copper conductor head and a galvanized steel bracket—introduces the risk of galvanic corrosion. To mitigate this, we employ dielectric isolation techniques, utilizing EPDM rubber gaskets or nylon spacers between the bracket and the downspout. This ensures that the structural integrity of the drainage system is maintained over a 30-year lifecycle, preventing the sudden collapse of a leader during a storm event, which would immediately render the overflow spillways useless.

• Specification of bracket spacing every 8 to 10 feet to minimize vibration and wind-induced sway.
• Use of stainless steel fasteners with integrated thermal washers to prevent heat bridging.
• Implementation of galvanic isolation to stop bimetallic corrosion at connection points.
• Installation of heavy-duty anchor bolts that are torque-verified for high-wind zones.

Mitigating Freeze-Thaw Bursting and Thermal Cycling

The most destructive force acting upon a high-rise drainage system is the freeze-thaw cycle. When water remains trapped in a vertical leader during a sudden temperature drop, the volumetric expansion of ice creates immense internal pressure. In a rigid, non-vented system, this pressure frequently leads to "bursting," where the seams of the downspout split or the conductor head is physically pushed off the roof deck. This is particularly prevalent in penthouse towers where the exposure to wind-chill accelerates the freezing process.

To defend against this, we engineer the system with thermal expansion joints and strategic venting. By introducing a small amount of air into the system or utilizing "expansion sleeves," the metal can contract and expand without stressing the joints. Additionally, we recommend the use of Schedule 40 thickness for critical transition points to provide the necessary hoop strength to resist ice expansion. The goal is to ensure that the system can breathe; a completely sealed system is a failing system in a cold-weather climate.

• Installation of telescopic expansion joints to accommodate the vertical movement of the building.
• Application of thermal insulation wraps around critical conductor head junctions to delay freezing.
• Strategic placement of air-venting gaps at the top of the leader to relieve hydrostatic pressure during ice formation.
• Selection of materials with a low coefficient of thermal expansion to maintain tight seals across temperature swings.

Engineering Audit and Diagnostic Analysis of Steel Deck Oxidation

In the context of a Regional Healthcare Medical Center, the building envelope is a critical life-safety system. A comprehensive engineering audit begins with a forensic examination of the structural steel decking, which serves as the primary diaphragm for the roofing assembly. In these facilities, oxidation is rarely a result of a single failure but rather a systemic breakdown of the moisture barrier. We typically observe concentrated corrosion at the perimeter flashing, around heavy HVAC curb penetrations, and beneath aged insulation blankets where interstitial condensation occurs. When moisture traps against the galvanized coating of the steel deck, the protective zinc layer is depleted, leading to red rust—the iron oxide phase that compromises structural integrity.

The diagnostic phase requires a meticulous assessment of the "pitting" depth and the extent of delamination. In a healthcare environment, where vibration from medical imaging equipment and heavy mechanical loads is constant, any loss of steel thickness in the flutes can lead to catastrophic deflection. Our audit focuses on identifying areas where the steel has transitioned from surface oxidation to structural thinning, specifically targeting the load-bearing ribs of the deck. We utilize ultrasonic thickness gauges to quantify the remaining steel, ensuring that the remediation plan adheres to the original engineering specifications and current ANSI standards for structural loading.

• Identification of galvanic corrosion cells created by dissimilar metal contact.
• Mapping of moisture infiltration points through failed flashing or compromised parapet walls.
• Quantification of steel loss using precision thickness gauging.
• Evaluation of the existing deck profile to determine the severity of flute degradation.
• Analysis of the relationship between roof leaks and the acceleration of oxidation cycles.

Mechanical Remediation and Substrate Surface Preparation

Effective passivation is impossible without rigorous mechanical preparation. The industry standard for high-performance remediation is the removal of all loose scale, flaky rust, and degraded coatings to reach a substrate that allows for maximum chemical adhesion. We employ a disciplined wire-brushing and mechanical abrasion protocol, targeting an SSPC-SP2 or SP3 surface cleanliness level. This process is not merely about cleaning; it is about creating a mechanical profile—a "tooth"—into the steel. By removing the oxidized layers, we expose the raw iron, allowing the subsequent primer to bond directly to the substrate rather than sitting atop a layer of unstable rust.

In a medical center, the challenge is often the proximity of sensitive electronic equipment and the need for dust containment. We utilize vacuum-shrouded mechanical tools to ensure that iron oxide dust does not migrate into the facility's HVAC system or sterile zones. Once the mechanical abrasion is complete, the surface must be wiped down with a solvent-based degreaser to remove any residual oils, salts, or atmospheric contaminants. This ensures that the zinc-rich primer does not suffer from premature delamination or "bubbling," which occurs when contaminants are trapped between the steel and the coating.

• Execution of mechanical wire-brushing to remove loose oxidation and mill scale.
• Application of solvent cleaning to eliminate surface contaminants and oils.
• Creation of a consistent surface profile to enhance the mechanical bond of the primer.
• Implementation of HEPA-filtered vacuum systems for dust mitigation in healthcare zones.
• Verification of surface cleanliness through the "tape test" to ensure no residual particulates remain.

Chemical Passivation and Zinc-Rich Primer Application

Once the substrate is prepared, the focus shifts to chemical passivation. We utilize a high-solids, zinc-rich rust-inhibiting primer, which functions through a dual-action mechanism: barrier protection and cathodic protection. Unlike standard paint, a zinc-rich primer acts as a sacrificial anode. Because zinc is more chemically active than iron, the zinc particles in the primer corrode preferentially, sacrificing themselves to protect the underlying steel deck. This electrochemical reaction prevents the spread of rust even if the primer coating is scratched or chipped during subsequent roofing activities.

The application process is governed by strict Dry Film Thickness (DFT) requirements. If the primer is applied too thinly, the cathodic protection is insufficient; if applied too thickly, the coating may crack or peel. We apply the primer in a controlled environment, ensuring that the ambient temperature and dew point are within the manufacturer's specifications to prevent moisture entrapment. This passivation layer effectively "freezes" the oxidation process, converting a vulnerable, rusting surface into a stabilized substrate that can support the final roofing membrane for several more decades.

• Deployment of cold-galvanizing compounds with a minimum 90% zinc dust in the dry film.
• Application of primers to achieve the specified DFT for maximum cathodic protection.
• Utilization of sacrificial anode chemistry to prevent future oxidation cycles.
• Strict adherence to temperature and humidity thresholds to ensure chemical curing.
• Verification of coverage across all flute valleys and side-laps where moisture typically accumulates.

Structural Reinforcement and Fastener Integrity Management

In cases where the engineering audit reveals significant thinning of the steel flutes, passivation alone is insufficient. When the structural cross-section of the deck is compromised, we implement reinforcement protocols to restore the load-bearing capacity. This often involves the installation of steel reinforcement plates or "sistering" the affected flutes with new gauge steel, secured via industrial-grade fasteners or spot welding. This ensures that the deck can continue to support the weight of the insulation, the roofing membrane, and the heavy mechanical equipment common to healthcare facilities.

The final stage of the envelope remediation is the securing of fasteners. Rust often migrates along the fastener shafts, leading to "crevice corrosion" that can loosen the connection between the deck and the roof assembly. We inspect and replace all compromised fasteners with galvanized or stainless steel alternatives, ensuring they are torqued to the correct specifications. By sealing these fastener heads with a high-grade sealant and ensuring the deck is structurally sound, we close the building envelope, preventing future moisture ingress and protecting the newly passivated steel from the elements.

• Installation of reinforcement plates on thinned flutes to restore structural diaphragm strength.
• Replacement of corroded fasteners with ASTM-compliant galvanized hardware.
• Application of high-performance sealants to fastener heads to prevent crevice corrosion.
• Verification of deck rigidity through load-testing and deflection analysis.
• Final integration of the reinforced deck with the primary waterproofing membrane.

The High-Stakes Architecture of University Research Envelopes

University research laboratories represent some of the most complex building envelopes in the commercial sector. Unlike standard office shells, these facilities house millions of dollars in sensitive instrumentation, hazardous chemical storage, and precision-controlled environments that rely on strict pressure differentials. A single breach in the roofing system does not merely result in a ceiling stain; it can lead to the contamination of sterile environments, the failure of expensive mass spectrometers, or the compromise of long-term longitudinal studies. Consequently, a superficial visual inspection is an abdication of professional duty. True risk mitigation requires a forensic, boots-on-the-roof approach that treats the roof as a critical engineering component rather than a simple cover.

The building envelope of a research lab is subject to extreme stressors, including high-velocity exhaust plumes from fume hoods and frequent vibrations from heavy machinery. These factors create unique fatigue patterns in the membrane and flashing. To ensure the integrity of the structure, we employ a rigorous audit protocol that aligns with ASTM standards for roofing and waterproofing. Our focus is on the "invisible" failures—the microscopic voids and mechanical looseness that precede a catastrophic leak.

• Assessment of thermal bridging at penetration points for HVAC and laboratory exhaust systems.
• Evaluation of membrane elasticity and plasticizer migration in aged TPO or PVC systems.
• Analysis of wind-uplift resistance at the perimeter, accounting for the unique aerodynamics of campus architecture.
• Verification of flashing continuity around complex geometric roof penetrations.

Forensic Seam Analysis and Manual Probing Protocols

In modern commercial installations, automated welding robots are frequently used to seal seams in thermoplastic membranes. While these systems provide consistency, they are not infallible. "Cold welds" or "green seams" can occur when the robot's temperature settings are not perfectly calibrated to the ambient conditions or the membrane thickness. These defects are often invisible to the naked eye but are susceptible to hydrostatic pressure. A master roofer knows that the only way to verify a weld is through physical probing with a calibrated hand tool, such as a tapered steel probe or a specialized seam pick.

The process involves a systematic "grid-walk" of the roof, where every linear foot of the seam is probed. We apply a consistent, perpendicular pressure to the seam edge to identify any voids, pinholes, or separations. This forensic level of scrutiny is essential because a seam that appears closed may actually have a microscopic gap that allows moisture to migrate via capillary action. Once moisture enters the seam, it can travel several feet from the actual entry point, making the leak nearly impossible to locate without a comprehensive audit.

• Identification of "fish-mouths" or wrinkles in the seam that create stress concentrations.
• Testing for weld strength by checking for membrane separation at the overlap.
• Mapping of failed seam sections to identify patterns related to specific installation crews or robotic malfunctions.
• Cross-referencing probe results with infrared thermography to locate trapped moisture.

Mechanical Integrity: Drain Bowl Torque and Perimeter Cleats

The most critical points of any roof are where the membrane transitions to a different material or exits the building. In research laboratories, the drainage system is often overburdened by high-capacity cooling towers and HVAC condensate lines. We focus heavily on the drain bowl clamping torque. If the clamping ring is over-tightened, it can crush the membrane, creating a stress fracture. If it is under-tightened, the thermal cycling of the building—the constant expansion and contraction—will eventually break the seal, allowing water to pour directly into the laboratory below.

Beyond the drains, the perimeter cleats and termination bars must be inspected for mechanical fatigue. The building envelope is a living system; it breathes and shifts. Perimeter cleats that have loosened due to vibration or wind-scour allow the membrane to "billow," which puts undue tension on the field seams. We utilize calibrated torque wrenches to ensure that fasteners are tightened to the manufacturer's exact specifications, preventing the common failure of "pull-through" where the fastener head rips through the membrane during a high-wind event.

• Verification of clamping ring torque to prevent membrane deformation and leakage.
• Inspection of perimeter termination bars for oxidation and fastener backing-out.
• Evaluation of the sealant bead at the termination bar to ensure a watertight, air-tight seal.
• Assessment of the transition from the roof membrane to the parapet wall flashing.

Engineering Reporting and Lifecycle Prognosis

A forensic audit is only as valuable as the documentation it produces. A simple "pass/fail" report is insufficient for a university facility manager who must justify a multi-million dollar capital expenditure budget. Our reporting process transforms field observations into an engineering data set. We quantify the defects—calculating the total linear footage of failed seams and the number of compromised fasteners—to provide a statistical probability of failure. This allows the university to move from a reactive "leak-patch" mentality to a proactive lifecycle management strategy.

The final report serves as a roadmap for the building's envelope health. By analyzing the material science of the current roof—such as the rate of UV degradation and the loss of membrane flexibility—we can predict the remaining useful life (RUL) of the system. This authoritative analysis ensures that the research laboratory remains a safe, dry, and controlled environment, protecting the intellectual property and the physical safety of the scientists working within the facility.

• Detailed mapping of all identified anomalies with photographic evidence and GPS coordinates.
• Categorization of defects by severity: Critical (Immediate Action), Major (Scheduled Repair), and Minor (Monitoring).
• Calculation of the "Health Index" of the roof based on the percentage of failed components.
• Development of a five-year preventative maintenance schedule based on forensic findings.

Thermal Dynamics and the Molecular Fusion of 60-Mil TPO

In the realm of high-performance commercial building envelopes, the integrity of a 60-mil Thermoplastic Polyolefin (TPO) membrane is entirely dependent on the quality of the seam fusion. Unlike thinner membranes, the 60-mil specification provides superior puncture resistance and longevity, but it requires a more aggressive thermal approach to ensure a monolithic bond. To achieve a true molecular weld, the robotic welding system must maintain a consistent temperature of 1,000°F at the point of contact. This temperature is not arbitrary; it is the precise threshold required to reach the melting point of the polyolefin resin without inducing thermal degradation or carbonization of the polymer chain.

When the hot air is injected into the seam, the goal is to create a "melt zone" where the two overlapping sheets of TPO transition from a solid to a viscous state. If the temperature drops below the critical threshold, the result is a "cold weld," which may appear visually sealed but lacks the shear strength to withstand the natural expansion and contraction of a suburban corporate office park's sprawling roof surface. Conversely, exceeding the temperature limit can scorch the membrane, compromising the UV-resistant top layer and creating a brittle seam that is prone to premature cracking.

• Thermal Equilibrium: Maintaining a steady 1,000°F to prevent fluctuations in weld depth.
• Polymer Chain Entanglement: The process where heated TPO molecules interweave to form a single, continuous sheet.
• Heat Soak Analysis: Evaluating how the 60-mil thickness absorbs heat compared to standard 45-mil systems.
• Carbonization Risk: Monitoring for "scorched" seams that indicate over-heating and material breakdown.

Robotic Kinematics: Nozzle Pressure and Travel Velocity

The transition from manual heat-welding to robotic automation has revolutionized the reliability of the building envelope. In a corporate office park environment, where roof areas often exceed 100,000 square feet, human error in welding speed and pressure is a significant risk factor. Robotic systems eliminate this variability by synchronizing travel velocity with nozzle pressure. The travel velocity must be calibrated so that the membrane is exposed to the 1,000°F air stream for the exact duration required to achieve full penetration through the 60-mil thickness, ensuring the weld is consistent from the edge of the lap to the center.

Nozzle pressure is equally critical. The robotic welder does not simply blow air; it applies a specific pneumatic force that compresses the two layers of TPO together while the air is injected. This pressure ensures that there are no air pockets or "voids" within the seam. If the nozzle pressure is too low, the air escapes laterally, resulting in a weak bond. If it is too high, the robot may distort the membrane, creating wrinkles or "fish-mouths" that become future leak points. The synergy between speed, heat, and pressure is what transforms a mechanical lap into an engineered fusion.

• Automated Travel Velocity: Ensuring a constant inches-per-minute (IPM) rate to maintain uniform heat application.
• Pneumatic Compression: Using calibrated nozzle pressure to force the molten TPO into a tight, void-free bond.
• Overlap Precision: Robotic guidance systems that maintain a strict 6-inch lap for maximum redundancy.
• Real-Time Telemetry: Monitoring system sensors to detect drops in temperature or pressure during the welding cycle.

Destructive Test-Cut Peel Audits and Validation

A visually perfect seam is not necessarily a waterproof seam. To validate the engineering integrity of the roof, Aquashield Corporate employs a rigorous destructive testing protocol known as the Test-Cut Peel Audit. This process involves making a strategic incision into the welded seam at predetermined intervals—typically every 50 to 100 linear feet. By physically attempting to pull the two sheets of TPO apart, we can determine the actual strength of the fusion. This is the only way to verify that the 1,000°F heat actually penetrated the full thickness of the 60-mil membrane.

The gold standard for a successful peel test is "membrane failure" rather than "weld failure." If the seam separates cleanly, it indicates a cold weld or insufficient pressure. However, if the TPO membrane itself tears or rips before the weld gives way, the fusion is considered a success. This proves that the bond at the seam is stronger than the material itself. These audits are documented and mapped across the corporate office park's roof plan, providing a forensic trail of quality assurance that meets or exceeds ASTM and ANSI standards for commercial roofing.

• Destructive Sampling: The intentional cutting of seams to verify internal fusion quality.
• Peel Strength Analysis: Evaluating the force required to separate the fused membranes.
• Membrane Tear Validation: Confirming that the material fails before the weld, signifying a monolithic bond.
• Audit Mapping: Recording every test-cut location to ensure 100% coverage of the roof area.

Envelope Stability and Long-Term Lifecycle Analysis

The ultimate goal of these engineering audits is the preservation of the building envelope. In suburban corporate office parks, the roof is the primary defense against moisture infiltration, which can lead to catastrophic failures in HVAC systems, ceiling grids, and expensive interior finishes. By utilizing robotic fusion and validating it through peel audits, we shift the maintenance paradigm from reactive repair to proactive engineering. A properly fused 60-mil TPO system significantly reduces the coefficient of thermal expansion stress, meaning the seams are less likely to fail during extreme seasonal temperature swings.

Furthermore, the data gathered from these audits provides a lifecycle baseline for the asset manager. When we can prove that the fusion was executed at 1,000°F with precise robotic velocity and validated through destructive testing, the projected lifespan of the roof is extended. This rigorous approach minimizes the risk of "water intrusion events" and ensures that the building envelope remains a sealed, energy-efficient barrier. The integration of material science and robotic precision ensures that the corporate office park remains a viable, low-risk asset for

Substrate Engineering and the Comprehensive Envelope Audit

In the realm of big-box retail power centers, the roof is not merely a cover but a critical component of the building envelope that manages massive thermal loads and structural movement. A professional engineering audit begins with a forensic analysis of the existing substrate, whether it be aged modified bitumen, EPDM, or a degraded TPO system. On a footprint exceeding 100,000 square feet, the primary challenge is the accumulation of atmospheric pollutants, oxidized polymers, and ingrained oils that compromise adhesion. We evaluate the substrate's tensile strength and surface profile to ensure it can support a high-solids load without delaminating under extreme thermal cycling.

The audit focuses on identifying "critical failure zones," such as curb flashings, HVAC penetration points, and internal drainage leaders. We utilize infrared thermography to map subsurface moisture entrapment, which is essential because trapped water can vaporize during the curing process of a coating, leading to premature blistering. By adhering to ASTM standards for surface preparation, we ensure that the substrate is mechanically cleaned and chemically neutralized, creating a high-energy surface ready for molecular bonding.

• Verification of substrate moisture content to prevent osmotic blistering.
• Identification of structural deflection points that require reinforced flashing.
• Assessment of existing parapet wall integrity and flashing transitions.
• Mapping of high-traffic zones to determine necessary wear-layer specifications.

The Chemistry of Bleed-Blocking Epoxy Primers

One of the most frequent failures in commercial roof restorations is "bleed-through," where oils, tannins, or bitumen residues migrate through the topcoat, causing unsightly staining and, more critically, adhesive failure. To mitigate this, we deploy a high-performance, bleed-blocking epoxy primer. Unlike standard acrylic primers, a high-solids epoxy creates a dense, cross-linked chemical barrier that encapsulates contaminants and locks them into the substrate. This primer acts as the foundational bridge between the old, potentially contaminated roof and the new silicone membrane.

The epoxy primer is engineered to penetrate the microscopic pores of the substrate, creating a mechanical anchor. This is particularly vital in power centers where the roof may have undergone multiple previous repairs with mismatched materials. The primer ensures a uniform surface tension across the entire roof deck, which allows the subsequent silicone layers to spread evenly without "pinholing" or "fish-mouthing." This chemical stabilization is the difference between a coating that lasts three years and a restoration that lasts twenty.

• Elimination of substrate contaminants that cause delamination.
• Creation of a high-bond strength interface for the monolithic topcoat.
• Prevention of solvent migration from old asphaltic layers.
• Stabilization of friable surfaces to ensure a consistent Dry Film Thickness.

Monolithic Silicone Application and 30-Mil DFT Specifications

The core of the Aquashield restoration is the application of a high-solids, monolithic silicone coating. The term "monolithic" refers to the creation of a single, seamless membrane that eliminates the seams—the most common points of failure in traditional roofing. We specify a 30-mil Dry Film Thickness (DFT), which is significantly more robust than the industry-standard 15 or 20-mil applications. This thickness provides the necessary elasticity to accommodate the thermal expansion and contraction inherent in large-span retail structures, ensuring the membrane does not crack under the stress of seasonal temperature swings.

Achieving a precise 30-mil DFT requires master-level craftsmanship and calibrated application equipment. We utilize high-volume airless sprayers and precision rollers to ensure the material is distributed without voids. Because the silicone is high-solids, there is minimal shrinkage during the curing process, meaning the thickness applied is the thickness that remains. This membrane is inherently waterproof and UV-stable, resisting the degradation caused by ozone and extreme solar exposure while remaining flexible enough to bridge hairline cracks in the underlying substrate.

• Application of a seamless, monolithic layer to eliminate leak-prone seams.
• Strict adherence to a 30-mil DFT to ensure long-term puncture resistance.
• Utilization of high-solids chemistry to reduce curing shrinkage and voids.
• Integration of reinforced flashing at all vertical transitions and penetrations.

Albedo Reflectance and Zero-Downtime Operational Logistics

For big-box retail centers, the "Urban Heat Island" effect can drastically increase HVAC operational costs. We address this through the science of Albedo—the measure of the diffuse reflection of solar radiation. By utilizing a coating with 88% solar reflectance, we significantly reduce the amount of heat absorbed by the roof deck. This high albedo rating lowers the internal ceiling temperature, reducing the load on rooftop HVAC units and extending the lifespan of the mechanical equipment. The result is a measurable decrease in kilowatt-hour consumption and a substantial reduction in the building's carbon footprint.

Perhaps the most critical requirement for retail power centers is the "zero-downtime" mandate. A retail giant cannot afford to close its doors for a roof replacement. Our engineering approach allows for a phased application that occurs entirely from the exterior, requiring no interior access or disruption to store operations. Because the silicone cures rapidly and does not require the extensive curing times of traditional asphalt or certain liquid-applied membranes, the roof is returned to full service almost immediately. This seamless transition from a failing system to a high-performance envelope is the hallmark of professional commercial roofing engineering.

• Reduction of solar heat gain through 88% solar radiation reflectance.
• Lowering of internal ambient temperatures to decrease HVAC energy demand.
• Implementation of a phased application schedule to ensure zero business interruption.
• Long-term stabilization of the building envelope to prevent future costly interventions.

The Engineering Complexity of Cold Logistics Envelopes

In the realm of commercial building envelopes, food packaging and cold logistics plants present a unique set of hydrostatic and thermal challenges. These facilities typically feature massive footprints with minimal internal structural interruptions, creating vast roof planes that are susceptible to deflection and ponding. When dealing with cold storage, the temperature differential between the interior freezer environments and the exterior ambient air creates significant thermal stress on the roof assembly. This thermal cycling can lead to subtle shifts in the substrate, making the precision of the drainage layout a critical failure point.

A master-level engineering audit of these facilities reveals that standard "off-the-shelf" sloping is insufficient. To maintain the integrity of the building envelope, we implement a rigorous 1/4-inch per foot minimum slope. This gradient is not merely a suggestion but a calculated requirement to overcome the inevitable "oil-canning" and structural deflection of long-span steel joists. By adhering to ASTM standards for polyisocyanurate (polyiso) insulation, we ensure that the thermal resistance is maintained while providing a rigid, engineered path for water to exit the system.

• Mitigation of thermal bridging at parapet walls and curb interfaces.
• Management of high-load HVAC equipment that creates localized depressions in the roof deck.
• Prevention of moisture infiltration at the interface of cold-storage cells and loading docks.
• Reduction of hydrostatic pressure on membrane seams during extreme precipitation events.

Precision Tapered Polyiso Layouts and Slope Engineering

The core of a high-performance drainage system lies in the fabrication of tapered polyiso insulation. Unlike traditional slope-to-drain methods that rely on the structural slab, tapered insulation allows us to engineer the slope independently of the building's primary frame. For cold logistics plants, we utilize a multi-directional slope strategy. This involves creating a series of "virtual valleys" that guide water from the highest points of the roof toward the primary internal drains and scuppers without allowing water to linger in stagnant pockets.

The engineering of a 1/4-in/ft slope requires a precise layout that accounts for the total square footage and the specific location of every penetration. We analyze the roof as a topographic map, ensuring that no "low spots" are created by the intersection of different slope planes. When these planes meet, they must be transitioned with seamless precision to avoid "damming," where water accumulates at the edge of a slope change rather than flowing over it. This level of detail is what separates a standard installation from a master-grade building envelope.

• Utilization of CNC-cut tapered panels for millimeter-precision fitment.
• Implementation of "dual-slope" configurations to halve the distance water must travel to reach a drain.
• Strategic placement of tapered strips to eliminate "flat spots" around large mechanical curbs.
• Verification of slope consistency using laser-leveling technology during the audit phase.

Geometric Cricket Sizing and Diamond Valley Integration

Crickets are the most overlooked component of commercial roofing, yet they are essential for diverting water away from obstructions. In food packaging plants, where large-scale exhaust fans and refrigeration units are common, water naturally tends to collect behind these curbs. To prevent this, we engineer geometric crickets—sloped inserts that "push" the water around the obstruction. For complex intersections, we employ the "Diamond Valley" technique, which uses a four-sided slope geometry to route runoff in multiple directions simultaneously.

The sizing of these crickets is a matter of precise geometry. A cricket that is too small will fail to move the volume of water produced during a peak rain event, leading to ponding against the curb. A cricket that is too aggressive can create a "waterfall" effect that puts excessive stress on the membrane at the base of the slope. By calculating the catchment area behind each curb, we size the diamond valleys to ensure that the flow rate remains constant and that water is routed toward the primary drainage paths without turbulence.

• Calculation of catchment areas to determine the necessary height and width of each cricket.
• Integration of diamond valleys at the intersection of perpendicular roof planes to prevent water trapping.
• Ensuring that cricket slopes maintain the 1/4-in/ft minimum to prevent capillary action at the seams.
• Reinforcement of membrane flashing at the "peak" of the cricket to handle increased water velocity.

Expansion Joint Management and Final Envelope Integrity

One of the most critical vulnerabilities in a cold logistics plant is the expansion joint. These joints are designed to allow the building to breathe and move due to thermal expansion and contraction. However, they are also the primary points of potential leakage. From an engineering perspective, the goal is to ensure that zero standing water ever reaches an expansion joint. We achieve this by routing the tapered polyiso layout to create a "dry zone" around the joint, effectively sloping the roof away from the gap in all directions.

The final audit of the building envelope involves a comprehensive ponding analysis. We look for any area where water remains 48 hours after a rain event, as this indicates a failure in the slope engineering. In a facility where food safety and cold-chain integrity are paramount, a single ponding event can lead to membrane degradation, premature failure of the polyiso, and eventual leaks that compromise the interior environment. By combining multi-directional slopes, geometric crickets, and strategic routing away from joints, we create a redundant system that guarantees long-term performance.

• Installation of specialized expansion joint covers that integrate with the tapered insulation.
• Routing of runoff to a minimum of 24 inches away from the expansion joint perimeter.
• Conducting a final "flood test" or infrared thermography scan to verify the absence of trapped moisture.
• Alignment of all drainage components with ANSI standards for commercial roofing durability.

The Engineering Imperatives of Semiconductor Fab Envelopes

In the realm of commercial building envelope engineering, few environments demand the precision and rigor of a semiconductor cleanroom fabrication plant. These facilities are not merely buildings; they are highly controlled instruments of industrial chemistry and physics. The roof system serves as the primary defense against atmospheric contaminants and moisture infiltration, which could lead to catastrophic failure of multi-billion dollar lithography equipment. For these assets, we specify a multi-ply SBS (Styrene-Butadiene-Styrene) modified bitumen system. Unlike standard asphalt, SBS is a thermoplastic elastomer that provides superior flexibility across extreme temperature swings, ensuring the membrane does not crack under the thermal cycling common to high-output industrial HVAC exhaust systems.

The engineering objective is the creation of a monolithic, redundant barrier. In a semiconductor fab, the "envelope" must be viewed as a holistic system where the roof, wall flashing, and vapor retarders work in concert to maintain a pressurized internal environment. Any breach in the membrane is not just a leak; it is a potential point of entry for particulate matter and humidity that can compromise the ISO class cleanliness of the fab. Our audit focuses on the synergy between the modified bitumen's elasticity and the structural substrate's movement.

• SBS Modification: Enhances the bitumen's ability to recover from deformation, reducing the risk of fatigue cracking.
• Redundancy: Multi-ply application ensures that a single puncture does not result in a systemic failure.
• Thermal Stability: Resistance to high-heat zones created by massive cleanroom air handling units (AHUs).
• Atmospheric Seal: Prevention of uncontrolled air infiltration that could disrupt cleanroom pressure differentials.

Cold-Applied Adhesive Shear Resistance and Mechanical Bonding

Traditional hot-mop applications, while effective, introduce excessive heat and fumes into the environment, which can be problematic during phased renovations of active fabs. Therefore, we utilize high-performance cold-applied adhesives. The engineering challenge here is shear resistance. Shear occurs when the roof membrane and the substrate move at different rates due to thermal expansion and contraction. If the adhesive lacks sufficient shear modulus, the bond will fail, leading to delamination or "tenting" of the membrane.

To ensure a permanent bond, the substrate must be meticulously prepared to remove all contaminants, ensuring the adhesive can achieve a molecular-level bond with the decking. We analyze the shear resistance by examining the adhesive's ability to distribute stress across the entire surface area rather than concentrating it at the edges of the sheets. This is critical in semiconductor plants where heavy rooftop equipment creates localized points of high stress. The adhesive must act as a flexible bridge, absorbing the movement of the building's steel frame while maintaining a watertight seal.

• Substrate Preparation: Mechanical cleaning and priming to ensure maximum surface energy for adhesive wetting.
• Shear Stress Distribution: Utilizing adhesives with a balanced modulus to prevent localized bond failure.
• ASTM Standards: Adherence to ASTM D1874 for evaluating the shear strength of adhesives.
• Bond Integrity: Regular pull-tests to verify that the bond strength exceeds the tensile strength of the membrane itself.

Precision Installation: Staggered Side Laps and Granule Integrity

The most common point of failure in any modified bitumen system is the seam. In a high-stakes environment like a semiconductor fab, "stacking" seams—where the laps of the top ply align perfectly with the laps of the base ply—is an unacceptable engineering oversight. We mandate a staggered side lap configuration. By offsetting the seams by at least 24 inches, we eliminate a continuous linear path for moisture penetration. This geometry ensures that any potential failure point is isolated, forcing water to travel a significantly longer and more difficult path to enter the building.

Furthermore, the cap sheet's granule surface is not merely aesthetic; it is a critical component of the UV protection system. Bitumen is naturally susceptible to photo-oxidation from ultraviolet radiation. The granules act as a sacrificial shield, reflecting solar energy and protecting the modified bitumen from becoming brittle. Our audit examines the granule embedment depth and coverage density. Inadequate granule distribution leads to "bald spots," which accelerate the degradation of the SBS polymer and can lead to premature membrane failure under the intense sun.

• Staggered Lapping: Offsetting seams to prevent "linear leak paths" and increase the overall integrity of the water-shedding plane.
• UV Shielding: Using high-density granules to lower the surface temperature and prevent bitumen oxidation.
• Seam Compression: Utilizing calibrated rollers to ensure the cold-applied adhesive is fully compressed and void-free.
• Edge Detailing: Ensuring that all perimeter flashings are mechanically fastened and sealed to prevent wind-uplift at the roof edges.

Internal Vapor Drive Regulation and Hygrothermal Analysis

One of the most complex aspects of a semiconductor fab is the internal vapor drive. Because these facilities maintain strict humidity and temperature controls, there is often a significant vapor pressure differential between the interior of the building and the exterior atmosphere. This creates a "drive" where water vapor attempts to migrate through the roof assembly. If a vapor retarder is incorrectly placed or breached, this moisture can condense within the insulation layer—a phenomenon known as interstitial condensation.

Our engineering approach involves a comprehensive hygrothermal analysis to determine the optimal placement of the vapor barrier. In most fab scenarios, the vapor barrier must be installed on the "warm side" of the insulation to prevent moisture from reaching the dew point inside the roof assembly. If moisture accumulates in the insulation, the R-value drops significantly, and the structural integrity of the roof deck may be compromised by corrosion. We regulate this drive by ensuring a continuous, airtight vapor seal that is integrated seamlessly with the SBS cap sheet and the wall transitions.

• Vapor Pressure Differential: Managing the movement of moisture from high-pressure interior zones to low-pressure exterior zones.
• Dew Point Calculation: Determining the exact temperature and location where vapor turns to liquid within the envelope.
• Interstitial Condensation: Preventing the buildup of liquid water within the polyisocyanurate or mineral wool insulation.
• Air-Tightness Testing: Utilizing smoke testing or thermography to identify leaks in the vapor barrier before the final cap sheet is applied.

Structural Analysis of 20-Gauge Kynar 500 Substrates in High-Vibration Environments

In the context of an intermodal cargo freight terminal, the building envelope is subjected to extreme mechanical stresses that far exceed standard commercial warehouse conditions. The constant movement of heavy-duty cranes, reach stackers, and high-volume truck traffic creates a persistent state of low-frequency vibration throughout the structural steel frame. This vibration translates directly to the parapet walls, where traditional 24-gauge coping can suffer from fastener fatigue and structural oscillation. For this reason, our engineering audit specifies a heavy-gauge 20-gauge steel substrate, providing the necessary torsional rigidity to resist deformation and maintain the integrity of the building's crown.

The selection of Kynar 500, a polyvinylidene fluoride (PVDF) resin, is not merely an aesthetic choice but a critical requirement for chemical and environmental resilience. Freight terminals are often exposed to high concentrations of diesel exhaust, industrial pollutants, and abrasive airborne particulates. The high-performance fluoropolymer coating ensures a superior bond to the 20-gauge steel, preventing the oxidative creep that typically occurs at the cut edges of the metal. This coating system provides a high-gloss, weather-resistant finish that maintains its structural color and protective properties under intense UV exposure, reducing the long-term lifecycle cost of the envelope.

• Enhanced gauge thickness reduces the risk of "oil canning" or surface waving under thermal load.
• Kynar 500 coating provides a superior resistance to atmospheric pollutants and chemical runoff.
• Increased mass of 20-gauge steel dampens harmonic vibrations caused by heavy machinery.
• High-tensile strength of the substrate prevents denting from wind-borne debris common in open freight yards.

Wind Uplift Engineering and ANSI/SPRI ES-1 Compliance

The parapet edge of a massive freight terminal acts as a primary wind-catchment area, creating a high-pressure zone that generates significant uplift forces. To mitigate the risk of catastrophic failure, our design adheres strictly to ANSI/SPRI ES-1 standards, which govern the wind resistance of metal roofing and flashing. The primary challenge in these environments is "perimeter peel," where wind pressure forces the leading edge of the coping cap upward, creating a vacuum that can strip the metal from the wall. By utilizing a continuous cleat locking system, we distribute the wind load across the entire length of the parapet rather than relying on isolated point-fasteners.

The continuous cleat engagement creates a mechanical interlock that transforms the coping cap into a singular, rigid beam. This configuration ensures that the wind uplift force is transferred directly into the masonry or steel backup wall, effectively neutralizing the leverage that wind exerts on the metal's edge. Our audit confirms that the calculated wind-uplift pressure for the terminal's specific geographic zone is well within the safety margins of the 20-gauge continuous cleat assembly, providing a factor of safety that exceeds minimum building codes.

• Implementation of continuous cleats eliminates the "weak link" associated with traditional screw-and-washer spacing.
• ANSI/SPRI ES-1 compliance ensures the assembly can withstand peak gust pressures without permanent deformation.
• The locking mechanism prevents the "flutter" effect, which typically leads to premature fastener shear.
• Load distribution is optimized to prevent localized stress concentrations on the parapet wall cap.

Thermal Kinematics and Expansion Management

One of the most overlooked aspects of commercial building envelope engineering is the coefficient of thermal expansion. In a large-scale intermodal terminal, parapet runs can extend for hundreds of linear feet. Because 20-gauge steel expands and contracts at a different rate than the underlying concrete or masonry, the coping cap is subject to significant longitudinal stress. Without proper management, this thermal movement results in the buckling of the metal or the shearing of the fasteners. To solve this, we employ precision-engineered thermal expansion splice plates.

These splice plates are designed to allow for controlled movement while maintaining a watertight seal. Rather than creating a rigid, continuous run, the coping is installed in calculated segments with overlapping joints that are secured via a floating attachment method. This allows the metal to "breathe" during extreme temperature swings—from freezing winter nights to the intense heat of a summer afternoon—without compromising the structural alignment of the cap. The use of heavy-gauge steel is critical here, as the 20-gauge thickness provides the structural memory required to return to its original position after a thermal cycle.

• Thermal splice plates prevent the accumulation of longitudinal stress across long parapet runs.
• Floating fasteners allow for linear expansion and contraction without distorting the metal profile.
• Precision overlaps ensure that water cannot penetrate the joints during thermal contraction.
• The thickness of the 20-gauge steel prevents the "bowing" effect common in thinner materials during heat spikes.

Perimeter Peel Mitigation and Envelope Integrity

The final line of defense in a building envelope is the transition between the roof membrane and the coping cap. In freight terminals, the "perimeter peel" phenomenon is often exacerbated by the turbulence created by high-profile vehicles moving adjacent to the building. If the coping cap is not properly integrated, wind can get under the metal, lifting it and allowing driving rain to penetrate the wall assembly. Our approach utilizes a comprehensive perimeter seal that integrates the Kynar 500 cap with a high-performance flashing system, ensuring a redundant barrier against moisture infiltration.

The continuous cleat locking system is the primary mechanism for peel mitigation, as it physically prevents the metal from lifting. However, we augment this with a heavy-duty sealant application at the critical junctions. By ensuring that the 20-gauge metal is mechanically locked and chemically sealed, we eliminate the possibility of hydrostatic pressure forcing water behind the coping. This holistic approach to the building envelope ensures that the interior of the terminal remains dry, protecting expensive cargo and sensitive logistics equipment from water damage.

• Continuous cleat engagement provides a mechanical lock that resists wind-driven uplift.
• Integrated flashing ensures a seamless transition from the roof membrane to the parapet cap.
• Redundant sealing at the joints prevents capillary action from drawing water into the wall cavity.
• The heavy-gauge profile maintains a tight seal against the substrate, reducing the gap where wind can enter.
