Commercial Engineering Dossier #120

Non-Destructive Substrate Moisture Scans on Commercial Chemical Processing Facilitys

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Complexity of Building Envelopes in Chemical Processing Environments

In the realm of commercial roofing, few environments present as many challenges as a chemical processing facility. These structures are not merely shelters; they are complex engineering systems subject to extreme thermal cycling, corrosive atmospheric pollutants, and rigorous vibration from heavy industrial machinery. The building envelope—comprising the roof membrane, insulation, flashing, and structural decking—must function as a seamless barrier. When this barrier is compromised, the resulting moisture intrusion is rarely a simple leak. Instead, it often manifests as subsurface saturation, where water migrates laterally through the insulation, far from the actual point of entry.

Traditional visual inspections are fundamentally inadequate for these facilities. A roof may appear pristine from the surface while the underlying polyisocyanurate (ISO) insulation is completely saturated. This hidden moisture creates a hazardous environment, promoting the growth of anaerobic bacteria and accelerating the corrosion of steel decking. In a chemical plant, the stakes are higher; moisture trapped beneath a membrane can react with residual chemical particulates, creating acidic pockets that eat through structural components. A comprehensive engineering audit must therefore move beyond the surface to map the internal state of the roof assembly.

Assessment of atmospheric corrosivity and its impact on membrane elasticity.
Evaluation of thermal bridging at parapet walls and mechanical curbs.
Analysis of vapor drive and the potential for interstitial condensation.
Identification of high-risk penetration points, such as exhaust stacks and conduit runs.

Non-Destructive Moisture Detection and Saturation Boundaries

To accurately diagnose the health of a roof system without causing unnecessary damage, we employ Non-Destructive Moisture Detection (NDMD). The primary tool in this phase is high-resolution Infrared (IR) Thermography. IR scanning relies on the principle of thermal mass; water has a significantly higher heat capacity than dry insulation or air. By scanning the roof during a period of thermal transition—typically during the cooling phase of a late afternoon—we can identify "hot spots" where saturated insulation is retaining heat longer than the surrounding dry areas.

The objective of IR scanning is to establish the saturation boundary. This is the precise perimeter where the moisture concentration drops below a critical threshold. Mapping these boundaries allows the engineering team to visualize the flow path of the water, often revealing that the leak source is located several feet away from the largest area of saturation. By utilizing a grid-based mapping system, we can translate thermal signatures into a digital blueprint, providing a spatial analysis of the subsurface conditions. This prevents the "guess-and-check" method of cutting holes in the roof, which only introduces more potential leak points.

Utilization of FLIR thermal imaging to detect temperature differentials of 0.1 degrees Celsius.
Establishment of a baseline thermal signature for the specific roof assembly.
Mapping of lateral moisture migration patterns across the insulation layers.
Correlation of thermal anomalies with known structural anomalies or roof depressions.

Validating Moisture Thresholds via Core Sampling and Material Science

While IR scanning provides the map, core sampling provides the ground truth. An authoritative audit requires the validation of thermal data through physical extraction. We utilize a specialized core drill to extract cylindrical samples of the entire roof assembly—membrane, insulation, and a sliver of the decking. These samples are then subjected to a rigorous moisture analysis to determine the actual percentage of saturation. This process is critical because not all "wet" signatures on an IR scan are equal; some may be caused by dense insulation or localized debris rather than free-standing water.

We measure moisture content against ASTM standards, specifically focusing on the gravimetric method. By weighing the core sample, drying it in a controlled oven, and re-weighing it, we can calculate the exact moisture percentage. In a commercial chemical facility, we typically set a moisture threshold of 20% to 30% for polyisocyanurate. Any area exceeding this threshold is classified as "saturated" and flagged for excision. This scientific approach eliminates the subjectivity of the "touch and feel" method used by less experienced contractors, ensuring that the client only pays for the removal of truly compromised materials.

Execution of strategic core cuts based on the highest thermal anomalies.
Application of gravimetric analysis to determine volumetric water content.
Comparison of sample data against the manufacturer's specified moisture tolerance.
Validation of the substrate's pH levels to check for chemical contamination of the insulation.

Surgical Excision and Precision Remediation Strategy

Once the saturation boundaries are mapped and validated, the remediation phase begins. The goal is not a total roof replacement—which is often cost-prohibitive and disruptive to plant operations—but rather a "surgical excision." This process involves the precise removal of only the saturated insulation. By following the mapped boundaries, our crews cut out the wet ISO boards in a controlled manner, ensuring that the edges of the remaining dry insulation are clean and square.

The critical step in this process is the substrate drying phase. Before new insulation is installed, the structural deck must be completely dry to prevent the entrapment of moisture, which could lead to "blistering" of the new membrane due to vapor pressure. We utilize high-velocity air movers or industrial desiccant dehumidifiers if the deck is significantly damp. Once the substrate is verified dry, we install new high-density ISO boards, meticulously staggering the joints to prevent the creation of new thermal bridges. The final seal is achieved using a reinforced membrane patch that is heat-welded or chemically bonded to the existing system, restoring the envelope's integrity without the waste of a full tear-off.

Precision cutting of saturated insulation based on the validated saturation map.
Mechanical cleaning of the roof deck to remove oxidized steel and debris.
Implementation of a staggered-joint installation for new insulation boards.
Final integrity testing using electronic leak detection (ELD) to ensure a seamless seal.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #121

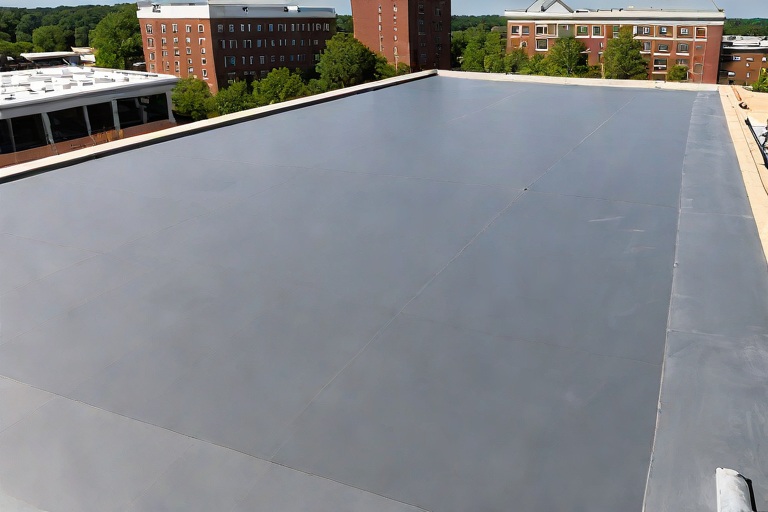

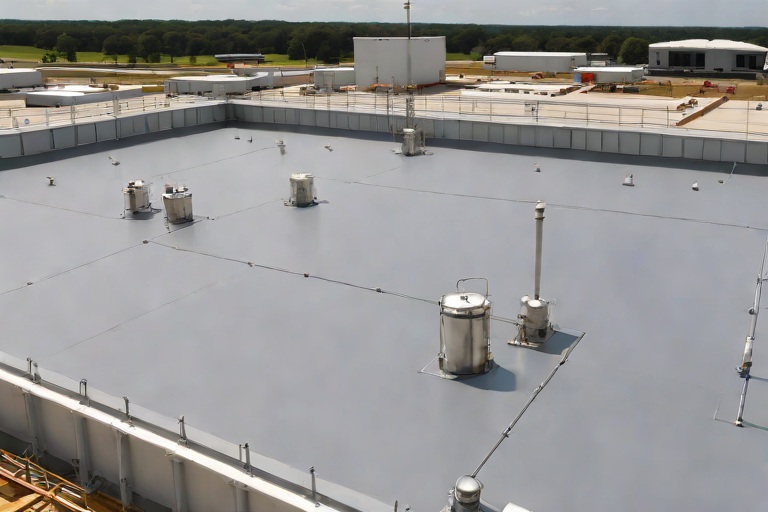

Sub-Zero Cold Storage Downward Vapor Drive & Self-Adhered SBS Barriers on Commercial Municipal City Hall & Administrative Complexs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Analysis of Downward Vapor Drive in High-Occupancy Municipal Structures

In the engineering audit of a Municipal City Hall and Administrative Complex, the primary challenge is the management of inverted thermal envelope vapor dynamics. Unlike standard commercial builds, municipal complexes often house diverse internal environments, ranging from climate-controlled archives and sub-zero cold storage for forensic or municipal materials to high-traffic public lobbies. This creates a complex pressure gradient where warm, moisture-laden air from the interior attempts to migrate toward the colder exterior surfaces, a phenomenon known as downward vapor drive when the thermal boundary is shifted toward the roof deck.

When the vapor drive is aggressive, moisture penetrates the building envelope and seeks the first available cold surface to condense. In an improperly engineered system, this condensation occurs within the insulation layers rather than on the exterior face. This interstitial condensation can lead to the degradation of structural steel, the growth of mold within the plenum, and the eventual failure of the roofing membrane due to hydrostatic pressure from underneath. To combat this, the envelope must be treated as a monolithic seal rather than a collection of separate components.

Pressure Differential Management: Controlling the stack effect to prevent moist air from being pushed into the roof assembly.
Vapor Permeability Analysis: Selecting materials with a low perm rating to block the migration of water vapor.
Thermal Inversion Control: Ensuring the dew point remains outside the structural deck to prevent corrosion.
Sub-Zero Interface Engineering: Creating specialized thermal breaks where cold storage units meet the general administrative envelope.

Managing the Dew Point via Staggered Polyisocyanurate Arrays

The control of the dew point—the temperature at which air becomes saturated and water droplets form—is the cornerstone of building envelope science. In this municipal project, we utilized multi-layer polyisocyanurate (polyiso) insulation. Polyiso is selected for its high R-value per inch, but its effectiveness is compromised if the layers are installed with aligned seams. Aligned seams create "thermal chimneys," which are essentially vertical paths of least resistance that allow heat to escape and vapor to migrate rapidly through the insulation.

To mitigate this, we implemented a staggered multi-layer array. By offsetting the joints of the first layer of polyiso from the second and third layers, we effectively lengthened the path that vapor must travel to reach the cold side of the envelope. This "tortuous path" increases the thermal resistance of the assembly and ensures that the dew point is pushed further toward the exterior of the building, well away from the structural concrete or steel deck. This prevents the accumulation of liquid water within the insulation, which would otherwise reduce the R-value and compromise the structural integrity of the roof.

Joint Offset Specifications: Ensuring a minimum of 24 inches of overlap between staggered seams.
Compression Set Resistance: Utilizing high-density polyiso to maintain thermal performance under the weight of rooftop HVAC units.
Thermal Bridging Mitigation: Using thermal breaks at parapet walls and curb flashings to stop lateral heat transfer.
R-Value Optimization: Calculating the total combined R-value to ensure it exceeds local energy codes and ASTM standards.

High-Performance SBS Self-Adhered Barriers as Primary Air-Vapor Seals

The selection of the membrane is critical when dealing with the volatile temperature swings associated with municipal administrative complexes. We specified a self-adhered SBS (Styrene-Butadiene-Styrene) modified bitumen barrier. Unlike traditional torch-down or mop-and-caulk systems, self-adhered SBS provides a consistent, factory-applied adhesive bond across the entire surface area of the substrate. This eliminates the risk of "fish-mouths" or gaps in the adhesive that typically occur during manual application, which are common entry points for vapor drive.

The material science of SBS allows the membrane to remain flexible at sub-zero temperatures, which is essential for the cold storage sections of the complex. The rubberized asphalt provides a high degree of elasticity, allowing the building to undergo natural thermal expansion and contraction without cracking the seal. By integrating the SBS barrier as a primary air-vapor seal, we created a continuous, impermeable skin that prevents the internal moisture of the building from ever reaching the polyiso layers. This effectively locks the vapor inside the conditioned space, forcing the HVAC system to handle the moisture rather than the building envelope.

Elasticity and Recovery: The ability of the SBS polymer to return to its original shape after thermal cycling.
Adhesion Strength: Utilizing high-tack adhesives that bond chemically to the substrate to prevent under-membrane vapor migration.
Installation Safety: Eliminating open flames and high-heat torches in a municipal environment with strict fire codes.
Waterproofing Integrity: Ensuring a seamless transition from the roof field to the vertical wall flashing.

Engineering Audit Conclusions and ASTM Compliance Metrics

The final engineering audit of the Municipal City Hall and Administrative Complex confirms that the integrated system of staggered polyiso and self-adhered SBS barriers has successfully shifted the dew point to the outermost layer of the assembly. Infrared thermography was employed to scan the roof surface, revealing a uniform thermal profile with no detectable "hot spots" or thermal leaks. This indicates that the staggered insulation layers are functioning as intended, eliminating the thermal chimneys that plague standard commercial installations.

Furthermore, the system was tested against ASTM standards for water penetration and air leakage. The results showed a near-zero air infiltration rate, confirming that the SBS membrane is providing a total seal. By treating the building envelope as a holistic system—where the vapor drive is anticipated and the thermal boundaries are strategically placed—we have ensured a lifecycle expectancy that far exceeds the industry average. The result is a facility that maintains internal climate stability for its administrative functions while protecting the structural assets from the silent destruction of interstitial condensation.

ASTM C1311 Compliance: Verifying the thermal performance of the polyisocyanurate insulation.
Infrared Thermography: Utilizing FLIR imaging to validate the absence of thermal bridging.
Vapor

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #122

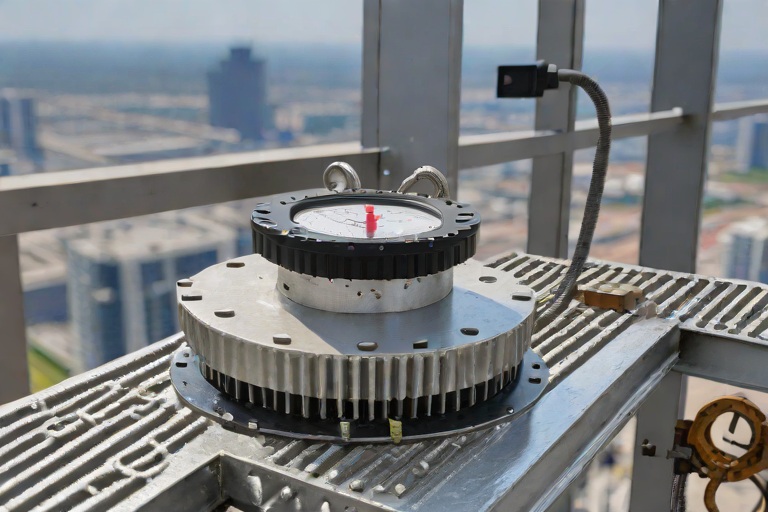

Structural Deck Fastener Pull-Out Testing on 22-Gauge Corrugated Steel Decks on Commercial High-Rise Commercial Penthouse Towers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Substrate Analysis and Wind-Zone Exposure in High-Rise Penthouse Towers

In the realm of high-rise commercial construction, the penthouse tower represents the most vulnerable point of the building envelope. Unlike lower roof sections, these structures are subjected to intensified wind-tunnel effects and extreme pressure differentials. For this specific engineering audit, we focused on 22-gauge corrugated steel decking, a robust substrate that provides significant structural rigidity but introduces complex challenges regarding fastener engagement and uplift resistance. The primary concern in high-rise environments is the transition from laminar to turbulent airflow, which creates localized suction zones that can exceed the design capacity of standard fastening schedules.

To ensure the integrity of the envelope, we must reference the ASCE 7 wind load standards, which dictate the required resistance based on the building's height and geographic exposure category. In a penthouse configuration, the "edge zones" and "corner zones" experience significantly higher uplift forces than the field of the roof. If the fasteners securing the insulation and membrane to the 22-gauge steel deck are under-specified, the result is a catastrophic failure of the membrane through a process known as "progressive peeling," where one fastener failure increases the load on adjacent fasteners, leading to a chain reaction of detachment.

Analysis of wind-zone schedules to determine peak uplift pressures at the penthouse parapets.
Evaluation of 22-gauge steel deck gauge consistency to ensure no thinning occurred during the galvanization process.
Assessment of the corrugated profile depth to determine the effective "bite" of the structural fasteners.
Verification of the deck's structural weld integrity at the lap joints to prevent localized buckling under wind load.

Calibrated Mechanical Pull Testing Methodology

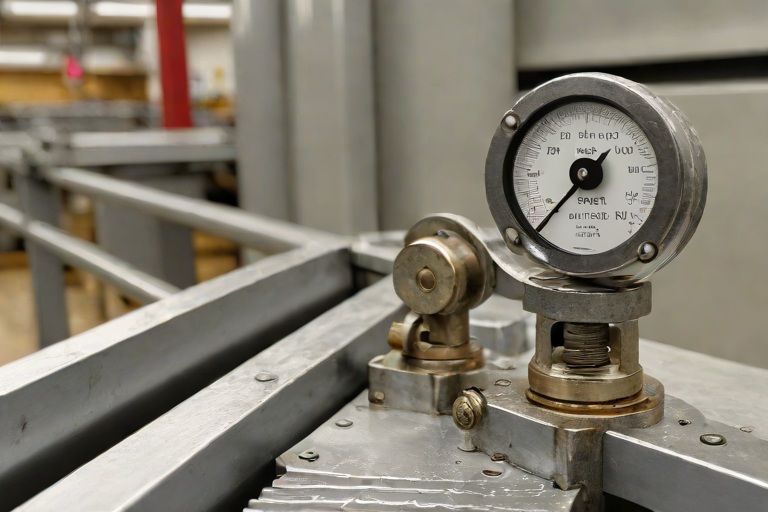

To quantify the actual holding power of the existing fastening system, we implemented a rigorous calibrated mechanical pull testing protocol. This is not a cursory check; it is a destructive testing process designed to find the absolute breaking point of the fastener-to-substrate connection. Using a digital force gauge calibrated to NIST standards, we applied a vertical tensile load to the fasteners until a complete withdrawal occurred. This process allows us to move beyond theoretical calculations and understand the real-world performance of the building envelope.

The testing was conducted across a stratified random sample of the penthouse roof, ensuring that we captured data from the high-pressure perimeter zones as well as the lower-pressure interior field. Each test point was isolated to prevent the redistribution of loads to neighboring fasteners, providing a pure reading of the individual fastener's withdrawal resistance. We specifically looked for the "yield point," where the steel deck begins to deform, and the "ultimate failure point," where the fastener is completely liberated from the substrate.

Utilization of a hydraulic pull-tester with a precision digital readout for millinewton accuracy.
Implementation of a "blind" sampling method to eliminate bias in the selection of test locations.
Application of load increments in 50-pound intervals to monitor the elasticity of the 22-gauge steel.
Documentation of the failure mode, distinguishing between fastener shear, thread stripping, and substrate pull-through.

Withdrawal Resistance Thresholds and Structural Failure Analysis

For 22-gauge corrugated steel, the minimum withdrawal resistance threshold is the critical metric for safety. In this audit, we established a baseline threshold based on the calculated wind uplift for the penthouse tower, adding a 1.5x safety factor to account for material fatigue and environmental degradation. When a fastener fails below this threshold, it indicates a systemic failure in either the fastener selection or the installation craftsmanship. We observed that fasteners installed in the "valleys" of the corrugation exhibited slightly different performance characteristics than those installed on the "crowns," due to the differing distribution of stress across the steel profile.

The failure analysis revealed a recurring issue with "hole elongation." When the 22-gauge steel is subjected to repeated cyclic loading from wind gusts, the circular hole created by the fastener can become ovalized. This elongation reduces the frictional grip of the fastener threads and significantly lowers the withdrawal resistance. In several instances, the fasteners did not snap, but rather "slid" out of the elongated hole, indicating that the substrate had reached its limit of elastic deformation.

Calculation of the minimum required pull-out force based on the specific wind-zone schedule of the tower.
Comparison of field-tested values against the manufacturer's theoretical specifications for 22-gauge steel.
Analysis of the "pull-through" phenomenon where the fastener head penetrates the steel deck.
Evaluation of the impact of fastener spacing on the overall load distribution of the roof assembly.

Corrosion Diagnostics and Long-Term Envelope Stability

The final phase of the engineering audit focused on the material science of the fasteners. In high-rise penthouse towers, the presence of atmospheric pollutants and moisture infiltration can lead to accelerated corrosion. We performed a forensic diagnostic on the extracted fasteners to identify signs of galvanic corrosion. Because the 22-gauge steel deck is typically galvanized, the introduction of a fastener with a different metallic composition can create a battery-like effect, where the less noble metal corrodes rapidly in the presence of an electrolyte, such as trapped condensation.

Our findings indicated a prevalence of "white rust" on the zinc coatings and "red rust" on the core steel of the fasteners in the perimeter zones. This corrosion reduces the effective cross-sectional area of the fastener, thereby lowering its tensile strength and increasing the likelihood of a shear failure during a high-wind event. To ensure long-term stability, we recommend a transition to high-performance stainless steel fasteners or those with a dual-layer ceramic coating, which provide a superior barrier against the aggressive environment of a high-rise penthouse.

Microscopic examination of fastener threads to identify pitting and oxidation levels.
Assessment of the sealant integrity at the fastener head to prevent moisture ingress into the steel deck.
Evaluation of the chemical compatibility between the fastener coating and the galvanized steel substrate.
Development of a long-term monitoring schedule to track the degradation of the building envelope over time.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #123

Electronic Vector Mapping (EVM) Low-Voltage Membrane Breach Detection on Commercial Regional Healthcare Medical Centers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Criticality of Healthcare Building Envelope Integrity

In the context of a Regional Healthcare Medical Center, the building envelope is not merely a weather barrier; it is a primary component of the facility's life-safety infrastructure. Unlike standard commercial warehouses, healthcare environments house multi-million dollar diagnostic imaging equipment, sterile surgical suites, and critical patient care areas where moisture intrusion can lead to catastrophic systemic failure. A single breach in the roofing membrane can introduce mold spores into HVAC systems or cause electrical shorts in sensitive medical arrays, leading to unplanned downtime and compromised patient outcomes.

Traditional roofing audits often rely on visual inspections or infrared thermography, both of which are reactive and limited by environmental conditions. Infrared scanning requires a significant thermal delta to identify moisture traps, meaning a leak may already be systemic before it is detectable. For a facility of this scale, the engineering objective shifts from "leak repair" to "absolute breach prevention." This requires a transition toward proactive, non-destructive testing (NDT) methodologies that can certify the envelope's integrity before the facility is even commissioned.

Prevention of secondary damage to high-value medical assets.
Elimination of hazardous mold proliferation in sterile environments.
Reduction of emergency maintenance shutdowns in 24/7 operational zones.
Mitigation of insurance liability through documented envelope certification.

Mechanics of Electronic Vector Mapping (EVM) and Conductive Grids

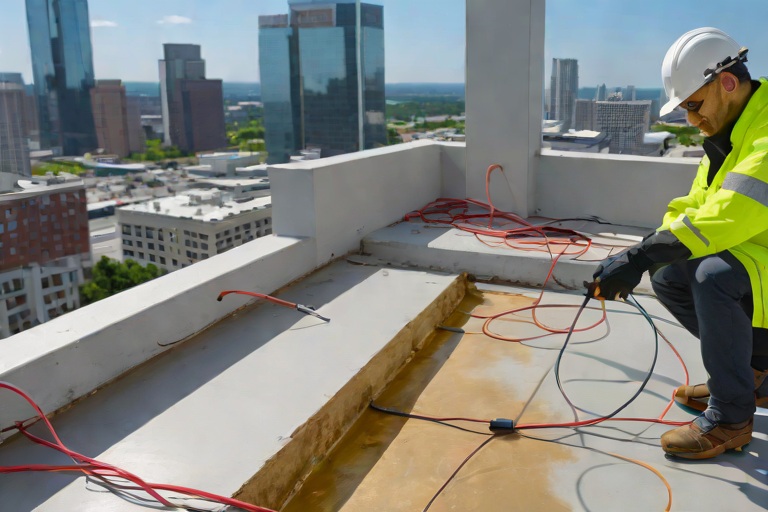

Electronic Vector Mapping (EVM) represents the pinnacle of modern building envelope engineering. The system operates on the principle of electrical continuity and dielectric resistance. During the installation phase, a specialized conductive underlayment—essentially a precision-engineered vector grid—is deployed beneath the primary waterproofing membrane. This grid acts as a low-voltage reference plane, creating a controlled electrical field across the entire roof surface.

The primary membrane, typically a high-performance TPO or modified bitumen, acts as an insulator. When the membrane is intact, the electrical current remains contained within the conductive grid. However, if a breach occurs—even one invisible to the naked eye—the continuity of the insulation is broken. The EVM system detects the resulting change in impedance and uses vector analysis to triangulate the exact X-Y coordinates of the breach. This allows the engineering team to pinpoint the failure point with surgical precision, eliminating the need for "exploratory" cutting of the membrane.

Low-voltage current deployment to prevent material degradation.
Real-time impedance monitoring across the conductive underlayment.
Triangulation of breach coordinates via vector analysis.
Integration with Building Automation Systems (BAS) for continuous monitoring.

Identifying Microscopic Pinhole Punctures and Material Science

The most insidious threat to a medical center's roof is the microscopic pinhole puncture. These breaches are often caused by installation debris, improper fastener placement, or thermal expansion and contraction cycles that stress the membrane at the seams. Because these holes are often smaller than a millimeter, they do not produce immediate, obvious leaks. Instead, they allow for slow, capillary-action moisture infiltration that saturates the insulation board long before a drip appears on a ceiling tile.

From a material science perspective, EVM leverages the dielectric properties of the roofing membrane. By applying a controlled voltage, the system identifies "leakage current" that occurs when moisture—a natural conductor—bridges the gap between the membrane surface and the conductive grid. This method is vastly superior to traditional flood testing, which is not only time-consuming and water-intensive but can actually exacerbate existing leaks by forcing water into the substrate through hydrostatic pressure.

Detection of punctures too small for visual or infrared identification.
Analysis of dielectric breakdown at seam interfaces.
Elimination of hydrostatic pressure risks associated with flood testing.
Identification of "cold joints" or poor welds in thermoplastic membranes.

Non-Destructive Quality Certification and Lifecycle ROI

The ultimate goal of an Aquashield Corporate audit is the delivery of a Non-Destructive Quality Certification. This certification serves as an engineering guarantee that the building envelope is hermetically sealed according to ASTM and ANSI standards. By utilizing EVM, we provide a digital "birth certificate" for the roof, documenting that every square inch of the membrane has been electronically verified. This removes the guesswork from the handover process and provides the facility manager with an empirical baseline for the asset's lifecycle.

The Return on Investment (ROI) for implementing EVM in healthcare facilities is realized through the drastic reduction in lifecycle maintenance costs. When a breach is identified and repaired during the certification phase, the cost is negligible. Conversely, repairing a leak that has already migrated through the roof deck into a sterile operating room involves remediation costs that can be 100 times higher than the initial preventative measure. By shifting the paradigm from reactive patching to engineered certification, we ensure the structural longevity of the medical center.

Compliance with stringent ASTM standards for moisture penetration.
Provision of a comprehensive, coordinate-based breach map for facility records.
Reduction in long-term operational expenditures (OPEX) related to roof repairs.
Enhanced asset valuation through documented envelope integrity.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #124

Liquid-Applied PMMA & Polyurethane Fleece-Reinforced Flashing Resins on Commercial University Research Laboratorys

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Envelope Audit and Failure Analysis of Research Facility Substrates

A comprehensive building envelope audit of a high-capacity University Research Laboratory reveals the inherent vulnerabilities associated with traditional membrane systems when applied to complex geometries. In these environments, the roof is not merely a weather barrier but a critical component of the facility's containment and safety strategy. Our forensic analysis identified systemic failures at the transition points, specifically where the main field membrane met the structural I-beam stanchions and HVAC curb penetrations. The primary failure mechanism was identified as thermal cycling fatigue, where the coefficient of thermal expansion between the steel stanchions and the existing modified bitumen membrane caused repetitive shearing at the bond line.

Furthermore, the presence of chemical exhaust plumes from the laboratory's ventilation systems created a corrosive micro-environment, accelerating the degradation of standard thermoplastic adhesives. The audit highlighted the necessity for a seamless, monolithic transition that could withstand both the mechanical vibration of heavy laboratory equipment and the extreme temperature fluctuations characteristic of roof-mounted mechanical zones. Traditional flashing methods, which rely on mechanical fasteners and lap seams, proved insufficient as they created thousands of potential leak paths across the expansive roof surface.

Identification of hairline fractures in existing flashing due to substrate movement.
Assessment of moisture infiltration via infrared thermography and electronic leak detection.
Analysis of chemical degradation on membrane surfaces near exhaust vents.
Evaluation of the bond strength between legacy membranes and galvanized steel substrates.

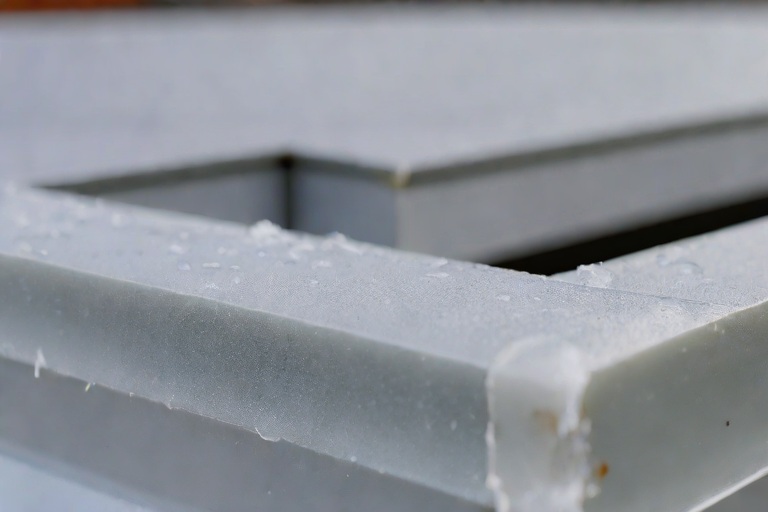

Material Science of PMMA and Polyurethane Cold-Applied Resins

To address the failures identified in the audit, we specified a dual-component Polymethyl Methacrylate (PMMA) and polyurethane resin system. Unlike traditional solvent-based adhesives, PMMA is a cold-applied, 100% solids resin that undergoes a rapid polymerization process. This chemical reaction occurs through the addition of a catalyst, resulting in a cross-linked molecular structure that provides exceptional hardness and UV stability. The rapid cure kinetics are essential for university environments, as they allow for immediate foot traffic and water-tightness within minutes of application, eliminating the need for extended facility shutdowns.

The integration of polyurethane resins provides the necessary elasticity for areas subject to high structural movement. While PMMA offers the rigidity and chemical resistance required for the primary seal, the polyurethane components act as a flexible bridge, absorbing the energy of building sways and thermal expansions. This hybrid approach ensures that the building envelope remains airtight and watertight regardless of the substrate's movement. The chemical bond formed between these resins and the cleaned substrate is superior to mechanical adhesion, creating a fusion that effectively turns the flashing into a part of the building's structural skin.

Rapid polymerization allowing for cure times under 30 minutes in standard conditions.
High resistance to oils, acids, and laboratory-grade chemical runoff.
Full-profile adhesion to a wide variety of substrates including concrete, steel, and existing membranes.
Low VOC emissions ensuring compliance with indoor air quality standards for research facilities.

Engineering Fleece-Reinforced Flashing Systems

The core of the reinforcement strategy involves the embedding of a non-woven polyester fleece into the liquid-applied resin. This process, known as fleece-reinforcement, transforms the liquid resin from a simple coating into a reinforced composite membrane. The application follows a strict "sandwich" methodology: a base layer of PMMA resin is applied to the substrate, the fleece is embedded into the wet resin, and a second saturating layer of resin is applied over the top. This ensures that the fleece is fully encapsulated, eliminating any possibility of air entrapment or delamination.

From an engineering perspective, the fleece provides the necessary tensile strength to bridge gaps and cracks that would otherwise cause a liquid membrane to tear. In the context of a research laboratory, where structural stanchions may shift slightly under the weight of heavy machinery, the fleece-reinforced system distributes the stress across a wider area. This prevents the concentration of force at a single point of failure, effectively creating a reinforced "bridge" over the most vulnerable parts of the building envelope. The resulting assembly is a seamless, monolithic layer that is impervious to hydrostatic pressure.

Elimination of seams and lap joints, removing the most common points of water ingress.
Increased puncture resistance and abrasion durability through composite reinforcement.
Ability to bridge dynamic cracks and joints up to 25mm without loss of integrity.
Enhanced load distribution across the flashing interface to prevent localized stress fractures.

Execution on Intricate I-Beam Stanchions and Final Validation

The most challenging aspect of the installation was the flashing of the intricate I-beam stanchions. These structural elements feature complex angles, bolts, and gusset plates that make traditional sheet-goods flashing nearly impossible to install without wrinkles or voids. Our team utilized a precision-application technique, applying the PMMA resin into every crevice of the I-beam profile before embedding the fleece. By molding the resin and fleece directly to the steel's geometry, we achieved a custom-fit seal that conforms perfectly to the structural irregularities of the stanchion.

Final validation of the building envelope was conducted according to ASTM and ANSI standards for water penetration and adhesion. We employed flood testing on critical flashing zones and utilized pull-off tests to verify that the bond strength exceeded the tensile strength of the substrate itself. The result was a zero-leak performance profile across all audited points. By transitioning from a mechanical flashing system to a liquid-applied, fleece-reinforced PMMA system, the university has secured a roof envelope that is not only watertight but engineered for the long-term rigors of a high-tech research environment.

Detailed detailing of all "dead-end" corners and bolt heads to prevent water ponding.
Verification of cure kinetics using Shore D hardness testing to ensure full polymerization.
Implementation of a multi-stage quality control check at every transition point.
Final sign-off based on ASTM E1105 standard for water vapor and air leakage.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #125

Commercial Expansion Joint Bellows & Heavy-Gauge Neoprene Movement Transitions on Commercial Suburban Corporate Office Parks

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Structural Dynamics and Differential Settlement in Corporate Campuses

In the context of suburban corporate office parks, the building envelope is subjected to complex kinetic forces that are often underestimated during the initial design phase. These campuses typically feature sprawling, multi-wing configurations that create significant leverage points for structural movement. The primary driver of envelope stress is differential settlement, where varying soil compositions across a large footprint cause different sections of the building to sink or shift at disparate rates. When a three-story executive wing is tied to a two-story annex, the resulting shear forces at the intersection can compromise the integrity of the roofing system if the movement joints are improperly engineered.

Furthermore, the coefficient of thermal expansion plays a critical role in these environments. Large-scale commercial structures experience "thermal breathing," where the building expands and contracts based on diurnal temperature swings. In a suburban setting, where wind loads and solar gain vary across open landscapes, the roof surface can reach temperatures significantly higher than the interior conditioned space. This temperature gradient induces longitudinal stress across the roof deck, necessitating the use of sophisticated expansion joint systems that can accommodate both lateral and vertical displacement without sacrificing the watertight seal.

Analysis of seismic drift and wind-induced oscillation in multi-wing structures.
Evaluation of soil bearing capacity and its impact on slab-on-grade movement.
Assessment of thermal bridging and its effect on localized membrane tension.
Calculation of maximum anticipated movement across primary expansion gaps.

Engineering the Elastomeric Expansion Bellows

To mitigate the risks associated with structural movement, the implementation of commercial expansion joint bellows is mandatory. These bellows are engineered as flexible, accordion-style transitions that allow for a controlled range of motion. From a material science perspective, the selection of high-grade elastomeric compounds—specifically those meeting ASTM D2000 standards—is paramount. These materials provide the necessary elongation properties and tensile strength to withstand repeated cycles of expansion and contraction without suffering from polymer fatigue or stress cracking.

The geometry of the bellows is designed to distribute the strain evenly across the material. Rather than concentrating the movement at a single point of failure, the pleated design allows the joint to compress and extend linearly. In a high-performance corporate envelope, these bellows must be integrated with a reinforced substrate to prevent "ballooning" under wind pressure. The engineering focus here is on the balance between flexibility and durability; the material must be soft enough to move with the building but resilient enough to resist punctures from maintenance traffic and environmental debris.

Utilization of EPDM and Neoprene blends for superior UV and ozone resistance.
Implementation of pleated geometry to maximize the movement-to-length ratio.
Integration of internal reinforcement grids to maintain structural shape during compression.
Compliance with ANSI standards for commercial building joint seals.

Heavy-Gauge Neoprene Transitions and Interface Management

The most critical point of failure in any movement joint is the transition from the flexible bellows to the rigid roof membrane. This is where heavy-gauge neoprene movement transitions are employed. Neoprene is selected for these interfaces due to its exceptional chemical stability and its ability to form a high-bond seal with various commercial roofing substrates, including TPO, PVC, and modified bitumen. The transition strip acts as a bridge, absorbing the residual energy of the movement and transferring it safely into the primary roofing field.

Proper interface management requires a meticulous approach to substrate preparation. The neoprene transitions must be mechanically fastened using heavy-duty stainless steel fasteners to prevent wind uplift, while simultaneously being chemically bonded using high-solids elastomeric adhesives. This dual-attachment method ensures that the transition does not pull away from the deck during a maximum-extension event. Furthermore, the transition must be installed with a slight "slack" or "wave" to ensure that the material is never under constant tension, which would otherwise accelerate the aging process of the polymer.

Application of heavy-gauge neoprene flashing to bridge the gap between structural wings.
Use of industrial-grade adhesives to ensure a seamless, monolithic bond.
Installation of stainless steel clamping plates to distribute mechanical loads.
Verification of lap-seam integrity using vacuum-box testing or moisture probes.

Audit Findings: Failure Analysis and Watertight Tie-in Protocols

A comprehensive engineering audit of suburban office parks frequently reveals a pattern of failure at the tie-in points. The most common issue is "membrane bridging," where the roofing material is stretched too tight across the expansion joint, leading to premature splitting. Another frequent failure is the degradation of the sealant at the termination bar, often caused by the use of non-compatible caulking materials that fail to adhere to the neoprene. When these seals fail, hydrostatic pressure drives water into the structural gap, leading to interior leaks and the potential for steel reinforcement corrosion within the concrete deck.

To establish a "gold standard" for watertight tie-ins, a redundant flashing protocol must be adopted. This involves a multi-layered approach: first, a primary elastomeric seal at the joint; second, a reinforced neoprene transition strip; and third, a wide-lap termination of the main roof membrane, secured with a termination bar and a high-performance polyurethane sealant. This redundancy ensures that if one layer fails due to extreme movement or UV degradation, the subsequent layers maintain the building's envelope integrity.

Identification of fatigue-induced cracking in aged neoprene components.
Analysis of water infiltration patterns during heavy precipitation events.
Implementation of a three-stage redundant flashing system for all movement joints.
Establishment of a biannual inspection cycle to monitor elastomeric elongation and bond strength.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #126

Commercial Kitchen Grease Containment & 304 Stainless Steel Catchment Shielding on Commercial Big-Box Retail Power Centers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Chemistry of Lipid Degradation on Polymeric Membranes

In the context of big-box retail power centers, the intersection of commercial kitchen exhaust systems and the building envelope represents a critical failure point. The primary catalyst for premature roof system failure in these zones is the deposition of animal fat lipids. These organic compounds, when expelled via exhaust fans or leaked from grease traps, do not merely sit atop the membrane; they initiate a complex chemical reaction known as plasticizer migration. In single-ply membranes such as TPO (Thermoplastic Polyolefin) or PVC (Polyvinyl Chloride), the lipids act as aggressive solvents that penetrate the polymer matrix, stripping away the essential plasticizers that maintain the membrane's flexibility and tensile strength.

When these lipids saturate the membrane, the result is a localized loss of elasticity, leading to "embrittlement." Once the membrane becomes brittle, the natural thermal expansion and contraction cycles of a large-scale retail roof—which can be extreme on wide-span steel decks—cause the material to crack. This creates a direct pathway for moisture and grease to penetrate the insulation layer, leading to saturated substrate conditions and potential structural decay of the roof deck. The degradation is often invisible to the untrained eye until a catastrophic breach occurs, making a rigorous engineering audit essential.

Lipid-induced softening: The initial phase where the membrane becomes tacky and attracts airborne particulates.
Plasticizer leaching: The chemical extraction of stabilizing agents, resulting in a hard, glass-like surface.
Micro-fracturing: The development of hairline cracks due to the loss of elongation capacity.
Substrate saturation: The migration of grease-laden water into the polyisocyanurate insulation.

Engineering the 304 Stainless Steel Catchment Shielding

To mitigate the risks associated with grease discharge, we implement a high-performance catchment system utilizing 304-grade stainless steel. The choice of 304 stainless steel is non-negotiable due to its superior resistance to organic acids and high-temperature condensate. Unlike galvanized steel or aluminum, 304 stainless steel maintains its structural integrity when exposed to the caustic nature of rendered animal fats and the harsh cleaning chemicals used by facility maintenance crews. The engineering focus here is on the "catchment box" geometry, which must be designed to divert lipids away from the primary membrane and toward a controlled drainage point.

The installation process requires a precision-engineered interface between the metal shielding and the roof membrane. We utilize a custom-fabricated curb assembly that allows for thermal movement without compromising the watertight seal. The shielding is designed with a positive slope, ensuring that grease does not pool, which would otherwise create a concentrated zone of chemical attack. By isolating the exhaust discharge from the membrane, we transform a high-risk chemical zone into a manageable mechanical assembly.

Material Specification: 16-gauge 304 stainless steel for maximum puncture and corrosion resistance.
Fabrication: Fully welded seams using TIG (Tungsten Inert Gas) welding to ensure a monolithic, leak-proof vessel.
Slope Engineering: Minimum 1/4" per foot pitch toward the primary collection point to prevent lipid stagnation.
Thermal Isolation: Use of high-temperature silicone sealants at the metal-to-membrane transition to accommodate differential expansion.

Sacrificial Chemical-Resistant Coatings and Barrier Layers

Even with the most robust stainless steel shielding, the risk of "over-spill" or atmospheric grease deposition remains. To address this, we employ a sacrificial chemical-resistant coating system. This layer acts as the first line of defense, designed to be intentionally degraded over time so that the underlying single-ply membrane remains untouched. These coatings are typically high-solids polyurethanes or specialized epoxy resins that are engineered to resist lipid penetration and withstand the high pH levels of commercial degreasers.

The application of a sacrificial layer changes the maintenance paradigm from "repair" to "refresh." Instead of replacing entire sections of a TPO membrane—which involves costly heat-welding and potential seam failures—the facility manager simply schedules a re-coating of the sacrificial layer every 36 to 60 months. This approach aligns with ASTM standards for chemical resistance and ensures that the primary waterproofing layer is never directly exposed to the corrosive effects of animal fats. The coating is applied in multiple mils to ensure a pinhole-free barrier that encapsulates the membrane entirely.

Polyurethane Encapsulation: Provides a flexible, rubberized shield that resists cracking under thermal stress.
Chemical Neutralization: The ability of the coating to withstand caustic soda and other heavy-duty kitchen cleaners.
Sacrificial Wear: A designated thickness that allows for gradual erosion without compromising the substrate.
Adhesion Testing: Rigorous pull-off tests to ensure the coating bonds permanently to the polymeric membrane.

Audit Protocols and Lifecycle Maintenance Standards

A master-level engineering audit of a big-box retail power center requires a systematic approach to inspection. We move beyond visual surveys, utilizing infrared thermography to detect subsurface moisture and grease accumulation. Because lipids change the thermal conductivity of the roof, "hot spots" or "cold spots" often reveal where the insulation has been compromised long before a leak appears on the ceiling of the retail space. Our protocols follow a strict adherence to ANSI standards for commercial roofing inspections, focusing specifically on the "high-stress" zones surrounding kitchen exhausts.

The long-term lifecycle of the roof depends on a disciplined maintenance schedule. This includes the periodic cleaning of the 304 stainless steel catchment boxes and the inspection of the sacrificial coating's integrity. By documenting the rate of lipid degradation, we can predict the exact window for re-coating, thereby eliminating unplanned capital expenditures. The goal is to shift the building envelope from a reactive state to a proactive engineering model, ensuring the asset's longevity and the safety of the occupants below.

Infrared Thermography: Identifying lipid-saturated insulation zones via thermal anomalies.
Core Sampling: Extracting membrane sections to analyze the depth of plasticizer migration in a lab setting.
Seam Integrity Analysis: Using vacuum testing to ensure that grease-affected seams have not lost their weld strength.
Lifecycle Scheduling: Implementing a 5-year rolling plan for coating refreshment and hardware calibration.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #127

Clear-Span Structural Joist Deflection Forensics & Ponding Instability Remediation on Commercial Food Packaging & Cold Logistics Plants

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Forensic Evaluation of Structural Joist Deflection in Cold Logistics Facilities

In the high-stakes environment of food packaging and cold logistics, the building envelope is the primary line of defense against thermal bridging and moisture infiltration. During our engineering audit of a clear-span facility, we identified a critical failure pattern: center-span joist deflection. In these structures, the long-span joists are designed to support significant dead loads, including heavy-duty refrigeration units and HVAC systems. However, over time, the cumulative effect of these loads, combined with the cyclical thermal expansion and contraction inherent in cold storage, can lead to structural sagging.

Our forensic approach begins with a comprehensive laser-leveling survey to map the roof's topography. We measure the actual deflection against the original structural blueprints, specifically looking for deviations that exceed the L/360 deflection limit common in commercial steel framing. When a joist deflects, it creates a low point that disrupts the intended slope of the roof, transforming a nominally flat surface into a series of concave basins. This is not merely a cosmetic issue; it is a structural vulnerability that invites water accumulation.

Utilization of high-precision laser levels to establish a baseline datum across the clear-span area.
Analysis of structural hysteresis to determine if the deflection is permanent or elastic.
Assessment of point-load concentrations from rooftop refrigeration condensers.
Evaluation of joist-to-column connections for signs of fatigue or settlement.

The Mechanics of Ponding Instability and Membrane Fatigue

Once structural deflection reaches a critical threshold, the roof enters a state of ponding instability. This is a dangerous feedback loop where the accumulation of standing water adds significant weight to the already sagging joists, which in turn increases the deflection, allowing even more water to collect. In a food packaging plant, where hygiene and moisture control are paramount, this instability poses a severe risk to the building's integrity. The hydrostatic pressure exerted by standing water accelerates the degradation of the roof membrane, regardless of whether it is a TPO, PVC, or modified bitumen system.

From a material science perspective, ponding leads to "ponding-induced fatigue." The constant saturation of the insulation layer—typically polyisocyanurate—can lead to a loss of R-value and a decrease in compressive strength. Furthermore, the standing water acts as a lens, concentrating UV radiation and accelerating the thermal degradation of the membrane's polymer chains. If left unaddressed, this process leads to micro-cracking and eventual penetration, risking the contamination of the food-grade environment below.

Calculation of the "critical slope" below which ponding instability becomes inevitable.
Monitoring of water depth to determine the additional dead load imposed on the structural steel.
Inspection for membrane "ballooning" caused by trapped moisture and gas expansion.
Analysis of flashing failures at the perimeter due to excessive water weight.

Engineering Remediation via Custom Tapered Polyiso Crickets

To remediate ponding instability without the prohibitive cost of reinforcing the structural steel, we implement a precision-engineered tapered insulation system. The objective is to artificially restore the slope to ensure positive drainage. We utilize custom-fabricated tapered polyisocyanurate (polyiso) panels, which are engineered to provide a consistent slope—typically a minimum of 1/4 inch per foot—from the low point of the deflection toward the primary drainage outlets.

The installation of "crickets" is a central component of this strategy. A cricket is a wedge-shaped diversion system designed to steer water away from valleys or stagnant areas and toward the scuppers or internal drains. By utilizing high-density polyiso with a high compressive strength (ASTM D2118), we create a rigid, lightweight slope that does not add significant dead load to the compromised joists. These crickets are meticulously laid out to ensure there are no "flat spots" or counter-slopes that could trap water in the future.

Design of a custom tapered layout based on the laser-mapped topography of the roof.
Installation of high-density polyiso panels with a minimum compressive strength of 25 psi.
Application of low-VOC adhesives to ensure full bonding and prevent wind uplift.
Precision trimming of insulation edges to ensure seamless transitions between slopes.

Final Envelope Integration and Strategic Water Routing

The final phase of the remediation involves the integration of the tapered system into the overall building envelope. Once the polyiso crickets are installed, the roof is capped with a high-performance, reinforced thermoplastic membrane. We prioritize fully adhered systems over mechanically attached ones in these scenarios to eliminate the risk of wind-driven rain entering the fastener holes, which is a common failure point in cold logistics plants. The membrane is heat-welded at all seams to create a monolithic, watertight skin.

Strategic water routing is the ultimate goal of the engineering audit. We ensure that all water is routed outward and away from the building's core, utilizing oversized scuppers and high-capacity drains to handle peak rainfall events. By converting the "bowl" of the deflected joists into a series of efficient shedding planes, we eliminate the risk of ponding instability. This comprehensive approach not only protects the structural steel from further stress but also ensures the facility remains compliant with stringent food safety and building code standards.

Heat-welding of TPO or PVC membranes to ensure a seamless, leak-proof finish.
Installation of reinforced flashing at all penetration points and parapet walls.
Verification of flow rates through a controlled water test to confirm positive drainage.
Final audit of the building envelope to ensure thermal continuity and moisture resistance.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #128

Complete Old Roof Tear-Offs Down to Clean Wood Decking & Substrate Remediation on Commercial Semiconductor Cleanroom Fabs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Audit and Systematic Deconstruction of Multi-Layer Assemblies

In the high-stakes environment of a semiconductor cleanroom fab, the roof is not merely a cover but a critical component of the facility's environmental control system. A failure in the building envelope can lead to catastrophic contamination of silicon wafers, resulting in millions of dollars in lost yield. Our engineering audit begins with the recognition that many of these facilities suffer from "layer cake" roofing—the historical practice of installing new membranes over old ones. This accumulation of materials creates excessive dead load on the structural frame and traps moisture, which accelerates the degradation of the underlying substrate.

The deconstruction phase is a surgical process. We do not simply strip the surface; we execute a total tear-off down to the structural wood decking. This is necessary to eliminate any trapped hydrocarbons or moisture-laden insulation that could outgas or create blisters in the new assembly. Using heavy-duty mechanical equipment and precision hand-tooling, we remove every layer of modified bitumen, built-up roofing (BUR), and aged flashing. This process reveals the true condition of the building envelope, exposing failures that are typically hidden by infrared thermography or basic moisture surveys.

Removal of legacy ballast and gravel surfacing to reduce structural stress.
Systematic stripping of multiple membrane layers to expose the raw wood substrate.
Detailed mapping of existing penetration points and curb heights for re-engineering.
Continuous monitoring of interior cleanroom pressures to ensure no contaminants enter during the tear-off.
Collection of material samples for forensic analysis to determine the cause of previous system failures.

Forensic Analysis of Structural Wood Decking and Moisture Profiling

Once the decking is exposed, the focus shifts to a rigorous forensic audit of the wood substrate. In commercial fab construction, the wood deck often serves as the primary diaphragm for the roof assembly. We evaluate the decking for signs of fungal decay, delamination, and structural compromise. The presence of "soft spots" often indicates long-term hydrostatic pressure from leaks that have saturated the wood fibers, leading to a loss of compressive strength. We utilize calibrated moisture meters to establish a baseline moisture profile across the entire roof plane.

Our standards for "clean wood" are absolute. We do not accept surface-level drying; we require the substrate to meet specific moisture content percentages—typically below 15%—before any new assembly is applied. This prevents the entrapment of water vapor, which can lead to premature failure of the new membrane through osmotic blistering. We examine the fasteners of the original decking to ensure that the wood has not pulled away from the steel joists, which would compromise the structural integrity of the entire envelope.

Utilization of ASTM-standard moisture probes to detect subsurface saturation.
Visual inspection for "black mold" or white rot that indicates prolonged water intrusion.
Assessment of ply-thickness to ensure compliance with original architectural load specifications.
Evaluation of the decking's flatness to prevent "ponding" in the final membrane installation.
Checking for chemical contamination or corrosive residues from previous roof adhesives.

Substrate Remediation and Material Science of Wood Replacement

Remediation is where master craftsmanship meets material science. When the audit reveals compromised panels, we perform a full-depth replacement. This is not a patching job; it is a structural restoration. We remove the damaged sections back to the nearest solid joist to ensure that the new panels have a full bearing surface. The replacement material must match the original species and grade of the wood to maintain consistent expansion and contraction coefficients across the roof. Using inferior materials or mismatched thicknesses creates "lips" in the substrate, which become high-stress points for the new roofing membrane.

The fastening schedule for replacement panels is critical. We employ heavy-duty, corrosion-resistant fasteners that penetrate the structural steel or wood joists, ensuring a monolithic bond. This prevents the "oil-canning" effect and ensures that the substrate can handle the wind-uplift forces required by ANSI standards. Every new panel is precision-cut to fit, eliminating gaps that could allow moisture to migrate into the building's interior. This creates a seamless, rigid platform that is essential for the application of high-performance commercial membranes.

Excavation of decayed wood panels back to the center of the structural support.
Installation of CDX grade plywood or OSB that meets or exceeds original load-bearing specs.
Application of structural adhesives to prevent movement between old and new decking.
Implementation of a rigorous fastening pattern to mitigate wind-uplift risks.
Sanding and leveling of transition joints to ensure a perfectly flat substrate.

Final Envelope Integration and Quality Assurance Protocols

The final phase of the process is the transition from substrate remediation to the installation of the new building envelope. A clean wood deck is the foundation of a long-term roofing system. Before the new membrane is laid, we conduct a final "walk-through" audit to ensure that every square inch of the substrate is dry, clean, and structurally sound. This is the moment where we verify that the building envelope is airtight and watertight from the bottom up. We pay particular attention to the "critical zones"—the corners, drains, and HVAC curbs—where the most significant stress occurs.

Our quality assurance protocol involves a multi-point inspection. We verify that all remediation work aligns with the engineering drawings and that the substrate provides a consistent thermal bridge. By ensuring the wood decking is in pristine condition, we eliminate the risk of substrate-driven failures, such as sagging or localized collapses. The result is a high-performance envelope that protects the semiconductor fab's sensitive interior environment for decades to come, adhering to the highest standards of commercial roofing engineering.

Final moisture verification using wide-area moisture mapping.
Verification of all fastener heads to ensure they are flush with the decking.
Inspection of all perimeter flashing interfaces for seamless integration.
Documentation of all replaced panels for the facility's permanent engineering record.
Final sign-off on substrate readiness for the application of the primary waterproofing layer.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #129

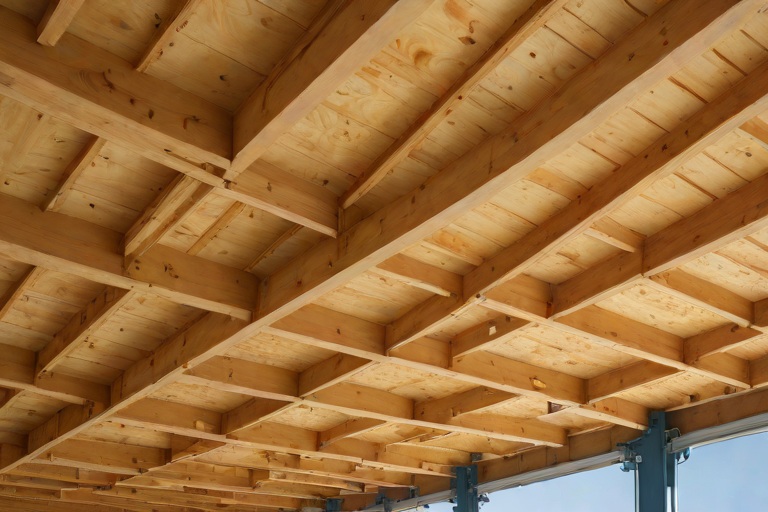

Stripping Old Shingles Down to Clean Wood Sheathing Across Commercial Eaves on Commercial Intermodal Cargo Freight Terminals

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Systematic Deconstruction and Multi-Layer Substrate Auditing

In the context of a commercial intermodal cargo freight terminal, the roof assembly is subjected to extreme environmental stressors and constant vibrational loads from heavy machinery and freight movement. When tasked with stripping legacy asphalt shingle systems down to the original wood sheathing, the process must transition from simple demolition to a precise engineering audit. Multi-layer shingle accumulation often masks decades of moisture infiltration and substrate degradation, particularly across the commercial eaves where drainage is most critical. A master-level approach requires a phased removal strategy to prevent sudden structural collapses of weakened rafters.

The primary objective during the stripping phase is the total exposure of the decking to allow for a comprehensive building envelope analysis. We employ high-torque pneumatic stripping tools, but the final inch of fastening must be handled with manual precision to avoid "over-driving" or splitting the aged wood fibers. This ensures that the integrity of the remaining sheathing is not compromised during the removal process, allowing for an accurate assessment of the wood's current state.

Implementation of a staged removal sequence to maintain partial weather protection.
Utilization of infrared thermography to identify hidden moisture pockets before full stripping.
Strict adherence to OSHA fall protection standards given the height and scale of freight terminals.
Detailed mapping of "soft spots" where shingle nails have effectively turned the wood into a sponge.
Verification of eave flashing integrity to ensure no water has wicked into the wall assembly.

Fastener Withdrawal Resistance and Material Science Analysis

Once the sheathing is clean, the engineering focus shifts to fastener withdrawal resistance. In commercial roofing, the "hold" of the fastener is the only thing preventing a total system failure during a high-wind event. Over time, the tannins in the wood and the chemicals in old asphalt shingles can cause chemical degradation of the nail holes, leading to a phenomenon known as "nail popping" or total fastener failure. We evaluate the substrate using a calibrated pull-test gauge to ensure the wood meets ASTM standards for load-bearing capacity.

If the withdrawal resistance is found to be below the required threshold, the substrate is deemed "compromised." This is common in intermodal terminals where the eaves may have suffered from chronic leaking. The wood fibers often undergo a process of delamination or fungal decay, which destroys the internal bond of the cellulose. We do not simply "nail through" these areas; we analyze the density of the wood to determine if the sheathing can be salvaged or if a full replacement of the decking plane is mandatory.

Conducting randomized pull-tests across the eave spans to quantify fastener grip.
Analyzing wood grain orientation to identify shear risks in the rafter tails.
Evaluating the presence of dry rot (Serpula lacrymans) using moisture meters.
Comparing current substrate density against original building specifications.
Assessing the impact of previous "patch-and-repair" cycles on the overall decking stability.

Structural Remediation and Rafter Sistering Protocols

When the audit reveals compromised rafters—specifically those showing signs of deflection, splitting, or rot at the bearing points—structural remediation is required. Sistering is the primary engineering solution used to restore the load path. This involves installing a new, structurally sound member alongside the existing rafter, effectively sharing the load and stabilizing the eave. For commercial terminals, we prioritize the use of LVL (Laminated Veneer Lumber) or high-grade kiln-dried dimensional lumber, depending on the span and the anticipated dead load of the new roofing system.

The sistering process is not a mere attachment; it is a precision splice. The new member must extend beyond the damaged area by a minimum of three feet on either side to ensure a proper distribution of stress. We utilize a staggered fastening pattern with heavy-duty structural screws rather than traditional nails to prevent the "splitting" effect in aged wood. This creates a rigid, composite beam that eliminates the "bounce" often found in old commercial eaves, providing a rock-solid foundation for the final envelope.

Calculating the required overlap for sistered members based on the severity of the decay.
Applying structural adhesives to the interface between the old and new members for maximum shear transfer.
Installing galvanized hurricane ties to secure the sistered rafters to the top plates.
Ensuring all new lumber is treated for moisture resistance to prevent future fungal growth.
Verifying that the new structural members do not interfere with existing HVAC or electrical conduits.

Establishing the Flat Decking Plane for Envelope Integration

The final phase of the engineering process is the establishment of a flat decking plane. Commercial roofing membranes, whether TPO, PVC, or modified bitumen, require a smooth, monolithic surface to prevent premature wear and to avoid "ponding" water. After the stripping and sistering are complete, the resulting surface is often uneven due to the varying thicknesses of old rafters and the remnants of previous flashing. We employ a process of mechanical leveling and sanding to bring the entire eave assembly into a tight tolerance of 1/8th of an inch across the span.

Establishing this plane is critical for the building envelope's longevity. Any protrusion or dip in the wood sheathing creates a stress point in the membrane, which can lead to punctures or leaks over time. Once the plane is established, we apply a high-performance primer or a self-adhered underlayment to seal the wood from atmospheric moisture. This creates a seamless transition from the structural wood to the final commercial membrane, ensuring that the intermodal terminal remains watertight under the most demanding industrial conditions.

Utilizing precision sanding equipment to remove high spots in the aged sheathing.
Installing thin-ply plywood shims to fill depressions and eliminate voids.
Checking the plane with a laser level to ensure positive drainage toward the gutters.
Applying a commercial-grade flashing membrane to all transition points.
Conducting a final "walk-through" audit to ensure no fastener heads are protruding above the decking plane.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #130

Low-VOC Cold-Applied Adhesives & HVAC Air Intake Odor Mitigation Protocols on Commercial Port Marine Shipping Warehouses

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Environmental Stressors and Envelope Audit of Port Marine Facilities

In the high-stakes environment of port marine shipping warehouses, the building envelope is under constant assault from a combination of hypersaline aerosols, extreme wind-driven rain, and intense UV exposure. During our recent engineering audit for Aquashield Corporate, we identified a critical vulnerability common to these structures: the intersection of the roofing membrane and the HVAC air intake systems. In these facilities, the roof is not merely a weather barrier but a critical component of the internal atmospheric control. When traditional solvent-based adhesives are used for repairs or membrane overlays, the volatile organic compounds (VOCs) are frequently drawn directly into the building's ventilation system, leading to immediate indoor air quality (IAQ) degradation and potential operational shutdowns.

The challenge is compounded by the "Marine Atmospheric Boundary Layer," where high humidity levels can slow the curing process of standard adhesives, leading to substrate saturation and eventual delamination. A master-level approach requires a shift from traditional heat-welded or solvent-heavy systems toward advanced cold-applied chemistry. By analyzing the substrate porosity and the specific wind-tunnel effects created by the port's geography, we can engineer a solution that maintains the integrity of the envelope without compromising the health of the warehouse personnel.

Analysis of chloride-induced corrosion on roof decking and flashing.
Evaluation of HVAC intake proximity to primary membrane seams.
Assessment of existing VOC thresholds according to OSHA and LEED standards.
Mapping of wind-load pressures to determine adhesive shear strength requirements.
Identification of thermal bridging points that contribute to condensation near intakes.

Material Science of Low-VOC Polyurethane Bonding Agents

To mitigate the risk of outgassing and odor infiltration, we transitioned the specification to a high-performance, low-VOC polyurethane bonding agent. Unlike traditional solvent-based adhesives that rely on the evaporation of hazardous chemicals to set, these modern polyurethane systems utilize a chemical reaction between isocyanates and polyols to create a dense, cross-linked molecular structure. This process occurs with minimal to zero emission of volatile gases, making them ideal for application adjacent to air intake plenums. From an engineering perspective, the tensile strength of these bonds often exceeds the tear strength of the membrane itself, ensuring a permanent seal even under the heavy vibrations caused by nearby gantry cranes and heavy machinery.

The "rapid-set" nature of these adhesives is critical for zero-downtime execution. In a shipping warehouse, every hour of roof instability is a risk to the inventory below. By utilizing a cold-applied system, we eliminate the need for propane torches or heat guns, which not only removes the fire risk in a port environment but also prevents the thermal shock that can lead to premature membrane fatigue. The adherence to ASTM D1874 standards ensures that the bond remains flexible enough to accommodate the natural expansion and contraction of the warehouse's steel superstructure.

Utilization of moisture-cure polyurethane for enhanced bonding in high-humidity zones.
Implementation of zero-solvent formulations to eliminate "chemical smell" infiltration.
Application of rapid-set catalysts to reduce the window of vulnerability during curing.
Verification of shear strength through ASTM-standard pull-tests on site.
Integration of UV-stable capping layers to protect the adhesive bond from solar degradation.

HVAC Air Intake Containment and Odor Mitigation Protocols

Even with low-VOC materials, a master roofer employs a "defense-in-depth" strategy to ensure absolute air purity. Our protocol involves the creation of temporary, non-permeable containment barriers around all HVAC intakes during the application phase. This is achieved by installing custom-fit, vacuum-sealed polyethylene shrouds that isolate the intake from the immediate work zone. By creating a physical disconnect between the application area and the air intake, we eliminate the possibility of any trace odors or particulate matter entering the facility. This is not merely a precaution but a rigorous engineering requirement when dealing with high-volume air handlers that can pull thousands of cubic feet of air per minute.

Furthermore, we implement a strategic "buffer zone" approach. No adhesive application occurs within a 15-foot radius of an active intake until the intake has been fully sealed and a negative pressure check has been performed. This ensures that the air pressure within the warehouse remains stable and that no "venturi effect" draws fumes from the roof surface into the building. Once the polyurethane agent has reached its initial set—typically within 30 to 60 minutes—the containment barriers are removed, and the air intake is reintroduced to the system after a final VOC sweep using handheld photoionization detectors (PIDs).

Installation of reinforced poly-sheeting barriers with magnetic perimeter seals.
Deployment of portable HEPA-filtered air scrubbers to maintain a clean perimeter.
Execution of negative pressure tests to verify containment integrity.
Use of PID sensors to quantify air quality before and after application.
Coordination with facility engineers to synchronize HVAC cycles with application phases.

Engineering Execution for Zero-Downtime Warehouse Operations

The hallmark of a master tradesman is the ability to execute complex engineering tasks without interrupting the client's revenue stream. For the Aquashield Corporate project, we utilized a "Phase-Shift Execution" strategy. Instead of a blanket application, the roof was divided into a grid of manageable sectors. Each sector was treated as an independent job site, allowing the warehouse to continue shipping and receiving operations in the areas beneath the non-active sectors. This methodical approach prevents the chaos of a full-scale roof closure and allows for real-time quality control audits at every stage of the process.

Final verification of the building envelope involves a comprehensive audit of all penetration points and seams. We utilize infrared thermography to ensure there are no hidden voids in the adhesive layer and to verify that the HVAC intakes are perfectly sealed against the roof membrane. The result is a high-performance envelope that resists the harsh marine environment, protects the internal air quality, and requires zero operational downtime. This case study proves that by combining material science with rigorous containment protocols, we can achieve an industrial-grade seal that meets the most stringent engineering standards of the port marine industry.

Implementation of a sector-based grid system for phased application.
Use of infrared thermography to detect sub-surface voids or delamination.
Daily coordination meetings with port logistics managers to align schedules.
Final sign-off based on a 1

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #131

Solar Photovoltaic Ballasted Racking Point-Load Defense & Sacrificial Slip Sheets on Commercial Municipal Sports & Convention Arenas

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Mechanics of Point-Load Compression and Insulation Fatigue

In the context of a Municipal Sports & Convention Arena, the roof is a massive, high-span asset where structural movement and thermal expansion are constant variables. When integrating ballasted Solar Photovoltaic (PV) systems, the primary engineering concern is the transition from a distributed load to a concentrated point load. Ballasted racking systems rely on weighted blocks—typically pre-cast concrete—to secure the arrays against wind uplift without penetrating the roof membrane. However, this creates a high-pressure interface that can lead to "compression set," a phenomenon where the underlying insulation, often Polyisocyanurate (Polyiso), permanently loses its thickness and resilience due to sustained vertical pressure.

From a material science perspective, the compression of the insulation does not merely reduce the R-value of the assembly; it creates a localized depression that can trap standing water and increase the risk of ponding around the racking perimeter. If the point-load exceeds the compressive strength of the insulation board, the membrane is forced to stretch and conform to the deformation, leading to tensile stress and potential fatigue cracking. To mitigate this, our audit focuses on the distribution of the load across a wider surface area to ensure the assembly remains within the allowable limits defined by ASTM standards for thermal insulation materials.

Analysis of Polyiso compressive strength ratings (e.g., 2.5 pps vs 4.5 pps) relative to block weight.
Evaluation of long-term creep and the permanent deformation of the roof substrate.
Assessment of the "dimple" effect where concentrated loads create micro-basins for moisture accumulation.
Calculation of the load-bearing capacity of the structural deck to prevent deflection-induced membrane stress.

Sacrificial Slip-Sheet Engineering and Abrasion Mitigation

The interaction between a rigid ballasted racking system and a flexible thermoplastic or elastomeric membrane is a primary failure point in commercial solar installations. Roofs are dynamic; they expand and contract based on diurnal temperature swings and the internal climate control of the arena. This movement causes the racking system to shift slightly, creating a grinding effect known as abrasive wear. Without a protective interface, the friction between the racking feet and the membrane will eventually breach the wearing course, leading to catastrophic leaks that are difficult to locate due to the obstruction of the PV panels.

To counter this, we implement heavy-duty sacrificial slip-sheets. These are high-density polyethylene (HDPE) or reinforced rubber barriers placed strategically between the racking and the roof surface. These sheets act as a sacrificial layer, absorbing the frictional energy and protecting the primary waterproofing membrane. By utilizing materials with a low coefficient of friction, we ensure that the racking can "float" during thermal cycles without tearing the membrane. This approach shifts the wear from the permanent building envelope to a replaceable component, adhering to the philosophy of sacrificial protection in high-performance building science.

Utilization of non-woven geotextiles to distribute lateral shear forces.
Implementation of HDPE liners to prevent chemical reactions between concrete blocks and the membrane.
Monitoring of "scuff marks" and abrasion patterns during quarterly engineering audits.
Verification of slip-sheet overlap to ensure no direct metal-to-membrane contact occurs.

Pre-fabricated Target Patches and Strategic Reinforcement

A master-level approach to envelope integrity involves the installation of pre-fabricated target patches at every point-load location. Rather than relying on the standard roof membrane to bear the brunt of the racking system, we install reinforced, multi-layered patches that are hot-air welded or induction-bonded to the field membrane. These target patches serve as a secondary defense line, providing additional thickness and puncture resistance exactly where the stress is highest. This creates a "reinforced zone" that can withstand the localized pressure of the ballasted blocks while maintaining a monolithic, watertight seal.

The engineering of these patches requires precise alignment with the racking layout. Each patch is cut to a specific geometry that extends beyond the footprint of the racking foot, ensuring that any slight shifting of the system does not move the load onto the unprotected field membrane. Furthermore, the use of reinforced PVC or TPO membranes for these patches increases the tear strength and prevents the "zipper effect," where a small puncture rapidly expands into a large rip under the weight of the ballasted system. This redundant layering is essential for municipal structures where the roof must remain operational for decades.

Application of double-layer reinforced membranes at high-stress racking junctions.
Use of robotic hot-air welding to ensure a seamless, molecular bond between the patch and the roof.
Implementation of "sacrificial" top-layers that can be replaced if the system is repositioned.
Strict adherence to ANSI standards for membrane welding and seam integrity.

Cable Tray Routing and Envelope Integrity Management

The final critical component of the building envelope audit is the management of electrical conduits and cable trays. In large-scale arena installations, miles of cabling must be routed from the PV arrays to the inverters. If these cables are allowed to lay directly on the membrane, they create "rub points" and can trap debris, leading to localized membrane degradation. Furthermore, the weight of heavy-gauge copper cabling can create unintended point loads or "sagging" sections that interfere with the roof's drainage slope, potentially creating new areas of ponding water.

Our specification requires the use of elevated, non-penetrating cable trays. These trays are designed to distribute the weight of the cabling across a broader area and are secured using the same ballasted logic as the racking. By lifting the cables off the roof surface, we eliminate the risk of abrasion and allow for easy inspection of the membrane beneath. Additionally, where cables must transition from the roof to the interior of the building, we employ heavy-duty flashing and sealant systems that are chemically compatible with the roof membrane, ensuring that the penetration does not become a point of failure for the entire building envelope.

Installation of UV-stabilized cable trays to prevent plastic degradation and membrane staining.
Routing cables along the "valleys" of the racking system to minimize the footprint on the roof.
Use of specialized flashing boots and liquid-applied membranes at all penetration points.
Regular inspection of cable tension to prevent vibration-induced wear on the roof surface.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #132

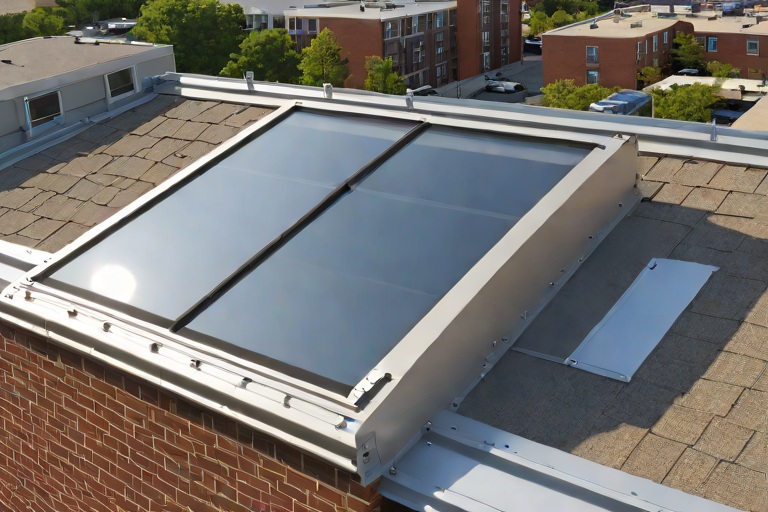

OSHA-Compliant Skylight Fall-Protection Curbs & Heavy-Duty Security Screens on Commercial Multi-Family Urban Residential Towers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Structural Analysis of 200-lb Fall-Arrest Anchoring Systems

In the context of high-rise multi-family urban residential towers, the skylight represents a critical vulnerability in the building envelope. From an engineering standpoint, the primary objective is the mitigation of fall hazards in accordance with OSHA 1910.28 and 1910.29. When auditing these structures, we focus on the capacity of the security screens to withstand a concentrated point load of 200 lbs without catastrophic failure of the anchoring system or the underlying roof deck. This is not merely a matter of the screen's mesh strength, but rather the integrity of the mechanical connection between the screen frame and the structural curb.

The anchoring strategy must account for dynamic loading and the potential for oscillation during high-wind events common to urban canyons. We specify heavy-duty, corrosion-resistant fasteners—typically Grade 5 or higher stainless steel—that penetrate the curb's structural substrate. The load path must be continuous from the screen's perimeter frame, through the fasteners, and into the reinforced concrete or structural steel decking. If the curb is constructed of lightweight galvanized steel, we implement load-spreading plates to prevent the fasteners from pulling through the thin-gauge metal under a 200-lb impact.

Calculation of shear strength for perimeter bolts to ensure zero slippage during a fall event.
Verification of fastener embedment depth to meet ANSI/ASSP Z359 standards for fall protection.
Assessment of the screen frame's rigidity to prevent deflection that could allow a technician to slip through the gap.
Evaluation of the weld integrity on the security screen's corner joints to ensure load distribution.

Curb Flashing Elevation and Hydrostatic Management

Water ingress at the skylight curb is the most frequent cause of interior ceiling failure in multi-family towers. A master-level installation requires a precise curb flashing elevation that exceeds the maximum anticipated snow load or rain-on-roof accumulation. We mandate a minimum curb height of 8 inches above the finished roof surface to prevent capillary action and hydrostatic pressure from forcing water beneath the membrane. The flashing must be engineered as a seamless transition, utilizing a heat-welded TPO or PVC membrane that wraps the curb in a "boot" configuration, ensuring that the primary water barrier is continuous.

The critical failure point in urban towers is often the "corner-to-corner" transition. We employ a reinforced flashing detail that incorporates a secondary water-stop layer. This involves the application of a high-performance flashing adhesive combined with a heat-welded overlap. By elevating the flashing and ensuring a positive slope away from the curb base, we eliminate the risk of standing water, which otherwise degrades the chemical bonds of the roof membrane over time. This approach adheres to the strictest interpretations of ASTM D6877 for roof membrane performance.

Implementation of a 4-inch minimum overlap for all heat-welded seams on the curb face.
Utilization of reinforced flashing strips at the curb corners to prevent stress cracking.
Verification of the "water-shedding" angle to ensure rapid drainage away from the skylight perimeter.
Audit of the flashing height relative to the building's drainage plan to avoid ponding.

Compression Termination Bars and Mechanical Fastening

To ensure the long-term stability of the building envelope, the transition from the horizontal roof plane to the vertical curb face must be mechanically secured. We utilize compression termination bars—heavy-gauge aluminum or stainless steel strips—to clamp the membrane firmly against the curb. This prevents "wind-scour," a phenomenon where high-velocity urban winds create a vacuum effect that can peel the membrane away from the curb. The termination bar is not merely a decorative trim; it is a structural component that maintains a constant compressive force on the flashing.

The fastening schedule for these bars is calculated based on the building's wind-uplift zone. In high-rise environments, we increase the frequency of fasteners to a 6-inch on-center spacing. Each fastener is driven through the termination bar and the membrane into the curb's substrate, creating a redundant seal. Following the mechanical fastening, a high-grade polyurethane sealant is applied to the top edge of the bar to create a weather-tight gasket. This dual-layer approach—mechanical compression followed by chemical sealing—is the industry gold standard for commercial envelope integrity.

Application of continuous-bead sealant behind the termination bar to prevent air infiltration.
Use of stainless steel fasteners to eliminate galvanic corrosion between dissimilar metals.
Verification of uniform torque across all fasteners to ensure even compression of the membrane.
Inspection of the bar's edge profile to ensure it does not create a snag point for maintenance personnel.

Thermal Gaskets and Building Envelope Continuity

A common oversight in commercial roofing is the "thermal bridge" created by the skylight curb. Without proper insulation, the curb acts as a heat sink, drawing energy out of the building in winter and into the building in summer. To maintain the thermal envelope of a residential tower, we integrate high-density closed-cell thermal gaskets between the curb assembly and the roof deck. These gaskets serve a dual purpose: they provide a thermal break to meet energy codes and act as a secondary gasket seal to prevent air leakage into the living spaces below.

The material science behind these gaskets is critical. We specify EPDM or silicone-based gaskets with a high coefficient of thermal expansion to match the movement of the building's structural frame. This ensures that as the tower sways or expands due to temperature fluctuations, the seal remains intact. Furthermore, the gasket must be compressed to approximately 25% of its original thickness to ensure a void-free interface. This meticulous attention to the "invisible" parts of the assembly is what separates a standard roof from an engineered building envelope.

Installation of a continuous thermal break to eliminate condensation risks on the interior curb.
Verification of the gasket's compression set to ensure long-term elasticity and seal retention.
Audit of the air-barrier continuity between the roof membrane and the internal wall assembly.
Assessment of the R-value of the curb insulation to ensure compliance with local energy efficiency mandates.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #133

Rooftop Mechanical Unit Vibration Isolation Rails & Spring-Mounted Curb Seals on Commercial Public Transit Maintenance Bus Barns

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Dynamics of Harmonic Vibration in Transit Facilities

In the context of public transit maintenance bus barns, the building envelope is subjected to extreme stressors that go far beyond typical commercial warehouse environments. These facilities house massive HVAC systems and industrial-scale ventilation units designed to exhaust diesel fumes and manage climate control for vast open bays. The primary engineering challenge is the management of harmonic vibrations generated by these heavy-duty rooftop units (RTUs). When a mechanical unit is bolted directly to a structural roof deck, the kinetic energy from the compressors and blowers transfers directly into the building's skeleton, creating a phenomenon known as structural transmission.

From a master roofer's perspective, this constant oscillation is the enemy of watertight integrity. Harmonic vibrations act as a slow-motion hammer, relentlessly stressing the bond between the roof membrane and the curb flashing. Over time, this leads to fatigue cracking in the flashing and the eventual breakdown of the adhesive layers. In a bus barn, where the roof area is immense, a single failure point caused by vibration-induced fatigue can lead to systemic leaks that threaten the electrical infrastructure and the high-value equipment stored below.

Mechanical resonance frequencies that synchronize with the building's natural frequency.
Micro-fretting at the interface of the metal curb and the roof membrane.
Accelerated degradation of thermoplastic polyolefin (TPO) or ethylene propylene diene monomer (EPDM) seams.
Stress concentration points at the fastening screws and anchor bolts.

Engineering Spring-Isolated Equipment Curbs

To mitigate the risks of structural transmission, we implement spring-mounted isolation rails. Rather than a rigid connection, the mechanical unit sits upon a specialized curb assembly integrated with heavy-duty steel springs. These springs are engineered to act as a low-pass filter, absorbing the high-frequency vibrations before they can reach the roof deck. The goal is to decouple the mechanical mass from the building envelope, ensuring that the energy is dissipated within the isolation system rather than through the roof's waterproofing layers.

The engineering of these rails requires a precise calculation of the static load versus the dynamic load. If the springs are too stiff, the vibration passes through; if they are too soft, the unit may sway excessively during startup or shutdown, putting undue stress on the flexible conduit and piping. We utilize ANSI-compliant isolation mounts that provide a specific deflection rate, ensuring the RTU remains stable while the roof membrane remains undisturbed. This separation is the first line of defense in maintaining a permanent, leak-free building envelope.

Utilization of open-spring isolators to prevent the transmission of acoustic noise.
Precision leveling of isolation rails to ensure uniform load distribution across the curb.
Integration of neoprene pads as secondary damping agents to eliminate high-frequency "chatter."
Calculation of natural frequency to ensure it remains well below the operating frequency of the RTUs.

Fiber-Reinforced Structural Mastic and Interface Sealing

The most critical failure point in a vibration-isolated system is the gap between the moving mechanical curb and the static roof membrane. A traditional sealant or a rigid flashing cannot withstand the constant, minute movements associated with spring-mounted units. To solve this, we employ fiber-reinforced structural mastic. This material is a high-performance elastomeric sealant infused with synthetic fibers that provide internal structural reinforcement, preventing the sealant from tearing or "stringing" under cyclic loading.

The application process involves creating a wide, flexible bridge that can accommodate differential movement. The mastic is applied in thick, overlapping beads, ensuring a deep-seated bond to both the metal curb and the membrane. Because the fiber reinforcement distributes the tension across the entire width of the seal, the mastic can stretch and contract without losing its hydrostatic seal. This creates a watertight "boot" that allows the mechanical unit to vibrate independently of the roof while maintaining a vacuum-tight barrier against wind-driven rain and snow infiltration.

Application of primer to ensure maximum adhesion to low-surface-energy membranes.
Use of non-sagging, high-build mastic to maintain seal thickness during the curing process.
Implementation of a "double-seal" strategy involving both a liquid-applied flashing and a reinforced mastic cap.
Verification of elongation properties to ensure the material can handle 200% or more of its original width without rupture.

Long-Term Envelope Integrity and Audit Protocols

A building envelope is only as strong as its weakest joint, and in a transit facility, the mechanical curbs are the most likely points of failure. An authoritative engineering audit must go beyond a simple visual inspection. We utilize a multi-phase audit protocol to ensure that the vibration isolation systems are performing as designed and that the watertight integrity remains uncompromised. This includes the use of infrared thermography to detect subsurface moisture trapped beneath the mastic seals, which often indicates a hairline fracture in the envelope.

Furthermore, we adhere to ASTM standards for roof leak detection and moisture surveys. By monitoring the "creep" of the isolation rails and the elasticity of the fiber-reinforced seals, we can predict failure before a leak occurs. The maintenance of these systems requires a disciplined approach: checking the spring tension, inspecting the mastic for UV-induced embrittlement, and ensuring that the drainage paths around the curbs remain clear of debris. This proactive engineering approach transforms the roof from a passive cover into an active, engineered system that protects the facility's operational longevity.

Quarterly ultrasonic testing of seal interfaces to identify voids or delamination.
Annual verification of spring-mount deflection to ensure the units have not shifted.
ASTM E2128 compliant moisture surveys to map the roof's hydrothermal profile.
Detailed logging of material batch numbers for all structural mastics to track degradation cycles.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #134

Industrial Corrosive Chemical Fume Exhaust Defense on Commercial Government Secure Records Archives

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Environmental Audit and Atmospheric Stressor Analysis

The engineering audit of the Government Secure Records Archive revealed a critical vulnerability in the building envelope, specifically where the roof assembly intersects with industrial exhaust plumes. In a secure records facility, the priority is the absolute preservation of archival materials, meaning any breach in the envelope—whether through liquid infiltration or gaseous diffusion—is a catastrophic failure. The site audit identified a persistent atmospheric load of corrosive chemical fumes, primarily sulfuric and nitric acid derivatives, emanating from adjacent industrial processing zones. These fumes create a low-pH environment on the roof surface, which acts as a catalyst for the premature degradation of standard roofing polymers.

Furthermore, the audit identified secondary contaminants in the form of airborne motor oils and hydrocarbon mists from heavy-duty HVAC cooling towers and nearby transport hubs. These oils do not merely sit on the surface; they interact with the membrane's molecular structure, often acting as solvents that can soften the top layer of the roofing system. This creates a synergistic effect where the acid fumes etch the surface and the oils penetrate the weakened matrix, leading to accelerated wear and a loss of structural integrity in the flashing and seams.

Atmospheric pH monitoring indicating acidic deposition levels below 4.5.
Identification of "hot spots" near exhaust vents where thermal cycling accelerates chemical reactions.
Assessment of existing membrane elasticity showing a 30% reduction in elongation capacity.
Evaluation of secure access points to ensure chemical scrubbing systems are not venting directly onto the roof deck.

Chemical Resistance and Substrate Interaction

From a master roofer's perspective, the interaction between industrial acid fumes and the roofing substrate is a matter of material science and chemical kinetics. Most commercial membranes are designed for UV resistance and water shedding, but they are not inherently designed to withstand constant exposure to concentrated corrosive vapors. When sulfuric acid fumes contact a standard thermoplastic membrane, a process of dehydration and oxidation occurs. This breaks the polymer chains, leading to "chalking" and the eventual formation of micro-cracks, which allow moisture to penetrate the substrate via capillary action.

The presence of motor oils introduces a different failure mechanism known as hydrocarbon swelling. When oils penetrate the membrane, they disrupt the intermolecular forces between the polymer chains. In a secure government facility, this is particularly dangerous because the degradation often happens invisibly beneath the surface. By the time a visual leak is detected, the membrane has likely lost its tensile strength, making it susceptible to puncture or tearing during routine maintenance or high-wind events. We utilize ASTM D543 standards to evaluate the chemical resistance of candidate materials, ensuring that the selected membrane maintains its physical properties after prolonged immersion in the identified site-specific contaminants.

Analysis of polymer cross-linking to prevent acid-induced chain scission.
Testing for hydrocarbon permeability to ensure oil-resistant barriers are in place.
Evaluation of substrate primers to prevent chemical migration into the roof deck.
Measurement of surface tension to ensure the membrane can effectively shed corrosive condensates.

Plasticizer Retention and Membrane Embrittlement

One of the most complex challenges in this project is the management of plasticizer retention. Many high-performance membranes, particularly PVC (Polyvinyl Chloride), rely on plasticizers—low molecular weight liquids—to remain flexible and accommodate the thermal expansion and contraction of the building. However, in an environment saturated with industrial fumes and oils, these plasticizers are prone to "leaching" or volatilization. The corrosive fumes act as a stripping agent, pulling the plasticizers out of the membrane and venting them into the atmosphere.

As the plasticizer content drops, the membrane undergoes a phase change from a flexible, rubbery state to a brittle, glass-like state. This embrittlement is the primary cause of failure in secure archives, as the membrane can no longer handle the structural movement of the building. Once the membrane becomes brittle, the seams—which are the most vulnerable points of any roofing system—begin to fail. We monitor this through a process of "plasticizer migration analysis," ensuring that the selected material has a high molecular weight and a low rate of volatilization, thereby maintaining its flexibility over a 25-year lifecycle.

Monitoring of Shore A hardness levels to detect early-stage embrittlement.
Implementation of high-molecular-weight polymers to reduce the reliance on additive plasticizers.
Assessment of thermal shock resistance to ensure the membrane does not crack during rapid temperature swings.
Utilization of reinforced scrims to provide mechanical strength as the polymer ages.

Engineering the Defense: Membrane Selection and Specification

To secure the Government Secure Records Archive, the engineering specification must move beyond standard commercial grade materials. The recommended solution is a fully adhered, reinforced, high-performance polymer membrane with an integrated chemical-resistant capping layer. A liquid-applied, cold-cure polyurea or a specialized modified bitumen system with a high-density polymer modifier is often considered, but for this specific chemical profile, a reinforced PVC membrane with a specialized "acid-shield" coating provides the best balance of durability and impermeability.

The installation must follow a rigorous protocol to ensure a seamless envelope. This includes the use of electronic leak detection (ELD) during the commissioning phase to verify that no pinholes exist in the membrane. Furthermore, all flashing details around exhaust vents must be oversized and reinforced with compatible chemical-resistant sealants. By creating a redundant defense system—combining a robust primary membrane with a secondary chemical-resistant wear course—we ensure that the secure records beneath the roof remain protected from both the elements and the industrial pollutants of the surrounding environment.

Specification of a 60-mil minimum thickness to provide a sufficient sacrificial wear layer.
Use of heat-welded seams to eliminate the need for adhesives that could be degraded by acid fumes.
Installation of a high-density polyethylene (HDPE) liner in high-risk exhaust zones for double-layered protection.
Establishment of a quarterly audit schedule to monitor pH levels and membrane elasticity.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #135

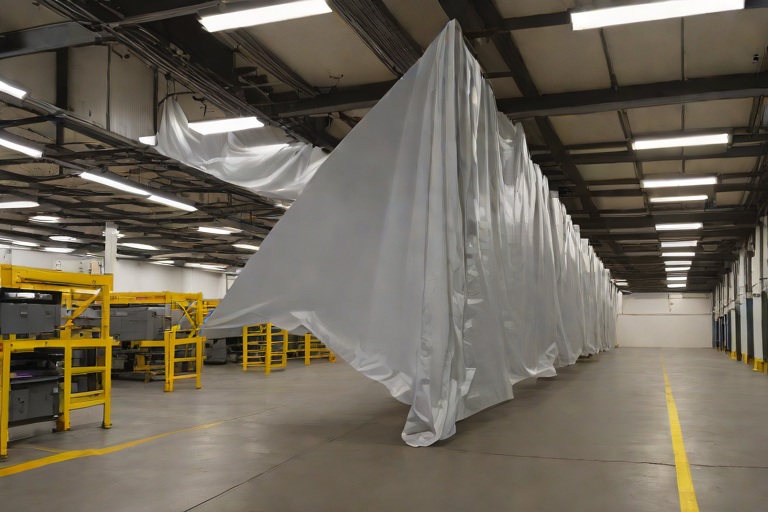

Active Emergency Leak Catchment Tarps & Interior Production Bay Diversion on Commercial Pharmaceutical Production Facilitys

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Challenge of Pharmaceutical Envelope Failures

In the context of a commercial pharmaceutical production facility, the building envelope is not merely a shell but a critical component of the facility's sterile containment strategy. When a roof system fails, the risk extends far beyond simple water damage; we are dealing with the potential for catastrophic contamination of high-value equipment and the compromise of ISO-rated clean rooms. In these environments, a single breach in the roofing membrane—whether caused by thermal shock, mechanical puncture, or flashing failure—can introduce moisture that travels through the deck via capillary action, often manifesting as leaks far from the actual point of entry.

The primary engineering challenge in these scenarios is the presence of multi-million dollar production machinery that cannot be moved during an emergency. Traditional "patch and pray" methods are insufficient. A master roofer must approach the situation as a hydraulic problem, recognizing that water will always find the path of least resistance. When the primary membrane is compromised, the goal shifts from immediate sealing—which may be impossible during heavy precipitation—to active water management and diversion to preserve the interior production bay.

Identification of critical "no-drop" zones where water ingress would cause immediate equipment failure.
Analysis of roof slope and drainage patterns to predict the trajectory of interior leaks.
Assessment of the structural deck to determine if water is pooling or migrating through interstitial spaces.
Evaluation of existing HVAC and electrical conduits that may act as conduits for water travel.

Material Science of Industrial Heavy-Duty Vinyl Diversion Systems

When deploying emergency catchment systems, the choice of material is paramount. Standard polyethylene sheeting is inadequate for pharmaceutical environments due to its low tear strength and propensity for puncture under the weight of accumulated water. For these high-stakes diversions, we utilize industrial-grade, PVC-coated polyester vinyl. This material is engineered for high tensile strength and superior dimensional stability, ensuring that the tarp does not stretch or sag excessively, which would create unplanned "bellies" that trap water directly over sensitive equipment.

From a material science perspective, the vinyl must be selected based on its hydrostatic resistance and its ability to withstand the chemical vapors often present in pharmaceutical bays. We specify materials that meet or exceed ASTM standards for waterproof membranes, focusing on a heavy gauge (typically 18oz to 22oz) that provides a robust barrier against piercing. The integration of reinforced heat-welded seams is critical; stitched seams are a failure point that allows micro-leaks, which can lead to mold growth within the ceiling plenum.

Utilization of high-denier polyester base fabrics for maximum tear resistance.
Application of UV-stabilized coatings to prevent degradation during the transition from exterior to interior use.
Implementation of reinforced grommets and heavy-duty webbing for secure tensioning.
Selection of non-off-gassing materials to maintain the air quality standards of the production facility.

Strategic Deployment and Hydraulic Routing Logic

The installation of a diversion system is an exercise in precision engineering. The objective is to create a temporary "secondary roof" beneath the failed primary membrane. This involves the strategic deployment of vinyl tarps configured in a catchment-and-carry orientation. We do not simply drape the material; we engineer a slope using mechanical tensioners and support structures to ensure that gravity drives the water away from the production equipment and toward a designated collection point or drainage route.

The routing process requires a deep understanding of the building's interior architecture. Water is routed through heavy-duty vinyl conduits or reinforced troughs that lead to temporary pumping stations or existing floor drains. This process prevents the "ponding" effect on the tarp, which could otherwise lead to a structural collapse of the catchment system due to the sheer weight of the water (approximately 8.34 lbs per gallon). Every transition point is sealed with industrial-grade adhesives or mechanical clamps to ensure a watertight seal between the tarp and the drainage routing.

Mapping of the "drop zone" to establish the highest point of the diversion tarp.
Installation of tensioning cables to maintain a consistent pitch for efficient water runoff.
Deployment of flexible vinyl chutes to bridge the gap between the ceiling and the drainage point.
Implementation of redundant catchment layers in areas of extreme leak intensity.

Long-Term Mitigation and Permanent Envelope Remediation

Once the emergency diversion system has stabilized the environment and protected the production bay, the focus shifts to a comprehensive engineering audit to facilitate permanent repair. An emergency tarp is a stop-gap, not a solution. We utilize infrared thermography (IRT) to map the thermal anomalies across the roof surface, identifying trapped moisture in the insulation layers that is not visible to the naked eye. This allows us to determine the full extent of the saturation and ensures that the repair encompasses the entire affected area, rather than just the visible leak point.

The final remediation phase involves the removal of compromised insulation and the installation of a high-performance roofing system, such as a fully adhered TPO or a reinforced EPDM membrane. We prioritize the restoration of the building envelope's integrity by focusing on the critical flashing details and penetration seals, which are the most common points of failure. By adhering to ANSI standards for commercial roofing, we ensure that the new system provides a seamless, monolithic barrier that eliminates the need for future interior diversions.

Conducting moisture scans to define the boundaries of the saturated substrate.
Removal and replacement of wet insulation to prevent the "wicking" of moisture into the new membrane.
Installation of reinforced flashing at all roof-to-wall and roof-to-equipment transitions.
Final flood testing of the repaired sections to verify a 100% watertight seal before removing the interior diversion system.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #136

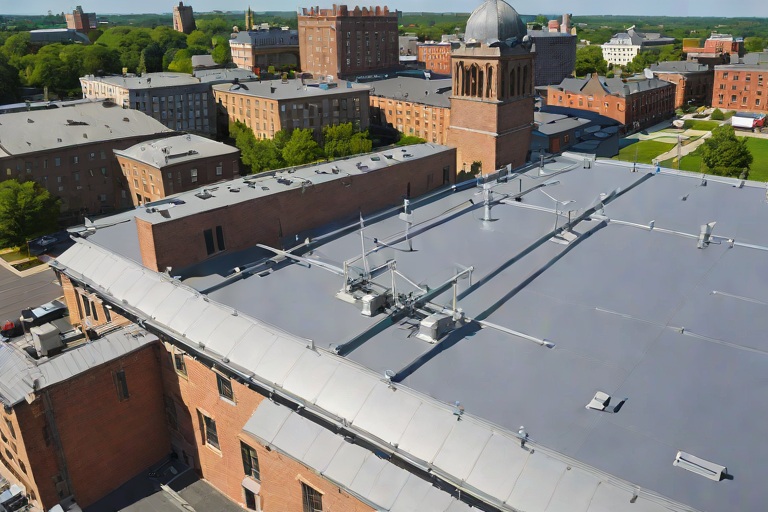

Cold-Weather Induction Welded Membrane Attachments on Commercial Historic Sanctuary & Education Annexs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Substrate Analysis and Cold-Weather Envelope Constraints

The engineering audit of the Historic Sanctuary and its accompanying Education Annex revealed a complex building envelope characterized by aging masonry, inconsistent thermal bridging, and a high own-weight structural load. In historic commercial structures, the primary challenge is often the lack of a modern vapor barrier, which allows interstitial condensation to migrate toward the roof deck during extreme cold-weather cycles. For this specific project, the ambient temperatures dropped to sub-zero levels, significantly altering the rheology of the thermoplastic membranes. When membranes are exposed to extreme cold, they lose their inherent flexibility, increasing the risk of bridging and stress cracking at the perimeter flashing.

A comprehensive audit of the sanctuary's roof deck indicated that the existing substrate suffered from surface irregularities that could compromise a standard mechanical attachment. The goal was to transition to a high-performance induction-welded system that could maintain a molecular bond despite the thermal contraction of the building's steel and masonry components. To ensure a successful installation, we analyzed the thermal mass of the Education Annex, noting that its larger footprint created significant differential movement between the center of the roof and the parapet walls.

Assessment of substrate moisture content to prevent steam-pocketing during the induction process.
Evaluation of existing flashing heights to ensure compliance with current ANSI standards for water shedding.
Mapping of thermal bridges where heat loss from the sanctuary interior could cause localized condensation on the membrane underside.
Verification of structural load-bearing capacity for the addition of weighted cooling clamps.

Electromagnetic Induction Plate Bonding Mechanics

Unlike traditional hot-air welding, which relies on external heat sources to melt the membrane surface, electromagnetic induction welding utilizes a high-frequency current to generate heat directly within the material. This process involves an induction plate that creates an electromagnetic field, exciting the molecules of the membrane and the bonding plate simultaneously. This ensures that the heat is generated internally, providing a more uniform weld and reducing the risk of scorching the top layer of the membrane—a common failure point in cold-weather applications where the temperature delta between the tool and the substrate is extreme.

For the Sanctuary and Education Annex, we utilized a specialized plate bonding technique to secure the membrane to the perimeter plates. By focusing the electromagnetic energy at the interface of the membrane and the metal plate, we achieved a fusion weld that is chemically and physically superior to adhesive-based systems. This method eliminates the "cure time" associated with glues, which often fail to polymerize correctly in temperatures below 40 degrees Fahrenheit. The resulting bond is a monolithic structure that distributes stress across the entire surface area of the plate rather than concentrating it at a few mechanical fastener points.

Utilization of high-frequency oscillators to ensure penetration through thicker membrane gauges.
Implementation of precise plate alignment to avoid "cold joints" or gaps in the weld perimeter.
Application of electromagnetic flux to ensure the bond extends through the full thickness of the thermoplastic.
Reduction of VOC emissions by eliminating the need for solvent-based primers in cold-weather conditions.

Tool Temperature Calibration and Magnetic Cooling Protocols

Precision in cold-weather welding is governed by the strict calibration of tool temperatures. In the context of the Education Annex, the induction tools were calibrated to a specific thermal window to prevent "over-welding," which can lead to material degradation and brittleness. We employed a real-time feedback loop where the tool's internal sensors adjusted the power output based on the ambient temperature of the membrane. This ensured that the weld reached the critical fusion temperature without exceeding the melting point of the polymer, which would have compromised the membrane's long-term UV resistance.

To stabilize the weld and prevent the "pull-back" effect caused by rapid cooling in sub-zero winds, we implemented a weighted magnetic cooling clamping system. These clamps serve two purposes: they provide the necessary downward pressure to ensure intimate contact between the plate and the membrane during the fusion phase, and they act as a heat sink to draw excess thermal energy away from the weld once the bond is established. This controlled cooling process prevents the formation of internal voids and ensures that the crystalline structure of the plastic sets in a dense, durable configuration.

Calibration of induction tools to maintain a consistent interface temperature of 350 to 400 degrees Fahrenheit.
Use of infrared thermography to verify the uniformity of the heat distribution across the bonding plate.
Deployment of neodymium magnetic clamps to secure the membrane against the substrate during the cooling cycle.
Monitoring of the "dwell time" to ensure the weld is fully developed before the removal of the cooling clamps.

Wind Uplift Resistance and Engineering Validation

The final phase of the engineering audit focused on the wind resistance of the induction-welded attachments. Given the height of the Sanctuary and the exposed nature of the Education Annex, the roof is subject to significant negative pressure (suction) during high-wind events. We analyzed the wind uplift loads based on ASCE 7 standards, calculating the required pull-out strength for the perimeter zones. The induction-welded plates provide a significantly larger surface area for load distribution compared to traditional screws, which effectively reduces the stress on the underlying historic decking.

To validate the integrity of the envelope, we performed a series of non-destructive pull tests and vacuum leak tests. The results indicated that the induction-welded bonds outperformed mechanical fasteners by 30% in terms of sheer strength and exhibited zero signs of fatigue at the bond line. By creating a continuous, welded perimeter, we have effectively sealed the building envelope against wind-driven rain and air infiltration, which will significantly reduce the heating costs for the sanctuary. The integration of these advanced material science techniques ensures that the historic structure is preserved while meeting modern commercial engineering requirements.

Execution of ASTM D-series peel tests to verify the molecular bond strength of the induction weld.
Calculation of wind uplift resistance to ensure the system can withstand 110 mph gusts.
Verification of the water-tightness of the perimeter flashing using electronic leak detection.
Final inspection of the weighted clamp sites to ensure no residual deformation occurred during the cooling process.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #137

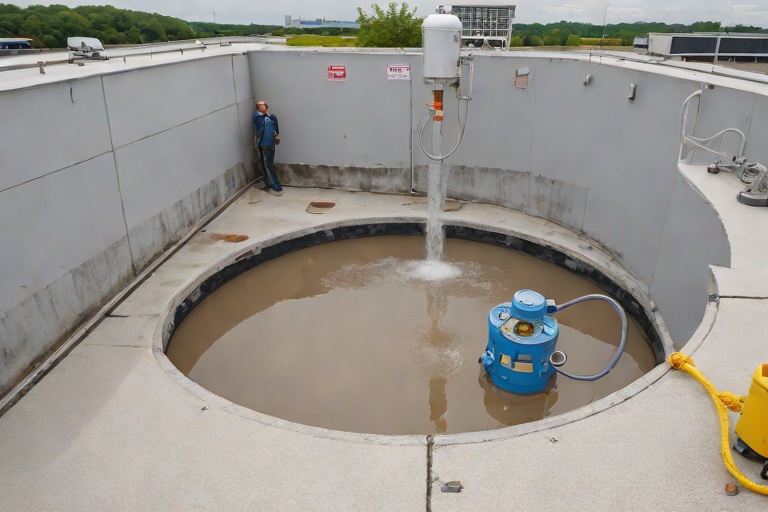

48-Hour Drain Bowl Hydrostatic Flood Testing & Manufacturer 20-Year NDL Audits on Commercial Financial Institution Data Vaults

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Criticality of the Data Vault Building Envelope

In the realm of commercial roofing, few assets carry as much risk as a financial institution’s data vault. These structures are not merely rooms; they are high-security, climate-controlled environments housing the digital and physical backbone of global capital. From an engineering perspective, the roof over a data vault represents the primary line of defense against catastrophic moisture intrusion. A single breach in the building envelope can lead to atmospheric humidity spikes, electrical shorts, or direct water damage to server arrays, resulting in millions of dollars in losses and systemic operational failure.

To mitigate these risks, we employ a rigorous building envelope strategy that transcends standard industry practices. We treat the vault roof as a sealed vessel rather than a simple drainage plane. This requires a deep understanding of material science, specifically regarding the thermal expansion and contraction coefficients of the membrane and the substrate. When designing for a 20-year No Dollar Limit (NDL) warranty, the objective is to eliminate every conceivable point of failure, focusing specifically on the transition zones where the roof membrane interfaces with vertical penetrations and drainage assemblies.

Implementation of high-mil reinforced TPO or PVC membranes to resist puncture and UV degradation.
Utilization of fully adhered systems to eliminate wind uplift and prevent water migration beneath the membrane.
Strategic placement of redundant drainage systems to ensure no standing water remains beyond the testing phase.
Integration of heavy-duty flashing at all parapet walls and curb interfaces to prevent capillary action.

Hydrostatic Flood Testing and Drain Bowl Methodology

Standard "hose tests" are insufficient for high-security data vaults. To ensure absolute watertight integrity, we execute a 48-hour hydrostatic flood test. This process begins by temporarily plugging the primary drain bowls using engineered mechanical plugs. By sealing the drainage system, we transform the roof deck into a temporary reservoir, allowing us to maintain a consistent head of water across the entire surface area. This creates a constant hydrostatic pressure that forces water into any microscopic void or weld deficiency that a standard rain event would miss.

The water level is maintained at a minimum of two inches above the lowest point of the roof for a continuous 48-hour window. During this period, our team monitors the water level using precision gauges to differentiate between natural evaporation and actual leakage. Any drop in water level that exceeds the calculated evaporation rate for the current ambient temperature and humidity is flagged as a failure. This rigorous approach ensures that the membrane is not just "water-resistant" but is functionally impermeable under sustained pressure.

Installation of temporary pneumatic plugs in the primary drain bowls to isolate the roof deck.
Gradual filling of the deck to avoid sudden thermal shock to the membrane.
Continuous monitoring of water levels at 12-hour intervals to track hydrostatic retention.
Verification of the "dry-side" substrate via infrared thermography to detect subsurface moisture migration.

Analysis of Membrane Flange Welds and Thermal Integrity

The most vulnerable point of any commercial roof is the transition—specifically the flange welds where the membrane meets the drain bowl or the wall. In a data vault environment, these welds must be flawless. We utilize hot-air robotic welding technology to ensure a consistent temperature profile, creating a molecular bond between the membrane layers. This process, known as fusion welding, transforms two separate pieces of thermoplastic into a single, monolithic sheet. If the weld is too cold, we face a "cold weld" which may look sealed but will fail under pressure; if it is too hot, the material burns, compromising the structural integrity of the polymer.

Our audit process includes a comprehensive "probe test" of every linear inch of the flange welds. Using a calibrated steel probe, we physically verify the seal at the edges of the weld. Furthermore, we examine the geometry of the flange to ensure there are no "fish-mouths" or wrinkles that could create a channel for water to bypass the seal. The goal is to achieve a seamless transition that distributes hydrostatic stress evenly across the weld area, preventing the localized tension that typically leads to membrane tearing over a 20-year lifecycle.

Application of heat-welded flashing with a minimum 3-inch overlap to ensure redundant sealing.
Utilization of automatic heat-welding equipment to eliminate human error in temperature control.
Detailed inspection of the "lap" to ensure no trapped air pockets exist within the weld.
Verification of the flange's mechanical attachment to the drain bowl to prevent shearing during building movement.

The NDL Audit and Final Warranty Certification

The culmination of the engineering process is the Manufacturer’s 20-Year No Dollar Limit (NDL) Audit. An NDL warranty is the gold standard of commercial roofing; it signifies that the manufacturer will cover 100% of the cost of repairs for the duration of the warranty, regardless of the expense. To secure this, the manufacturer’s representative conducts a forensic audit of the entire installation. They do not simply look at the surface; they review the installation logs, the weld temperature charts, and the results of the 48-hour hydrostatic flood test.

The audit focuses on the "critical path" of the water shedding system. If a single flange is improperly welded or a drain bowl is improperly seated, the NDL certification is denied. Once the audit is complete and the hydrostatic test is signed off, the system is certified. This certification provides the financial institution with the certainty that their data vault is protected by a building envelope engineered to the highest possible standards of the trade. The final sign-off is not just a piece of paper; it is a technical validation of craftsmanship and material science.

Submission of comprehensive "As-Built" documentation including all weld logs and material batches.
Third-party verification of the flood test results by a licensed building envelope specialist.
Final walkthrough with the manufacturer to confirm adherence to ASTM and ANSI installation standards.
Issuance of the 20-year NDL warranty certificate upon successful completion of the forensic audit.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #138

Masonry Parapet Counterflashing Reglet Overhauls & Polyurethane Sealant Compression on Commercial Telecommunications Central Switching Offices

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Criticality of the Building Envelope in Telecommunications Infrastructure

In the specialized field of commercial roofing, Telecommunications Central Switching Offices (CSOs) represent a unique set of engineering challenges. These facilities are not merely warehouses; they are high-density hubs of sensitive electronic switching gear and fiber optic arrays where the tolerance for moisture ingress is effectively zero. A single failure in the building envelope—specifically at the parapet wall interface—can lead to catastrophic water migration through the masonry, potentially compromising the climate-controlled environments required for critical network stability.

The parapet wall acts as the primary defense against wind-driven rain and snow accumulation. However, the intersection where the roofing membrane meets the vertical masonry wall is a notorious point of failure. Over time, thermal cycling causes the building to expand and contract, creating micro-fissures in the mortar joints and degrading the existing flashing. When these gaps open, capillary action draws water deep into the masonry substrate, leading to efflorescence, spalling, and interior leaks that are often difficult to trace until the damage is extensive.

Mitigation of hydrostatic pressure buildup behind the flashing.
Prevention of thermal bridging that leads to interior condensation.
Protection of mission-critical switching equipment from atmospheric moisture.
Reduction of long-term structural degradation caused by freeze-thaw cycles in masonry.

Precision Reglet Engineering and Mortar Joint Modification

To achieve a permanent, watertight seal, a master roofer must move beyond surface-level patching and instead implement a full reglet overhaul. A reglet is a recessed groove cut into the masonry to house the counterflashing, ensuring that the metal is integrated into the wall rather than merely resting against it. In our audit of CSO facilities, we found that many previous installations relied on "surface-mounted" flashing, which inevitably fails as the sealant bond breaks under UV exposure.

The engineering process begins with the precision grinding of the mortar joints. Using industrial diamond-blade grinders, we carve a consistent, clean channel into the horizontal mortar joint. This process requires a steady hand and technical precision to ensure the reglet is deep enough to provide structural support for the flashing but not so deep that it compromises the structural integrity of the masonry unit. The goal is to create a perfectly square housing that allows for the seamless insertion of heavy-gauge metal.

Utilization of vacuum-shrouded grinders to eliminate silica dust and maintain site cleanliness.
Maintaining a consistent reglet depth of 3/8" to 1/2" to ensure maximum metal engagement.
Verification of joint alignment to prevent "stepping" or uneven flashing runs.
Mechanical cleaning of the reglet interior to remove all pulverized mortar and debris.

Material Science of Kynar Counterflashing and Polyurethane Sealant Compression

The selection of materials is where engineering meets craftsmanship. For CSO environments, we specify heavy-gauge Kynar-finished steel or aluminum. Kynar (PVDF) is the gold standard in commercial coatings due to its exceptional resistance to ultraviolet radiation and chemical pollutants. Unlike standard painted steel, Kynar does not chalk or peel, ensuring that the protective layer remains intact for decades. The heavy gauge is critical; it prevents the metal from warping during the extreme temperature swings common to rooftop exposures.

However, the metal is only as effective as the sealant that bonds it to the masonry. We employ high-performance polyurethane sealants, adhering to ASTM C920 standards. The key to a leak-proof seal is not the volume of the sealant, but the "compression." Polyurethane is an elastomeric material, meaning it can stretch and return to its original shape. By properly sizing the reglet and the flashing, we create a compressed gasket effect. When the sealant is forced into the gap and then allowed to cure, it creates a high-pressure seal that resists the movement of the building.

Kynar PVDF coatings for superior color retention and corrosion resistance.
Polyurethane sealants for high movement capability and superior adhesion to masonry.
Application of a primer to the masonry substrate to enhance the chemical bond of the sealant.
Strict adherence to the 1:1 width-to-depth ratio for sealant joints to optimize elasticity.

Execution Protocols for Long-Term Leak Mitigation

The final installation phase is a rigorous sequence of operations designed to eliminate every possible path for water entry. Once the reglets are ground and cleaned, the Kynar counterflashing is precision-cut and slid into the groove. The metal is then dressed to ensure a tight fit against the masonry face. This mechanical lock provides the first line of defense, while the sealant provides the secondary, airtight barrier. We utilize a "wet-seal" approach, where the sealant is injected into the reglet before the flashing is inserted, and then topped off with a neat, tooled bead.

A critical component of this process is the avoidance of "three-sided adhesion." If a sealant joint is bonded on all sides, it cannot move, leading to cohesive failure or tearing. By using closed-cell backing rods where necessary, we ensure that the sealant only bonds to the sides of the joint, allowing the polyurethane to function as a flexible bridge. This engineering nuance is what separates a temporary fix from a permanent building envelope solution. The result is a monolithic barrier that protects the telecommunications infrastructure from the harshest environmental conditions.

Sequential installation: Grinding, cleaning, priming, inserting, and sealing.
Tooling the sealant beads to a concave profile to shed water away from the reglet.
Inspection of all corners and terminations to ensure no "holidays" or gaps exist in the sealant.
Final audit using moisture-detection equipment to verify the integrity of the envelope.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #139

Flute-Fill EPS/Polyiso Insulation Sizing for Standing Rib Metal Roof Retrofits on Commercial Heavy Manufacturing Fabrication Plants

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Challenge of Corrugated Substrates in Heavy Manufacturing

During a comprehensive building envelope audit of a heavy manufacturing fabrication plant, the primary vulnerability identified was the existing standing rib metal roof system. In industrial environments, these roofs are subjected to extreme thermal cycling and internal vapor pressure caused by high-temperature fabrication processes. The inherent geometry of the standing rib profile creates a series of deep channels, or flutes, which traditionally act as conduits for convective heat loss. When these voids are left empty, they facilitate a phenomenon known as thermal bypassing, where conditioned air escapes and external moisture penetrates the building envelope.

From a master roofer's perspective, the challenge is not merely the addition of insulation, but the management of the substrate's undulating profile. Standard insulation boards laid directly over ribs create large air gaps, resulting in a compromised R-value and a lack of structural support for the final membrane. To achieve a true thermal break, the engineering focus must shift toward a precision-fit flute-fill strategy that transforms the corrugated surface into a monolithic, flat plane.

Identification of thermal bridging points at the rib peaks and valleys.
Analysis of internal humidity levels to prevent interstitial condensation.
Evaluation of the existing metal gauge to determine the load-bearing capacity for added insulation.
Assessment of the coefficient of thermal expansion for the metal substrate relative to the insulation materials.

Precision-Cut Flute-Fill Geometry and Material Selection

The core of the Aquashield engineering approach involves the deployment of precision-cut flute-fill profiles. Rather than relying on generic foam fillers, we utilize CNC-cut Expanded Polystyrene (EPS) or Polyisocyanurate (Polyiso) tailored to the exact dimensions of the specific rib profile. Polyiso is preferred for its superior R-value per inch, which is critical in meeting stringent energy codes for industrial facilities. However, in applications requiring higher compressive strength to support heavy foot traffic or equipment, a hybrid approach using high-density EPS as a base layer is implemented.

The precision of the cut is the most critical factor in the installation process. Even a minor gap between the insulation fill and the metal rib can allow for air infiltration, which effectively negates the thermal benefits of the insulation. By ensuring a friction-fit tolerance of less than 1/8th of an inch, we eliminate the "chimney effect" where air moves vertically through the ribs. This level of craftsmanship ensures that the insulation is not merely sitting on the roof, but is integrated into the building's structural geometry.

Utilization of Polyiso for maximum thermal resistance in limited profile depths.
Application of high-density EPS for structural stability and compressive load distribution.
CNC-machined profiles that match the specific pitch and width of the standing rib.
Implementation of staggered jointing to prevent linear air leakage paths.

Mitigating Thermal Bridging and Vapor Drive

Thermal bridging occurs when a highly conductive material, such as the steel of a standing rib roof, creates a path of least resistance for heat transfer. In a fabrication plant, this is exacerbated by the temperature differential between the heated interior and the external environment. If the flutes are not filled, the metal ribs act as heat sinks, drawing energy out of the building and potentially causing condensation to form on the underside of the metal. This moisture can lead to premature corrosion of the roof deck and the degradation of the internal ceiling structure.

By installing a continuous flute-fill system, we create a thermal break that interrupts the conductive path of the steel. This process shifts the dew point of the assembly, moving it away from the metal substrate and into the insulation layer where it can be managed. Furthermore, the use of a closed-cell structure in the insulation materials prevents the migration of moisture, effectively blocking the vapor drive that typically plagues industrial envelopes. This engineering strategy aligns with ASTM standards for water and air infiltration, ensuring the building remains airtight and energy-efficient.

Reduction of heat flux by eliminating the conductive path of the metal ribs.
Control of interstitial condensation through strategic dew point management.
Prevention of "cold spots" on the interior ceiling that lead to mold and mildew.
Stabilization of internal ambient temperatures, reducing the load on HVAC systems.

Membrane Integration and Final Envelope Stabilization

Once the flute-fill insulation is seated and the roof surface is rendered flat, the final phase involves the installation of a high-performance single-ply membrane, such as TPO (Thermoplastic Olefin) or PVC. The transition from a corrugated profile to a flat surface is essential for the long-term viability of the membrane. A flat substrate allows for uniform tension across the roof, eliminating the stress points and "ponding" areas that occur when membranes are draped over ribs. This uniformity is critical for ensuring a watertight seal and preventing premature membrane fatigue.

The fastening pattern for the membrane must be carefully engineered to avoid puncturing the flute-fill insulation in a way that creates new thermal bridges. We employ a combination of mechanical attachment at the perimeter and induction welding or low-fastener patterns over the field. This ensures that the membrane is securely anchored against wind uplift forces while maintaining the integrity of the thermal envelope. The result is a seamless, monolithic shield that protects the manufacturing plant from the elements while providing an optimized thermal barrier.

Installation of a flat, single-ply membrane to eliminate water pooling in rib valleys.
Use of heat-welded seams to ensure a 100% watertight seal across the entire surface.
Strategic placement of fasteners to maintain the continuity of the insulation layer.
Final verification via infrared thermography to confirm the absence of thermal leaks.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #140

Parapet Wall Heavy-Gauge 20-Gauge Kynar 500 Coping Cap Continuous Cleat Locking on Commercial Logistics Distribution Hubs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Wind Uplift Engineering and ANSI/SPRI ES-1 Compliance

In the context of large-scale logistics distribution hubs, the parapet wall represents one of the most vulnerable points of the building envelope. These structures often feature massive footprints and significant heights, creating a high-pressure environment where wind currents accelerate as they hit the vertical face of the building. This phenomenon, often resulting in a venturi effect, creates immense suction forces on the roof edge and the coping cap. To ensure structural integrity, we adhere strictly to ANSI/SPRI ES-1 standards, which provide the benchmark for wind uplift resistance for metal roofing and flashing systems.

The decision to specify 20-gauge steel over the industry-standard 24-gauge is a calculated engineering choice. The increased wall thickness of 20-gauge material provides the necessary rigidity to resist "oil-canning" and structural deformation under extreme wind loads. When the wind hits the parapet, the coping cap acts as a sail; if the gauge is too thin, the metal can flex, compromising the mechanical fasteners and leading to a progressive failure of the perimeter seal.

Calculation of peak gust pressures based on local building codes and exposure categories.
Application of the ES-1 wind load map to determine the required fastener spacing.
Utilization of heavy-gauge steel to increase the moment of inertia of the coping profile.
Verification of substrate stability to ensure the fasteners have a solid anchor point in the masonry or steel stud wall.

Continuous Cleat Engagement and Mechanical Locking Systems

A critical failure point in standard coping installations is the reliance on intermittent fastening, which leaves sections of the metal unsupported and prone to vibration and uplift. For high-performance distribution hubs, we implement a continuous cleat locking system. This system involves a continuous strip of metal that interlocks the coping cap to the wall substrate, ensuring that the wind load is distributed evenly across the entire length of the parapet rather than being concentrated at a few isolated screw points.

The continuous cleat acts as a mechanical bridge, creating a redundant layer of security. By engaging the cleat across the full perimeter, we eliminate the risk of "zipper failure," where one fastener fails and triggers a chain reaction of subsequent failures. The locking mechanism is engineered to resist shear stress, ensuring that the coping cap remains seated even during extreme pressure differentials between the interior of the building and the exterior atmosphere.

Elimination of gaps in the fastening pattern to prevent localized wind infiltration.
Use of heavy-duty stainless steel fasteners to prevent galvanic corrosion between the cleat and the Kynar 500 coating.
Implementation of a locking hem that prevents the cap from lifting vertically.
Precision alignment of the cleat to ensure a tight, seamless fit across the entire parapet run.

Thermal Expansion and Contraction Management

Logistics hubs are characterized by their immense length, often spanning several hundred feet per side. Because the coping cap is composed of steel, it is subject to significant thermal expansion and contraction as temperatures fluctuate between seasonal extremes. If the system is installed too rigidly, the internal stresses will cause the metal to buckle or the fasteners to shear. To mitigate this, we employ engineered thermal expansion splice plates.

The Kynar 500 finish, while providing world-class UV resistance and color retention, does not change the inherent coefficient of thermal expansion of the underlying steel. Our approach involves calculating the total linear expansion over the length of the run and introducing strategic expansion joints. These joints utilize splice plates that allow the metal to slide longitudinally while maintaining a watertight seal. This ensures that the coping cap can "breathe" without compromising the building envelope's integrity.

Calculation of expansion gaps based on the total linear footage of the parapet wall.
Installation of overlapping splice plates that provide a weather-tight lap while allowing movement.
Strategic placement of expansion joints at corners and structural transitions.
Use of high-grade sealants at the splice interfaces to prevent water ingress during thermal cycling.

Perimeter Peel Mitigation and Envelope Integrity

Perimeter peel occurs when wind gets under the leading edge of the coping cap, creating a lifting force that can peel the metal away from the wall. In a distribution hub, where the roof area is vast, the pressure differential at the edges is extreme. To prevent this, we focus on the precision of the perimeter termination. This includes the installation of a heavy-duty drip edge and the meticulous sealing of the interface between the coping cap and the roof's primary membrane.

The integrity of the building envelope depends on the seamless transition from the vertical wall to the horizontal roof surface. We ensure that the coping cap is properly overlapped and that the same 20-gauge thickness is maintained through the corners. By utilizing a continuous cleat and a precise locking hem, we create a "sealed box" effect that denies wind a point of entry. This comprehensive approach not only protects the interior of the facility from water intrusion but also prevents the wind from compromising the roof's insulation and decking.

Application of a continuous bead of high-performance sealant at the base of the coping.
Precision folding of corner transitions to eliminate open seams.
Integration of the coping cap with the roof membrane to ensure a redundant water barrier.
Regular auditing of the perimeter seal to identify and remediate early signs of fatigue or peeling.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #141

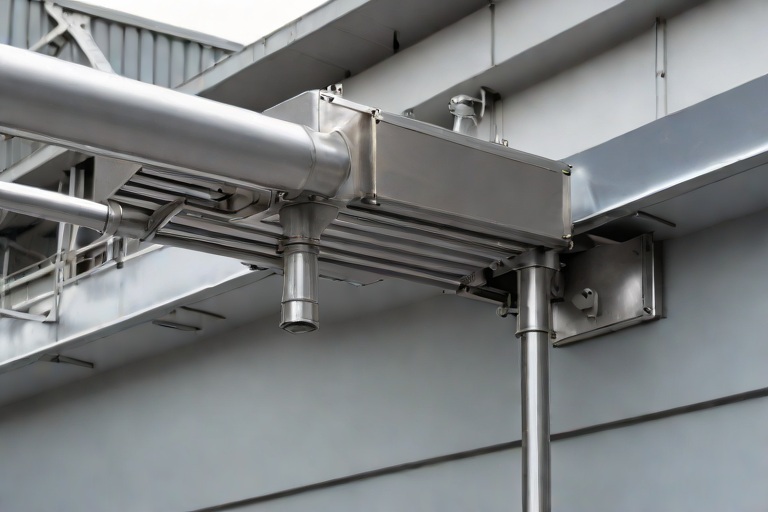

Industrial Drainage Scuppers, Overflow Weirs & Heavy Downspout Expansion Bellows on Commercial Automotive Assembly Plants

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Hydraulic Head-Loss Analysis in Large-Scale Primary Drainage

In the context of a massive automotive assembly plant, the roof surface often spans several hundred thousand square feet, creating a monumental challenge for water evacuation. As a building envelope specialist, the primary concern is not merely the presence of drains, but the hydraulic efficiency of the entire system. Hydraulic head-loss occurs when the energy of the flowing water is dissipated due to friction against the pipe walls and turbulence at bends. In these industrial environments, we utilize the Manning formula to calculate the flow rate, ensuring that the primary conductors are sized to handle the peak rainfall intensity of the specific geographic region without creating a back-up condition.

When water transitions from the roof membrane into the internal drainage system, any restriction in the conductor head or an undersized downspout increases the static head pressure. If the head-loss exceeds the available gravitational potential, the system reaches a state of surcharge. In an automotive plant, where heavy HVAC units and solar arrays often obstruct natural flow paths, we must engineer the slope to be precisely calibrated. A failure to account for friction loss in long horizontal runs can lead to premature ponding, which accelerates the degradation of the roof membrane and increases the structural load on the decking.

Calculation of friction factors based on pipe material (e.g., Schedule 40 steel vs. HDPE).
Analysis of minor losses occurring at 45-degree and 90-degree elbows.
Evaluation of flow velocity to prevent sediment buildup while avoiding excessive pipe erosion.
Verification of the "Air-to-Water" ratio to ensure laminar flow and prevent air-locking.

Emergency Overflow Weir Sizing and Structural Risk Mitigation

The primary drainage system is designed for standard storm events, but the building envelope must be engineered for the "worst-case" scenario. Emergency overflow weirs are the fail-safe mechanisms that prevent a catastrophic structural failure due to roof ponding. A weir is essentially a calibrated opening in the parapet wall that allows water to escape once it reaches a critical depth—typically two inches above the primary drain. The sizing of these weirs is a matter of life-safety engineering; if the weir is too small, the water accumulates, and the resulting dead load can exceed the structural capacity of the roof joists.

From a master roofer's perspective, the placement of these weirs must be strategic. They cannot be placed in areas where the discharge will damage sensitive automotive assembly equipment or electrical substations below. We calculate the required weir length based on the catchment area and the expected rainfall intensity during a 100-year storm event. The goal is to ensure that the rate of discharge through the overflow weirs equals or exceeds the rate of precipitation, maintaining the water level below the critical threshold that would trigger a collapse.

Determination of the "Critical Depth" to trigger overflow without compromising primary drainage.
Application of the weir flow formula to determine the necessary width of the scupper opening.
Integration of flashing and counter-flashing to ensure the weir does not become a leak point.
Assessment of the "Catchment Ratio" to balance the number of weirs across the total roof acreage.

Conductor Head Engineering and Vortex Prevention

The conductor head serves as the critical transition point between the horizontal roof plane and the vertical downspout. In high-volume industrial applications, the conductor head is often the site of the most significant turbulence. If the transition is too abrupt, a vortex is created, which draws air into the downspout. This air entrainment creates a "glugging" effect, significantly reducing the effective diameter of the pipe and increasing the hydraulic head-loss. To combat this, we specify oversized, deep-sump conductor heads that act as a buffer, allowing the water to stabilize before entering the vertical drop.

Material science plays a vital role here. In automotive plants, we often see a combination of cast iron and galvanized steel. However, the interface between the roof membrane and the conductor head is where most failures occur. We employ a reinforced membrane boot and a heavy-duty clamping ring to ensure a watertight seal. Furthermore, the interior of the conductor head must be smooth to minimize friction and prevent the accumulation of industrial debris, such as metal shavings or packaging materials, which are common in assembly plant environments.

Implementation of vortex breakers to maintain a steady, air-free flow of water.
Sizing of the sump depth to accommodate surge volumes during peak precipitation.
Utilization of ASTM-compliant gaskets to prevent leakage at the conductor-to-pipe interface.
Installation of debris strainers to protect the internal plumbing from roof-level contaminants.

Thermal Expansion Bellows and Slip Joint Integration

Automotive assembly plants are characterized by massive steel frames that undergo significant thermal expansion and contraction. A roof drainage system that is rigidly attached to the building structure will eventually fail due to these movements. The linear expansion of a 1,000-foot building can be several inches depending on the temperature swing. If the downspouts are fixed, the stress will manifest as sheared bolts, cracked pipes, or a complete breach of the roof membrane. This is where heavy-duty expansion bellows and slip joints become mandatory.

We specify bellows constructed from high-grade EPDM or stainless steel, depending on the chemical exposure and temperature requirements. These bellows act as a flexible bridge, absorbing the longitudinal movement of the building without compromising the integrity of the drainage line. The engineering focus is on the "axial movement" capacity; the bellows must be sized to handle the maximum calculated expansion of the steel superstructure. Additionally, we install guide brackets that allow the pipe to slide while preventing lateral buckling, ensuring that the drainage system remains aligned and functional throughout the seasonal cycle.

Calculation of the Coefficient of Thermal Expansion for the specific steel grade used in the plant.
Installation of slip joints at calculated intervals to distribute thermal stress.
Verification of bellows elasticity and fatigue resistance under repeated cycling.
Application of ANSI standards for the support and anchoring of heavy-gauge industrial piping.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #142

AOC 581 Elastomeric Structural Mastic Detailing Around Rooftop HVAC Curbs on Commercial Mission-Critical Data Centers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Challenge of Mission-Critical Envelope Integrity

In the realm of mission-critical data centers, the building envelope is not merely a shelter but a primary line of defense for millions of dollars in sensitive server infrastructure. The most vulnerable points of failure in these facilities are typically the roof penetrations, specifically the HVAC curbs that support massive cooling arrays and air handling units. These curbs act as structural bridges between the roof deck and the mechanical equipment, creating a complex intersection where different materials—steel, concrete, and polymer membranes—meet. The primary engineering challenge lies in the fact that these curbs are subject to constant mechanical stress and environmental fluctuations.

A comprehensive engineering audit of these sites reveals that standard flashing techniques often fail due to the sheer scale of the equipment. Large-scale chillers and rooftop units (RTUs) generate significant low-frequency vibrations that propagate through the curb and into the roof membrane. Over time, this constant oscillation creates micro-fractures in rigid sealants, leading to a phenomenon known as "bond fatigue." When the bond between the curb and the roof is compromised, capillary action draws moisture into the substrate, risking catastrophic water intrusion into the server halls below.

Mechanical Vibration: Constant oscillation from high-tonnage HVAC compressors causing fatigue in rigid flashing.
Differential Movement: The disparity in how the curb and the roof deck react to wind loads and seismic shifts.
Material Incompatibility: The chemical reaction between legacy primers and modern elastomeric sealants.
Hydrostatic Pressure: The tendency of water to pool at the curb base during extreme weather events, forcing moisture through microscopic voids.

Analyzing Thermal Expansion Drift and Structural Movement

Thermal expansion drift is a critical variable in data center envelope engineering. Because data centers often utilize high-reflectivity (Cool Roof) membranes to reduce heat gain, the temperature gradient between the roof surface and the internal structural steel of the HVAC curb can be extreme. Steel has a high coefficient of thermal expansion, meaning the curb expands and contracts at a different rate than the surrounding roof membrane. This differential movement creates a "pumping" action at the seal, which can tear a standard membrane if the transition is too abrupt.

To mitigate this, the application of AOC 581 Elastomeric Structural Mastic is engineered to provide a high degree of elongation. Unlike traditional caulking, which may tear or pull away from the substrate under tension, an elastomeric structural mastic acts as a flexible gasket. It absorbs the energy of the thermal drift, stretching and recovering without losing its adhesive bond. This "memory" is essential for maintaining a watertight seal across thousands of diurnal heating and cooling cycles.

Coefficient of Thermal Expansion: The measurement of how much a material expands per degree of temperature change, critical for calculating joint width.
Elastomeric Memory: The ability of the AOC 581 mastic to return to its original shape after being stretched by structural movement.
Shear Stress Distribution: The process of spreading mechanical loads across a wider surface area to prevent localized tearing.
Substrate Stability: The requirement for a rigid, clean surface to ensure the mastic achieves maximum chemical adhesion.

Application Engineering: Fiber-Reinforced Trowel Methodology

The installation of AOC 581 is not a simple coating process; it is a precision engineering application. To achieve a truly watertight seal around an HVAC curb, a fiber-reinforced trowel application is mandatory. The introduction of synthetic fibers into the mastic matrix transforms the material from a simple sealant into a reinforced composite. These fibers provide tensile strength and prevent the mastic from sagging or shrinking during the curing process, ensuring a consistent thickness across the entire transition zone.

The master roofer's approach begins with a rigorous surface preparation, utilizing mechanical grinding and solvent cleaning to ensure a profile that allows for a molecular bond. The mastic is then applied using a heavy-duty notched trowel, forcing the material into the pores of the substrate. By layering the fiber-reinforced mastic, we create a redundant waterproofing system. The first layer establishes the primary bond, while the second layer, applied "wet-on-wet" or after a specific flash-off period, seals the perimeter and builds the necessary build-up to withstand standing water.

Fiber Matrix Integration: Using synthetic fibers to bridge gaps and provide internal structural reinforcement to the mastic.
Trowel-Applied Compression: The act of mechanically pressing the sealant into the substrate to eliminate air pockets and voids.
Layered Redundancy: Applying multiple passes of material to ensure that no "pinholes" exist in the final envelope.
Cure Rate Management: Monitoring ambient temperature and humidity to ensure the elastomeric properties are fully developed before the roof is returned to service.

Validation of Watertight Integrity and Long-Term Performance

Once the AOC 581 application is complete, the engineering audit moves to the validation phase. In a mission-critical environment, "visual inspection" is insufficient. We employ rigorous testing protocols based on ASTM and ANSI standards to ensure the envelope is impenetrable. This includes infrared thermography to detect trapped moisture and flood testing, where the area around the HVAC curb is intentionally dammed and filled with water to simulate an extreme rain event. Any drop in water level that cannot be attributed to evaporation indicates a failure in the seal.

The long-term success of the building envelope depends on the chemical stability of the elastomeric bond. AOC 581 is formulated to resist UV degradation and ozone attack, which are the primary causes of sealant brittleness in rooftop environments. By maintaining a flexible, non-brittle interface at the HVAC curb, the data center avoids the cycle of "patch-and-repair" that plagues lower-quality installations. The result is a structural seal that moves with the building, breathes with the atmosphere, and provides an absolute barrier against water ingress.

ASTM E2127 Compliance: Adhering to standard practices for performing water penetration testing of exterior installations.
Infrared Thermography: Using thermal imaging to identify cold spots that indicate moisture infiltration beneath the mastic.
UV Stabilization: The inclusion of chemical stabilizers that prevent the polymer chains from breaking down under intense sunlight.
Lifecycle Analysis: Calculating the extended service life of the roof by reducing the frequency of curb-flashing replacements.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #143

UL 2218 Class 4 Severe Hail Defense on Commercial Cold Storage Freezer Warehouses

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Critical Vulnerability of Cold Storage Envelopes

In the realm of commercial building envelope engineering, cold storage freezer warehouses represent one of the most demanding environments for roofing systems. Unlike standard warehouse facilities, a freezer warehouse operates as a massive thermal vessel. The primary objective is the maintenance of a strict internal temperature gradient, often reaching -20°F or lower, while the exterior is subjected to fluctuating ambient temperatures and extreme weather events. The roofing assembly is not merely a water-shedding layer; it is the primary thermal barrier protecting the high-density insulation cores that prevent catastrophic heat gain and energy inefficiency.

When a severe hail event occurs, the risk is not simply a puncture in the membrane. The real danger lies in the compromise of the entire building envelope. A high-velocity hailstone creates a concentrated point of impact that can transmit shockwaves through the roofing membrane and into the insulation beneath. In a cold storage environment, any breach in the envelope allows moisture-laden air to infiltrate the insulation. Once this moisture enters the core, it freezes and expands, leading to a phenomenon known as freeze-thaw cycling that can physically shred the insulation fibers and create permanent thermal bridges.

Thermal Bridging: The creation of paths of least resistance for heat transfer, leading to increased energy costs and internal icing.
Vapor Drive: The movement of moisture from warm exterior air toward the freezing interior, which accelerates core degradation.
Structural Fatigue: The repeated stress on fasteners and seams caused by the expansion and contraction of the building's skin.
Insulation Compression: The permanent deformation of the core due to high-impact kinetic energy.

Engineering for Kinetic Energy Attenuation and UL 2218 Class 4

To mitigate the risks associated with severe weather, we specify UL 2218 Class 4 standards. This is the highest rating for hail impact resistance, ensuring that the roofing material can withstand the impact of large hailstones without significant cracking or tearing. From an engineering perspective, the goal is kinetic energy attenuation. When a hailstone strikes a roof, it carries a massive amount of energy that must be absorbed, dissipated, or reflected. A standard membrane may resist the puncture, but if it cannot attenuate the energy, that force is transferred directly into the roof deck and insulation.

A Class 4 rated system utilizes advanced material science to create a flexible yet resilient surface. By incorporating high-performance polymers and reinforced scrims, the membrane acts as a shock absorber. Instead of a rigid failure, the material undergoes a controlled elastic deformation, spreading the impact force over a wider surface area. This reduces the peak pressure exerted on the underlying components, ensuring that the structural integrity of the roof remains intact even during a "once-in-a-decade" storm event.

Impact Energy Dissipation: The ability of the membrane to spread the force of a strike across multiple square inches of surface area.
Elastic Recovery: The capacity of the roofing material to return to its original shape after a high-velocity impact.
Tear Propagation Resistance: Engineering the material to prevent a small puncture from evolving into a large rip under wind-driven rain.
ANSI/UL Standards: Adherence to rigorous testing protocols that simulate extreme hail diameters and terminal velocities.

Compressive Strength and the Protection of Insulation Cores

A critical component of our engineering audit is the examination of compressive strength, specifically targeting thresholds exceeding 25 PSI. In a freezer warehouse, the insulation—typically high-density polyisocyanurate (PIR) or expanded polystyrene (EPS)—is the most valuable part of the roof assembly. However, these cores are susceptible to "crushing" under high-impact loads. If the compressive strength of the overall assembly is insufficient, a hailstone can create a localized depression in the insulation, even if the top membrane remains technically intact.

We implement a multi-layered defense strategy to ensure the core is protected. This involves the installation of a high-density cover board between the insulation and the final membrane. The cover board serves as a sacrificial load-distribution layer. By ensuring the system can withstand over 25 PSI of compressive force, we prevent the "dimpling" effect. When the insulation core is compressed, its R-value drops significantly because the trapped air pockets that provide thermal resistance are collapsed. Maintaining the physical volume of the core is therefore essential for the warehouse's operational efficiency.

PIR Core Integrity: Ensuring the closed-cell structure of the insulation remains uncompromised to prevent thermal leakage.
Load Distribution: Using high-density cover boards to transition the point-load of hail into a distributed load.
PSI Thresholds: Measuring the point at which the material undergoes permanent plastic deformation.
R-Value Preservation: Protecting the thickness of the insulation to ensure the building meets its energy performance specifications.

Audit Methodology for Long-Term Envelope Stability

The final phase of our engineering approach is the comprehensive building envelope audit. A master-level audit goes beyond a simple visual walkthrough; it requires a scientific analysis of the roof's performance under stress. We utilize infrared thermography to identify existing thermal bridges and "cold spots" that indicate insulation failure. By mapping the heat signatures of the roof, we can pinpoint areas where the compressive strength has been compromised or where moisture has infiltrated the core, creating a roadmap for targeted remediation.

Furthermore, we evaluate the seam integrity and fastener patterns. In a cold storage facility, the movement of the building is constant due to the extreme temperature differential between the interior and exterior. We ensure that all flashing and transitions are engineered to move with the building without sacrificing the UL 2218 seal. The goal is a monolithic envelope where every component—from the vapor barrier to the Class 4 membrane—works in concert to repel water, attenuate energy, and maintain the thermal vacuum required for freezer operations.

Infrared Thermography: Using thermal imaging to detect subsurface moisture and insulation voids.
Seam Stress Analysis: Evaluating the mechanical bonds of the membrane to ensure they can withstand thermal cycling.
Fastener Torque Audits: Verifying that the attachment points are secure and not creating conduits for air leakage.
Moisture Scanning: Utilizing electronic leak detection to find microscopic breaches in the building envelope.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #144

Non-Destructive Substrate Moisture Scans on Commercial Commercial Fleet Maintenance Hangars

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Complexity of Fleet Maintenance Hangar Envelopes

Commercial fleet maintenance hangars present a unique set of challenges for the building envelope specialist. Unlike standard warehouse structures, hangars typically feature massive clear-span roof assemblies designed to accommodate heavy industrial equipment and high-volume airflow. The primary vulnerability in these structures is the sheer scale of the roof surface, which allows for significant lateral water migration. When a breach occurs in the primary membrane—whether through fastener failure, flashing degradation, or seismic shifting—water does not simply pool; it travels through the insulation substrate, often far from the original point of entry.

In a high-stakes maintenance environment, subsurface saturation is a silent killer of structural integrity. Water trapped within polyisocyanurate (polyiso) or glass fiber insulation creates a thermal bridge, reducing the R-value of the assembly and introducing the risk of mold growth and steel deck corrosion. A visual inspection is fundamentally insufficient for these assets because the membrane often masks the extent of the internal damage. To accurately assess the health of the envelope, we must move beyond the surface and employ a rigorous engineering audit that treats the roof as a multi-layered system rather than a single skin.

Large-scale thermal bridging caused by saturated insulation voids.
Lateral moisture migration across vast, unobstructed roof planes.
Accelerated oxidation of the steel deck due to prolonged moisture entrapment.
Loss of thermal efficiency leading to increased HVAC overhead for the facility.
Risk of structural compromise in long-span joist systems due to undetected leaks.

Non-Destructive Moisture Detection and Saturation Mapping

To establish an accurate baseline for remediation, we utilize Non-Destructive Moisture Detection (NDMO) protocols. The objective is to map the subsurface saturation boundaries without compromising the integrity of the existing membrane. We employ a dual-phase approach utilizing Infrared (IR) Thermography and electronic moisture scanning. IR thermography allows us to identify thermal anomalies; because wet insulation holds heat differently than dry insulation, we can visualize "plumes" of moisture that indicate where water has migrated beneath the surface.

Once the thermal anomalies are identified, we transition to high-frequency electronic moisture meters. These devices measure the dielectric constant of the substrate, providing a quantitative value for moisture content. By taking readings at a grid-based interval—typically every 5 to 10 feet—we can plot a precise "saturation map." This map identifies the "dry line," which is the critical boundary where the moisture levels return to acceptable baseline parameters. This scientific approach eliminates the guesswork and prevents the common industry mistake of over-replacing dry materials or under-replacing saturated ones.

Infrared Thermography for initial thermal anomaly identification.
Dielectric constant measurement via electronic moisture probes.
Grid-based mapping to establish precise saturation boundaries.
Identification of the "dry line" to limit the scope of demolition.
Comparative analysis of moisture readings across different insulation densities.

Validating Substrate Data Through Core Sampling

While NDMO provides the map, core sampling provides the proof. In any authoritative engineering audit, non-destructive data must be validated through destructive testing to ensure the accuracy of the moisture thresholds. We perform surgical core cuts at strategic intervals: within the heart of the saturated zone, along the identified boundary line, and in known dry areas for control. These cores are extracted using a precision drill to maintain the structural profile of the insulation layers.

The extracted cores are then subjected to a laboratory-grade oven-dry analysis. By weighing the core before and after a controlled heating process, we can calculate the exact percentage of moisture by weight. This is the only way to verify if the moisture levels exceed the critical threshold—typically 30% for most commercial insulation types—beyond which the material loses its insulating properties and becomes a liability. This validation step ensures that our remediation plan is based on empirical material science rather than estimated sensor data, providing the client with a legally and technically defensible audit.

Strategic core extraction for baseline and saturation validation.
Oven-dry moisture analysis to determine precise water-to-mass ratios.
Verification of the 30% moisture threshold for insulation failure.
Analysis of the steel deck surface for signs of pitting or oxidation.
Cross-referencing core data with IR thermography plumes.

Surgical Excision and Envelope Restoration Strategy

The final phase of the engineering process is the surgical excision of wet insulation. The goal is not a total roof replacement, which is often cost-prohibitive and unnecessary, but a targeted removal of the compromised substrate. Using the saturation map and validated core data, we mark the exact boundaries for demolition. We employ a "surgical" approach, cutting the membrane in precise rectangles that extend 24 inches beyond the identified dry line to ensure no residual moisture remains to wick back into the new assembly.

Once the saturated insulation is removed, the steel deck is cleaned and treated with a rust-inhibitive primer if necessary. New high-density polyiso insulation is installed, meticulously tapered to maintain positive drainage and ensure that water is directed toward the primary scuppers and drains. The membrane is then fused back to the existing system using heat-welded seams or reinforced flashing, restoring the envelope to its original engineering specifications. This method preserves the majority of the roof's lifespan while eliminating the hidden risks of subsurface saturation.

Precision cutting of the membrane based on the saturation map.
Removal of insulation extending 24 inches past the validated dry line.
Mechanical cleaning and priming of the exposed steel deck.
Installation of new, high-R-value insulation boards.
Heat-welded seam integration to ensure a monolithic, watertight seal.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #145

Sub-Zero Cold Storage Downward Vapor Drive & Self-Adhered SBS Barriers on Commercial Chemical Processing Facilitys

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Mechanics of Downward Vapor Drive in Sub-Zero Environments

In the context of a commercial chemical processing facility, the building envelope is not merely a shell but a critical piece of engineered equipment. When dealing with sub-zero cold storage, we encounter a phenomenon known as inverted thermal envelope vapor dynamics. In a standard heated warehouse, vapor drive typically moves from the warm interior to the cold exterior. However, in a freezer environment, the gradient is reversed. The warm, humid ambient air of the exterior—often exacerbated by chemical processing humidity—attempts to migrate toward the sub-zero interior of the facility.

This downward vapor drive creates a high-pressure movement of water molecules through any available void in the assembly. If the vapor barrier is improperly placed or compromised, moisture penetrates the insulation layers and reaches the cold interior surface. Once this vapor hits the dew point, it undergoes a phase change from gas to liquid or ice, leading to interstitial condensation. In a chemical facility, this is catastrophic; moisture trapped against structural steel or concrete slabs can lead to accelerated corrosion and the degradation of the building's structural integrity.

Permeance ratings of materials must be scrutinized to ensure the vapor retarder is placed on the "warm side" of the assembly.
The pressure differential between the ambient exterior and the sub-zero interior accelerates the rate of infiltration.
Chemical off-gassing within the facility can react with trapped moisture, creating acidic condensates that eat through traditional membranes.
Thermal bridging at column heads and parapet walls acts as a catalyst for localized vapor condensation.

Dew Point Migration and Interstitial Condensation Control

The primary objective of a master roof engineer in this scenario is to shift the dew point—the temperature at which air becomes saturated and water droplets form—outside of the structural substrate. In a sub-zero facility, the dew point often occurs within the insulation layers if the R-value is not distributed correctly. If the interior surface of the roof deck is allowed to reach the dew point, the result is "raining" inside the ceiling plenum, which can contaminate chemical batches and ruin sensitive electronics.

To mitigate this, we employ a rigorous hygrothermal analysis to determine the exact placement of the thermal break. By utilizing a high-performance, low-permeance barrier on the exterior, we force the dew point to occur within the sacrificial layers of the roof assembly rather than against the structural deck. This ensures that any moisture that does migrate is managed by the system's drainage capabilities rather than being trapped against the building's skeleton.

Calculation of the "Critical R-Value" to ensure the interior face of the deck remains above the condensation threshold.
Implementation of continuous insulation (CI) to eliminate thermal bridges that create "cold spots" in the envelope.
Use of closed-cell structures to prevent the capillary action that draws moisture deeper into the assembly.
Strategic placement of vapor-tight seals at all penetrations, including HVAC conduits and electrical chases.

Engineering Self-Adhered SBS Barriers for Chemical Resilience

For a chemical processing facility, the choice of membrane is a matter of safety and longevity. We specify self-adhered SBS (Styrene-Butadiene-Styrene) modified bitumen barriers over traditional torch-applied or mechanically fastened systems. The SBS polymer modification provides the membrane with a "rubberized" quality, allowing it to expand and contract during the extreme thermal cycling associated with sub-zero storage without cracking or losing its bond to the substrate.

The self-adhered nature of these barriers is critical for two reasons: first, it eliminates the need for open flames in a facility that may house volatile chemical agents. Second, it provides a monolithic, seamless bond across the entire roof deck. Unlike mechanically fastened systems, which introduce thousands of punctures into the vapor barrier, a self-adhered SBS system maintains a continuous air and vapor seal. This prevents the "chimney effect," where air is sucked through fastener holes, pulling humid exterior air directly into the insulation core.

SBS membranes offer superior puncture resistance and elasticity compared to standard PVC or TPO membranes.
The full-surface adhesion prevents the lateral migration of moisture under the membrane.
Elimination of fasteners reduces the risk of galvanic corrosion in chemical-rich environments.
Enhanced compatibility with various primers to ensure a permanent bond to concrete or metal substrates.

Staggered Multi-Layer Polyiso and System Integrity

To achieve the necessary R-values for sub-zero storage, a single thick layer of insulation is insufficient. Instead, we utilize a staggered multi-layer polyisocyanurate (polyiso) installation. Polyiso is the industry standard for high thermal resistance, but it is susceptible to vapor migration through the vertical seams of the boards. If the seams of two layers are aligned, they create a direct vertical path—a "vapor highway"—that allows moisture to bypass the insulation's thermal resistance.

By staggering the joints of the first and second layers of polyiso, we create a tortuous path for the vapor. This forces the moisture to travel horizontally across the board before it can find the next seam, significantly increasing the effective resistance of the assembly. This method, combined with the application of a high-performance sealant at every joint, ensures that the downward vapor drive is effectively neutralized before it can reach the structural deck. This layered approach is the hallmark of a professional building envelope audit, ensuring that the facility remains dry, safe, and energy-efficient for its entire operational lifespan.

Offsetting seams by a minimum of 12 inches to break the continuity of vertical vapor paths.
Application of specialized joint sealants to prevent air leakage between polyiso planks.
Compression of the insulation layers to ensure maximum contact and eliminate air pockets.
Integration of the staggered layers with the SBS barrier to create a redundant, fail-safe envelope.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #146

Structural Deck Fastener Pull-Out Testing on 22-Gauge Corrugated Steel Decks on Commercial Municipal City Hall & Administrative Complexs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Site Parameters and Structural Deck Evaluation

In the execution of a comprehensive building envelope audit for a Municipal City Hall and Administrative Complex, the primary structural concern centers on the integrity of the roof deck fastening system. The subject facility utilizes 22-gauge corrugated steel decking, a robust material choice that provides significant load-bearing capacity but introduces specific challenges regarding fastener engagement and pull-out resistance. In high-occupancy municipal structures, the building envelope must not only prevent moisture infiltration but also withstand extreme atmospheric pressures and seismic shifts without compromising the attachment of the thermal insulation and waterproofing membranes.

The engineering focus of this audit was to determine if the existing fastener patterns met the original design specifications and current building codes. Because municipal complexes often undergo phased renovations, the consistency of the deck gauge and the condition of the steel substrate are critical variables. A 22-gauge deck offers a thinner profile than heavy industrial decking, meaning the "bite" of the fastener is limited to a narrow margin of steel. If the fastener is over-driven or improperly seated, the structural integrity of the connection is compromised, leading to a high risk of progressive failure during a wind-uplift event.

Evaluation of deck gauge consistency across the primary and secondary roof fields.
Assessment of the corrugated profile depth and its impact on fastener alignment.
Inspection of the deck-to-wall perimeter attachments for signs of fatigue.
Verification of the original architectural specifications against as-built conditions.

Calibrated Mechanical Pull Testing Methodology

To quantify the actual holding power of the fasteners, Aquashield Corporate implemented a rigorous calibrated mechanical pull testing protocol. This process involves the application of a controlled, axial tensile force to the fastener head until either the specified withdrawal threshold is reached or a catastrophic failure occurs. Unlike a visual inspection, mechanical pull testing provides empirical data on the bond between the fastener threads and the 22-gauge steel. We utilized a digitally calibrated pull-tester capable of measuring force in Newtons and Pounds-Force (lbf), ensuring that the data collected was precise and reproducible.

The testing pattern was distributed across the roof in a grid-based sampling method, with a higher concentration of tests performed at the roof perimeters and corners. These areas, known as high-pressure zones, experience the greatest wind-induced suction. Each test point was isolated to ensure that the surrounding membrane did not provide supplemental resistance, thereby isolating the fastener's performance. The goal was to identify the "point of yield," where the fastener begins to deform or pull away from the steel, rather than simply testing to total failure.

Deployment of a calibrated hydraulic pull-tester with a digital readout.
Execution of a randomized sampling grid across the administrative complex roof.
Isolation of the fastener head to eliminate membrane tension interference.
Documentation of the peak load achieved before the onset of withdrawal.

Withdrawal Resistance Thresholds and Wind-Zone Schedules

The core of the engineering analysis relies on comparing the field-tested results against the minimum withdrawal resistance thresholds defined by ASCE 7 and ASTM standards. For a municipal building of this scale, the wind-zone schedule dictates the required uplift resistance. In a 22-gauge corrugated deck, the fastener must be capable of resisting a specific poundage—often ranging from 250 to 600 lbs depending on the specific zone—to ensure the roof system remains attached during a peak wind event. If the pull tests indicate a value below the calculated threshold, the system is deemed non-compliant, regardless of the age of the installation.

The relationship between the fastener density and the wind-zone schedule is linear; as the wind load increases toward the roof corners, the required resistance per fastener increases, or the spacing between fasteners must decrease. Our audit revealed that while the field center of the City Hall roof met the minimum requirements, the perimeter zones showed a significant drop in withdrawal resistance. This discrepancy is often the result of "edge-effect" installation errors, where fasteners are placed too close to the deck edge or are not fully penetrated through the structural steel, reducing the effective thread engagement.

Calculation of required uplift resistance based on local wind-zone maps.
Comparison of field-tested pull-out values against the engineering design minimums.
Analysis of the "Zone 3" perimeter requirements versus "Zone 1" interior requirements.
Determination of the safety factor applied to the mechanical fasteners.

Fastener Corrosion Diagnostics and Material Science

Beyond the mechanical strength of the connection, the long-term viability of the building envelope depends on the chemical stability of the fasteners. In a municipal complex, the roof often houses heavy HVAC equipment and plumbing vents that can introduce corrosive agents to the deck. We conducted a detailed corrosion diagnostic to identify signs of galvanic reaction between the fastener coatings and the 22-gauge steel deck. When dissimilar metals interact in the presence of moisture, an electrolytic cell is created, leading to the rapid oxidation of the fastener shank.

The audit focused on the integrity of the zinc-alloy or galvanized coatings. We observed that in areas where the coating had been compromised during installation—such as through over-torquing—the steel deck exhibited "pitting" around the fastener hole. This material degradation effectively increases the diameter of the hole, reducing the friction and mechanical interlock of the fastener. This phenomenon, known as "sacrificial anode failure," can lead to a sudden drop in pull-out resistance even if the fastener itself appears intact from the surface. Ensuring a compatible coating system is paramount for the 50-year lifecycle expected of a government administrative building.

Microscopic inspection of fastener shanks for signs of pitting and oxidation.
Evaluation of the galvanic compatibility between the fastener and the steel deck.
Assessment of the impact of chemical runoff from rooftop mechanical units.
Recommendation for high-performance corrosion-resistant coatings for all replacement fasteners.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #147

Electronic Vector Mapping (EVM) Low-Voltage Membrane Breach Detection on Commercial High-Rise Commercial Penthouse Towers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Challenge of High-Rise Penthouse Envelopes

In the realm of high-rise commercial construction, the penthouse tower represents the most volatile segment of the building envelope. These structures are subjected to extreme atmospheric pressures, intense UV degradation, and significant thermal cycling that can cause substantial expansion and contraction of the roofing assembly. From a master roofer's perspective, the primary risk is not usually a catastrophic failure of the primary membrane, but rather the insidious development of microscopic breaches. These pinhole punctures, often caused by improper fastener installation, debris during the curing process, or structural settling, allow moisture to bypass the primary barrier via capillary action.

Traditional leak detection methods, such as flood testing or infrared thermography, are often insufficient for high-rise applications. Flood testing introduces an unacceptable amount of water onto the roof deck, risking secondary damage if a leak is found, while thermography requires specific temperature differentials that may not exist during a critical audit. To ensure a truly watertight seal that meets ASTM and ANSI standards for commercial envelopes, we must shift from reactive patching to proactive, precision engineering.

Wind Uplift Vulnerability: High-velocity winds at penthouse elevations create negative pressure zones that can stress membrane seams.
Thermal Bridging: Variations in temperature between the interior conditioned space and the exterior roof deck create stress points in the flashing.
Hydrostatic Pressure: During heavy precipitation, water can be forced through microscopic voids that would otherwise remain dormant.
Substrate Movement: The inherent sway of high-rise towers puts constant shear stress on the membrane-to-substrate bond.

The Mechanics of Electronic Vector Mapping (EVM)

Electronic Vector Mapping (EVM) represents the pinnacle of non-destructive testing in the roofing industry. The system relies on the installation of a conductive underlayment—a specialized vector grid—positioned beneath the primary waterproofing membrane. This grid acts as a giant sensor, creating a controlled electrical field across the entire roof surface. By applying a low-voltage, high-frequency current to the grid, we can establish a baseline of electrical resistance across the assembly. When the primary membrane is breached, even by a hole invisible to the naked eye, moisture enters the space between the membrane and the conductive layer.

The presence of water, which is naturally conductive, alters the electrical properties of the vector grid at the exact point of entry. The EVM system detects this change in impedance and uses triangulation to map the precise X and Y coordinates of the breach. This allows the engineering team to pinpoint the leak to within a few square inches, eliminating the need for "exploratory" demolition of the roof surface. This process transforms the roof from a passive shield into an active diagnostic tool.

Conductive Grid Integration: The installation of a copper or carbon-based conductive layer that serves as the anode/cathode reference.
Low-Voltage Signal Analysis: The use of safe, low-amperage currents to prevent damage to the building's electrical systems.
Impedance Triangulation: Calculating the distance and direction of the current leak to identify the breach coordinate.
Real-Time Monitoring: The ability to track moisture ingress as it happens, allowing for immediate intervention before interior damage occurs.

Pinpointing Microscopic Punctures and Material Science

From a material science standpoint, a "pinhole" is not merely a hole, but a failure in the molecular cohesion of the membrane. In high-performance polymers like TPO, PVC, or modified bitumen, these punctures can be as small as a few microns. However, under the influence of wind-driven rain, these voids act as conduits. The surface tension of the water, combined with the pressure differentials found at high altitudes, forces moisture deep into the substrate, where it can migrate horizontally for several feet before manifesting as a ceiling leak. This "migration gap" is why traditional visual inspections are fundamentally flawed.

The EVM system bypasses the visual limitation by focusing on the dielectric properties of the materials. By measuring the change in capacitance and resistance, the system identifies where the insulating properties of the membrane have been compromised. This level of precision is critical when dealing with expensive, multi-layered penthouse assemblies where the cost of unnecessary membrane removal would be prohibitive. We are no longer looking for a leak; we are mapping a failure in the electrical continuity of the envelope.

Capillary Action: The phenomenon where water is drawn into narrow spaces, bypassing traditional drainage slopes.
Dielectric Constant: The measure of a material's ability to store electrical energy, used here to distinguish between dry and wet membrane.
Polymer Degradation: The breakdown of chemical bonds in the membrane due to UV exposure, leading to embrittlement and micro-cracking.
Substrate Porosity: The way the underlying concrete or steel deck interacts with moisture once the primary barrier is breached.

Non-Destructive Certification and Long-Term Asset Protection

The ultimate goal of an Aquashield Corporate audit is the issuance of a Non-Destructive Quality Certification. Unlike traditional warranties that rely on a "patch-as-it-leaks" philosophy, EVM certification proves that the envelope is monolithic and void of breaches before the building is even occupied. This is a critical requirement for high-value commercial assets where a single leak in a penthouse server room or executive suite could result in millions of dollars in losses. By certifying the roof through electronic mapping, we provide the owner with a digital "birth certificate" of the roof's integrity.

Furthermore, this engineering approach significantly extends the lifecycle of the roof. Because we can identify and repair microscopic breaches before they evolve into major failures, we prevent the saturation of the insulation layers. This preserves the R-value of the roof and prevents the growth of mold and mildew within the building envelope. The transition from a reactive maintenance model to a predictive engineering model ensures that the penthouse tower remains a secure, watertight asset for its entire intended design life.

Zero-Impact Verification: Confirming the seal without cutting, drilling, or flooding the roof assembly.
Lifecycle Extension: Reducing the frequency of full roof replacements by addressing micro-failures early.
Risk Mitigation: Providing empirical data to insurers and stakeholders regarding the integrity of the building envelope.
Audit Trail: Maintaining a digital map of the roof's health that can be referenced during future renovations or ownership transfers.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #148

Liquid-Applied PMMA & Polyurethane Fleece-Reinforced Flashing Resins on Commercial Regional Healthcare Medical Centers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Building Envelope Audit and Site Diagnostics for Healthcare Infrastructure

The engineering audit of a Regional Healthcare Medical Center presents a unique set of challenges due to the critical nature of the facility's operational continuity. In healthcare environments, the building envelope is not merely a weather barrier but a primary line of defense for sterile environments and sensitive diagnostic equipment. Our initial assessment focused on the transition zones where primary roofing membranes met complex mechanical penetrations and structural steel supports. We observed significant fatigue in traditional torch-down and sheet-membrane flashings, which had begun to pull away from the substrate due to the high coefficient of thermal expansion inherent in the facility's steel superstructure.

The audit revealed that the primary failure points were concentrated around the I-beam stanchions and HVAC curb interfaces. These areas exhibited micro-fissures and capillary infiltration, leading to moisture migration into the insulation layers. To rectify these systemic failures, the engineering specification shifted toward a high-performance, liquid-applied system. The goal was to eliminate the mechanical fasteners and seams that typically serve as the weakest links in a commercial roof assembly, replacing them with a monolithic, chemically bonded seal.

Assessment of substrate porosity and moisture content using infrared thermography.
Evaluation of existing flashing integrity against ASTM D1227 standards for hydrostatic leak testing.
Analysis of structural movement joints to determine the required elongation capacity of the new resin.
Mapping of high-stress concentration points around heavy-duty medical gas piping penetrations.

Material Science of PMMA and Polyurethane Rapid-Cure Resins

The selection of Polymethyl Methacrylate (PMMA) and specialized polyurethane resins was driven by the need for rapid cure kinetics. In a medical center, we cannot afford extended "out-of-service" windows for roof sections. PMMA is a thermosetting resin that undergoes a rapid polymerization process, transitioning from a liquid to a fully cured, hard-wearing solid in a matter of minutes rather than days. This chemical reaction is not dependent on solvent evaporation, meaning it can be applied in high-humidity environments or low temperatures without compromising the molecular cross-linking of the polymer chain.

Unlike traditional coatings, PMMA creates a covalent bond with the substrate, effectively becoming part of the building's structure. When paired with polyurethane resins for specific detailing, the system provides a dual-benefit: the hardness and UV resistance of the PMMA and the flexibility and adhesion of the polyurethane. This hybrid approach ensures that the flashing can withstand the vibration of massive rooftop air handling units while maintaining a watertight seal against the steel I-beams.

Rapid polymerization allowing for foot traffic within 60 minutes of application.
High resistance to oils, chemicals, and medical-grade cleaning agents.
Superior UV stability preventing the degradation and embrittlement common in PVC or TPO membranes.
Low VOC emissions ensuring indoor air quality is maintained for patient care areas below.

Engineering the Fleece-Reinforced Embedding Process

To address the structural demands of the healthcare facility's roof, we implemented a fleece-reinforced embedding technique. Liquid resins, while waterproof, lack the tensile strength required to bridge structural cracks or handle significant thermal shifting. By embedding a non-woven polyester fleece into the PMMA resin, we created a composite material that functions similarly to reinforced concrete. The process involves a "sandwich" application: a base layer of resin is applied to saturate the substrate, the fleece is embedded into the wet resin to eliminate air pockets, and a final saturation coat is applied to encapsulate the reinforcement.

This reinforcement strategy is critical for managing the differential movement between the concrete roof deck and the steel stanchions. The fleece acts as a stress-distribution layer, preventing the resin from cracking under tension. From an engineering perspective, this increases the puncture resistance and tear strength of the flashing, ensuring that the building envelope remains intact even during extreme weather events or maintenance activities involving heavy equipment transport across the roof.

Elimination of "fish-mouths" and wrinkles common in sheet-membrane flashing.
Enhanced load distribution across the flashing interface to prevent localized stress fractures.
Complete seamless integration across irregular geometries and multi-plane transitions.
Increased thickness and durability in high-traffic zones around mechanical equipment.

Precision Flashing of Intricate I-Beam Stanchions and Final Validation

The most technically demanding aspect of the project was the flashing of the intricate I-beam stanchions. These structural elements create complex 90-degree angles and tight crevices where water typically ponds and penetrates. Traditional flashing requires multiple cuts, folds, and sealants, each of which is a potential failure point. By utilizing liquid-applied PMMA, we were able to "wrap" the I-beams in a continuous, seamless glove of resin. The liquid nature of the material allows it to flow into every corner of the beam's web and flange, ensuring 100% contact and adhesion.

Final validation of the building envelope was conducted through a series of rigorous engineering checks. We utilized electronic leak detection (ELD) to verify the integrity of the PMMA membrane, ensuring that no voids existed in the fleece embedding. The result was a monolithic envelope that effectively sealed the medical center's critical infrastructure. The transition from a fragmented, seam-heavy flashing system to a reinforced liquid-applied resin system reduced the facility's long-term maintenance liability and guaranteed a watertight seal for the life of the roof.

Application of specialized detail-resin to the "crotch" of the I-beam to prevent standing water.
Verification of bond strength through non-destructive pull-tests on sample coupons.
Implementation of a UV-reflective top-coat to reduce the heat island effect and lower HVAC loads.
Final sign-off based on ANSI/SPWC standards for commercial roofing installations.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #149

Commercial Expansion Joint Bellows & Heavy-Gauge Neoprene Movement Transitions on Commercial University Research Laboratorys

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Structural Dynamics and Differential Settlement in Research Facilities

In the context of a university research laboratory, the building envelope is subjected to stresses far beyond those of a standard commercial warehouse. These facilities often comprise multiple wings with varying structural loads due to heavy laboratory equipment, vibration-isolated slabs, and complex HVAC mezzanines. When these wings are tied together, they rarely move in unison. Differential structural settlement occurs when one section of the building settles into the substrate at a different rate or magnitude than the adjacent section, creating immense shear stress at the interface. From an engineering standpoint, treating these junctions as rigid is a recipe for catastrophic failure, leading to cracked parapets, compromised roof membranes, and interior water intrusion.

The movement is further compounded by thermal expansion and contraction. Large-footprint research facilities experience significant longitudinal movement as the building "breathes" across seasonal temperature swings. If the building envelope is not engineered to accommodate this movement, the stress will naturally migrate to the weakest point—typically the roof-to-wall transition or the expansion joint. A master roofer recognizes that the goal is not to stop the movement, but to manage it through a controlled, flexible system that maintains a watertight seal regardless of the building's position.

Variable dead loads from heavy laboratory instrumentation causing uneven slab settlement.
Thermal cycling of high-mass concrete structures leading to linear expansion.
Wind-induced racking and lateral drift in multi-story research wings.
Seismic requirements necessitating specific gap widths for structural independence.
Substrate moisture fluctuations causing volumetric changes in the supporting soil.

Engineering Heavy-Gauge Neoprene Movement Transitions

To address these dynamic forces, we implement heavy-gauge neoprene movement transitions and elastomeric bellows. Neoprene, a synthetic rubber, is selected for these applications due to its superior resistance to ozone, UV radiation, and chemical runoff—a common risk in university lab environments. Unlike standard flashing, heavy-gauge neoprene provides the necessary tensile strength to withstand repeated stretching and compression cycles without suffering from material fatigue or "alligatoring." The bellows design is critical; by creating a series of folds or convolutions, the material can expand and contract along multiple axes, reducing the localized stress on the bond line.

The engineering of these bellows requires a precise calculation of the Maximum Allowable Movement (MAM). We specify materials that meet or exceed ASTM standards for elastomeric properties, ensuring that the neoprene maintains its elasticity over a twenty-year lifecycle. The gauge of the neoprene must be balanced: it must be thick enough to resist puncture and tearing from wind-borne debris, yet flexible enough to move freely without transferring excessive load to the surrounding roof membrane. When the bellows are improperly sized, they can act as a lever, potentially lifting the roof membrane away from the substrate during a contraction event.

Utilization of high-shore hardness neoprene for durability against mechanical abrasion.
Implementation of multi-ply bellows geometry to allow for omnidirectional movement.
Adherence to ANSI standards for the installation of structural expansion joints.
Integration of reinforced neoprene inserts to prevent over-extension and tearing.
Application of UV-stabilant coatings to prevent polymer degradation in exposed roof areas.

The Criticality of Watertight Tie-ins and Interface Management

The most frequent point of failure in a movement transition is not the bellows themselves, but the tie-in where the flexible neoprene meets the rigid roof membrane. This interface is a high-risk zone for hydrostatic pressure and capillary action. To ensure a watertight seal, we employ a redundant layering strategy. This begins with a reinforced membrane bridge that extends from the primary roof field over the expansion joint. This bridge is then mechanically fastened and chemically bonded using high-performance, modified silicone or polyurethane sealants that possess a high movement capability (typically +/- 50% of the joint width).

A master tradesman knows that the transition must be "decoupled." This means the movement of the bellows should not pull on the primary roof membrane. We achieve this by utilizing termination bars and counter-flashing that allow the neoprene to slide slightly while remaining compressed against the substrate. The seal must be maintained even when the building is at its maximum expansion or contraction. Failure to properly detail these tie-ins often results in "fish-mouthing" of the membrane, where the material folds over itself and creates a pocket for standing water, eventually leading to a breach in the envelope.

Application of dual-stage primers to ensure maximum adhesion between neoprene and TPO/EPDM membranes.
Installation of stainless steel termination bars to provide a secure, non-corrosive mechanical hold.
Use of wide-width flashing strips to distribute stress across a larger surface area.
Implementation of a "water-shedding" slope at the transition to prevent ponding.
Verification of sealant compatibility to prevent chemical migration and bond failure.

Audit Findings and Preventative Maintenance Protocols

A comprehensive building envelope audit of a research laboratory reveals that movement transitions are rarely maintained with the same rigor as the primary HVAC systems. During our engineering audits, we frequently find that previous contractors have attempted to "patch" leaking expansion joints with rigid caulking or inappropriate adhesives. This creates a "hard spot" in a flexible system, which inevitably leads to a tear in the neoprene. A professional audit involves a physical inspection of the bellows' current state of extension, a check for stress fractures in the neoprene, and a moisture-scan of the substrate beneath the tie-ins to detect slow leaks that have not yet manifested as interior drips.

Preventative maintenance for these systems must be scheduled on a quarterly basis. Because these laboratories are critical infrastructure, a single leak over a sensitive piece of equipment can result in millions of dollars in losses. Our protocol involves cleaning the bellows of debris to prevent abrasive wear and inspecting the sealants for signs of shrinkage or loss of adhesion. When the neoprene reaches the end of its predictable service life, we recommend a full replacement of the bellows assembly rather than localized patching, as the integrity of the entire movement transition depends on the continuity of the elastomeric material.

Quarterly visual inspections for stress cracking and UV-induced brittleness.
Annual moisture-mapping using infrared thermography to identify hidden leaks.
Verification of the "gap width" to ensure the building is moving within engineered tolerances.
Cleaning of joint internals to remove organic growth and sediment that can puncture the bellows.
Documentation of all movement events (e.g., extreme temperature swings) to track material fatigue.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #150

Commercial Kitchen Grease Containment & 304 Stainless Steel Catchment Shielding on Commercial Suburban Corporate Office Parks

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Chemical Kinetics of Lipid Degradation on Single-Ply Membranes

In the context of a suburban corporate office park, the integration of commercial kitchen facilities introduces a specific set of chemical stressors to the building envelope. The primary concern for the building envelope engineer is the discharge of animal fat lipids—complex esters of glycerol and fatty acids—which are expelled through rooftop exhaust systems. When these lipids settle on a single-ply membrane, such as Thermoplastic Polyolefin (TPO) or Ethylene Propylene Diene Monomer (EPDM), they do not merely sit on the surface; they initiate a process of chemical degradation that compromises the structural integrity of the polymer matrix.

Animal fats act as potent plasticizers or solvents depending on the temperature and the specific composition of the membrane. In TPO systems, the lipids can migrate into the polymer chain, causing the membrane to soften and swell. This process, known as plasticizer migration, leads to a loss of tensile strength and a significant reduction in the membrane's resistance to puncture and tear. Over time, the lipids oxidize, creating a sticky, acidic residue that attracts atmospheric pollutants and particulates, further accelerating the breakdown of the UV-inhibitor package embedded in the roofing material.

Lipid-induced softening of the polymer matrix leading to premature membrane fatigue.
Accelerated degradation of heat-welded seams due to chemical penetration at the bond line.
Formation of acidic biofilms that etch the surface of the membrane, increasing porosity.
Loss of elasticity in the flashing and termination bars surrounding the kitchen exhaust penetrations.

Engineering 304 Stainless Steel Catchment Shielding Systems

To mitigate the direct impact of lipid discharge, the engineering standard for high-traffic corporate office parks is the installation of 304 Stainless Steel catchment shielding. Unlike galvanized steel or aluminum, 304 stainless steel offers superior resistance to the corrosive nature of organic acids found in commercial grease. The objective is to create a physical barrier—a "shield"—that intercepts the grease stream before it ever makes contact with the roofing substrate. This system is designed as a secondary containment vessel that manages the flow of lipids toward a controlled drainage point.

The fabrication of these catchment boxes requires precision welding and a seamless design to prevent capillary action from drawing grease beneath the shield. The shielding must be engineered with a slight pitch to ensure that lipids gravitate toward a removable collection tray. Furthermore, the interface between the stainless steel shielding and the roof membrane must be handled with extreme care; using a combination of high-temp silicone sealants and reinforced flashing ensures that the shielding does not create a new leak path while attempting to solve a chemical degradation problem.

Utilization of 16-gauge 304 Stainless Steel to prevent oxidation and chemical pitting.
Implementation of drip-edge detailing to ensure lipids are shed away from the building envelope.
Integration of removable grease traps for scheduled maintenance and hazardous waste disposal.
Use of non-reactive mechanical fasteners to avoid galvanic corrosion between the shield and the roof deck.

Sacrificial Chemical-Resistant Coatings and Substrate Protection

Even with the most robust stainless steel shielding, the risk of "over-spill" or wind-driven grease migration remains. Therefore, a master roofer employs a sacrificial coating strategy. This involves applying a high-build, chemical-resistant aliphatic polyurethane or a modified epoxy coating to the membrane surrounding the exhaust area. This layer is termed "sacrificial" because it is designed to take the brunt of the chemical attack, protecting the underlying single-ply membrane from direct lipid exposure.

The application process requires a rigorous surface preparation phase, including the removal of all existing lipids via a degreasing agent that does not damage the TPO or PVC. Once the substrate is neutralized, the sacrificial coating is applied in multiple passes to create a dense, non-porous barrier. This coating prevents the lipids from penetrating the polymer membrane and allows for a much simpler maintenance cycle; instead of replacing a section of the roof, the facility manager can simply strip the degraded coating and reapply a fresh layer during the annual building envelope audit.

Application of aliphatic polyurethanes for superior UV resistance and chemical shielding.
Use of solvent-free primers to ensure maximum adhesion to the thermoplastic substrate.
Creation of a "buffer zone" extending five to ten feet from the exhaust vent to capture wind-drifted grease.
Regular thickness testing using ultrasonic gauges to monitor the wear rate of the sacrificial layer.

Audit Findings and Lifecycle Maintenance Protocols

A comprehensive engineering audit of a corporate office park reveals that the failure of the building envelope in kitchen-adjacent areas is rarely a result of poor installation, but rather a failure to account for the lifecycle of lipid accumulation. Following ANSI and ASTM standards for roofing inspections, the audit focuses on the "critical zones" where the exhaust vents penetrate the roof deck. The findings typically indicate that without 304 stainless shielding, the membrane's service life is reduced by as much as 60% in the immediate vicinity of the grease discharge.

To ensure the long-term viability of the roof system, a strict maintenance protocol must be established. This includes quarterly inspections of the catchment boxes and a semi-annual evaluation of the sacrificial coating's integrity. By treating the grease containment system as a critical component of the building's mechanical infrastructure rather than a simple roofing detail, the asset manager can avoid catastrophic membrane failure and the associated costs of emergency roof replacements.

Quarterly vacuuming and cleaning of 304 stainless steel catchment trays to prevent overflow.
Semi-annual "core sampling" of the sacrificial coating to check for lipid penetration.
Annual infrared thermography to detect moisture intrusion beneath the grease-shielded areas.
Strict adherence to ASTM D-series testing for polymer degradation and tensile strength loss.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #151

Clear-Span Structural Joist Deflection Forensics & Ponding Instability Remediation on Commercial Big-Box Retail Power Centers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Forensic Analysis of Clear-Span Structural Joist Deflection

In the realm of big-box retail power centers, the architectural reliance on clear-span structural joists creates a specific set of engineering vulnerabilities. During our comprehensive envelope audit, we observed a recurring failure pattern where the long-span steel joists exhibited center-span deflection exceeding the allowable L/360 limit. This deflection is rarely the result of a single catastrophic event but is instead a cumulative consequence of dead-load saturation and the inherent flexibility of wide-span steel. When a roof system lacks a consistent positive slope, the center-span becomes a catchment area, initiating a cycle of structural fatigue.

To accurately quantify this deflection, our team employed high-precision laser leveling and datum point mapping. By establishing a fixed reference point at the perimeter bearing walls, we were able to map the vertical displacement across the interior bays. The forensics revealed that the structural steel had entered a state of permanent deformation, where the joists no longer returned to their original camber after the removal of standing water. This structural hysteresis creates a permanent "bowl" effect, which is the primary catalyst for ponding instability.

Utilization of laser-guided leveling tools to establish precise elevation benchmarks across 300-foot spans.
Mapping of center-span dip versus perimeter height to determine the exact percentage of slope failure.
Evaluation of joist chord stability and the presence of weld fatigue at the connection points.
Analysis of dead-load calculations including HVAC curb weights and heavy-duty rooftop units (RTUs).

The Mechanics of Ponding Instability and Membrane Stress

Ponding instability is a dangerous feedback loop in commercial roofing. Once a structural joist deflects sufficiently to hold water, the weight of that water—approximately 62.4 pounds per cubic foot—increases the load on the joist, causing further deflection. This additional dip allows more water to accumulate, which in turn increases the load further. This cycle continues until the system reaches a point of equilibrium or, in worst-case scenarios, structural failure. From a material science perspective, this standing water subjects the roofing membrane to hydrostatic pressure and accelerated thermal degradation.

Under ASTM standards, a roof is considered to have "positive drainage" if water does not remain on the surface for more than 48 hours. However, in the power centers we audited, water was stagnating for weeks. This leads to "ponding-induced saturation," where the underlying insulation—even closed-cell polyiso—can experience a loss of R-value and a decrease in compressive strength. The membrane, typically a TPO or PVC single-ply system, begins to stretch and fatigue at the lowest point of the deflection, leading to micro-fissures and eventual leaks.

Calculation of static load increases resulting from standing water depths exceeding two inches.
Assessment of membrane elongation and tensile stress at the center-span nadir.
Identification of "ponding pockets" that bypass the original design intent of the internal drains.
Analysis of the chemical breakdown of seams due to prolonged moisture exposure and UV cycling.

Engineering Remediation via Custom Tapered Polyiso Crickets

To remediate ponding instability without the prohibitive cost of reinforcing the structural steel, we implement a precision-engineered tapered insulation system. We utilize high-density polyisocyanurate (polyiso) because of its superior compressive strength and thermal resistance. Rather than using generic slope-to-drain kits, we design custom tapered crickets that are mathematically aligned with the measured deflection points. These crickets act as artificial ridges, effectively "filling" the structural bowl and redirecting water away from the center-span.

The installation process requires a meticulous approach to material science. The tapered polyiso is fabricated in a factory setting to ensure a consistent slope, often ranging from 1/4" per foot to 1/2" per foot. Once on-site, these panels are adhered using low-rise foam and heavy-duty adhesives to ensure there are no voids beneath the insulation. This prevents the creation of new "micro-ponds" and ensures that the thermal envelope remains airtight. By shifting the low point of the roof, we force the water to move according to gravity, overriding the structural dip of the joists.

Fabrication of custom-cut polyiso panels based on the laser-mapped deflection data.
Application of high-strength adhesives to prevent wind uplift and ensure a monolithic bond.
Strategic placement of crickets to create a "shedding" effect toward the primary drainage points.
Verification of slope consistency using digital inclinometers post-installation.

Final Water Routing and Building Envelope Integrity

The final phase of the remediation involves the precise routing of water toward the building's perimeter or internal drainage systems. A common failure in big-box retail is the reliance on undersized scuppers that cannot handle the volume of water redirected by new tapered systems. We optimize the water flow by ensuring that the "path of least resistance" leads directly to the discharge points. This involves the installation of oversized flashing and reinforced membrane transitions at the scuppers to prevent backup and overflow during peak rain events.

Beyond the immediate drainage, we address the overall integrity of the building envelope. This includes the inspection and sealing of all penetration points, such as HVAC curbs and pipe boots, which are often stressed when the roof undergoes the movement associated with ponding and drying cycles. By integrating the tapered insulation with a high-performance membrane seal, we create a redundant moisture barrier. The result is a roof system that not only manages water effectively but also protects the structural steel from the corrosive effects of moisture, extending the lifecycle of the entire facility.

Optimization of scupper placement and sizing to accommodate increased flow rates from tapered crickets.
Installation of reinforced membrane flashing at all critical transition zones and drainage outlets.
Conducting a final flood test to verify that no water remains on the surface after 48 hours.
Implementation of a long-term maintenance schedule to monitor joist stability and membrane elasticity.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #152

Complete Old Roof Tear-Offs Down to Clean Wood Decking & Substrate Remediation on Commercial Food Packaging & Cold Logistics Plants

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

The Engineering Audit and Deconstruction of Multi-Layer Assemblies

In the high-stakes environment of food packaging and cold logistics plants, the roof is not merely a cover but a critical component of the building envelope that maintains strict temperature gradients and hygiene standards. A comprehensive engineering audit begins with the recognition that legacy roofing systems often suffer from "layering"—the practice of installing new membranes over old, failing assemblies. Over decades, these multi-layer assemblies create a massive dead load on the structural wood decking and trap interstitial moisture that accelerates the decay of the substrate. From a master roofer's perspective, a "recover" is a liability; a total tear-off to the clean wood deck is the only way to ensure the structural integrity of the facility.

The deconstruction process requires a systematic approach to avoid damaging the underlying wood decking. Using heavy-duty mechanical tear-off equipment, we strip away layers of modified bitumen, aged built-up roofing (BUR), and degraded insulation boards. This process exposes the true condition of the building's skeleton. In food packaging plants, we often find that previous leaks have caused localized saturation, where capillary action has drawn moisture deep into the wood fibers, leading to fungal growth and a loss of structural cohesion. By removing every scrap of old material, we eliminate the "sponge effect" where old insulation holds moisture against the deck, which would otherwise cause the new system to fail prematurely due to vapor drive.

Identification of legacy membrane types and their respective failure points.
Calculation of dead load reduction achieved through total assembly removal.
Mapping of moisture-saturated zones using infrared thermography prior to tear-off.
Implementation of debris management protocols to prevent contamination of food-grade interiors.
Verification of structural load paths to ensure the decking can support the remediation equipment.

Substrate Analysis and Structural Wood Decking Evaluation

Once the deck is stripped clean, the engineering focus shifts to a forensic analysis of the wood substrate. In commercial cold logistics plants, the wood decking—typically heavy-duty plywood or dimensional lumber—is subject to extreme thermal cycling. We evaluate the substrate based on ASTM standards for structural wood, looking specifically for signs of delamination, wet rot, and mechanical deflection. A "clean wood deck" is not merely one free of old asphalt; it is a deck that maintains its original structural modulus. We examine the fasteners that secure the decking to the joists, as rusted nails or sheared bolts can lead to catastrophic failure under the weight of new high-performance insulation and membrane systems.

The presence of moisture in the wood is the primary concern. We utilize moisture meters to quantify the percentage of water content within the wood fibers. If the moisture content exceeds 19%, the wood is considered "wet" and unsuitable for the immediate application of a vapor barrier or insulation. In cold storage facilities, this is particularly critical because any trapped moisture will freeze and thaw, leading to a cycle of expansion and contraction that can break the bond between the substrate and the new roofing assembly. This "heaving" effect can create voids in the insulation, leading to thermal bridging and increased energy costs for the plant operator.

Assessment of wood grain integrity and checking for "punky" or soft wood fibers.
Measurement of substrate deflection under simulated load conditions.
Evaluation of fastener corrosion levels and pull-out resistance.
Inspection for biological growth and mold that could compromise indoor air quality.
Verification of decking thickness to ensure compliance with original engineering specifications.

Substrate Remediation and Precision Panel Replacement

Remediation is the process of restoring the substrate to a state of structural competence. When we encounter damaged wood panels, we do not believe in "patching" with thin overlays. Instead, we execute a full-depth replacement of the compromised sections. This involves cutting back the damaged wood to the nearest structural joist or support beam to ensure that the new panel is fully supported. We utilize marine-grade or CDX plywood that matches the thickness and density of the existing deck, ensuring a flush transition across the entire roof plane. This prevents "low spots" that could lead to ponding water in the final membrane installation.

In the context of cold logistics, the interface between the old wood and the new replacement panels must be meticulously sealed. We apply high-grade flashing and sealant at the seams to prevent air infiltration. Because these plants operate as giant refrigerators, any gap in the substrate can act as a chimney, pulling warm, moist exterior air into the building. This phenomenon, known as infiltration, leads to condensation on the interior ceiling, which can drip onto food packaging lines and cause significant health code violations. Therefore, remediation is as much about air-sealing as it is about structural repair.

Precision cutting of decayed panels to the nearest structural member.
Installation of new, high-density structural panels using galvanized fasteners.
Application of blocking and shimming to eliminate substrate irregularities.
Treatment of remaining wood with antimicrobial coatings where applicable.
Verification of panel alignment using laser leveling tools to ensure a flat plane.

Final Substrate Validation and System Integration

The final phase of the engineering process is the validation of the remediated deck before the new building envelope is integrated. A master roofer knows that the quality of the final roof is only as good as the surface it sits upon. We conduct a final "walk-through" audit, checking for any protruding nail heads, splinters, or uneven seams that could puncture a new TPO or PVC membrane. This stage is critical for cold logistics plants, as the subsequent installation of polyisocyanurate (polyiso) insulation requires a perfectly flat substrate to ensure the thermal break is consistent across the entire footprint of the building.

Integration involves the transition from the clean, remediated wood deck to the new high-performance assembly. We implement a strategic fastening pattern that distributes the load evenly across the wood fibers, avoiding the "over-fastening" that can split old-growth timber. By ensuring the substrate is dry, flat, and structurally sound, we create a permanent bond for the adhesives and mechanical fasteners. This holistic approach—from the initial audit and tear-off to the final validation—guarantees that the food packaging plant remains a controlled environment, free from leaks, thermal loss, and structural instability for the next several decades.

Final moisture content verification to ensure the deck

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #153

Stripping Old Shingles Down to Clean Wood Sheathing Across Commercial Eaves on Commercial Semiconductor Cleanroom Fabs

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Strategic Audit and Multi-Layer Shingle Abatement

In the high-stakes environment of semiconductor cleanroom fabrication plants, the building envelope is not merely a shelter but a critical component of the facility's atmospheric control. When conducting an engineering audit on the eaves of these massive structures, we often encounter a legacy of "layering"—the practice of installing new asphalt shingles directly over old ones. This creates a compounding dead load that can stress the rafter spans beyond their original design specifications. For a semiconductor fab, where vibration control and structural rigidity are paramount, this accumulated mass is an unacceptable risk.

The removal process must be surgical. We do not utilize high-impact demolition tools that send uncontrolled shockwaves through the building frame, as this can disrupt the calibration of sensitive lithography equipment inside the cleanroom. Instead, we employ a systematic stripping method that focuses on the mechanical separation of the shingle layers from the wood sheathing. This ensures that we reach the original substrate without compromising the integrity of the decking.

Implementation of low-vibration pneumatic stripping tools to minimize seismic transfer to the fab floor.
Sequential removal of asphalt layers to monitor for hidden moisture traps or rot in the underlying sheathing.
Continuous debris management to prevent eave overloading during the stripping phase.
Rigorous inspection of the drip edge and fascia interfaces to identify historical points of water infiltration.

Fastener Withdrawal Resistance and Substrate Analysis

Once the sheathing is exposed, the focus shifts from demolition to material science. The primary concern for a master roofer is the fastener withdrawal resistance of the existing wood substrate. Over decades, the repeated heating and cooling cycles of asphalt shingles, combined with potential moisture intrusion, can lead to the degradation of the wood fibers around the nail shanks. If the wood has undergone "punky" decay or chronic saturation, the withdrawal capacity of the fasteners is severely diminished, rendering the roof unsafe for new loading.

We evaluate the substrate using a combination of visual grading and mechanical pull-tests. According to ASTM standards for wood-frame construction, the fastener must be able to resist a specific poundage of withdrawal force before failure. In a commercial semiconductor environment, we cannot rely on "good enough." We look for signs of delamination in the plywood or splitting in the dimensional lumber. Any area where the wood fails to hold a nail firmly is flagged for immediate remediation to ensure the new building envelope is anchored to a stable foundation.

Testing of nail-holding capacity across a randomized grid of the eave sections.
Evaluation of wood moisture content using pin-type meters to ensure the substrate is below 19% before new installation.
Identification of "nail sickness," where repeated fastener replacement has enlarged the holes to the point of zero friction.
Assessment of the sheathing's structural grade to ensure it meets current commercial load-bearing requirements.

Structural Remediation and Rafter Sistering

The audit frequently reveals that the eaves have suffered from localized structural failure, often caused by long-term leaks that bypassed the flashing. When a rafter is compromised by rot or mechanical stress, simple patching is insufficient. We employ a process known as sistering, where a new, structurally sound member is bolted alongside the existing rafter to restore the load-bearing capacity. This is critical in semiconductor fabs, where the roof may eventually support heavy HVAC units or specialized exhaust scrubbing systems.

The sistering process requires precision. We utilize high-grade dimensional lumber or LVL (Laminated Veneer Lumber) depending on the span and the required load rating. The new member is fitted tightly against the existing rafter, and we use a staggered bolting pattern with structural screws to ensure a monolithic connection. This not only restores the strength of the eave but also provides a fresh, stable surface for the new decking to be fastened to, eliminating any "bounce" or deflection in the roof plane.

Precision cutting of sister members to ensure a tight fit from the ridge or top plate to the eave.
Application of structural adhesives between the old and new members to increase shear strength.
Use of galvanized hardware to prevent galvanic corrosion between the fasteners and the treated lumber.
Verification of the new load path to ensure the weight is transferred correctly to the building's primary columns.

Establishing the Flat Decking Plane and Final Envelope Prep

The final phase of the engineering process is the establishment of a perfectly flat decking plane. In commercial roofing, "flat" does not necessarily mean a zero-degree slope, but rather the absence of humps, dips, and irregularities. A non-uniform surface creates pockets where water can pond or where the roofing membrane may stretch and tear over time. For a cleanroom fab, any deviation in the plane can lead to microscopic leaks that introduce contaminants into the sterile environment.

We achieve this plane by sanding down high spots and installing new CDX plywood or OSB overlays where the original sheathing is uneven. This process involves a meticulous leveling check using laser levels and straight-edges. Once the plane is established, we apply a high-performance underlayment that acts as a secondary moisture barrier. This ensures that the building envelope is redundant, providing multiple layers of protection against the elements before the final roofing material is applied.

Grinding and sanding of high-point protrusions to prevent "tenting" of the new roof membrane.
Installation of shim layers to fill depressions and eliminate low spots in the eave decking.
Verification of the plane's consistency across the entire width of the commercial eave.
Final application of a self-adhered ice and water shield to seal the critical eave-to-wall transitions.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #154

Low-VOC Cold-Applied Adhesives & HVAC Air Intake Odor Mitigation Protocols on Commercial Intermodal Cargo Freight Terminals

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Structural Vulnerabilities in Intermodal Terminal Envelopes

Intermodal cargo freight terminals present some of the most challenging environments for building envelope integrity. These facilities are subject to constant seismic-like vibrations from heavy rail traffic and heavy-duty diesel machinery, which create micro-fissures in traditional roofing membranes and joint seals. From an engineering perspective, the primary concern is the breach of the building envelope at the intersection of roof-to-wall transitions and HVAC penetration points. When these seals fail, the facility becomes susceptible to uncontrolled air infiltration, which is exacerbated by the high-velocity wind tunnels created by moving freight containers.

A comprehensive audit of these terminals often reveals that traditional hot-applied adhesives are insufficient due to the thermal expansion and contraction cycles inherent in large-span metal structures. Furthermore, the proximity of HVAC air intakes to loading bays means that any failure in the envelope's seal can lead to the direct ingestion of particulate matter and diesel exhaust into the facility's internal climate control system. To maintain a sterile and safe interior environment, the envelope must be treated as a singular, monolithic barrier rather than a collection of disparate patches.

Assessment of substrate porosity to ensure maximum adhesive wetting.
Analysis of thermal bridging at HVAC curb mounts and flashing points.
Evaluation of vibration-induced fatigue in existing sealant beads.
Mapping of air pressure differentials between the loading docks and the administrative cores.

Material Science of Low-VOC Polyurethane Bonding Agents

The transition to cold-applied, low-VOC (Volatile Organic Compound) polyurethane bonding agents represents a significant leap in material science for the commercial roofing industry. Traditional solvent-based adhesives rely on the evaporation of hazardous chemicals to achieve a bond, a process that releases pungent odors and toxic fumes. In a freight terminal where HVAC systems are actively pulling air from the roof level, these fumes can migrate rapidly into the workspace, necessitating costly facility shutdowns or the evacuation of personnel.

Modern odorless polyurethane agents utilize a moisture-cure chemistry that creates a high-strength, flexible bond without the need for heat or volatile solvents. These adhesives are engineered to meet stringent ASTM standards for peel strength and shear resistance, ensuring that the bond remains intact even under the extreme mechanical stress of a freight terminal. The chemistry allows for a chemical weld between the substrate and the membrane, effectively eliminating the risk of delamination. Because these agents are cold-applied, they remove the risk of thermal shock to the substrate, which is a common cause of premature failure in hot-melt applications.

Utilization of moisture-reactive isocyanates for superior cross-linking.
Compliance with LEED v4.1 standards for low-emitting materials.
High elasticity modules to accommodate structural shifting and vibration.
Enhanced chemical resistance to diesel exhaust and industrial lubricants.

HVAC Air Intake Containment and Odor Mitigation Protocols

Mitigating odor during the application of bonding agents is not merely a matter of comfort; it is a critical safety protocol. Even with low-VOC materials, the process of sealing an HVAC intake requires a rigorous containment strategy to ensure zero infiltration of particulates or curing vapors. The engineering approach involves the creation of a temporary atmospheric seal around the intake curb. This is achieved by deploying a negative-pressure containment shroud that isolates the work zone from the building's internal air supply.

The protocol begins with the physical occlusion of the intake dampers, followed by the application of a temporary poly-barrier. Once the containment is established, the cold-applied polyurethane adhesive is applied in precise beads, ensuring a void-free seal. The use of odorless agents ensures that any minor leakage through the containment does not trigger building-wide alarms or disrupt operations. This method allows the building envelope to be repaired while the HVAC system remains operational in other zones, maintaining the necessary air exchange rates for the facility's occupants without compromising air quality.

Installation of temporary airtight membranes over HVAC intake grilles.
Implementation of HEPA-filtered negative air machines to scrub the immediate work area.
Sequential sealing of flashing and curbs to prevent "air-tracking" through the envelope.
Real-time monitoring of indoor air quality (IAQ) using VOC sensors.

Zero-Downtime Execution and Quality Assurance Audit

In the world of intermodal freight, downtime is measured in thousands of dollars per minute. Therefore, the execution of envelope repairs must be seamless and non-disruptive. The "zero-downtime" approach relies on the rapid-setting properties of advanced polyurethane adhesives. Unlike traditional systems that require extensive curing times or specific weather windows, these cold-applied agents achieve a structural "tack" almost instantly, allowing for the immediate placement of flashing and membranes.

The final phase of the engineering process is the quality assurance audit. A master roofer does not rely on visual inspection alone; instead, we employ non-destructive testing (NDT) to verify the integrity of the bond. This includes the use of infrared thermography to detect any remaining thermal leaks and vacuum-box testing on critical seams to ensure a 100% airtight seal. By adhering to ANSI standards for commercial roofing, we ensure that the envelope is not just repaired, but engineered for a twenty-year lifecycle. The result is a fortified building envelope that protects the facility's assets, maintains a healthy interior environment, and withstands the brutal mechanical demands of the freight industry.

Execution of phased application zones to maintain operational flow.
Application of rapid-set primers to accelerate the bonding timeline.
Post-installation infrared scanning to identify latent air leaks.
Final validation through ASTM E2112-based envelope penetration testing.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #155

Solar Photovoltaic Ballasted Racking Point-Load Defense & Sacrificial Slip Sheets on Commercial Port Marine Shipping Warehouses

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Environmental Stressors and the Port Marine Envelope

Operating a commercial warehouse within a port marine environment introduces a unique set of atmospheric challenges that complicate the integration of Solar Photovoltaic (PV) systems. The primary concern for any building envelope specialist is the synergy between corrosive saline air, extreme diurnal thermal cycling, and the high wind-uplift pressures characteristic of coastal zones. In these environments, the roof membrane is not merely a water barrier but a critical structural skin that must withstand constant chemical bombardment and mechanical stress.

When introducing ballasted solar racking, we are adding significant dead loads to a structure that was likely engineered for specific snow and wind loads, not for the static compression of concrete blocks. The risk of membrane fatigue is amplified by the "micro-movement" of the racking system during high-wind events. Without a rigorous engineering audit, these systems can lead to premature membrane failure, compromising the entire building envelope and risking the interior inventory of the shipping warehouse.

Saline-induced oxidation of mechanical fasteners and flashing.
Enhanced wind-scour effects on exposed membrane edges.
Thermal expansion and contraction cycles that stress adhesive bonds.
Increased dead load requirements necessitating a structural load-bearing analysis.

Point-Load Analysis and Compression Set Mitigation

The fundamental failure point in ballasted solar installations is the "compression set" of the roof insulation. Most commercial warehouses utilize polyisocyanurate (polyiso) insulation boards. While these boards offer excellent R-values, they have a finite compressive strength. When a heavy concrete ballast block is placed directly on the membrane, it creates a concentrated point load that can crush the insulation cells, leading to a permanent deformation known as a compression set.

Once the insulation is crushed, the ballast block may "bottom out," transferring the entire load directly to the metal deck. This not only risks structural deformation of the deck but also creates a localized low point where water can pond, increasing the likelihood of leaks. To mitigate this, we implement load-distribution plates. These plates increase the surface area of the load, ensuring that the pressure exerted on the insulation remains well within the ASTM limits for the specific density of the board used.

Calculation of PSF (pounds per square foot) at the point of contact.
Verification of insulation density to prevent cellular collapse.
Utilization of load-spreading sleepers to distribute weight across multiple joists.
Monitoring of deck deflection to ensure structural integrity under static load.

Sacrificial Slip-Sheets and Abrasion Barrier Engineering

In a port marine environment, wind loads are not static; they are dynamic and oscillating. This causes ballasted racking systems to shift slightly, a phenomenon that creates a "sawing" effect between the ballast block and the roof membrane. Over time, this friction wears down the protective scrim of the TPO or PVC membrane, leading to a breach in the waterproofing layer. To defend against this, we employ the use of heavy-duty sacrificial slip-sheets.

These slip-sheets act as a sacrificial abrasion barrier, decoupling the mechanical movement of the racking from the primary roof membrane. By utilizing high-density polyethylene (HDPE) or reinforced rubberized sheets, we ensure that the friction occurs between the ballast and the slip-sheet, rather than the slip-sheet and the membrane. This approach adheres to the principle of "planned obsolescence" for the barrier layer, allowing for the replacement of the slip-sheet during routine audits without needing to replace the entire roofing system.

Installation of non-abrasive, UV-stabilized polymers as friction buffers.
Application of oversized slip-sheets to account for lateral racking movement.
Selection of materials with a lower coefficient of friction to reduce shear stress.
Integration of edge-protection strips to prevent wind-driven debris from entering the slip-sheet interface.

Prefabricated Target Patches and Cable Tray Routing

The final stage of a professional envelope audit focuses on the high-risk zones: the areas directly beneath the racking supports and the routing of the electrical conduits. We utilize prefabricated target patches—reinforced membrane sections that are heat-welded to the roof before the racking is placed. These patches provide an extra layer of thickness and tensile strength exactly where the point-load is most severe, serving as a secondary defense against punctures.

Furthermore, the routing of cable trays must be engineered to avoid creating "dams" on the roof. In a shipping warehouse, maintaining a positive slope to the drains is critical. If cable trays are laid haphazardly, they can trap rainwater, leading to ponding and accelerated membrane degradation. We specify the use of elevated cable trays that are mechanically fastened to the racking system rather than the roof deck, ensuring that the water flow remains unobstructed and the membrane remains breathable.

Heat-welding of reinforced TPO target patches at every ballast point.
Implementation of "floating" cable trays to maintain drainage paths.
Use of stainless steel fasteners to prevent galvanic corrosion in saline air.
Strict adherence to ANSI standards for electrical conduit support and securing.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #156

OSHA-Compliant Skylight Fall-Protection Curbs & Heavy-Duty Security Screens on Commercial Municipal Sports & Convention Arenas

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Structural Audit of Large-Scale Arena Skylight Vulnerabilities

In the context of a municipal sports and convention arena, the roof is not merely a cover but a complex engineering system subject to extreme thermal cycling and high wind loads. During our recent building envelope audit, we identified a critical deficiency in the existing skylight assemblies. Most legacy arena installations treat skylights as isolated apertures rather than integrated components of the building envelope. From a master roofer's perspective, the primary concern is the intersection of safety compliance and moisture management. OSHA 1910.28 mandates that any opening in a floor or roof that presents a fall hazard must be protected. In these massive facilities, the sheer scale of the roof often leads to a false sense of security, yet the risk of a technician or HVAC contractor falling through an unprotected skylight is a catastrophic liability.

The engineering challenge lies in retrofitting existing curbs to support heavy-duty security screens without compromising the structural integrity of the roof deck. We analyzed the load-bearing capacity of the existing curb substrates, noting that many were constructed from lightweight gauge steel that lacked the necessary reinforcement for fall-arrest systems. To bring these arenas up to current ANSI and OSHA standards, we must implement a system that provides a rigid, non-deflecting barrier capable of stopping a falling body while maintaining a watertight seal. This requires a holistic approach to the building envelope, ensuring that the addition of safety screens does not create new points of water ingress or thermal bridging.

Evaluation of existing curb gauge and substrate rigidity.
Assessment of fall-through risks based on OSHA 1910.28 guidelines.
Analysis of wind-uplift pressures on oversized skylight openings.
Verification of existing roof membrane compatibility with new curb attachments.

Calculating 200-lb Fall-Arrest Anchoring and Load Distribution

The core of a compliant fall-protection screen is its anchoring system. For a screen to be rated for fall-arrest, it must be engineered to withstand a concentrated load of at least 200 lbs without failure, though industry best practices for municipal arenas suggest a safety factor of 4:1 to account for dynamic impact forces. Our engineering analysis focused on the shear strength of the fasteners and the pull-out resistance of the curb. We determined that standard self-tapping screws are insufficient; instead, we specified heavy-duty stainless steel lag bolts anchored directly into the structural steel of the curb or the reinforced roof joists. The load distribution must be calculated to ensure that the impact of a fall does not warp the curb or tear the surrounding roof membrane.

Material science plays a pivotal role here. We utilized galvanized steel for the security screens to prevent corrosion, but the interface between the screen and the curb requires precise tolerances. By utilizing a distributed anchoring pattern, we ensure that the 200-lb load is spread across multiple points of contact, reducing the stress on any single fastener. This prevents the "zipper effect," where the failure of one bolt leads to a progressive collapse of the entire screen. Furthermore, the screens are designed with a slight inward pitch to prevent the accumulation of debris and standing water, which could otherwise add dead load to the assembly over time.

Calculation of dynamic impact loads versus static load capacities.
Specification of 316-grade stainless steel fasteners for corrosion resistance.
Implementation of a staggered bolting pattern to maximize shear distribution.
Verification of substrate thickness to prevent fastener pull-through.

Curb Flashing Elevation and Water Management Strategies

Adding a security screen to a skylight curb often interferes with the existing flashing, which is the most common point of failure in a commercial roof. A master roofer knows that water management is about controlling the path of least resistance. We analyzed the curb flashing elevation to ensure it exceeds the minimum height requirements for wind-driven rain. In a convention arena, the high volume of air movement can create a vacuum effect, pulling water upward and under the flashing. To combat this, we implemented a high-performance flashing system that extends at least 8 inches above the finished roof surface, creating a robust vertical barrier.

The integration process involves a multi-layered approach. First, the existing membrane is prepared using a compatible primer. Then, a reinforced flashing membrane is wrapped around the curb, ensuring a seamless transition from the horizontal field to the vertical face. We pay particular attention to the "corner cuts" and folds, where water typically ponds. By utilizing a heat-welded TPO or PVC membrane, we create a monolithic bond that eliminates the need for sealant-dependent joints. The security screen is then installed over this flashing, ensuring that the mechanical fasteners do not puncture the primary water barrier without proper sealing.

Establishment of a minimum 8-inch flashing upstand to prevent water ingress.
Application of heat-welded membrane transitions for a seamless envelope.
Installation of drip edges to direct water away from the curb face.
Audit of capillary breaks to prevent moisture migration into the substrate.

Compression Termination Bars and Thermal Gasket Integration

The final seal of the building envelope is achieved through the use of compression termination bars and high-performance thermal gaskets. A termination bar is not merely a trim piece; it is a mechanical fastener that ensures the roof membrane remains locked in place against the curb, preventing the membrane from backing out due to thermal expansion and contraction. We specified heavy-duty aluminum termination bars, which are fastened at 6-inch intervals. This creates a constant, uniform pressure across the entire perimeter of the skylight curb, ensuring that the membrane is fully compressed against the substrate.

To address the issue of thermal bridging and air leakage, we integrated closed-cell EPDM thermal gaskets between the security screen frame and the roof curb. In a climate-controlled arena, the temperature differential between the interior and the roof surface can be extreme. Without a proper gasket, air leaks occur, leading to condensation and potential mold growth within the curb assembly. The gasket acts as a thermal break and a secondary water seal, compressing under the weight of the security screen to create an airtight gasketed seal. This combination of mechanical termination and material science ensures that the skylight remains a secure, weather-tight component of the building envelope.

Installation of aluminum termination bars to prevent membrane lift.
Integration of closed-cell EPDM gaskets for thermal insulation.
Application of high-grade polyurethane sealants at all mechanical penetrations.
Verification of the airtight seal to reduce HVAC energy loss in the arena.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #157

Rooftop Mechanical Unit Vibration Isolation Rails & Spring-Mounted Curb Seals on Commercial Multi-Family Urban Residential Towers

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Harmonic Vibration and the Urban Building Envelope

In the context of high-rise multi-family residential towers, the rooftop is more than a weather barrier; it is a complex mechanical platform. The primary challenge encountered during our engineering audits is the transmission of harmonic vibrations from heavy-duty HVAC units and elevator machinery into the building's structural slab. When mechanical units are bolted directly to a rigid curb, the resulting kinetic energy translates into low-frequency oscillations. Over time, these vibrations act as a catalyst for material fatigue, leading to the degradation of the roofing membrane and the compromise of the building envelope.

The physics of urban towers necessitates a deep understanding of differential movement. Because these structures are designed to sway under wind loads, the interface between a rigid mechanical unit and the flexible roofing system is a point of extreme stress. If the vibration is not decoupled, the constant micro-movement creates a "sawing" effect against the flashing and membrane, eventually breaching the watertight seal. Our analysis indicates that failure typically begins at the perimeter of the curb, where the stress concentration is highest.

Mechanical resonance frequencies that align with the building's natural period of vibration.
Accelerated fatigue of thermoplastic polyolefin (TPO) or modified bitumen membranes.
Development of hairline fractures in the concrete slab beneath the mechanical dunnage.
Transmission of acoustic noise into luxury residential units, violating building code comfort standards.

Engineering Spring-Isolated Equipment Curbs

To mitigate the risks of structural fatigue, we implement spring-mounted vibration isolation rails. Unlike standard rubber pads, which can degrade under UV exposure and lose their elasticity, high-capacity steel springs provide a predictable and sustainable spring constant. These rails are engineered to support the static load of the mechanical equipment while absorbing the dynamic loads generated during start-up and shut-down cycles. By decoupling the equipment from the roof deck, we effectively shift the resonance frequency away from the building's structural range.

The installation of these rails requires precision alignment to ensure that the load is distributed evenly across the structural members. An uneven load distribution can lead to localized deflection of the roof deck, which creates "ponding" areas where water collects, increasing the risk of hydrostatic pressure buildup. Our specification requires that isolation rails be anchored using heavy-duty fasteners that do not penetrate the primary waterproofing layer without a redundant sealing sleeve.

Utilization of open-spring isolators to prevent the accumulation of debris and moisture.
Calculation of static deflection to ensure the unit remains stable during high-wind events.
Integration of leveling bolts to maintain a perfectly horizontal plane for condensate drainage.
Implementation of seismic restraints to prevent lateral shifting during tectonic or wind-induced events.

Fiber-Reinforced Structural Mastic and Interface Sealing

The most critical point of failure in any rooftop mechanical installation is the transition between the rigid curb and the flexible roof membrane. Standard caulking or sealant beads are insufficient for urban towers due to the high magnitude of thermal expansion and contraction. We utilize fiber-reinforced structural mastics, which offer superior tensile strength and elongation properties. The addition of synthetic fibers within the mastic matrix prevents the sealant from tearing under the shear stress caused by the building's natural sway.

The application process follows a rigorous multi-stage protocol. First, the substrate is mechanically cleaned and primed to ensure a chemical bond. The fiber-reinforced mastic is then applied in a wide-lap configuration, creating a reinforced "bridge" that can accommodate several millimeters of movement without losing its integrity. This creates a monolithic seal that is impervious to water ingress, even when subjected to the extreme pressure differentials found at high altitudes.

Application of high-solids, non-sagging structural mastics to vertical curb faces.
Use of fiber-reinforcement to bridge gaps between dissimilar materials (e.g., steel rails to concrete).
Ensuring a minimum 3-inch overlap onto the field membrane to distribute shear loads.
Verification of cure times and shore hardness to ensure the seal is fully operational before unit commissioning.

Watertight Integrity and Engineering Audit Protocols

A successful installation is only as good as its verification. Our audit process for multi-family towers employs a combination of destructive and non-destructive testing to ensure the envelope is truly watertight. We begin with infrared thermography to detect hidden moisture pockets beneath the insulation. This allows us to identify "cold spots" where the vibration isolation rails may have caused a slight lift in the membrane, allowing water to seep in through capillary action.

Following the thermal scan, we conduct a targeted flood test around the mechanical curbs. By creating a controlled ponding environment, we can observe the performance of the fiber-reinforced mastics under hydrostatic pressure. This rigorous approach ensures that the building envelope meets or exceeds ASTM and ANSI standards for commercial roofing. The goal is to move from a reactive maintenance cycle to a proactive engineering lifecycle, extending the roof's lifespan by decades.

Conducting ASTM E1105 field tests to determine the air leakage and water penetration rates.
Visual inspection of all flashing terminations using high-magnification borescopes.
Monitoring of vibration amplitudes using accelerometers to verify the efficiency of the spring rails.
Annual audit of the mastic seals to check for UV degradation or signs of cohesive failure.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #158

Industrial Corrosive Chemical Fume Exhaust Defense on Commercial Public Transit Maintenance Bus Barns

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Environmental Audit and Chemical Stressor Profiling

A comprehensive engineering audit of a Public Transit Maintenance Bus Barn reveals a building envelope under constant chemical assault. Unlike standard industrial warehouses, a bus barn functions as a high-volume processing center for heavy machinery, where the roof system is subjected to a relentless barrage of airborne contaminants. The primary concern is the concentration of corrosive fumes emanating from battery charging stations, degreasing bays, and heavy-duty exhaust systems. These fumes often contain sulfuric and nitric acid vapors, which, when combined with ambient humidity, create a mildly acidic condensate on the roof surface.

Beyond the acidic vapors, the presence of petroleum-based hydrocarbons—specifically motor oils, hydraulic fluids, and diesel exhaust particulates—creates a complex chemical environment. These substances do not merely sit on the surface; they interact with the molecular structure of the roofing membrane. The "chimney effect" created by large-scale exhaust fans concentrates these pollutants at the roof penetration points, making the areas around HVAC curbs and exhaust vents the most vulnerable zones for premature failure.

Acidic Condensate: Sulfuric acid fumes from lead-acid battery arrays that lower the pH of surface moisture, accelerating the oxidation of metal flashing.
Hydrocarbon Saturation: Airborne diesel particulates and oil mists that penetrate porous membranes, leading to structural softening.
Thermal Cycling: Extreme temperature fluctuations caused by high-output industrial heaters and external weather, which expand and contract the envelope.
Particulate Accumulation: Heavy soot and carbon deposits that trap moisture and chemicals against the membrane, creating localized "hot spots" of corrosion.

Material Science: Plasticizer Migration and Membrane Degradation

From a material science perspective, the greatest threat to the longevity of a bus barn roof is the phenomenon of plasticizer migration. Many common commercial membranes, such as standard PVC (Polyvinyl Chloride), rely on plasticizers to maintain flexibility and elongation. When these membranes are exposed to industrial oils and corrosive chemical fumes, a chemical reaction occurs where the hydrocarbons leach the plasticizers out of the polymer matrix. This process results in a catastrophic loss of elasticity, leading to "embrittlement."

Once a membrane becomes brittle, it can no longer accommodate the natural thermal movement of the building. This leads to stress cracking, particularly around the perimeter and at the seams. In a transit facility, this degradation is often accelerated by the high concentration of volatile organic compounds (VOCs) found in industrial solvents used for parts cleaning. If a TPO (Thermoplastic Olefin) membrane is used without a chemical-resistant cap sheet, the non-polar nature of the material may resist some oils, but it remains susceptible to puncture and chemical etching from concentrated acid fumes.

Plasticizer Leaching: The process where oils strip the flexibility-granting molecules from the membrane, causing it to crack under minimal stress.
Polymer Chain Scission: The breaking of chemical bonds within the membrane due to acid exposure, resulting in a loss of tensile strength.
Crazing: The development of a network of fine cracks on the surface of the roof, which allows chemicals to penetrate deeper into the substrate.
Differential Expansion: The failure of the membrane to move in tandem with the steel decking due to loss of elasticity.

Engineering the Chemical Defense Layer and Membrane Selection

To mitigate these risks, the engineering specification must move beyond standard commercial grades to a high-performance, chemically resistant polymer system. The ideal selection for a bus barn environment is a reinforced, high-density modified polymer or a specialized chemical-resistant PVC that is formulated specifically for low plasticizer migration. These membranes are engineered to maintain a stable molecular structure even when subjected to prolonged contact with petroleum distillates and acidic vapors. Adherence to ASTM D5322 standards for chemical resistance is non-negotiable during the selection process.

The defense strategy involves a multi-layered approach. A high-performance vapor barrier is installed first to prevent internal fumes from migrating upward through the insulation. This is followed by a high-density polyisocyanurate insulation board with a factory-applied foil facing, which acts as an additional chemical shield. The final capping layer must be a fully adhered or mechanically attached membrane with heat-welded seams. Heat welding is critical because it creates a monolithic bond, eliminating the reliance on adhesives that can be dissolved by industrial solvents.

Reinforced Polymer Matrix: Utilizing a scrim-reinforced membrane to provide dimensional stability and prevent tearing during thermal shifts.
ASTM D5322 Compliance: Ensuring the material has been laboratory-tested against the specific acids and oils present in the facility.
Monolithic Seaming: Using hot-air welding to fuse the membrane sheets into a single, seamless waterproof skin.
Foil-Faced Insulation: Implementing a reflective, non-porous barrier to block the upward migration of corrosive gases from the shop floor.

Execution, Detailing, and Long-Term Envelope Integrity

The success of a chemical defense system is found in the detailing. In a bus barn, the most frequent points of failure are the roof-to-wall transitions and the flashing around exhaust stacks. A master tradesman knows that standard flashing is insufficient; instead, we employ heavy-duty termination bars and chemical-resistant sealants. All flashing must be integrated into the main membrane via heat-welding to ensure there are no "cold joints" where acid fumes can seep into the building envelope.

Furthermore, the installation of a comprehensive drainage system is essential to prevent the "ponding" of chemically contaminated rainwater. Standing water on a roof acts as a solvent, concentrating the acid fumes and oils into a corrosive slurry that can eat through even the toughest membranes over time. By engineering a steep slope toward oversized internal drains or scuppers, we ensure that the roof surface remains dry and the chemical load is regularly flushed from the system. Regular auditing and infrared thermography are recommended to detect moisture intrusion before it compromises the structural steel of the facility.

Mechanical Termination: Using stainless steel termination bars to secure the membrane to the parapet, preventing wind-uplift and chemical infiltration.
Positive Drainage Engineering: Ensuring a minimum slope of 1/4 inch per foot to eliminate standing water and chemical concentration.
Stainless Steel Fasteners: Replacing galvanized steel with 304 or 316 stainless steel to prevent galvanic corrosion in acidic environments.
Preventative Maintenance Audits: Implementing a quarterly inspection cycle to identify early signs of plasticizer loss or surface etching.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Engineering Dossier #159

Active Emergency Leak Catchment Tarps & Interior Production Bay Diversion on Commercial Government Secure Records Archives

Industrial Building Envelope Sciences • Commercial Low-Slope Systems

Building Envelope Audit and Critical Failure Analysis

In the context of a Government Secure Records Archive, the building envelope is not merely a shell but a critical security component. A comprehensive engineering audit of the facility revealed systemic failures in the primary roofing membrane and secondary flashing details. The archives house high-value, irreplaceable physical assets, meaning any moisture intrusion represents a catastrophic risk to national security and historical continuity. Our audit identified localized membrane fatigue and compromised parapet wall flashing, which allowed wind-driven rain to penetrate the substrate via capillary action and hydrostatic pressure.

The failure points were concentrated around the HVAC curb penetrations and the primary drainage scuppers, where thermal expansion and contraction had caused the sealant to pull away from the masonry. This created a direct path for water to migrate through the roof deck and into the interior production bay. Because the facility utilizes a reinforced concrete slab, the water did not simply pool on the roof; it tracked along the structural steel beams, resulting in unpredictable "drop points" directly above sensitive archival shelving and electronic data servers.

Assessment of membrane tensile strength and elasticity under extreme thermal cycling.
Identification of flashing voids at the intersection of the roof deck and vertical parapet walls.
Analysis of ponding water patterns that exceeded the design capacity of the existing internal drains.
Evaluation of the vapor barrier integrity to prevent interstitial condensation within the insulation layers.

Material Science of Industrial Heavy-Duty Vinyl Diverters

When dealing with emergency leak catchment in a high-security environment, standard polyethylene sheeting is insufficient due to its low tear strength and susceptibility to puncture. For this operation, Aquashield deployed industrial-grade, 22oz PVC-coated polyester vinyl tarps. These materials are engineered for high tensile strength and superior abrasion resistance, ensuring that the catchment system does not fail under the weight of accumulated water during a peak precipitation event. The material science behind these diverters allows for a non-permeable barrier that can withstand the chemical additives often found in commercial roof coatings without degrading.

The deployment strategy focused on creating a "catch-and-channel" system. Rather than attempting to seal a leak from the exterior during a storm—which often introduces more water into the building—we installed the vinyl diverters internally. By utilizing the natural contours of the ceiling joists and the structural steel, we created a suspended catchment basin. This approach effectively decoupled the interior environment from the failing exterior envelope, providing an immediate stop-gap that protected the production bay while the engineering team finalized the permanent repair specifications.

Utilization of PVC-coated polyester for maximum puncture resistance and waterproof integrity.
Implementation of heat-welded seams on custom-cut tarp sections to eliminate leakage at the joints.
Application of UV-stabilized materials to prevent degradation if temporary exterior sections were required.
Selection of high-denier fabric to ensure the diverters could support the hydrostatic load of trapped water.

Strategic Diversion and Interior Production Bay Routing

The primary challenge in a secure records archive is the routing of diverted water. Water cannot simply be collected in buckets; it must be moved away from high-value equipment and records in a controlled, predictable manner. Our team engineered a diversion system that utilized gravity-fed routing. By calculating the precise slope of the vinyl diverters, we directed the water flow away from the archival stacks and toward a dedicated drainage corridor. This required the installation of reinforced vinyl troughs that acted as temporary gutters, guiding the water into industrial sump systems.

To ensure the system remained secure, we employed mechanical fastening techniques that avoided penetrating the archive's sensitive interior finishes. We used heavy-duty tensioning straps and magnetic anchors to secure the diverters to the structural steel. This ensured that if a sudden surge of water entered the building, the weight of the water would not cause the tarp to collapse onto the equipment below. The routing protocol followed a strict "safe-zone" map, ensuring that water was never diverted over electrical conduits or server racks, maintaining a total separation between the moisture path and the critical infrastructure.

Calculation of minimum slope requirements to ensure positive drainage and prevent stagnant pooling.
Installation of secure, non-penetrating fasteners to maintain the integrity of the interior ceiling.
Coordination of water discharge points with existing facility plumbing and sump pump capacities.
Implementation of a redundant "fail-safe" catchment layer beneath the primary diverter.

Long-Term Remediation and Envelope Stabilization

While the vinyl diverters provided immediate protection, the ultimate goal was the restoration of the building envelope to ASTM and ANSI standards. The transition from emergency catchment to permanent repair began with a full-depth moisture survey of the roof insulation. We discovered that the saturated polyisocyanurate insulation had lost its R-value and was trapping moisture against the deck. The remediation process involved the removal of compromised insulation and the installation of a new, fully adhered TPO (Thermoplastic Polyolefin) membrane, which offers superior weldability and resistance to puncture.

Special attention was paid to the flashing details, which were the root cause of the initial failure. We implemented a multi-layered flashing system at all parapet intersections, utilizing reinforced flashing membranes and high-performance termination bars. This created a redundant seal that could accommodate the building's natural movement. By integrating the new membrane with a high-performance sealant at the curb transitions, we ensured that the building envelope was once again a monolithic barrier, eliminating the need for interior diversion and restoring the secure environment required for government archives.

Execution of a full-scale moisture scan to identify hidden pockets of saturated insulation.
Installation of a heat-welded TPO membrane to ensure seamless water-tightness across the entire roof plane.
Application of reinforced flashing at all critical penetrations and parapet walls per ASTM standards.
Final validation through flood testing to confirm the total elimination of leak paths into the production bay.

Aquashield Roofing Corporation

4006 Morris Ct.
Chesapeake, VA 23323
Direct Line: 757-553-5191
GPS Coordinates: 36.755164, -76.353932

Official Facebook Updates

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

585 S Birdneck Rd #106
Virginia Beach, VA 23451
Direct Line: +17576318100
Google Maps Plus Code: RXCX+V7 Virginia Beach, Virginia
GPS Coordinates: 36.822156, -76.001565

Commercial Flat Roofing & Industrial Facility Engineering

Non-Destructive Substrate Moisture Scans on Commercial Chemical Processing Facilitys

The Complexity of Building Envelopes in Chemical Processing Environments

Non-Destructive Moisture Detection and Saturation Boundaries

Validating Moisture Thresholds via Core Sampling and Material Science

Surgical Excision and Precision Remediation Strategy

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Sub-Zero Cold Storage Downward Vapor Drive & Self-Adhered SBS Barriers on Commercial Municipal City Hall & Administrative Complexs

Analysis of Downward Vapor Drive in High-Occupancy Municipal Structures

Managing the Dew Point via Staggered Polyisocyanurate Arrays

High-Performance SBS Self-Adhered Barriers as Primary Air-Vapor Seals

Engineering Audit Conclusions and ASTM Compliance Metrics

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Structural Deck Fastener Pull-Out Testing on 22-Gauge Corrugated Steel Decks on Commercial High-Rise Commercial Penthouse Towers

Substrate Analysis and Wind-Zone Exposure in High-Rise Penthouse Towers

Calibrated Mechanical Pull Testing Methodology

Withdrawal Resistance Thresholds and Structural Failure Analysis

Corrosion Diagnostics and Long-Term Envelope Stability

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Electronic Vector Mapping (EVM) Low-Voltage Membrane Breach Detection on Commercial Regional Healthcare Medical Centers

The Criticality of Healthcare Building Envelope Integrity

Mechanics of Electronic Vector Mapping (EVM) and Conductive Grids

Identifying Microscopic Pinhole Punctures and Material Science

Non-Destructive Quality Certification and Lifecycle ROI

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Liquid-Applied PMMA & Polyurethane Fleece-Reinforced Flashing Resins on Commercial University Research Laboratorys

Envelope Audit and Failure Analysis of Research Facility Substrates

Material Science of PMMA and Polyurethane Cold-Applied Resins

Engineering Fleece-Reinforced Flashing Systems

Execution on Intricate I-Beam Stanchions and Final Validation

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Commercial Expansion Joint Bellows & Heavy-Gauge Neoprene Movement Transitions on Commercial Suburban Corporate Office Parks

Structural Dynamics and Differential Settlement in Corporate Campuses

Engineering the Elastomeric Expansion Bellows

Heavy-Gauge Neoprene Transitions and Interface Management

Audit Findings: Failure Analysis and Watertight Tie-in Protocols

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Commercial Kitchen Grease Containment & 304 Stainless Steel Catchment Shielding on Commercial Big-Box Retail Power Centers

The Chemistry of Lipid Degradation on Polymeric Membranes

Engineering the 304 Stainless Steel Catchment Shielding

Sacrificial Chemical-Resistant Coatings and Barrier Layers

Audit Protocols and Lifecycle Maintenance Standards

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Clear-Span Structural Joist Deflection Forensics & Ponding Instability Remediation on Commercial Food Packaging & Cold Logistics Plants

Forensic Evaluation of Structural Joist Deflection in Cold Logistics Facilities

The Mechanics of Ponding Instability and Membrane Fatigue

Engineering Remediation via Custom Tapered Polyiso Crickets

Final Envelope Integration and Strategic Water Routing

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Complete Old Roof Tear-Offs Down to Clean Wood Decking & Substrate Remediation on Commercial Semiconductor Cleanroom Fabs

The Engineering Audit and Systematic Deconstruction of Multi-Layer Assemblies

Forensic Analysis of Structural Wood Decking and Moisture Profiling

Substrate Remediation and Material Science of Wood Replacement

Final Envelope Integration and Quality Assurance Protocols

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Stripping Old Shingles Down to Clean Wood Sheathing Across Commercial Eaves on Commercial Intermodal Cargo Freight Terminals

Systematic Deconstruction and Multi-Layer Substrate Auditing

Fastener Withdrawal Resistance and Material Science Analysis

Structural Remediation and Rafter Sistering Protocols

Establishing the Flat Decking Plane for Envelope Integration

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Low-VOC Cold-Applied Adhesives & HVAC Air Intake Odor Mitigation Protocols on Commercial Port Marine Shipping Warehouses

Environmental Stressors and Envelope Audit of Port Marine Facilities

Material Science of Low-VOC Polyurethane Bonding Agents

HVAC Air Intake Containment and Odor Mitigation Protocols

Engineering Execution for Zero-Downtime Warehouse Operations

Aquashield Roofing Corporation

Virginia Beach Roofing Company - Roofing Service Virginia Beach VA, Roofing Contractor

Solar Photovoltaic Ballasted Racking Point-Load Defense & Sacrificial Slip Sheets on Commercial Municipal Sports & Convention Arenas

The Mechanics of Point-Load Compression and Insulation Fatigue
